To reinstall the seat, hook the f ront
of the seat to the f loor, then push the
rear of the seat-back until it locks in
place. Make sure the seat is securely
latched bef ore driving.
Unlock the seat f rom the f loor by
pulling the lock release lever
under the seat cushion’s f ront
edge and lif ting the rear of the
seat.
Unhook the f ront of the seat f rom
the f loor by pulling it back slightly,
then pivoting it upward. Your vehicle has a plus-one seat for
the second row center position.
You can remove the plus-one seat
when it is not used. Do not remove
the seat while driving.
2.
3.
Except U.S. LX and Canadian DX models
Removing the Second Row
Plus-One Seat
Seats
178
\f—\f—
y

\fy
(\fy\f
y
2009 Odyssey

To remove the plus-one seat:Unlock the seat from the floor by
pulling the lock release lever and
lifting the rear of the seat.Unhook the f ront of the seat f rom
the f loor by pulling it back slightly,
then pivoting it upward.
Fold the seat-back forward by
pulling the seat-back strap.
Remove the seat cushion by
pulling the seat cushion strap.
Lower the head restraints f ully.
1.
2.
3. 4.5.
Seats
Inst rument s and Cont rols
179
SEAT CUSHION STRAP
SEAT-BACK STRAP LOCK RELEASE LEVER
\f—\f—
y


y
(\fy\f
y
2009 Odyssey

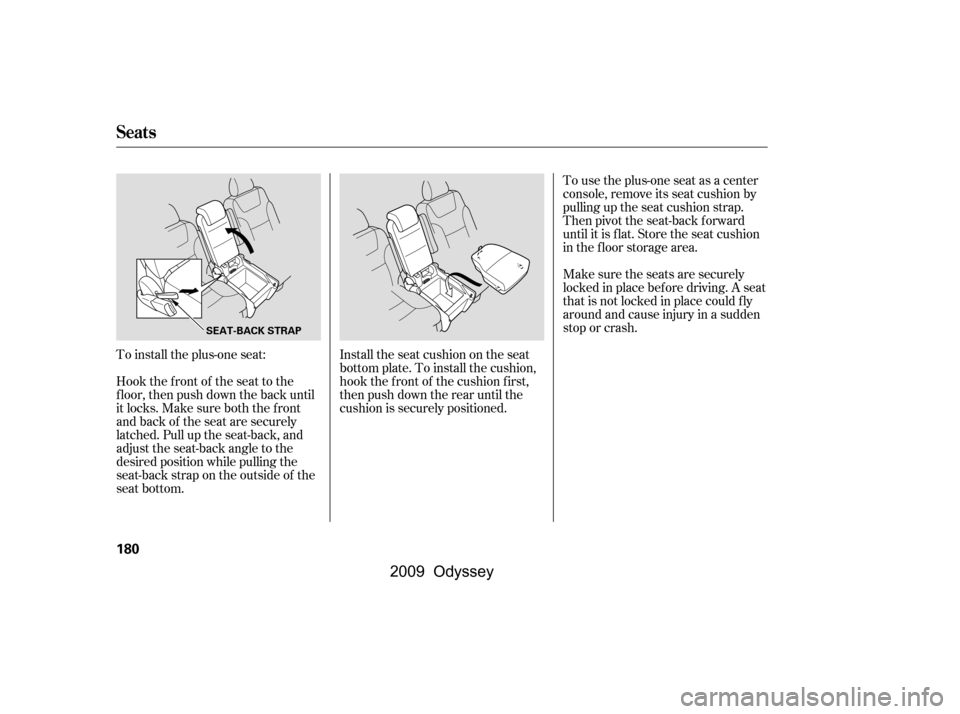

To install the plus-one seat:Install the seat cushion on the seat
bottom plate. To install the cushion,
hook the f ront of the cushion f irst,
then push down the rear until the
cushion is securely positioned. To use the plus-one seat as a center
console, remove its seat cushion by
pulling up the seat cushion strap.
Then pivot the seat-back forward
until it is f lat. Store the seat cushion
in the f loor storage area.
Make sure the seats are securely
locked in place bef ore driving. A seat
thatisnotlockedinplacecouldfly
around and cause injury in a sudden
stop or crash.
Hook the f ront of the seat to the
f loor, then push down the back until
it locks. Make sure both the f ront
and back of the seat are securely
latched. Pull up the seat-back, and
adjust the seat-back angle to the
desired position while pulling the
seat-back strap on the outside of the
seat bottom.
Seats
180
SEAT-BACK STRAP
\f—\f—
y

y
(\fy\f
y
2009 Odyssey

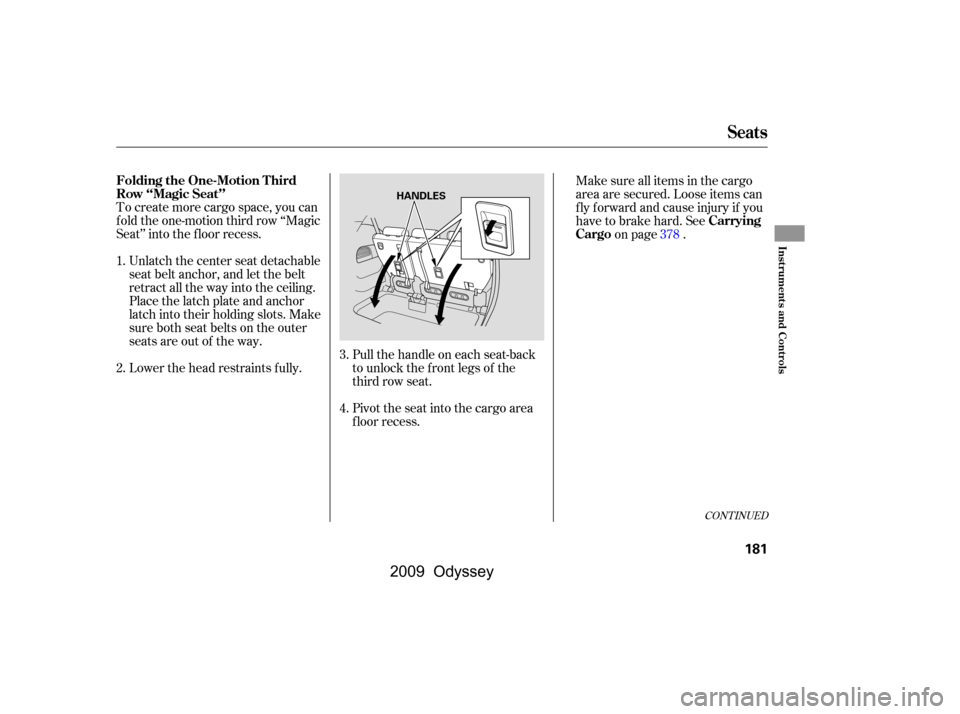

To create more cargo space, you can
f old the one-motion third row ‘‘Magic
Seat’’ into the floor recess.Unlatch the center seat detachable
seat belt anchor, and let the belt
retract all the way into the ceiling.
Place the latch plate and anchor
latch into their holding slots. Make
sure both seat belts on the outer
seats are out of the way.
Lower the head restraints f ully. Pull the handle on each seat-back
to unlock the f ront legs of the
third row seat.
Pivot the seat into the cargo area
f loor recess.Make sure all items in the cargo
area are secured. Loose items can
fly forward and cause injury if you
have to brake hard. See
on page .
3.
4.
1.
2.
378
CONT INUED
Folding the One-Motion T hird
Row ‘‘Magic Seat’’
Carrying
Cargo
Seats
Inst rument s and Cont rols
181
HANDLES
\f—\f—
y


y
(\fy\f
y
2009 Odyssey

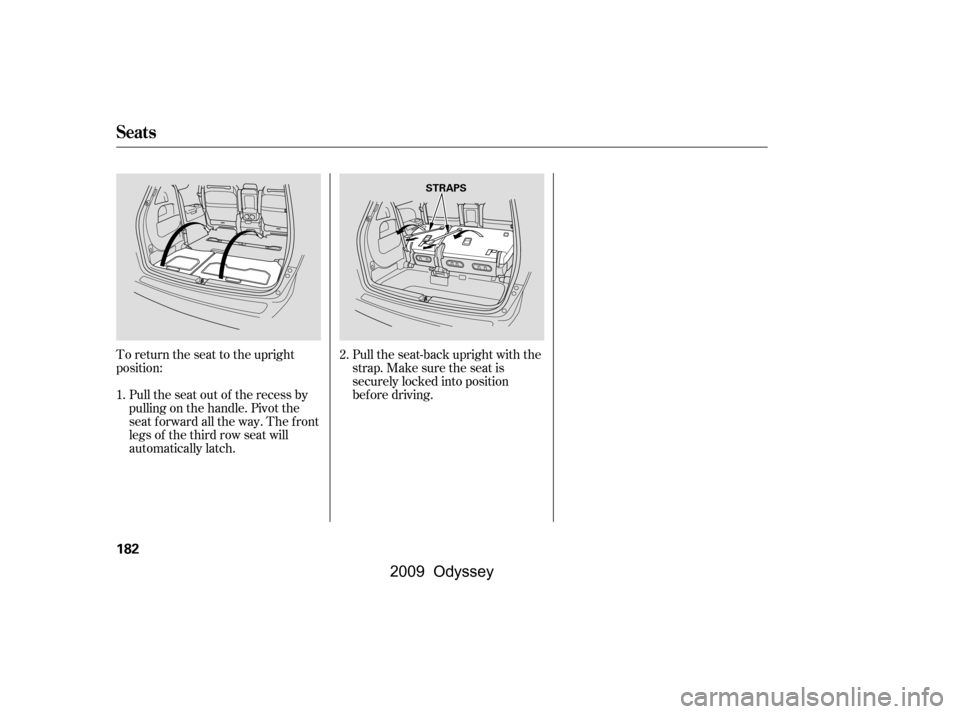

To return the seat to the upright
position:Pull the seat-back upright with the
strap. Make sure the seat is
securely locked into position
bef ore driving.
Pull the seat out of the recess by
pulling on the handle. Pivot the
seat forward all the way. The front
legs of the third row seat will
automatically latch.
1.
2.
Seats
182
STRAPS
\f—\f—
y

y
(\fy\f
y
2009 Odyssey

If the engine is lef t idling f or an
extended period, do not use the
seat heaters, even on the LO
setting. It can weaken the battery,
causing hard starting.
Use the HI setting only to heat the
seats quickly, because it draws
large amounts of current f rom the
battery.
Follow these precautions when using
the seat heaters:
In the HI setting, the heater turns off
when the seat gets warm, and turns
back on after the seat’s temperature
drops.
In LO, the heater does not cycle with
temperature change.
Both f ront seats are equipped with
seat heaters. The passenger seat
only has heaters in the seat bottom
because of the side airbag system.
The ignition switch must be in the
ON (II) position to use them. The
seat heater switches are located on
the dashboard above the center
pocket. Push the top of the switch,
HI, to rapidly heat up the seat.
After the seat reaches a comfortable
temperature, select LO by pushing the bottom of the switch. This will
keep the seat warm.
On EX-L and Touring models
Seat Heaters
Inst rument s and Cont rols
183
SEAT HEATER SWITCHES
Passenger’s
seat
Driver’s
seat
HEATERS
\f—\f—
y

y
(\fy\f
y
2009 Odyssey

Store a driver’s seat position only
when the vehicle is parked.Turn the ignition switch to the ON
(II) position. You cannot add a
new seat position in memory
unless the ignition switch is in the
ON (II) position. You can recall a
memorized position with the
ignition switch in any position. Press and release the MEMO
button on the driver’s door. You
will hear a beep. Then, both
indicators in the memory buttons
will start to blink. Press and hold
one of the memory buttons (1 or
2) within 5 seconds af ter you press
the MEMO button. When the
system completes storing a new
driving position, you hear two
beeps. The indicator in the stored
memory button will come on.
Adjust the seat to a comfortable
position (see page ).
Adjust the outside mirrors f or best
visibility (see page ).
Your vehicle has a memory feature
f or the driver’s seat and outside
mirror positions.
Two seat and outside mirror
positionscanbestoredinseparate
memories. You select a memorized
position by pushing the appropriate
button or using the appropriate
remote transmitter (Driver 1 or
Driver 2).
This setting can be linked or
unlinked with the remote transmitter.
For more inf ormation, see page .
You can change the ‘‘MEMORY
POSITION LINK’’ setting on the
multi-inf ormation display (see page
). 1.
2.
3.
4.
170
191
149
116
On Touring modelsStoring a Driving Position in
Memory
Driving Position Memory System
184
MEMO BUTTON
MEMORY
BUTTONS
INDICATORS
\f—\f—
y

y
(\fy\f
y
2009 Odyssey

Doing any of the f ollowing af ter
pressing the MEMO button will
cancel the storing procedure.Not press a memory button within
5 seconds.
To select a memorized position, do
this:
Pressing the MEMO button again
within 5 seconds.
Press the desired memory button
(1 or 2) until you hear a beep.
Readjust the seat position.
Readjusting the outside mirror
position.
All stored driving positions will be
lost if your vehicle’s battery goes
dead or is disconnected.
Each memory button stores only one
driving position. Storing a new
position erases the previous setting
stored in that button’s memory. If
you want to add a new position while
retaining the current one, use the
other memory button. The system will move the seat and
outside mirrors to the memorized
positions. The indicator in theselected memory button will f lash
during movement. When the
adjustments are complete, you will
hear two beeps, and the indicator will
remain on.
To stop the system’s automatic
adjustment, do any of these actions:
Press any button on the driver’s
door: MEMO, memory button 1 or
2.
Push any of the adjustment
switches f or the seat.
Shif t out of Park.
Adjust the outside mirrors.
If desired, you can use the
adjustment switches to change the
positions of the seat or outside
mirrors af ter they are in their
memorized positions. If you change
the memorized position, the
indicator in the memory button will
go out. To keep this driving position
f or later use, you must store it in the
driving position memory.
Make sure the shif t lever is in the
Park (P) position.
1.
2.
Selecting a Memorized Position
Driving Position Memory System
Inst rument s and Cont rols
185
MEMORY BUTTONS
\f—\f—
y

\fy
(\fy\f
\fy
2009 Odyssey

µ
µ
The windows will operate f or up to
10 minutes af ter you turn of f the
ignition switch. Opening either f ront
door cancels this f unction.
To open/close the driver’s
window, push the window switch
f irmly down or up to the second
detent, and release it. The window
will automatically go up or down all
the way. To stop the window, pull/
push on the window switch brief ly.
If the MAIN switch is OFF, the
passenger windows cannot be raised
or lowered. Keep the MAIN switch
off whenyouhavechildreninthe
vehicle so they do not injure
themselves by operating the
windows unintentionally.
If the driver’s
window senses any obstacle while it
is closing automatically, it will
reverse direction, and then stop. To
close the window, remove the
obstacle, then use the window switch
again.
Turn the ignition switch to the ON
(II) position to raise or lower any
window. To open the window, push
the switch down to the f irst detent
andholdit.Releasetheswitchwhen
you want the window to stop. Pull
back on the switch and hold it to
close the window.
Auto reverse stops sensing when the
window is almost closed. You should
always check that all passengers and
objects are away from the window
bef ore closing it.
Only on the driver’s window,
the auto reverse f unction is disabled
when you continuously pull up the
switch.
AUTO
AUTO REVERSE
Power Windows
186
NOTE:
MAIN SWITCHDRIVER’S WINDOW SWITCH
Closing a power window on
someone’s hands or fingers can
cause serious injury.
Make sure your passengers are
away from the windows before
closing them.
——
y


y
(y

y
2009 Odyssey

Press the UNLOCK button a
second time, and hold it. The
passenger’s doors unlock, and all
f our windows start to open. To
stop the windows, release the
button.
To open the windows f urther,
press the button again (within 10
seconds of step 1) and hold it. If
the windows stop bef ore the
desired position, repeat steps 1
and 2.
If your vehicle’s battery is
disconnected or goes dead, or the
driver’s window f use is removed, the
AUTO f unction may be disabled. If
the AUTO f unction is disabled, the
power window system will need to be
reset af ter reconnecting the battery
or installing the f use.
If the power windows do not operate
properly af ter resetting, have your
vehicle checked by your dealer.
Pull and hold the driver’s window
switch to close the window
completely, then hold the switch
f or about 2 seconds.
Start the engine. Push down and
hold the driver’s window switch
until the window is f ully open.
You cannot close the windows with
the remote transmitter.
You can open all of the windows
from the outside with the remote
transmitter.
Press the UNLOCK button once
to unlock the driver’s door.
1.
2.
3.
1. 2.
On EX, EX-L and Touring models
Opening the Windows with the
Remote Transmitter
Power Windows
Inst rument s and Cont rols
187
UNLOCK
BUTTON
\f—\f—
y

y
(\fy\f
y
2009 Odyssey
