There may also be other geographic
situations or structures that could
af f ect satellite radio reception.If your XM Radio service has expired
or you purchased your vehicle f rom
a previous owner, you can listen to a
sampling of the broadcasts available
on XM Radio. With the ignition
switch in the ACCESSORY (I) or the
ON (II) position, push the PWR/
VOL knob to turn on the audio
system and press the XM RADIO
button. A variety of music types and
styles will play.After you’ve registered with XM
Radio, keep your audio system in the
satellite radio mode while you wait
f or activation. This should take about
30 minutes.
While waiting f or activation, make
sure your vehicle remains in an open
area with good reception. Once your
audio system is activated,
‘‘CATEGORY’’ or ‘‘CH’’ will appear in
the display, and you’ll be able to
listen to XM Radio broadcasts. XM
Radio will continue to send an
activation signal to your vehicle f or
at least 12 hours from the activation
request. If the service has not been
activated after 36 hours, contact XM
Radio. In Canada, contact XM
CANADA
.
If you decide to purchase XM Radio
service, contact XM Radio at
,orat
1-800-852-9696. In Canada, contact
XM CANADA
at , or
at 1-877-209-0079. You will need to
give them your radio I.D. number
and your credit card number. To get
your radio I.D. number, turn the
TUNE knob until ‘‘0’’ appears in the
display. Your I.D. will appear in the
display.
As required by the FCC:
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
www.xmradio.comwww.xmradio.ca
Playing the XMRadio (Models with navigation system)
Receiving XM Radio Service
262
——
y
y
(yy
2010 Odyssey

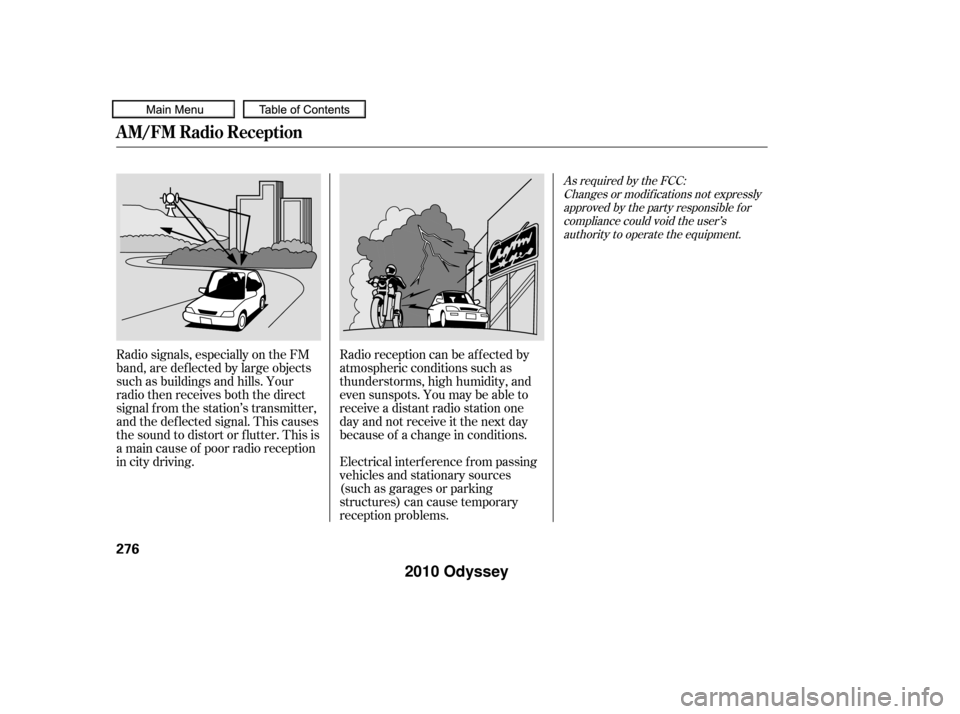

Radio signals, especially on the FM
band, are def lected by large objects
such as buildings and hills. Your
radio then receives both the direct
signal f rom the station’s transmitter,
and the def lected signal. This causes
the sound to distort or flutter. This is
a main cause of poor radio reception
in city driving.Radio reception can be af f ected by
atmospheric conditions such as
thunderstorms, high humidity, and
even sunspots. You may be able to
receive a distant radio station one
day and not receive it the next day
because of a change in conditions.
Electrical interf erence f rom passing
vehicles and stationary sources
(such as garages or parking
structures) can cause temporary
reception problems.
As required by the FCC:
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
A M/FM Radio Reception
276
——
y
y
(y
y
2010 Odyssey

Those packages or jackets should
also bear the designation of ‘‘1’’ or
‘‘ALL’’ region. DVD-ROMs cannot be
played in this system.
The tips on how to handle and
protect DVDs are basically the same
as those f or compact discs. Ref er to
‘‘Protecting Your CDs’’ on page .
There are various types of DVDs
available. Some of them are not
compatible with your system.
The DVD player in your rear
entertainment system can play
DVDs and CDs bearing the above
marks on their packages or jackets. 272As required by the FCC: This device
complies with Part 15 of the FCC rules.Operation is subject to the f ollowing twoconditions: (1) This device may notcause harmf ul interf erence, and (2) thisdevice must accept any interf erencereceived, including interf erence thatmay cause undesired operation.
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
This device complies with IndustryCanada Standard RSS-210. Operation issubject to the f ollowing two conditions:(1) this device may not causeinterf erence, and (2) this device mustaccept any interf erence that may causeundesired operation of the device.
Rear Entertainment System
Protecting DVDs
Playable DVDs
Features
313
——
y
y
(y
y
2010 Odyssey

Tap the brake pedal.
Push the CANCEL button on the
steering wheel.
You can cancel cruise control in any
of these ways:
Push the CRUISE button on the
steering wheel. Pressing the CRUISE button turns
the system completely of f and erases
the previous set speed. When you push the CANCEL button
or tap the brake pedal, the system
remembers the previously set speed.
To return to that speed, accelerate to
above25mph(40km/h),thenpress
and release the RES/ACCEL button.
The CRUISE CONTROL indicator
comes on. The vehicle accelerates to
thesamespeedasbefore. The cruise control will be canceled
when the vehicle speed reaches
about 25 mph (40 km/h) or less.
Canceling Cruise Control
Resuming the Set Speed
Cruise Control
Features
321
CANCEL BUTTONCRUISE BUTTON
——
y

y
(yy
2010 Odyssey

As required by the FCC:This device complies with Part 15 of theFCC rules. Operation is subject to thef ollowing two conditions: (1) This devicemay not cause harmf ul interf erence, and(2) this device must accept anyinterf erence received, includinginterf erence that may cause undesiredoperation.
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
This device complies with IndustryCanada Standard RSS-210.Operation is subject to the f ollowing twoconditions: (1) this device may not causeinterf erence, and (2) this device mustaccept any interf erence that may causeundesired operation of the device.HomeLinkis a registered
trademark of Johnson Controls, Inc.
HomeL inkUniversal Transceiver
324
——
y

y
(yy
2010 Odyssey

Your vehicle is equipped with the
HandsFreeLink(HFL).
HFL uses
technology to
link your cell phone to your vehicle.
With HFL, you can place and receive
calls through your vehicle’s audio
system, without the distraction of
handling your cell phone. To use this
f eature, you need a Bluetooth-
compatible cell phone with the
Hands Free Prof ile. For more
inf ormation, and a list of compatible
cell phones, visit , or call (888) 528-7876. In
Canada, visit , or call
(888) 9-HONDA-9. Here are the main features of HFL.
Instructions f or using HFL begin on
page .
HFL recognizes simple voice
commands, such as phone numbers
and names. It uses these commands
to automatically dial, receive, and
store numbers. For more
inf ormation on voice control, see
UsingVoiceControlonpage .
The
name and logos are
registered trademarks owned by
Bluetooth SIG, Inc. and any use of
such marks by Honda Motor Co.,
Ltd. is under license. Other
trademarks and trade names
are those of their respective owners. Bluetooth is the wireless technology
that links your phone to HFL. HFL
uses a Class 2 Bluetooth, which
means the maximum range between
yourphoneandvehicleis30feet(10
meters).
To use HFL, your phone must have
approved Bluetooth capability along
with the Hands Free Profile. This
type of phone is available through
many phone makers and cellular
carriers. You can also find an
approved phone by visiting
, or by calling
the HandsFreeLink
consumer
support at (888) 528-7876. In Canada,
visit , or call (888)
The HFL is available in English on
U.S. models, and in both English and
French on Canadian models. To
change the language, see page .
The voice of HFL is set to f emale. 359329
329
BluetoothBluetooth
handsf reelink.honda.
com www.honda.ca Bluetooth
handsf reelink.honda.com
www.honda.ca
BluetoothHandsFreeL ink
On models wit h navigat ion syst em
Bluet oot h
Wireless Technology
Voice Control HFL
Features
325
——
y
y
(yy
9-HONDA-9.
2010 Odyssey

With a linked phone, HFL allows you
to send and receive calls in your
vehicle without holding the phone.
The HFL system has a help f unction
to provide instructions f or pairing a
phone, and give hints on how to
operate HFL properly. If your
response or command is not correct,
or the system cannot recognize a
command, the HFL system will give
you an appropriate command or play
the help prompt.HFL can store up to 50 names and
phone numbers in its phonebook.
Withalinkedphone,youcanthen
automatically dial any name or
number in the phonebook.
Your vehicle’s HFL system has the
cellular phonebook import f unction.
This allows you to import your
cellular phonebook to HFL. Using
the navigation system, you can make
acalldirectlyandstoreadesired
number in HFL f rom the list shown
on the navigation display. For
more inf ormation on how to import
the phonebook, see page . To
make a call, see page . Your phone may not have
phonebook import f unction. Visit ,orcallthe
HandsFreeLink
consumer support
at (888) 528-7876. In Canada, call
(888) 9-HONDA-9. You can see your
phone’s owner’s manual f or
inf ormation.
You can also store the desired
number to the HFL phonebook
directly f rom your cell phone using
the receive contact f unction in HFL.
340351
handsf reelink.honda.com
BluetoothHandsFreeL ink
Incoming/Outgoing Calls
Help Assistance Phonebook
326
NOTE:
——
y
y
(y
y
2010 Odyssey

CONT INUED
HFL is operated by the HFL Talk
and Back buttons on the left side of
the steering wheel. The next f ew
pages provide instructions f or all
basic f eatures of HFL.
Here are some guidelines f or using
voice control:Adjust the airflow from both the
dashboard and side vents so they
do not blow against the
microphone on the ceiling. To enter a command, press and
release the HFL Talk button. After
the beep, say your command in a
clear, natural tone.
Lower the A/C f an speed during
voice recognition operation.
If the microphone picks up voices
other than yours, the system may
not interpret your voice
commands correctly.
If HFL does not recognize a
command, its response is ‘‘Pardon.’’
If it doesn’t recognize the
command it plays an appropriate
Help prompt. Response time may
vary depending on the voice
command.
To hear a list of available options
at any time, press the HFL Talk
button, wait f or the beep, and say
‘‘Hands f ree help’’ or ‘‘Help.’’When you are at the main menu,
you can hear general HFL
inf ormation such as pairing or
setting up the system. Press the
HFL Talk button, wait f or the beep,
and say ‘‘Tutorial.’’
Many commands can be spoken
together. For example, you can
say, ‘‘Dial 123-456-7891.’’
To enter a string of numbers in a
Call or Dial command, you can say
them all at once, or you can
separate them in blocks of 3, 4, 7,
10, and 11.
To skip a voice prompt, press the
HFL Talk button while HFL is
speaking. HFL will then begin
listening f or your next command.
Close the windows and the
moonroof (if equipped).
BluetoothHandsFreeL ink
How to Use HFL
A ll phones may not
operate identically, and some
may cause inconsistent operation
of HFL .
Using Voice Control
Features
329
NOTE:
——
y
y
(yy
2010 Odyssey

To go back one step in a command
process, say ‘‘Go back,’’ or press
the HFL Back button.
If nothing is said while HFL is
listening f or a command, HFL will
time out and stop its voice
recognition, then prompt you with
available options or help
inf ormation. The next time you
press the HFL Talk button, HFL
begins listening f rom the point at
which it timed out.
To end a command sequence at
any time, press and hold the HFL
Back button, or press and release
the HFL Talk button, wait for the
beep, and say ‘‘Cancel.’’ The next
time you press the HFL Talk
button, HFL begins f rom the main
menu.When you f inish a command
sequence, HFL returns to idle. For
example, when you store the name
‘‘Eric,’’ the HFL system response
is ‘‘Eric has been stored.’’ The
next time you press the HFL Talk
button, HFL begins f rom the main
menu.
Your
compatible phone
with Hands Free Prof ile must be
paired to HFL bef ore you can make
and receive hands-free calls. To
conf irm that your phone is
compatible, visit , or call (888)
528-7876. In Canada, call (888) 9-
HONDA-9. Your phone retailer
should also be able to conf irm that
your phone is
compatible. HFL does not allow you to pair
your phone if the vehicle is
moving.
For pairing, your phone must be in
its discovery mode (searching f or
a Bluetooth related device).
Up to six phones can be paired to
HFL.
Your phone’s battery may drain
f aster when it is paired to HFL.
The f ollowing procedure works f or
most phones. If you cannot pair
your phone to HFL with this
procedure, ref er to your phone’s
operating manual, visit
,callthe
HandsFreeLink
consumer
support at (888) 528-7876, or call
your phone retailer. In Canada,
call (888) 9-HONDA-9.
Bluetooth
Bluetooth handsf reelink.honda.com
Bluetooth handsf reelink.honda.com
BluetoothHandsFreeL ink
Pairing Your Phone
330
NOTE:
——
y
y
(yy
2010 Odyssey

»¼
ÎÎ
CONT INUED
Press and release the Talk button.
Af ter the beep, say ‘‘Yes.’’ HFL
responds ‘‘Entering phone set up:
pair menu. The pairing process
requires operation of your
Bluetooth phone. For saf ety, only
perf orm this f unction while the
vehicle is stopped.’’
HFL responds ‘‘For proper system
f unction a compatible Bluetooth
phone is required. Please visit the
HandsFreeLink
website, listed in
the owner’s manual, f or a list of
approved phones and other system
inf ormation. HandsFreeLink is
waiting to pair with a Bluetooth
phone. From your phone, search
f or Bluetooth devices and select
HandsFreeLink.’’
During the pairing process, turn
of f any previously paired phones
bef ore pairing a new phone.
Each time a phone is paired with
HFL, the system selects a pairing
code randomly or sequentially.
You can switch this setting
between random mode and f ixed
mode. To select a pairing code
setting between Random and
Fixed, refer to page .
If af ter three minutes your phone
is not ready to pair or a phone is
not f ound, the system will time out
andreturntoidle.
Park your vehicle. With your
phone on and the ignition switch in
the ACCESSORY (I) or ON (II)
position, press and release the
Talk button.
HFL prompts ‘‘Welcome to
Bluetooth HandsFreeLink. This
system enables hands-f ree usage
of a mobile phone. Bef ore using
this system, a phone needs to be
paired or connected with
HandsFreeLink. Would you like to
pair a phone now? Press the
Bluetooth HandsFreeLink Talk
button, and after the beep, say Yes,
to begin the pairing process, or No,
to continue.’’
HFL responds ‘‘When prompted
by your mobile phone, enter the
pairing code: 1234 .’’
Go to Step 4.
1.
2.
For example
:
336
To pair your f irst phone, f ollow the
prompts on the HFL system:
BluetoothHandsFreeL ink
Features
331
——
y

y
(yy
2010 Odyssey
