To use the horn, press the center pad of the steering wheel.
Only on vehicles equipped with navigation system. Ref er to the navigation system manual.
1:
2:
If equipped
3:
Your Vehicle at a Glance
4
VEHICLE STABILITY
ASSIST (VSA) OFF
SWITCH WINDSHIELD WIPERS/WASHERS
PASSENGER
AIRBAG OFF
INDICATOR CRUISE CONTROL
BUTTONS
HAZARD WARNING
BUTTONREAR WINDOW
DEFOGGER
BUTTON
HORN (P.35)
NAVIGATION
SYSTEM
BUTTONS
VEHICLE STABILITY
ASSIST (VSA) OFF
SWITCH
STEERING WHEEL
ADJUSTMENTLIGHT
CONTROL
SWITCH
REAR WINDOW WIPER/WASHER
(P.162)
(P.282) (P.141) (P.134)
(P.135)
(P.319 )
(P.140) (P. 140 )
(P.221, 285)
(P.205)
PEDAL POSITION
ADJUSTMENT SWITCH
POWER SLIDING
DOOR SWITCH
MOONROOF
SWITCH
PARKING SENSOR
SYSTEM SWITCH
REMOTE AUDIO
CONTROL BUTTONS
AUDIO SYSTEM/
REAR
ENTERTAINMENT
SYSTEM
CLOCK
HEADLIGHTS/TURN SIGNAL/
FOG LIGHTS
(P.193)
(P.189) (P.
281 )
(P.135,
138)
MULTI-INFORMATION
BUTTONS (P.82)
POWER TAILGATE
SWITCH (P.158)/
(P.395)
(P.361) (P.395) (P.327)
BLUETOOTH
HANDSFREELINK
BUTTONS
1
2
3
3
3
33 3
3
3
3
3
3
——
y
y
(yy
2010 Odyssey

ÎÎ
Î
Î Î
Î Î ÎÎ
Î
Î
Î
Î
Î
Î
ÎTo use the horn, press the center pad of the steering wheel.
Only on vehicles equipped with navigation system. Ref er to the navigation system manual.
If equipped
1:
2:
3:

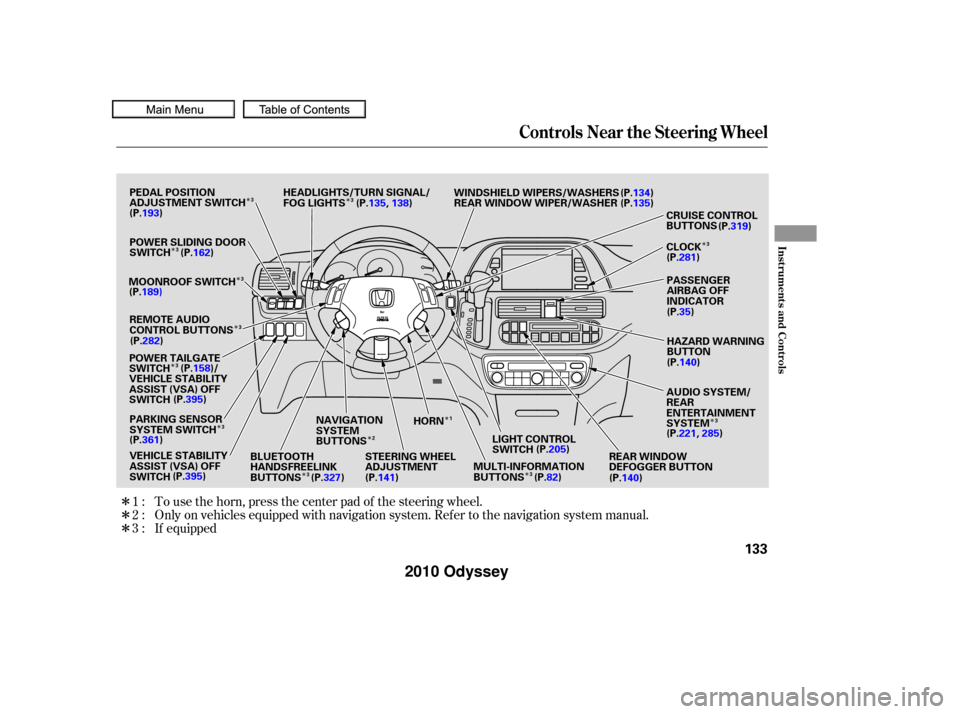

Controls Near the Steering Wheel
Inst rument s and Cont rols
133
HAZARD WARNING
BUTTON
WINDSHIELD WIPERS/WASHERS
REAR WINDOW WIPER/WASHER
CRUISE CONTROL
BUTTONS
VEHICLE STABILITY
ASSIST (VSA) OFF
SWITCH PASSENGER
AIRBAG OFF
INDICATOR
LIGHT CONTROL
SWITCH
STEERING WHEEL
ADJUSTMENT (P.
35)
NAVIGATION
SYSTEM
BUTTONS HORN
(P.193)
(P.189) (P.282)
(P.141) (P.134)
(P.135)
(P.319 )
(P. 281 )
(P. 140 )
(P.221, 285)
(P.205) REAR WINDOW
DEFOGGER BUTTON
(P.140)
PEDAL POSITION
ADJUSTMENT SWITCH
POWER SLIDING DOOR
SWITCH
MOONROOF SWITCH
POWER TAILGATE
SWITCHPARKING SENSOR
SYSTEM SWITCH MULTI-INFORMATION
BUTTONSAUDIO SYSTEM/
REAR
ENTERTAINMENT
SYSTEM CLOCK
HEADLIGHTS/TURN SIGNAL/
FOG LIGHTS
(P.162)
(P.158)/
(P.82)
(P.135,
138)
REMOTE AUDIO
CONTROL BUTTONS (P.395)
VEHICLE STABILITY
ASSIST (VSA) OFF
SWITCH (P.395)
(P.327)
BLUETOOTH
HANDSFREELINK
BUTTONS
(P.361)
2 1
3
3 3
3 3 33
3
3
3
3
——y
y
(y
y
2010 Odyssey

The heating and air conditioning
system in your vehicle provides a
comf ortable driving environment in
all weather conditions.
The standard audio system has
many f eatures. This section
describes those f eatures and how to
use them. (If you have an optional
audio system, ref er to the operating
instructions that came with it.)
Your vehicle has an anti-theft audio
system that requires a code number
to enable it.
The security system helps to
discourage vandalism and thef t of
your vehicle.
Theclimatecontrolsystemandthe
audio system have a voice control
feature. Refer to the navigation
system manual f or more inf ormation..............
Vents, Heating, and A/C . 210
Using Automatic Climate ...................................
Control .215
.........
Using the Rear A/C Unit . 216
..............
Climate Control Sensors . 220
................................
Audio System .221
..........
Playing the AM/FM Radio . 222
................................
Playing a Disc .226
.......
Disc Player Error Messages . 233
..........
Playing the AM/FM Radio . 234
................
Playing the XM
Radio . 238
.................................
Playing Discs .244
...
Disc Changer Error Messages . 251
..........
Playing the AM/FM Radio . 252
................
Playing the XM
Radio . 257
.................................
Playing Discs .263
...
Disc Changer Error Messages . 271
..................
Protecting Your Discs . 272
............
AM/FM Radio Reception . 275
...............................
Playing a Tape .277
..........................
Setting the Clock .281
................
Remote Audio Controls . 282......................
Auxiliary Input Jack .283
.................
Radio Thef t Protection . 284
........
Rear Entertainment System . 285
............................
Security System .318
...............................
Cruise Control .319
HomeLink
Universal ................................
Transceiver .322
........
HandsFreeLink. 325
................
Parking Sensor System . 361
....
Reaview Camera and Monitor . 365
LX and Canadian DX models
EX and EX-L models without navigat ion
system
Models with navigation system Bluetooth
On vehicles with navigation system
Features
Features
209
——
y
y
(y
y
2010 Odyssey

Your vehicle is equipped with the
HandsFreeLink(HFL).
HFL uses
technology to
link your cell phone to your vehicle.
With HFL, you can place and receive
calls through your vehicle’s audio
system, without the distraction of
handling your cell phone. To use this
f eature, you need a Bluetooth-
compatible cell phone with the
Hands Free Prof ile. For more
inf ormation, and a list of compatible
cell phones, visit , or call (888) 528-7876. In
Canada, visit , or call
(888) 9-HONDA-9. Here are the main features of HFL.
Instructions f or using HFL begin on
page .
HFL recognizes simple voice
commands, such as phone numbers
and names. It uses these commands
to automatically dial, receive, and
store numbers. For more
inf ormation on voice control, see
UsingVoiceControlonpage .
The
name and logos are
registered trademarks owned by
Bluetooth SIG, Inc. and any use of
such marks by Honda Motor Co.,
Ltd. is under license. Other
trademarks and trade names
are those of their respective owners. Bluetooth is the wireless technology
that links your phone to HFL. HFL
uses a Class 2 Bluetooth, which
means the maximum range between
yourphoneandvehicleis30feet(10
meters).
To use HFL, your phone must have
approved Bluetooth capability along
with the Hands Free Profile. This
type of phone is available through
many phone makers and cellular
carriers. You can also find an
approved phone by visiting
, or by calling
the HandsFreeLink
consumer
support at (888) 528-7876. In Canada,
visit , or call (888)
The HFL is available in English on
U.S. models, and in both English and
French on Canadian models. To
change the language, see page .
The voice of HFL is set to f emale. 359329
329
BluetoothBluetooth
handsf reelink.honda.
com www.honda.ca Bluetooth
handsf reelink.honda.com
www.honda.ca
BluetoothHandsFreeL ink
On models wit h navigat ion syst em
Bluet oot h
Wireless Technology
Voice Control HFL
Features
325
——
y
y
(yy
9-HONDA-9.
2010 Odyssey

With a linked phone, HFL allows you
to send and receive calls in your
vehicle without holding the phone.
The HFL system has a help f unction
to provide instructions f or pairing a
phone, and give hints on how to
operate HFL properly. If your
response or command is not correct,
or the system cannot recognize a
command, the HFL system will give
you an appropriate command or play
the help prompt.HFL can store up to 50 names and
phone numbers in its phonebook.
Withalinkedphone,youcanthen
automatically dial any name or
number in the phonebook.
Your vehicle’s HFL system has the
cellular phonebook import f unction.
This allows you to import your
cellular phonebook to HFL. Using
the navigation system, you can make
acalldirectlyandstoreadesired
number in HFL f rom the list shown
on the navigation display. For
more inf ormation on how to import
the phonebook, see page . To
make a call, see page . Your phone may not have
phonebook import f unction. Visit ,orcallthe
HandsFreeLink
consumer support
at (888) 528-7876. In Canada, call
(888) 9-HONDA-9. You can see your
phone’s owner’s manual f or
inf ormation.
You can also store the desired
number to the HFL phonebook
directly f rom your cell phone using
the receive contact f unction in HFL.
340351
handsf reelink.honda.com
BluetoothHandsFreeL ink
Incoming/Outgoing Calls
Help Assistance Phonebook
326
NOTE:
——
y
y
(y
y
2010 Odyssey

Ensure that you use the HFL
buttons, not the NAVI buttons, to

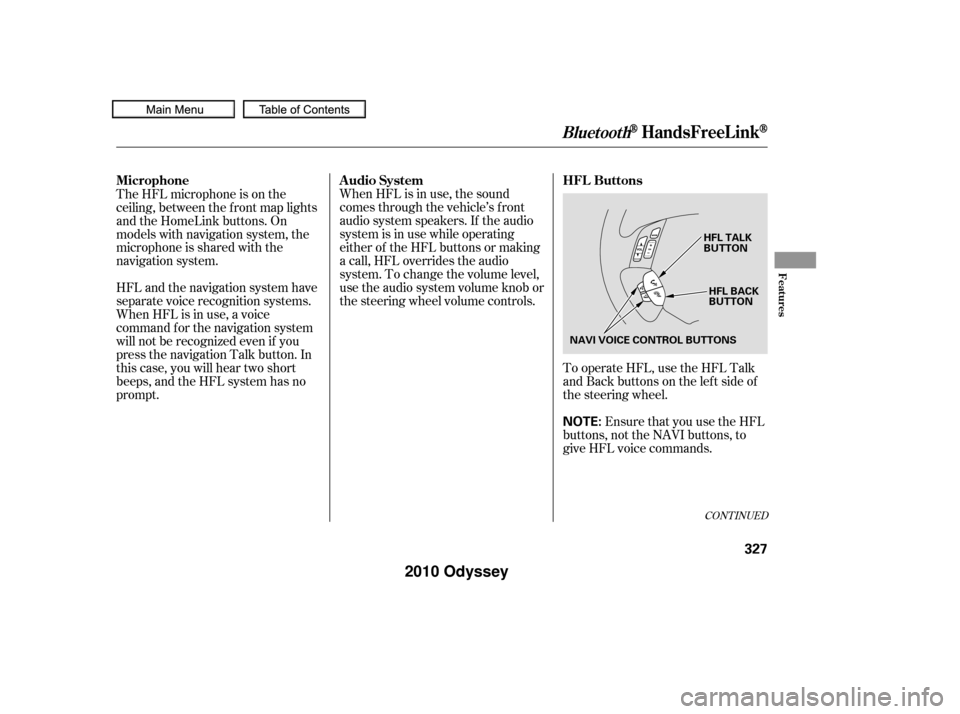

give HFL voice commands. To operate HFL, use the HFL Talk
and Back buttons on the left side of
the steering wheel.
When HFL is in use, the sound
comes through the vehicle’s f ront
audio system speakers. If the audio
system is in use while operating
either of the HFL buttons or making
a call, HFL overrides the audio
system. To change the volume level,
use the audio system volume knob or
the steering wheel volume controls.
The HFL microphone is on the
ceiling, between the f ront map lights
and the HomeLink buttons. On
models with navigation system, the
microphone is shared with the
navigation system.
HFL and the navigation system have
separate voice recognition systems.
When HFL is in use, a voice
command f or the navigation system
will not be recognized even if you
press the navigation Talk button. In
this case, you will hear two short
beeps, and the HFL system has no
prompt.
CONT INUED
BluetoothHandsFreeL ink
HFL Buttons
Audio System
Microphone
Features
327
NOTE:
HFL BACK
BUTTON
HFL TALK
BUTTON
NAVI VOICE CONTROL BUTTONS
——
y
y
(yy
2010 Odyssey

When you are operating HFL, dialing
or receiving calls with the audio
system in use, you will see the above
screen on the navigation display.You will also see ‘‘HANDS FREE
LINK’’ on the audio display.
‘‘ ’’ indicator will be displayed on
the audio display if your phone is
linked to the
compatible
cell phone.
HFLTalk:Thisbuttonisusedbefore
you give a command, and to answer
incoming calls.
HFLBack:Thisbuttonisusedto
end a call, go back to the previous
voice control command, and to
cancel an operation. The HFL buttons are used as
f ollows:
Press and release the button, then
wait f or a beep bef ore giving a
command.Bluetooth
BluetoothHandsFreeL ink
Inf ormation Display
328
BLUETOOTH INDICATOR
——
y
y
(yy
2010 Odyssey

CONT INUED
HFL is operated by the HFL Talk
and Back buttons on the left side of
the steering wheel. The next f ew
pages provide instructions f or all
basic f eatures of HFL.
Here are some guidelines f or using
voice control:Adjust the airflow from both the
dashboard and side vents so they
do not blow against the
microphone on the ceiling. To enter a command, press and
release the HFL Talk button. After
the beep, say your command in a
clear, natural tone.
Lower the A/C f an speed during
voice recognition operation.
If the microphone picks up voices
other than yours, the system may
not interpret your voice
commands correctly.
If HFL does not recognize a
command, its response is ‘‘Pardon.’’
If it doesn’t recognize the
command it plays an appropriate
Help prompt. Response time may
vary depending on the voice
command.
To hear a list of available options
at any time, press the HFL Talk
button, wait f or the beep, and say
‘‘Hands f ree help’’ or ‘‘Help.’’When you are at the main menu,
you can hear general HFL
inf ormation such as pairing or
setting up the system. Press the
HFL Talk button, wait f or the beep,
and say ‘‘Tutorial.’’
Many commands can be spoken
together. For example, you can
say, ‘‘Dial 123-456-7891.’’
To enter a string of numbers in a
Call or Dial command, you can say
them all at once, or you can
separate them in blocks of 3, 4, 7,
10, and 11.
To skip a voice prompt, press the
HFL Talk button while HFL is
speaking. HFL will then begin
listening f or your next command.
Close the windows and the
moonroof (if equipped).
BluetoothHandsFreeL ink
How to Use HFL
A ll phones may not
operate identically, and some
may cause inconsistent operation
of HFL .
Using Voice Control
Features
329
NOTE:
——
y
y
(yy
2010 Odyssey

To go back one step in a command
process, say ‘‘Go back,’’ or press
the HFL Back button.
If nothing is said while HFL is
listening f or a command, HFL will
time out and stop its voice
recognition, then prompt you with
available options or help
inf ormation. The next time you
press the HFL Talk button, HFL
begins listening f rom the point at
which it timed out.
To end a command sequence at
any time, press and hold the HFL
Back button, or press and release
the HFL Talk button, wait for the
beep, and say ‘‘Cancel.’’ The next
time you press the HFL Talk
button, HFL begins f rom the main
menu.When you f inish a command
sequence, HFL returns to idle. For
example, when you store the name
‘‘Eric,’’ the HFL system response
is ‘‘Eric has been stored.’’ The
next time you press the HFL Talk
button, HFL begins f rom the main
menu.
Your
compatible phone
with Hands Free Prof ile must be
paired to HFL bef ore you can make
and receive hands-free calls. To
conf irm that your phone is
compatible, visit , or call (888)
528-7876. In Canada, call (888) 9-
HONDA-9. Your phone retailer
should also be able to conf irm that
your phone is
compatible. HFL does not allow you to pair
your phone if the vehicle is
moving.
For pairing, your phone must be in
its discovery mode (searching f or
a Bluetooth related device).
Up to six phones can be paired to
HFL.
Your phone’s battery may drain
f aster when it is paired to HFL.
The f ollowing procedure works f or
most phones. If you cannot pair
your phone to HFL with this
procedure, ref er to your phone’s
operating manual, visit
,callthe
HandsFreeLink
consumer
support at (888) 528-7876, or call
your phone retailer. In Canada,
call (888) 9-HONDA-9.
Bluetooth
Bluetooth handsf reelink.honda.com
Bluetooth handsf reelink.honda.com
BluetoothHandsFreeL ink
Pairing Your Phone
330
NOTE:
——
y
y
(yy
2010 Odyssey

»¼
ÎÎ
CONT INUED
Press and release the Talk button.
Af ter the beep, say ‘‘Yes.’’ HFL
responds ‘‘Entering phone set up:
pair menu. The pairing process
requires operation of your
Bluetooth phone. For saf ety, only
perf orm this f unction while the
vehicle is stopped.’’
HFL responds ‘‘For proper system
f unction a compatible Bluetooth
phone is required. Please visit the
HandsFreeLink
website, listed in
the owner’s manual, f or a list of
approved phones and other system
inf ormation. HandsFreeLink is
waiting to pair with a Bluetooth
phone. From your phone, search
f or Bluetooth devices and select
HandsFreeLink.’’
During the pairing process, turn
of f any previously paired phones
bef ore pairing a new phone.
Each time a phone is paired with
HFL, the system selects a pairing
code randomly or sequentially.
You can switch this setting
between random mode and f ixed
mode. To select a pairing code
setting between Random and
Fixed, refer to page .
If af ter three minutes your phone
is not ready to pair or a phone is
not f ound, the system will time out
andreturntoidle.
Park your vehicle. With your
phone on and the ignition switch in
the ACCESSORY (I) or ON (II)
position, press and release the
Talk button.
HFL prompts ‘‘Welcome to
Bluetooth HandsFreeLink. This
system enables hands-f ree usage
of a mobile phone. Bef ore using
this system, a phone needs to be
paired or connected with
HandsFreeLink. Would you like to
pair a phone now? Press the
Bluetooth HandsFreeLink Talk
button, and after the beep, say Yes,
to begin the pairing process, or No,
to continue.’’
HFL responds ‘‘When prompted
by your mobile phone, enter the
pairing code: 1234 .’’
Go to Step 4.
1.
2.
For example
:
336
To pair your f irst phone, f ollow the
prompts on the HFL system:
BluetoothHandsFreeL ink
Features
331
——
y

y
(yy
2010 Odyssey
