Page 20 of 526

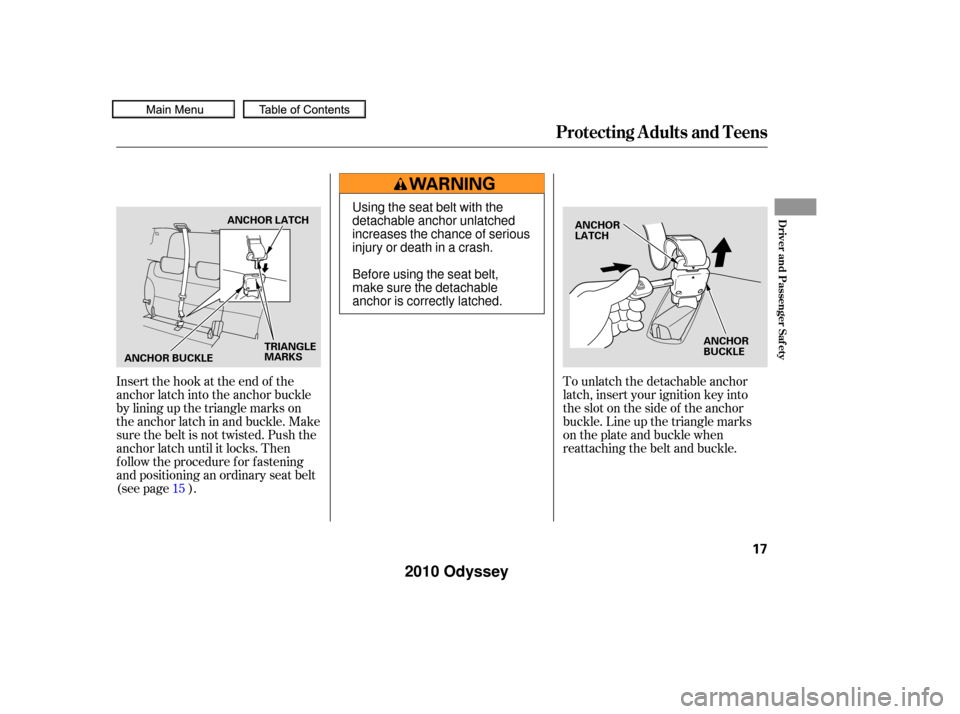

Insert the hook at the end of the
anchor latch into the anchor buckle
by lining up the triangle marks on
the anchor latch in and buckle. Make
sure the belt is not twisted. Push the
anchor latch until it locks. Then
f ollow the procedure f or f astening
and positioning an ordinary seat belt
(see page ).To unlatch the detachable anchor
latch, insert your ignition key into
the slot on the side of the anchor
buckle. Line up the triangle marks
on the plate and buckle when
reattaching the belt and buckle.
15
Protecting A dults and Teens
Driver and Passenger Saf ety
17
TRIANGLE
MARKS ANCHOR
BUCKLE
ANCHOR
LATCH
ANCHOR LATCH
ANCHOR BUCKLE
Using the seat belt with the
detachable anchor unlatched
increases the chance of serious
injury or death in a crash.
Before using the seat belt,
make sure the detachable
anchor is correctly latched.
— —
y
y
( y y
2010 Odyssey
Page 45 of 526
µ
If a child
wraps a loose seat belt around
their neck, they can be seriously
or f atally injured. (See pages and for how to activate
and deactivate the lockable
retractor.)
This can prevent children
f rom accidentally f alling out (see
page ). This
will prevent unintended use of the
doors.
Leaving children without
adult supervision is illegal in most
states, Canadian provinces and
territories, and can be very
hazardous.
For example, infants and small
childrenleftinavehicleonahot
day can die f rom heatstroke. A
child lef t alone with the key in the
ignition switch can accidentally set
the vehicle in motion, possibly
injuring themselves or others. Even very young
children learn how to unlock
vehicle doors, turn on the ignition
switch, and open the tailgate,
which can lead to accidental injury
or death. Children who play in vehicles can
accidentally get trapped inside.
Teach your children not to play in
or around vehicles.
51 52
157
Protecting Children General Guidelines
Make sure any unused seat beltt hat a child can reach is buckled,thelockableretractorisactivated, and the belt is f ullyretracted and locked.
Use childproof door locks t oprevent children f rom opening t hedoors. Use t he power sliding door main
swit ch t o prevent children f romoperat ing t he sliding doors.
Do not leave children alone in avehicle. K eep vehicle keys and remot e
transmitters out of the reach ofchildren.
Lock all doors and the tailgate
when your vehicle is not in use.
42
— —
y
y
( y y
2010 Odyssey
Page 66 of 526
This section gives inf ormation about
the controls and displays that
contribute to the daily operation of
your vehicle. All the essential
controls are within easy reach............................
Control Locations .64
............................
Instrument Panel .65
..........
Instrument Panel Indicators . 67
.............................................
Gauges .77
.............
Multi-Inf ormation Display . 81
Controls Near the Steering .........................................
Wheel .133 Windshield Wipers and
.................................
Washers .134
Rear Window Wiper and ...................................
Washer .135
.........
Turn Signal and Headlights . 135
......
Instrument Panel Brightness . 139
...............
Hazard Warning Button . 140
...............
Rear Window Def ogger . 140
........
Steering Wheel Adjustment . 141
.............................
Keys and Locks .142
......................
Immobilizer System .143
..............................
Ignition Switch .144
.....................
Remote Transmitter .145
Opening or Closing the Power .........................
Sliding Doors .148
Opening or Closing the Power ..................................
Tailgate .148
....................................
Door Locks .151
....................
Power Door Locks . 151
Auto Door Locking/ ..............................
Unlocking .152
............
Childproof Door Locks . 157
..........................................
Tailgate .157
..........................
Power Tailgate .158
.................................
Sliding Doors .161
...............................................
Seats .167 ..................................
Seat Heaters .183
Driving Position Memory ........................................
System .184
............................
Power Windows .186
.......................................
Moonroof .189
...........................................
Mirrors .190
...............................
Parking Brake .192
.
Adjustable Driver’s Foot Pedals . 193
.........
Interior Convenience Items . 194
..........
Retractable Center Tray . 195
.....................
Beverage Holders .195
..............
Integrated Sunshades . 197
....................
Sunglasses Holder .197
................
Conversation Mirror . 198
...................................
Sun Visor .198
............................
Vanity Mirror .199
...................
Rear Compartment . 199
................
Second Row Console . 199
...............
In-Floor Storage Area . 200
..............................
Glove Boxes .201
...........................
Center Pocket .202
...............................
Coin Pocket .202
........
Accessory Power Sockets . 203
.......................
AC Power Outlet .203
...............................
Interior Lights .205
Instruments and Controls
Inst rument s and Cont rols
63
— —
y
y
( y y
2010 Odyssey
Page 73 of 526
This indicator has three f unctions:
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position.
This indicator comes on f or a f ew
seconds when you turn the ignition
switch to the ON (II) position. It will
go of f if you have inserted a properly
coded ignition key. If it is not a
properly coded key, the indicator will
blink and the engine will not start
(see page ).
This indicator also blinks several
times when you turn the ignition
switch f rom the ON (II) position to
the ACCESSORY (I) or LOCK (0)
position. If itcomesonandstaysonatany
other time, or if it does not come on
when you turn the ignition switch to
the ON (II) position, there is a
problem with the VSA system. Take
your vehicle to a dealer to have it
checked. Without VSA, your vehicle
still has normal driving ability, but
will not have VSA traction and
stability enhancement. See page
f or more inf ormation on the
VSA system. It comes on as a reminder that you
have turned off the vehicle
stability assist (VSA) system.
It flashes when VSA is active (see
page ).
It comes on along with the VSA
system indicator if there is a
problem with the VSA system.
You will also see a ‘‘CHECK VSA
SYSTEM’’ message on the multi-
inf ormation display (see page ). You will also see a ‘‘CHECK VSA
SYSTEM’’ message on the multi-
inf ormation display (see page ).
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position. See page f or more
inf ormation. 1.
2.
3.
143
8989
394 394
394
On Touring models On Touring models
Vehicle Stability Assist
(VSA ) System Indicator
VSA A ctivation Indicator
Immobilizer System
Indicator
Instrument Panel Indicators
70
— —
y
y
( y y
2010 Odyssey
Page 76 of 526
This indicator also comes on with
reduced brightness when the
daytime running lights (DRL) are on
(see page ).
If this indicator comes on when the
ignition switch is turned to the ON
(II) position and the parking brake is
released, it means there is a problem
in the high beam headlight’s circuit.
Have your vehicle checked by your
dealer.
This indicator reminds you that the
exterior lights are on. It comes on
when the light switch is in either the
or position. If you turn the
ignition switch to the ACCESSORY
(I) or the LOCK (0) position without
turning of f the light switch, this
indicator will remain on. A reminder
chime will also sound when you open
the driver’s door and remove the key
from the ignition switch.
On Touring models, this indicator
also comes on when the light switch
is in AUTO and the lights turn on
automatically. If you see a ‘‘CHECK DRL
SYSTEM’’ message on the multi-
inf ormation display, there is a
problem in the high beam headlight’s
circuit. Take your vehicle to a dealer
to have it checked (see page ).
This indicator comes on with the
high beam headlights. For more
inf ormation, see page .
This indicator comes on when you
turn on the fog lights. See page
f or inf ormation on f og light
operation. 89
136
138
138
On Touring models
On Touring models
Instrument Panel Indicators
Daytime Running L ights
Indicator Fog L ight Indicator
Lights On Indicator
High Beam Indicator
Inst rument s and Cont rols
73
DAYTIME RUNNING LIGHTS (DRL)
INDICATOR
— —
y
y
( y y
2010 Odyssey
Page 84 of 526

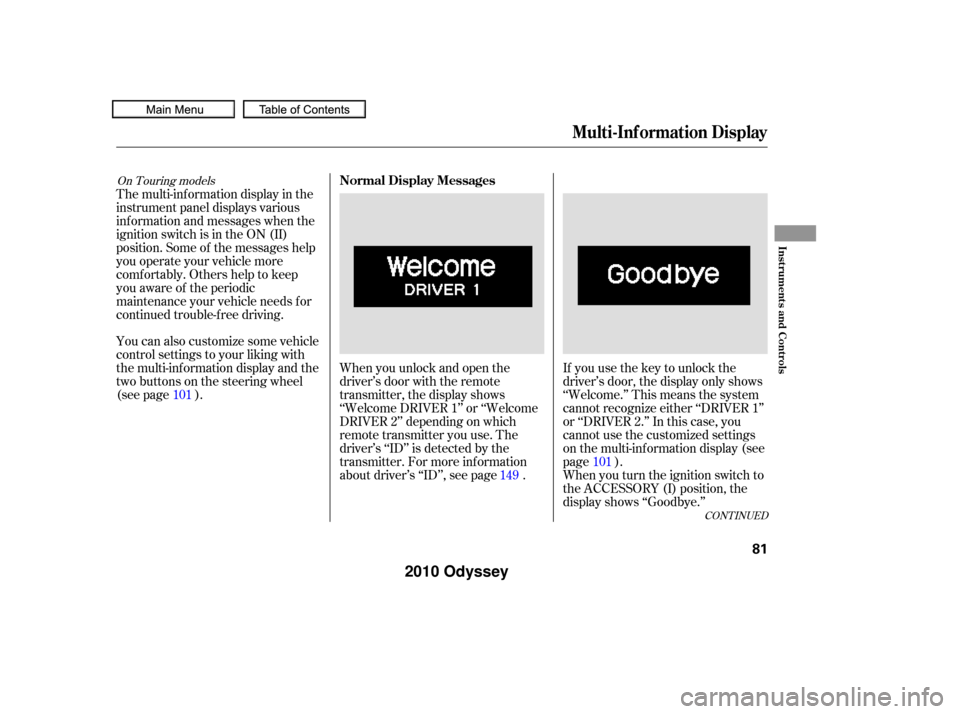

When you unlock and open the
driver’s door with the remote
transmitter, the display shows
‘‘Welcome DRIVER 1’’ or ‘‘Welcome
DRIVER 2’’ depending on which
remote transmitter you use. The
driver’s ‘‘ID’’ is detected by the
transmitter. For more information
about driver’s ‘‘ID’’, see page .If you use the key to unlock the
driver’s door, the display only shows
‘‘Welcome.’’ This means the system
cannot recognize either ‘‘DRIVER 1’’
or ‘‘DRIVER 2.’’ In this case, you
cannot use the customized settings
on the multi-information display (see
page ).
When you turn the ignition switch to
the ACCESSORY (I) position, the
display shows ‘‘Goodbye.’’
The multi-inf ormation display in the
instrument panel displays various
inf ormation and messages when the
ignition switch is in the ON (II)
position. Some of the messages help
you operate your vehicle more
comf ortably. Others help to keep
you aware of the periodic
maintenance your vehicle needs f or
continued trouble-f ree driving.
You can also customize some vehicle
control settings to your liking with
the multi-inf ormation display and the
two buttons on the steering wheel
(see page ).
101
149
101
CONT INUED
On Touring modelsNormal Display Messages
Multi-Inf ormation Display
Inst rument s and Cont rols
81
— —
y
y
( y y
2010 Odyssey
Page 95 of 526
If you leave the key in the ignition
switch in the LOCK (0) or
ACCESSORY (I) position and open
the driver’s door, you will see
‘‘REMOVE KEY’’ on the display and
hear a reminder beeper.
If the tailgate or any door(s) is not
closed tightly, the display reminds
you to close the tailgate or the
door(s) bef ore you start driving.
This display continues until you
close the door(s) or the tailgate.
Pressing the INFO button on the
steering wheel momentarily changes
the display to the normal display, but
it will come back af ter 5 seconds. If you start driving without releasing
the parking brake, the multi-
inf ormation display interrupts the
current display and shows
‘‘RELEASE PARKING BRAKE.’’
This message continues, and a
chime sounds, until you release the
parking brake, or the vehicle speed
slows down to less than 0.5 mph (0.8
km/h).
Multi-Inf ormation Display
Remove Key
Door and Tailgate Open Release Parking Brake
92
Canada
U.S.
— —
y
y
( y y
2010 Odyssey
Page 104 of 526

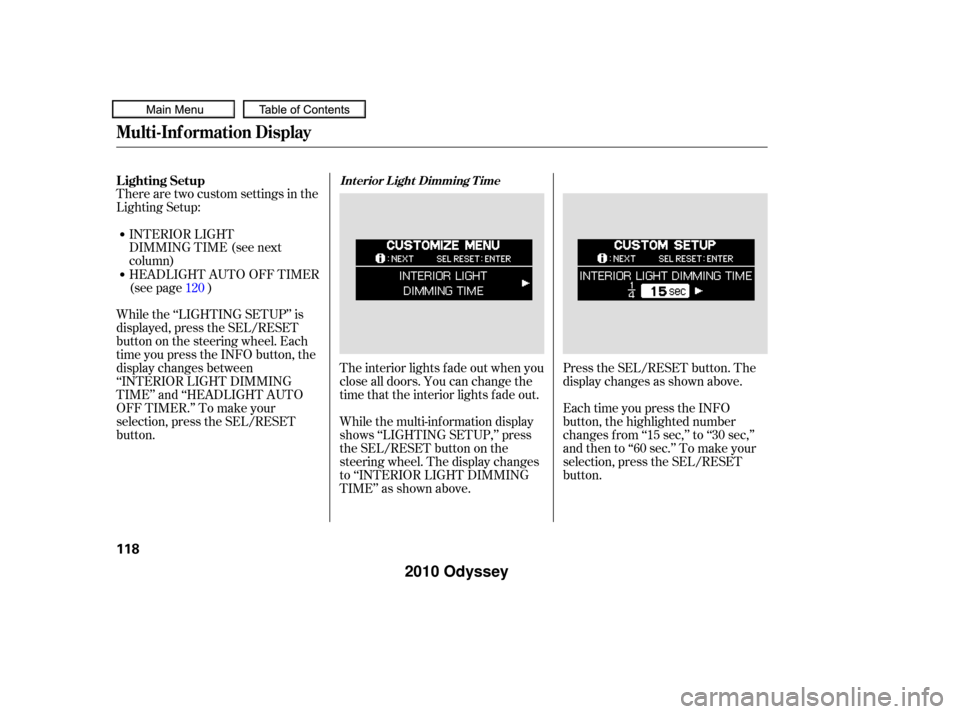

With the ignition switch in the ON
(II) position, press and hold the
INFO button for more than 3
seconds. ‘‘CUSTOMIZE ENTRY’’
appears on the multi-inf ormation
display.
You can customize some vehicle
control settings f or ‘‘DRIVER 1’’ and
‘‘DRIVER 2’’ separately.
To have the driver’s ID detected,
make sure you use your transmitter
to unlock the driver’s door.
If you use the key to unlock the
driver’s door, the system cannot
recognize either ‘‘DRIVER 1’’ or
‘‘DRIVER 2.’’ In this case, when you
try to enter the customizing mode,
‘‘DRIVER UNKNOWN
CUSTOMIZE IMPOSSIBLE’’ will be
displayed, and you cannot customize
the settings.Ref er to the table on the f ollowing
pages about the settings you want to
customize. UsetheINFObuttononthesteering
wheel to see the settings, and the
SEL/RESET button to enter your
selections. If you want the settings as they were
when the vehicle lef t the f actory,
select ‘‘DEFAULT ALL,’’ as
described on page . If you want to change any vehicle
control settings, select ‘‘CHANGE
SETTING,’’ and f ollow the
instructions on page . The f irst customizing menu is:
CHANGE SETTING
DEFAULT ALL
You cannot customize the settings
under these conditions:
If you turn the ignition switch to
the ACCESSORY (I) or the LOCK
(0) position.
If you move the shif t lever out of
Park.
You can cancel each custom setting
(Driver 1, Driver 2). Press and hold
the LOCK and SLIDING DOOR
button (passenger’s side) at the
same time until the LED in the
remote transmitter blinks twice. At
this time, the custom setting is
changed to the def ault setting. To
activate each custom setting (Driver
1, Driver 2), repeat this procedure.
The LED will blink f or 1 second to
indicate the custom setting has been
activated. 106
104
CONT INUED
Customized Settings
Multi-Inf ormation Display
Inst rument s and Cont rols
101
— —
y
y
( y
y
2010 Odyssey
Page 106 of 526
Î
Î
Î Î Î
Î Menu Item
AUTO DOOR LOCK
AUTO DOOR UNLOCK
KEYLESS LOCK
SECURITY RELOCK
TIMER
FRONT WIPER
ACTION Setting Option
SHIFT FROM P
WIT H VEHICLE SPEED
OFF
DRIVER’S DOOR WITH
SHIFT TO P
ALL DOORS WITH SHIFT
TO P
DRIVER’S DOOR WITH
IGN OFF
ALL DOORS WITH IGN
OFF
OFF
ON
OFF
30 sec
60 sec
90 sec
WITH VEH SPD
INTERMITTENT
OK
CANCEL Page
123
125
127
129
131
104
Group Setup
DOOR · WINDOW
SETUP
(P. 122)
WIPER SETUP
(P. 131)
DEFAULT ALL Description
Changes when the doors automatically lock.
Changes when the doors automatically unlock.
The exterior lights flash each time you press the
LOCK or UNLOCK button. A beeper will also sound
when you press the LOCK button twice.
Changes how long it takes (in seconds) for the doors
to relock and the security system to set af ter you
unlock and do not open the door.
Changes the wiper operation between two settings
when the wiper switch is in the INT position.
Changes all the customized settings as they were
when the vehicle left the factory.
Default setting
:
ACKNOWLEDGEMENT
Multi-Inf ormation Display
Inst rument s and Cont rols
103
— —
y
y
( y
y
2010 Odyssey
Page 121 of 526
There are two custom settings in the
Lighting Setup:Press the SEL/RESET button. The
display changes as shown above.
Each time you press the INFO
button, the highlighted number
changes f rom ‘‘15 sec,’’ to ‘‘30 sec,’’
andthento‘‘60sec.’’Tomakeyour
selection, press the SEL/RESET
button.
The interior lights f ade out when you
close all doors. You can change the
time that the interior lights fade out.
While the multi-information display
shows ‘‘LIGHTING SETUP,’’ press
the SEL/RESET button on the
steering wheel. The display changes
to ‘‘INTERIOR LIGHT DIMMING
TIME’’ as shown above.
INTERIOR LIGHT
DIMMING TIME (see next
column)
While the ‘‘LIGHTING SETUP’’ is
displayed, press the SEL/RESET
button on the steering wheel. Each
time you press the INFO button, the
display changes between
‘‘INTERIOR LIGHT DIMMING
TIME’’ and ‘‘HEADLIGHT AUTO
OFF TIMER.’’ To make your
selection, press the SEL/RESET
button. HEADLIGHT AUTO OFF TIMER
(see page )
120
Lighting Setup
Int erior L ight Dimming T ime
Multi-Inf ormation Display
118
— —
y
y
( y
y
2010 Odyssey
