HONDA ODYSSEY 2010 RB3-RB4 / 4.G Technology Reference Guide

Navigation(if equipped)
Say “City” (or “Change state” if
necessary). Say “Display menu.”
1
Say “Address.”2
3
A list of city names appears. Say
the number listed next to the city you
want to select.
Say the street name. Do not include
the direction (N, S, E, W) or type
(St., Ave., Blvd., etc.).
4
6
Say the name of the city you want, or
say “Current city” to select the city
currently shown.
5
A list of street names appears. Say
the number listed next to the street
you want to select.
Say the entire street address number.
For example, “1-2-5-0.”7
8
The system calculates the route
and displays the “Calculate route to”
screen. Say “OK” to set the route.9

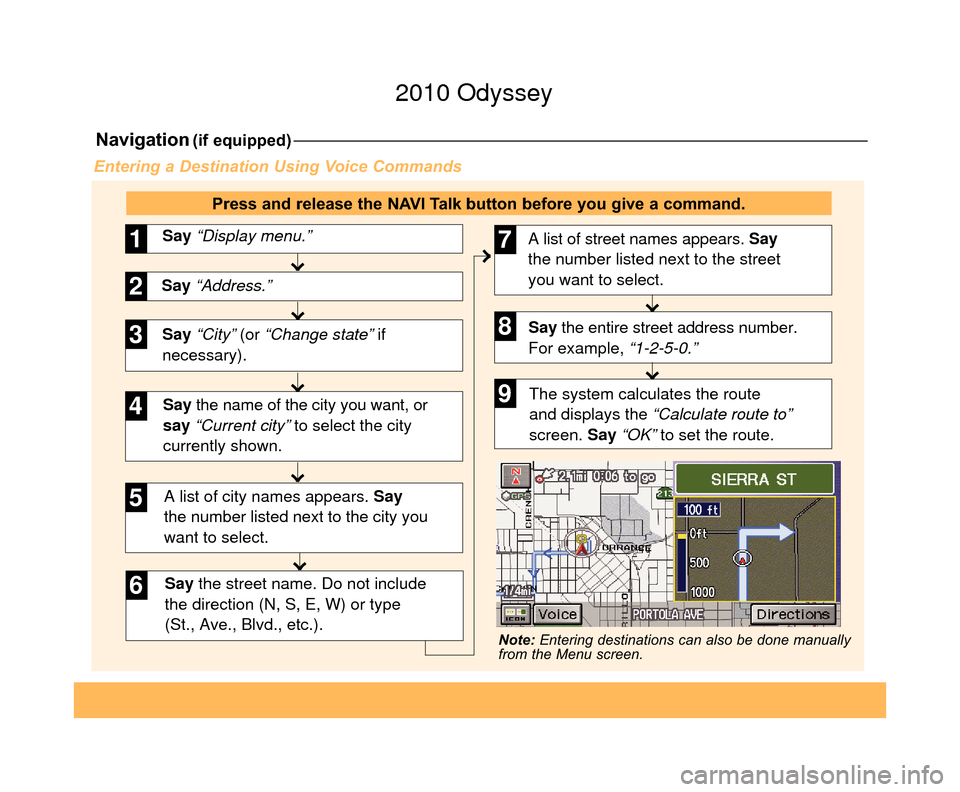

Entering a Destination Using Voice Commands
Press and release the NAVI Talk button before you give a command.
Note: Entering destinations can also be done manually
from the Menu screen.
10 Odyssey TRG_3ab:ExtraPages.qxd 9/24/2009 3:43 PM Page c5
2010 Odyssey

1. Say “Find nearest ATM.”
2. A list of the nearest ATMs are displayed by shortest distance to
destination. 3.
Say the number you want to select.
4. The system calculates the route and displays the “Calculate route to” screen.
Say “OK” to set the route.
Press and release the NAVI Talk button before you give a command.
Entering a Destination Using the “Find Nearest” Command
Try these simple steps to find a nearby point of interest, such as a gas station, movie theater, restaurant, etc.
10 Odyssey TRG_3ab:ExtraPages.qxd 9/24/2009 3:43 PM Page d5
2010 Odyssey

Commonly Used Voice Commands
Here are some examples of commonly used voice commands. Try some of these to familiarize yourself with
the voice command system.
Press and release the NAVI Talk button before you give a command.
Look for Restaurants in Your Location
Saya command like “Display restaurant” to see
restaurant icons appear on the map.
Adjust the Vehicle’s Climate Setting Make Audio Selections
Say
a command like “Radio 97.1 FM” or “CD play
track 5” to select that station or song.
Get Estimated Distance to Destination
After a destination is entered, say“How far to
destination?” to hear the remaining distance.
Say
a command like “Air conditioner on” and “Fan
speed 4” to adjust the setting to your liking.
10 Odyssey TRG_3ab:ExtraPages.qxd 9/24/2009 3:43 PM Page e5
2010 Odyssey

Commonly Used Voice Commands (continued)Navigation Commands
(Accepted on Map screen
after a destination is entered)
• How long/far to the destination?
• Display destination
• Display entire route
• Find nearest: - ATM
- gas station
- Mexican restaurant
- post office - bank
- Honda dealer
- airport
- hospital
Display Commands(Accepted on Map screen)
• Display (or hide):
- ATM
- gas station
- restaurant
- post office • Display north up/
heading up
• Zoom in/out
• Go home
• Display current location
• Display map
• Display menu
• Setup
• Information
• Display audio screen
• What time is it?
Press and release the NAVI Talk button before you give a command.
General Commands
(Accepted on most screens to change displays)
Find Place Commands(Accepted on Map screen)
10 Odyssey TRG_3ab:ExtraPages.qxd 9/24/2009 3:43 PM Page f5
2010 Odyssey

Voice Command/HFL/Navigation
Audio Commands(Accepted on most screens)
Commonly Used Voice Commands (continued)
Climate Control Commands
(Accepted on most screens)
• Brightness up/down
• Volume up/down/min/max/off • Interface dial
feedback on/off
• Guidance prompts min/max/normal
• Radio on
• Radio # FM/AM
• Radio preset
1/2/3/4/5/6
• XM channel # • XM preset 1/2/3/4/5/6
• CD play
• CD play track/disc #
• CD skip forward/back
• Auxiliary (AUX) play
Press and release the NAVI Talk button before you give a command.
Setup Commands
(Accepted on the Setup screen) • Air conditioner
on/off
• Rear defrost on/off
• Climate control recirculate/fresh air • Fan speed up/down
• Temperature #
degrees (# = 57–87)
• Temperature max hot/coldHelp Commands(Accepted on most screens)
• Help (list of available commands for currentscreen)
• Voice command help (from the INFO screen - list of all available navigation, audio, and
climate control commands)
10 Odyssey TRG_Base:Base 9/24/2009 3:41 PM Page 6 2010 Odyssey

Rear EntertainmentSystem (RES)
2. Push the REAR CTRL OFF knob to disable
rear audio controls.
Rear Entertainment System (RES) (if equipped)
Rear passengers can enjoy a different media source than the front seat occupants.
Operating the RES from the Front Seat 1. Press REAR PWR. Rear passengers hear
audio through the wireless headphones. 3.
Turn the REAR CTRL knob clockwise to
temporarily hear what is playing in the rear.
4. Select a media source for the rear passengers.
Turn the REAR CTRL knob counterclockwise to
return to the front audio controls.
Note:
• If listening to the same media source, both the driver and the rear\
passenger have the ability to control functions for that source.
• On models with navigation, you cannot listen to XM Radio and a CD a\
t the same time.
10 Odyssey TRG_Base:Base 9/24/2009 3:41 PM Page 7 2010 Odyssey

Rear EntertainmentSystem (RES)
2. Press AM/FM, XM, CD, or DVD/AUX.
Operating the RES from the Rear Seat
1. From the front panel, make sure REAR PWR
is on and rear control is not disabled.
4. The rear control panel can be detached andused as a remote control. PressRELEASE to
remove it from the ceiling.
3.
Use the (
) (
) (
) (
) buttons to navigate
the menu on the display. PressENT to make
a selection.
10 Odyssey TRG_Base:Base 9/24/2009 3:42 PM Page 8 2010 Odyssey

Rearview Camera/Parking Sensors
Rearview Camera (EX-L and Touring)
2. The rear view is shown in the display area.
The display shows a view behind the vehicle.
To Turn the Camera On
1. Shift into Reverse (R).
To Turn the Display Off
All models: Shift out of Reverse.
EX-L without navigation: Pressthe monitor
on/off button while in Reverse with your foot on
the brake. Press again to turn back on.
Models with
navigationEX-L without navigation
Monitor
On/Off
button
10 Odyssey TRG_Base:Base 9/24/2009 3:42 PM Page 9 2010 Odyssey

Rearview Camera/Parking Sensors
Parking Sensor System (Touring)
Warns you of the proximity between your vehicle and nearby surrounding ob\
jects when parking or in Reverse.
To Turn the System On and Off
Press the parking sensor button.
A light appears when the system
is on.
Corner Sensors Rear Center Sensors
Corner Sensor Indicator Rear Center Sensor Indicator Within approx. 20 in. (50 cm) Within approx. 70 in. (1.8 m)
How It Works
When the system senses an object, an indicator appears in the
MID and a beep sounds. As you get closer to an object, the
beep rate increases.
10 Odyssey TRG_Back Inside:Inside Back 9/24/2009 11:54 AM Page 8 2010 Odyssey

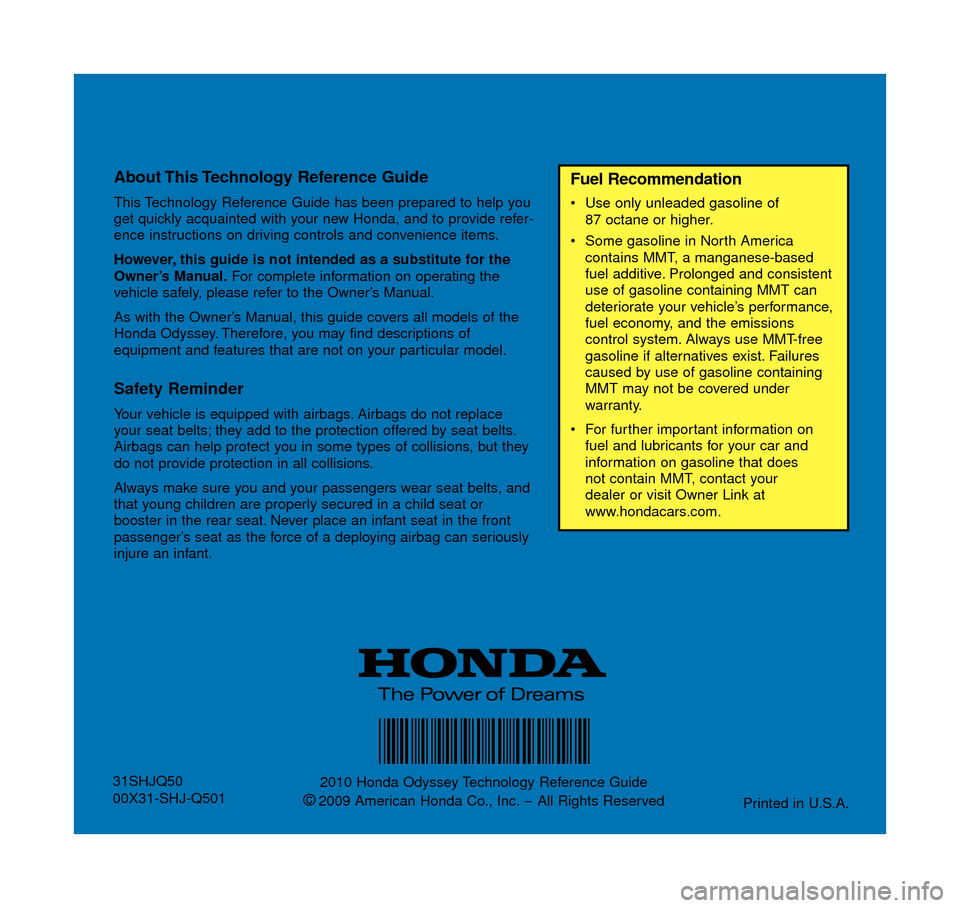

About This Technology Reference Guide
This Technology Reference Guide has been prepared to help you
get quickly acquainted with your new Honda, and to provide refer-
ence instructions on driving controls and convenience items.
However, this guide is not intended as a substitute for the
Owner’s Manual.For complete information on operating the
vehicle safely, please refer to the Owner’s Manual.
As with the Owner’s Manual, this guide covers all models of the
Honda Odyssey. Therefore, you may find descriptions of
equipment and features that are not on your particular model.
Safety Reminder
Your vehicle is equipped with airbags. Airbags do not replace
your seat belts; they add to the protection offered by seat belts.
Airbags can help protect you in some types of collisions, but they
do not provide protection in all collisions.
Always make sure you and your passengers wear seat belts, and
that young children are properly secured in a child seat or
booster in the rear seat. Never place an infant seat in the front
passenger’s seat as the force of a deploying airbag can seriously
injure an infant.
31SHJQ50
00X31-SHJ-Q50 2010 Honda Odyssey Technology Reference Guide©2009 American Honda Co., Inc. -All Rights Reserved
Printed in U.S.A.
Fuel Recommendation
Use only unleaded gasoline of
87 octane or higher.
Some gasoline in North America contains MMT, a manganese-based
fuel additive. Prolonged and consistent
use of gasoline containing MMT can
deteriorate your vehicle’s performance,
fuel economy, and the emissions
control system. Always use MMT-free
gasoline if alternatives exist. Failures
caused by use of gasoline containing
MMT may not be covered under
warranty.
For further important information on fuel and lubricants for your car and
information on gasoline that does
not contain MMT, contact your
dealer or visit Owner Link at
www.hondacars.com.
