HONDA ODYSSEY 2011 RB3-RB4 / 4.G Owners Manual

Example shown: Obstacle is at the lef t f ront of the vehicle.Beeper Indicator
Audio
Screen
Indicator
Color Distance About 14 in
(35 cm) or less
About 14-18 in
(35-45 cm)
About 18-24 in
(45-60 cm)
Short beeps
Very short beepsContinuous
beeps
Red
Amber Upper lef t indicator stays on.
Indicator blinks.Corner Sensor Operat ionParking Sensor System488
AUDIO SCREEN
MULTI-INFORMATION DISPLAY INDICATOR
INSTRUMENT PANEL
10/07/19 15:58:45 31TK8600_493
2011 Odyssey

CONT INUED
Distance
Indicator
Beeper
Audio
Screen
Indicator
ColorAbout 28-43 in
(70-110 cm)
About 18 in
(45 cm) or less
About 18-22 in
(45-55 cm)
About 22-28 in
(55-70 cm)
Long beeps Continuous
beeps
Very short beeps
Short beeps
Yellow Red
Amber
Bottom indicator stays on.
Indicator blinks.Rear Cent er Sensor Operat ion
Parking Sensor System
Features
489
AUDIO SCREEN
MULTI-INFORMATION DISPLAY INDICATOR
INSTRUMENT PANEL
10/07/19 15:58:53 31TK8600_494
2011 Odyssey

If the system develops a problem,
you will see a ‘‘CHECK PARKING
SENSOR SYSTEM’’ message on the
multi-inf ormation display, and a
beeper sounds continuously.If the system develops a problem,
you will see all parking sensor
indicators on the instrument panel,
and a beeper sounds continuously.
If there is a problem with any of the
operational sensors, the indicators
f or these sensors will appear
constantly in red.
Very of ten, a sensor covered with
mud, ice, snow, etc. is the cause of
this display. Check the sensors f irst.
If the indicators stay on or the
beeper does not stop, have the
system checked by your dealer.On models with multi-inf ormation
display Canadian EX-L modelsParking Sensor System490
10/07/19 15:58:59 31TK8600_495
2011 Odyssey

Do not put any accessories on or
around the sensors.The system may not f unction
properly under these conditions:
The sensors are covered with
snow,ice,mud,etc.
When the vehicle is on a rough
road, on grass, or on a hill.
After the vehicle has been sitting
out in hot or cold weather. When the system is af f ected by
some electrical equipment or
devices generating an ultrasonic
wave.
When operating the vehicle in bad
weather.
Thesystemmaynotsensethinor
low objects, or sonic-absorptive
materials such as snow, cotton, or
sponge.
The system cannot sense objects
directly under the bumper.
The range of the corner sensors and
the rear center sensor are limited.
Each corner sensor is capable of
sensing an obstacle only when your
vehicleis24in(60cm)orcloser.
The rear center sensor senses an
obstacle that is behind your vehicle
43 in (1.1 m) or closer.
CONT INUED
Parking Sensor System
Features
491
Within about 24 in (60 cm)
Within about 43 in (1.1 m)
10/07/17 10:40:15 31TK8600_496
2011 Odyssey

The parking sensor system must be
turned of f bef ore beginning this
procedure.When you shif t to reverse (R), the
LED indicator in the switch will blink
as a reminder that the rear sensors
are disabled.
Press and hold the parking sensor
system switch and then turn the
ignition switch to the ON (II)
position.
Keep pressing the switch f or 10
seconds. The LED indicator in the
switch will f lash. To return to the original setting,
repeat the procedure. A beeper will
sound 3 times to conf irm that the
rear sensors are now enabled.
Press the switch again and the
LED indicator will turn off. A
beeper will sound twice to conf irm
that the rear sensors are now
disabled.
1.
2.
3.
Canadian Owners:
This device complies with IndustryCanada Standard RSS-210. Operation issubject to the f ollowing two conditions:(1) this device may not causeinterf erence, and (2) this device mustaccept any interf erence that may causeundesired operation of the device.
This ISM device complies with CanadianICES-001.
Parking Sensor SystemTo turn of f all rear sensors492
10/07/17 10:40:23 31TK8600_497
2011 Odyssey

Whenever you shif t to reverse (R)
with the ignition switch in the ON
(II) position, the rearview is shown
on the display.The camera display has parking
guidelines that indicate distance
f rom your vehicle.
The parking sensor indicators are
automatically displayed on the audio
screen when an obstacle is detected. 1st Line
2nd Line
3rd Line
4th Line
20 in (0.5 m)
39 in (1 m)
79 in (2 m)
118 in (3 m)
CONT INUED
On Canadian EX and EX-L without
navigation system
Canadian EX-L models
Rearview Camera and Monitor
Features
493
4th Line 3rd Line 2nd Line 1st Line
SCREEN DISPLAY
ACTUAL DISTANCE
10/07/17 10:40:30 31TK8600_498
2011 Odyssey

For the best picture, always keep
the rearview camera clean, and do
not cover the camera lens. To
avoid scratching the lens when
you clean it, use a moist, sof t cloth.
The rearview camera has a unique
lens that makes objects appear
closer than they actually are.To turn of f the guidelines, press and
hold the RETURN button for about 3
seconds.
Refer to the navigation system
manual f or operation of the rearview
camera.
The rearview camera display has a
limited coverage, and the size and
position of objects may appear
different than they actually are.
Make sure to check the
surrounding area caref ully.
On models with Navigation System
Rearview Camera and Monitor494NOTE:
10/07/17 10:40:37 31TK8600_499
2011 Odyssey

Bluetoothhandsf reelink.honda.
com
www.handsfreelink.ca,
HandsFreeLink
(HFL)
allows you to place and receive
phone calls using voice commands,
without handling your cell phone.
To use HFL, you need a Bluetooth-
compatible cell phone. For a list of
compatible phones, pairing
procedures, and special f eature
capabilities:
In the U.S., visit or call (888) 528-7876.
Use the selector knob to make menu
or list selections. Press the PHONE button or PICK-
UPbuttontogotothePhonescreen.
Press the RETURN button to go
back to the previous screen.
To select an item on the screen, turn
the selector knob lef t or right to
highlight it, and then push the
selector knob.
In Canada, visit
or call (888) 528-7876.
CONT INUED
Using HFLSelect or K nob
Bluetooth
HandsFreeL ink
(Models without navigation system)
Features
495
U.S. model is shown.
RETURN BUTTON
PHONE
BUTTON
SELECTOR KNOB
10/07/17 10:40:47 31TK8600_500
2011 Odyssey

µµ
µ
µ To change the volume level of
HFL, use the audio system volume
knob or the steering wheel volume
controls. Try to reduce all background
noise. If the microphone picks up
voices other than yours,
commands may be misinterpreted.
Press and
release to answer a call, or press to
go directly to the Phone screen.
Press and
release to end or decline a call. Airorwindnoisefromthe
dashboard and side vents and all
windows may interfere with the
microphone. Adjust or close them
as necessary.You can change the system language
to English, French, or Spanish (see
page ).
Press and release
to call a number with a stored voice
tag.
Press and release
to cancel a command. Press and release the Talk button
when you want to call a number
using a stored voice tag. Af ter the
beep, speak in a clear, natural tone. 317
Voice Cont rol T ips
HFL Buttons
L anguage Select ion
Bluetooth
HandsFreeL ink
(Models without navigation system)
PICK -UP Button
HANG-UP Button
TALK Button
BACK Button496BACK BUTTON
TALK BUTTON PICK-UP BUTTON
HANG-UP BUTTON MICROPHONE
EX-L model is shown.
10/07/17 10:40:57 31TK8600_501
2011 Odyssey

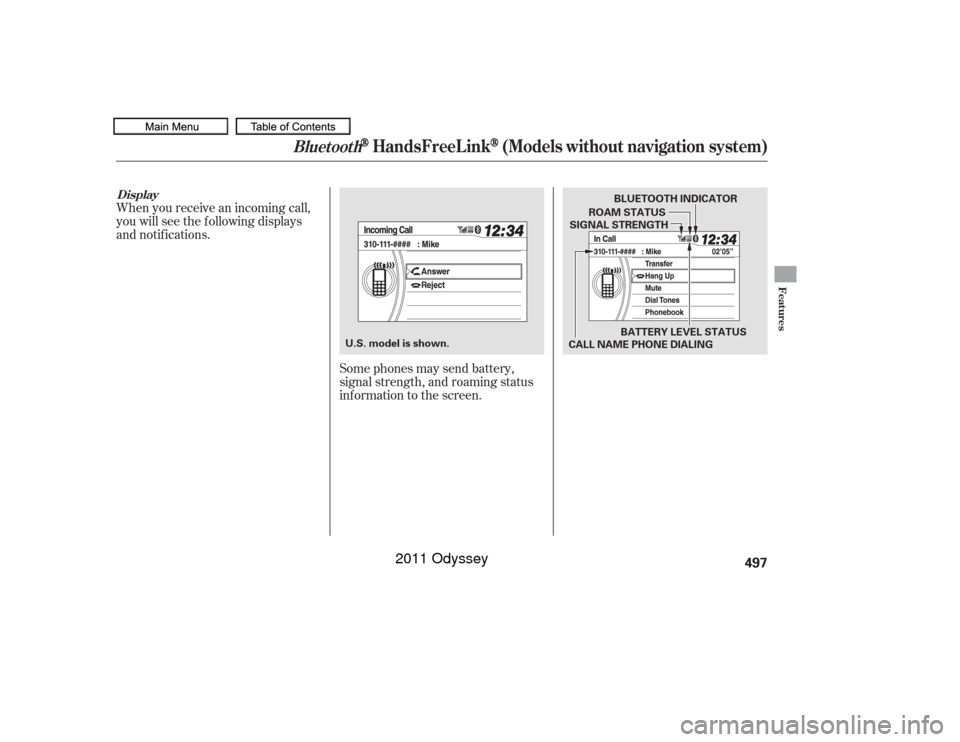

When you receive an incoming call,
you will see the f ollowing displays
and notif ications.Some phones may send battery,
signal strength, and roaming status
inf ormation to the screen.Display
Bluetooth
HandsFreeL ink
(Models without navigation system)
Features
497
U.S. model is shown. CALL NAME PHONE DIALINGBATTERY LEVEL STATUS
BLUETOOTH INDICATOR
SIGNAL STRENGTH ROAM STATUS
10/07/17 10:41:03 31TK8600_502
2011 Odyssey
