HONDA ODYSSEY 2015 RC1-RC2 / 5.G Navigation Manual

80

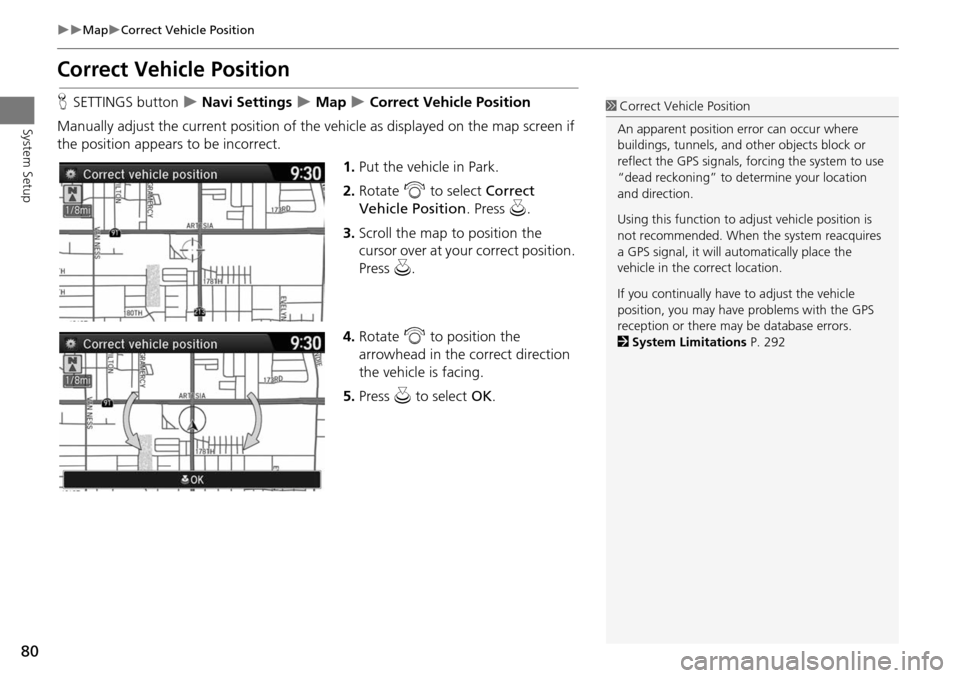

MapCorrect Vehicle Position
System Setup
Correct Vehicle Position
HSETTINGS button  Navi Settings  Map  Correct Vehicle Position
Manually adjust the current position of the vehicle as displayed on the map screen if
the position appear s to be incorrect.
1.Put the vehicle in Park.
2. Rotate i to select Correct
Vehicle Position . Press u.
3. Scroll the map to position the
cursor over at your correct position.
Press u.
4. Rotate i to position the
arrowhead in the correct direction
the vehicle is facing.
5. Press u to select OK.1Correct Vehicle Position
An apparent position error can occur where
buildings, tunnels, and ot her objects block or
reflect the GPS signals, forcing the system to use
“dead reckoning” to determine your location
and direction.
Using this function to ad just vehicle position is
not recommended. When the system reacquires
a GPS signal, it will automatically place the
vehicle in the correct location.
If you continually have to adjust the vehicle
position, you may have problems with the GPS
reception or there may be database errors.
2 System Limitations P. 292

81
System Setup
Data Reset
Defaulting All the Settings
HSETTINGS button  System Settings  Others  Factory Data Reset
Reset all the menu and customized settings as the factory defaults. 1.Rotate i to select Yes. Press u.
The confirmation message will
appear.
2. Rotate i to select Yes. Press
again to reset the settings.
The confirmation message will
appear. Press to select OK.
1Defaulting All the Settings
When you transfer the vehicle to a third party,
reset all settings to default and delete all
personal data.
The following settings will be reset:
•Routing & Guidance: Rer outing, Unverified
Area Routing, Traf fic Rerouting, Edit Waypoint
Search Area, Guidance Mode, Street Name
Guidance
•Route Preference

82
System Setup

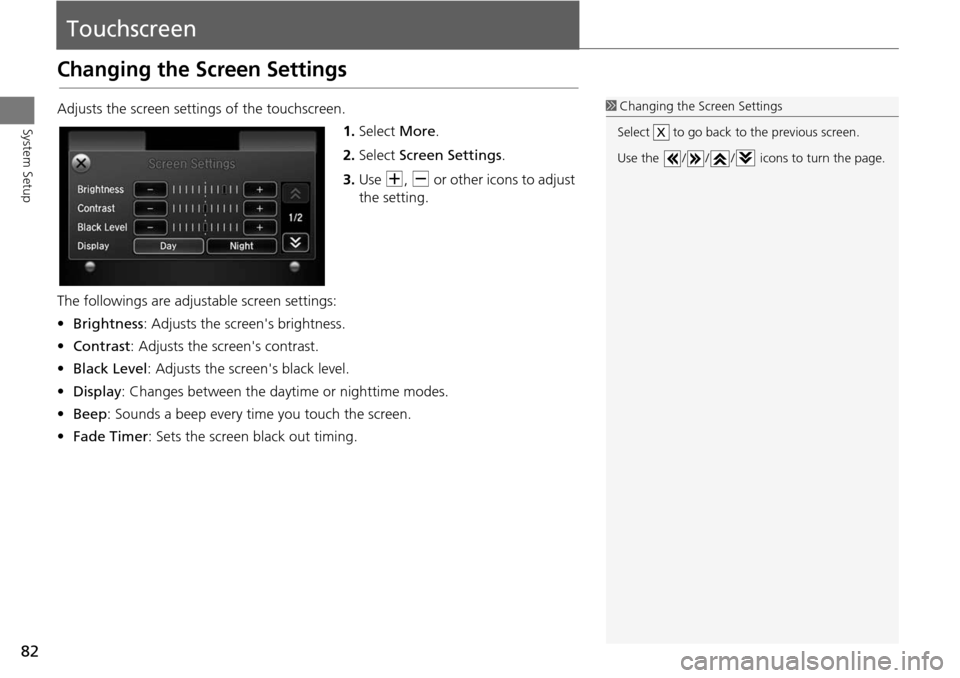

Touchscreen
Changing the Screen Settings
Adjusts the screen settings of the touchscreen.1.Select More.
2. Select Screen Settings .
3. Use N, B or other icons to adjust
the setting.
The followings are adju stable screen settings:
• Brightness: Adjusts the screen's brightness.
• Contrast : Adjusts the screen's contrast.
• Black Level : Adjusts the screen's black level.
• Display : Changes between the daytime or nighttime modes.
• Beep: Sounds a beep every time you touch the screen.
• Fade Timer : Sets the screen black out timing.1Changing the Screen Settings
Select to go back to the previous screen.
Use the / / / icons to turn the page.
X

83
Navigation
This section describes how to enter a destination, select a route to take,
and follow the route to your destination. It also describes how to change your route or destination along the way.
Entering a Destination........................... 84
Address ................................................. 86
Address Book ......................................... 92
Previous Destination ............................... 93
Place Category ....................................... 94
Place Name ............................................ 96
Place Phone Number .............................. 99
Download POI ...................................... 100
Scenic Route ........................................ 101
Intersection .......................................... 102
Map Input............................................ 103
Coordinate .......................................... 105
Calculating the Route ........................... 106
Viewing the Routes .............................. 107 Driving to Your Destination
.................108
Viewing the Route ................................108
Listening to Voice Guidance ..................112
Reaching a Waypoint ............................113
Map Menu ..............................................114
Displaying the Map Menu .....................114
Directions .............................................116
Traffic Rerouting™................................118
Changing Your Route ............................120
Pausing the Route .................................121
Canceling the Route .............................121
Adding Waypoints ................................122
Editing the Destination List ....................126
Taking a Detour ....................................128 Avoiding Streets ................................... 128
Changing Your Destination ................. 129
Find Nearest Place ................................ 129
Selecting a Destination on the Map ...... 130
Entering a New Destination .................. 131
Resuming Your Trip .............................. 132

84
Navigation
Entering a Destination
HMENU button (on map)
This section describes how to enter a destination for route guidance. Rotate i to select an item. Press u .
Select More Search Methods to
display additional menu entries.
The following item s are available:
• Address : Sets a destination by entering an address.
2Address P. 86
• Address Book: Sets a destination by selecting an address stored in your Address
Book.
2 Address Book P. 92
• Previous Destination : Sets a destination by select ing a previous destination.
2Previous Destination P. 93
1Entering a Destination
d “Display Destination” , d “Display
Navigation”
If you press the MENU button when en route,
the Route Option screen is displayed.
2 Changing Your Route P. 120
Prior to departure, you can set areas along your
route to avoid.
2 Avoiding Streets P. 128

85
Entering a Destination
Navigation
•Go Home : Sets your home address as a destination.
2Going Home P. 11
• Place Category : Sets a destination by selecting a place/landmark.
2Place Category P. 94
• Place Name : Sets a destination by entering a place name.
2Place Name P. 96
• Place Phone No. : Sets a destination by entering the phone number of a place/
landmark.
2 Place Phone Number P. 99
• Download POI: Sets a destination by using a lis t of the imported POI (category
and places) data you created.
2 Download POI P. 100
• Scenic Route : Sets a destination by using a list of scenic roads for each state (U.S.
and Canada only).
2 Scenic Route P. 101
• Intersection : Sets a destination (intersection) by entering two streets.
2Intersection P. 102
• Map Input : Sets a destination by scrolling through the map.
2Map Input P. 103
• Coordinate: Sets a destination by entering latitude and longitude.
2 Coordinate P. 105

86
Entering a DestinationAddress
Navigation
Address
HMENU button  Address
Enter an address to use as th e destination. The state or pr ovince you are currently in
is displayed (e.g., California).
Rotate i to select an item. Press u .
The following item s are available:
• City : Selects your destination city.
2Selecting a City P. 88
• Street : Selects your destination street.
2Selecting a Street P. 89
• House Number: Enters the house number to select the street.
2 Selecting a Street by House Number P. 91
• ZIP Code : Enters the zip code to select the city.
2Selecting a City by Zip Code P. 87
• Change State : Selects the state or province.
2Selecting the State or Province P. 87

87
Entering a DestinationAddress
Navigation
HMENU button  Address  Change State
Rotate i to select a state from the
list. Press u.
H MENU button
 Address  ZIP Code
1.Enter the zip code of your
destination.
2. Move r to select OK. Press u.
■Selecting the State or Province1 Selecting the State or Province
Move w or y to select the following areas:
•USA for the U.S. mainland, Alaska, Hawaii,
and Puerto Rico
•Canada
•Mexico
■ Selecting a City by Zip Code1 Selecting a City by Zip Code
If your city is not listed, it may be part of a larger
metropolitan area. Try entering the street first.
Continued

88
Entering a DestinationAddress
Navigation
3.Rotate i to select the destination
city from the list. Press u.
Next, you are prompted to enter
a street name.
2Selecting a Street P. 89
H MENU button
 Address  City
The name of the city where you are currently located is displayed. 1.Enter the name of a different city,
or move r to select OK for the
current city. Press u.
■Selecting a City
1 Selecting a City
Vehicle position may not be displayed when:
•The automobile is traveling off-road.
•The vehicle position data cannot be updated.
You do not need to enter spaces or symbols
(e.g., &, -, %). Partia l matches are supported
(e.g., “ANGELES” to find “LOS ANGELES”).
Using Voice Command (English only)
Say d “City ” on the Find address by screen, and
the following screen is displayed:
•Say d “Current City” to select your current
location, or say the name of a different city.
2 Selecting a Street P. 89
•The Say city name screen is not displayed when
your vehicle is in Puerto Rico or Mexico.

89
Entering a DestinationAddress
Navigation
2.Rotate i to select your
destination city fr om the list. Press
u .
A list of matching hits is
automatically displayed after
you enter several letters, with
the closest match at the top of
the list. Matching letters are
highlighted.
Next, you are prompted to enter
a street name.
2Selecting a Street P. 89
H MENU button
 Address  Street
1.Enter the name of your destination
street.
Do not enter the street type
(e.g., street, road, avenue) or
direction (e.g., north, south,
east, west).
Move r to select OK to display
a list of streets. Press u.
1Selecting a City
If your city is not listed, it may be part of a larger
metropolitan area. Try entering the street first.
Non-detailed area mark: Try entering the
street first and then select the city.
■ Selecting a Street
1 Selecting a Street
When entering the names of major freeways,
you can use the following abbreviations. For
interstates, use an “I ” (e.g., I-10). For U.S.
freeways, use “US” (e.g., US-18). For state
freeways, use the two-character state
designation (e.g., CA-101). For county roads, use
the appropriate desi gnation (e.g., G-2).
Using Voice Command (English only)
Say d “Street ” on the Find address by screen,
and the following screen is displayed:
•Say the name of your destination street, and
say the street number as a string of individual
numbers.
•Set the route to your destination.
2 Calculating the Route P. 106
•The Say street name screen is not displayed
when your vehicle is in Puerto Rico or Mexico.
Continued
