display HONDA ODYSSEY 2016 RC1-RC2 / 5.G Navigation Manual

57

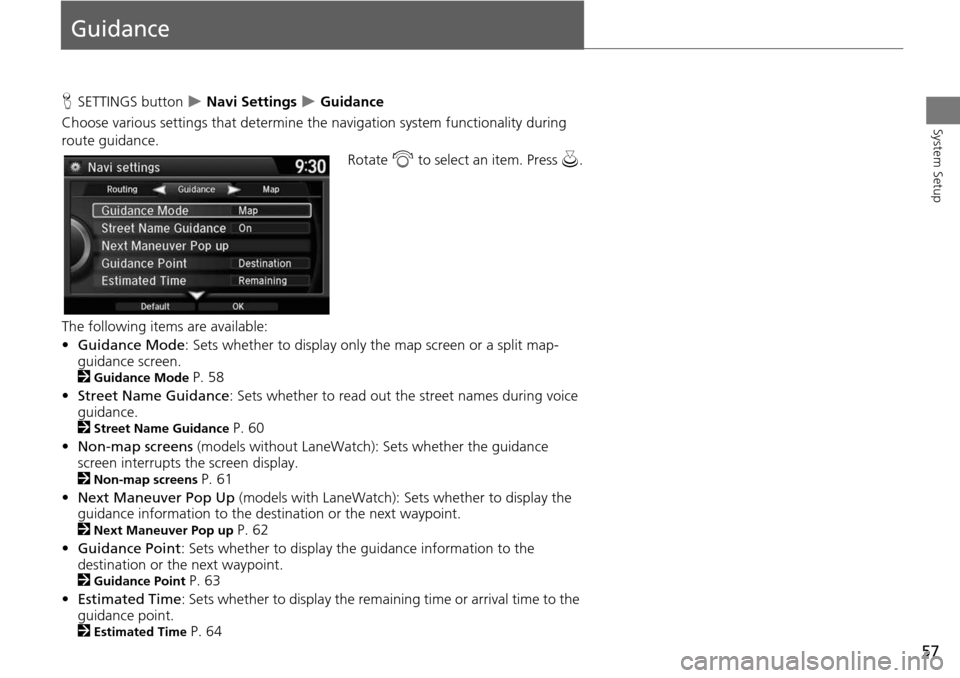

System Setup
Guidance
HSETTINGS button  Navi Settings  Guidance
Choose various settings that determine the navigation system functionality during
route guidance. Rotate i to select an item. Press u.
The following items are available:
• Guidance Mode : Sets whether to display only the map screen or a split map-
guidance screen.
2
Guidance Mode P. 58
• Street Name Guidance : Sets whether to read out the street names during voice
guidance.
2
Street Name Guidance P. 60
• Non-map screens (models without LaneWatch): Sets whether the guidance
screen interrupts the screen display.
2
Non-map screens P. 61
• Next Maneuver Pop Up (models with LaneWatch): Sets whether to display the
guidance information to the destination or the next waypoint.
2
Next Maneuver Pop up P. 62
• Guidance Point : Sets whether to display the guidance information to the
destination or the next waypoint.
2
Guidance Point P. 63
• Estimated Time : Sets whether to display the remain ing time or arrival time to the
guidance point.
2
Estimated Time P. 64

58

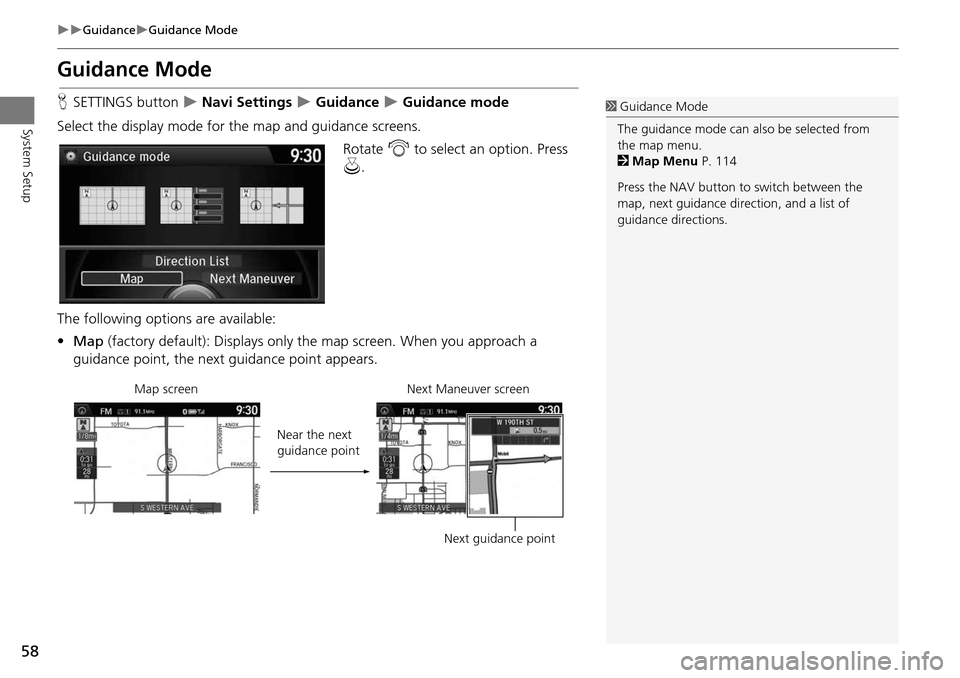

GuidanceGuidance Mode
System Setup
Guidance Mode
HSETTINGS button  Navi Settings  Guidance  Guidance mode
Select the display mode for th e map and guidance screens.
Rotate i to select an option. Press
u .
The following options are available:
• Map (factory default): Disp lays only the map screen. When you approach a
guidance point, the next guidance point appears.1 Guidance Mode
The guidance mode can al so be selected from
the map menu.
2 Map Menu P. 114
Press the NAV button to switch between the
map, next guidance dire ction, and a list of
guidance directions.
Near the next
guidance point
Map screen Next Maneuver screen
Next guidance point

59

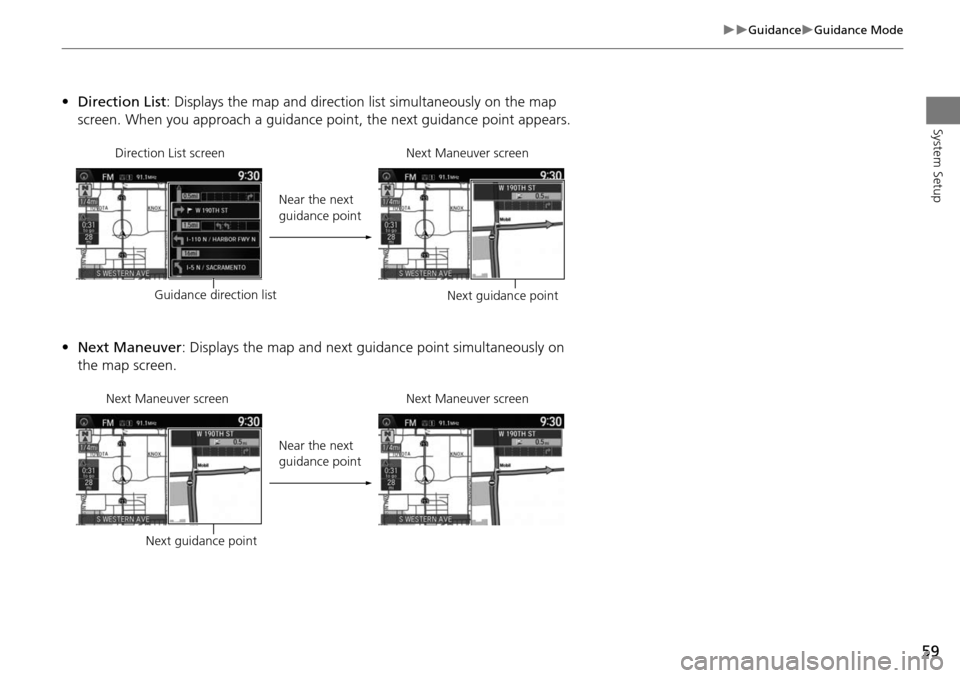

GuidanceGuidance Mode
System Setup
•Direction List : Displays the map and direction list simultaneously on the map
screen. When you approach a guidance point, the next guidance point appears.
• Next Maneuver : Displays the map and next guidance point simultaneously on
the map screen.
Guidance direction list Near the next
guidance point
Next guidance point
Direction List screen
Next Maneuver screen
Next guidance pointNear the next
guidance point
Next Maneuver screen
Next Maneuver screen

61

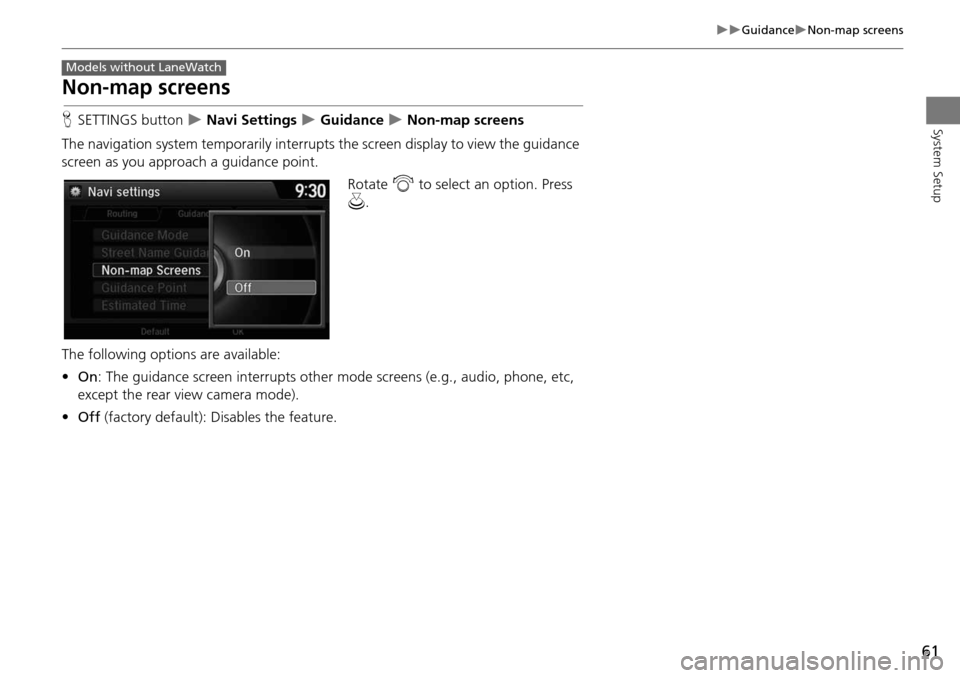

GuidanceNon-map screens
System Setup
Non-map screens
HSETTINGS button  Navi Settings  Guidance  Non-map screens
The navigation system temporarily interrupts the screen display to view the guidance
screen as you approach a guidance point.
Rotate i to select an option. Press
u .
The following options are available:
• On : The guidance screen interrupts other mode screens (e.g., audio, phone, etc,
except the rear view camera mode).
• Off (factory default): Disables the feature.
Models without LaneWatch

62

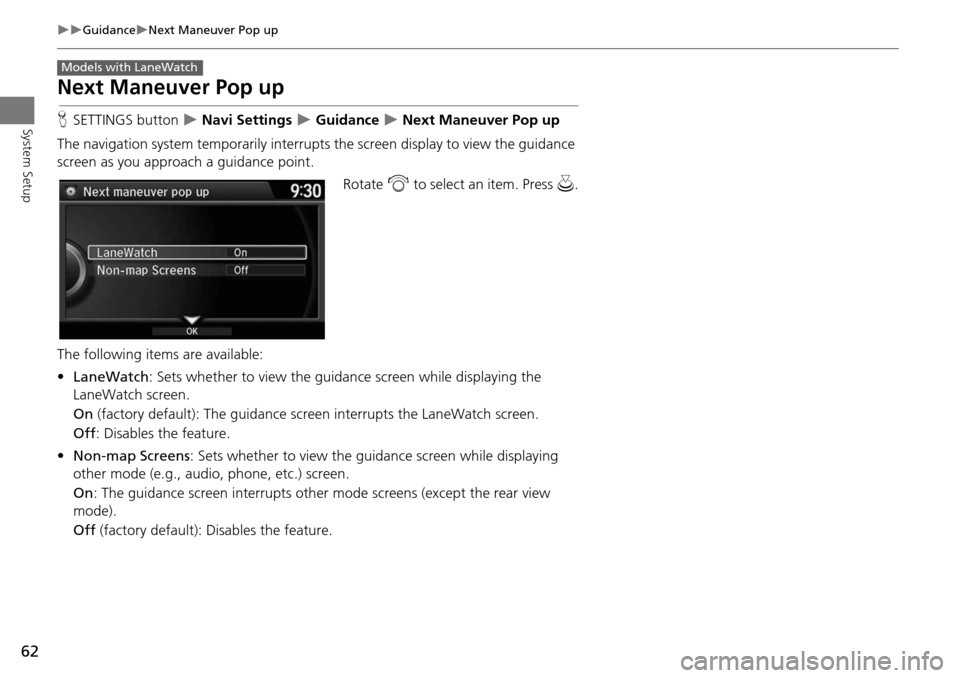

GuidanceNext Maneuver Pop up
System Setup
Next Maneuver Pop up
HSETTINGS button  Navi Settings  Guidance  Next Maneuver Pop up
The navigation system temporarily interrupts the screen display to view the guidance
screen as you approach a guidance point.
Rotate i to select an item. Press u .
The following item s are available:
• LaneWatch : Sets whether to view the guidanc e screen while displaying the
LaneWatch screen.
On (factory default): The guidance scre en interrupts the LaneWatch screen.
Off : Disables the feature.
• Non-map Screens : Sets whether to view the guidance screen while displaying
other mode (e.g., audio, phone, etc.) screen.
On : The guidance screen interrupts other mode screens (except the rear view
mode).
Off (factory default): Disables the feature.
Models with LaneWatch

63
GuidanceGuidance Point
System Setup
Guidance Point
HSETTINGS button  Navi Settings  Guidance  Guidance Point
Set the guidance point to display on the map screen. Rotate i to select an option. Press
u .
The following options are available:
• Destination (factory default): Displays the remaining/arrival time and distance to
the destination.
• Next Point : Displays the remaining/arrival time and distance to the next
waypoint.

64

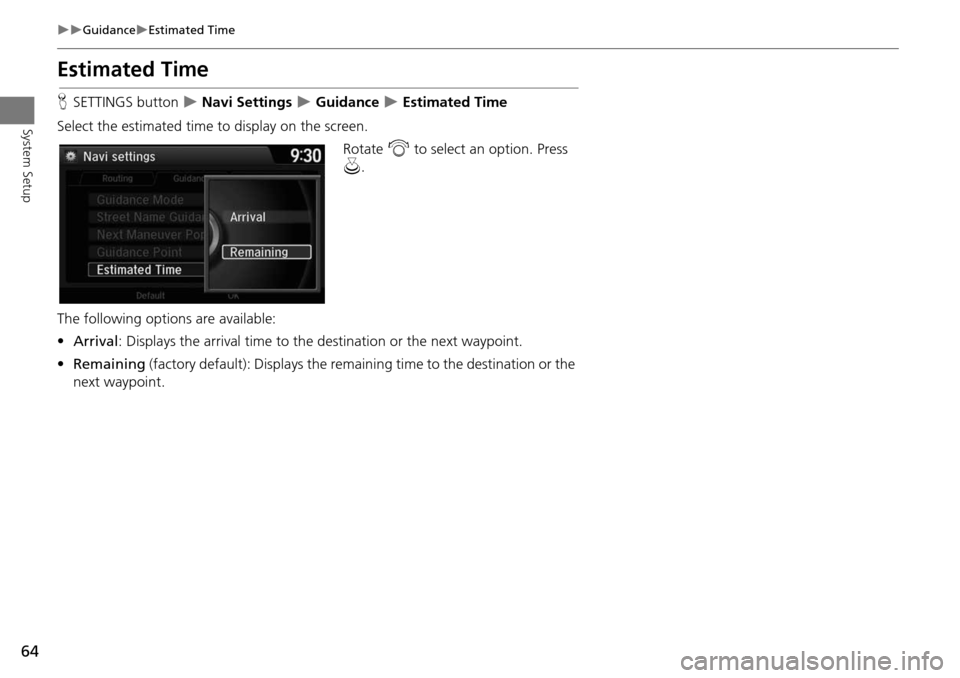

GuidanceEstimated Time
System Setup
Estimated Time
HSETTINGS button  Navi Settings  Guidance  Estimated Time
Select the estimated time to display on the screen.
Rotate i to select an option. Press
u .
The following options are available:
• Arrival : Displays the arrival time to the destination or the next waypoint.
• Remaining (factory default): Displays the rema ining time to the destination or the
next waypoint.

65

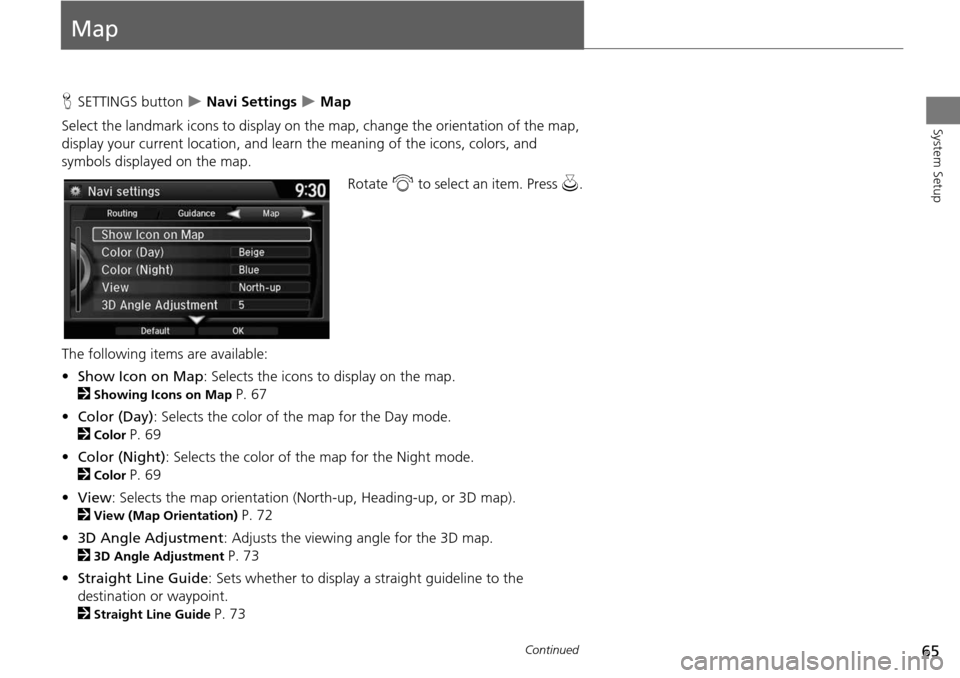

System Setup
Map
HSETTINGS button  Navi Settings  Map
Select the landmark icons to display on the map, change the orientation of the map,
display your current location, and learn the meaning of the icons, colors, and
symbols displayed on the map.
Rotate i to select an item. Press u.
The following items are available:
• Show Icon on Map : Selects the icons to display on the map.
2
Showing Icons on Map P. 67
• Color (Day) : Selects the color of the map for the Day mode.
2
Color P. 69
• Color (Night) : Selects the color of the map for the Night mode.
2
Color P. 69
• View : Selects the map orientation (No rth-up, Heading-up, or 3D map).
2
View (Map Orientation) P. 72
• 3D Angle Adjustment: Adjusts the viewing angle for the 3D map.
2
3D Angle Adjustment P. 73
• Straight Line Guide : Sets whether to display a straight guideline to the
destination or waypoint.
2
Straight Line Guide P. 73
Continued

66

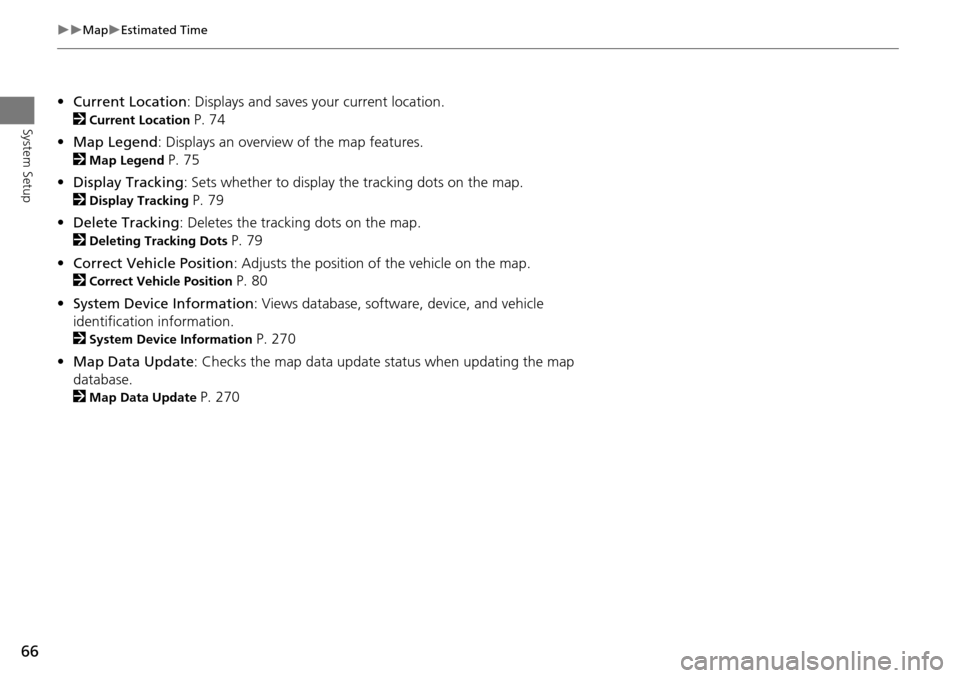

MapEstimated Time
System Setup
•Current Location : Displays and saves your current location.
2
Current Location P. 74
• Map Legend : Displays an overview of the map features.
2
Map Legend P. 75
• Display Tracking : Sets whether to display the tracking dots on the map.
2
Display Tracking P. 79
• Delete Tracking : Deletes the tracking dots on the map.
2
Deleting Tracking Dots P. 79
• Correct Vehicle Position : Adjusts the position of the vehicle on the map.
2
Correct Vehicle Position P. 80
• System Device Information : Views database, software, device, and vehicle
identification information.
2
System Device Information P. 270
• Map Data Update : Checks the map data update status when updating the map
database.
2
Map Data Update P. 270

67
MapShowing Icons on Map
System Setup

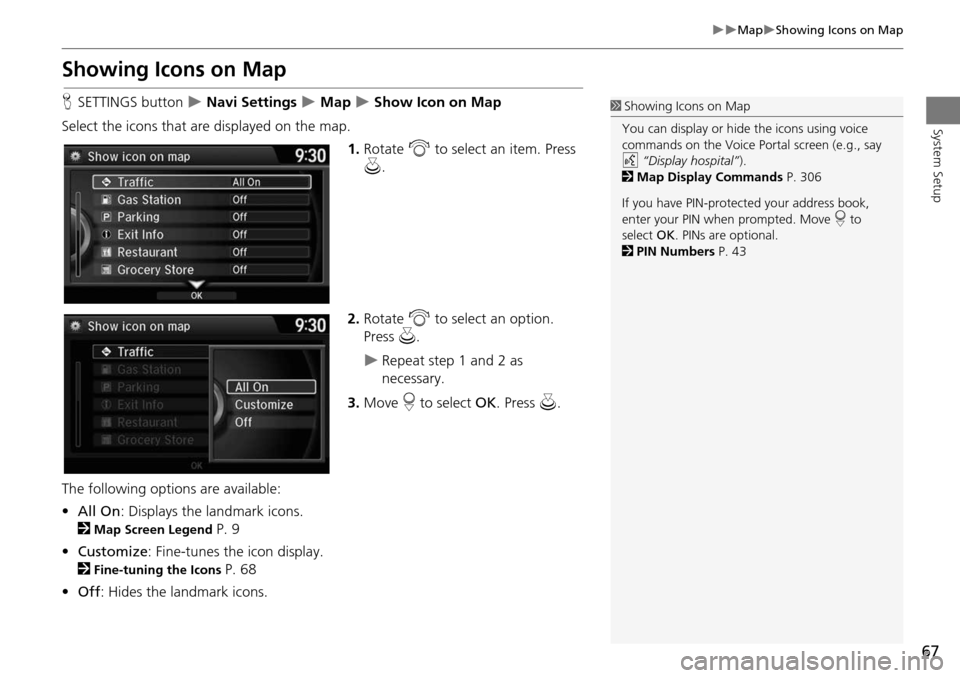

Showing Icons on Map
HSETTINGS button  Navi Settings  Map  Show Icon on Map
Select the icons that are displayed on the map. 1.Rotate i to select an item. Press
u .
2. Rotate i to select an option.
Press u.
Repeat step 1 and 2 as
necessary.
3. Move r to select OK. Press u.
The following options are available:
• All On : Displays the landmark icons.
2
Map Screen Legend P. 9
• Customize : Fine-tunes the icon display.
2
Fine-tuning the Icons P. 68
• Off : Hides the landmark icons.
1Showing Icons on Map
You can display or hide the icons using voice
commands on the Voice Portal screen (e.g., say
d “Display hospital” ).
2 Map Display Commands P. 306
If you have PIN-protec ted your address book,
enter your PIN when prompted. Move r to
select OK. PINs are optional.
2 PIN Numbers P. 43
