uuAdjusting the Seats uAdjusting the Seat Positions
166
Controls
A passenger sitting in the second row/third
row center seating position should adjust the
height of their head restraint to an
appropriate position befo re the vehicle begins
moving.
To raise the head restraint:
Pull it upward.
To lower the head restraint:
Push it down while pressing the release
button.
Head restraints can be removed for cleaning or repair.
To remove a head restraint:
Pull the restraint up as far as it will go. Then push the release button, and pull the
restraint up and out.
To reinstall a head restraint:
Insert the legs back in place, then adjust the head restraint to an appropriate height
while pressing the release button. Pull up on the restraint to make sure it is locked
in position.

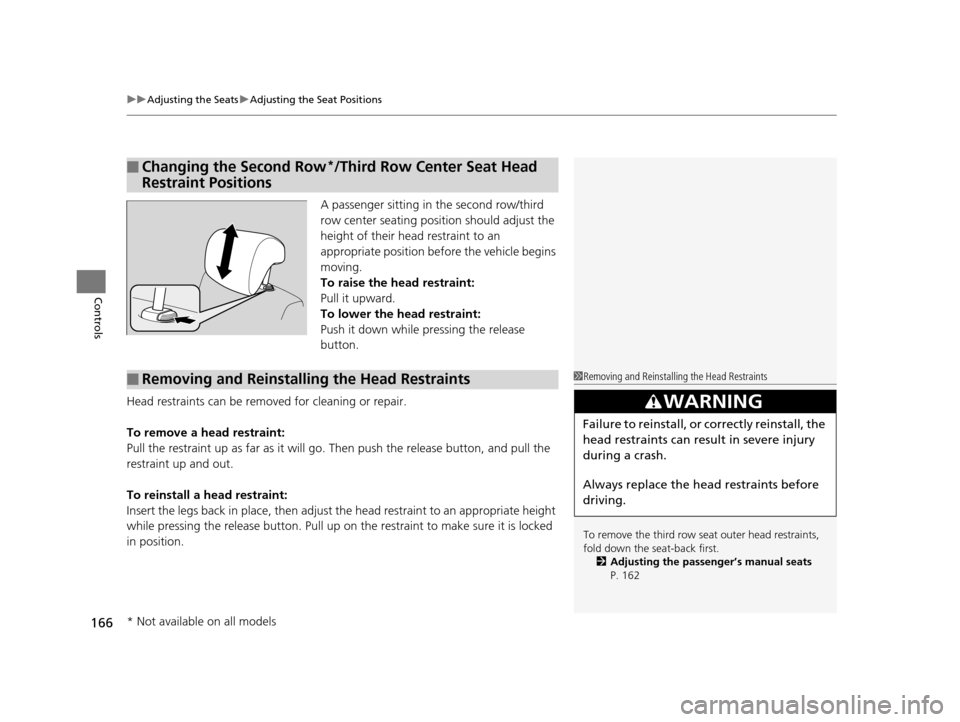

■Changing the Second Row*/Third Row Center Seat Head
Restraint Positions
■Removing and Reinstalling the Head Restraints1 Removing and Reinstalling the Head Restraints
To remove the third row seat outer head restraints,
fold down the seat-back first.
2 Adjusting the passenger’s manual seats
P. 162
3WARNING
Failure to reinstall, or correctly reinstall, the
head restraints can result in severe injury
during a crash.
Always replace the he ad restraints before
driving.
* Not available on all models
16 US ODYSSEY-31TK86500.book 166 ページ ２０１５年６月２４日　水曜日　午後３時０分

uuAdjusting the Seats uRear Seats
170
Controls
1. Lower the head restra int to its lowest
position.
2. Move the seat to it s rearmost position.
3. Fold the seat-back down.
4. Pull the lock release lever, and lift the rear
of the seat.
u To lift the seat, grab the handle under
the rear side of the seat cushion.
5. Pull the seat-back slig htly, then pivot it
upward.
u This unhooks the front of the seat from
the floor.

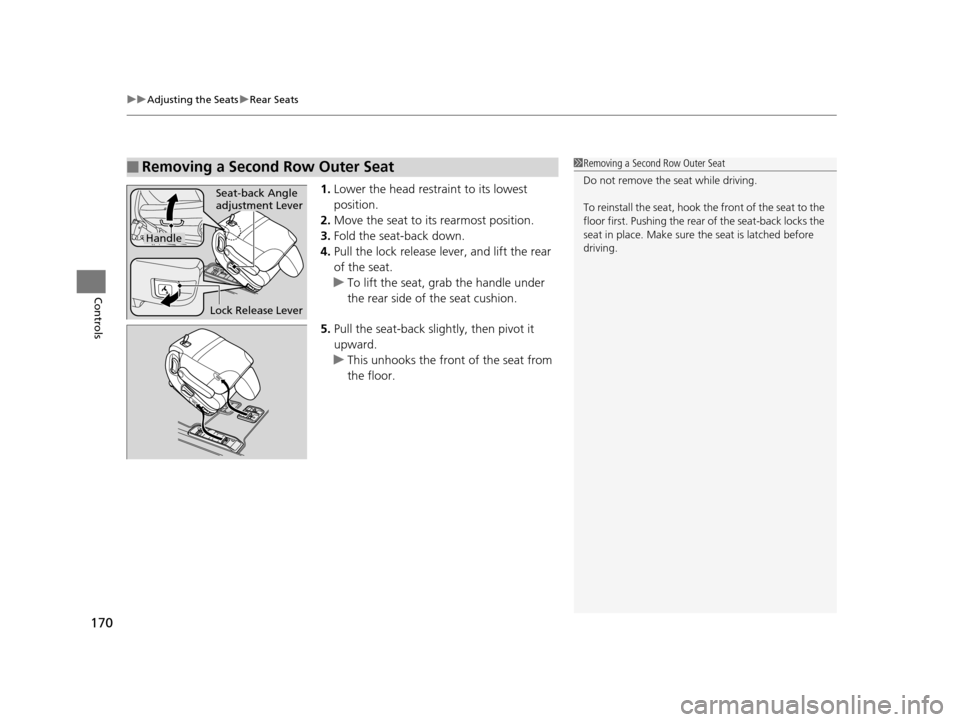

■Removing a Second Row Outer Seat1Removing a Second Row Outer Seat
Do not remove the seat while driving.
To reinstall the seat, hook the front of the seat to the
floor first. Pushing the rear of the seat-back locks the
seat in place. Make sure the seat is latched before
driving.
Handle
Seat-back Angle
adjustment Lever
Lock Release Lever
16 US ODYSSEY-31TK86500.book 170 ページ ２０１５年６月２４日　水曜日　午後３時０分

Continued171
uuAdjusting the Seats uRear Seats
Controls
1. Lower the head restraint to its lowest
position.
2. Move the seat to its rearmost position.
3. Fold the seat-back down.
4. Pull the lock release lever, and lift the rear
of the seat.
u To lift the seat, gr ab the handle under
the rear side of the seat cushion.
5. With the front of the seat hooked to the
floor, slide the seat laterally to the outer
position until it stops.
6. Lower the seat and push the rear of the
seat-back until it locks. Make sure the seat
is latched before driving.

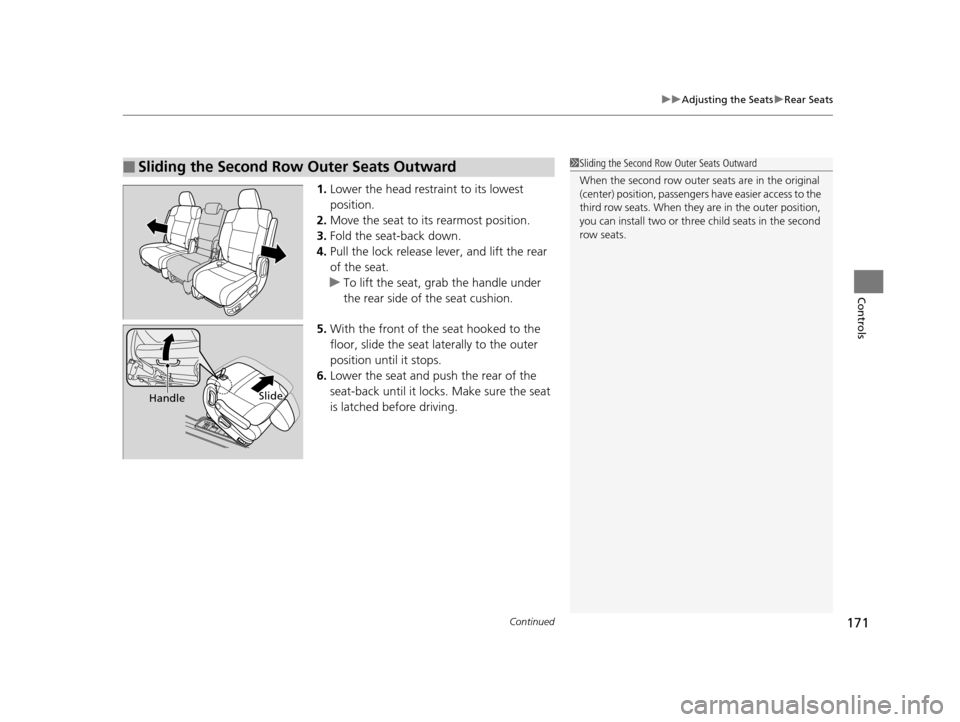

■Sliding the Second Row Outer Seats Outward1Sliding the Second Row Outer Seats Outward
When the second row outer seats are in the original
(center) position, passengers have easier access to the
third row seats. When they are in the outer position,
you can install two or three child seats in the second
row seats.
HandleSlide
16 US ODYSSEY-31TK86500.book 171 ページ ２０１５年６月２４日　水曜日　午後３時０分

uuAdjusting the Seats uRear Seats
172
Controls
Your vehicle’s multi-functional second row center seat is removable.
1.Store the center seat belt first. Insert a key
into the slot on the side of the anchor
buckle.
2. Retract the seat belt into the holder on the
ceiling.
2 Seat Belt with Detachable Anchor P. 35
3.Pull up the adjustment strap, and fold down
the seat-back.
4. Pull the lock release strap under the seat
cushion, and lift the rear of the seat.
u To lift the seat, hold the seat-back.
5. Pull the seat-back slig htly, then pivot it
upward.
u This unhooks the front of the seat from
the floor.

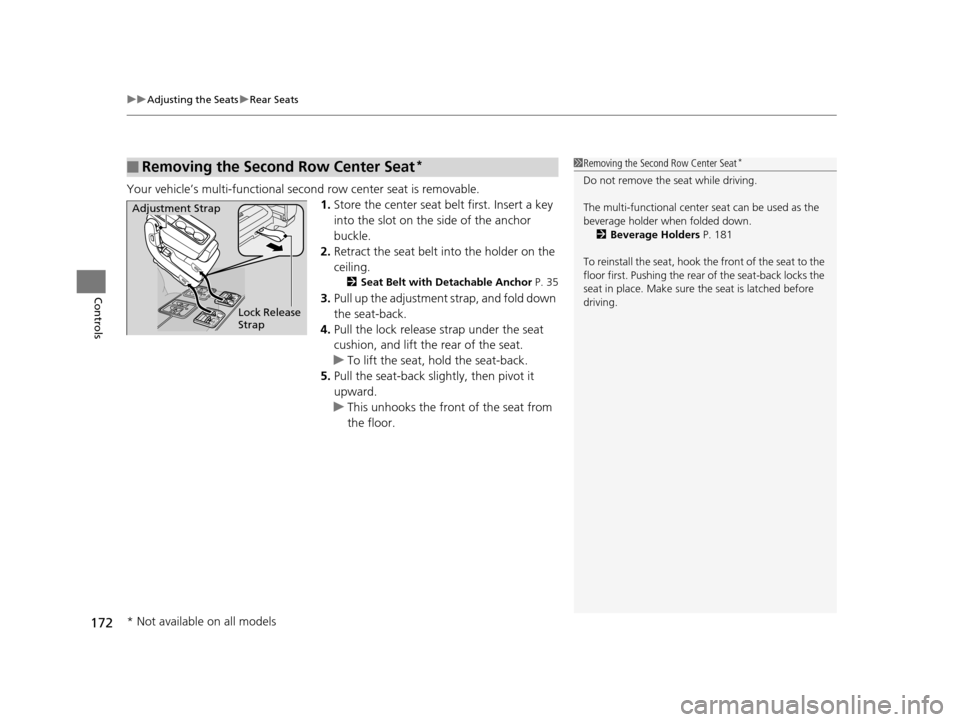

■Removing the Second Row Center Seat*1Removing the Second Row Center Seat*
Do not remove the seat while driving.
The multi-functional center seat can be used as the
beverage holder when folded down. 2 Beverage Holders P. 181
To reinstall the seat, hook the front of the seat to the
floor first. Pushing the rear of the seat-back locks the
seat in place. Make sure the seat is latched before
driving.
Adjustment Strap
Lock Release
Strap
* Not available on all models
16 US ODYSSEY-31TK86500.book 172 ページ ２０１５年６月２４日　水曜日　午後３時０分

uuAdjusting the Seats uRear Seats
174
Controls

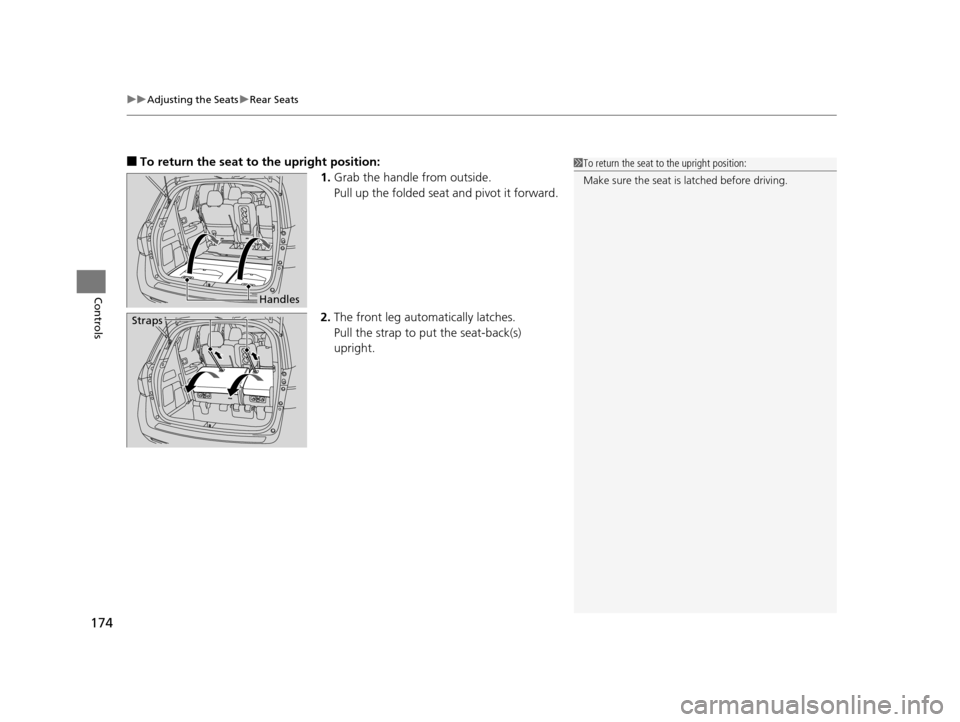

■To return the seat to the upright position:
1.Grab the handle from outside.
Pull up the folded seat and pivot it forward.
2. The front leg automatically latches.
Pull the strap to put the seat-back(s)
upright.1To return the seat to the upright position:
Make sure the seat is latched before driving.
Handles
Straps
16 US ODYSSEY-31TK86500.book 174 ページ ２０１５年６月２４日　水曜日　午後３時０分

555
Index
DimmingHeadlights .............................................. 147
Rearview Mirror ...................................... 158
Dipstick (Engine Oil) ................................ 466
Directional Signals (Turn Signal) ............. 147
Display Button .................................. 212, 238
Door Mirrors ............................................. 159
Doors ........................................................ 110
Auto Door Locking.................................. 120
Auto Door Unlocking .............................. 120
Door and Tailgate Open Indicator ....... 29, 75
Keys........................................................ 110
Locking/Unlocking the Doors from the Inside .............................................. 118
Locking/Unlocking the Doors from the Outside ........................................... 113
Lockout Prevention System ..................... 117
DOT Tire Quality Grading ........................ 493
Driving ...................................................... 395
Automatic Transmission .......................... 412
Braking ................................................... 436
Cruise Control ........................................ 415
Shifting Gear .......................................... 413
Starting the Engine ......................... 407, 409
Driving Position Memory System ............ 155
Dust and Pollen Filter .............................. 504
E
Elapsed Time.............................................. 97
Electronic Stability Control (ESC) ............ 426Emergency
................................................ 539
Emergency Engine Stop ........................... 522
Emissions Testing (Readiness Codes) ....... 547
Engine ....................................................... 544
Coolant ................................................... 470
Jump Starting .......................................... 523
Oil ........................................................... 465
Starting ........................................... 407, 409
Switch Buzzer .......................................... 142
Engine Coolant ......................................... 470
Adding to the Radiator ............................ 471
Adding to the Reserve Tank ..................... 470
Overheating ............................................ 526
Temperature Gauge .................................. 92
Engine Oil ................................................. 465
Adding .................................................... 467
Checking ................................................. 466
Displaying Oil Life ............................ 455, 459
Low Oil Pressure Indicator .................. 71, 528
Recommended Engine Oil ........................ 465
ENGINE START/STOP Button .................... 143
Exhaust Gas Hazard (Carbon
Monoxide) ................................................. 66
Expanded View Driver’s Mirror ............... 160
Exterior Care (Cleaning) ........................... 507
Exterior Mirrors ........................................ 159
F
Features..................................................... 205 Filters
Dust and Pollen ....................................... 504
Oil ........................................................... 468
Flat Tire ..................................................... 511
Flip-up Trash Bag Ring ............................. 179
Floor Mats ................................................. 506
Fluids Automatic Transmission .......................... 472
Brake ...................................................... 473
Engine Coolant ....................................... 470
Power Steering ........................................ 474
Windshield Washer ................................. 474
Fog Light Indicator ..................................... 78
Folding Down the Rear Seats .......... 162, 173
Foot Brake ................................................ 437
Forward Collision Warning (FCW) ........... 418
Front Airbags (SRS) ..................................... 42
Front Seats ................................................ 161
Adjusting ................................................ 161
Fuel ...................................................... 19, 446
Economy ................................................. 449
Gauge ....................................................... 92
Instant Fuel Economy .......................... 94, 97
Low Fuel Indicator ..................................... 73
Range ................................................. 94, 97
Recommendation .................................... 446
Refueling................................................. 446
Fuel Economy ........................................... 449
Fuel Fill Cap ........................................ 19, 448
Message.................................................. 529
Fuel Fill Door ...................................... 19, 447
16 US ODYSSEY-31TK86500.book 555 ページ ２０１５年６月２４日　水曜日　午後３時０分

558
Index
M
Maintenance............................................. 451
Battery..................................................... 499
Brake Fluid............................................... 473
Cleaning .................................................. 505
Climate Control System ........................... 504
Coolant ................................................... 470
Heating and Cooling System .................... 504
Maintenance Minder
TM............................ 455
Oil ........................................................... 466
Power Steering Fluid ................................ 474
Precautions .............................................. 452
Radiator................................................... 471
Remote Control and Wireless
Headphone ............................................ 502
Remote Transmitter ................................. 500
Replacing Light Bulbs ............................... 475
Safety ...................................................... 453
Service Items.................................... 457, 461
Tires ........................................................ 490
Transmission Fluid.................................... 472
Under the Hood....................................... 463
Malfunction Indicator Lamp .............. 71, 529
Map Lights ................................................ 177
Maximum Load Limit ................................ 399
Meters, Gauges ........................................... 92
Mirrors ....................................................... 158
Adjusting ................................................. 158
Door ........................................................ 159
Exterior .................................................... 159
Interior Rearview...................................... 158 Modifications (and Accessories)
.............. 450
Moonroof ................................................. 141
MP3 ................................... 221, 229, 252, 262
Multi-Information Display ......................... 96
N
Numbers (Identification).......................... 544
O
Odometer............................................. 93, 97
Oil (Engine) ............................................... 465
Adding .................................................... 467
Checking................................................. 466
Displaying Oil Life ............................ 455, 459
Low Oil Pressure Indicator ................. 71, 528
Recommended Engine Oil ....................... 465
Viscosity .................................................. 465
Opening/Closing
Hood....................................................... 464
Moonroof ............................................... 141
Power Windows ...................................... 138
Sliding Doors ........................................... 127
Tailgate ................................................... 121
Outside Temperature Display .............. 95, 98
Overheating .............................................. 526
P
Pandora®........................................... 228, 260
Panic Mode ............................................... 137 Parking
..................................................... 440
Parking Brake ........................................... 436
Parking Brake and Brake System Indicator ................................................... 70
Parking Sensor System ............................. 441
Passenger Airbag Off Indicator ................. 50
Passing Indicators ..................................... 147
Power Sliding Doors ................................ 129
Power Tailgate ......................................... 123
Power Windows ....................................... 138
Precautions While Driving ....................... 411
Rain ........................................................ 411
Pregnant Women ....................................... 37
Puncture (Tire) ......................................... 511
R
Radiator.................................................... 471
Radio (AM/FM) ................................. 218, 245
Radio (SiriusXM ®)..................................... 249
Radio Data System (RDS) ................. 219, 247
Range .................................................... 94, 97
RDS (Radio Data System) ................. 219, 247
Readiness Codes (Emissions Testing) ...... 547
Rear Defogger/Heated Door Mirror Button ..................................................... 154
Rear Entertainment System ..................... 276
Rear Seats (Folding Down) .............. 162, 173
Rearview Camera ..................................... 445
Rearview Mirror ....................................... 158
16 US ODYSSEY-31TK86500.book 558 ページ ２０１５年６月２４日　水曜日　午後３時０分
