key battery HONDA ODYSSEY 2019 Owner's Manual (in English)

107
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
•Appears when you close th e door with the power
mode in ON without the remote inside the vehicle.• Disappears when you bring the remote back inside the
vehicle and close the door.
2 Remote Reminder P. 188
•Appears when the remote battery becomes weak.•Replace the battery as soon as possible.
2 Replacing the Button Battery P. 686
•Appears if the remote battery is too weak to start the
engine or the key is not within operating range to
start the engine.
A beeper sounds six times.•Bring the remote in front of the ENGINE START/STOP
button to be touched with.
2 If the Remote Battery is Weak P. 711
•Appears if you press the ENGINE START/STOP
button while the vehicle is moving.• The message will disappear after six seconds or when
the power mode is set to VEHICLE OFF.
•Appears after the driver’s door is opened when the
power mode is in ACCESSORY.• Press and hold the ENGINE START/STOP button with
your foot off the brake pedal to change the power
mode to VEHICLE OFF.
• Appears when you attempt to change to another
gear position with the transmission in
(P and the
engine OFF.
• To select another gear position while in (P, the engine
must be ON.
• Appears when you set the power mode to OFF while
driving.
•Immediately stop in a safe place, set the parking brake,
then restart the engine. If the message disappears,
continue driving.ELITE and TOURING grade models
19 ODYSSEY-31THR6120.book 107 ページ ２０１８年１２月６日　木曜日　午後４時３５分

144
Controls

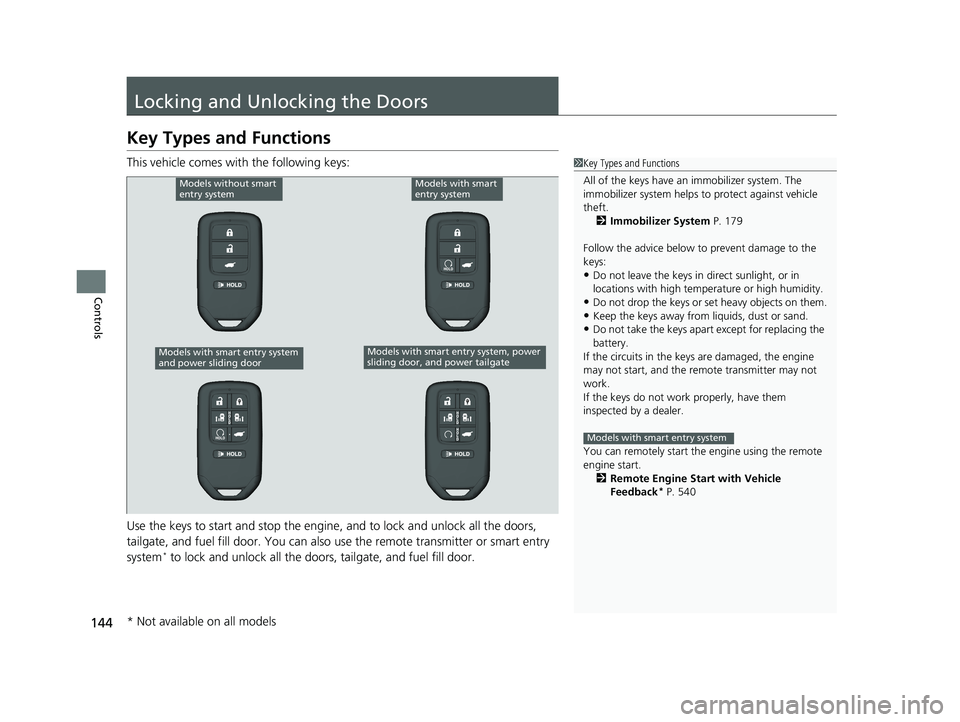

Locking and Unlocking the Doors
Key Types and Functions
This vehicle comes with the following keys:
Use the keys to start and stop the engine, and to lock and unlock all the doors,
tailgate, and fuel fill door. You can also use the remote transmitter or smart entry
system
* to lock and unlock all the doors, tailgate, and fuel fill door.
1 Key Types and Functions
All of the keys have an immobilizer system. The
immobilizer system helps to protect against vehicle
theft. 2 Immobilizer System P. 179
Follow the advice below to prevent damage to the
keys:
•Do not leave the keys in direct sunlight, or in
locations with high temperature or high humidity.
•Do not drop the keys or set heavy objects on them.•Keep the keys away from liquids, dust or sand.
•Do not take the keys apart except for replacing the
battery.
If the circuits in the keys are damaged, the engine
may not start, and the remote transmitter may not
work.
If the keys do not work properly, have them
inspected by a dealer.
You can remotely start the engine using the remote
engine start. 2 Remote Engine Start with Vehicle
Feedback
* P. 540
Models with smart entry system
Models without smart
entry systemModels with smart
entry system
Models with smart entry system, power
sliding door, and power tailgateModels with smart entry system
and power sliding door
* Not available on all models
19 ODYSSEY-31THR6120.book 144 ページ ２０１８年１２月６日　木曜日　午後４時３５分

145

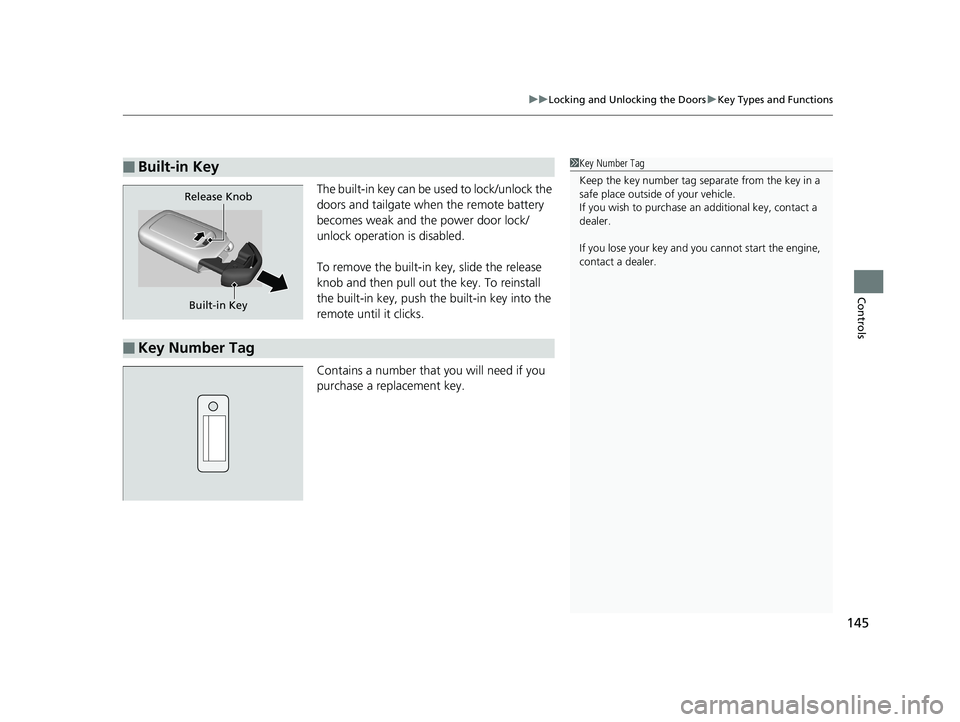

uuLocking and Unlocking the Doors uKey Types and Functions
Controls
The built-in key can be us ed to lock/unlock the
doors and tailgate when the remote battery
becomes weak and the power door lock/
unlock operation is disabled.
To remove the built-in key, slide the release
knob and then pull out the key. To reinstall
the built-in key, push th e built-in key into the
remote until it clicks.
Contains a number that you will need if you
purchase a replacement key.
■Built-in Key
Release Knob
Built-in Key
■Key Number Tag
1 Key Number Tag
Keep the key number tag separate from the key in a
safe place outside of your vehicle.
If you wish to purchase an additional key, contact a
dealer.
If you lose your key and you cannot start the engine,
contact a dealer.
19 ODYSSEY-31THR6120.book 145 ページ ２０１８年１２月６日　木曜日　午後４時３５分

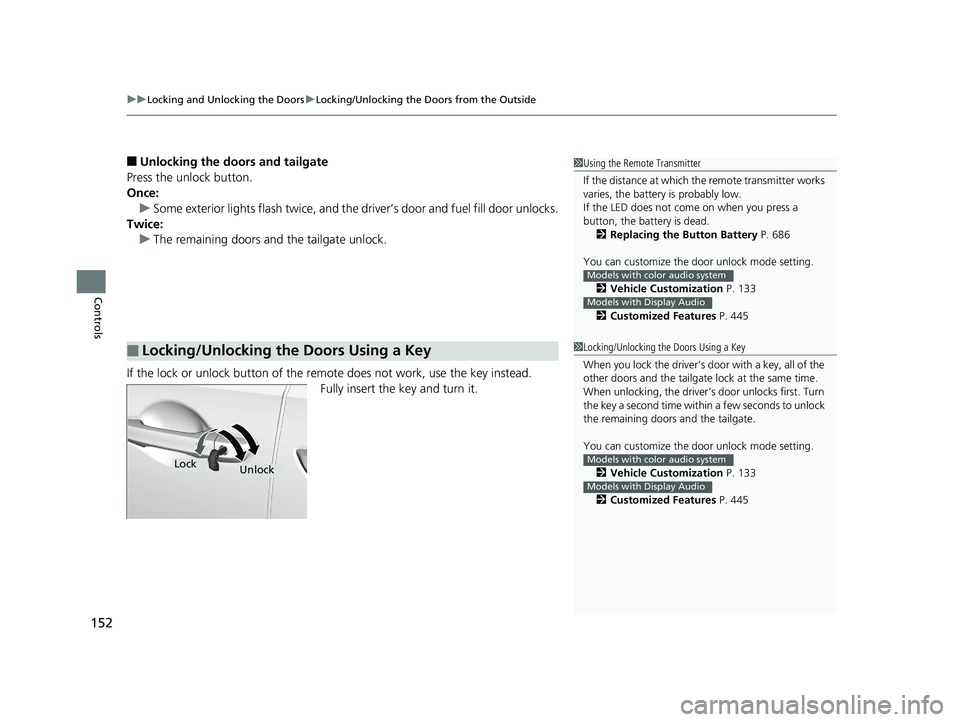

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
152
Controls
■Unlocking the doors and tailgate
Press the unlock button.
Once: u Some exterior lights flash twice, and the driver’s door and fuel fill door unlocks.
Twice: u The remaining doors and the tailgate unlock.
If the lock or unlock button of the re mote does not work, use the key instead.
Fully insert the key and turn it.
■Locking/Unlocking the Doors Using a Key
1 Using the Remote Transmitter
If the distance at which the remote transmitter works
varies, the batter y is probably low.
If the LED does not come on when you press a
button, the battery is dead. 2 Replacing the Button Battery P. 686
You can customize the door unlock mode setting. 2 Vehicle Customization P. 133
2 Customized Features P. 445
Models with color audio system
Models with Display Audio
1Locking/Unlocking the Doors Using a Key
When you lock the driver’s door with a key, all of the
other doors and the tailgate lock at the same time.
When unlocking, the driver’s door unlocks first. Turn
the key a second time within a few seconds to unlock
the remaining doors and the tailgate.
You can customize the door unlock mode setting.
2 Vehicle Customization P. 133
2 Customized Features P. 445
Models with color audio system
Models with Display Audio
LockUnlock
19 ODYSSEY-31THR6120.book 152 ページ ２０１８年１２月６日　木曜日　午後４時３５分

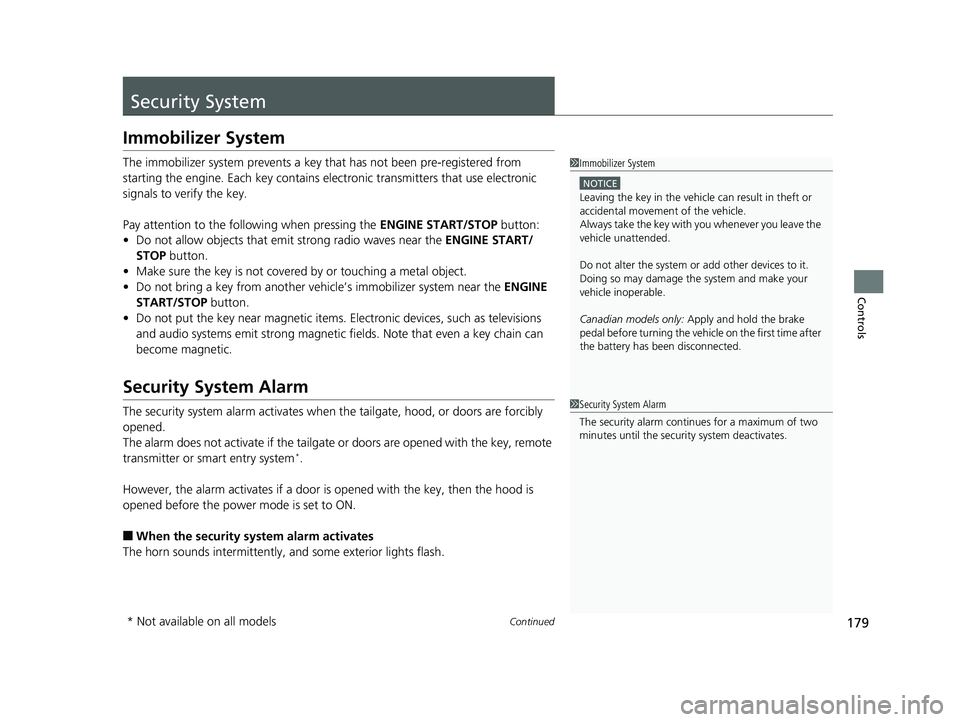

179Continued
Controls
Security System
Immobilizer System
The immobilizer system prevents a key that has not been pre-registered from
starting the engine. Each key contains electronic transmitters that use electronic
signals to verify the key.
Pay attention to the follo wing when pressing the ENGINE START/STOP button:
• Do not allow objects that emit strong radio waves near the ENGINE START/
STOP button.
• Make sure the key is not covered by or touching a metal object.
• Do not bring a key from another vehicle’s immobilizer system near the ENGINE
START/STOP button.
• Do not put the key near magnetic items. Electronic devices, such as televisions
and audio systems emit strong magnetic fields. Note that even a key chain can
become magnetic.
Security System Alarm
The security system alarm activates when the tailgate, hood, or doors are forcibly
opened.
The alarm does not activate if the tailgate or doors are opened with the key, remote
transmitter or smart entry system
*.
However, the alarm activates if a door is opened with the key, then the hood is
opened before the power mode is set to ON.
■When the security system alarm activates
The horn sounds intermittently, and some exterior lights flash.
1 Immobilizer System
NOTICE
Leaving the key in the vehicl e can result in theft or
accidental movement of the vehicle.
Always take the key with you whenever you leave the
vehicle unattended.
Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.
Canadian models only: Apply and hold the brake
pedal before turning the vehicle on the first time after
the battery has been disconnected.
1 Security System Alarm
The security alarm continues for a maximum of two
minutes until the security system deactivates.
* Not available on all models
19 ODYSSEY-31THR6120.book 179 ページ ２０１８年１２月６日　木曜日　午後４時３５分

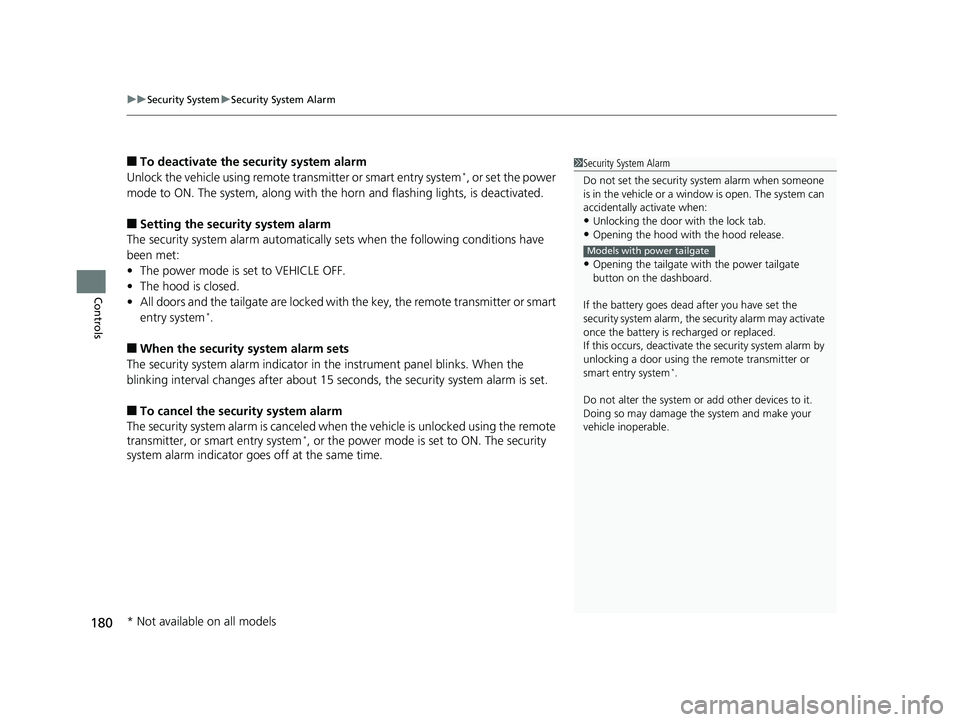

uuSecurity System uSecurity System Alarm
180
Controls
■To deactivate the security system alarm
Unlock the vehicle using remote transmitter or smart entry system*, or set the power
mode to ON. The system, along with the ho rn and flashing lights, is deactivated.
■Setting the security system alarm
The security system alarm automatically sets when the following conditions have
been met:
• The power mode is set to VEHICLE OFF.
• The hood is closed.
• All doors and the tailgate are locked with the key, the remote transmitter or smart
entry system
*.
■When the security system alarm sets
The security system alarm indicator in the instrument panel blinks. When the
blinking interval changes after about 15 seconds, the security system alarm is set.
■To cancel the security system alarm
The security system alarm is canceled when the vehicle is unlocked using the remote
transmitter, or smart entry system
*, or the power mode is set to ON. The security
system alarm indicator goe s off at the same time.
1Security System Alarm
Do not set the security system alarm when someone
is in the vehicle or a window is open. The system can
accidentally activate when:
•Unlocking the door with the lock tab.•Opening the hood with the hood release.
•Opening the tailgate with the power tailgate
button on the dashboard.
If the battery goes dead after you have set the
security system alarm, the security alarm may activate
once the battery is re charged or replaced.
If this occurs, deactivate the security system alarm by
unlocking a door using the remote transmitter or
smart entry system
*.
Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.
Models with power tailgate
* Not available on all models
19 ODYSSEY-31THR6120.book 180 ページ ２０１８年１２月６日　木曜日　午後４時３５分

Continued541

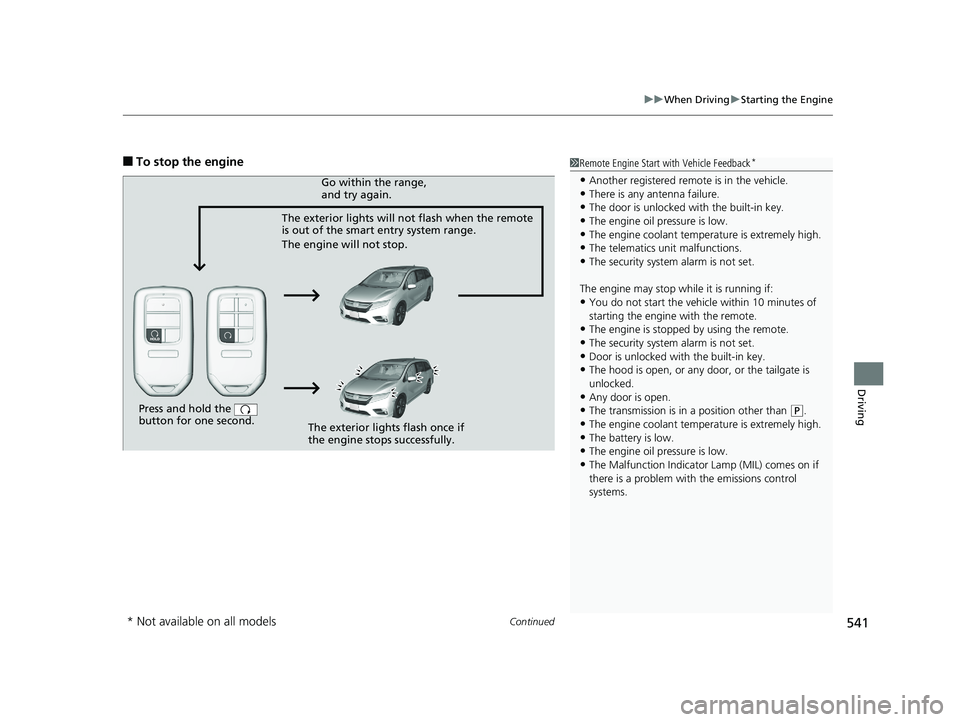

uuWhen Driving uStarting the Engine
Driving
■To stop the engine1Remote Engine Start with Vehicle Feedback*
•Another registered remo te is in the vehicle.•There is any antenna failure.
•The door is unlocked with the built-in key.
•The engine oil pressure is low.•The engine coolant temper ature is extremely high.
•The telematics unit malfunctions.
•The security system alarm is not set.
The engine may stop whil e it is running if:
•You do not start the vehicl e within 10 minutes of
starting the engine with the remote.
•The engine is stopped by using the remote.
•The security system alarm is not set.•Door is unlocked with the built-in key.
•The hood is open, or any door, or the tailgate is
unlocked.
•Any door is open.
•The transmission is in a position other than ( P.
•The engine coolant temper ature is extremely high.
•The battery is low.•The engine oil pressure is low.
•The Malfunction Indicator Lamp (MIL) comes on if
there is a problem with the emissions control
systems.
Press and hold the
button for one second.
The exterior lights will not flash when the remote
is out of the smart entry system range.
The engine will not stop.Go within the range,
and try again.
The exterior lights flash once if
the engine stops successfully.
* Not available on all models
19 ODYSSEY-31THR6120.book 541 ページ ２０１８年１２月６日　木曜日　午後４時３５分

686
Maintenance

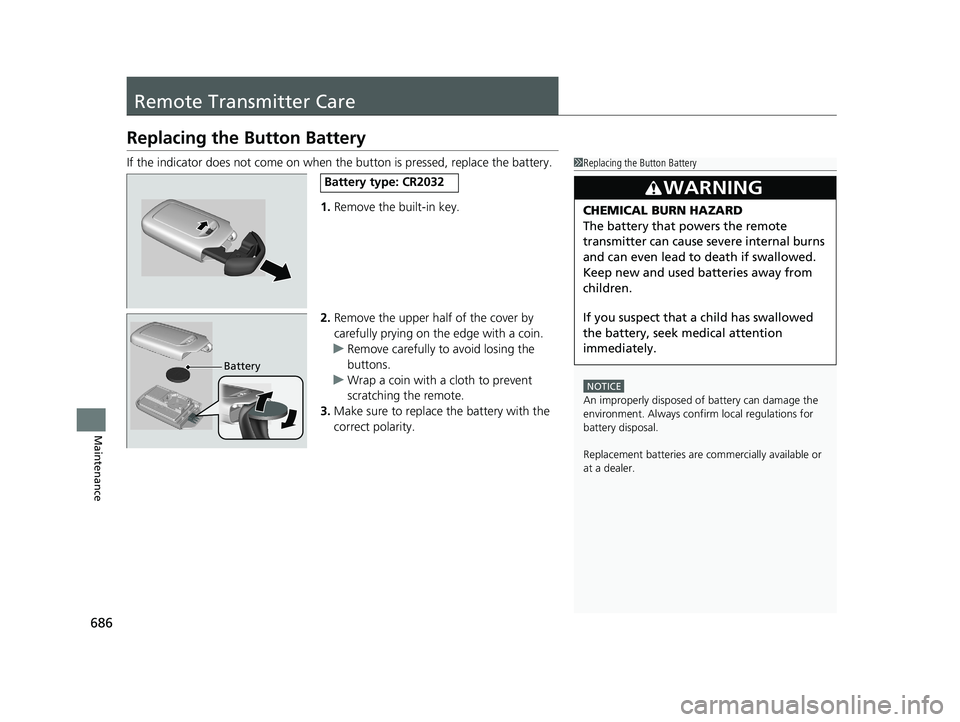

Remote Transmitter Care
Replacing the Button Battery
If the indicator does not come on when the button is pressed, replace the battery.
1. Remove the built-in key.
2. Remove the upper half of the cover by
carefully prying on the edge with a coin.
u Remove carefully to avoid losing the
buttons.
u Wrap a coin with a cloth to prevent
scratching the remote.
3. Make sure to replace the battery with the
correct polarity.1 Replacing the Button Battery
NOTICE
An improperly disposed of battery can damage the
environment. Always conf irm local regulations for
battery disposal.
Replacement batteries are commercially available or
at a dealer.
3WARNING
CHEMICAL BURN HAZARD
The battery that powers the remote
transmitter can cause severe internal burns
and can even lead to death if swallowed.
Keep new and used batteries away from
children.
If you suspect that a child has swallowed
the battery, seek medical attention
immediately.
Battery type: CR2032
Battery
19 ODYSSEY-31THR6120.book 686 ページ ２０１８年１２月６日　木曜日　午後４時３５分

753
Index
Automatic Brake Hold SystemIndicator ................................................... 86
Automatic Operation (automatic lighting control) ................................................... 190

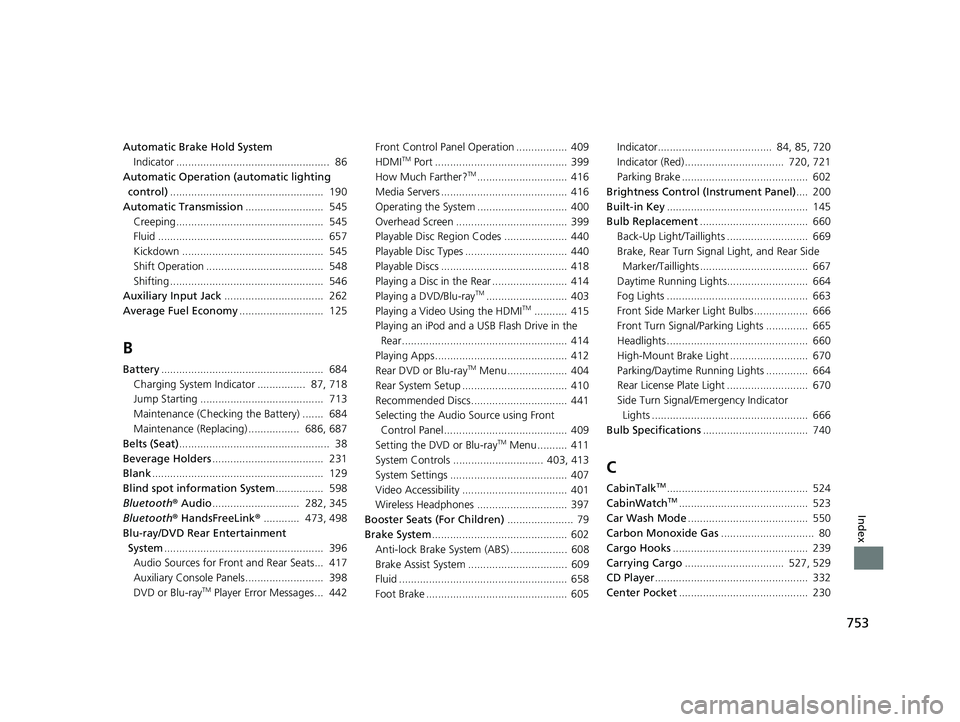

Automatic Transmission .......................... 545
Creeping................................................. 545
Fluid ....................................................... 657
Kickdown ............................................... 545
Shift Operation ....................................... 548
Shifting ................................................... 546
Auxiliary Input Jack ................................. 262
Average Fuel Economy ............................ 125
B
Battery...................................................... 684
Charging System Indicator ................ 87, 718
Jump Starting ......................................... 713
Maintenance (Checking the Battery) ....... 684
Maintenance (Replacing) ................. 686, 687
Belts (Seat) .................................................. 38
Beverage Holders ..................................... 231
Blank ......................................................... 129
Blind spot information System ................ 598
Bluetooth ® Audio ............................. 282, 345
Bluetooth ® HandsFreeLink ®............ 473, 498
Blu-ray/DVD Rear Entertainment
System ..................................................... 396
Audio Sources for Front and Rear Seats... 417
Auxiliary Console Panels.......................... 398
DVD or Blu-ray
TM Player Error Messages... 442 Front Control Panel Operation ................. 409
HDMI
TM Port ............................................ 399
How Much Farther?TM.............................. 416
Media Servers .......................................... 416
Operating the System .............................. 400
Overhead Screen ..................................... 399
Playable Disc Region Codes ..................... 440
Playable Disc Types .................................. 440
Playable Discs .......................................... 418
Playing a Disc in the Rear ......................... 414
Playing a DVD/Blu-ray
TM........................... 403
Playing a Video Using the HDMITM........... 415
Playing an iPod and a USB Flash Drive in the Rear....................................................... 414
Playing Apps ............................................ 412
Rear DVD or Blu-ray
TM Menu .................... 404
Rear System Setup ................................... 410
Recommended Discs ................................ 441
Selecting the Audio Source using Front
Control Panel......................................... 409
Setting the DVD or Blu-ray
TM Menu .......... 411
System Controls .............................. 403, 413
System Settings ....................................... 407
Video Accessibility ................................... 401
Wireless Headphones .............................. 397
Booster Seats (For Children) ...................... 79
Brake System ............................................. 602
Anti-lock Brake System (ABS) ................... 608
Brake Assist System ................................. 609
Fluid ........................................................ 658
Foot Brake ............................................... 605 Indicator...................................... 84, 85, 720
Indicator (Red) ................................. 720, 721
Parking Brake .......................................... 602
Brightness Control (Instrument Panel) .... 200
Built-in Key ............................................... 145
Bulb Replacement .................................... 660
Back-Up Light/Taillights ........................... 669
Brake, Rear Turn Signal Light, and Rear Side
Marker/Taillights .................................... 667
Daytime Running Lights........................... 664
Fog Lights ............................................... 663
Front Side Marker Light Bulbs .................. 666
Front Turn Signal/Parking Lights .............. 665
Headlights ............................................... 660
High-Mount Brake Light .......................... 670
Parking/Daytime Running Lights .............. 664
Rear License Plate Light ........................... 670
Side Turn Signal/Emergency Indicator Lights .................................................... 666
Bulb Specifications ................................... 740
C
CabinTalkTM............................................... 524
CabinWatchTM........................................... 523
Car Wash Mode ........................................ 550
Carbon Monoxide Gas ............................... 80
Cargo Hooks ............................................. 239
Carrying Cargo ................................. 527, 529
CD Player ................................................... 332
Center Pocket ........................................... 230
19 ODYSSEY-31THR6120.book 753 ページ ２０１８年１２月６日　木曜日　午後４時３５分

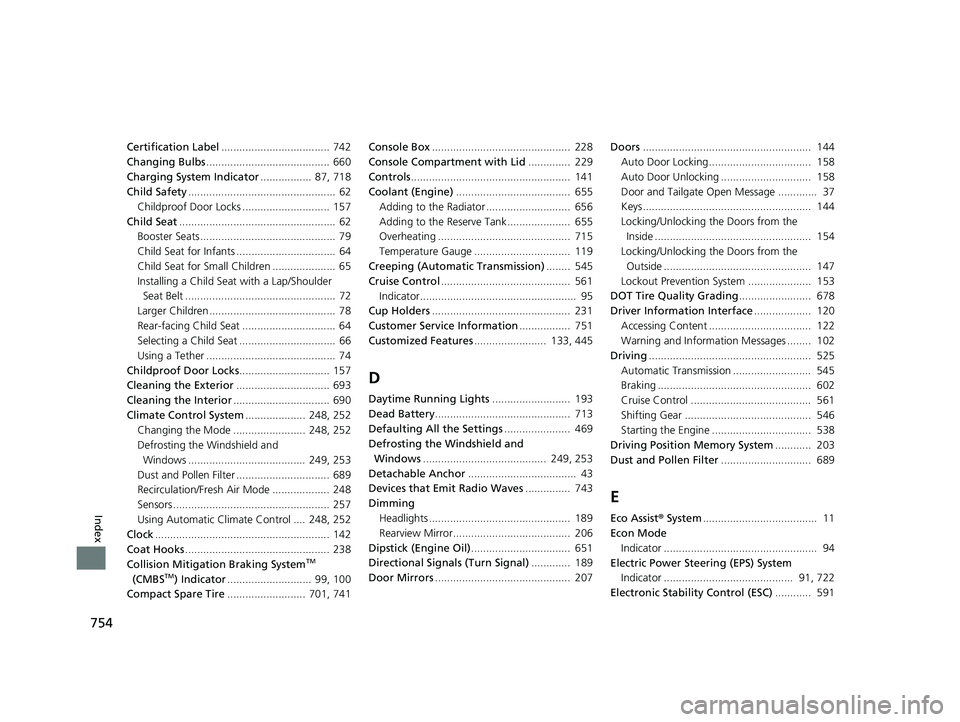

754
Index
Certification Label.................................... 742
Changing Bulbs ......................................... 660
Charging System Indicator ................. 87, 718
Child Safety ................................................. 62
Childproof Door Locks ............................. 157
Child Seat .................................................... 62
Booster Seats ............................................. 79
Child Seat for Infants ................................. 64
Child Seat for Small Children ..................... 65
Installing a Child Seat with a Lap/Shoulder
Seat Belt .................................................. 72
Larger Children .......................................... 78
Rear-facing Child Seat ............................... 64
Selecting a Child Seat ................................ 66
Using a Tether ........................................... 74
Childproof Door Locks .............................. 157
Cleaning the Exterior ............................... 693
Cleaning the Interior ................................ 690
Climate Control System .................... 248, 252
Changing the Mode ........................ 248, 252
Defrosting the Windshield and Windows ....................................... 249, 253
Dust and Pollen Filter ............................... 689
Recirculation/Fresh Air Mode ................... 248
Sensors .................................................... 257
Using Automatic Climate Control .... 248, 252
Clock .......................................................... 142
Coat Hooks ................................................ 238
Collision Mitigation Braking System
TM
(CMBSTM) Indicator ............................ 99, 100
Compact Spare Tire .......................... 701, 741 Console Box
.............................................. 228
Console Compartment with Lid .............. 229
Controls ..................................................... 141
Coolant (Engine) ...................................... 655
Adding to the Radiator ............................ 656
Adding to the Reserve Tank..................... 655
Overheating ............................................ 715
Temperature Gauge ................................ 119
Creeping (Automatic Transmission) ........ 545
Cruise Control ........................................... 561
Indicator.................................................... 95
Cup Holders .............................................. 231
Customer Service Information ................. 751
Customized Features ........................ 133, 445
D
Daytime Running Lights .......................... 193
Dead Battery ............................................. 713
Defaulting All the Settings ...................... 469
Defrosting the Windshield and
Windows ......................................... 249, 253
Detachable Anchor .................................... 43
Devices that Emit Radio Waves ............... 743
Dimming Headlights ............................................... 189
Rearview Mirror....................................... 206
Dipstick (Engine Oil) ................................. 651
Directional Signals (Turn Signal) ............. 189
Door Mirrors ............................................. 207 Doors
........................................................ 144
Auto Door Locking.................................. 158
Auto Door Unlocking .............................. 158
Door and Tailgate Open Message ............. 37
Keys........................................................ 144
Locking/Unlocking the Doors from the Inside .................................................... 154
Locking/Unlocking the Doors from the
Outside ................................................. 147
Lockout Prevention System ..................... 153
DOT Tire Quality Grading ........................ 678
Driver Information Interface ................... 120
Accessing Content .................................. 122
Warning and Information Messages ........ 102
Driving ...................................................... 525
Automatic Transmission .......................... 545
Braking ................................................... 602
Cruise Control ........................................ 561
Shifting Gear .......................................... 546
Starting the Engine ................................. 538
Driving Position Memory System ............ 203
Dust and Pollen Filter .............................. 689
E
Eco Assist® System ...................................... 11
Econ Mode
Indicator ................................................... 94
Electric Power Steering (EPS) System Indicator ........................................... 91, 722
Electronic Stability Control (ESC) ............ 591
19 ODYSSEY-31THR6120.book 754 ページ ２０１８年１２月６日　木曜日　午後４時３５分
