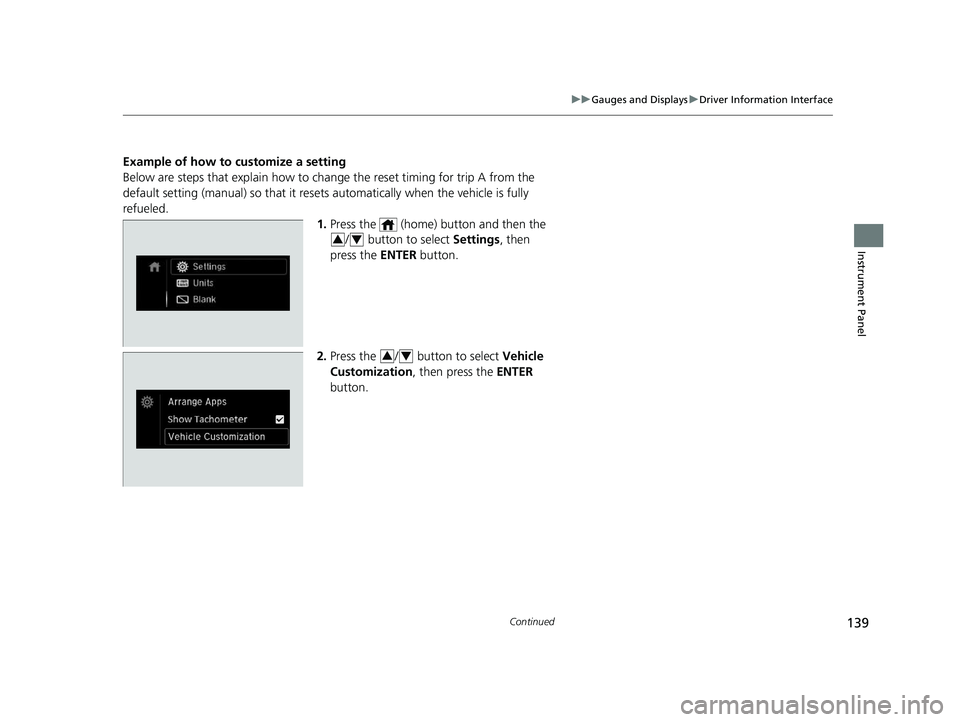

HONDA ODYSSEY 2020 Owner's Manual (in English)

139
uuGauges and Displays uDriver Information Interface
Continued
Instrument Panel
Example of how to customize a setting
Below are steps that explain how to ch ange the reset timing for trip A from the
default setting (manual) so that it resets automatically when the vehicle is fully
refueled. 1.Press the (home) button and then the
/ button to select Settings, then
press the ENTER button.
2. Press the / button to select Vehicle
Customization, then press the ENTER
button.
34
34
20 US ODYSSEY-31THR6210.book 139 ページ ２０２０年２月２８日　金曜日　午前７時２６分

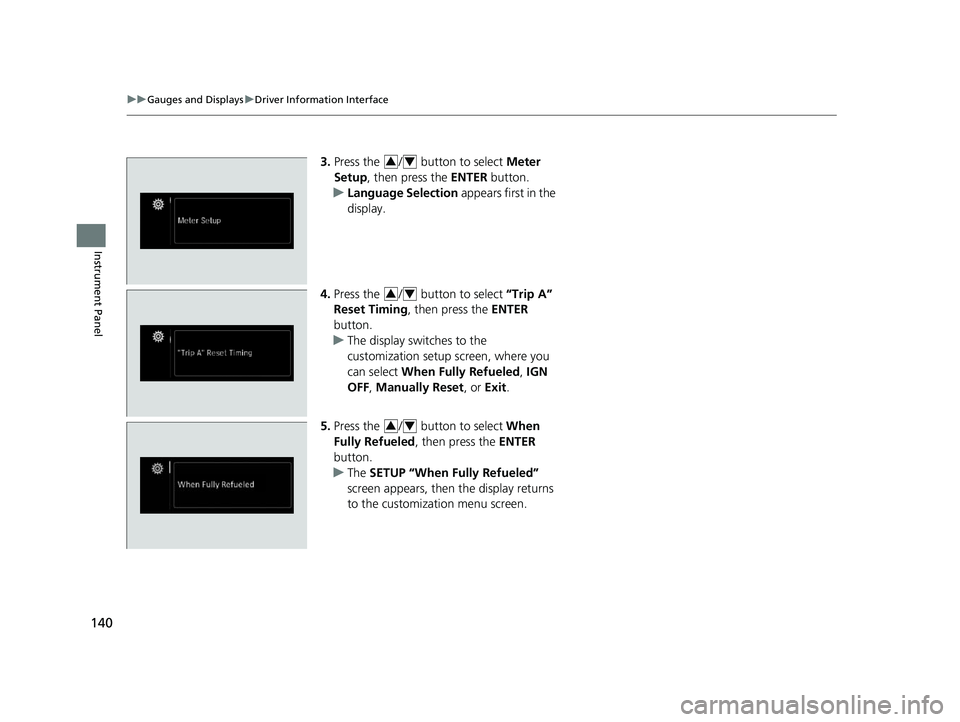

140
uuGauges and Displays uDriver Information Interface
Instrument Panel
3. Press the / button to select Meter
Setup , then press the ENTER button.
u Language Selection appears first in the
display.
4. Press the / button to select “Trip A”
Reset Timing , then press the ENTER
button.
u The display switches to the
customization setup screen, where you
can select When Fully Refueled , IGN
OFF , Manually Reset , or Exit .
5. Press the / button to select When
Fully Refueled , then press the ENTER
button.
u The SETUP “When Fully Refueled”
screen appears, then the display returns
to the customization menu screen.34
34
34
20 US ODYSSEY-31THR6210.book 140 ページ ２０２０年２月２８日　金曜日　午前７時２６分

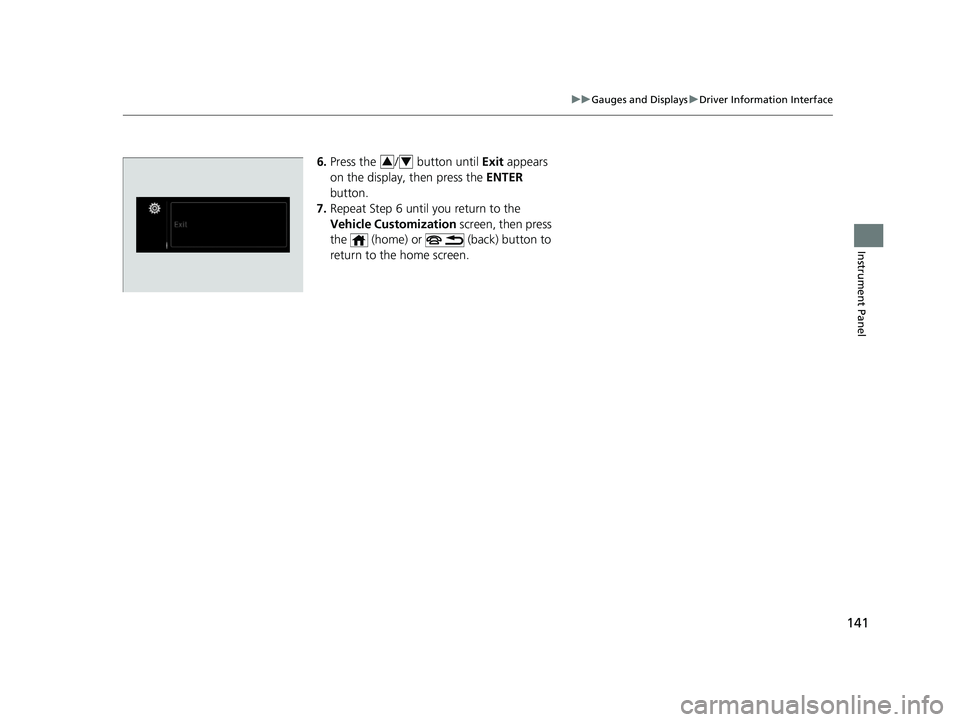

141
uuGauges and Displays uDriver Information Interface
Instrument Panel
6. Press the / button until Exit appears
on the display, then press the ENTER
button.
7. Repeat Step 6 until you return to the
Vehicle Customization screen, then press
the (home) or (back) button to
return to the home screen.34
20 US ODYSSEY-31THR6210.book 141 ページ ２０２０年２月２８日　金曜日　午前７時２６分

142
20 US ODYSSEY-31THR6210.book 142 ページ ２０２０年２月２８日　金曜日　午前７時２６分

143
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 144
Locking and Unlocking the Doors
Key Types and Functions .................. 146
Low Remote Signal Strength ............ 148
Locking/Unlocking the Doors from the Outside .... 149
Locking/Unlocking the Doors from the Inside ...156
Childproof Door Locks ..................... 159
Auto Door Locking/Unlocking .......... 160
Opening and Closing the Tailgate ... 161
Opening and Closing the Sliding Doors.. 172Security System
Immobilizer System .............................. 181
Security System Alarm .......................... 181
Opening and Closing the Windows ..... 184
Moonroof
*............................................. 187
Operating the Switches Around the Steering Wheel
ENGINE START/STOP Button............. 188
Turn Signals ..................................... 191
Light Switches.................................. 192
Fog Lights
*...................................... 195
Daytime Running Lights ................... 196
Auto High-Beam
*............................ 197Wipers and Washers ............................ 200Rear Defogger/Heated Door Mirror* Button...203
Heated Windshield Button ................... 204
Brightness Control ............................... 205
Driving Position Memory System
*........ 206
Adjusting the Steering Wheel .............. 208
Canadian models
Adjusting the Mirrors ............................ 209
Interior Rearview Mirror ........................ 209
Power Door Mirrors .............................. 210
Adjusting the Seats
Front Seats ................................................212
Head Restraints .........................................224
Maintain a Proper Sitting Position ..............223
Interior Lights/Interior Convenience Items.. 228
Climate Control System
Using Automatic Climate Control ..............251
Rear Climate Control System .....................254
Climate Control System ..............................256
Using Automatic Climate Control ..............256
Automatic Climate Control Sensors ...........262Dual-zone climate control system
Tri-zone climate control system
* Not available on all models
20 US ODYSSEY-31THR6210.book 143 ページ ２０２０年２月２８日　金曜日　午前７時２６分

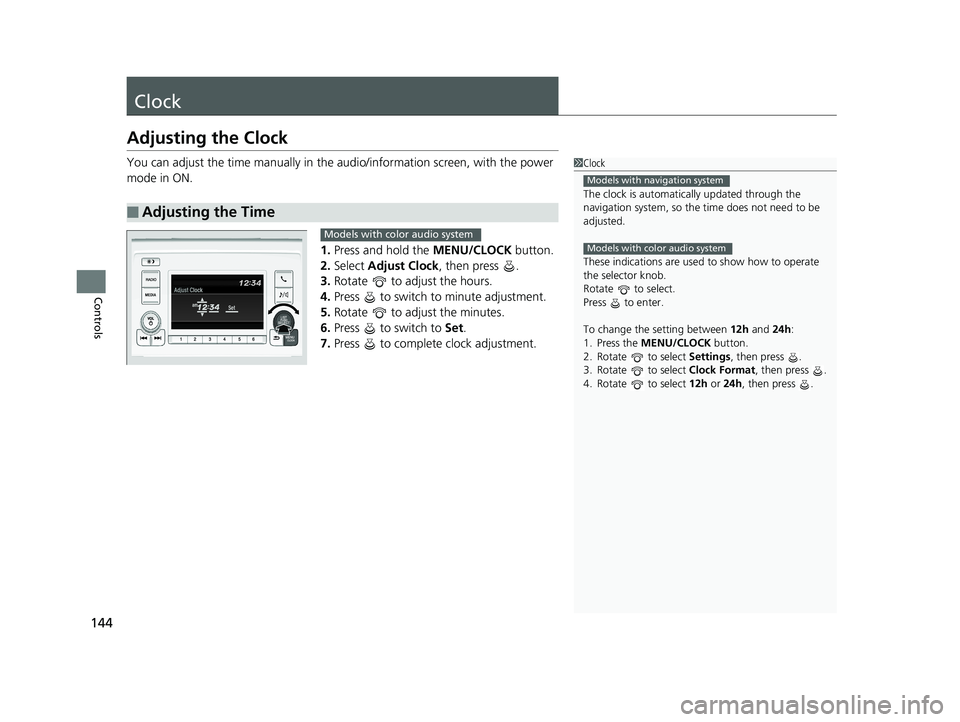

144
Controls
Clock
Adjusting the Clock
You can adjust the time manually in the audio/information screen, with the power
mode in ON.
1.Press and hold the MENU/CLOCK button.
2. Select Adjust Clock , then press .
3. Rotate to adjust the hours.
4. Press to switch to minute adjustment.
5. Rotate to adjust the minutes.
6. Press to switch to Set.
7. Press to complete clock adjustment.
■Adjusting the Time
1Clock
The clock is automatica lly updated through the
navigation system, so the ti me does not need to be
adjusted.
These indications are used to show how to operate
the selector knob.
Rotate to select.
Press to enter.
To change the setting between 12h and 24h:
1. Press the MENU/CLOCK button.
2. Rotate to select Settings, then press .
3. Rotate to select Clock Format, then press .
4. Rotate to select 12h or 24h , then press .
Models with navigation system
Models with color audio systemModels with color audio system
20 US ODYSSEY-31THR6210.book 144 ページ ２０２０年２月２８日　金曜日　午前７時２６分

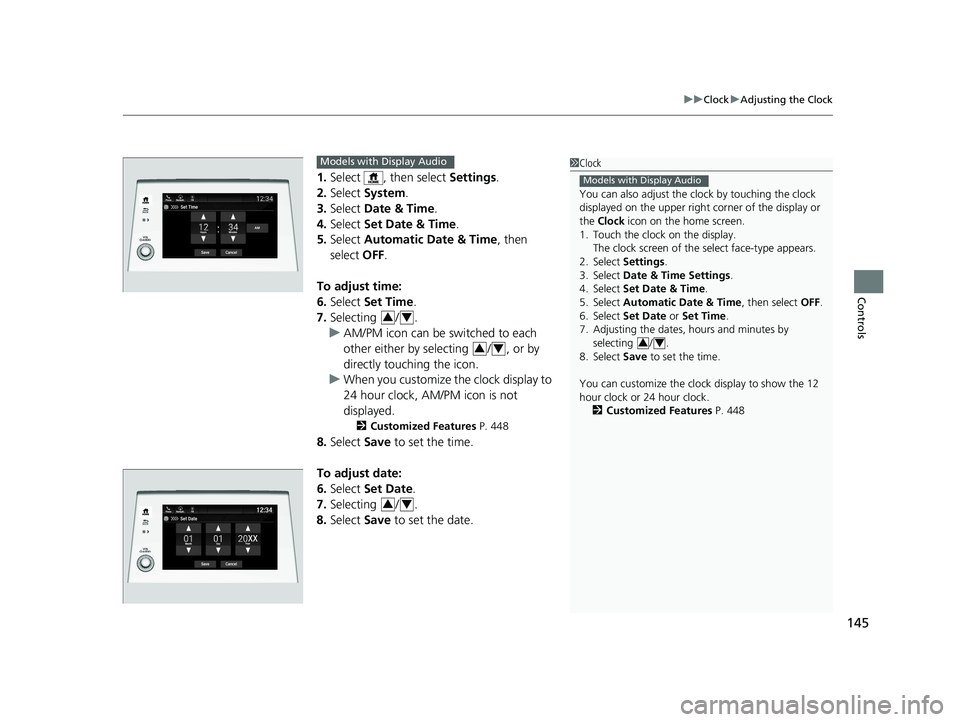

145
uuClock uAdjusting the Clock
Controls
1. Select , then select Settings.
2. Select System.
3. Select Date & Time .
4. Select Set Date & Time .
5. Select Automatic Date & Time , then
select OFF.
To adjust time:
6. Select Set Time.
7. Selecting / .
u AM/PM icon can be switched to each
other either by selecting / , or by
directly touching the icon.
u When you customize the clock display to
24 hour clock, AM/PM icon is not
displayed.
2 Customized Features P. 448
8.Select Save to set the time.
To adjust date:
6. Select Set Date.
7. Selecting / .
8. Select Save to set the date.
1Clock
You can also adjust the clock by touching the clock
displayed on the upper right corner of the display or
the Clock icon on the home screen.
1. Touch the clock on the display.
The clock screen of the select face-type appears.
2. Select Settings .
3. Select Date & Time Settings .
4. Select Set Date & Time .
5. Select Automatic Date & Time , then select OFF.
6. Select Set Date or Set Time.
7. Adjusting the dates, hours and minutes by selecting / .
8. Select Save to set the time.
You can customize the clock display to show the 12
hour clock or 24 hour clock. 2 Customized Features P. 448
Models with Display Audio
34
Set Time
Save
Hours MinutesAM
Cancel
Phone Navigati.. FM
Models with Display Audio
34
34
34
20 US ODYSSEY-31THR6210.book 145 ページ ２０２０年２月２８日　金曜日　午前７時２６分

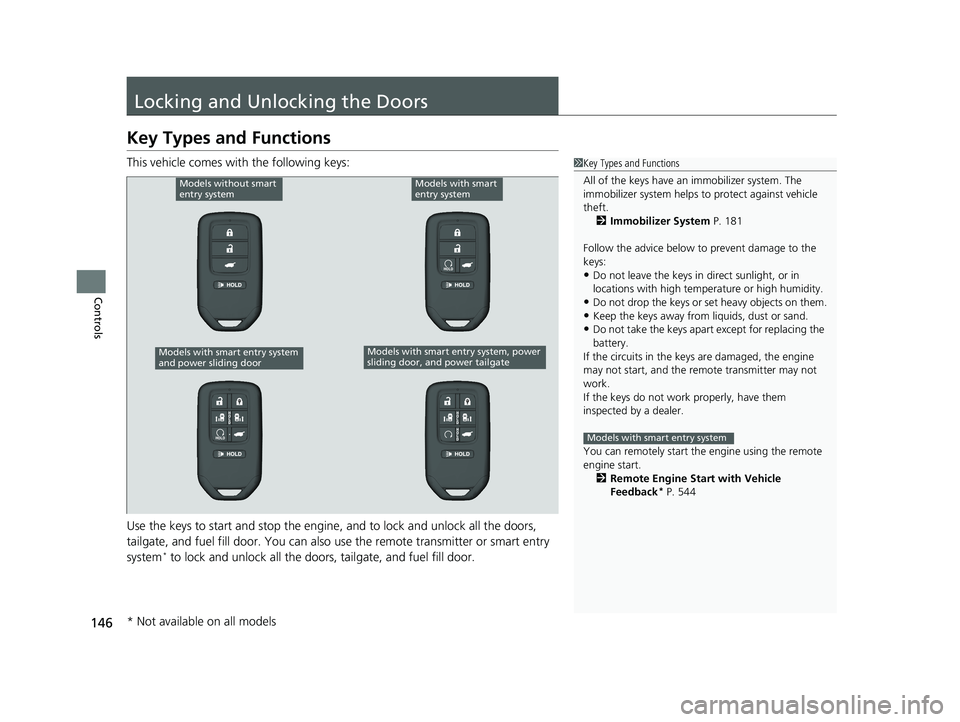

146
Controls
Locking and Unlocking the Doors
Key Types and Functions
This vehicle comes with the following keys:
Use the keys to start and stop the engine, and to lock and unlock all the doors,
tailgate, and fuel fill door. You can also use the remote transmitter or smart entry
system
* to lock and unlock all the doors, tailgate, and fuel fill door.
1 Key Types and Functions
All of the keys have an immobilizer system. The
immobilizer system helps to protect against vehicle
theft. 2 Immobilizer System P. 181
Follow the advice below to prevent damage to the
keys:
•Do not leave the keys in direct sunlight, or in
locations with high temperature or high humidity.
•Do not drop the keys or set heavy objects on them.•Keep the keys away from liquids, dust or sand.
•Do not take the keys apart except for replacing the
battery.
If the circuits in the keys are damaged, the engine
may not start, and the remote transmitter may not
work.
If the keys do not work properly, have them
inspected by a dealer.
You can remotely start the engine using the remote
engine start. 2 Remote Engine Start with Vehicle
Feedback
* P. 544
Models with smart entry system
Models without smart
entry systemModels with smart
entry system
Models with smart entry system, power
sliding door, and power tailgateModels with smart entry system
and power sliding door
* Not available on all models
20 US ODYSSEY-31THR6210.book 146 ページ ２０２０年２月２８日　金曜日　午前７時２６分

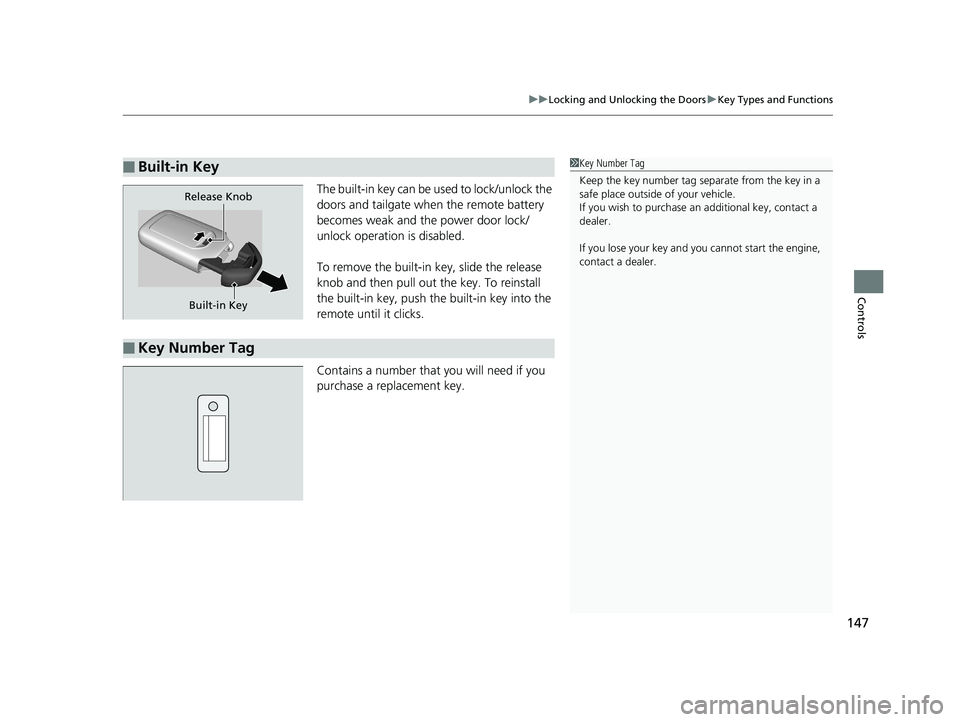

147
uuLocking and Unlocking the Doors uKey Types and Functions
Controls
The built-in key can be us ed to lock/unlock the
doors and tailgate when the remote battery
becomes weak and the power door lock/
unlock operation is disabled.
To remove the built-in key, slide the release
knob and then pull out the key. To reinstall
the built-in key, push th e built-in key into the
remote until it clicks.
Contains a number that you will need if you
purchase a replacement key.
■Built-in Key
Release Knob
Built-in Key
■Key Number Tag
1 Key Number Tag
Keep the key number tag separate from the key in a
safe place outside of your vehicle.
If you wish to purchase an additional key, contact a
dealer.
If you lose your key and you cannot start the engine,
contact a dealer.
20 US ODYSSEY-31THR6210.book 147 ページ ２０２０年２月２８日　金曜日　午前７時２６分

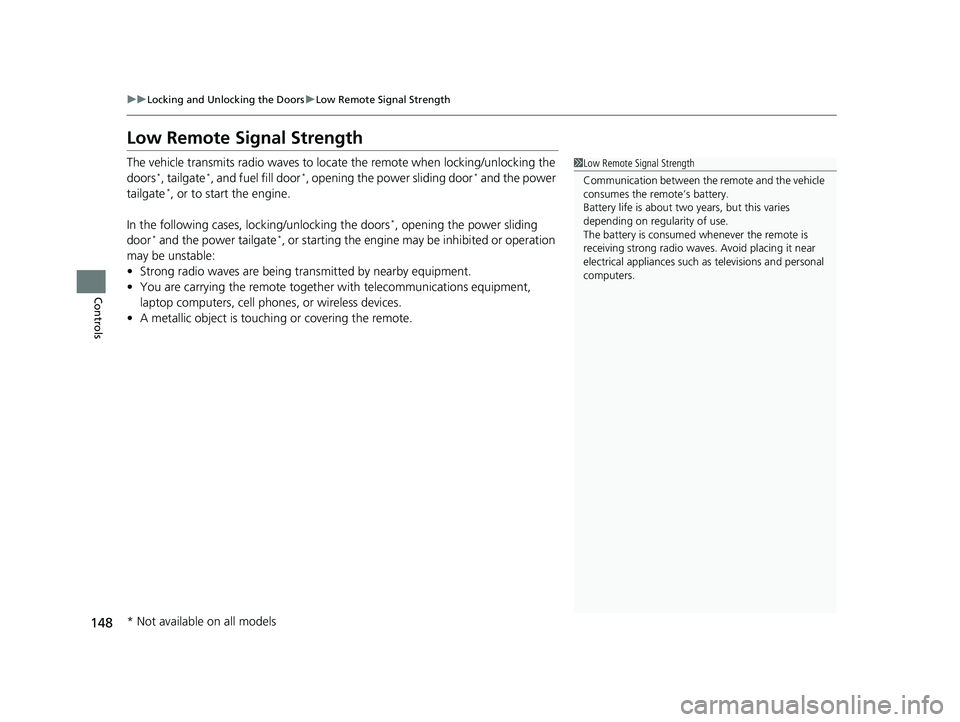

148
uuLocking and Unlocking the Doors uLow Remote Signal Strength
Controls
Low Remote Signal Strength
The vehicle transmits radio waves to locate the remote when locking/unlocking the
doors*, tailgate*, and fuel fill door*, opening the power sliding door* and the power
tailgate*, or to start the engine.
In the following cases, locking/unlocking the doors
*, opening the power sliding
door* and the power tailgate*, or starting the engine may be inhibited or operation
may be unstable:
• Strong radio waves are being tra nsmitted by nearby equipment.
• You are carrying the remote together with telecommunications equipment,
laptop computers, cell phone s, or wireless devices.
• A metallic object is touchi ng or covering the remote.
1Low Remote Signal Strength
Communication between the remote and the vehicle
consumes the remote’s battery.
Battery life is about two years, but this varies
depending on regularity of use.
The battery is consumed whenever the remote is
receiving strong radio waves. Avoid placing it near
electrical appliances such as televisions and personal
computers.
* Not available on all models
20 US ODYSSEY-31THR6210.book 148 ページ ２０２０年２月２８日　金曜日　午前７時２６分
