109
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
•Appears when you try to ch ange the gear position
without releasing your foot off the accelerator pedal.•Release your foot off the accelerator pedal, then select
a shift button.
•Appears when the (P button is pressed while the
vehicle is moving.
• Appears if you change the gear position to
(R while
the vehicle is moving forward, or to
(D while the
vehicle is reversing.
• Make sure that the vehicle comes to a stop before
operating the select button.
•Appears when you set the power mode to ON
without fastening the driver’s seat belt.
• Appears when you change the gear position after
(P has been automatically se lected with the driver’s
door open, the driver’s seat belt unfastened, then
the brake pedal is released.
• Fasten the seat belt properly before you start to drive.
2 Shift Operation P. 552
•Appears when depressing the accelerator pedal
while the gear position is in
(N.
•Remove your foot from the accelerator pedal. When
driving, depress the brake pedal and change the gear
position.
20 US ODYSSEY-31THR6210.book 109 ページ ２０２０年２月２８日　金曜日　午前７時２６分

110
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears when you press and hold (N button for
more than two seconds.• Disappears when you set the gear position to other
than
(N.
2 If you want to keep the transmission in (N
position [car wash mode] P. 554
•Appears if there is a problem with the cooling
system.•Drive slowly to prevent ov erheating and have your
vehicle checked by a deal er as soon as possible.
•Appears if there is a problem with the headlights.
•Appears while driving - The headlights may not be
on. When conditions allow you to drive safety, have
your vehicle checked by a d ealer as soon as possible.
•Appears if there is a proble m with the parking sensor
system.
• Check if the area around the sensor(s) is covered with
mud, ice, snow, etc. If the indicator(s) stays on or the
beeper does not stop even after you clean the area,
have the system checked by a dealer.
• Appears if there are obstacles around the sensors.
•Check for obstacles near your vehicle to make sure it is
safe to park.
Models with LED headlights
Models with parking sensor system
Models with parking sensor system
20 US ODYSSEY-31THR6210.book 110 ページ ２０２０年２月２８日　金曜日　午前７時２６分

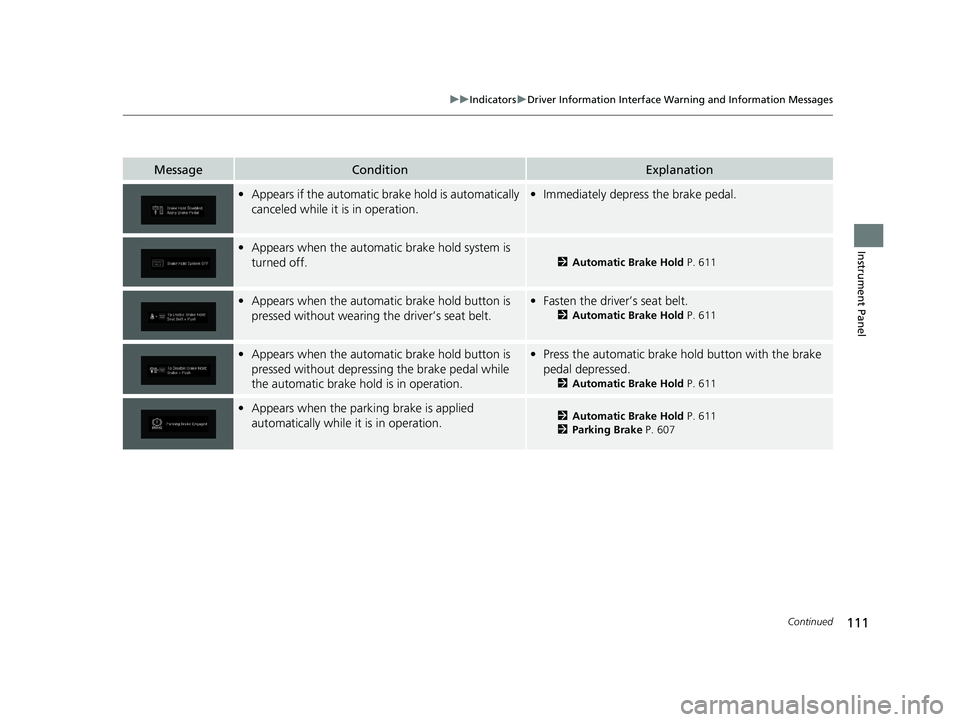

111
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
•Appears if the automatic brake hold is automatically
canceled while it is in operation.•Immediately depress the brake pedal.
•Appears when the automati c brake hold system is
turned off.
2 Automatic Brake Hold P. 611
•Appears when the automati c brake hold button is
pressed without wearing the driver’s seat belt.• Fasten the driver’s seat belt.
2 Automatic Brake Hold P. 611
•Appears when the automati c brake hold button is
pressed without depressing the brake pedal while
the automatic brake hold is in operation.• Press the automatic brake hold button with the brake
pedal depressed.
2 Automatic Brake Hold P. 611
•Appears when the park ing brake is applied
automatically while it is in operation.2 Automatic Brake Hold P. 611
2 Parking Brake P. 607
20 US ODYSSEY-31THR6210.book 111 ページ ２０２０年２月２８日　金曜日　午前７時２６分

112
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears when you pull the electric parking brake
switch without depressing the brake pedal.•Depress the brake pedal to release the parking brake.
2 Parking Brake P. 607
•Appears as soon as a prob lem is detected in the
smart entry system.
• Appears constantly - Have your vehicle checked by a
dealer.
• Appears as soon as a proble m is detected in the push
button starting system.• Appears constantly - Have your vehicle checked by a
dealer.
• Appears if there is a prob lem with the Auto high-
beam.
• Manually operate the headlight switch.
• If you are driving with th e high-beam headlights when
this happens, the headlights are changed to low beams.
• Appears when the Auto high -beam is in operation,
or the headlight switch is turned in AUTO, but the
temperature inside the came ra is too high. The Auto
high-beam cancels automatically.
• Use the climate control sy stem to cool down the
camera.
• Goes off - The camera has been cooled down. Turning
the headlight switch to AUTO can resume the system.
2Front Sensor Camera* P. 569
•Appears when the area around the camera is
blocked by dirt, mud, etc. Stop your vehicle in a safe
place, and wipe it off with a soft cloth.
• May appear when driving in bad weather (rain,
snow, fog, etc.)
•Have your vehicle checked by a dealer if the message
comes back on after you cl eaned the area around the
camera.
Models with smart entry system
Models with Auto high-beam
Models with Auto high-beam
Models with Auto high-beam
* Not available on all models
20 US ODYSSEY-31THR6210.book 112 ページ ２０２０年２月２８日　金曜日　午前７時２６分

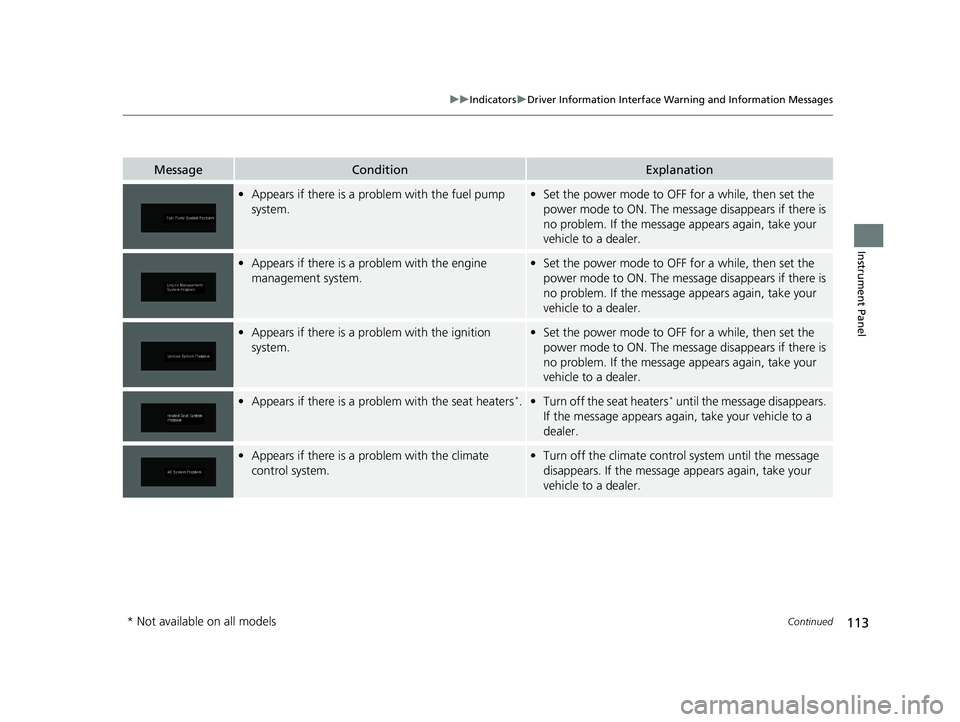

113
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
•Appears if there is a problem with the fuel pump
system.•Set the power mode to OFF for a while, then set the
power mode to ON. The message disappears if there is
no problem. If the message appears again, take your
vehicle to a dealer.
• Appears if there is a problem with the engine
management system.•Set the power mode to OFF for a while, then set the
power mode to ON. The message disappears if there is
no problem. If the message appears again, take your
vehicle to a dealer.
• Appears if there is a pr oblem with the ignition
system.• Set the power mode to OFF for a while, then set the
power mode to ON. The message disappears if there is
no problem. If the message appears again, take your
vehicle to a dealer.
• Appears if there is a problem with the seat heaters*.•Turn off the seat heaters* until the message disappears.
If the message appears again, take your vehicle to a
dealer.
• Appears if there is a problem with the climate
control system.•Turn off the climate contro l system until the message
disappears. If the message appears again, take your
vehicle to a dealer.
* Not available on all models
20 US ODYSSEY-31THR6210.book 113 ページ ２０２０年２月２８日　金曜日　午前７時２６分

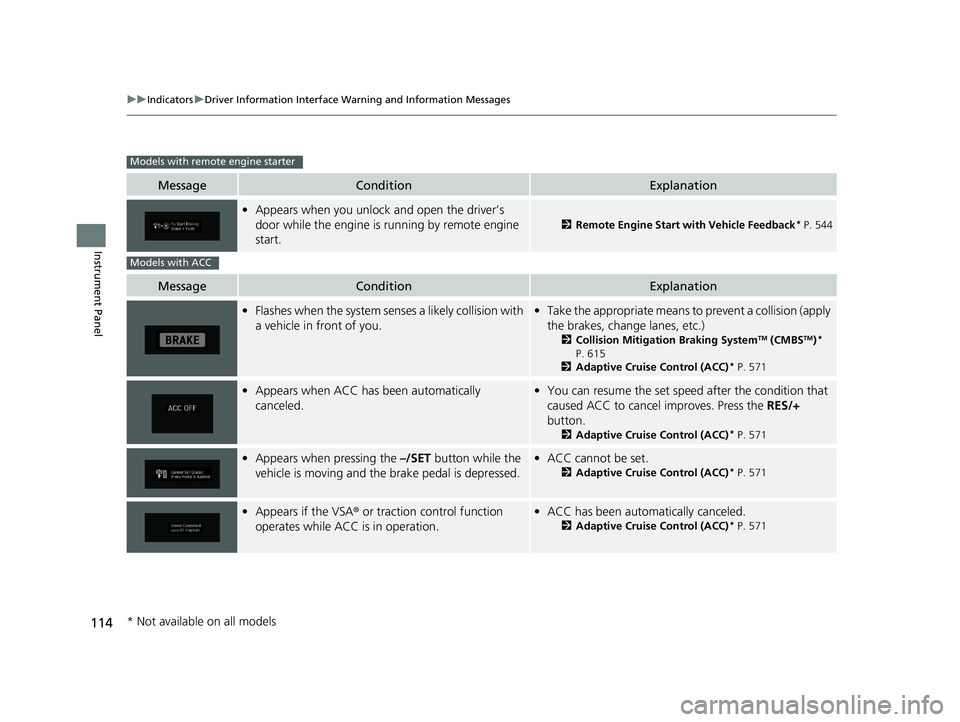

114
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears when you unlock and open the driver’s
door while the engine is running by remote engine
start.
2 Remote Engine Start with Vehicle Feedback* P. 544
MessageConditionExplanation
•Flashes when the system senses a likely collision with
a vehicle in front of you.•Take the appropriate means to prevent a collision (apply
the brakes, change lanes, etc.)
2 Collision Mitigation Braking SystemTM (CMBSTM)*
P. 615
2 Adaptive Cruise Control (ACC)
* P. 571
•Appears when ACC has been automatically
canceled.•You can resume the set speed after the condition that
caused ACC to cancel improves. Press the RES/+
button.
2 Adaptive Cruise Control (ACC)* P. 571
•Appears when pressing the –/SET button while the
vehicle is moving and the brake pedal is depressed.• ACC cannot be set.
2 Adaptive Cruise Control (ACC)* P. 571
•Appears if the VSA ® or traction control function
operates while ACC is in operation.• ACC has been automa tically canceled.
2Adaptive Cruise Control (ACC)* P. 571
Models with remote engine starter
Models with ACC
* Not available on all models
20 US ODYSSEY-31THR6210.book 114 ページ ２０２０年２月２８日　金曜日　午前７時２６分

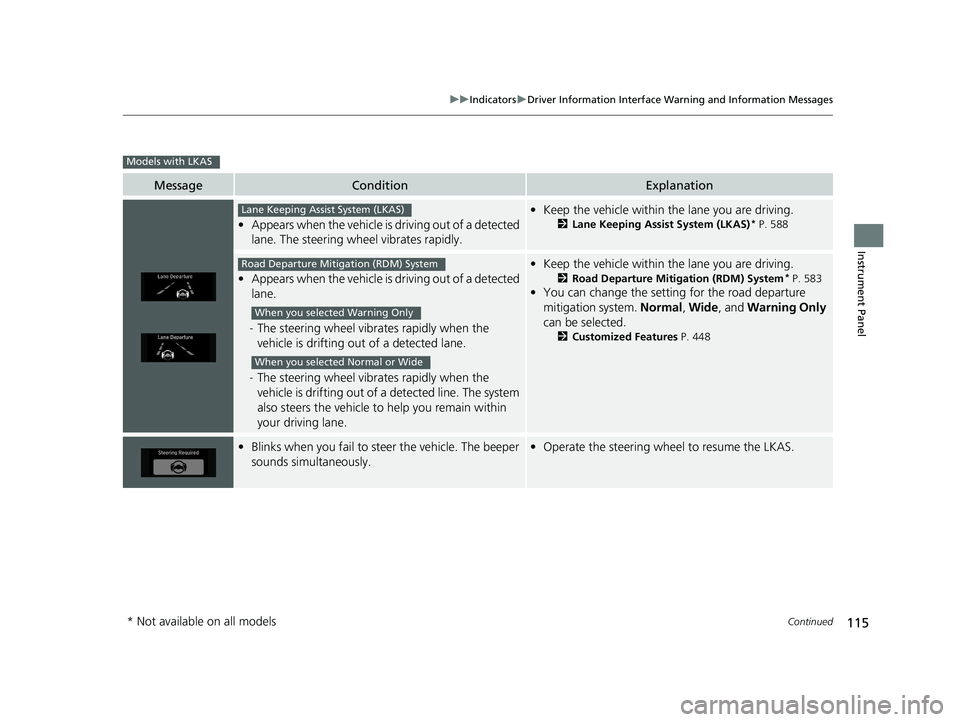

115
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
•Appears when the vehicle is driving out of a detected
lane. The steering wheel vibrates rapidly.
• Keep the vehicle within the lane you are driving.
2Lane Keeping Assist System (LKAS)* P. 588
•Appears when the vehicle is driving out of a detected
lane.
- The steering wheel vibr ates rapidly when the
vehicle is drifting out of a detected lane.
- The steering wheel vibr ates rapidly when the
vehicle is drifting out of a detected line. The system
also steers the vehicle to help you remain within
your driving lane.
• Keep the vehicle within the lane you are driving.
2Road Departure Mitigation (RDM) System* P. 583
•You can change the setting for the road departure
mitigation system. Normal, Wide , and Warning Only
can be selected.
2 Customized Features P. 448
•Blinks when you fail to steer the vehicle. The beeper
sounds simultaneously.•Operate the steering wheel to resume the LKAS.
Models with LKAS
Lane Keeping Assist System (LKAS)
Road Departure Mitigation (RDM) System
When you selected Warning Only
When you selected Normal or Wide
* Not available on all models
20 US ODYSSEY-31THR6210.book 115 ページ ２０２０年２月２８日　金曜日　午前７時２６分

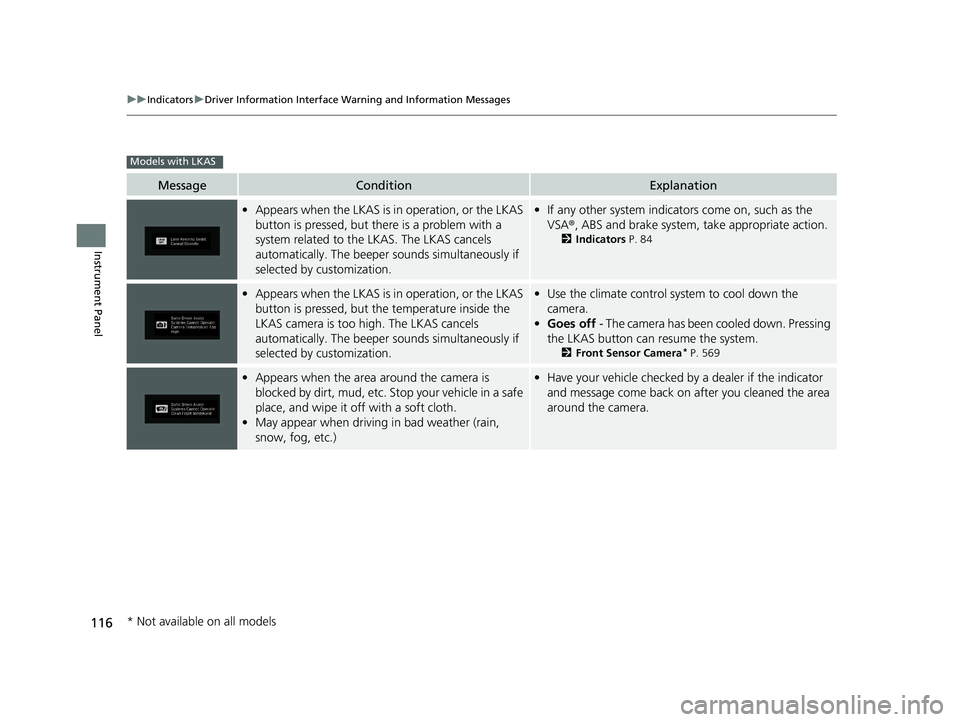

116
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears when the LKAS is in operation, or the LKAS
button is pressed, but there is a problem with a
system related to the LKAS. The LKAS cancels
automatically. The beeper s ounds simultaneously if
selected by customization.• If any other system indicators come on, such as the
VSA ®, ABS and brake system, take appropriate action.
2Indicators P. 84
•Appears when the LKAS is in operation, or the LKAS
button is pressed, but the temperature inside the
LKAS camera is too high. The LKAS cancels
automatically. The beeper s ounds simultaneously if
selected by customization.• Use the climate control sy stem to cool down the
camera.
• Goes off - The camera has been cooled down. Pressing
the LKAS button can resume the system.
2 Front Sensor Camera* P. 569
•Appears when the area around the camera is
blocked by dirt, mud, etc. Stop your vehicle in a safe
place, and wipe it off with a soft cloth.
• May appear when driving in bad weather (rain,
snow, fog, etc.)•Have your vehicle checked by a dealer if the indicator
and message come back on a fter you cleaned the area
around the camera.
Models with LKAS
* Not available on all models
20 US ODYSSEY-31THR6210.book 116 ページ ２０２０年２月２８日　金曜日　午前７時２６分

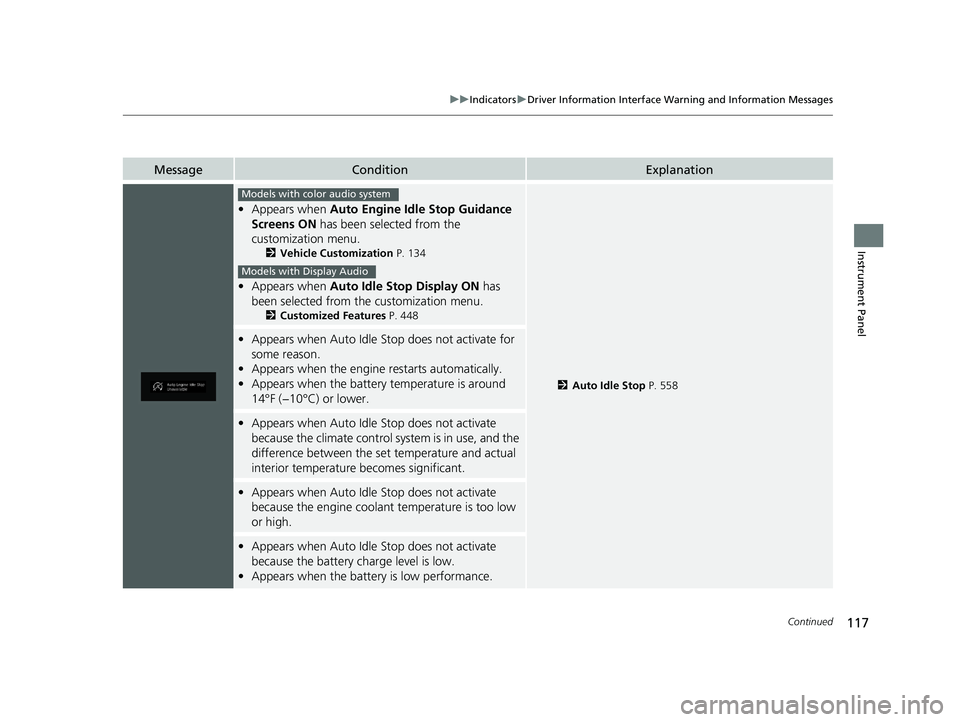

117
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
•Appears when Auto Engine Idle Stop Guidance
Screens ON has been selected from the
customization menu.
2 Vehicle Customization P. 134
•Appears when Auto Idle Stop Display ON has
been selected from the customization menu.
2 Customized Features P. 448
2Auto Idle Stop P. 558
•Appears when Auto Idle Stop does not activate for
some reason.
• Appears when the engine restarts automatically.
• Appears when the battery temperature is around
14°F (−10°C) or lower.
• Appears when Auto Idle Stop does not activate
because the climate control sy stem is in use, and the
difference between the set temperature and actual
interior temperature becomes significant.
• Appears when Auto Idle Stop does not activate
because the engine coolant temperature is too low
or high.
•Appears when Auto Idle Stop does not activate
because the battery charge level is low.
• Appears when the battery is low performance.
Models with color audio system
Models with Display Audio
20 US ODYSSEY-31THR6210.book 117 ページ ２０２０年２月２８日　金曜日　午前７時２６分

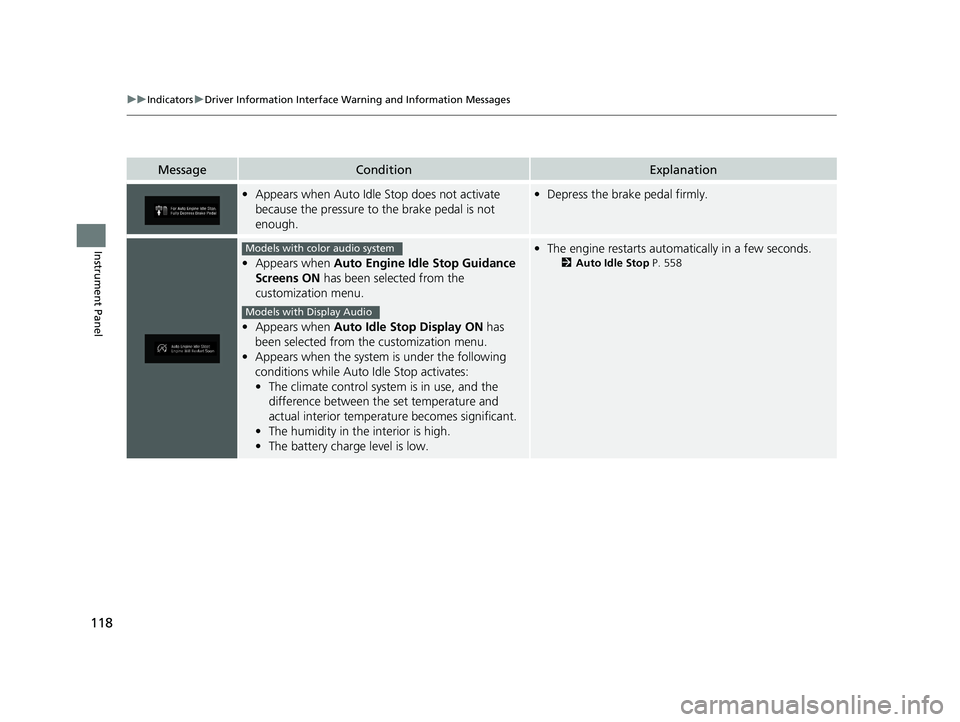

118
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears when Auto Idle Stop does not activate
because the pressure to the brake pedal is not
enough.•Depress the brake pedal firmly.
•Appears when Auto Engine Idle Stop Guidance
Screens ON has been selected from the
customization menu.
• Appears when Auto Idle Stop Display ON has
been selected from the customization menu.
• Appears when the system is under the following
conditions while Auto Idle Stop activates:
• The climate control system is in use, and the
difference between the set temperature and
actual interior temperature becomes significant.
• The humidity in the interior is high.
• The battery charge level is low.
•The engine restarts automatically in a few seconds.
2 Auto Idle Stop P. 558
Models with color audio system
Models with Display Audio
20 US ODYSSEY-31THR6210.book 118 ページ ２０２０年２月２８日　金曜日　午前７時２６分
