HONDA ODYSSEY 2020 Owner's Manual (in English)

229
uuInterior Lights/Interior Convenience Items uInterior Lights
Controls

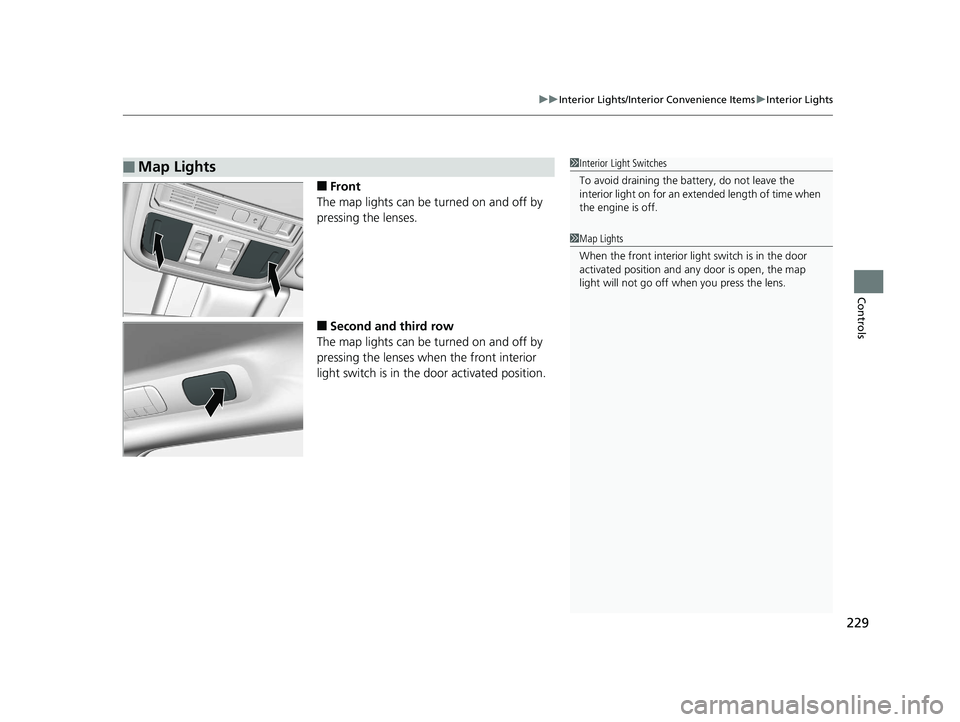

■Front
The map lights can be turned on and off by
pressing the lenses.
■Second and third row
The map lights can be turned on and off by
pressing the lenses when the front interior
light switch is in the door activated position.
■Map Lights1 Interior Light Switches
To avoid draining the ba ttery, do not leave the
interior light on for an extended length of time when
the engine is off.
1 Map Lights
When the front interior li ght switch is in the door
activated position and any door is open, the map
light will not go off when you press the lens.
20 US ODYSSEY-31THR6210.book 229 ページ ２０２０年２月２８日　金曜日　午前７時２６分

230
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

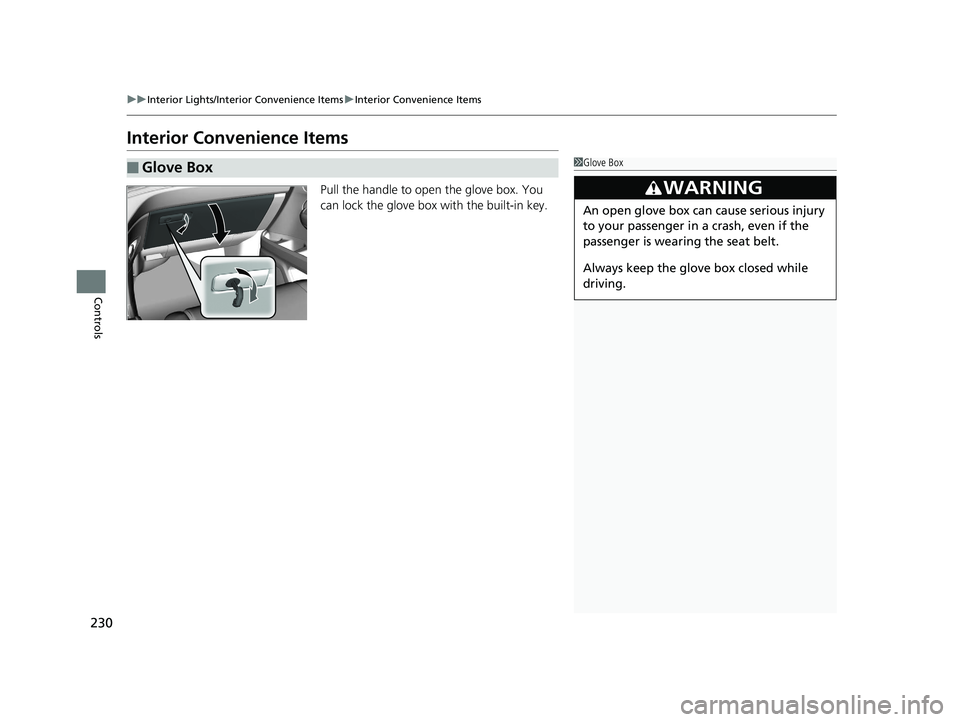

Interior Convenience Items
Pull the handle to open the glove box. You
can lock the glove box with the built-in key.
■Glove Box1Glove Box
3WARNING
An open glove box can cause serious injury
to your passenger in a crash, even if the
passenger is wearing the seat belt.
Always keep the glove box closed while
driving.
20 US ODYSSEY-31THR6210.book 230 ページ ２０２０年２月２８日　金曜日　午前７時２６分

231
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Continued
Controls

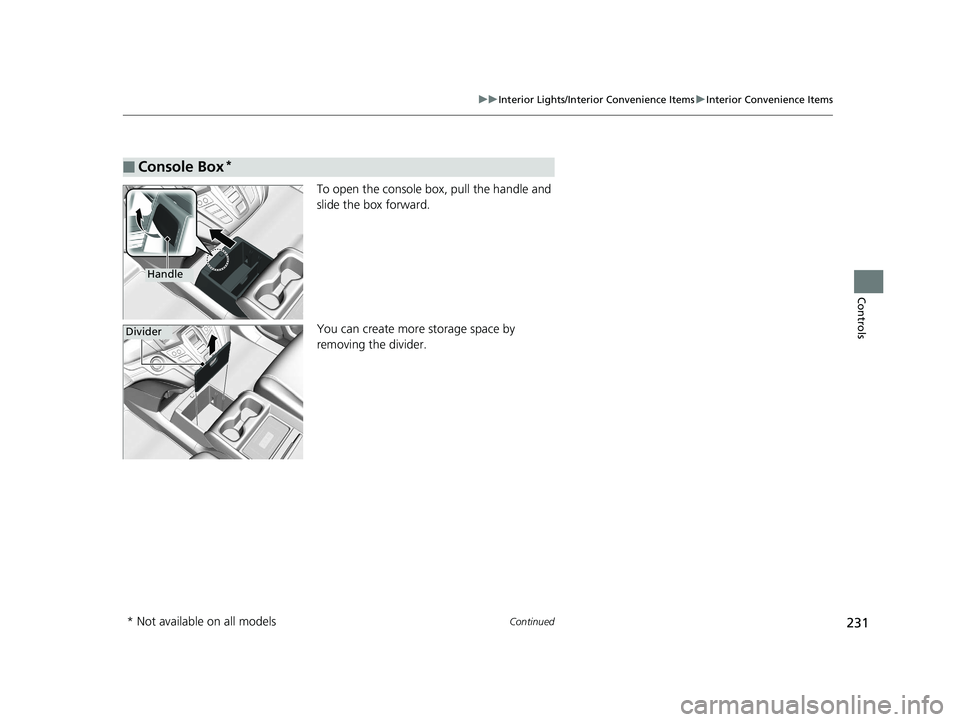

To open the console box, pull the handle and
slide the box forward.
You can create more storage space by
removing the divider.
■Console Box*
Handle
Divider
* Not available on all models
20 US ODYSSEY-31THR6210.book 231 ページ ２０２０年２月２８日　金曜日　午前７時２６分

232
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

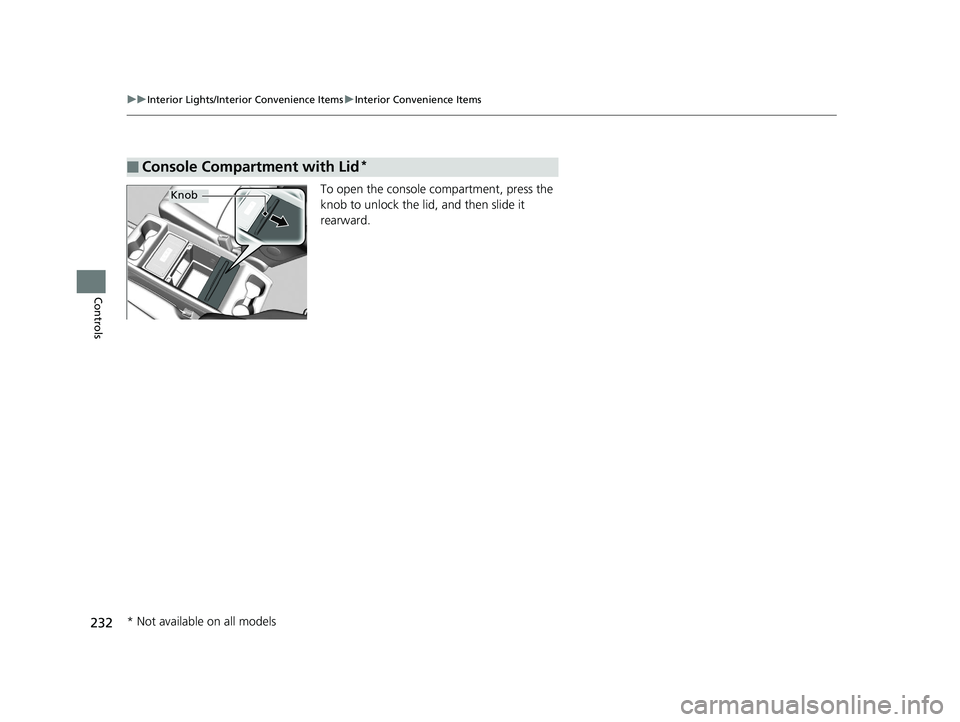

To open the console compartment, press the
knob to unlock the lid , and then slide it
rearward.
■Console Compartment with Lid*
Knob
* Not available on all models
20 US ODYSSEY-31THR6210.book 232 ページ ２０２０年２月２８日　金曜日　午前７時２６分

233
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Continued
Controls

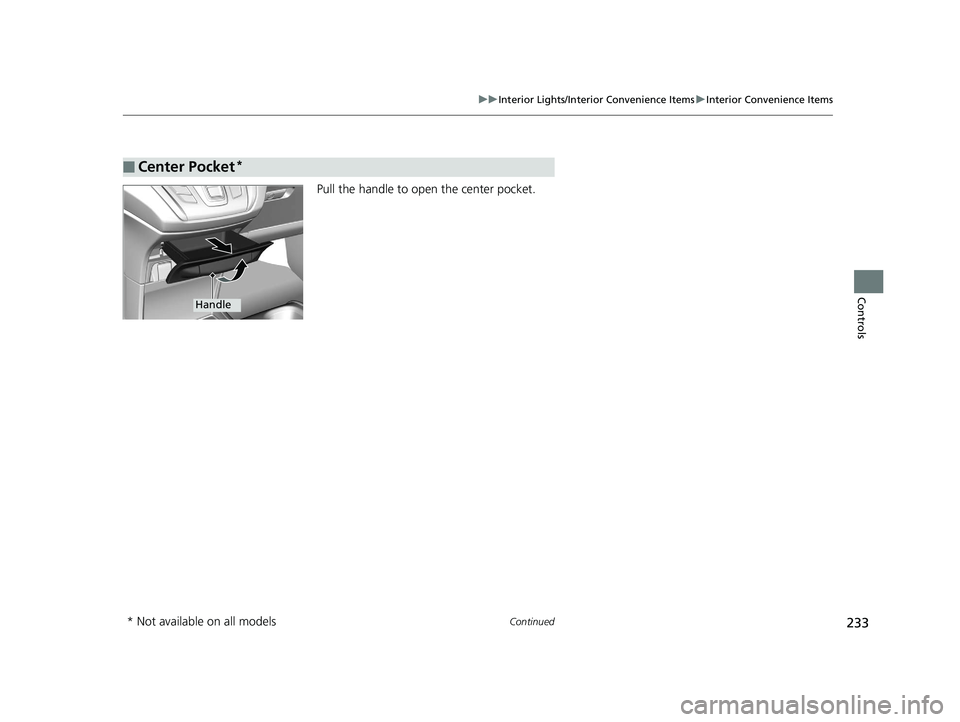

Pull the handle to open the center pocket.
■Center Pocket*
Handle
* Not available on all models
20 US ODYSSEY-31THR6210.book 233 ページ ２０２０年２月２８日　金曜日　午前７時２６分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
234
Controls

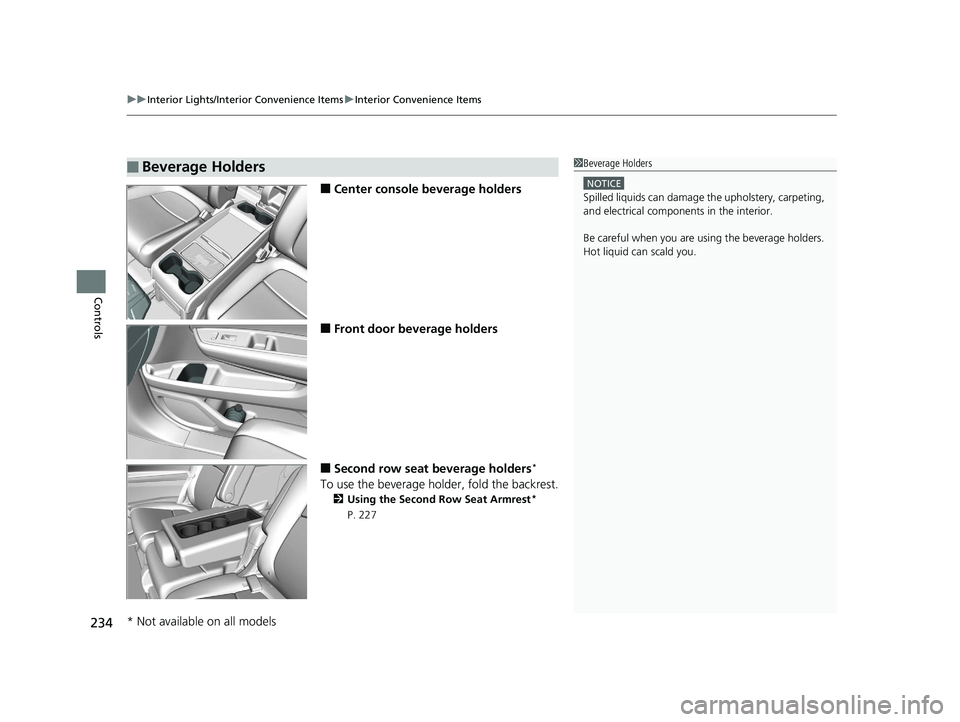

■Center console beverage holders
■Front door beverage holders
■Second row seat beverage holders*
To use the beverage holder, fold the backrest.
2 Using the Second Row Seat Armrest*
P. 227
■Beverage Holders1 Beverage Holders
NOTICE
Spilled liquids ca n damage the upholstery, carpeting,
and electrical components in the interior.
Be careful when you are us ing the beverage holders.
Hot liquid can scald you.
* Not available on all models
20 US ODYSSEY-31THR6210.book 234 ページ ２０２０年２月２８日　金曜日　午前７時２６分

235
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Continued
Controls

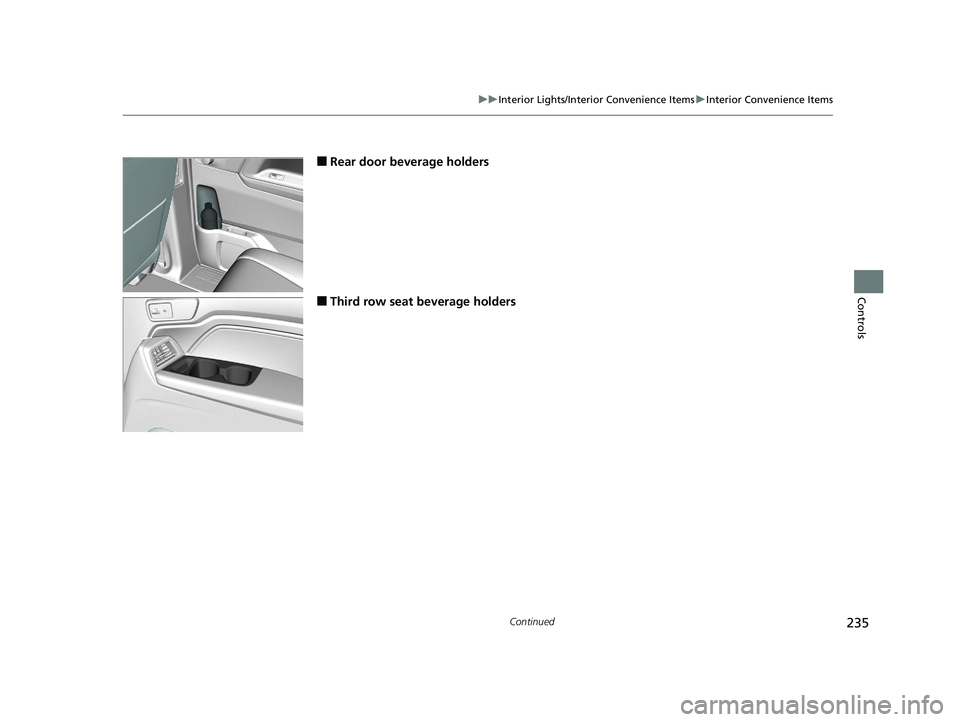

■Rear door beverage holders
■Third row seat beverage holders
20 US ODYSSEY-31THR6210.book 235 ページ ２０２０年２月２８日　金曜日　午前７時２６分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
236
Controls

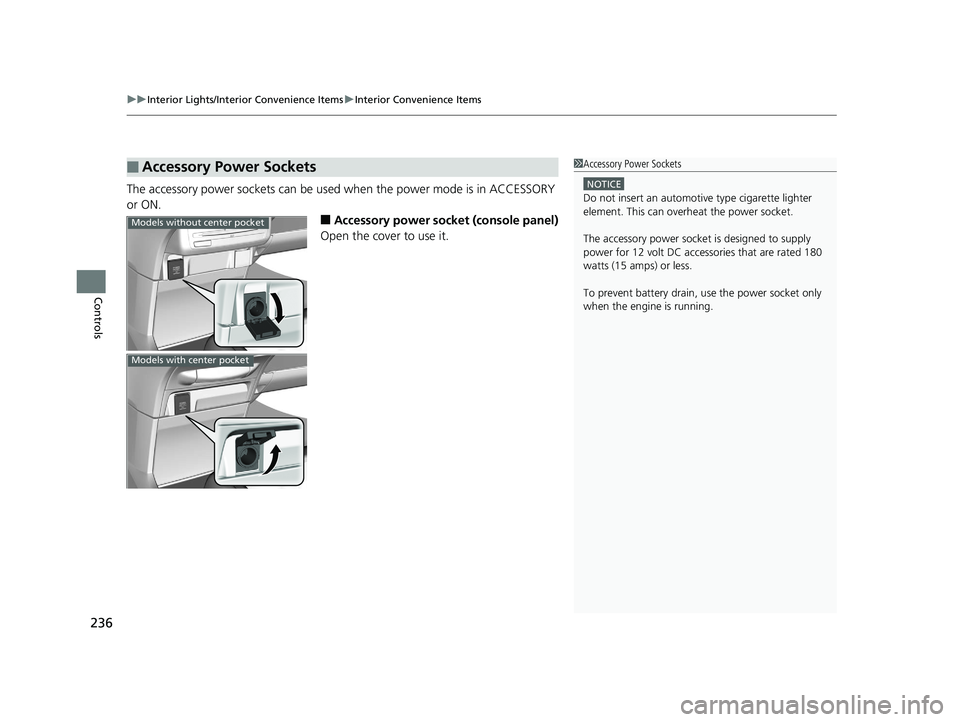

The accessory power sockets can be used when the power mode is in ACCESSORY
or ON.
■Accessory power socket (console panel)
Open the cover to use it.
■Accessory Power Sockets1 Accessory Power Sockets
NOTICE
Do not insert an automotive type cigarette lighter
element. This can overheat the power socket.
The accessory power socket is designed to supply
power for 12 volt DC access ories that are rated 180
watts (15 amps) or less.
To prevent battery drain, use the power socket only
when the engine is running.
Models without center pocket
Models with center pocket
20 US ODYSSEY-31THR6210.book 236 ページ ２０２０年２月２８日　金曜日　午前７時２６分

237
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Continued
Controls

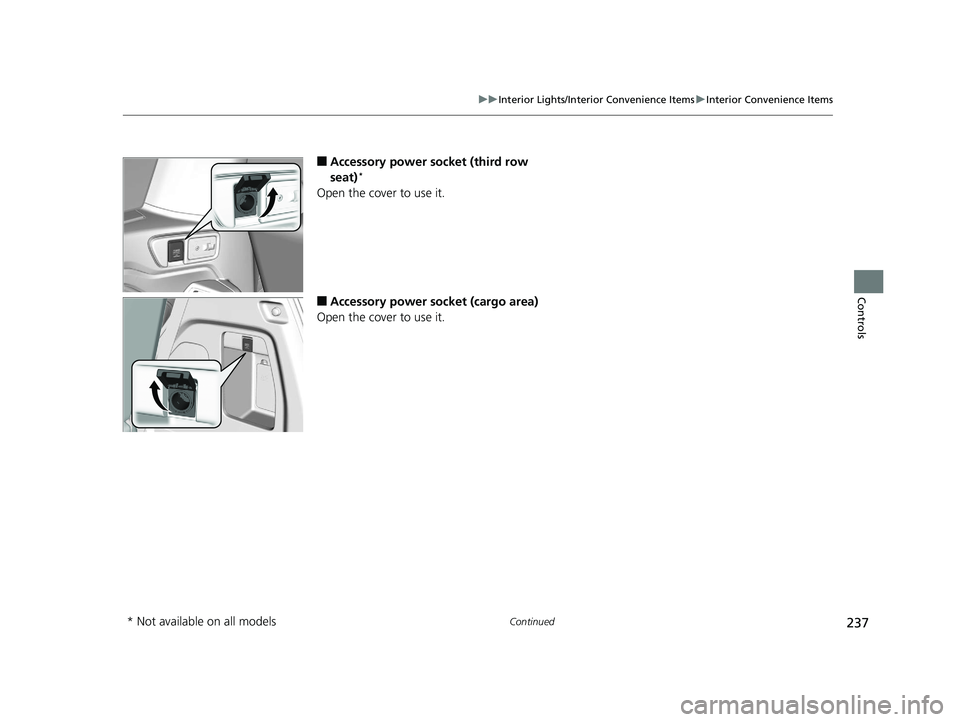

■Accessory power socket (third row
seat)*
Open the cover to use it.
■Accessory power socket (cargo area)
Open the cover to use it.
* Not available on all models
20 US ODYSSEY-31THR6210.book 237 ページ ２０２０年２月２８日　金曜日　午前７時２６分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
238
Controls
The AC power outlet can be used when the engine is running.
Open the cover to use it. Plug in the appliance
slightly, turn it 90° clockwise, then push it all
the way.
■AC Power Outlet*1AC Power Outlet*
NOTICE
Do not use the AC power outlet for electric
appliances that require hi gh initial peak wattage,
such as cathode-ray tube type televisions,
refrigerators, electric pumps, etc. It is not suitable for
devices that process precis e data, such as medical
equipment, and that require an extremely stable
power supply, such as microcomputer-controlled
electric blankets, touc h sensor lamps, etc.
The AC power outlet is desi gned to supply power for
up to 115 volt appliances that are rated 150 watts or
less.
Continued use of any elec tric appliance/device
exceeding these ratings may result in damage to the
appliance/device.
* Not available on all models
20 US ODYSSEY-31THR6210.book 238 ページ ２０２０年２月２８日　金曜日　午前７時２６分
