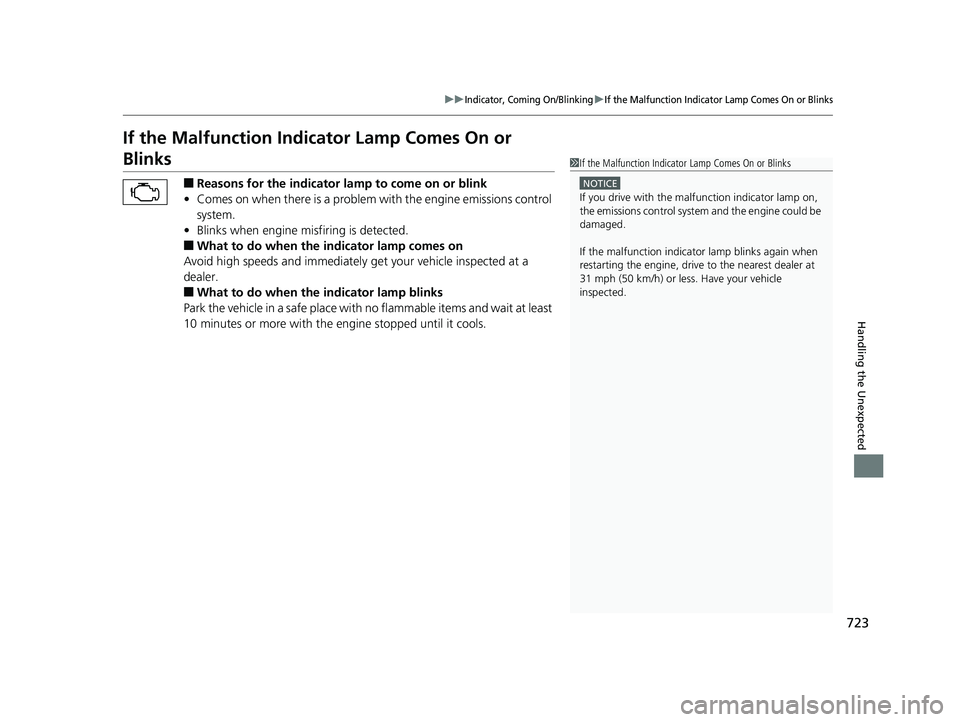

uuIndicator, Coming On/BlinkinguIf the Malfunction Indicator Lamp Comes On or Blinks
Handling the Unexpected
If the Malfunction Indicator Lamp Comes On or
Blinks
■Reasons for the indicator la mp to come on or blink
• Comes on when there is a problem with the engine emissions control
system.
• Blinks when engine misfiring is detected.
■What to do when the indicator lamp comes on
Avoid high speeds and immediately get your vehicle inspected at a
dealer.
■What to do when the indicator lamp blinks
Park the vehicle in a safe place with no flammable items and wait at least
10 minutes or more with the engine stopped until it cools.
1 If the Malfunction Indicato r Lamp Comes On or Blinks
NOTICE
If you drive with the malf unction indicator lamp on,
the emissions control system and the engine could be
damaged.
If the malfunction indicator lamp blinks again when
restarting the engine, drive to the nearest dealer at
31 mph (50 km/h) or less. Have your vehicle
inspected.
20 US ODYSSEY-31THR6210.book 723 ページ ２０２０年２月２８日　金曜日　午前７時２６分

726
uuIndicator, Coming On/Blinking uIf the Electric Power Steering (EPS) System Indicator Comes On
Handling the Unexpected
If the Electric Power Steeri ng (EPS) System Indicator
Comes On
■Reasons for the indicator to come on
• Comes on when there is a problem with the EPS system.
• If you depress the accelerator pedal repeatedly to increase the engine
speed while the engine is idling, the indicator comes on, and
sometimes the steering wheel becomes harder to operate.
■What to do when the indicator comes on
Stop the vehicle in a safe place and restart the engine.
If the indicator comes on and stays on, immediately have your vehicle
inspected by a dealer.
If the Low Tire Pressure/TPMS Indicator Comes On or
Blinks
■Reasons for the indicator to come on or blink
A tire pressure is significantly low. If there is a problem with the TPMS
with Tire Fill Assist or the compact spare tire is installed, the indicator
blinks for about one mi nute, and then stays on.
■What to do when the indicator comes on
Drive carefully and avoid abrupt cornering and hard braking.
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The sp ecified tire pressure is on a label on
the driver side doorjamb.
■What to do when the indicator blinks, then remains on
Have the tire inspected by a dealer as soon as possible. If the compact
spare tire causes the indicator to blink, change the tire to a full-size tire.
The indicator goes off after driv ing for a few miles (kilometers).
1If the Low Tire Pressure/TPMS Indicator Comes On or Blinks
NOTICE
Driving on an extremely unde rinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.
TPMS with Tire Fill Assist provides visual and audible
assistance during tire pre ssure adjustment. With the
power mode in ON, while y ou adjust tire pressure up
or down, the system alerts you as follows:
Below recommended pressure: The beeper
sounds and exterior lights flash once every five
seconds.
At recommended pressure: The beeper sounds
and exterior lights flash rapi dly for three seconds with
five seconds intervals.
Above recommended pressure: The beeper
sounds and lights flash tw ice every two seconds.
20 US ODYSSEY-31THR6210.book 726 ページ ２０２０年２月２８日　金曜日　午前７時２６分

756
Index
Auto Idle Stop Indicator (Amber).............. 95
Auto Idle Stop Indicator (Green) ............... 95
Automatic Brake Hold Indicator .................................................... 86
Automatic Brake Hold System
Indicator .................................................... 86
Automatic Operation (automatic lighting control) .................................................... 193
Automatic Transmission ........................... 549
Creeping ................................................. 549
Fluid ........................................................ 661
Kickdown ................................................ 549
Shift Operation ........................................ 552
Shifting.................................................... 550
Auxiliary Input Jack .................................. 266
Average Fuel Economy ............................. 125
B
Battery....................................................... 688
Charging System Indicator ................. 87, 722
Jump Starting .......................................... 717
Maintenance (Checking the Battery) ........ 688
Maintenance (Replacing).................. 690, 691
Belts (Seat) .................................................. 38
Beverage Holders ...................................... 234
Blank .......................................................... 130
Blind spot information System ................ 603
Bluetooth ® Audio ............................. 286, 349
Bluetooth ® HandsFreeLink ®............. 476, 501 Blu-ray/DVD Rear Entertainment
System ..................................................... 400
Audio Sources for Front and Rear Seats ... 421
Auxiliary Console Panels .......................... 402
DVD or Blu-ray
TM Player Error Messages ... 446
Front Control Panel Operation ................. 413
HDMI
TM Port ............................................ 403
How Much Farther?TM............................. 420
Media Servers.......................................... 420
Operating the System .............................. 404
Overhead Screen ..................................... 403
Playable Disc Region Codes ..................... 444
Playable Disc Types .................................. 444
Playable Discs .......................................... 422
Playing a Disc in the Rear......................... 418
Playing a DVD/Blu-ray
TM........................... 407
Playing a Video Using the HDMITM........... 419
Playing an iPod and a USB Flash Drive in the Rear ...................................................... 418
Playing Apps ........................................... 416
Rear DVD or Blu-ray
TM Menu ................... 408
Rear System Setup................................... 414
Recommended Discs ............................... 445
Selecting the Audio Sour ce using Front Control
Panel ..................................................... 413
Setting the DVD or Blu-ray
TM Menu ......... 415
System Controls .............................. 407, 417
System Settings ....................................... 411
Video Accessibility ................................... 405
Wireless Headphones .............................. 401 Booster Seats (For Children)
...................... 79
Brake System ............................................ 607
Anti-lock Brake System (ABS) .................. 613
Brake Assist System................................. 614
Fluid ....................................................... 662
Foot Brake .............................................. 610
Indicator (Amber) .............................. 85, 725
Indicator (Red) .......................... 84, 724, 725
Parking Brake.......................................... 607
Brightness Control (Instrument Panel) ... 205
Built-in Key ............................................... 147
Bulb Replacement .................................... 664
Back-Up Lights/Taillights ......................... 673
Brake, Rear Turn Signal Lights, and Rear Side
Marker/Taillights ................................... 671
Daytime Running Lights .......................... 668
Fog Lights ............................................... 667
Front Side Marker Lights ......................... 670
Front Turn Signal/Parking Lights .............. 669
Headlights .............................................. 664
High-Mount Brake Light.......................... 674
Parking/Daytime Running Lights .............. 668
Rear License Plate Light ........................... 674
Side Turn Signal/Emergency Indicator Lights .................................................... 670
Bulb Specifications ................................... 744
20 US ODYSSEY-31THR6210.book 756 ページ ２０２０年２月２８日　金曜日　午前７時２６分

758
Index
Driving....................................................... 529
Automatic Transmission ........................... 549
Braking .................................................... 607
Cruise Control ......................................... 566
Shifting Gear ........................................... 550
Starting the Engine .................................. 542
Driving Position Memory System ............. 206
Dust and Pollen Filter ............................... 693
E
Eco Assist® System ....................................... 11
Econ Mode
Indicator .................................................... 94
Electric Power Steering (EPS) System Indicator ............................................ 91, 726
Electronic Stability Control (ESC) ............. 596
Emergency ................................................. 735
Emergency Engine Stop ........................... 716
Emissions Testing (Readiness Codes) ....... 749
Engine ....................................................... 746
Coolant ................................................... 659
Jump Starting .......................................... 717
Oil ........................................................... 654
Starting ................................................... 542
Engine Coolant ......................................... 659
Adding to the Radiator ............................ 660
Adding to the Reserve Tank ..................... 659
Overheating............................................. 719
Temperature Gauge................................. 119 Engine Oil
................................................. 654
Adding .................................................... 656
Checking................................................. 655
Displaying Maintenance Minder Information ........................................... 646
Low Oil Pressure Symbol.......................... 722
Recommended Engine Oil ....................... 654
ENGINE START/STOP Button .................... 188
Exhaust Gas Hazard (Carbon Monoxide) .. 80
Exterior Care (Cleaning) ........................... 697
Exterior Mirrors ........................................ 210
F
Features.................................................... 263
File Manager ............................................. 310
Filters Dust and Pollen ....................................... 693
Oil ........................................................... 657
Flat Tire ..................................................... 705
Floor Mats ................................................. 695
Fluids Automatic Transmission .......................... 661
Brake ...................................................... 662
Engine Coolant ....................................... 659
Windshield Washer ................................. 663
FM/AM Radio .................................... 278, 322
Fog Light Indicator ..................................... 93
Folding Down the Rear Seats .................. 221
Foot Brake ................................................ 610 Front Airbags (SRS)
.................................... 50
Front Knee Airbags .................................... 54
Front Seat Heaters ................................... 245
Front Seat Heaters and Seat Ventilation .............................................. 246
Front Seats ................................................ 212
Adjusting ................................................ 212
Fuel ..................................................... 26, 637
Economy................................................. 640
Gauge .................................................... 119
Instant Fuel Economy .............................. 125
Low Fuel Indicator..................................... 89
Range ..................................................... 125
Recommendation.................................... 637
Refueling ................................................ 637
Fuel Economy ........................................... 640
Fuel Fill Door ...................................... 26, 638
Fuses ......................................................... 728
Inspecting and Changing ........................ 734
Locations ................................ 728, 730, 733
G
Gasoline (Fuel)
Economy................................................. 640
Gauge .................................................... 119
Information............................................. 637
Instant Fuel Economy .............................. 125
Low Fuel Indicator..................................... 89
Refueling ................................................ 637
20 US ODYSSEY-31THR6210.book 758 ページ ２０２０年２月２８日　金曜日　午前７時２６分

762
Index
Refueling................................................... 637
Fuel Gauge .............................................. 119
Gasoline .......................................... 637, 744
Low Fuel Indicator ..................................... 89
Regulations ............................... 601, 682, 747
Remote Transmitter .................................. 153
Removing a Second Row Outer Seat ....... 218
Removing the Second Row Center
Seat .......................................................... 217
Replacement Battery............................................. 690, 691
Bulbs ....................................................... 664
Front Wiper Blade Rubber ........................ 675
Fuses ....................................... 728, 730, 733
Tires ........................................................ 685
Reporting Safety Defects ......................... 748
Road Departure Mitigation (RDM)
Indicator .................................................... 97
S
Safe Driving ................................................. 33
Safety Check ................................................ 37
Safety Labels ............................................... 81
Safety Message ............................................. 1
Seat Belts ..................................................... 38
Adjusting the Shoulder Anchor .................. 42
Automatic Seat Belt Tensioners .................. 40
Checking ................................................... 46
Detachable Anchor .................................... 43
Fastening ................................................... 41 Installing a Child Seat with a Lap/Shoulder Seat
Belt ......................................................... 72
Pregnant Women ...................................... 45
Reminder .................................................. 39
Warning Indicator ............................... 39, 89
Seat Heaters ...................................... 245, 246
Seats .......................................................... 212
Adjusting ................................................ 212
Front Seats .............................................. 212
Seat Heaters .................................... 245, 246
Second Row Seats ................................... 215
Third Row Seats ...................................... 220
Second Row Seats Adjusting ................................................ 215
Security System ......................................... 181
Immobilizer System Indicator ..................... 93
Security System Alarm Indicator................. 93
Select Buttons ..................................... 23, 550
Operation................................................ 552
Selecting a Child Seat ................................. 66
Selector Knob (Audio) .............................. 271
Settings
Arrange Apps .......................................... 132
Show Tachometer ................................... 133
Shifting (Transmission) ............................. 550
Shoulder Anchor ........................................ 42
Show Tachometer .................................... 133
Show/Hide Apps ....................................... 131
Side Airbags ................................................ 56
Side Curtain Airbags .................................. 58
Siri Eyes Free ............................................. 363 SiriusXM
® Radio ....................................... 326
Sliding Doors ............................................ 172
Power Sliding Doors ................................ 174
Sliding the Second Row Magic Slide
TM
Seats ........................................................ 219
Smart Entry with Push Button Start System ..................................................... 149
Snow Mode Indicator ................................ 94
Snow Tires ................................................ 687
Social Playlist ............................................ 351
Spare Tire ......................................... 705, 745
Spark Plugs ............................................... 744
Specifications ........................................... 744
Specified Fuel ................................... 637, 744
Speedometer ............................................ 120
SRS Airbags (Airbags) ................................ 50
Starting the Engine .................................. 542
Does Not Start ........................................ 714
Jump Starting ......................................... 717
Steering Wheel Adjusting ................................................ 208
Stopping ................................................... 624
Summer Tires ............................................ 687
Sunglasses Holder .................................... 243
Supplemental Restraint System (SRS) ....... 50
Switches (Around the Steering Wheel) ............................................ 4, 5, 188
System Message Indicator ......................... 94
System Updates ........................................ 304
20 US ODYSSEY-31THR6210.book 762 ページ ２０２０年２月２８日　金曜日　午前７時２６分
