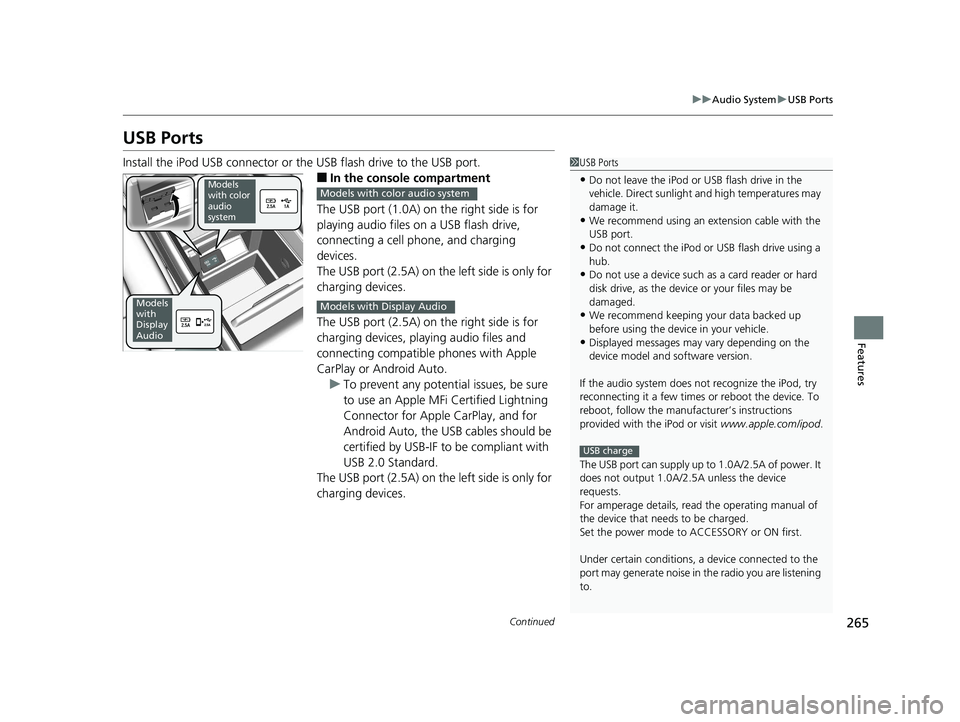

265
uuAudio System uUSB Ports
Continued
Features
USB Ports
Install the iPod USB connector or the USB flash drive to the USB port.
■In the consol e compartment
The USB port (1.0A) on the right side is for
playing audio files on a USB flash drive,
connecting a cell phone, and charging
devices.
The USB port (2.5A) on the left side is only for
charging devices.
The USB port (2.5A) on the right side is for
charging devices, playing audio files and
connecting compatible phones with Apple
CarPlay or Android Auto. u To prevent any potenti al issues, be sure
to use an Apple MFi Certified Lightning
Connector for Apple CarPlay, and for
Android Auto, the USB cables should be
certified by USB-IF to be compliant with
USB 2.0 Standard.
The USB port (2.5A) on the left side is only for
charging devices.
1 USB Ports
•Do not leave the iPod or USB flash drive in the
vehicle. Direct sunlight and high temperatures may
damage it.
•We recommend using an ex tension cable with the
USB port.
•Do not connect the iPod or USB flash drive using a
hub.
•Do not use a device such as a card reader or hard
disk drive, as the device or your files may be
damaged.
•We recommend keeping y our data backed up
before using the device in your vehicle.
•Displayed messages may vary depending on the
device model and software version.
If the audio system does not recognize the iPod, try
reconnecting it a few times or reboot the device. To
reboot, follow the manufac turer’s instructions
provided with the iPod or visit www.apple.com/ipod.
The USB port can supply up to 1.0A/2.5A of power. It
does not output 1.0A/2.5A unless the device
requests.
For amperage details, read the operating manual of
the device that ne eds to be charged.
Set the power mode to ACCESSORY or ON first.
Under certain condi tions, a device connected to the
port may generate noi se in the radio you are listening
to.
USB charge
Models
with color
audio
system
Models
with
Display
Audio
Models with color audio system
Models with Display Audio
20 US ODYSSEY-31THR6210.book 265 ページ ２０２０年２月２８日　金曜日　午前７時２６分

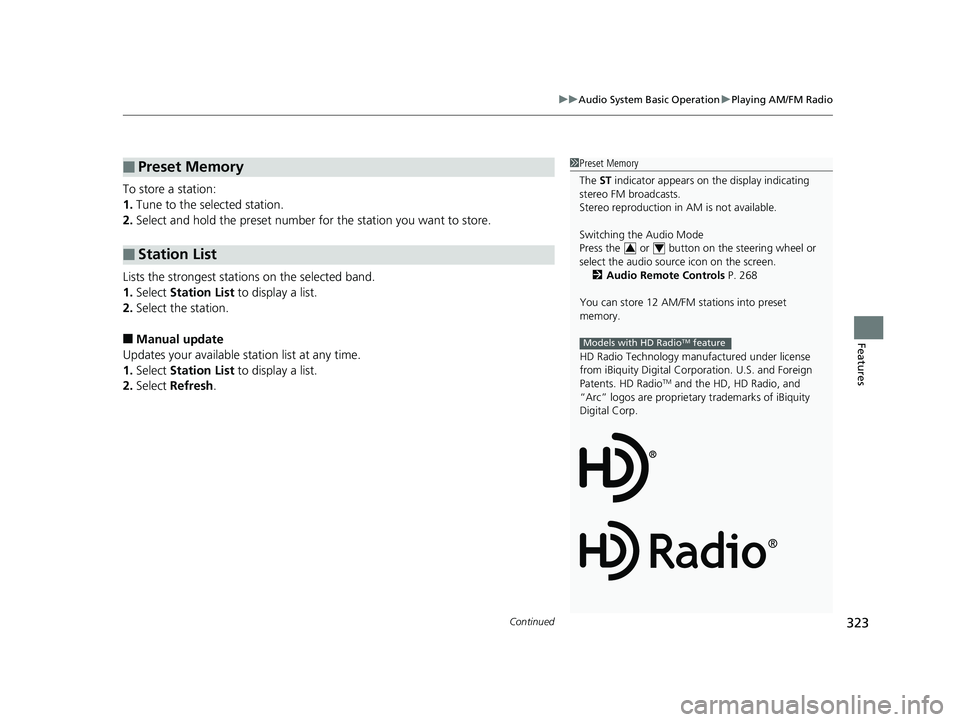

Continued323
uuAudio System Basic Operation uPlaying AM/FM Radio
Features
To store a station:
1. Tune to the selected station.
2. Select and hold the preset number for the station you want to store.
Lists the strongest stations on the selected band.
1. Select Station List to display a list.
2. Select the station.
■Manual update
Updates your available st ation list at any time.
1. Select Station List to display a list.
2. Select Refresh .
■Preset Memory
■Station List
1Preset Memory
The ST indicator appears on the display indicating
stereo FM broadcasts.
Stereo reproduction in AM is not available.
Switching the Audio Mode
Press the or button on the steering wheel or
select the audio source icon on the screen. 2 Audio Remote Controls P. 268
You can store 12 AM/FM stations into preset
memory.
HD Radio Technology manufactured under license
from iBiquity Digital Cor poration. U.S. and Foreign
Patents. HD Radio
TM and the HD, HD Radio, and
“Arc” logos are proprietary trademarks of iBiquity
Digital Corp.
34
Models with HD RadioTM feature
20 US ODYSSEY-31THR6210.book 323 ページ ２０２０年２月２８日　金曜日　午前７時２６分

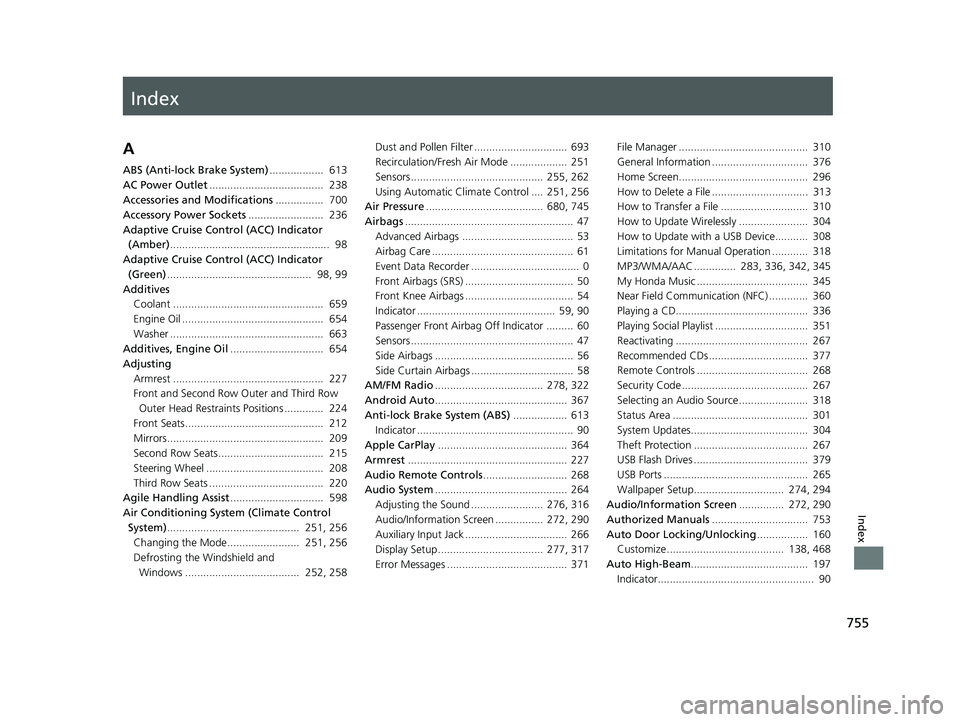

Index
755
Index
Index
A
ABS (Anti-lock Brake System).................. 613
AC Power Outlet ...................................... 238
Accessories and Modifications ................ 700
Accessory Power Sockets ......................... 236
Adaptive Cruise Control (ACC) Indicator (Amber) ..................................................... 98
Adaptive Cruise Control (ACC) Indicator
(Green) ................................................ 98, 99
Additives Coolant .................................................. 659
Engine Oil ............................................... 654
Washer ................................................... 663
Additives, Engine Oil ............................... 654
Adjusting Armrest .................................................. 227
Front and Second Row Outer and Third Row
Outer Head Restraints Positions ............. 224
Front Seats.............................................. 212
Mirrors.................................................... 209
Second Row Seats................................... 215
Steering Wheel ....................................... 208
Third Row Seats ...................................... 220
Agile Handling Assist ............................... 598
Air Conditioning System (Climate Control
System) ............................................ 251, 256
Changing the Mode........................ 251, 256
Defrosting the Windshield and
Windows ...................................... 252, 258 Dust and Pollen Filter ............................... 693
Recirculation/Fresh Air Mode ................... 251
Sensors ............................................ 255, 262
Using Automatic Climate Control .... 251, 256
Air Pressure ....................................... 680, 745
Airbags ........................................................ 47
Advanced Airbags ..................................... 53
Airbag Care ............................................... 61
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 50
Front Knee Airbags .................................... 54
Indicator .............................................. 59, 90
Passenger Front Airbag Off Indicator ......... 60
Sensors ...................................................... 47
Side Airbags .............................................. 56
Side Curtain Airbags .................................. 58
AM/FM Radio .................................... 278, 322
Android Auto ............................................ 367
Anti-lock Brake System (ABS) .................. 613
Indicator .................................................... 90
Apple CarPlay ........................................... 364
Armrest ..................................................... 227
Audio Remote Controls ............................ 268
Audio System ............................................ 264
Adjusting the Sound ........................ 276, 316
Audio/Information Screen ................ 272, 290
Auxiliary Input Jack .................................. 266
Display Setup ................................... 277, 317
Error Messages ........................................ 371 File Manager ........................................... 310
General Information ................................ 376
Home Screen........................................... 296
How to Delete a File ................................ 313
How to Transfer a File ............................. 310
How to Update Wirelessly ....................... 304
How to Update with a USB Device........... 308
Limitations for Manual Operation ............ 318
MP3/WMA/AAC .............. 283, 336, 342, 345
My Honda Music ..................................... 345
Near Field Communication (NFC) ............. 360
Playing a CD............................................ 336
Playing Social Playlist ............................... 351
Reactivating ............................................ 267
Recommended CDs ................................. 377
Remote Controls ..................................... 268
Security Code .......................................... 267
Selecting an Audio Source ....................... 318
Status Area ............................................. 301
System Updates....................................... 304
Theft Protection ...................................... 267
USB Flash Drives ...................................... 379
USB Ports ................................................ 265
Wallpaper Setup.............................. 274, 294
Audio/Information Screen ............... 272, 290
Authorized Manuals ................................ 753
Auto Door Locking/Unlocking ................. 160
Customize ....................................... 138, 468
Auto High-Beam ....................................... 197
Indicator.................................................... 90
20 US ODYSSEY-31THR6210.book 755 ページ ２０２０年２月２８日　金曜日　午前７時２６分

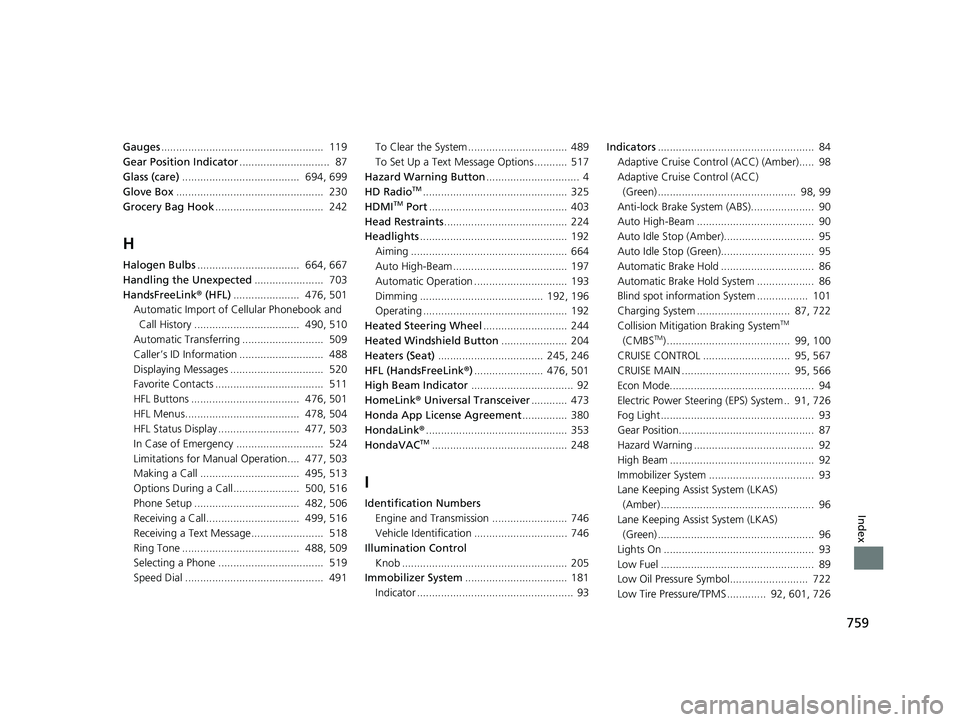

759
Index
Gauges...................................................... 119
Gear Position Indicator .............................. 87
Glass (care) ....................................... 694, 699
Glove Box ................................................. 230
Grocery Bag Hook .................................... 242
H
Halogen Bulbs.................................. 664, 667
Handling the Unexpected ....................... 703
HandsFreeLink ® (HFL) ...................... 476, 501
Automatic Import of Cellular Phonebook and Call History ................................... 490, 510
Automatic Transferring ........................... 509
Caller’s ID Information ............................ 488
Displaying Messages ............................... 520
Favorite Contacts .................................... 511
HFL Buttons .................................... 476, 501
HFL Menus...................................... 478, 504
HFL Status Display ........................... 477, 503
In Case of Emergency ............................. 524
Limitations for Manual Operation.... 477, 503
Making a Call ................................. 495, 513
Options During a Call...................... 500, 516
Phone Setup ................................... 482, 506
Receiving a Call............................... 499, 516
Receiving a Text Message........................ 518
Ring Tone ....................................... 488, 509
Selecting a Phone ................................... 519
Speed Dial .............................................. 491 To Clear the System ................................. 489
To Set Up a Text Message Options ........... 517
Hazard Warning Button ............................... 4
HD Radio
TM................................................ 325
HDMITM Port .............................................. 403
Head Restraints ......................................... 224
Headlights ................................................. 192
Aiming .................................................... 664
Auto High-Beam ...................................... 197
Automatic Operation ............................... 193
Dimming ......................................... 192, 196
Operating ................................................ 192
Heated Steering Wheel ............................ 244
Heated Windshield Button ...................... 204
Heaters (Seat) ................................... 245, 246
HFL (HandsFreeLink ®)....................... 476, 501
High Beam Indicator .................................. 92
HomeLink® Universal Transceiver ............ 473
Honda App License Agreement ............... 380
HondaLink® ............................................... 353
HondaVAC
TM............................................. 248
I
Identification Numbers Engine and Transmission ......................... 746
Vehicle Identification ............................... 746
Illumination Control Knob ....................................................... 205
Immobilizer System .................................. 181
Indicator .................................................... 93 Indicators
.................................................... 84
Adaptive Cruise Control (ACC) (Amber)..... 98
Adaptive Cruise Control (ACC) (Green) .............................................. 98, 99
Anti-lock Brake System (ABS)..................... 90
Auto High-Beam ....................................... 90
Auto Idle Stop (Amber).............................. 95
Auto Idle Stop (Green)............................... 95
Automatic Brake Hold ............................... 86
Automatic Brake Hold System ................... 86
Blind spot information System ................. 101
Charging System ............................... 87, 722
Collision Mitigati on Braking System
TM
(CMBSTM) ......................................... 99, 100
CRUISE CONTROL ............................. 95, 567
CRUISE MAIN .................................... 95, 566
Econ Mode................................................ 94
Electric Power Steering (EPS) System .. 91, 726
Fog Light ................................................... 93
Gear Position............................................. 87
Hazard Warning ........................................ 92
High Beam ................................................ 92
Immobilizer System ................................... 93
Lane Keeping Assist System (LKAS) (Amber) ................................................... 96
Lane Keeping Assist System (LKAS) (Green) .................................................... 96
Lights On .................................................. 93
Low Fuel ................................................... 89
Low Oil Pressure Symbol.......................... 722
Low Tire Pressure/TPMS ............. 92, 601, 726
20 US ODYSSEY-31THR6210.book 759 ページ ２０２０年２月２８日　金曜日　午前７時２６分
