mirror controls HONDA ODYSSEY 2020 Owner's Manual (in English)

Contents

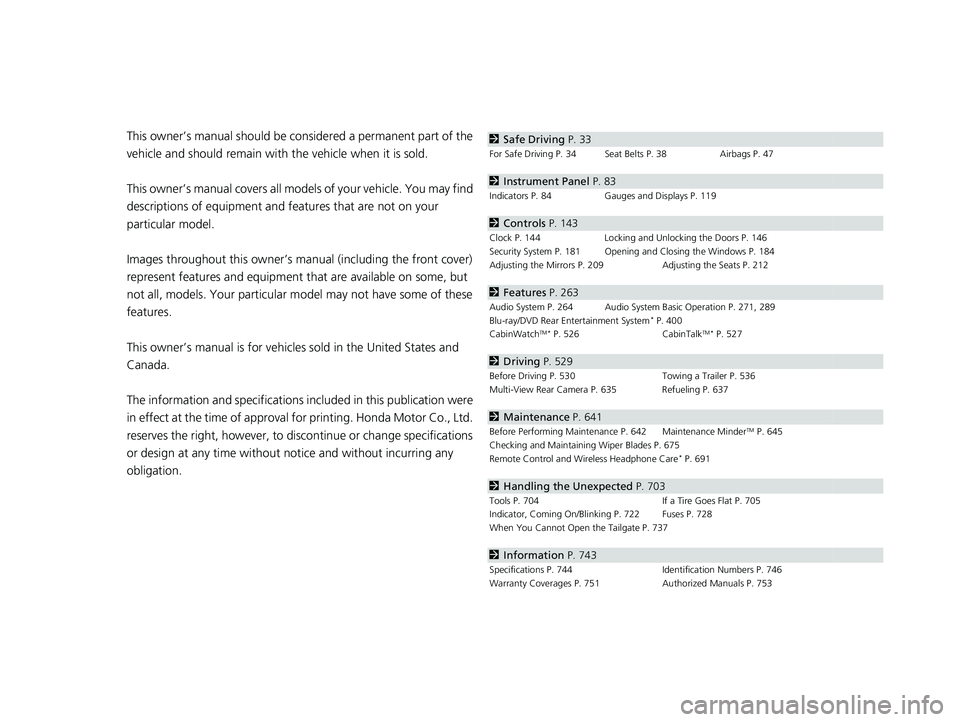

This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s manu al (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular mo del may not have some of these
features.
This owner’s manual is for vehicles sold in the United States and
Canada.
The information and specifications in cluded in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.2 Safe Driving P. 33
For Safe Driving P. 34 Seat Belts P. 38 Airbags P. 47
2Instrument Panel P. 83
Indicators P. 84 Gauges and Displays P. 119
2Controls P. 143
Clock P. 144 Locking and Unlocking the Doors P. 146
Security System P. 181 Opening and Closing the Windows P. 184
Adjusting the Mirrors P. 209 Adjusting the Seats P. 212
2Features P. 263
Audio System P. 264 Audio System Basic Operation P. 271, 289
Blu-ray/DVD Rear Entertainment System* P. 400
CabinWatchTM * P. 526 CabinTalkTM* P. 527
2Driving P. 529
Before Driving P. 530 Towing a Trailer P. 536
Multi-View Rear Camera P. 635 Refueling P. 637
2 Maintenance P. 641
Before Performing Maintenance P. 642 Maintenance MinderTM P. 645
Checking and Maintaining Wiper Blades P. 675
Remote Control and Wireless Headphone Care
* P. 691
2 Handling the Unexpected P. 703
Tools P. 704 If a Tire Goes Flat P. 705
Indicator, Coming On/Blinking P. 722 Fuses P. 728
When You Cannot Open the Tailgate P. 737
2 Information P. 743
Specifications P. 744 Identification Numbers P. 746
Warranty Coverages P. 751 Authorized Manuals P. 753
20 US ODYSSEY-31THR6210.book 2 ページ ２０２０年２月２８日　金曜日　午前７時２６分

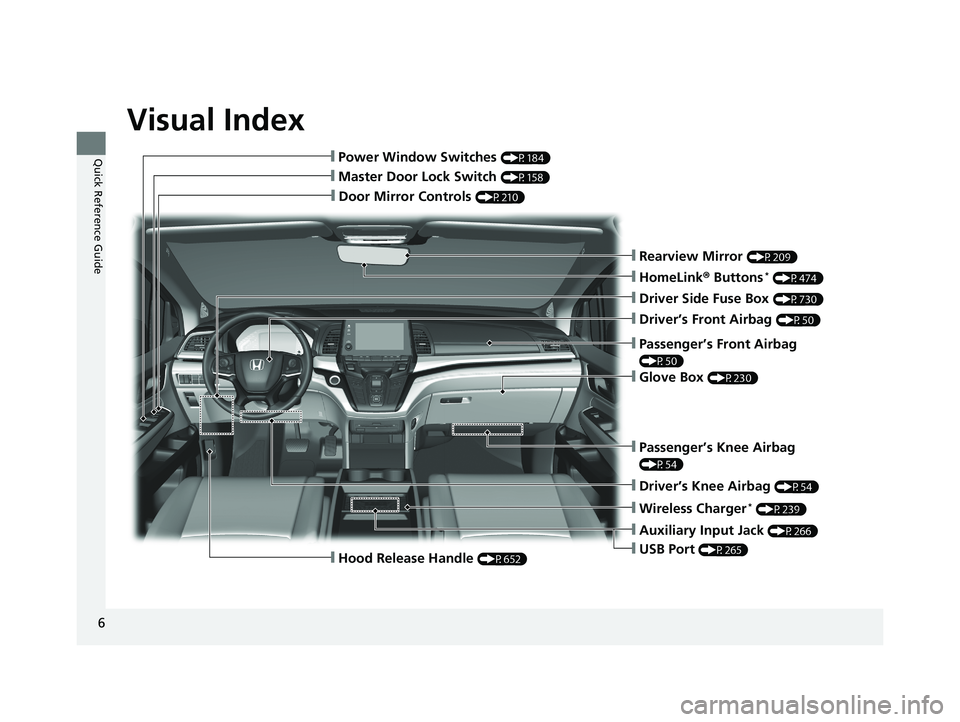

Visual Index
6
Quick Reference Guide
❙Door Mirror Controls (P210)
❙Master Door Lock Switch (P158)
❙Hood Release Handle (P652)
❙Power Window Switches (P184)
❙Rearview Mirror (P209)
❙Driver Side Fuse Box (P730)
❙Glove Box (P230)
❙Driver’s Front Airbag (P50)
❙Passenger’s Knee Airbag
(P54)
❙Driver’s Knee Airbag (P54)
❙Auxiliary Input Jack (P266)
❙USB Port (P265)
❙Passenger’s Front Airbag
(P50)
❙HomeLink® Buttons* (P474)
❙Wireless Charger* (P239)
20 US ODYSSEY-31THR6210.book 6 ページ ２０２０年２月２８日　金曜日　午前７時２６分

143
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 144
Locking and Unlocking the Doors
Key Types and Functions .................. 146
Low Remote Signal Strength ............ 148
Locking/Unlocking the Doors from the Outside .... 149
Locking/Unlocking the Doors from the Inside ...156
Childproof Door Locks ..................... 159
Auto Door Locking/Unlocking .......... 160
Opening and Closing the Tailgate ... 161
Opening and Closing the Sliding Doors.. 172Security System
Immobilizer System .............................. 181
Security System Alarm .......................... 181
Opening and Closing the Windows ..... 184
Moonroof
*............................................. 187
Operating the Switches Around the Steering Wheel
ENGINE START/STOP Button............. 188
Turn Signals ..................................... 191
Light Switches.................................. 192
Fog Lights
*...................................... 195
Daytime Running Lights ................... 196
Auto High-Beam
*............................ 197Wipers and Washers ............................ 200Rear Defogger/Heated Door Mirror* Button...203
Heated Windshield Button ................... 204
Brightness Control ............................... 205
Driving Position Memory System
*........ 206
Adjusting the Steering Wheel .............. 208
Canadian models

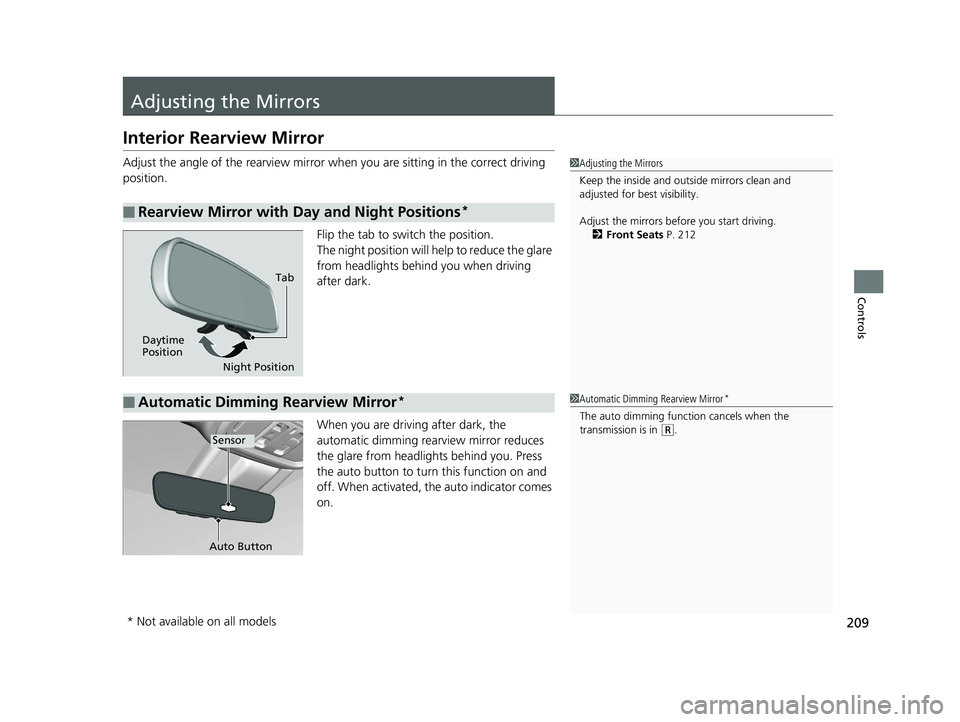

Adjusting the Mirrors ............................ 209
Interior Rearview Mirror ........................ 209

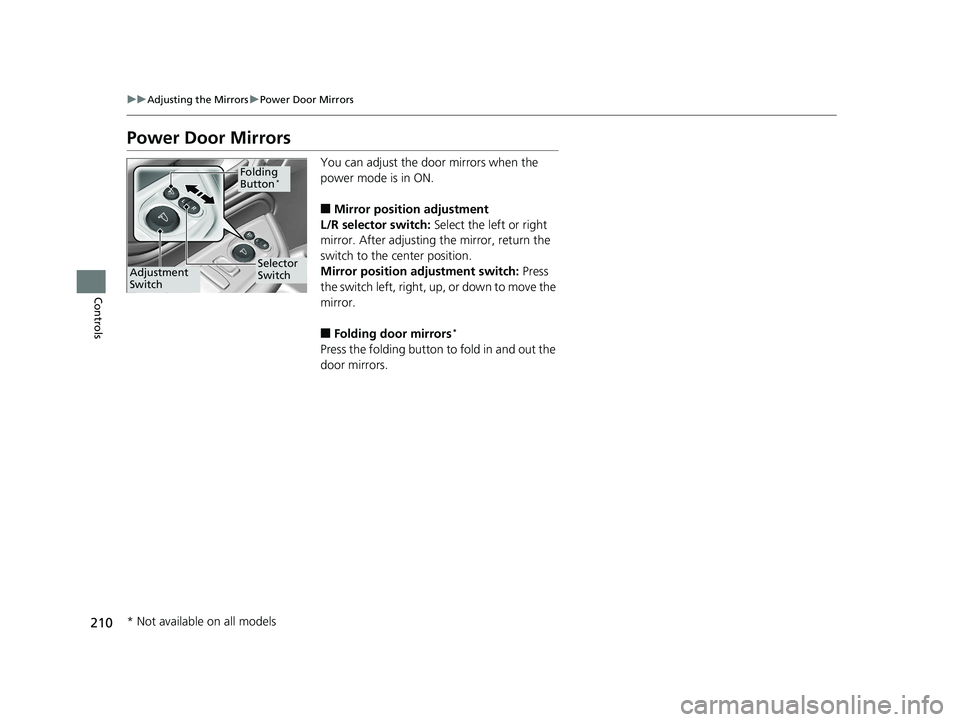

Power Door Mirrors .............................. 210
Adjusting the Seats
Front Seats ................................................212
Head Restraints .........................................224
Maintain a Proper Sitting Position ..............223
Interior Lights/Interior Convenience Items.. 228
Climate Control System
Using Automatic Climate Control ..............251
Rear Climate Control System .....................254
Climate Control System ..............................256
Using Automatic Climate Control ..............256
Automatic Climate Control Sensors ...........262Dual-zone climate control system
Tri-zone climate control system
* Not available on all models
20 US ODYSSEY-31THR6210.book 143 ページ ２０２０年２月２８日　金曜日　午前７時２６分

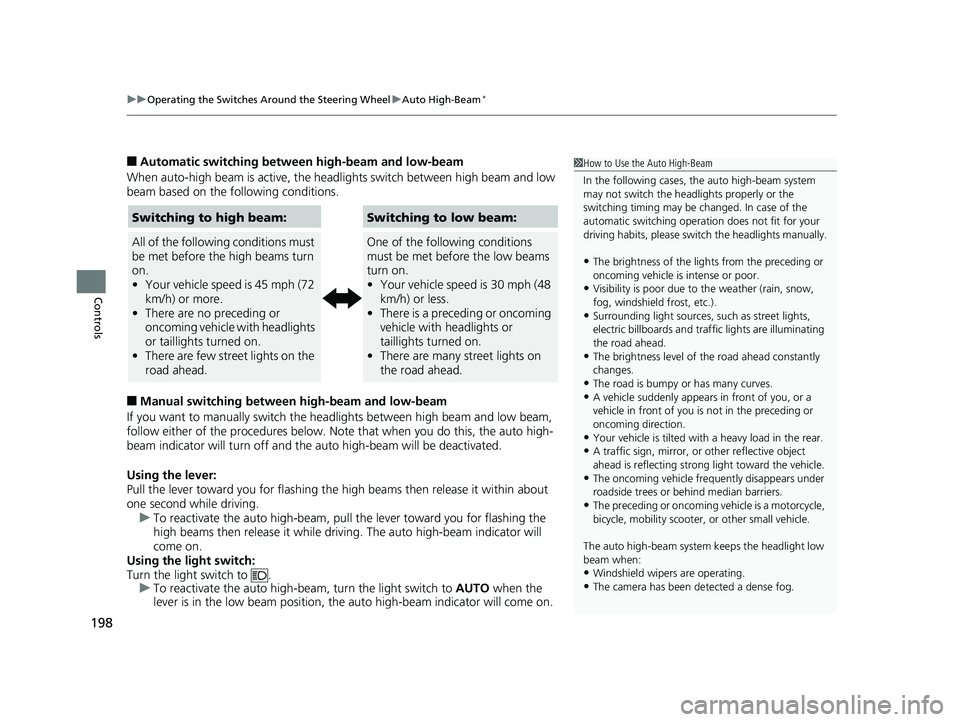

uuOperating the Switches Around the Steering Wheel uAuto High-Beam*
198
Controls
■Automatic switching between high-beam and low-beam
When auto-high beam is active, the headlights switch between high beam and low
beam based on the following conditions.
■Manual switching between high-beam and low-beam
If you want to manually switch the headlights between high beam and low beam,
follow either of the proced ures below. Note that when you do this, the auto high-
beam indicator will turn off and the auto high-beam will be deactivated.
Using the lever:
Pull the lever toward you fo r flashing the high beams th en release it within about
one second while driving. u To reactivate the auto high-beam, pull the lever toward you for flashing the
high beams then release it while driving. The auto high-beam indicator will
come on.
Using the light switch:
Turn the light switch to . u To reactivate the auto high-be am, turn the light switch to AUTO when the
lever is in the low beam position, the auto high-beam indicator will come on.
1How to Use the Auto High-Beam
In the following cases, th e auto high-beam system
may not switch the head lights properly or the
switching timing may be ch anged. In case of the
automatic switching operat ion does not fit for your
driving habits, please swit ch the headlights manually.
•The brightness of the lights from the preceding or
oncoming vehicle is intense or poor.
•Visibility is poor due to the weather (rain, snow,
fog, windshield frost, etc.).
•Surrounding light sources, such as street lights,
electric billboards and traf fic lights are illuminating
the road ahead.
•The brightness le vel of the road ahead constantly
changes.
•The road is bumpy or has many curves.•A vehicle suddenly appears in front of you, or a
vehicle in front of you is not in the preceding or
oncoming direction.
•Your vehicle is tilted with a heavy load in the rear.•A traffic sign, mirror, or other reflective object
ahead is reflecting strong light toward the vehicle.
•The oncoming vehicle freq uently disappears under
roadside trees or be hind median barriers.
•The preceding or oncoming vehicle is a motorcycle,
bicycle, mobility scooter, or other small vehicle.
The auto high-beam system keeps the headlight low
beam when:
•Windshield wipers are operating.
•The camera has been detected a dense fog.
Switching to high beam:
All of the following conditions must
be met before the high beams turn
on.
•Your vehicle speed is 45 mph (72
km/h) or more.
• There are no preceding or
oncoming vehicle with headlights
or taillights turned on.
• There are few street lights on the
road ahead.
Switching to low beam:
One of the following conditions
must be met before the low beams
turn on.
•Your vehicle speed is 30 mph (48
km/h) or less.
• There is a preceding or oncoming
vehicle with headlights or
taillights turned on.
• There are many street lights on
the road ahead.
20 US ODYSSEY-31THR6210.book 198 ページ ２０２０年２月２８日　金曜日　午前７時２６分

203

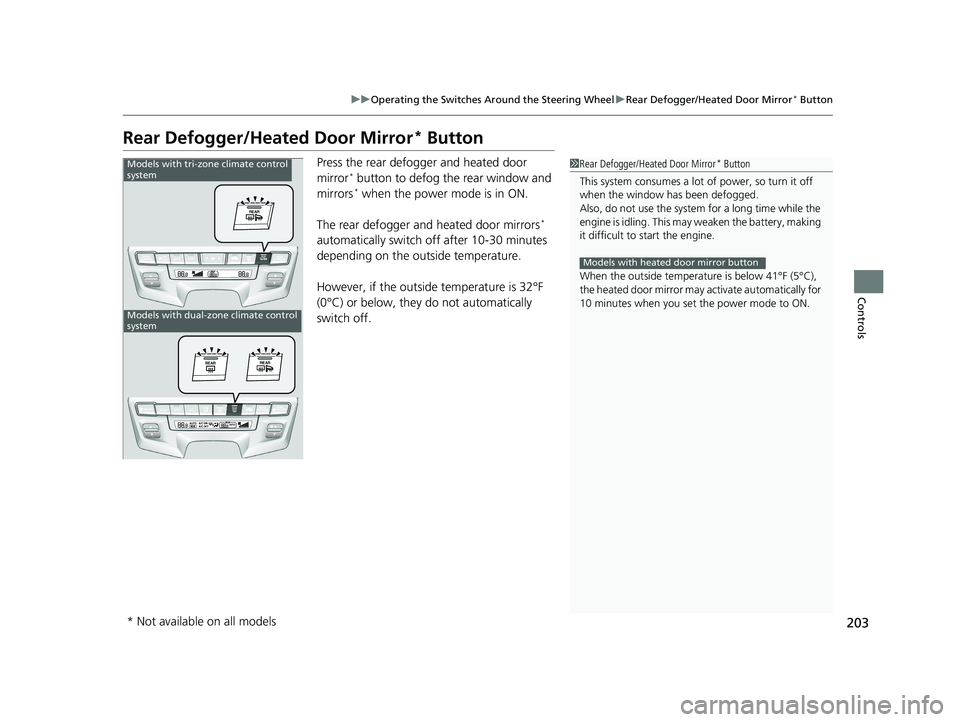

uuOperating the Switches Around the Steering Wheel uRear Defogger/Heated Door Mirror* Button
Controls
Rear Defogger/Heated Door Mirror* Button
Press the rear defogger and heated door
mirror* button to defog the rear window and
mirrors* when the power mode is in ON.
The rear defogger and heated door mirrors
*
automatically switch of f after 10-30 minutes
depending on the outside temperature.
However, if the outside temperature is 32°F
(0°C) or below, they do not automatically
switch off.
1 Rear Defogger/Heated Door Mirror* Button
This system consumes a lot of power, so turn it off
when the window has been defogged.
Also, do not use the system for a long time while the
engine is idling. This may weaken the battery, making
it difficult to start the engine.
When the outside temperature is below 41°F (5°C),
the heated door mirror may activate automatically for
10 minutes when you set the power mode to ON.
Models with heated door mirror button
Models with tri-zone climate control
system
Models with dual-zone climate control
system
* Not available on all models
20 US ODYSSEY-31THR6210.book 203 ページ ２０２０年２月２８日　金曜日　午前７時２６分

206

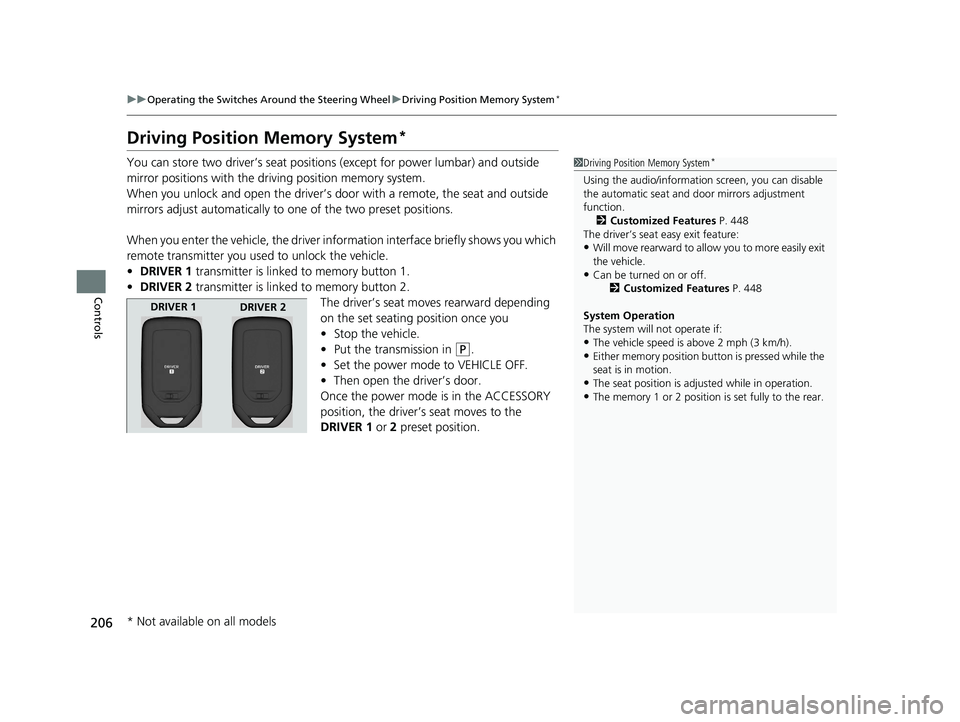

uuOperating the Switches Around the Steering Wheel uDriving Position Memory System*
Controls
Driving Position Memory System*
You can store two driver’s seat position s (except for power lumbar) and outside
mirror positions with the driving position memory system.
When you unlock and open the driver’s do or with a remote, the seat and outside
mirrors adjust automatically to one of the two preset positions.
When you enter the vehicle, the driver in formation interface briefly shows you which
remote transmitter you used to unlock the vehicle.
• DRIVER 1 transmitter is linked to memory button 1.
• DRIVER 2 transmitter is linked to memory button 2.
The driver’s seat moves rearward depending
on the set seating position once you
•Stop the vehicle.
• Put the transmission in
(P.
• Set the power mode to VEHICLE OFF.
• Then open the driver’s door.
Once the power mode is in the ACCESSORY
position, the driver’s seat moves to the
DRIVER 1 or 2 preset position.
1Driving Position Memory System*
Using the audio/informati on screen, you can disable
the automatic seat and d oor mirrors adjustment
function.
2 Customized Features P. 448
The driver’s seat easy exit feature:
•Will move rearward to allow you to more easily exit
the vehicle.
•Can be turned on or off. 2Customized Features P. 448
System Operation
The system will not operate if:
•The vehicle speed is above 2 mph (3 km/h).
•Either memory position button is pressed while the
seat is in motion.
•The seat position is adju sted while in operation.
•The memory 1 or 2 position is set fully to the rear.
DRIVER 1
DRIVER 2
* Not available on all models
20 US ODYSSEY-31THR6210.book 206 ページ ２０２０年２月２８日　金曜日　午前７時２６分

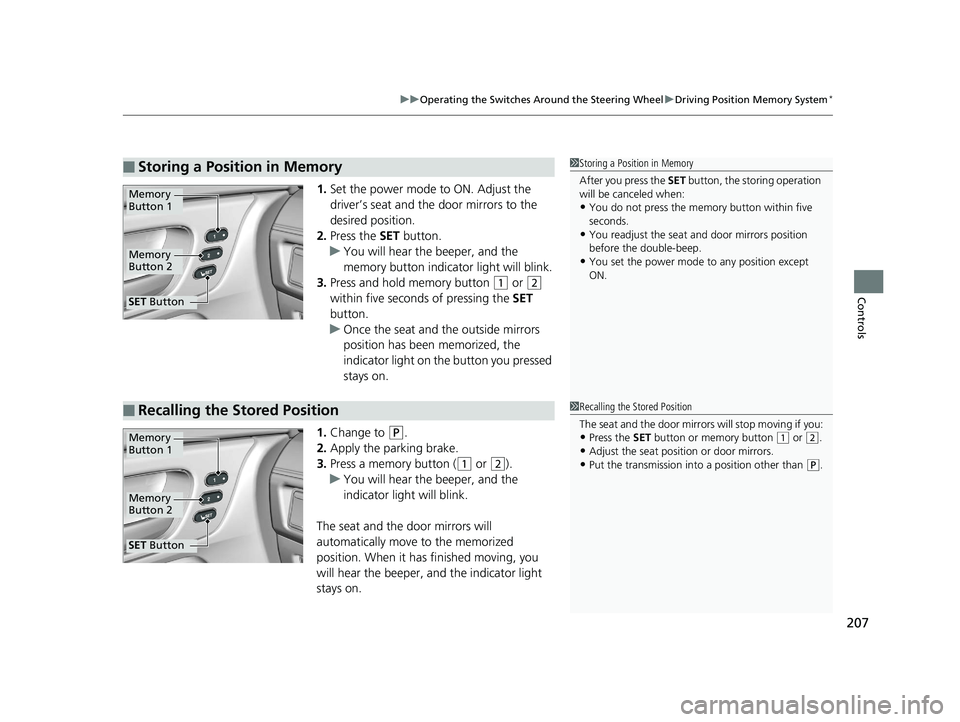

207
uuOperating the Switches Around the Steering Wheel uDriving Position Memory System*
Controls
1. Set the power mode to ON. Adjust the
driver’s seat and the door mirrors to the
desired position.
2. Press the SET button.
u You will hear the beeper, and the
memory button indicator light will blink.
3. Press and hold memory button
(1 or (2
within five seconds of pressing the SET
button.
u Once the seat and the outside mirrors
position has been memorized, the
indicator light on the button you pressed
stays on.
1. Change to
(P.
2. Apply the parking brake.
3. Press a memory button (
(1 or (2).
u You will hear the beeper, and the
indicator light will blink.
The seat and the door mirrors will
automatically move to the memorized
position. When it has finished moving, you
will hear the beeper, and the indicator light
stays on.
■Storing a Position in Memory1 Storing a Position in Memory
After you press the SET button, the storing operation
will be canceled when:
•You do not press the memory button within five
seconds.
•You readjust the seat and door mirrors position
before the double-beep.
•You set the power mode to any position except
ON.
Memory
Button 1
Memory
Button 2
SET Button
■Recalling the Stored Position1 Recalling the Stored Position
The seat and the door mirrors will stop moving if you:
•Press the SET button or memory button (1 or (2.
•Adjust the seat position or door mirrors.
•Put the transmission into a position other than (P.
Memory
Button 1
Memory
Button 2
SET Button
20 US ODYSSEY-31THR6210.book 207 ページ ２０２０年２月２８日　金曜日　午前７時２６分

209
Controls
Adjusting the Mirrors
Interior Rearview Mirror
Adjust the angle of the rearview mirror when you are sitting in the correct driving
position.
Flip the tab to switch the position.
The night position will help to reduce the glare
from headlights behind you when driving
after dark.
When you are driving after dark, the
automatic dimming rearview mirror reduces
the glare from headligh ts behind you. Press
the auto button to turn this function on and
off. When activated, th e auto indicator comes
on.
■Rearview Mirror with Day and Night Positions*
1 Adjusting the Mirrors
Keep the inside and out side mirrors clean and
adjusted for best visibility.
Adjust the mirrors befo re you start driving.
2 Front Seats P. 212
Tab
Daytime
Position Night Position
■Automatic Dimming Rearview Mirror*1Automatic Dimming Rearview Mirror*
The auto dimming function cancels when the
transmission is in
(R.Sensor
Auto Button
* Not available on all models
20 US ODYSSEY-31THR6210.book 209 ページ ２０２０年２月２８日　金曜日　午前７時２６分

210
uuAdjusting the Mirrors uPower Door Mirrors
Controls
Power Door Mirrors
You can adjust the door mirrors when the
power mode is in ON.
■Mirror position adjustment
L/R selector switch: Select the left or right
mirror. After adjusting the mirror, return the
switch to the center position.
Mirror position adjustment switch: Press
the switch left, right, up, or down to move the
mirror.
■Folding door mirrors*
Press the folding button to fold in and out the
door mirrors.
Selector
SwitchAdjustment
Switch
Folding
Button*
* Not available on all models
20 US ODYSSEY-31THR6210.book 210 ページ ２０２０年２月２８日　金曜日　午前７時２６分

211
uuAdjusting the Mirrors uPower Door Mirrors
Controls

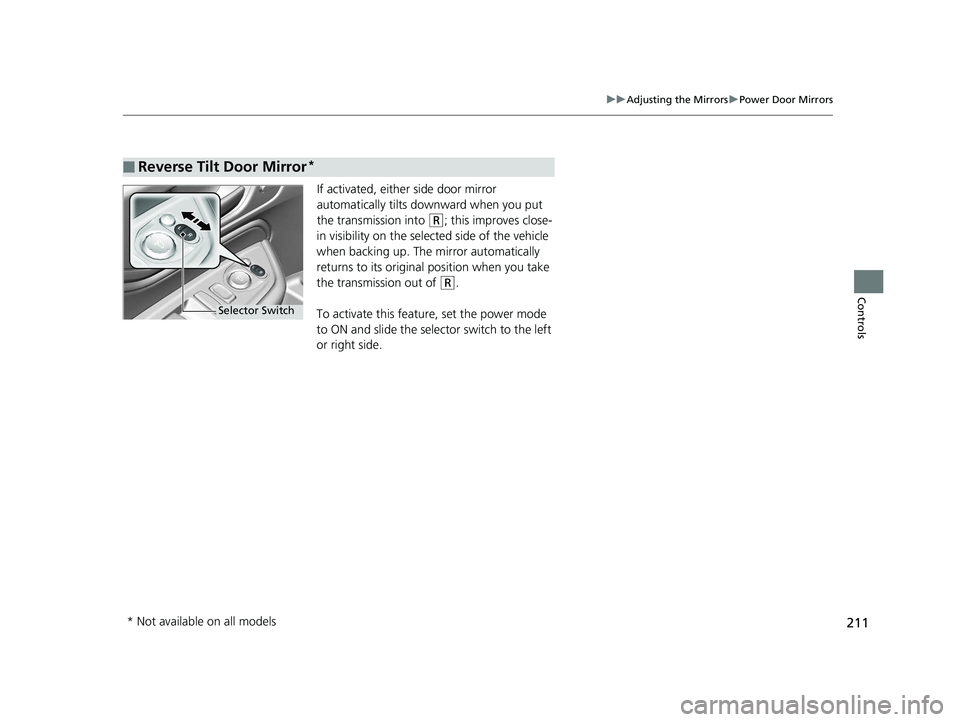

If activated, either side door mirror
automatically tilts do wnward when you put
the transmission into
(R; this improves close-
in visibility on the selected side of the vehicle
when backing up. The mirror automatically
returns to its original position when you take
the transmission out of
(R.
To activate this feature, set the power mode
to ON and slide the sele ctor switch to the left
or right side.
■Reverse Tilt Door Mirror*
Selector Switch
* Not available on all models
20 US ODYSSEY-31THR6210.book 211 ページ ２０２０年２月２８日　金曜日　午前７時２６分
