Page 650 of 767
648
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
■Maintenance Service Items1Maintenance Service Items
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.
Maintenance Minder Message
System Message
Indicator
Sub Items
Main Item
U.S. models
*1: If the message Maintenance Due Now does not appear more than 12 months after the display
is reset, change the engine oil every year.
# : See information on maintenance and emissions warranty in the first column on page 751.
CODEMaintenance Main Items
A •Replace engine oil*1
B•Replace engine oil*1 and oil filter
• Inspect front and rear brakes
• Inspect tie rod ends, steering gearbox, and boots
• Inspect suspension components
• Inspect driveshaft boots
• Inspect brake hoses and li nes (Including ABS/VSA®)
• Inspect all fluid levels and condition of fluids
• Inspect exhaust system
#
•Inspect fuel lines and connections#
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
*4: If you drive regularly in very high temperatures (over 110ºF, 43ºC), in very low temperatures (under -20 ºF, -29ºC), replace every 60,000 miles(100,000 km).
*5: If a Maintenance Minder message does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
CODEMaintenance Sub Items
1 •Rotate tires
2•Replace air cleaner element*2
•Replace dust and pollen filter*3
•Inspect drive belt
3 •Replace transmission fluid
4•Replace spark plugs
• Replace timing belt and inspect water pump*4
•Inspect valve clearance
5 •Replace engine coolant
7•Replace brake fluid*5
20 US ODYSSEY-31THR6210.book 648 ページ 2020年2月28日 金曜日 午前7時26分

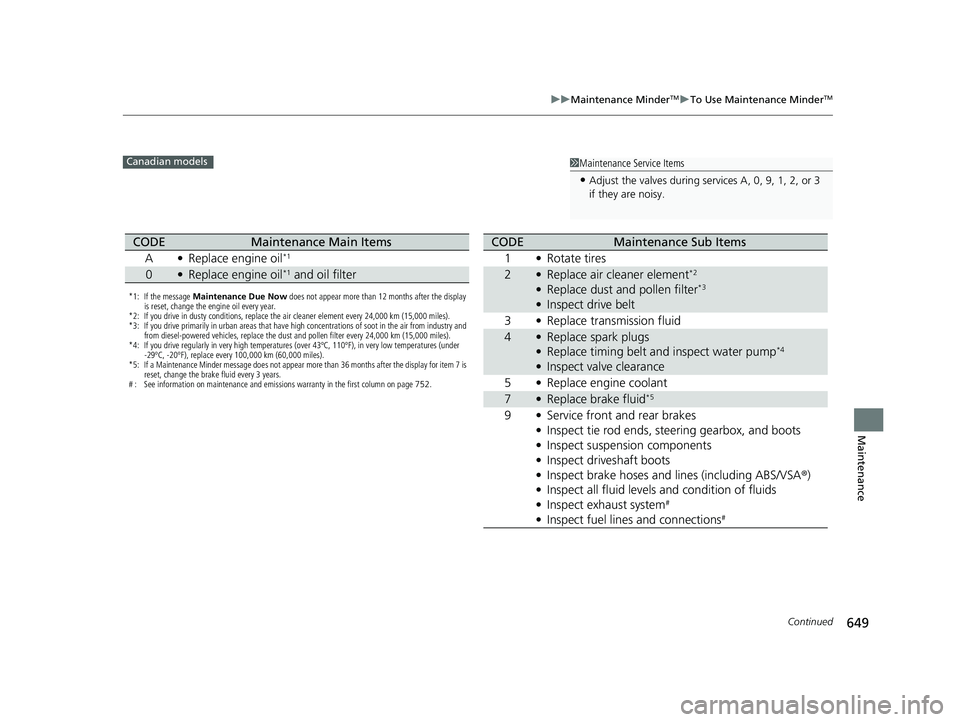

Page 651 of 767
649
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
1Maintenance Service Items
•Adjust the valves during services A, 0, 9, 1, 2, or 3
if they are noisy.
Canadian models
*1: If the message Maintenance Due Now does not appear more than 12 months after the display
is reset, change the engine oil every year.
*2: If you drive in dusty conditions, replace the air cleaner element every 24,000 km (15,000 miles).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and from diesel-powered vehicles, replace the dust and pollen filter every 24,000 km (15,000 miles).
*4: If you drive regularly in very high temperatures (over 43ºC, 110ºF), in very low temperatures (under -29ºC, -20ºF), replace every 100,000 km (60,000 miles).
*5: If a Maintenance Minder message does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
# : See information on maintenance and emissions warranty in the first column on page 752.
CODEMaintenance Main Items
A •Replace engine oil*1
0•Replace engine oil*1 and oil filter
CODEMaintenance Sub Items
1 •Rotate tires
2•Replace air cleaner element*2
•Replace dust and pollen filter*3
•Inspect drive belt
3 •Replace transmission fluid
4•Replace spark plugs
• Replace timing belt and inspect water pump*4
•Inspect valve clearance
5 •Replace engine coolant
7•Replace brake fluid*5
9 •Service front and rear brakes
• Inspect tie rod ends, st eering gearbox, and boots
• Inspect suspension components
• Inspect driveshaft boots
• Inspect brake hoses and lines (including ABS/VSA ®)
• Inspect all fluid levels and condition of fluids
• Inspect exhaust system
#
•Inspect fuel lines and connections#
20 US ODYSSEY-31THR6210.book 649 ページ 2020年2月28日 金曜日 午前7時26分

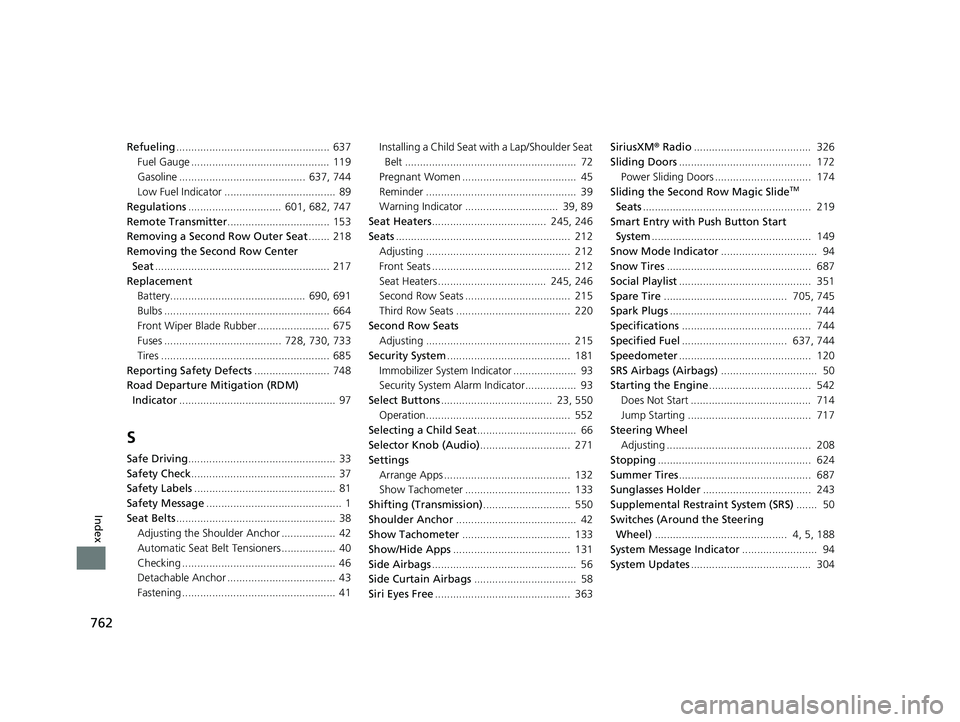

Page 764 of 767
762
Index
Refueling................................................... 637
Fuel Gauge .............................................. 119
Gasoline .......................................... 637, 744
Low Fuel Indicator ..................................... 89
Regulations ............................... 601, 682, 747
Remote Transmitter .................................. 153
Removing a Second Row Outer Seat ....... 218
Removing the Second Row Center
Seat .......................................................... 217
Replacement Battery............................................. 690, 691
Bulbs ....................................................... 664
Front Wiper Blade Rubber ........................ 675
Fuses ....................................... 728, 730, 733
Tires ........................................................ 685
Reporting Safety Defects ......................... 748
Road Departure Mitigation (RDM)
Indicator .................................................... 97
S
Safe Driving ................................................. 33
Safety Check ................................................ 37
Safety Labels ............................................... 81
Safety Message ............................................. 1
Seat Belts ..................................................... 38
Adjusting the Shoulder Anchor .................. 42
Automatic Seat Belt Tensioners .................. 40
Checking ................................................... 46
Detachable Anchor .................................... 43
Fastening ................................................... 41 Installing a Child Seat with a Lap/Shoulder Seat
Belt ......................................................... 72
Pregnant Women ...................................... 45
Reminder .................................................. 39
Warning Indicator ............................... 39, 89
Seat Heaters ...................................... 245, 246
Seats .......................................................... 212
Adjusting ................................................ 212
Front Seats .............................................. 212
Seat Heaters .................................... 245, 246
Second Row Seats ................................... 215
Third Row Seats ...................................... 220
Second Row Seats Adjusting ................................................ 215
Security System ......................................... 181
Immobilizer System Indicator ..................... 93
Security System Alarm Indicator................. 93
Select Buttons ..................................... 23, 550
Operation................................................ 552
Selecting a Child Seat ................................. 66
Selector Knob (Audio) .............................. 271
Settings
Arrange Apps .......................................... 132
Show Tachometer ................................... 133
Shifting (Transmission) ............................. 550
Shoulder Anchor ........................................ 42
Show Tachometer .................................... 133
Show/Hide Apps ....................................... 131
Side Airbags ................................................ 56
Side Curtain Airbags .................................. 58
Siri Eyes Free ............................................. 363 SiriusXM
® Radio ....................................... 326
Sliding Doors ............................................ 172
Power Sliding Doors ................................ 174
Sliding the Second Row Magic Slide
TM
Seats ........................................................ 219
Smart Entry with Push Button Start System ..................................................... 149
Snow Mode Indicator ................................ 94
Snow Tires ................................................ 687
Social Playlist ............................................ 351
Spare Tire ......................................... 705, 745
Spark Plugs ............................................... 744
Specifications ........................................... 744
Specified Fuel ................................... 637, 744
Speedometer ............................................ 120
SRS Airbags (Airbags) ................................ 50
Starting the Engine .................................. 542
Does Not Start ........................................ 714
Jump Starting ......................................... 717
Steering Wheel Adjusting ................................................ 208
Stopping ................................................... 624
Summer Tires ............................................ 687
Sunglasses Holder .................................... 243
Supplemental Restraint System (SRS) ....... 50
Switches (Around the Steering Wheel) ............................................ 4, 5, 188
System Message Indicator ......................... 94
System Updates ........................................ 304
