HONDA ODYSSEY 2021 (in English) User Guide

9

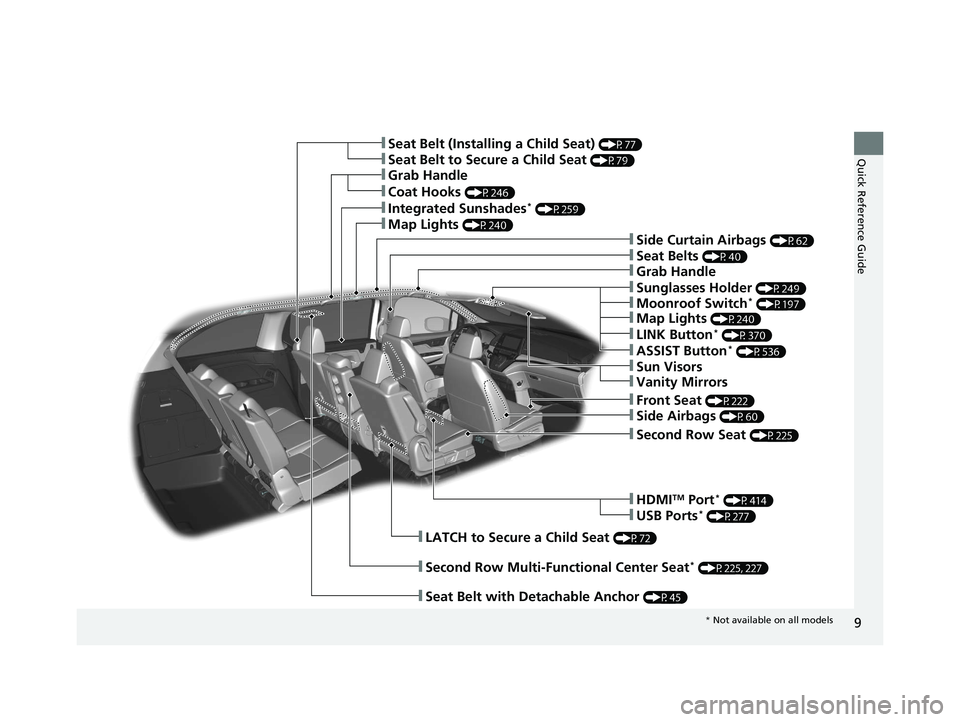

Quick Reference Guide
❚Seat Belts (P40)
❚Seat Belt to Secure a Child Seat (P79)
❚Seat Belt (Installing a Child Seat) (P77)
❚Side Curtain Airbags (P62)
❚Front Seat (P222)
❚Second Row Multi-Functional Center Seat* (P225, 227)
❚Grab Handle
❚Sun Visors
❚Vanity Mirrors
❚Side Airbags (P60)
❚Second Row Seat (P225)
❚HDMITM Port* (P414)
❚USB Ports* (P277)
❚LATCH to Secure a Child Seat (P72)
❚Coat Hooks (P246)
❚Integrated Sunshades* (P259)
❚Map Lights (P240)
❚Grab Handle
❚Seat Belt with Detachable Anchor (P45)
❚Sunglasses Holder (P249)
❚Moonroof Switch* (P197)
❚Map Lights (P240)
❚LINK Button* (P370)
❚ASSIST Button* (P536)
* Not available on all models
21 US ODYSSEY-31THR6310.book 9 ページ ２０２０年６月１７日　水曜日　午後２時４６分

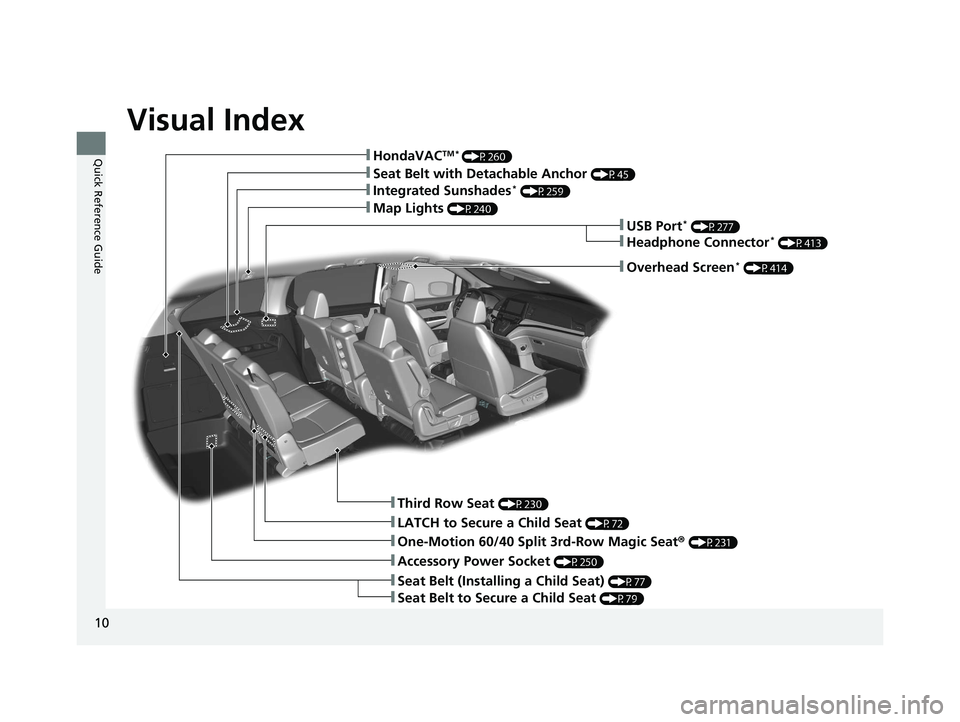

Visual Index
10
Quick Reference Guide
❚Third Row Seat (P230)
❚One-Motion 60/40 Split 3rd-Row Magic Seat® (P231)
❚Integrated Sunshades* (P259)
❚HondaVACTM * (P260)
❚Map Lights (P240)
❚LATCH to Secure a Child Seat (P72)
❚Accessory Power Socket (P250)
❚Seat Belt (Installing a Child Seat) (P77)
❚Seat Belt to Secure a Child Seat (P79)
❚Seat Belt with Detachable Anchor (P45)
❚USB Port* (P277)
❚Headphone Connector* (P413)
❚Overhead Screen* (P414)
21 US ODYSSEY-31THR6310.book 10 ページ ２０２０年６月１７日　水曜日　午後２時４６分

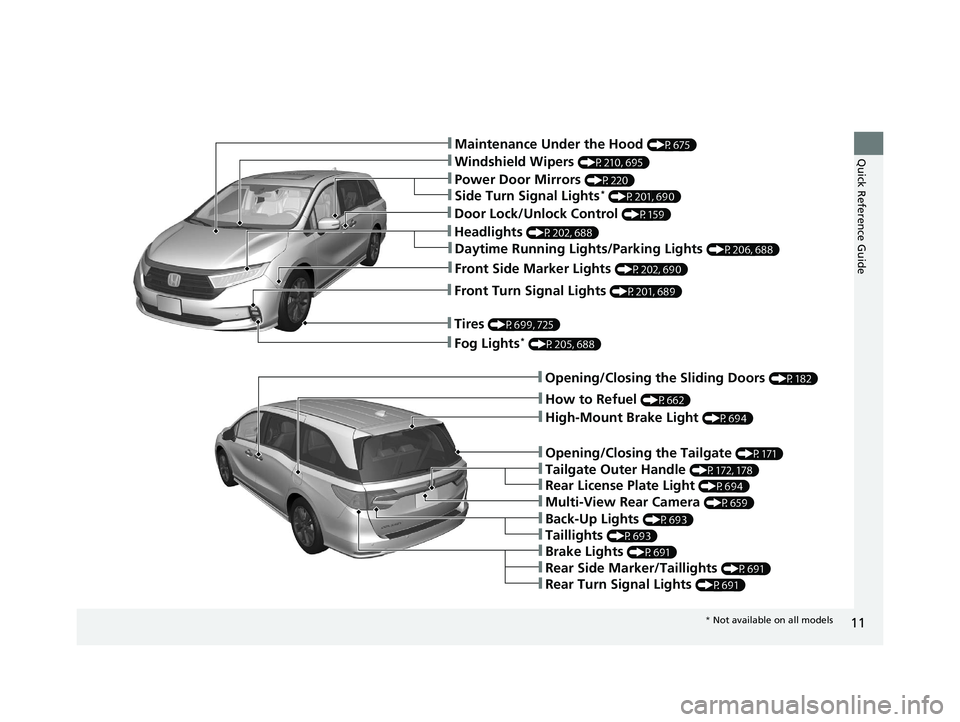

11
Quick Reference Guide❚Maintenance Under the Hood (P675)
❚Windshield Wipers (P210, 695)
❚Power Door Mirrors (P220)
❚Fog Lights* (P205, 688)
❚How to Refuel (P662)
❚Multi-View Rear Camera (P659)
❚Opening/Closing the Tailgate (P171)
❚Back-Up Lights (P693)
❚Opening/Closing the Sliding Doors (P182)
❚Taillights (P693)
❚Tailgate Outer Handle (P172, 178)
❚Brake Lights (P691)
❚Rear Side Marker/Taillights (P691)
❚Rear Turn Signal Lights (P691)
❚High-Mount Brake Light (P694)
❚Headlights (P202, 688)
❚Front Side Marker Lights (P202, 690)
❚Front Turn Signal Lights (P201, 689)
❚Tires (P699, 725)
❚Side Turn Signal Lights* (P201, 690)
❚Daytime Running Lights/Parking Lights (P206, 688)
❚Rear License Plate Light (P694)
❚Door Lock/Unlock Control (P159)
* Not available on all models
21 US ODYSSEY-31THR6310.book 11 ページ ２０２０年６月１７日　水曜日　午後２時４６分

12
Quick Reference Guide

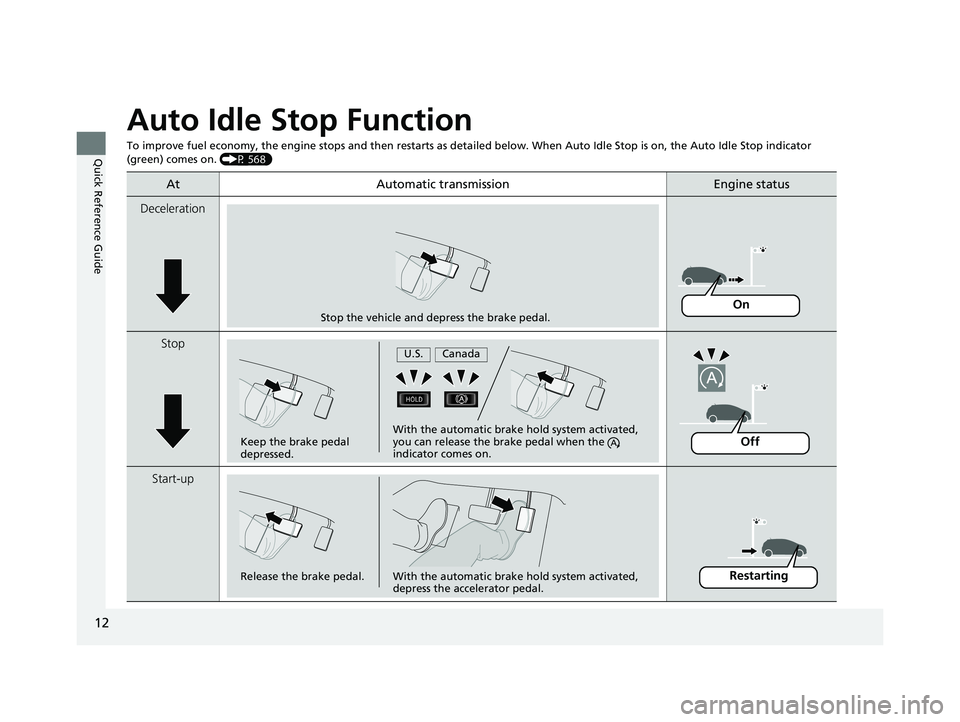

Auto Idle Stop Function
To improve fuel economy, the engine stops and then restarts as detailed below. When Auto Idle Stop is on, the Auto Idle Stop indicator
(green) comes on. (P 568)
At Automatic transmissionEngine status
Deceleration
Stop
Start-up
Stop the vehicle and depress the brake pedal.On
Keep the brake pedal
depressed.With the automatic brake hold system activated,
you can release the brake pedal when the
indicator comes on.
U.S.Canada
Off
Release the brake pedal.With the automatic brake hold system activated,
depress the accelerator pedal.Restarting
21 US ODYSSEY-31THR6310.book 12 ページ ２０２０年６月１７日　水曜日　午後２時４６分

13
Quick Reference Guide

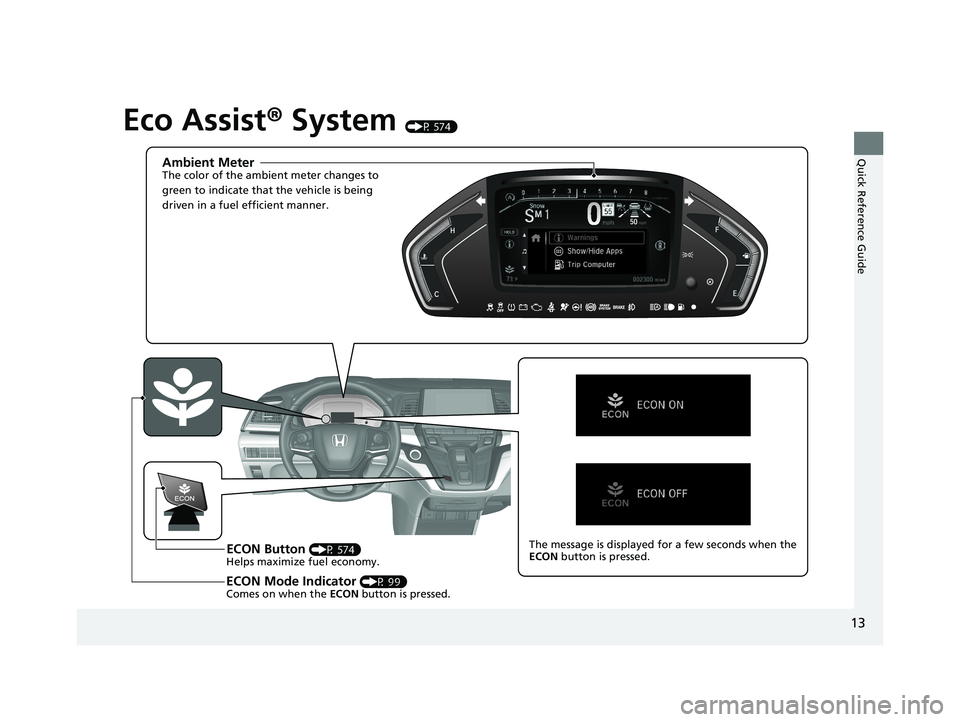

Eco Assist® System (P 574)
Ambient MeterThe color of the ambient meter changes to
green to indicate that the vehicle is being
driven in a fuel efficient manner.
ECON Button (P 574)
Helps maximize fuel economy.
ECON Mode Indicator (P 99)
Comes on when the ECON button is pressed.
The message is displayed for a few seconds when the
ECON button is pressed.
21 US ODYSSEY-31THR6310.book 13 ページ ２０２０年６月１７日　水曜日　午後２時４６分

14
Quick Reference Guide

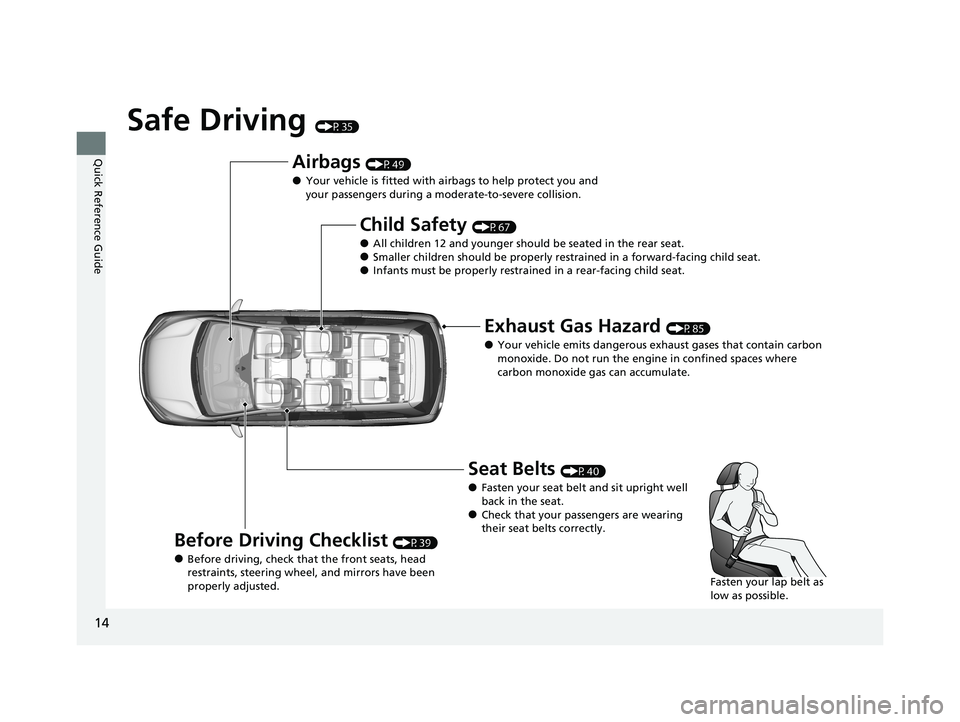

Safe Driving (P35)
Airbags (P49)
●Your vehicle is fitted with airbags to help protect you and
your passengers during a moderate-to-severe collision.
Child Safety (P67)
●All children 12 and younger should be seated in the rear seat.●Smaller children should be properly restra ined in a forward-facing child seat.●Infants must be properly restrained in a rear-facing child seat.
Exhaust Gas Hazard (P85)
●Your vehicle emits dangerous exhaust gases that contain carbon
monoxide. Do not run the engine in confined spaces where
carbon monoxide gas can accumulate.
Before Driving Checklist (P39)
●Before driving, check that the front seats, head
restraints, steering wheel, and mirrors have been
properly adjusted.
Seat Belts (P40)
●Fasten your seat belt and sit upright well
back in the seat.
●Check that your passengers are wearing
their seat belts correctly.
Fasten your lap belt as
low as possible.
21 US ODYSSEY-31THR6310.book 14 ページ ２０２０年６月１７日　水曜日　午後２時４６分

15
Quick Reference Guide

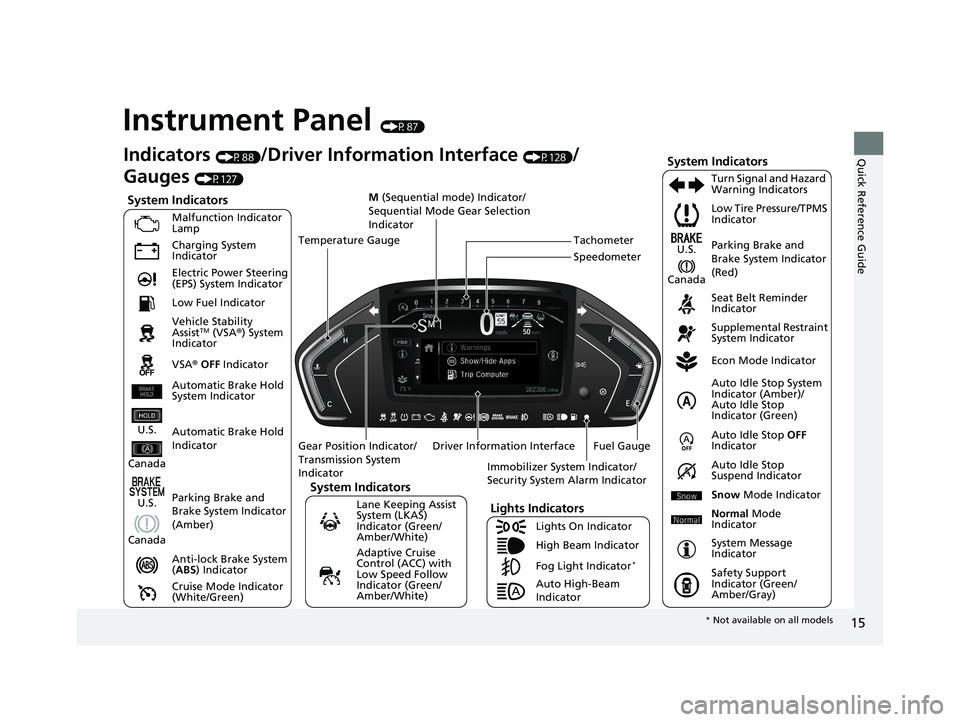

Instrument Panel (P87)
System Indicators
Malfunction Indicator
Lamp
Charging System
Indicator
Anti-lock Brake System
(ABS ) Indicator
Vehicle Stability
Assist
TM (VSA
®) System
Indicator
VSA ® OFF Indicator Low Tire Pressure/TPMS
Indicator
Immobilizer System Indicator/
Security System Alarm Indicator
Lights Indicators
Lights On Indicator
High Beam Indicator
Fog Light Indicator
*
Lane Keeping Assist
System (LKAS)
Indicator (Green/
Amber/White) Seat Belt Reminder
Indicator
System Indicators
Econ Mode Indicator
System Message
Indicator Parking Brake and
Brake System Indicator
(Red)
Supplemental Restraint
System Indicator
Driver Information Interface Auto Idle Stop
OFF
Indicator
Tachometer
M
(Sequential mode) Indicator/
Sequential Mode Gear Selection
Indicator
Speedometer
Fuel Gauge
Gear Position Indicator/
Transmission System
Indicator Auto Idle Stop System
Indicator (Amber)/
Auto Idle Stop
Indicator (Green)
Indicators (P88)/Driver Information Interface (P128)/
Gauges
(P127)
Automatic Brake Hold
Indicator Adaptive Cruise
Control (ACC) with
Low Speed Follow
Indicator (Green/
Amber/White) Turn Signal and Hazard
Warning Indicators
Electric Power Steering
(EPS) System Indicator
Cruise Mode Indicator
(White/Green) Auto Idle Stop
Suspend Indicator
Temperature Gauge
Parking Brake and
Brake System Indicator
(Amber)
U.S.
Canada
U.S.
Canada
System Indicators
U.S.
Canada
Low Fuel Indicator
Automatic Brake Hold
System Indicator
Auto High-Beam
Indicator Snow
Mode Indicator
Normal Mode
Indicator
Safety Support
Indicator (Green/
Amber/Gray)
* Not available on all models
21 US ODYSSEY-31THR6310.book 15 ページ ２０２０年６月１７日　水曜日　午後２時４６分

16
Quick Reference Guide

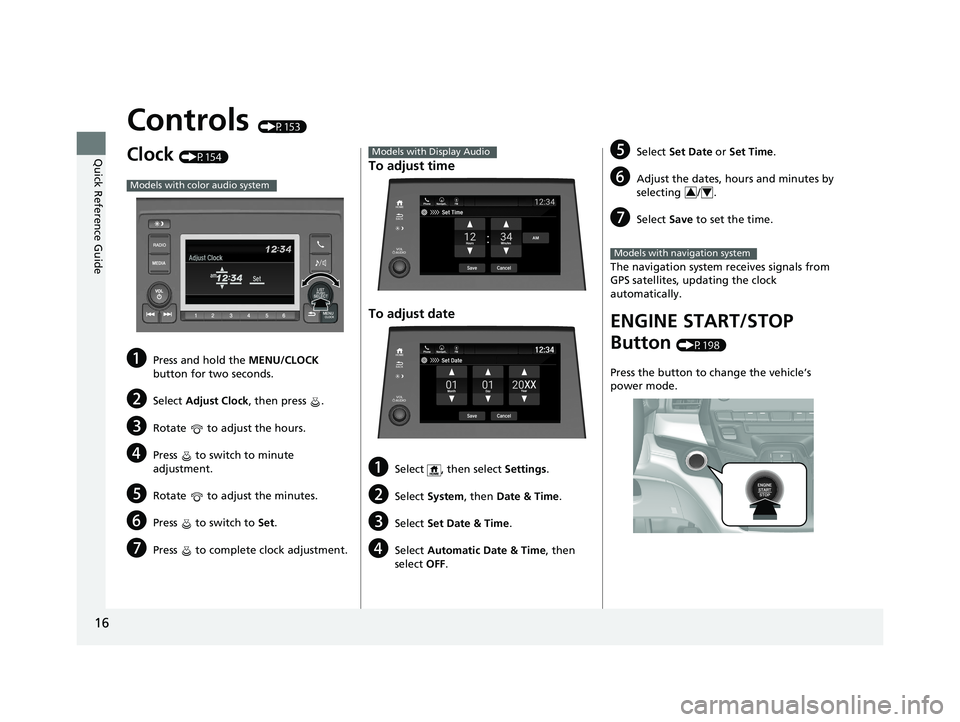

Controls (P153)
Clock (P154)
aPress and hold the MENU/CLOCK
button for two seconds.
bSelect Adjust Clock, then press .
cRotate to adjust the hours.
dPress to switch to minute
adjustment.
eRotate to adjust the minutes.
fPress to switch to Set.
gPress to complete clock adjustment.
Models with color audio system
To adjust time
To adjust date
aSelect , then select Settings .
bSelect System , then Date & Time .
cSelect Set Date & Time .
dSelect Automatic Date & Time , then
select OFF.
Models with Display Audio
Set DateBlu-Ray
Save
Month DayYearXX
Cancel
Phone Navigati.. FM12:34
eSelect
Set Date or Set Time .
fAdjust the dates, hours and minutes by
selecting / .
gSelect Save to set the time.
The navigation system receives signals from
GPS satellites, updating the clock
automatically.
ENGINE START/STOP
Button
(P198)
Press the button to change the vehicle’s
power mode.
34
Models with navigation system
21 US ODYSSEY-31THR6310.book 16 ページ ２０２０年６月１７日　水曜日　午後２時４６分

17
Quick Reference Guide

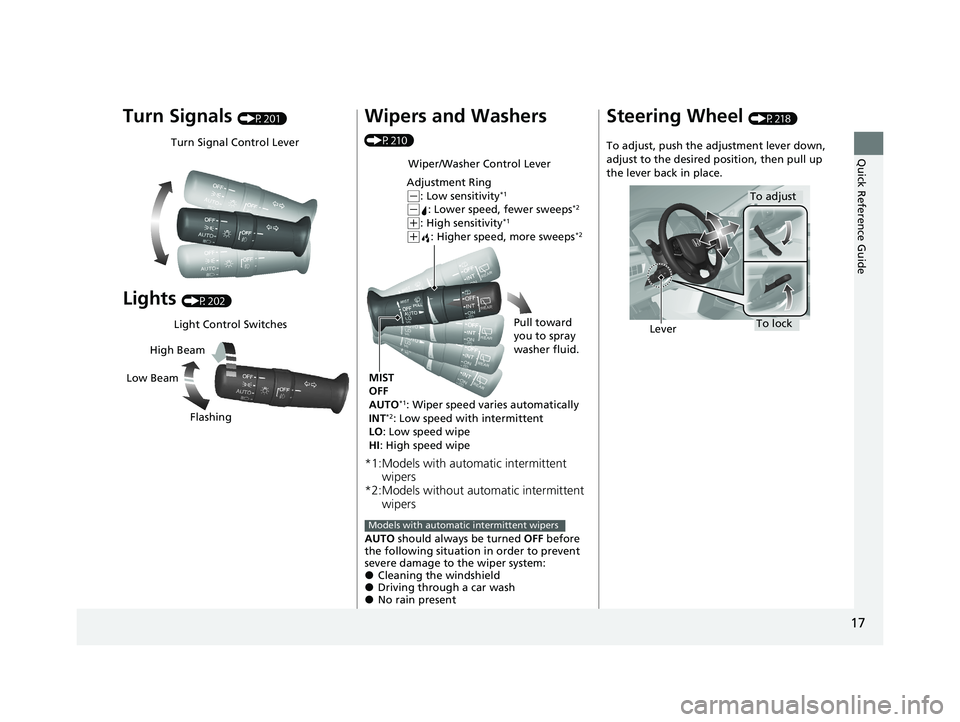

Turn Signals (P201)
Lights (P202)
Turn Signal Control Lever
Light Control Switches
Low Beam High Beam
Flashing
Wipers and Washers
(P210)
*1:Models with automatic intermittent wipers
*2:Models without au tomatic intermittent
wipers
AUTO should always be turned OFF before
the following situation in order to prevent
severe damage to the wiper system:
●Cleaning the windshield●Driving through a car wash●No rain present
Wiper/Washer Control Lever
Adjustment Ring
( -: Low sensitivity*1
(-: Lower speed, fewer sweeps*2
(+: High sensitivity*1
(+: Higher speed, more sweeps*2
MIST
OFF
AUTO
*1: Wiper speed varies automatically
INT*2: Low speed with intermittent
LO: Low speed wipe
HI : High speed wipe Pull toward
you to spray
washer fluid.
Models with automatic intermittent wipers
Steering Wheel (P218)
To adjust, push the adjustment lever down,
adjust to the desired position, then pull up
the lever back in place.
LeverTo lock
To adjust
21 US ODYSSEY-31THR6310.book 17 ページ ２０２０年６月１７日　水曜日　午後２時４６分

18
Quick Reference Guide

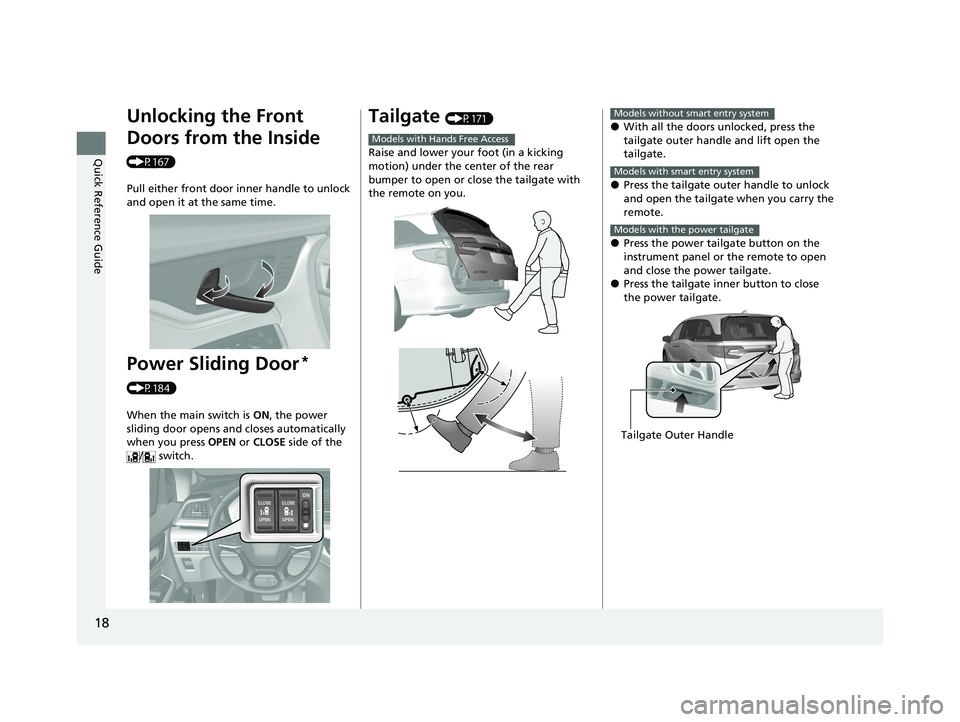

Unlocking the Front
Doors from the Inside
(P167)Pull either front door inner handle to unlock
and open it at the same time.
Power Sliding Door*
(P184)
When the main switch is ON, the power
sliding door opens and closes automatically
when you press OPEN or CLOSE side of the
/ switch.
Tailgate (P171)
Raise and lower your foot (in a kicking
motion) under the center of the rear
bumper to open or close the tailgate with
the remote on you.
Models with Hands Free Access●With all the doors unlocked, press the
tailgate outer handle and lift open the
tailgate.
●Press the tailgate outer handle to unlock
and open the tailgate when you carry the
remote.
●Press the power tailgate button on the
instrument panel or the remote to open
and close the power tailgate.
●Press the tailgate inner button to close
the power tailgate.
Models without smart entry system
Models with smart entry system
Models with the power tailgate
Tailgate Outer Handle
21 US ODYSSEY-31THR6310.book 18 ページ ２０２０年６月１７日　水曜日　午後２時４６分
