19
Quick Reference Guide

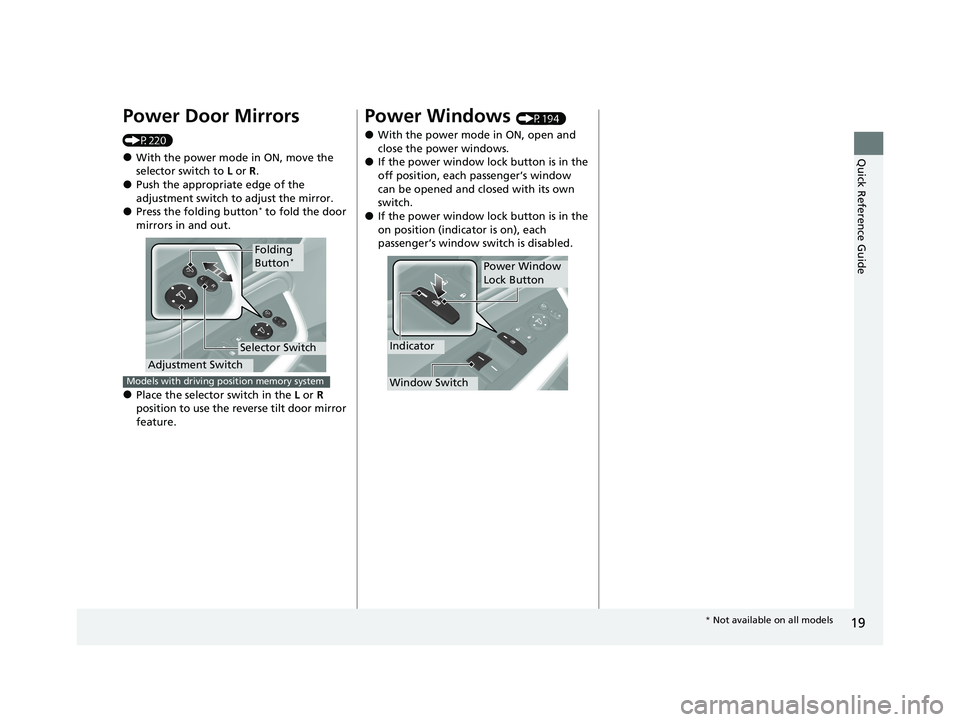

Power Door Mirrors
(P220)
●With the power mode in ON, move the
selector switch to L or R .
●Push the appropriate edge of the
adjustment switch to adjust the mirror.
●Press the folding button* to fold the door
mirrors in and out.
●Place the selector switch in the L or R
position to use the reverse tilt door mirror
feature.
Selector Switch
Adjustment Switch
Folding
Button*
Models with driving position memory system
Power Windows (P194)
●With the power mode in ON, open and
close the power windows.
●If the power window lock button is in the
off position, each passenger’s window
can be opened and closed with its own
switch.
●If the power window lock button is in the
on position (indicator is on), each
passenger’s window switch is disabled.
Power Window
Lock Button
Window Switch
Indicator
* Not available on all models
21 US ODYSSEY-31THR6310.book 19 ページ ２０２０年６月１７日　水曜日　午後２時４６分

20
Quick Reference Guide

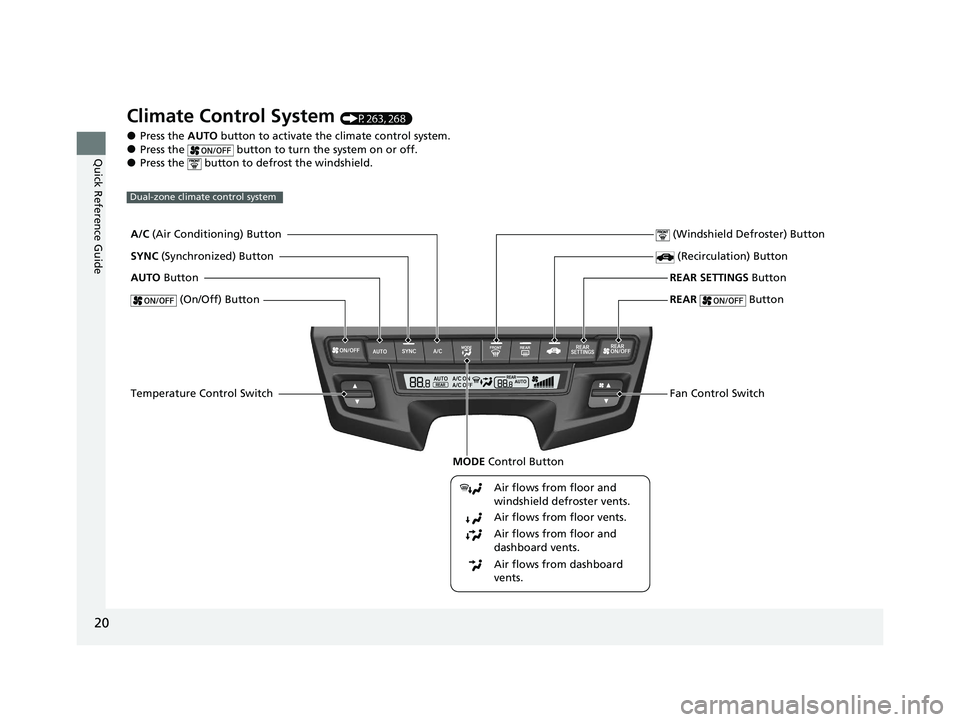

Climate Control System (P263, 268)
●Press the AUTO button to activate the climate control system.●Press the button to turn the system on or off.●Press the button to defrost the windshield.
Dual-zone climate control system
Air flows from floor and
windshield defroster vents.
Air flows from floor vents.
Air flows from floor and
dashboard vents.
Air flows from dashboard
vents.
A/C (Air Conditioning) Button
MODE Control Button
SYNC (Synchronized) Button
AUTO Button
(On/Off) Button
Temperature Control Switch (Windshield Defroster) Button
(Recirculation) Button
REAR SETTINGS Button
REAR
Button
Fan Control Switch
21 US ODYSSEY-31THR6310.book 20 ページ ２０２０年６月１７日　水曜日　午後２時４６分

21
Quick Reference Guide

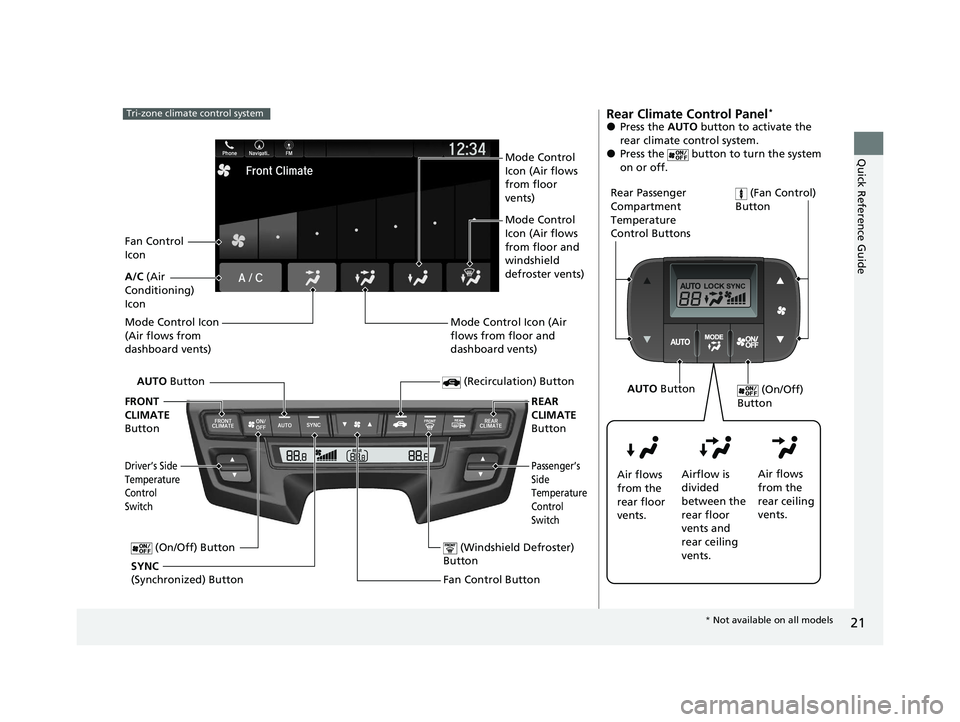

Tri-zone climate control system
Fan Control Button (Windshield Defroster)
Button
A/C (Air
Conditioning)
Icon
(Recirculation) Button
Passenger’s
Side
Temperature
Control
Switch
AUTO Button
Driver’s Side
Temperature
Control
Switch
Mode Control Icon
(Air flows from
dashboard vents)
SYNC
(Synchronized) Button (On/Off) Button
FRONT
CLIMATE

Button REAR
CLIMATE

Button
Fan Control
Icon Mode Control
Icon (Air flows
from floor
vents)
Mode Control
Icon (Air flows
from floor and
windshield
defroster vents)
Mode Control Icon (Air
flows from floor and
dashboard vents)
Rear Climate Control Panel*
●Press the AUTO button to activate the
rear climate control system.
●Press the button to turn the system
on or off.
Rear Passenger
Compartment
Temperature
Control Buttons (Fan Control)
Button
Air flows
from the
rear floor
vents. Airflow is
divided
between the
rear floor
vents and
rear ceiling
vents. Air flows
from the
rear ceiling
vents. (On/Off)
Button
AUTO Button
* Not available on all models
21 US ODYSSEY-31THR6310.book 21 ページ ２０２０年６月１７日　水曜日　午後２時４６分

22
Quick Reference Guide

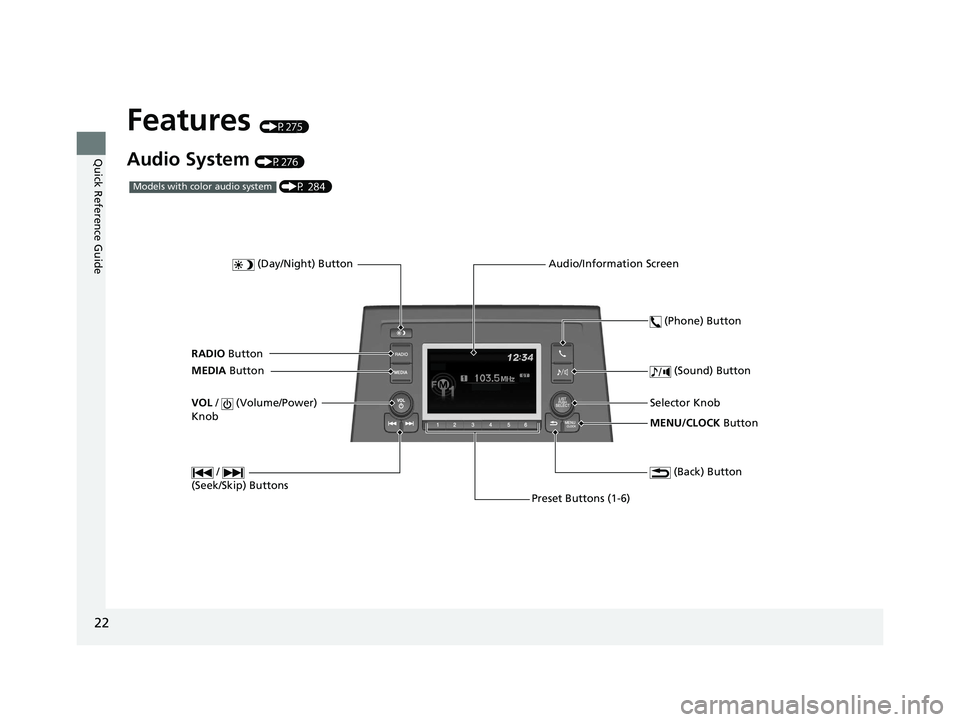

Features (P275)
Audio System (P276)
MENU/CLOCK Button
Selector Knob
(Day/Night) Button
(Back) Button
(Sound) Button
VOL
/ (Volume/Power)
Knob
Preset Buttons (1-6) (Phone) Button
RADIO
Button
/
(Seek/Skip) Buttons
MEDIA Button Audio/Information Screen

(P 284)Models with color audio system
21 US ODYSSEY-31THR6310.book 22 ページ ２０２０年６月１７日　水曜日　午後２時４６分

23
Quick Reference Guide

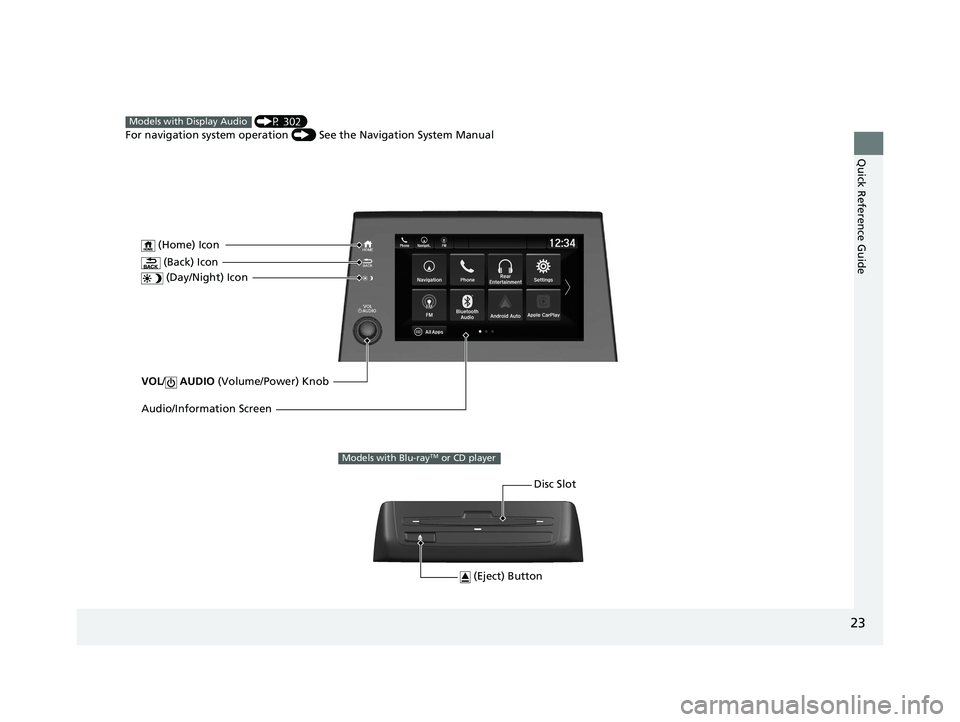

VOL/ AUDIO (Volume/Power) Knob
(Home) Icon
(Back) Icon
(Day/Night) Icon
Audio/Information Screen
(P 302)
For navigation system operation () See the Navigation System ManualModels with Display Audio
(Eject) Button
Disc Slot
Models with Blu-rayTM or CD player
21 US ODYSSEY-31THR6310.book 23 ページ ２０２０年６月１７日　水曜日　午後２時４６分

24
Quick Reference Guide

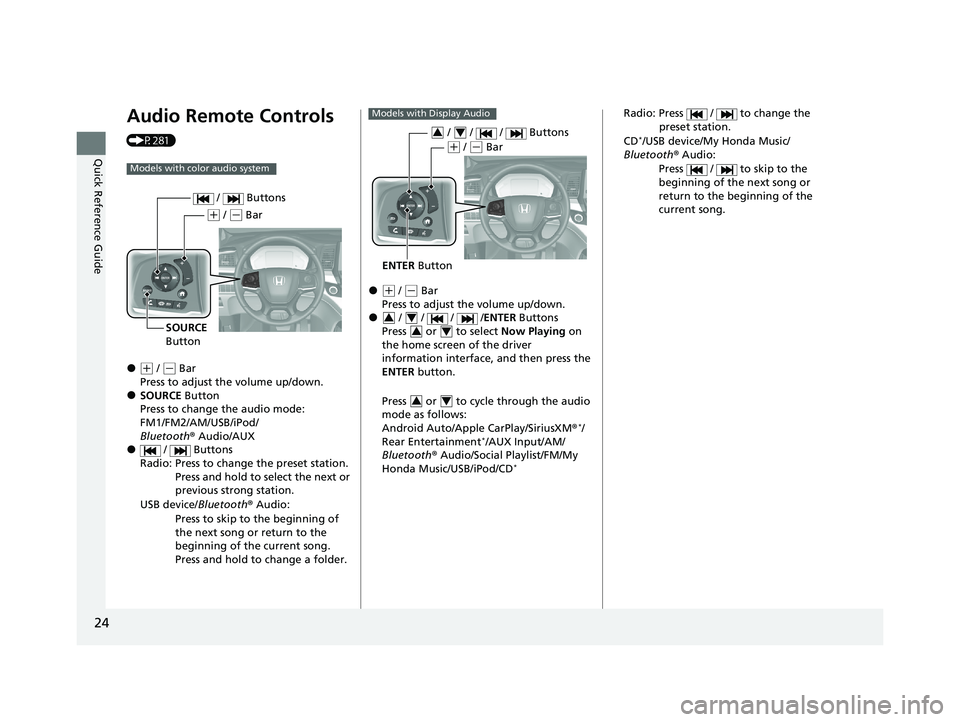

Audio Remote Controls
(P281)
●(+ / ( - Bar
Press to adjust the volume up/down.
●SOURCE Button
Press to change the audio mode:
FM1/FM2/AM/USB/iPod/
Bluetooth ® Audio/AUX
● / Buttons
Radio: Press to change the preset station. Press and hold to select the next or
previous strong station.
USB device/ Bluetooth® Audio:
Press to skip to the beginning of
the next song or return to the
beginning of the current song.
Press and hold to change a folder.
Models with color audio system
( + / (- Bar
SOURCE
Button / Buttons
●(
+ / (- Bar
Press to adjust the volume up/down.
● / / / / ENTER Buttons
Press or to select Now Playing on
the home screen of the driver
information interface, and then press the
ENTER button.
Press or to cycle through the audio
mode as follows:
Android Auto/Apple CarPlay/SiriusXM ®
*/
Rear Entertainment*/AUX Input/AM/
Bluetooth ® Audio/Social Playlist/FM/My
Honda Music/USB/iPod/CD
*
Models with Display Audio
ENTER Button
/ / / Buttons34
(+ / (- Bar
34
34
34
Radio: Press / to change the
preset station.
CD
*/USB device/My Honda Music/
Bluetooth ® Audio:
Press / to skip to the
beginning of the next song or
return to the beginning of the
current song.
21 US ODYSSEY-31THR6310.book 24 ページ ２０２０年６月１７日　水曜日　午後２時４６分

25
Quick Reference Guide

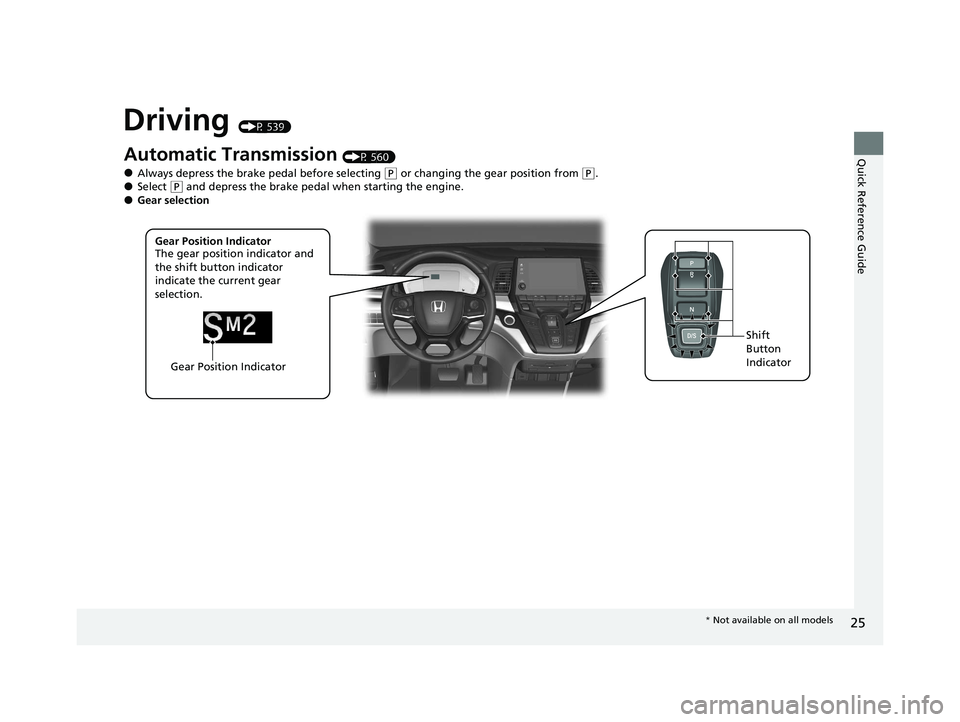

Driving (P 539)
Gear Position IndicatorShift
Button
Indicator
Automatic Transmission (P 560)
●Always depress the brake pedal before selecting (
P or changing the gear position from (P.●Select (P and depress the brake pedal when starting the engine.●Gear selection
Gear Position Indicator
The gear position indicator and
the shift button indicator
indicate the current gear
selection.
* Not available on all models
21 US ODYSSEY-31THR6310.book 25 ページ ２０２０年６月１７日　水曜日　午後２時４６分

26
Quick Reference Guide
Park
Press the (P button.
Used when parking or before turn off or start the engine.
Transmission is locked.
Reverse
Pull back the
( R button.
Used when reversing.
Neutral
Press the
( N button.
Transmission is not locked.
Drive/S Position
Each time you press the button, the mode switches
between Drive and S Position mode.
●Normal driving (gears change between 1st and 10th
automatically)
●Temporarily driving in the sequential mode
●Automatically changing gears between 1st and 8th
(8th gear is used only at high speed)
●Driving in the sequential mode
D/S
Drive
S Position
21 US ODYSSEY-31THR6310.book 26 ページ ２０２０年６月１７日　水曜日　午後２時４６分

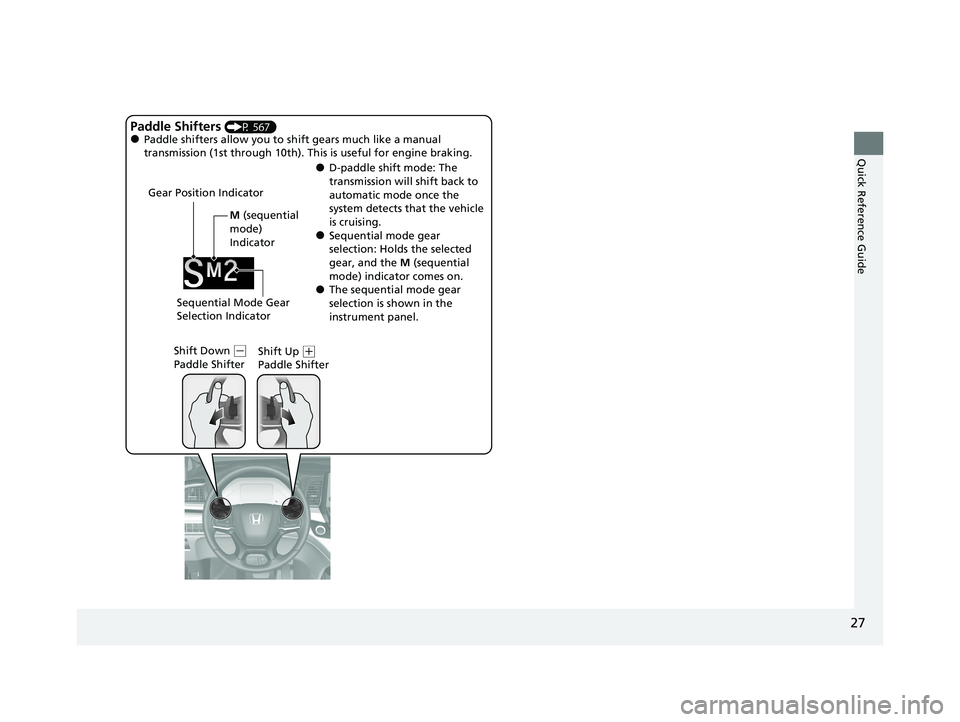

27
Quick Reference Guide
M (sequential
mode)
Indicator
Gear Position Indicator
Shift Down (
-
Paddle Shifter Shift Up (
+
Paddle Shifter
Paddle Shifters (P 567)●Paddle shifters allow you to sh ift gears much like a manual
transmission (1st through 10th). This is useful for engine braking.
●D-paddle shift mode: The
transmission will shift back to
automatic mode once the
system detects that the vehicle
is cruising.
●Sequential mode gear
selection: Holds the selected
gear, and the M (sequential
mode) indicator comes on.
●The sequential mode gear
selection is shown in the
instrument panel.
Sequential Mode Gear
Selection Indicator
21 US ODYSSEY-31THR6310.book 27 ページ ２０２０年６月１７日　水曜日　午後２時４６分

28
Quick Reference Guide

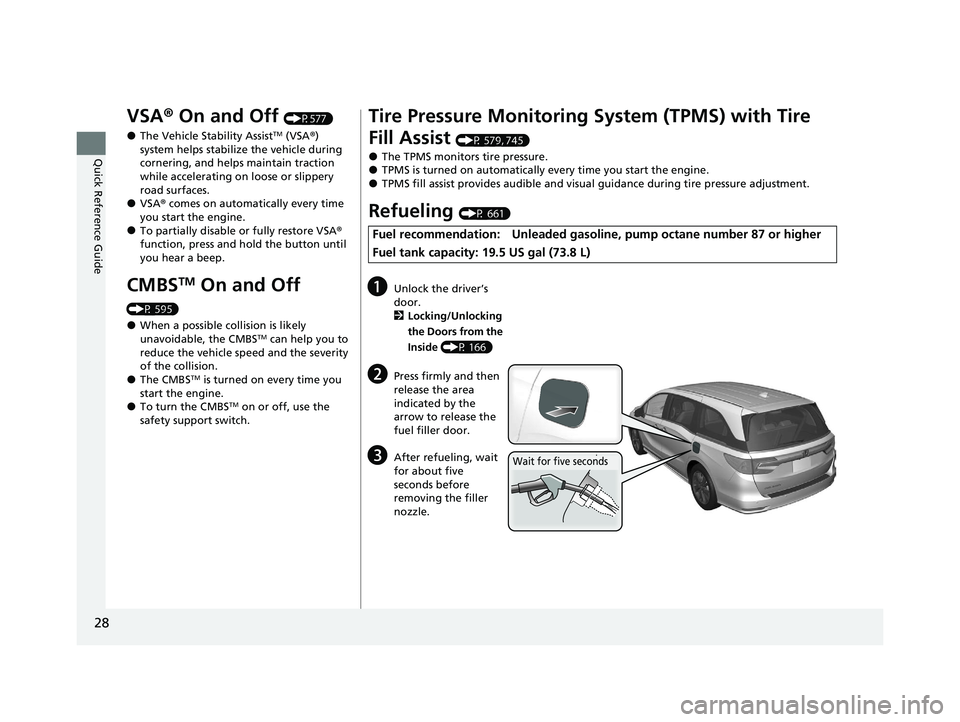

VSA® On and Off (P577)
●The Vehicle Stability AssistTM (VSA ®)
system helps stabilize the vehicle during
cornering, and helps maintain traction
while accelerating on loose or slippery
road surfaces.
●VSA ® comes on automatically every time
you start the engine.
●To partially disable or fully restore VSA ®
function, press and ho ld the button until
you hear a beep.
CMBSTM On and Off
(P 595)
●When a possible collision is likely
unavoidable, the CMBSTM can help you to
reduce the vehicle sp eed and the severity
of the collision.
●The CMBSTM is turned on every time you
start the engine.
●To turn the CMBSTM on or off, use the
safety support switch.
Tire Pressure Monitoring System (TPMS) with Tire
Fill Assist
(P 579, 745)
●The TPMS monitors tire pressure.●TPMS is turned on automatically every time you start the engine.●TPMS fill assist provides audible and visual guidance during tire pressure adjustment.
Refueling (P 661)
Fuel recommendation: Unleaded gasoline , pump octane number 87 or higher
Fuel tank capacity: 19.5 US gal (73.8 L)
aUnlock the driver’s
door.
2 Locking/Unlocking
the Doors from the
Inside (P 166)
bPress firmly and then
release the area
indicated by the
arrow to release the
fuel filler door.
cAfter refueling, wait
for about five
seconds before
removing the filler
nozzle.Wait for five seconds
