uuFuses uFuse Locations
Continued
Handling the Unexpected
Located under the dashboard.
■Fuse box A
Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number.

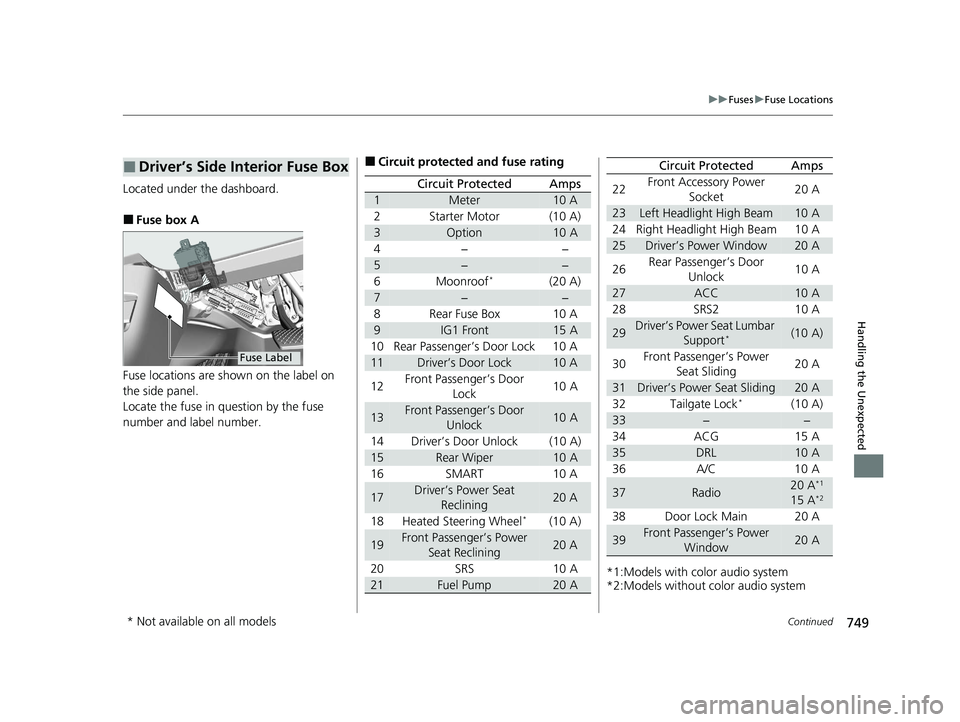

■Driver’s Side Interior Fuse Box
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
1Meter10 A
2Starter Motor(10 A)
3Option10 A
4−−
5−−
6Moonroof*(20 A)
7−−
8Rear Fuse Box10 A
9IG1 Front15 A
10 Rear Passenger’s Door Lock 10 A
11Driver’s Door Lock10 A
12 Front Passenger’s Door
Lock 10 A
13Front Passenger’s Door
Unlock10 A
14 Driver’s Door Unlock (10 A)
15Rear Wiper10 A
16 SMART 10 A
17Driver’s Power Seat Reclining20 A
18 Heated Steering Wheel
*(10 A)
19Front Passenger’s Power Seat Reclining20 A
20 SRS 10 A
21Fuel Pump20 A*1:Models with color audio system
*2:Models without color audio system22
Front Accessory Power
Socket 20 A
23Left Headlight High Beam10 A
24 Right Headlight High Beam 10 A
25Driver’s Power Window20 A
26 Rear Passenger’s Door
Unlock 10 A
27ACC10 A
28 SRS2 10 A
29Driver’s Power Seat Lumbar Support*(10 A)
30 Front Passenger’s Power
Seat Sliding 20 A
31Driver’s Power Seat Sliding20 A
32 Tailgate Lock*(10 A)
33−−
34 ACG 15 A
35DRL10 A
36 A/C 10 A
37Radio20 A*1
15 A*2
38 Door Lock Main 20 A
39Front Passenger’s Power Window20 A
Circuit ProtectedAmps
* Not available on all models
21 US ODYSSEY-31THR6310.book 749 ページ ２０２０年６月１７日　水曜日　午後２時４６分

750
uuFuses uFuse Locations
Handling the Unexpected

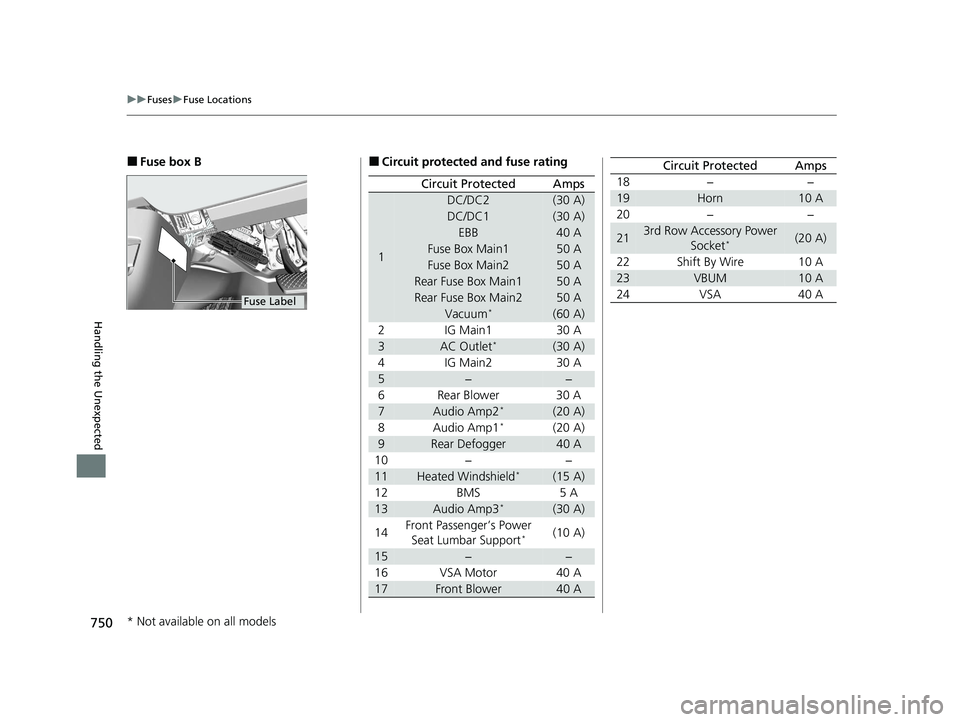

■Fuse box B
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
DC/DC2(30 A)
DC/DC1(30 A)
EBB40 A
Fuse Box Main150 A
Fuse Box Main250 A
Rear Fuse Box Main150 A
Rear Fuse Box Main250 A
Vacuum*(60 A)
2 IG Main1 30 A
3AC Outlet*(30 A)
4 IG Main2 30 A
5−−
6 Rear Blower 30 A
7Audio Amp2*(20 A)
8 Audio Amp1*(20 A)
9Rear Defogger40 A
10 − −
11Heated Windshield*(15 A)
12 BMS 5 A
13Audio Amp3*(30 A)
14 Front Passenger’s Power
Seat Lumbar Support
*(10 A)
15−−
16 VSA Motor 40 A
17Front Blower40 A
18 − −
19Horn10 A
20 − −
213rd Row Accessory Power Socket*(20 A)
22 Shift By Wire 10 A
23VBUM10 A
24 VSA 40 A
Circuit ProtectedAmps
* Not available on all models
21 US ODYSSEY-31THR6310.book 750 ページ ２０２０年６月１７日　水曜日　午後２時４６分

751
uuFuses uFuse Locations
Continued
Handling the Unexpected

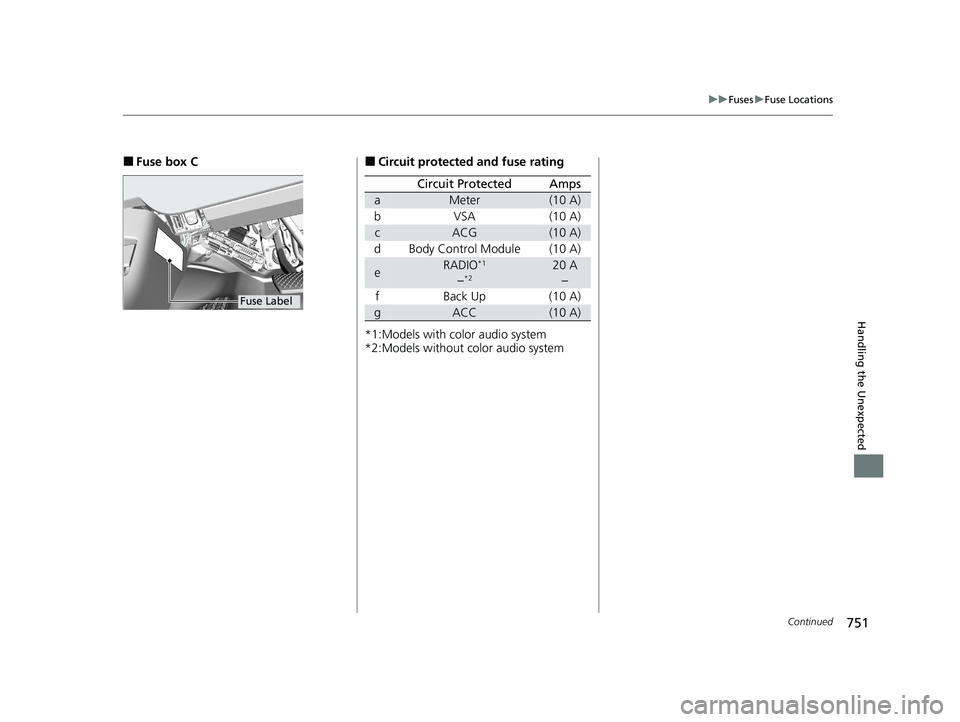

■Fuse box C
Fuse Label
■Circuit protected and fuse rating
*1:Models with color audio system
*2:Models without color audio system
Circuit ProtectedAmps
aMeter(10 A)
b VSA (10 A)
cACG(10 A)
d Body Control Module (10 A)
eRADIO*1
−*220 A −
f Back Up (10 A)
gACC(10 A)
21 US ODYSSEY-31THR6310.book 751 ページ ２０２０年６月１７日　水曜日　午後２時４６分

752
uuFuses uFuse Locations
Handling the Unexpected

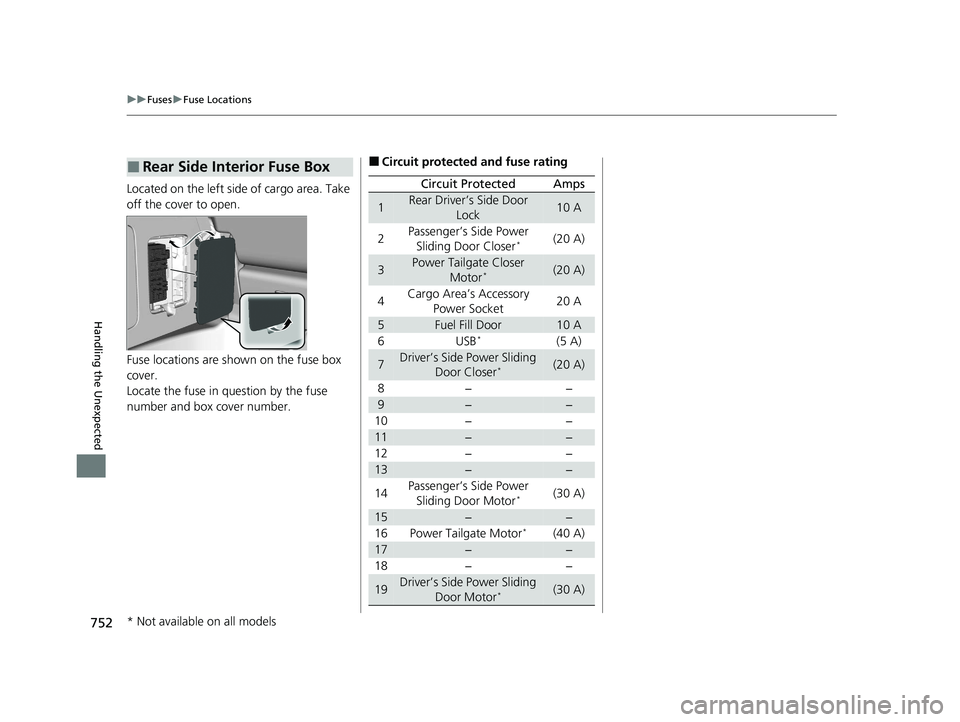

Located on the left side of cargo area. Take
off the cover to open.
Fuse locations are shown on the fuse box
cover.
Locate the fuse in question by the fuse
number and box cover number.
■Rear Side Interior Fuse Box■Circuit protected and fuse rating
Circuit ProtectedAmps
1Rear Driver’s Side Door
Lock10 A
2Passenger’s Side Power Sliding Door Closer*(20 A)
3Power Tailgate Closer Motor*(20 A)
4Cargo Area’s Accessory
Power Socket20 A
5Fuel Fill Door10 A
6USB*(5 A)
7Driver’s Side Power Sliding Door Closer*(20 A)
8−−
9−−
10 − −
11−−
12 − −
13−−
14 Passenger’s Side Power
Sliding Door Motor
*(30 A)
15−−
16 Power Tailgate Motor*(40 A)
17−−
18 − −
19Driver’s Side Power Sliding Door Motor*(30 A)
* Not available on all models
21 US ODYSSEY-31THR6310.book 752 ページ ２０２０年６月１７日　水曜日　午後２時４６分

753
uuFuses uInspecting and Changing Fuses
Handling the Unexpected

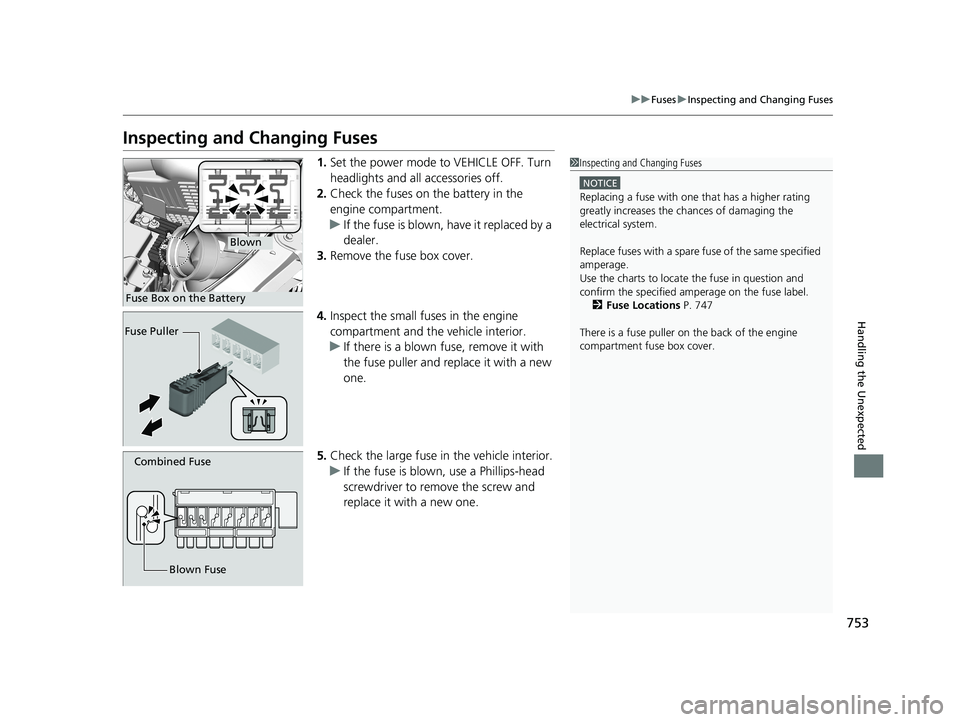

Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF. Turn
headlights and all accessories off.
2. Check the fuses on the battery in the
engine compartment.
u If the fuse is blown, have it replaced by a
dealer.
3. Remove the fuse box cover.
4. Inspect the small fu ses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.
5. Check the large fuse in the vehicle interior.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.1 Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuses with a spare fuse of the same specified
amperage.
Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse label. 2 Fuse Locations P. 747
There is a fuse puller on the back of the engine
compartment fuse box cover.
Blown
Fuse Box on the Battery
Fuse Puller
Combined Fuse
Blown Fuse
21 US ODYSSEY-31THR6310.book 753 ページ ２０２０年６月１７日　水曜日　午後２時４６分

754
Handling the Unexpected

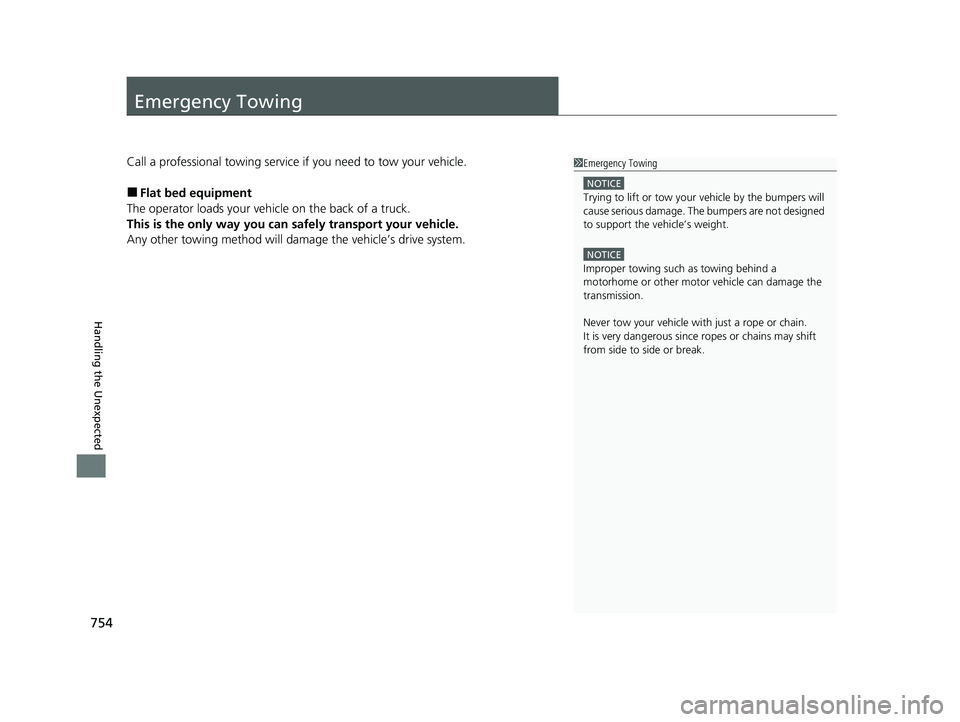

Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the only way you can safely transport your vehicle.
Any other towing method will da mage the vehicle’s drive system.
1Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle’s weight.
NOTICE
Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous since ropes or chains may shift
from side to side or break.
21 US ODYSSEY-31THR6310.book 754 ページ ２０２０年６月１７日　水曜日　午後２時４６分

755
Handling the Unexpected
If You Cannot Unlock the Fuel Fill Door
If you cannot unlock the fuel fill door, use the following procedure.1.Open the tailgate and remove the cover on
the left side of cargo area.
2. Pull the yellow rel ease cord (as shown).
u The release cord opens the fuel fill door
when it is pulled.
■What to Do If Unable to Unlock the Fuel Fill Door1What to Do If Unable to Unlock the Fuel Fill Door
After taking these steps, cont act a dealer to have the
vehicle checked.
Cover
Release Cord
21 US ODYSSEY-31THR6310.book 755 ページ ２０２０年６月１７日　水曜日　午後２時４６分

756
Handling the Unexpected

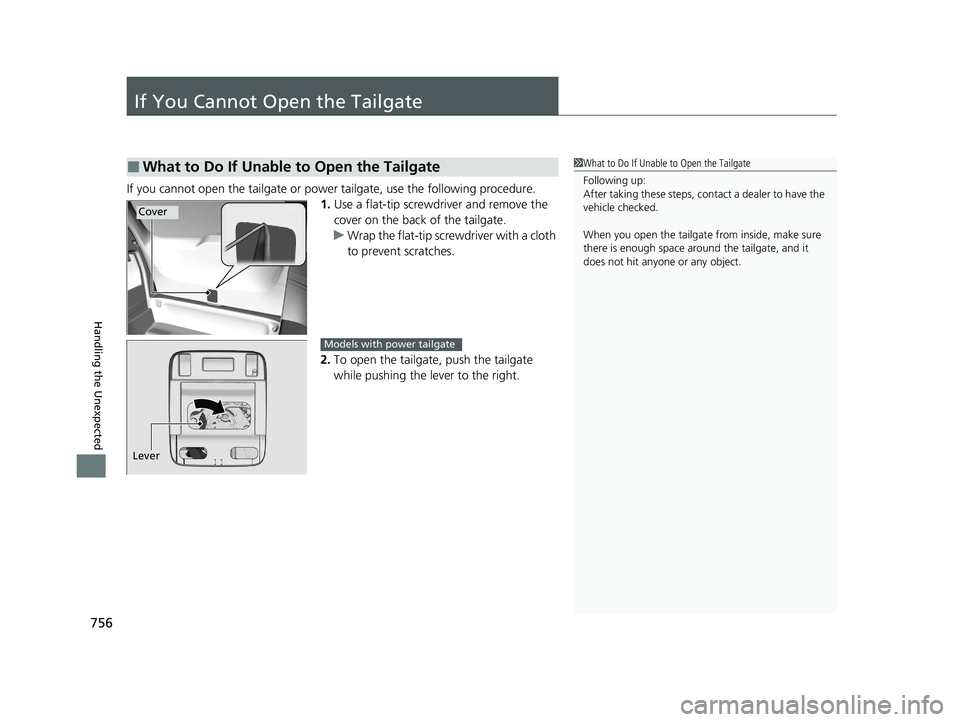

If You Cannot Open the Tailgate
If you cannot open the tailgate or power tailgate, use the following procedure.
1.Use a flat-tip screwdriver and remove the
cover on the back of the tailgate.
u Wrap the flat-tip screwdriver with a cloth
to prevent scratches.
2. To open the tailgat e, push the tailgate
while pushing the lever to the right.
■What to Do If Unable to Open the Tailgate1 What to Do If Unable to Open the Tailgate
Following up:
After taking these steps, cont act a dealer to have the
vehicle checked.
When you open the tailgate from inside, make sure
there is enough space around the tailgate, and it
does not hit anyone or any object.
Cover
Lever
Models with power tailgate
21 US ODYSSEY-31THR6310.book 756 ページ ２０２０年６月１７日　水曜日　午後２時４６分

757
uuIf You Cannot Open the Tailgate u
Handling the Unexpected

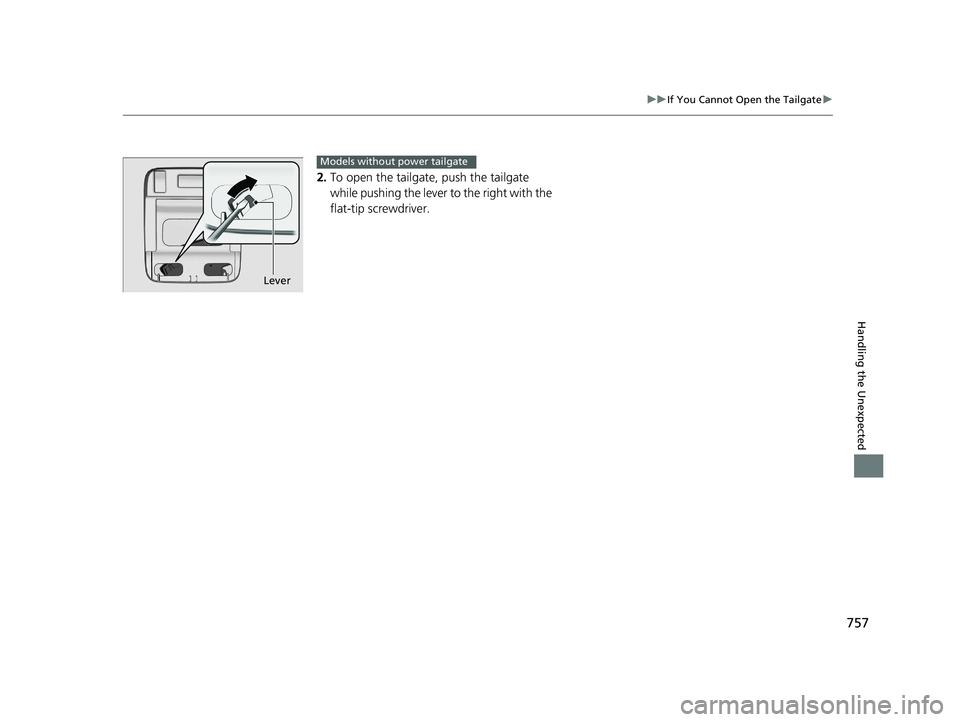

2.To open the tailgate, push the tailgate
while pushing the lever to the right with the
flat-tip screwdriver.
Lever
Models without power tailgate
21 US ODYSSEY-31THR6310.book 757 ページ ２０２０年６月１７日　水曜日　午後２時４６分

758
Handling the Unexpected

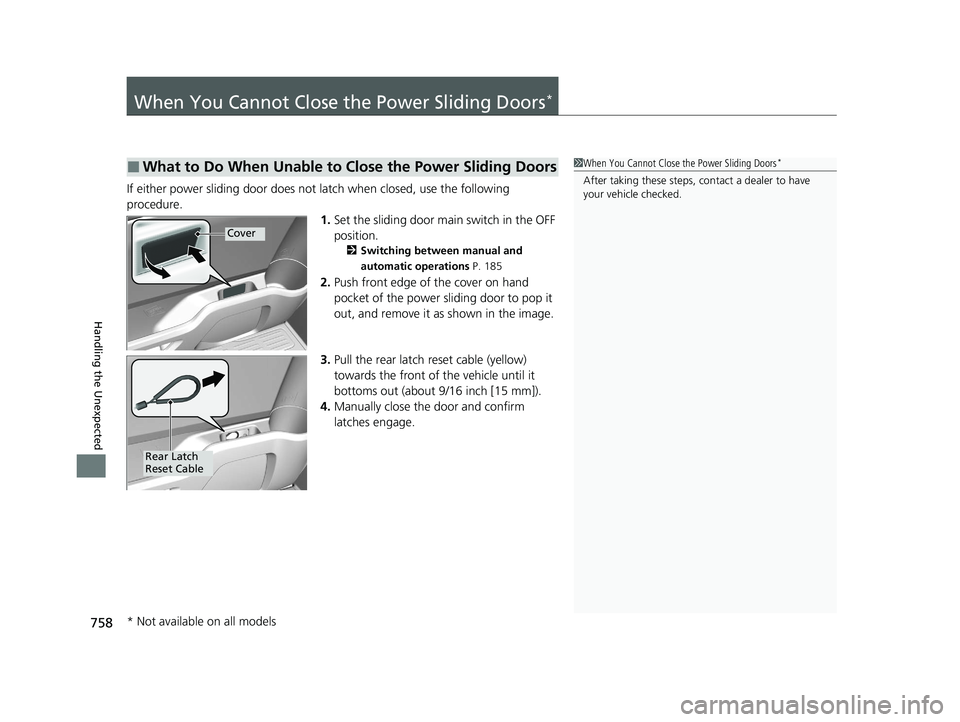

When You Cannot Close the Power Sliding Doors*
If either power sliding door does not latch when closed, use the following
procedure.
1.Set the sliding door main switch in the OFF
position.
2 Switching between manual and
automatic operations P. 185
2.Push front edge of the cover on hand
pocket of the power sliding door to pop it
out, and remove it as shown in the image.
3. Pull the rear latch reset cable (yellow)
towards the front of the vehicle until it
bottoms out (about 9/16 inch [15 mm]).
4. Manually close the door and confirm
latches engage.
■What to Do When Unable to Close the Power Sliding Doors1When You Cannot Close the Power Sliding Doors*
After taking these steps, contact a dealer to have
your vehicle checked.
Cover
Rear Latch
Reset Cable
* Not available on all models
