HONDA ODYSSEY 2023 Owners Manual

689Continued
Information

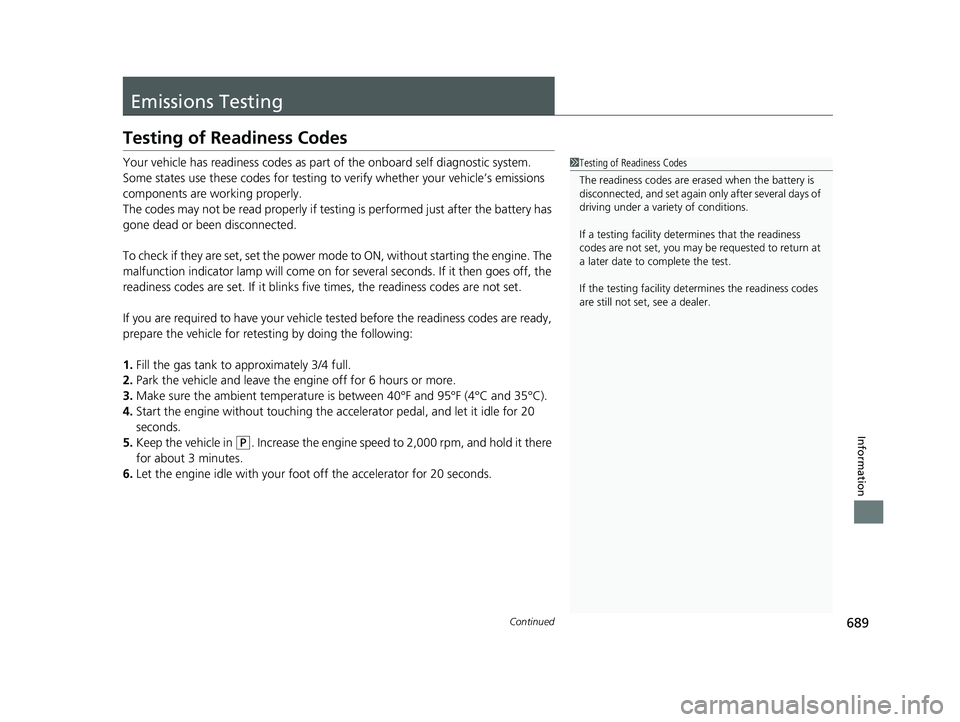

Emissions Testing
Testing of Readiness Codes
Your vehicle has readiness codes as part of the onboard self diagnostic system.
Some states use these codes for testing to verify whether your vehicle’s emissions
components are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.
To check if they are set, set the power mo de to ON, without starting the engine. The
malfunction indicator lamp will come on for several seconds. If it then goes off, the
readiness codes are set. If it blinks fi ve times, the readiness codes are not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the ac celerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P. Increase the engine speed to 2,000 rpm, and hold it there
for about 3 minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
1Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again onl y after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
23 US ODYSSEY-31THR6500.book 689 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

690
uuEmissions Testing uTesting of Readiness Codes
Information

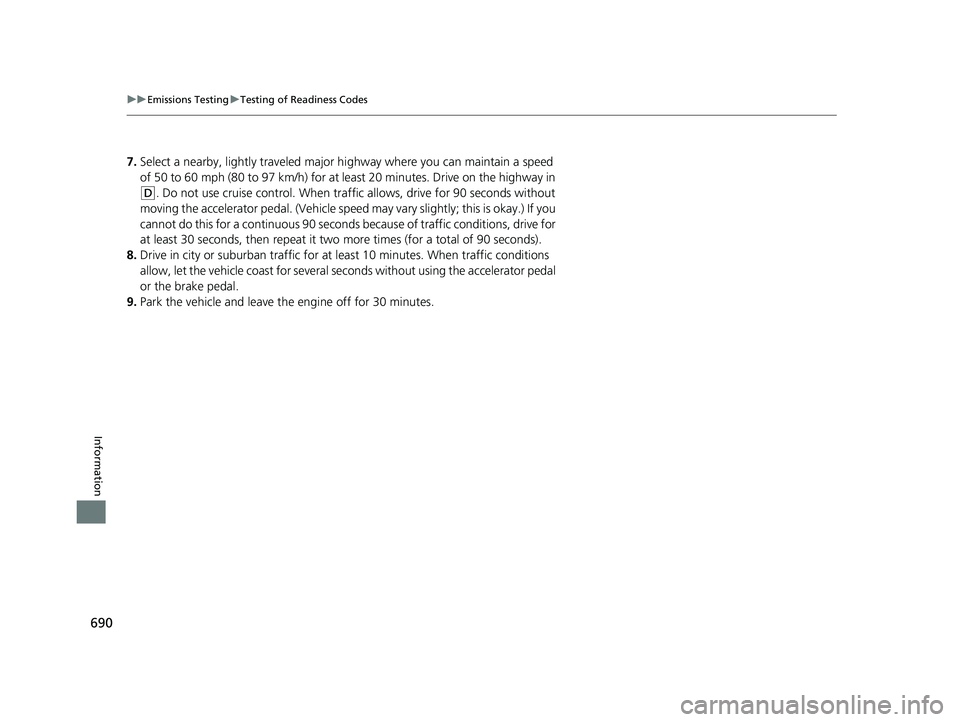

7. Select a nearby, lightly traveled major hi ghway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in
(D. Do not use cruise control. When tra ffic allows, drive for 90 seconds without
moving the accelerator pedal. (Vehicle spee d may vary slightly; this is okay.) If you
cannot do this for a continuous 90 seconds because of traffic conditions, drive for
at least 30 seconds, then repeat it two mo re times (for a total of 90 seconds).
8. Drive in city or suburban traffic for at le ast 10 minutes. When traffic conditions
allow, let the vehicle coast for several se conds without using the accelerator pedal
or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.
23 US ODYSSEY-31THR6500.book 690 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

691Continued
Information
Warranty Coverages
■U.S. Owners
Your new vehicle is covered by these warranties:
New Vehicle Limited Warranty – covers your new vehicle, except for the
emissions control systems and accessorie s, against defects in materials and
workmanship.
Emissions Control Systems Defects Warranty and Emissions Performance
Warranty – these two warranties cover your ve hicle’s emissions control systems.
Time, mileage, and coverage are conditional. Please read your warranty booklet for
exact information.
Seat Belt Limited Warranty – a seat belt that fails to function properly is covered
by a limited warranty. Please read your warranty booklet for details.
Rust Perforation Limited Warranty – all exterior body panels are covered against
rusting from the inside out for the specified time period, regardless of mileage.
Accessory Limited Warranty – Honda accessories are covered under this
warranty. Time and mileage limits depend on the type of accessory and other
factors. Please read your warranty booklet for details.
Replacement Parts Limited Warranty – covers all Honda replacement parts
against defects in mate rials and workmanship.
23 US ODYSSEY-31THR6500.book 691 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

692
uuWarranty Coverages u
Information
Replacement Battery Limited Warranty – provides prorated coverage for a
replacement battery purchased from a dealer.
Replacement Muffler Life time Limited Warranty – provides coverage for as
long as the purchaser of the muffler owns the vehicle.
Restrictions and exclusions apply to a ll these warranties. Please read the Honda
warranty information booklet that came wi th your vehicle for precise information on
warranty coverages. Your vehi cle’s original tires are covered by their manufacturer.
Tire warranty information is in a separate booklet.
■Statement on Warranty Coverage for Aftermarket and Recycled Parts
The Magnuson-Moss Warranty Act, 15 U.S.C. s.2301 et seq., makes it illegal for
motor vehicle manufacturers to void a motor vehicle warranty or deny warranty
coverage solely because an aftermarket or recycled part has been used to repair the
vehicle or someone other than the authorized service provider performed service on
the vehicle. This provision does not apply to a new motor vehicle purchased solely
for commercial or industrial use.
Under federal law, a manufacturer may deny warranty coverage and charge for repairs
to a vehicle if it is discovered that an aftermarket or recycled part installed on the
vehicle is defective or was in stalled incorrectly and caused damage to another part of
the vehicle otherwise covered under warran ty. The Federal Trade Commission requires
that a manufacturer demonstrate that an aftermarket or recycled part or service
performed by a person other than an authorized service provider caused damage to
another part of the vehicle otherwise covered under warranty before denying
warranty coverage. Additionally, federal law allows a manufacturer to void a motor
vehicle warranty or deny warranty coverage if the manufacturer provides the article or
service to consumers free of charge unde r the warranty or the manufacturer has
secured a waiver from the Federal Trade Commission.
23 US ODYSSEY-31THR6500.book 692 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

693
uuWarranty Coverages u
Information

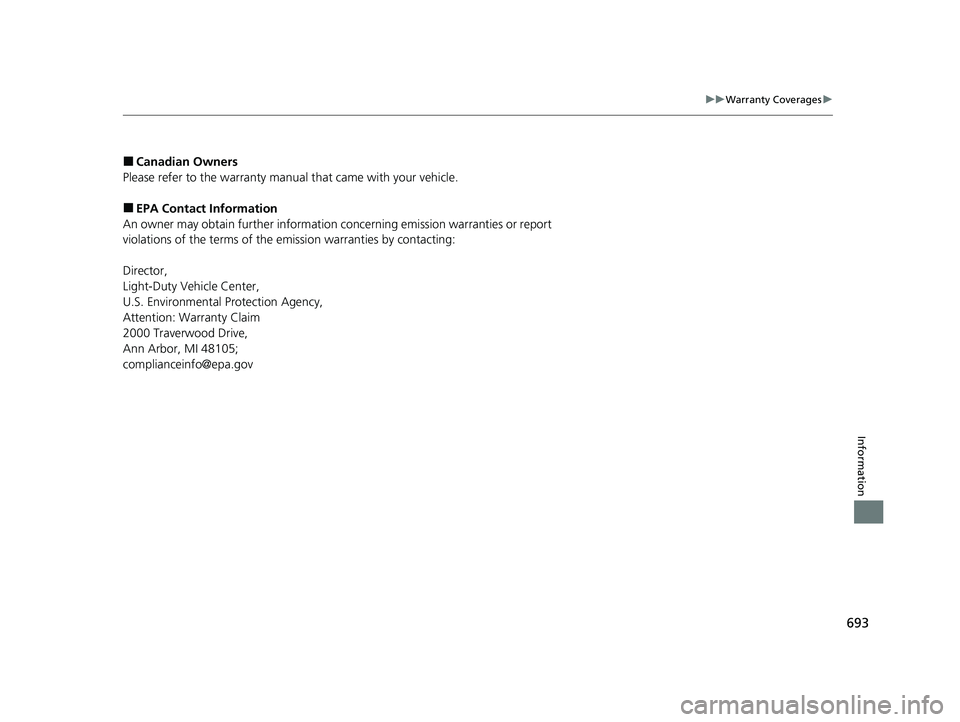

■Canadian Owners
Please refer to the warranty manual that came with your vehicle.
■EPA Contact Information
An owner may obtain further information conc erning emission warranties or report
violations of the terms of the emission warranties by contacting:
Director,
Light-Duty Vehicle Center,
U.S. Environmental Protection Agency,
Attention: Warranty Claim
2000 Traverwood Drive,
Ann Arbor, MI 48105;
[email protected]
23 US ODYSSEY-31THR6500.book 693 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

694
Information
Authorized Manuals
■Service Express
For electronic copies of service publications, you can purchase a subscription to
Service Express. Visit www.techinfo.honda.com for pricing and options.
■For U.S. Owners
Manuals can be purchased from Helm Incorporated. You can order a manual by
phone at 1 (800) 782-4356 (credit ca rd orders only), or online at www.helminc.com.
■For Canadian Owners
Please contact a dealer to order any manuals that you may require.
23 US ODYSSEY-31THR6500.book 694 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

695
Information

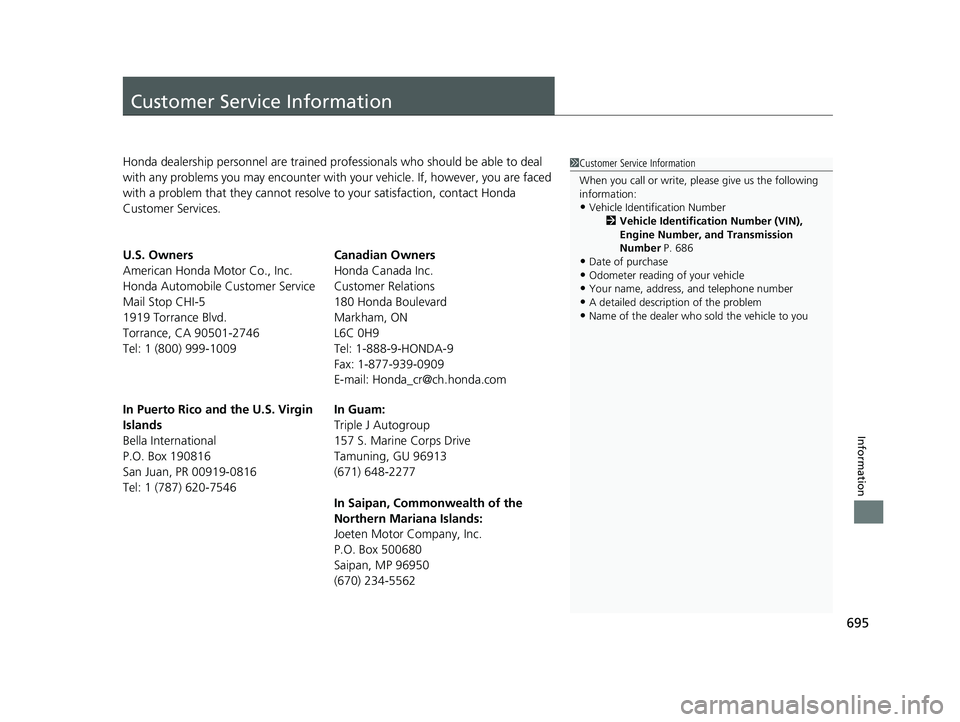

Customer Service Information
Honda dealership personnel are trained professionals who should be able to deal
with any problems you may encounter with your vehicle. If, however, you are faced
with a problem that they cannot resolve to your satisfaction, contact Honda
Customer Services.
U.S. Owners
American Honda Motor Co., Inc.
Honda Automobile Customer Service
Mail Stop CHI-5
1919 Torrance Blvd.
Torrance, CA 90501-2746
Tel: 1 (800) 999-1009 Canadian Owners
Honda Canada Inc.
Customer Relations
180 Honda Boulevard
Markham, ON
L6C 0H9
Tel: 1-888-9-HONDA-9
Fax: 1-877-939-0909
E-mail: [email protected]
In Puerto Rico a nd the U.S. Virgin
Islands
Bella International
P.O. Box 190816
San Juan, PR 00919-0816
Tel: 1 (787) 620-7546 In Guam:
Triple J Autogroup
157 S. Marine Corps Drive
Tamuning, GU 96913
(671) 648-2277
In Saipan, Commonwealth of the
Northern Mariana Islands:
Joeten Motor Company, Inc.
P.O. Box 500680
Saipan, MP 96950
(670) 234-55621
Customer Service Information
When you call or write, please give us the following
information:
•Vehicle Identification Number
2Vehicle Identification Number (VIN),
Engine Number, and Transmission
Number P. 686
•Date of purchase•Odometer reading of your vehicle
•Your name, address, and telephone number
•A detailed description of the problem•Name of the dealer who sold the vehicle to you
23 US ODYSSEY-31THR6500.book 695 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

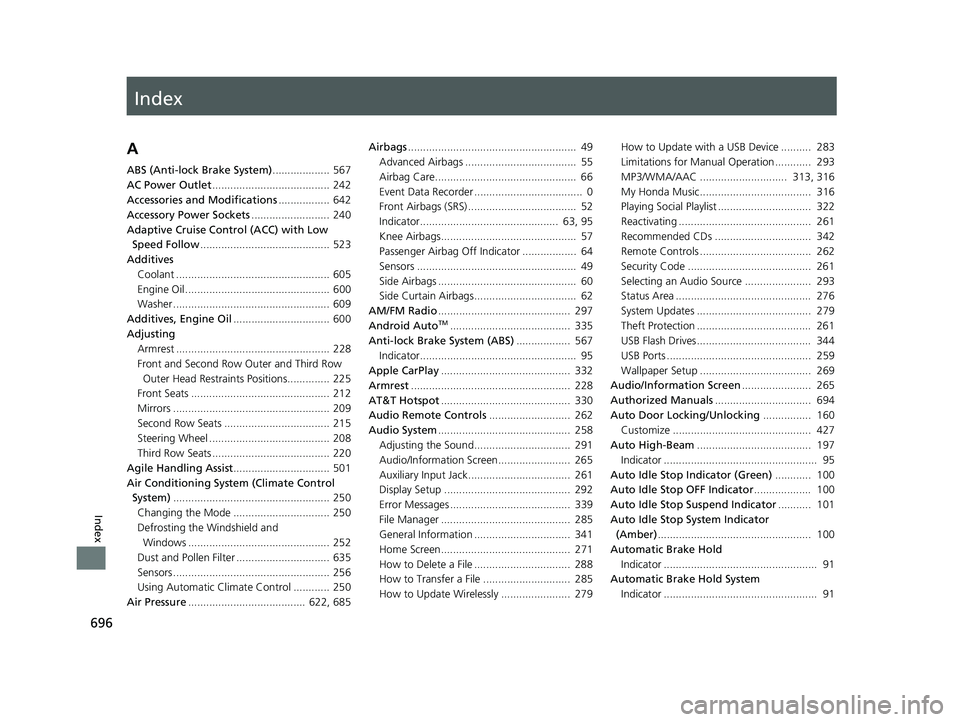

Index
696
Index
Index
A
ABS (Anti-lock Brake System)................... 567
AC Power Outlet ....................................... 242
Accessories and Modifications ................. 642
Accessory Power Sockets .......................... 240
Adaptive Cruise Control (ACC) with Low Speed Follow ........................................... 523
Additives
Coolant ................................................... 605
Engine Oil ................................................ 600
Washer .................................................... 609
Additives, Engine Oil ................................ 600
Adjusting Armrest ................................................... 228
Front and Second Row Outer and Third Row Outer Head Restraints Positions.............. 225
Front Seats .............................................. 212
Mirrors .................................................... 209
Second Row Seats ................................... 215
Steering Wheel ........................................ 208
Third Row Seats ....................................... 220
Agile Handling Assist ................................ 501
Air Conditioning System (Climate Control System) .................................................... 250
Changing the Mode ................................ 250
Defrosting the Windshield and Windows ............................................... 252
Dust and Pollen Filter ............................... 635
Sensors .................................................... 256
Using Automatic Climate Control ............ 250
Air Pressure ....................................... 622, 685 Airbags
........................................................ 49
Advanced Airbags ..................................... 55
Airbag Care............................................... 66
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 52
Indicator.............................................. 63, 95
Knee Airbags............................................. 57
Passenger Airbag Off Indicator .................. 64
Sensors ..................................................... 49
Side Airbags .............................................. 60
Side Curtain Airbags.................................. 62
AM/FM Radio ............................................ 297
Android Auto
TM........................................ 335
Anti-lock Brake System (ABS) .................. 567
Indicator.................................................... 95
Apple CarPlay ........................................... 332
Armrest ..................................................... 228
AT&T Hotspot ........................................... 330
Audio Remote Controls ........................... 262
Audio System ............................................ 258
Adjusting the Sound................................ 291
Audio/Information Screen........................ 265
Auxiliary Input Jack.................................. 261
Display Setup .......................................... 292
Error Messages ........................................ 339
File Manager ........................................... 285
General Information ................................ 341
Home Screen........................................... 271
How to Delete a File ................................ 288
How to Transfer a File ............................. 285
How to Update Wirelessly ....................... 279 How to Update with a USB Device .......... 283
Limitations for Manual Operation ............ 293
MP3/WMA/AAC ............................. 313, 316
My Honda Music..................................... 316
Playing Social Playlist ............................... 322
Reactivating ............................................ 261
Recommended CDs ................................ 342
Remote Controls ..................................... 262
Security Code ......................................... 261
Selecting an Audio Source ...................... 293
Status Area ............................................. 276
System Updates ...................................... 279
Theft Protection ...................................... 261
USB Flash Drives...................................... 344
USB Ports ................................................ 259
Wallpaper Setup ..................................... 269
Audio/Information Screen ....................... 265
Authorized Manuals ................................ 694
Auto Door Locking/Unlocking ................ 160
Customize .............................................. 427
Auto High-Beam ...................................... 197
Indicator ................................................... 95
Auto Idle Stop Indicator (Green) ............ 100
Auto Idle Stop OFF Indicator ................... 100
Auto Idle Stop Suspend Indicator ........... 101
Auto Idle Stop System Indicator (Amber) ................................................... 100
Automatic Brake Hold
Indicator ................................................... 91
Automatic Brake Hold System Indicator ................................................... 91
23 US ODYSSEY-31THR6500.book 696 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

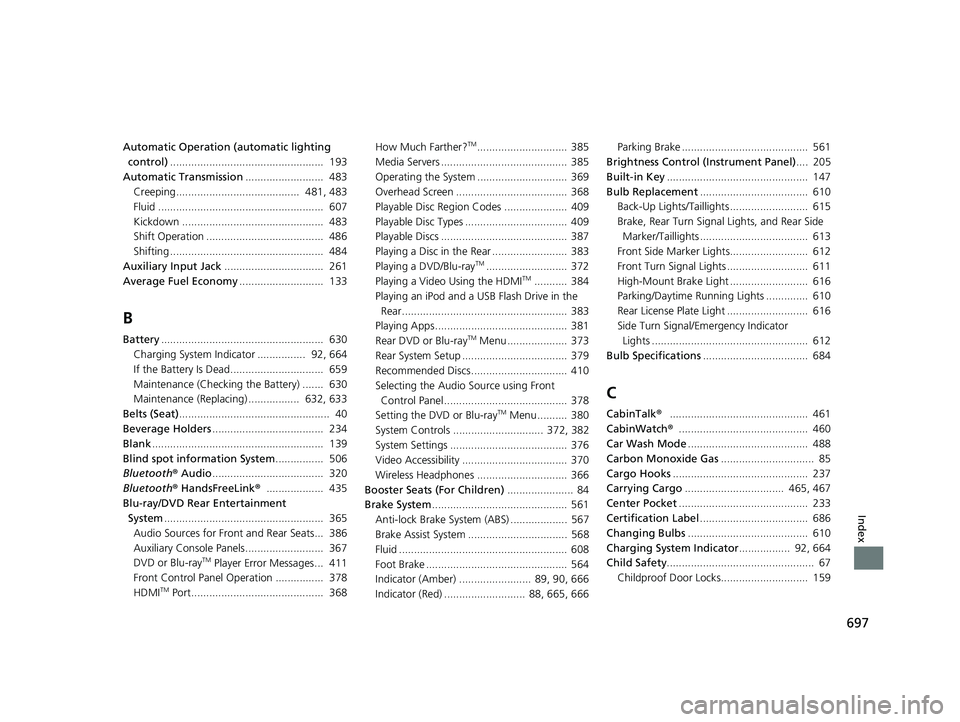

697
Index
Automatic Operation (automatic lighting control) ................................................... 193
Automatic Transmission .......................... 483
Creeping......................................... 481, 483
Fluid ....................................................... 607
Kickdown ............................................... 483
Shift Operation ....................................... 486
Shifting ................................................... 484
Auxiliary Input Jack ................................. 261
Average Fuel Economy ............................ 133
B
Battery...................................................... 630
Charging System Indicator ................ 92, 664
If the Battery Is Dead............................... 659
Maintenance (Checking the Battery) ....... 630
Maintenance (Replacing) ................. 632, 633
Belts (Seat) .................................................. 40
Beverage Holders ..................................... 234
Blank ......................................................... 139
Blind spot information System ................ 506
Bluetooth ® Audio ..................................... 320
Bluetooth ® HandsFreeLink ®................... 435
Blu-ray/DVD Rear Entertainment System ..................................................... 365
Audio Sources for Front and Rear Seats... 386
Auxiliary Console Panels.......................... 367
DVD or Blu-ray
TM Player Error Messages... 411
Front Control Panel Operation ................ 378
HDMI
TM Port............................................ 368 How Much Farther?
TM.............................. 385
Media Servers .......................................... 385
Operating the System .............................. 369
Overhead Screen ..................................... 368
Playable Disc Region Codes ..................... 409
Playable Disc Types .................................. 409
Playable Discs .......................................... 387
Playing a Disc in the Rear ......................... 383
Playing a DVD/Blu-ray
TM........................... 372
Playing a Video Using the HDMITM........... 384
Playing an iPod and a USB Flash Drive in the
Rear....................................................... 383
Playing Apps ............................................ 381
Rear DVD or Blu-ray
TM Menu .................... 373
Rear System Setup ................................... 379
Recommended Discs ................................ 410
Selecting the Audio Source using Front
Control Panel......................................... 378
Setting the DVD or Blu-ray
TM Menu .......... 380
System Controls .............................. 372, 382
System Settings ....................................... 376
Video Accessibility ................................... 370
Wireless Headphones .............................. 366
Booster Seats (For Children) ...................... 84
Brake System ............................................. 561
Anti-lock Brake System (ABS) ................... 567
Brake Assist System ................................. 568
Fluid ........................................................ 608
Foot Brake ............................................... 564
Indicator (Amber) ........................ 89, 90, 666
Indicator (Red) ........................... 88, 665, 666 Parking Brake .......................................... 561
Brightness Control (Instrument Panel) .... 205
Built-in Key ............................................... 147
Bulb Replacement .................................... 610
Back-Up Lights/Taillights .......................... 615
Brake, Rear Turn Signal Lights, and Rear Side Marker/Taillights .................................... 613
Front Side Marker Lights.......................... 612
Front Turn Signal Lights ........................... 611
High-Mount Brake Light .......................... 616
Parking/Daytime Running Lights .............. 610
Rear License Plate Light ........................... 616
Side Turn Signal/Emergency Indicator Lights .................................................... 612
Bulb Specifications ................................... 684
C
CabinTalk®.............................................. 461
CabinWatch ®........................................... 460
Car Wash Mode ........................................ 488
Carbon Monoxide Gas ............................... 85
Cargo Hooks ............................................. 237
Carrying Cargo ................................. 465, 467
Center Pocket ........................................... 233
Certification Label .................................... 686
Changing Bulbs ........................................ 610
Charging System Indicator ................. 92, 664
Child Safety ................................................. 67
Childproof Door Locks............................. 159
23 US ODYSSEY-31THR6500.book 697 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

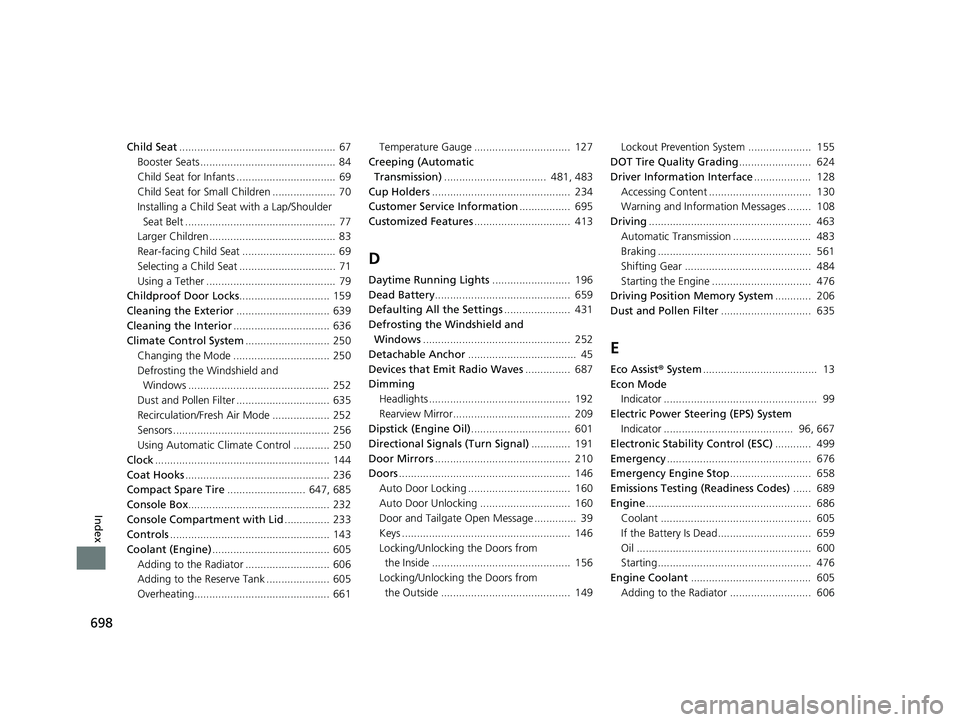

698
Index
Child Seat.................................................... 67
Booster Seats ............................................. 84
Child Seat for Infants ................................. 69
Child Seat for Small Children ..................... 70
Installing a Child Seat with a Lap/Shoulder
Seat Belt .................................................. 77
Larger Children .......................................... 83
Rear-facing Child Seat ............................... 69
Selecting a Child Seat ................................ 71
Using a Tether ........................................... 79
Childproof Door Locks .............................. 159
Cleaning the Exterior ............................... 639
Cleaning the Interior ................................ 636
Climate Control System ............................ 250
Changing the Mode ................................ 250
Defrosting the Windshield and Windows ............................................... 252
Dust and Pollen Filter ............................... 635
Recirculation/Fresh Air Mode ................... 252
Sensors .................................................... 256
Using Automatic Climate Control ............ 250
Clock .......................................................... 144
Coat Hooks ................................................ 236
Compact Spare Tire .......................... 647, 685
Console Box ............................................... 232
Console Compartment with Lid ............... 233
Controls ..................................................... 143
Coolant (Engine) ....................................... 605
Adding to the Radiator ............................ 606
Adding to the Reserve Tank ..................... 605
Overheating............................................. 661 Temperature Gauge ................................ 127
Creeping (Automatic
Transmission) .................................. 481, 483
Cup Holders .............................................. 234
Customer Service Information ................. 695
Customized Features ................................ 413
D
Daytime Running Lights .......................... 196
Dead Battery ............................................. 659
Defaulting All the Settings ...................... 431
Defrosting the Windshield and
Windows ................................................. 252
Detachable Anchor .................................... 45
Devices that Emit Radio Waves ............... 687
Dimming Headlights ............................................... 192
Rearview Mirror....................................... 209
Dipstick (Engine Oil) ................................. 601
Directional Signals (Turn Signal) ............. 191
Door Mirrors ............................................. 210
Doors ......................................................... 146
Auto Door Locking .................................. 160
Auto Door Unlocking .............................. 160
Door and Tailgate Open Message .............. 39
Keys ........................................................ 146
Locking/Unlocking the Doors from the Inside .............................................. 156
Locking/Unlocking the Doors from
the Outside ........................................... 149 Lockout Prevention System ..................... 155
DOT Tire Quality Grading ........................ 624
Driver Information Interface ................... 128
Accessing Content .................................. 130
Warning and Information Messages ........ 108
Driving ...................................................... 463
Automatic Transmission .......................... 483
Braking ................................................... 561
Shifting Gear .......................................... 484
Starting the Engine ................................. 476
Driving Position Memory System ............ 206
Dust and Pollen Filter .............................. 635
E
Eco Assist® System ...................................... 13
Econ Mode Indicator ................................................... 99
Electric Power Steering (EPS) System Indicator ........................................... 96, 667
Electronic Stability Control (ESC) ............ 499
Emergency ................................................ 676
Emergency Engine Stop ........................... 658
Emissions Testing (Readiness Codes) ...... 689
Engine ....................................................... 686
Coolant .................................................. 605
If the Battery Is Dead............................... 659
Oil .......................................................... 600
Starting................................................... 476
Engine Coolant ........................................ 605
Adding to the Radiator ........................... 606
23 US ODYSSEY-31THR6500.book 698 ページ ２０２２年１月２４日　月曜日　午前１１時３５分
