HONDA PASSPORT 2000 2.G Owners Manual
Manufacturer: HONDA, Model Year: 2000, Model line: PASSPORT, Model: HONDA PASSPORT 2000 2.GPages: 267, PDF Size: 3.03 MB
Page 221 of 267
Fron
t (4W D Only ) an d Rea r
Propelle r Shaf t
Lubricate the sliding yoke with
EP chassis grease. Lubricate
universal joints with grease
containing MoS 2 (molybdenum
disulfide-type grease) at the intervals shown in the
Maintenance Schedule. Also
check the propeller shaft
flange-to-pinion bolts for proper
torque of 64 N.m (46.3 Ib-ft).
Most lubrication recommendations
and procedures for four-wheel drive-
equipped vehicles are the same
for the corresponding components in conventional drive vehicles.
Exhaus t Syste m
Check the complete exhaust
system and nearby body areas for
damaged, missing, or
mispositioned parts, open seams, holes, loose connections, or other
deterioration that could allow
exhaust fumes to seep into the
passenger compartment or cause
heat build-up in the floor pan. Any
necessary corrections should be made immediately. For continuedsafety, exhaust system pipes and
resonators rearward of the muffler must be replaced whenever a new
muffler is installed.
Fue l Lin e an d Fue l Tank/Ca p
Inspect the fuel tank, cap and lines
for damage that could cause
leakage. Inspect the fuel cap and
gasket for correct sealing ability
and indications of physical
damage. Replace any damaged or
malfunctioning parts.
Driv
e Bel t
Check the belt driving the
alternator, power steering pump,
and air conditioning compressor.
Look for cracks, fraying, and wear. Replace as necessary.
Timin g Bel t
The timing belt should normally
be replaced at the intervals shown
in the Maintenance Schedule.
Valv e Clearanc e
Incorrect valve clearance will
result in increased engine noise and lower engine output, thereby
adversely affecting engine
performance.
Car e an d Maintenanc e
Page 222 of 267
Spar
k Plug s
Replace the spark plugs with the
type specified in the "Technical
Data" section.
Clutc h
Check the clutch play at the pedal.
Lubricate the clutch pedal bushing and clevis pin, at the intervalsshown in the Maintenance
Schedule, with water-resistant
chassis lubricant. If you hear a squeaking noise coming from the
area of the bushing or clevis pin at
the clutch pedal arm when the
clutch pedal is depressed,
lubricate it with water-resistant EP
chassis grease.
Check the fluid level in the clutch
reservoir at the interval shown in
the Maintenance Schedule. If the fluid is low in the reservoir, it
should be filled to the
maximum
level lin
e with DOT-3 or DOT-4
fluid.
Flui d o r Lubrican t Level s
Check the fluid or lubricant level in the brake master cylinder,
clutch master cylinder, power steering reservoir, rear axle,
engine and transmission, windshield washer reservoir and
engine coolant at specified
intervals.
Powe
r Steerin g
Check the fluid level in the power steering fluid reservoir as
recommended in the Maintenance Schedule. The fluid level should
be between the "MIN" and "MAX" marks on the reservoir.
Use only automatic transmission
fluid labeled DEXRON III.
Car e an d Maintenanc e
Page 223 of 267

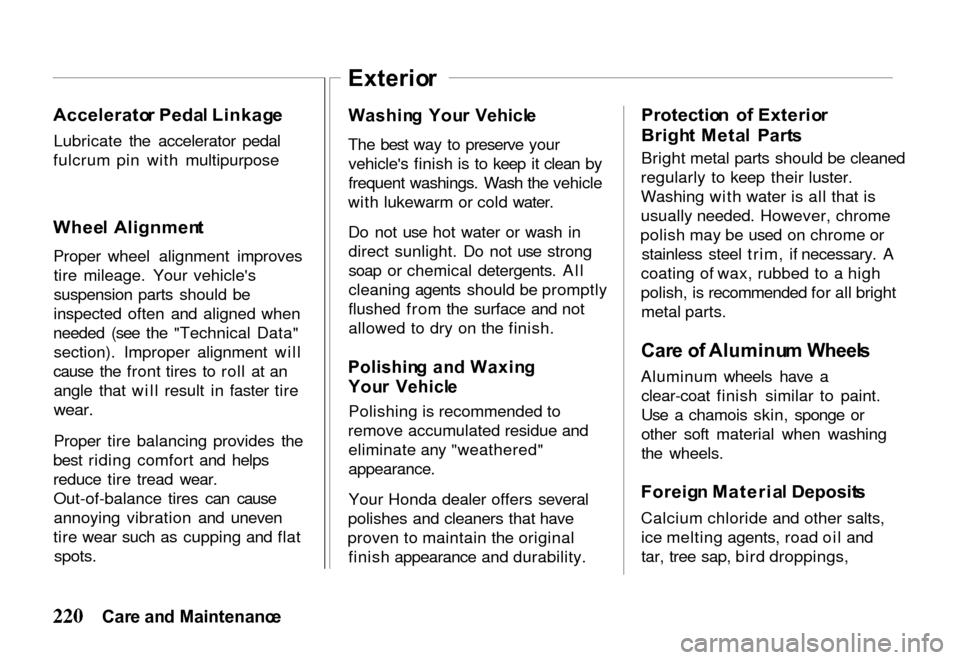

Accelerato
r Peda l Linkag e
Lubricate the accelerator pedal
fulcrum pin with multipurpose
Whee l Alignmen t
Proper wheel alignment improves tire mileage. Your vehicle's
suspension parts should be
inspected often and aligned when
needed (see the "Technical Data" section). Improper alignment will
cause the front tires to roll at an angle that will result in faster tire
wear.
Proper tire balancing provides the
best riding comfort and helps
reduce tire tread wear. Out-of-balance tires can cause
annoying vibration and uneven
tire wear such as cupping and flat
spots.
Exterio
r
Washin g You r Vehicl e
The best way to preserve your vehicle's finish is to keep it clean by
frequent washings. Wash the vehicle
with lukewarm or cold water.
Do not use hot water or wash in direct sunlight. Do not use strong
soap or chemical detergents. All
cleaning agents should be promptly
flushed from the surface and not
allowed to dry on the finish.
Polishin g an d Waxin g
You r Vehicl e
Polishing is recommended to
remove accumulated residue and eliminate any "weathered"
appearance.
Your Honda dealer offers several
polishes and cleaners that have
proven to maintain the original finish appearance and durability. Protectio
n o f Exterio r
Brigh t Meta l Part s
Bright metal parts should be cleaned
regularly to keep their luster.
Washing with water is all that is
usually needed. However, chrome
polish may be used on chrome or stainless steel trim, if necessary. A
coating of wax, rubbed to a high
polish, is recommended for all bright metal parts.
Car e o f Aluminu m Wheel s
Aluminum wheels have a clear-coat finish similar to paint.
Use a chamois skin, sponge or
other soft material when washing
the wheels.
Foreig n Materia l Deposit s
Calcium chloride and other salts, ice melting agents, road oil and
tar, tree sap, bird droppings,
Car e an d Maintenanc e
Page 224 of 267
chemicals from industrial
chimneys, and other foreign
matter may damage your vehicle's
finish if allowed to remain on
painted surfaces.
Prompt washing may not
completely remove all of these
deposits. Additional cleaners may
be needed. When using chemical
cleaners developed for this
purpose, be certain they are safe
for use on painted surfaces.
Finis h Damag e
Any stone chips, fractures or deep scratches in the finish should be
repaired promptly. Exposed metal will corrode quickly and may
develop into a major repair
expense. Minor chips and scratches
can be repaired using touch-up materials available from your
Honda dealer. Corrosio
n Protectio n
Your vehicle has been designed
and built to resist corrosion.
Special materials and protective
finishes were applied to most
parts of your vehicle when it was built to help maintain its good
looks, strength and reliable
operation. However, some parts
that are normally not visible (suchas certain parts under the vehicle
and under the hood) are strong
enough so that surface rust will
not affect their reliability. So
corrosion protection is not needed or used on these parts. By
omitting unneeded rust protection
on such parts and applying extra
protection where it is needed most, the best value is assured forthe vehicle buyer. Shee
t Meta l Damag e
If your vehicle is damaged and
requires sheet metal repair or
replacement, make sure the body
repair shop applies anti-corrosion material to the parts repaired or
replaced so that corrosion
protection is restored. (Also see "Finish Damage.")
Underbod y Maintenanc e
Corrosive materials used for ice and snow removal and dust
control can collect on the
underbody. If these materials are not removed, accelerated
corrosion (rust) can occur on
underbody parts such as fuel lines,
frame, floor pan, and exhaustsystem even though they have
Car e an d Maintenanc e
Page 225 of 267
been coated with corrosion
protectants.
At least every spring, flush thesematerials from the underbody
with plain water. Take care to
thoroughly clean any areas where mud and other debris can collect.
Sediment packed in closed areas
of the frame should be loosened
before being flushed.
Interio
r
With the use of modern trim
materials it is very important that
proper cleaning techniques and
cleaners be used. Failure to do
this on the first cleaning may
result in water spots, spot rings or
setting of stains, all of which
make it more difficult to remove
on a second cleaning.
The portion of the following cleaning instructions that are in
ALL CAPITAL LETTERS are
especially important and MUST
be followed.
Dust and loose dirt thataccumulate on interior fabrics
should be removed often with a
vacuum cleaner or soft brush.
Vinyl or leather trim should be
wiped regularly with a clean
damp cloth. Normal trim soil,
spots or stains can be cleaned with
conventional cleaners. Remembe
r Thes e Basi c Step s
Befor e Cleanin g
1. Remove stains as quickly as possible before they become"set."
2. Use a clean cloth or sponge and change to a clean area
often. (A SOFT brush may be
used if stains persist.)
3. Use solvent-type cleaners only in a well ventilated area; also,
do not saturate the stained
area.
4. If a ring forms after spot cleaning, clean the entire area
IMMEDIATELY.
5. Follow specific instructions on the cleaning products' labels.
Car e an d Maintenanc e
Page 226 of 267
Cleanin
g Fabri c
Cleaning General Soilage or
Water Spots From Fabric Trim
Multipurpose powdered cleaner is
excellent for this type of cleaning and for cleaning panel sections
where small cleaning rings may
be left from spot cleaning. Vacuum the area thoroughly to
remove loose dirt.
ALWAYS clean a full trim
assembly or complete trim
section. Mask surrounding trim
along stitch or welt-lines.
Mix the multipurpose
powdered cleaner in strict accordance with the directions
on the label of its container.
Mix in proportion for smaller
quantities. USE SUDS ONLY ON A
CLEAN SPONGE OR SOFT
BRISTLE BRUSH. DO NOT
SATURATE FABRIC OR RUB
HARSHLY WITH THE
BRUSH.
IMMEDIATELY AFTER
CLEANING, WIPE OFF
EXCESS CLEANER WITH A
SLIGHTLY DAMP ABSORBENT
TOWEL OR CLOTH. IMMEDIATELY AFTER
WIPING, FORCE-DRY THE
FABRIC WITH AN AIR HOSE, HEAT DRYER, OR HEAT
LAMP. Use caution if you are using a heat dryer or heat lamp
so you do not damage the
fabric.
When trim materials that have a
sheen or lustrous finish are dry,
wipe them with a soft, clean
cloth to restore the sheen.
Spot Cleaning Fabric
With Solvent Cleaner
Before trying to remove a spot or
stain from fabric, determine as
accurately as you can what kind of
spot or stain it is and how long it
has been there. Some spots or stains can be removed with water
or mild soap solution (see
"Removal of Specific Stains"). Spots or stains should always be
removed as soon as possible.
Some types of stains or soilage,
such as lipstick, inks and grease,
are very difficult (sometimes
impossible) to completely remove.
When cleaning this type of stain or soilage be sure not to enlarge the
soiled area. Fabric cleaner (solvent
type) is excellent for spot-cleaning
grease, oil or fat stains.
Car e an d Maintenanc e
Page 227 of 267
Gently scrape the stain off trim
material with a clean, DULL
knife or scraper. USE VERY
LITTLE CLEANER, light
pressure, and a clean cloth
(preferably cheesecloth).
Cleaning should be from the
outside of the stain,
"FEATHERING" towards the
center. Keep changing to a clean section of the cloth. When the stain is cleaned from
the fabric, immediately dry the
area with an air hose, heat dryer
or heat lamp to help prevent a
cleaning ring. (Use caution witha heat dryer or lamp to prevent
damage to fabric.) If a ring forms, immediately
repeat the cleaning operation over a slightly larger area with
emphasis on "FEATHERING"towards its center. If a ring still remains, mask off surrounding
trim sections and clean the entire
affected area with a
multipurpose powered cleaner
(as described under "Cleaning
General Soilage or Water Spots
From Fabric Trim").
Removal of Specific Stains
Greas e o r Oi l Stain s
These include grease, oil, butter,
margarine, shoe polish, coffee
with cream, chewing gum,
cosmetic creams, vegetable oils,
wax crayon, tar and asphalts.
Carefully scrape off excess
stain; then use fabric cleaner
(solvent type) as previously
described.
Shoe polish, wax crayons, tar
and asphalt will stain if allowed
to remain on trim; they should
be removed as soon as possible.
Use caution as cleaner will
dissolve them and may cause
them to "bleed."
Non-Greas y Stain s
These include catsup, coffee (black), egg, fruit juice, milk, soft
drinks, wine, vomit and blood. Carefully scrape off excess
stain; then sponge stain with
cool water. If a stain remains, use a
multipurpose powdered cleaner(foam type) as previously
described.
Car e an d Maintenanc e
Page 228 of 267
If an odor persists after
cleaning vomit or urine, treat
area with a water-baking soda
solution: 1 teaspoon (5 milliliters)
baking soda to 1 cup (250
milliliters) of warm water.
Finally, if needed, clean lightly
with a fabric cleaner (solvent
type).
Combinatio n Stain s
These include candy, ice cream,
mayonnaise, chili sauce and
unknown stains. Carefully scrape off excess
stain; then clean with cool
water and allow to dry. If stain remains, clean with a
fabric cleaner (solvent type). Cleanin
g Viny l o r Leathe r Tri m
Ordinary soilage can be removed
from vinyl or leather with warm
water and a mild soap such as saddle soap, oil soap or
equivalent. Apply a small amount of soap
solution and allow it to soak for
a few minutes to loosen dirt;
then rub briskly with a clean,
damp cloth to remove dirt and traces of soap. (This may be
repeated several times, if
necessary.)
Some compounds such as tar,
asphalt, shoe polish etc. will stain if allowed to remain on
trim. They should be wiped off
as quickly as possible and the
area cleaned with a clean cloth
dampened with vinyl cleaner (solvent type). Sea
t Bel t Car e Clean seat belts only with mild
soap and lukewarm water. Do not bleach or dye belts
since this may severely weaken
them.
Car e an d Maintenanc e
Page 229 of 267
Cleanin
g Glas s Surface s
Glass surfaces should be cleaned
on a regular basis. Use of glass
cleaner will remove normal tobacco smoke and dust films
sometimes caused by ingredients
used in vinyls and interior
plastics.
Never use abrasive cleaners to
clean the glass. They may cause
scratches or damage the defogger
wires in the rear window.
Care an d Maintenanc e
Tinted Glass
Tinted, heat-reflecting glass has a metal coating on the interior side.
Always clean this metal coating
with plain water or a neutral
detergent, not harsh chemicals.Wipe with a clean, soft cloth or a
paper towel.
Page 230 of 267
Technica
l Dat a
Vehicle Identification ...... 228
Vehicle Loading .......... 229 Specifications ........... 231
Technica l Dat a
