Page 231 of 267
Vehicl
e Identificatio n
Vehicl e Identificatio n
Numbe r (VIN )
This is the legal identification of the
vehicle. It appears on a plate attached
to the left top of the instrument panel
and can be easily seen through the
windshield from outside the vehicle.
The VIN also appears on the
vehicle's Certification Label onthe driver's door lock pillar.
Engin
e Identificatio n
You can identify your engine from
the VIN. The eighth character of
the VIN is the engine code that
gives the engine model (refer to
the illustration).
Some information in this section
may refer to the engine model.
The engine number is stamped on the left side of the cylinder block
near the starter.
Servic
e Part s Identificatio n
The Vehicle Information Plate (Service Parts ID Plate) is
provided on all vehicle models.
It is located on the center dash
wall inside the engine compartment. The plate lists the
VIN (Vehicle Identification
Number), paint information and
all production options and special
Technica l Dat a
Engin
e typ e — W; 6VD 1 3.2 L
Page 232 of 267
equipment on the vehicle when it
was shipped from the factory. Be
sure to provide this information to
your authorized Honda dealer when it is necessary to order
parts.

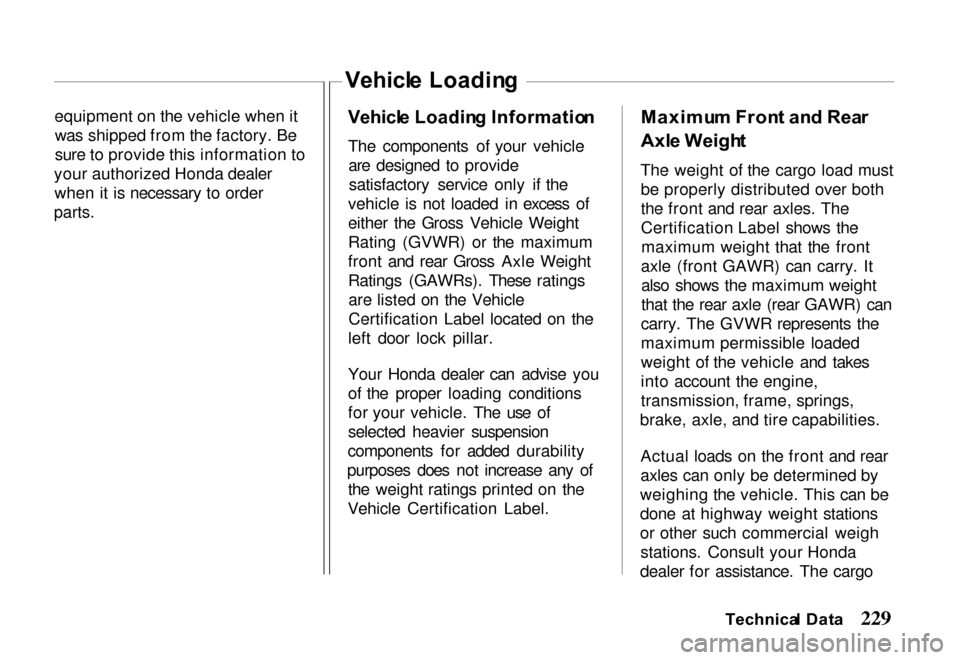

Vehicl
e Loadin g
Vehicl e Loadin g Informatio n
The components of your vehicle are designed to providesatisfactory service only if the
vehicle is not loaded in excess of
either the Gross Vehicle Weight
Rating (GVWR) or the maximum
front and rear Gross Axle Weight
Ratings (GAWRs). These ratings are listed on the Vehicle
Certification Label located on the
left door lock pillar.
Your Honda dealer can advise you
of the proper loading conditions
for your vehicle. The use of
selected heavier suspension
components for added durability
purposes does not increase any of the weight ratings printed on the
Vehicle Certification Label. Maximu
m Fron t an d Rea r
Axl e Weigh t
The weight of the cargo load must be properly distributed over both
the front and rear axles. The
Certification Label shows themaximum weight that the front
axle (front GAWR) can carry. It also shows the maximum weight
that the rear axle (rear GAWR) can
carry. The GVWR represents the
maximum permissible loaded
weight of the vehicle and takes
into account the engine,
transmission, frame, springs,
brake, axle, and tire capabilities.
Actual loads on the front and rear
axles can only be determined by
weighing the vehicle. This can be
done at highway weight stations
or other such commercial weigh stations. Consult your Honda
dealer for assistance. The cargo
Technical Dat a
Page 233 of 267
load should be distributed on both
sides as equally as possible.
Effec t o n Warrant y
Your Limited Warranty on your
new Honda vehicle does not apply to any part of your vehicle that
has been subject to misuse. Any
part which fails because of overloading is considered misuse. Vehicl
e Certificatio n Labe l
The Certification Label shows the GVWR and the front and rearGAWRs for your vehicle. Gross Vehicle Weight (GVW) is
the weight of the originally
equipped vehicle and all items added to it after it has left the
factory. This includes the driver
and all occupants, and the load the
vehicle is carrying. The GVW
must not exceed the GVWR. Also,
the front and rear gross axleweight must not exceed the front
and rear GAWRs.
Technica l Dat a
Page 234 of 267
Specification
s
These specifications are given here for information only. Before using them, see the cautions and other instructions throughout this manual. For further information, see the Service Manual covering the chassi s or body parts in question.
Your Hond
a dealer may also be able to help.
* Oil capacities shown are approximate refill capacities.
* After refill, recheck oil level.
Technical Dat a
Page 235 of 267

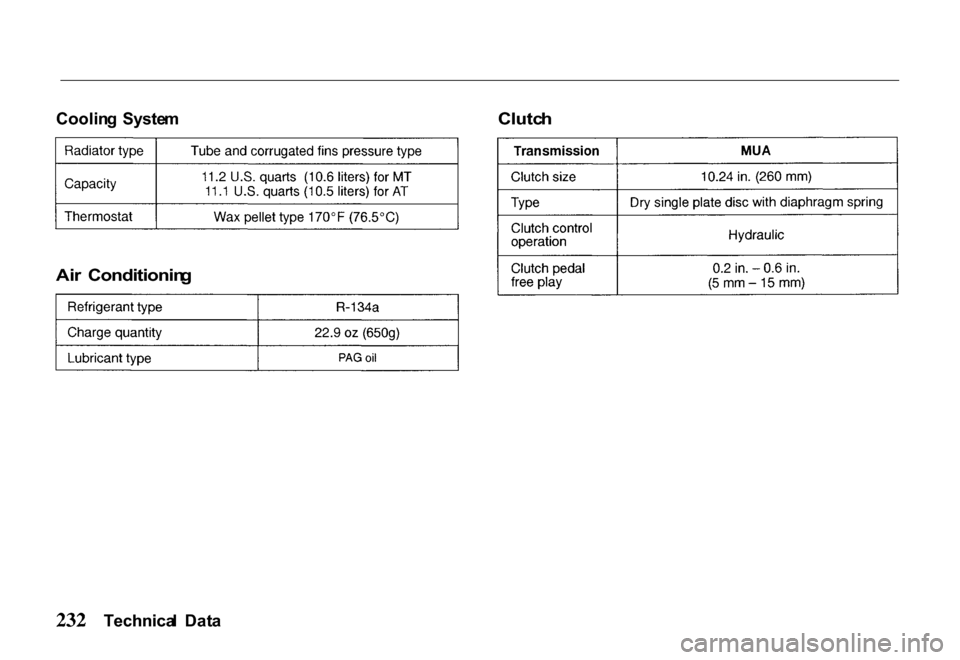

Coolin
g Syste m
Ai r Conditionin g
Clutc
h
Technica l Dat a
Page 236 of 267

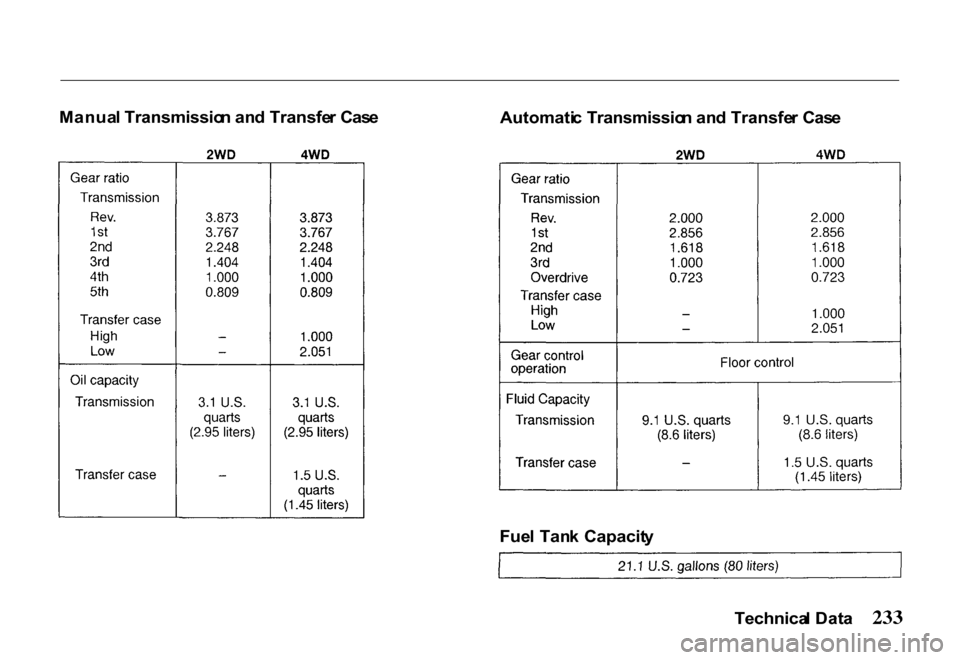

Manua
l Transmissio n an d Transfe r Cas e
Automatic Transmissio n an d Transfe r Cas e
Fue l Tan k Capacit y
Technical Dat a
Page 237 of 267
Fron
t Suspensio n
Independent wishbone arms, torsion bar springs with stabilizer bar.

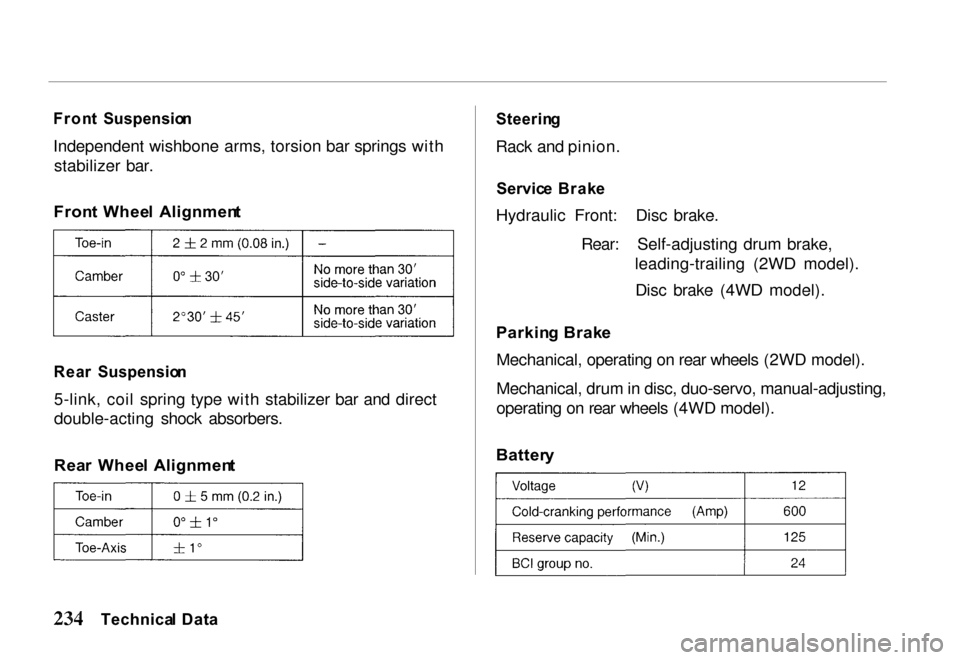

Fron t Whee l Alignmen t
Rea r Suspensio n
5-link, coil spring type with stabilizer bar and direct
double-acting shock absorbers.
Rea r Whee l Alignmen t
Steerin
g
Rack and pinion.
Servic e Brak e
Hydraulic Front: Disc brake.
Rear: Self-adjusting drum brake,leading-trailing (2WD model).
Disc brake (4WD model).
Parkin g Brak e
Mechanical, operating on rear wheels (2WD model).
Mechanical, drum in disc, duo-servo, manual-adjusting,
operating on rear wheels (4WD model).
Batter y
Technical Dat a
Page 238 of 267

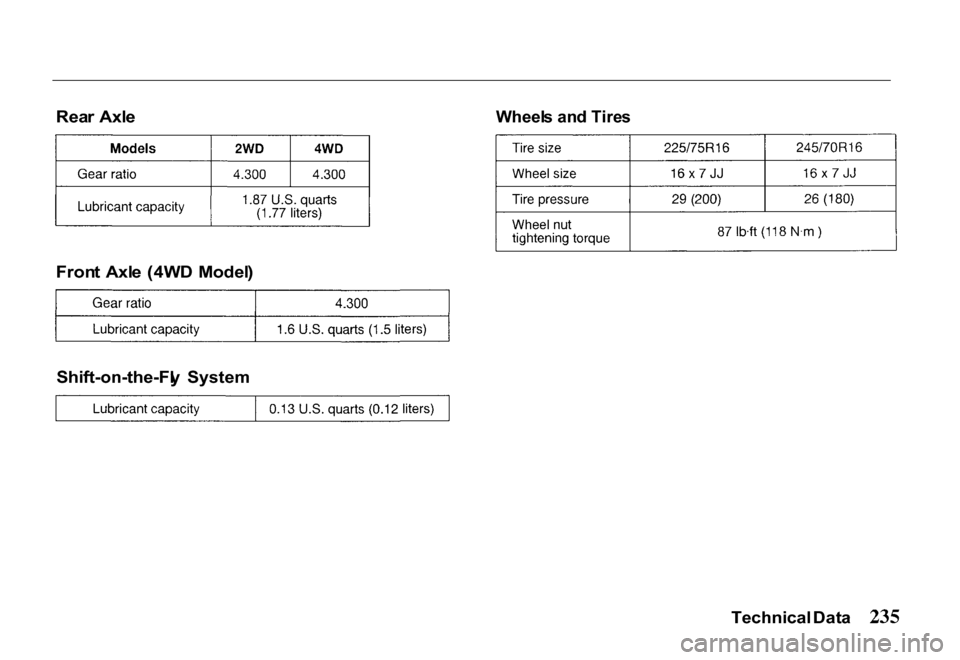

Rea
r Axl e
Fron t Axl e (4W D Model )
Wheel
s an d Tire s
Shift-on-the-Fl y System
Technical Dat a
Page 239 of 267

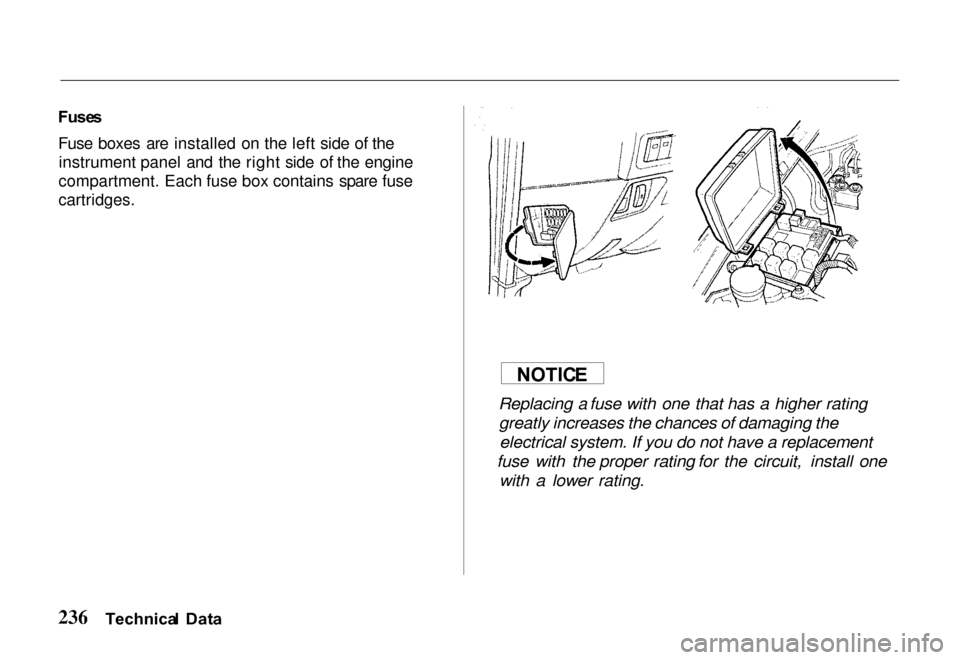

Fuse
s
Fuse boxes are installed on the left side of the instrument panel and the right side of the engine
compartment. Each fuse box contains spare fuse
cartridges.
Replacing a fuse with one that has a higher ratinggreatly increases the chances of damaging the electrical system. If you do not have a replacement
fuse with the proper rating for the circuit, install one with a lower rating.
Technica l Dat a
NOTIC
E
Page 240 of 267

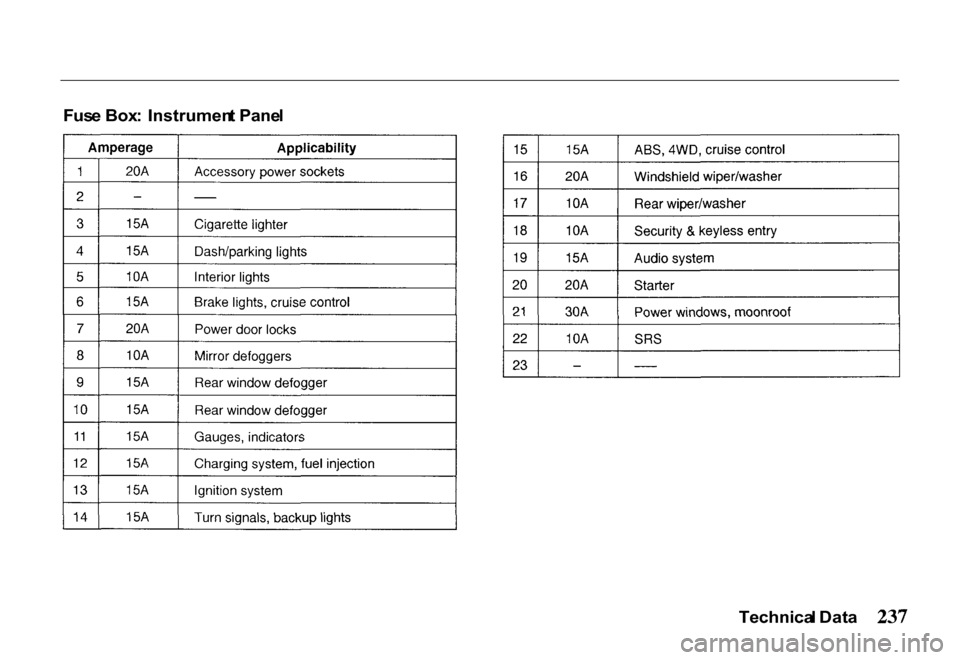

Fus
e Box : Instrumen t Pane l
Technical Dat a
