display HONDA PASSPORT 2020 (in English) Owner's Guide

124
uuGauges and Displays uDriver Information Interface
Instrument Panel

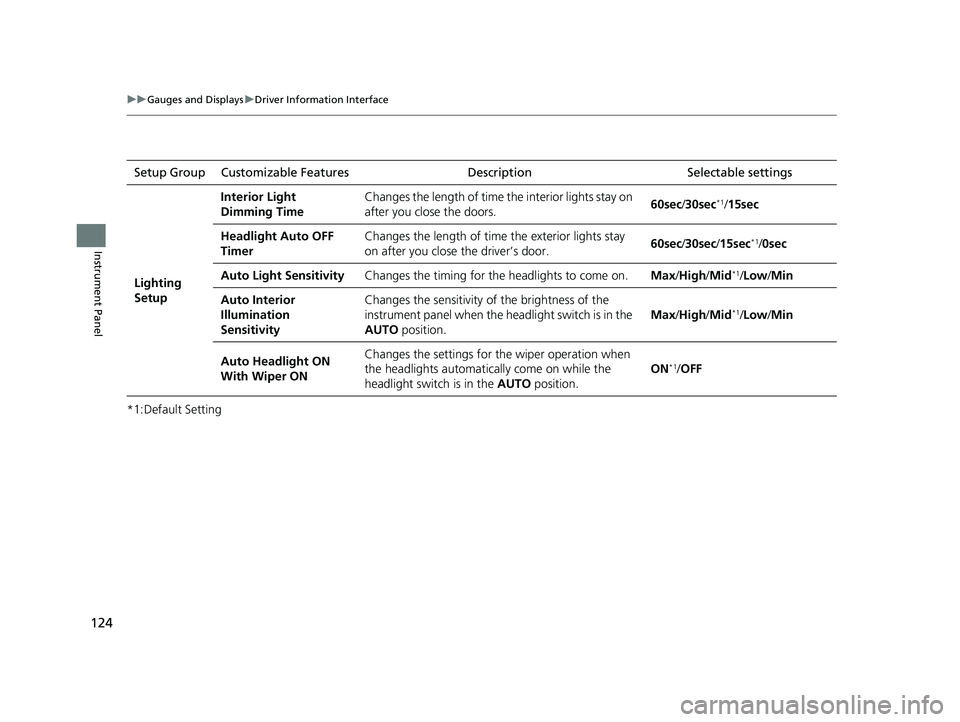

*1:Default SettingSetup Group Customizable Features Description Selectable settings
Lighting
Setup
Interior Light
Dimming TimeChanges the length of time the interior lights stay on
after you close the doors.60sec
/30sec*1/15sec
Headlight Auto OFF
TimerChanges the length of time the exterior lights stay
on after you close the driver’s door.60sec /30sec /15sec*1/0sec
Auto Light SensitivityChanges the timing for th e headlights to come on.Max/High /Mid*1/Low/ Min
Auto Interior
Illumination
SensitivityChanges the sensitivity of the brightness of the
instrument panel when the headlight switch is in the
AUTO position.
Max/High /Mid*1/Low/ Min
Auto Headlight ON
With Wiper ONChanges the settings for the wiper operation when
the headlights automatica lly come on while the
headlight switch is in the AUTO position.
ON*1/OFF
20 PASSPORT-31TGS6100.book 124 ページ ２０１９年８月３０日　金曜日　午後６時２２分

125
uuGauges and Displays uDriver Information Interface
Continued
Instrument Panel

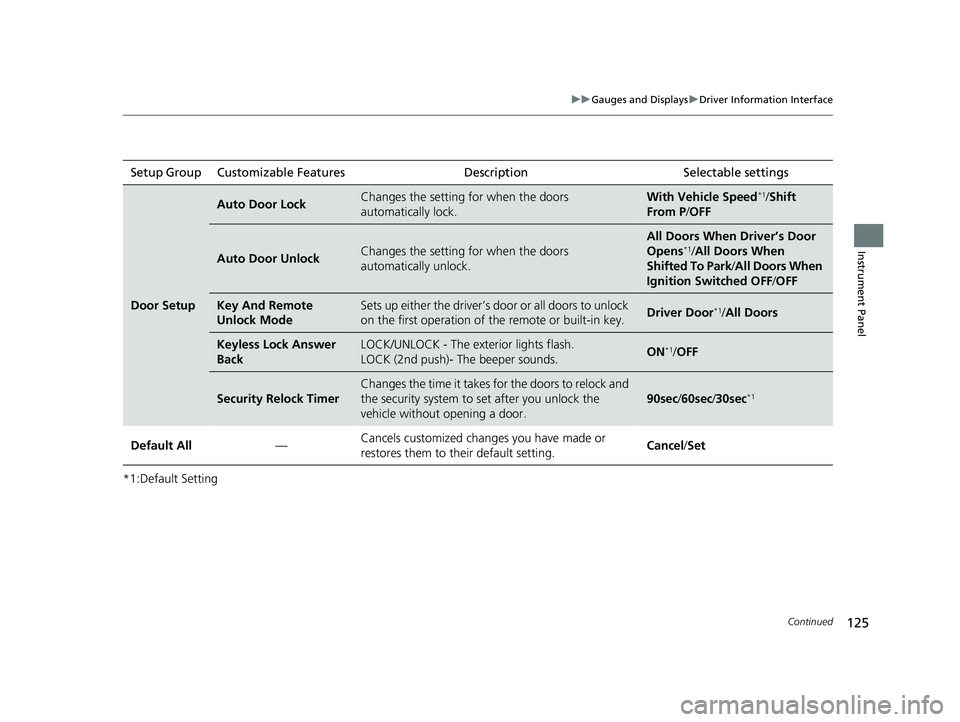

*1:Default SettingSetup Group Customizable Features
Description Selectable settings
Door Setup
Auto Door LockChanges the setting for when the doors
automatically lock.With Vehicle Speed*1/Shift
From P /OFF
Auto Door UnlockChanges the setting for when the doors
automatically unlock.
All Doors When Driver’s Door
Opens*1/All Doors When
Shifted To Park/ All Doors When
Ignition Switched OFF /OFF
Key And Remote
Unlock ModeSets up either the driver’s door or all doors to unlock
on the first operation of the remote or built-in key.Driver Door*1/ All Doors
Keyless Lock Answer
BackLOCK/UNLOCK - The exterior lights flash.
LOCK (2nd push)- The beeper sounds.ON*1/OFF
Security Relock Timer
Changes the time it takes for the doors to relock and
the security system to set after you unlock the
vehicle without opening a door.
90sec /60sec /30sec*1
Default All —Cancels customized changes you have made or
restores them to their default setting.
Cancel
/Set
20 PASSPORT-31TGS6100.book 125 ページ ２０１９年８月３０日　金曜日　午後６時２２分

126
uuGauges and Displays uDriver Information Interface
Instrument Panel

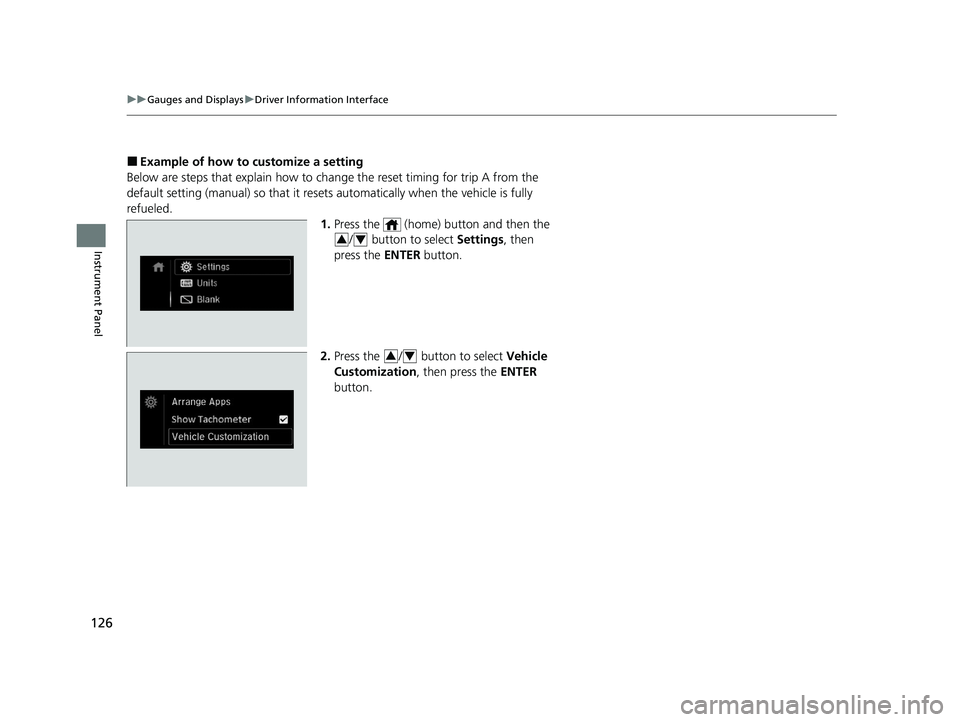

■Example of how to customize a setting
Below are steps that explai n how to change the reset timing for trip A from the
default setting (manual) so that it resets automatically when the vehicle is fully
refueled. 1.Press the (home) button and then the
/ button to select Settings , then
press the ENTER button.
2. Press the / button to select Vehicle
Customization , then press the ENTER
button.
34
34
20 PASSPORT-31TGS6100.book 126 ページ ２０１９年８月３０日　金曜日　午後６時２２分

127
uuGauges and Displays uDriver Information Interface
Continued
Instrument Panel

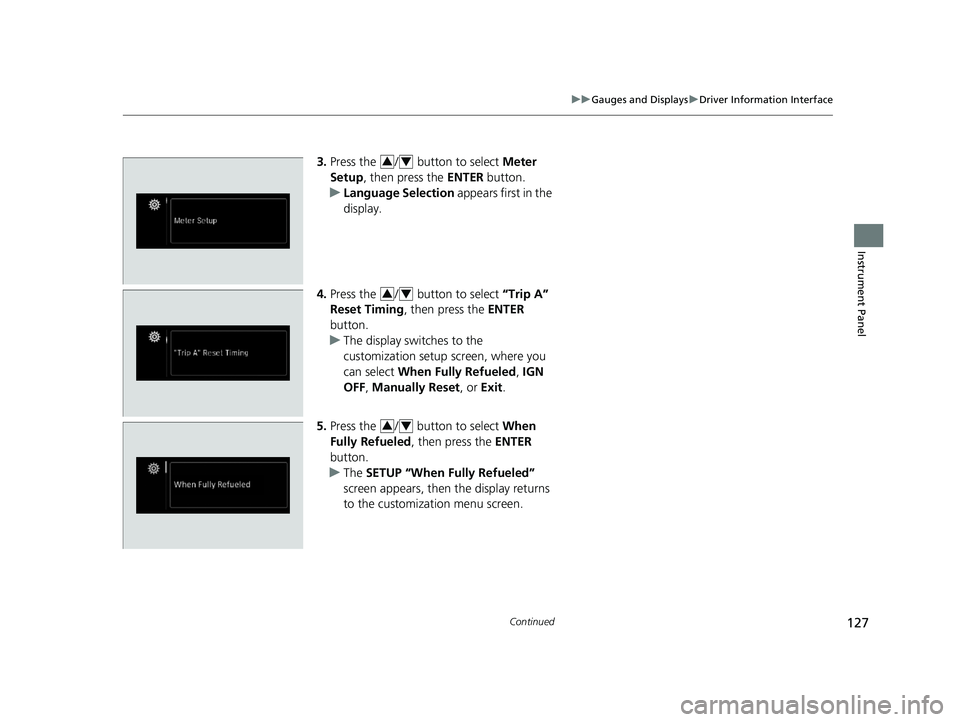

3. Press the / button to select Meter
Setup , then press the ENTER button.
u Language Selection appears first in the
display.
4. Press the / button to select “Trip A”
Reset Timing , then press the ENTER
button.
u The display swit ches to the
customization setup screen, where you
can select When Fully Refueled , IGN
OFF , Manually Reset , or Exit.
5. Press the / button to select When
Fully Refueled, then press the ENTER
button.
u The SETUP “When Fully Refueled”
screen appears, then the display returns
to the customization menu screen.34
34
34
20 PASSPORT-31TGS6100.book 127 ページ ２０１９年８月３０日　金曜日　午後６時２２分

128
uuGauges and Displays uDriver Information Interface
Instrument Panel

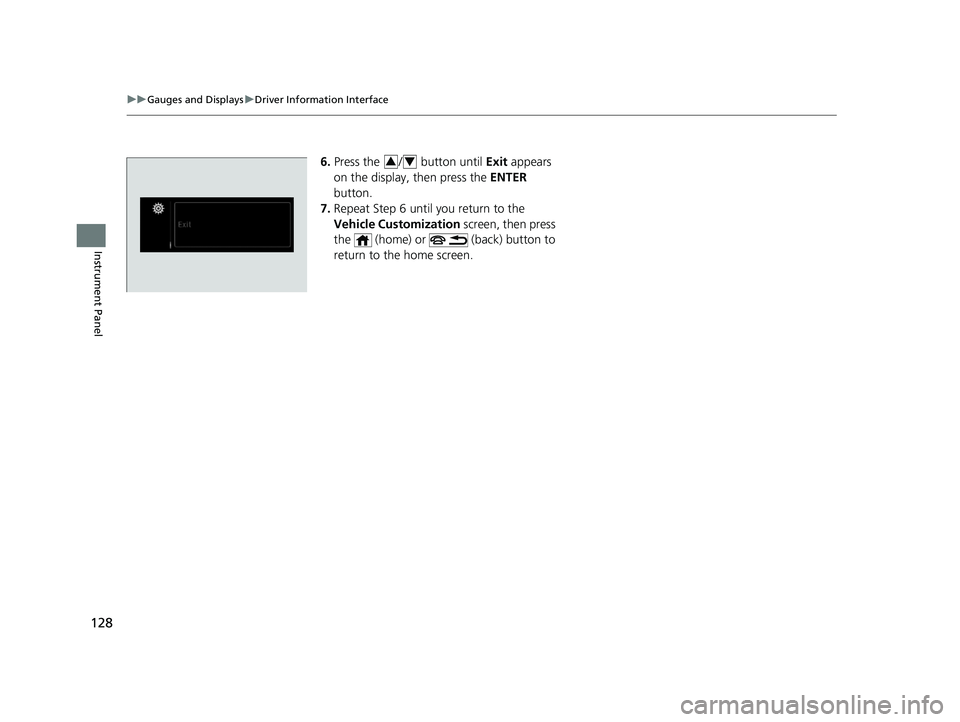

6. Press the / button until Exit appears
on the display, then press the ENTER
button.
7. Repeat Step 6 until you return to the
Vehicle Customization screen, then press
the (home) or (back) button to
return to the home screen.34
20 PASSPORT-31TGS6100.book 128 ページ ２０１９年８月３０日　金曜日　午後６時２２分

130
Controls

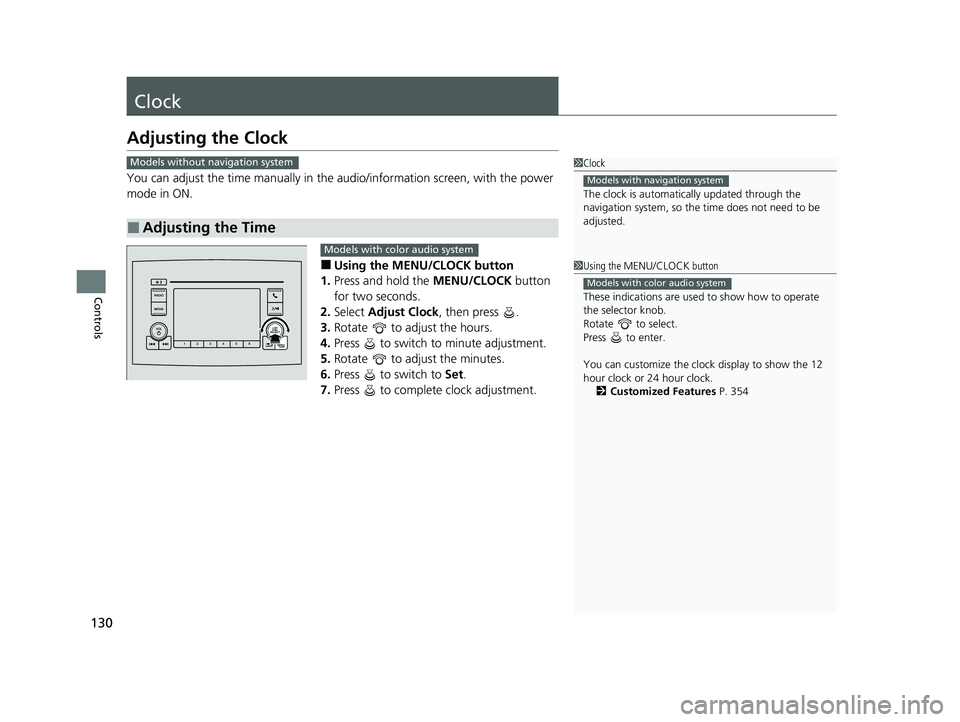

Clock
Adjusting the Clock
You can adjust the time manually in the audio/information screen, with the power
mode in ON.
■Using the MENU/CLOCK button
1. Press and hold the MENU/CLOCK button
for two seconds.
2. Select Adjust Clock , then press .
3. Rotate to adjust the hours.
4. Press to switch to minute adjustment.
5. Rotate to adjust the minutes.
6. Press to switch to Set.
7. Press to complete clock adjustment.
■Adjusting the Time
1Clock
The clock is automatica lly updated through the
navigation system, so the ti me does not need to be
adjusted.
Models with navigation system
Models without navigation system
1 Using the MENU/CLOCK button
These indications are used to show how to operate
the selector knob.
Rotate to select.
Press to enter.
You can customize the clock display to show the 12
hour clock or 24 hour clock. 2 Customized Features P. 354
Models with color audio system
Models with color audio system
20 PASSPORT-31TGS6100.book 130 ページ ２０１９年８月３０日　金曜日　午後６時２２分

Continued131
uuClock uAdjusting the Clock
Controls

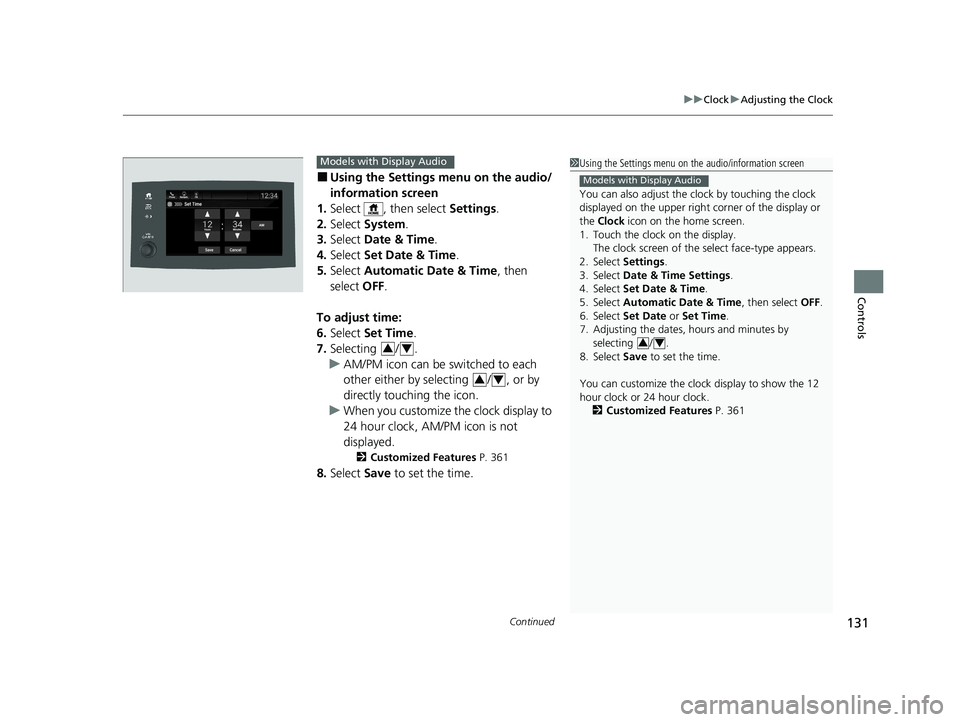

■Using the Setti ngs menu on the audio/
information screen
1. Select , then select Settings.
2. Select System.
3. Select Date & Time .
4. Select Set Date & Time .
5. Select Automatic Date & Time , then
select OFF.
To adjust time:
6. Select Set Time.
7. Selecting / .
u AM/PM icon can be switched to each
other either by selecting / , or by
directly touching the icon.
u When you customize the clock display to
24 hour clock, AM/PM icon is not
displayed.
2 Customized Features P. 361
8.Select Save to set the time.
1Using the Settings menu on the audio/information screen
You can also adjust the clock by touching the clock
displayed on the upper right corner of the display or
the Clock icon on the home screen.
1. Touch the clock on the display.
The clock screen of the select face-type appears.
2. Select Settings .
3. Select Date & Time Settings .
4. Select Set Date & Time .
5. Select Automatic Date & Time , then select OFF.
6. Select Set Date or Set Time.
7. Adjusting the dates, hours and minutes by selecting / .
8. Select Save to set the time.
You can customize the clock display to show the 12
hour clock or 24 hour clock. 2 Customized Features P. 361
Models with Display Audio
34
Models with Display Audio
34
34
20 PASSPORT-31TGS6100.book 131 ページ ２０１９年８月３０日　金曜日　午後６時２２分

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
138
Controls

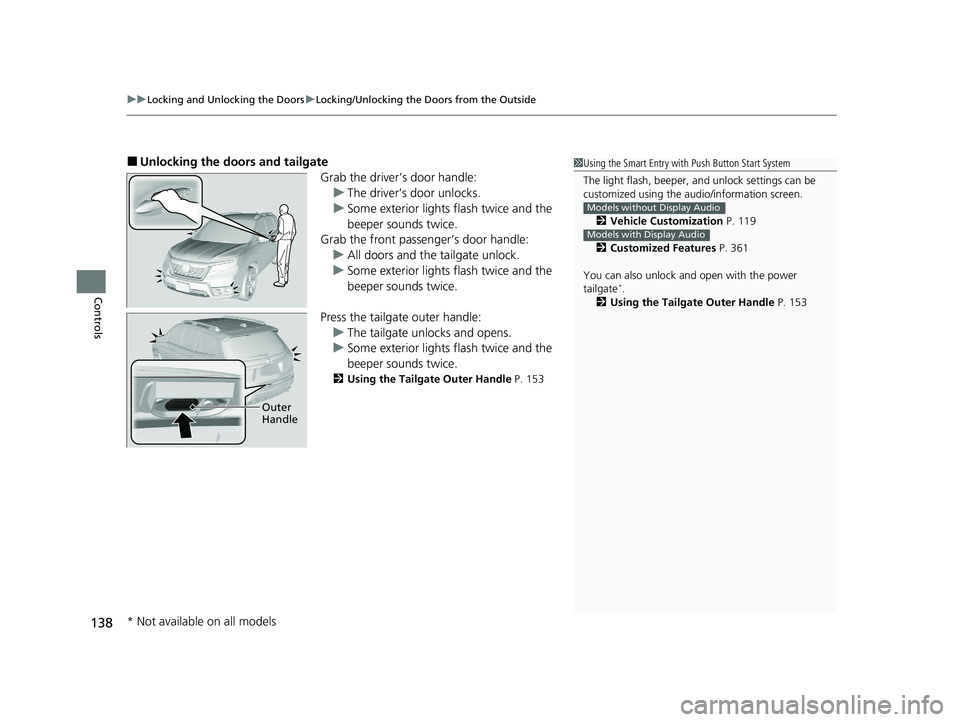

■Unlocking the doors and tailgate
Grab the driver’s door handle:u The driver’s door unlocks.
u Some exterior lights flash twice and the
beeper sounds twice.
Grab the front passenger’s door handle:
u All doors and the tailgate unlock.
u Some exterior lights flash twice and the
beeper sounds twice.
Press the tailgate outer handle: u The tailgate unlocks and opens.
u Some exterior lights flash twice and the
beeper sounds twice.
2 Using the Tailgate Outer Handle P. 153
1Using the Smart Entry with Push Button Start System
The light flash, beeper, a nd unlock settings can be
customized using the audio/information screen.
2 Vehicle Customization P. 119
2 Customized Features P. 361
You can also unlock and open with the power
tailgate
*.
2 Using the Tailgate Outer Handle P. 153
Models without Display Audio
Models with Display Audio
Outer
Handle
* Not available on all models
20 PASSPORT-31TGS6100.book 138 ページ ２０１９年８月３０日　金曜日　午後６時２２分

Continued141
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls

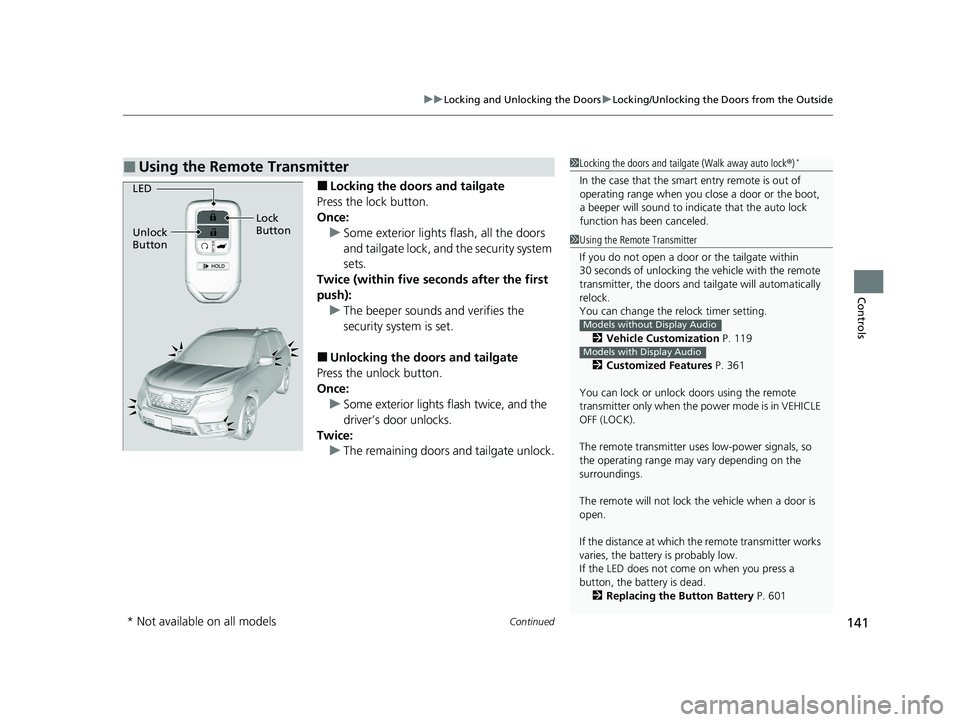

■Locking the doors and tailgate
Press the lock button.
Once: u Some exterior lights flash, all the doors
and tailgate lock, and the security system
sets.
Twice (within five se conds after the first
push): u The beeper sounds and verifies the
security system is set.
■Unlocking the doors and tailgate
Press the unlock button.
Once: u Some exterior lights flash twice, and the
driver’s door unlocks.
Twice: u The remaining doors and tailgate unlock.
■Using the Remote Transmitter1Locking the doors and tailg ate (Walk away auto lock®)*
In the case that the smart entry remote is out of
operating range when you close a door or the boot,
a beeper will sound to indi cate that the auto lock
function has been canceled.
1 Using the Remote Transmitter
If you do not open a door or the tailgate within
30 seconds of unlocking the vehicle with the remote
transmitter, the doors and ta ilgate will automatically
relock.
You can change the relock timer setting.
2 Vehicle Customization P. 119
2 Customized Features P. 361
You can lock or unlock doors using the remote
transmitter only when the power mode is in VEHICLE
OFF (LOCK).
The remote transmitter us es low-power signals, so
the operating range may vary depending on the
surroundings.
The remote will not lock th e vehicle when a door is
open.
If the distance at which the remote transmitter works
varies, the batter y is probably low.
If the LED does not come on when you press a
button, the battery is dead.
2 Replacing the Button Battery P. 601
Models without Display Audio
Models with Display Audio
LED
Unlock
ButtonLock
Button
* Not available on all models
20 PASSPORT-31TGS6100.book 141 ページ ２０１９年８月３０日　金曜日　午後６時２２分

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
142

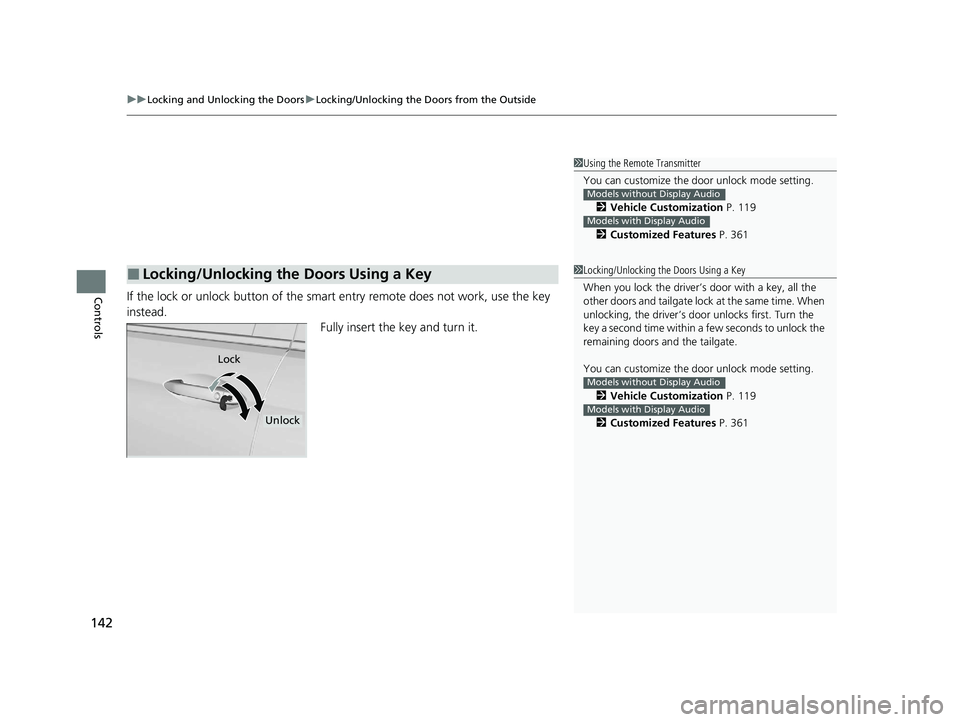

ControlsIf the lock or unlock button of the sma rt entry remote does not work, use the key
instead. Fully insert the key and turn it.
1Using the Remote Transmitter
You can customize the door unlock mode setting.
2 Vehicle Customization P. 119
2 Customized Features P. 361
Models without Display Audio
Models with Display Audio
■Locking/Unlocking the Doors Using a Key1Locking/Unlocking the Doors Using a Key
When you lock the driver’s door with a key, all the
other doors and tailgate lock at the same time. When
unlocking, the driver’s door unlocks first. Turn the
key a second time within a few seconds to unlock the
remaining doors a nd the tailgate.
You can customize the door unlock mode setting.
2 Vehicle Customization P. 119
2 Customized Features P. 361
Models without Display Audio
Models with Display Audio
Lock
Unlock
20 PASSPORT-31TGS6100.book 142 ページ ２０１９年８月３０日　金曜日　午後６時２２分
