114
uuGauges and Displays uDriver Information Interface
Instrument Panel

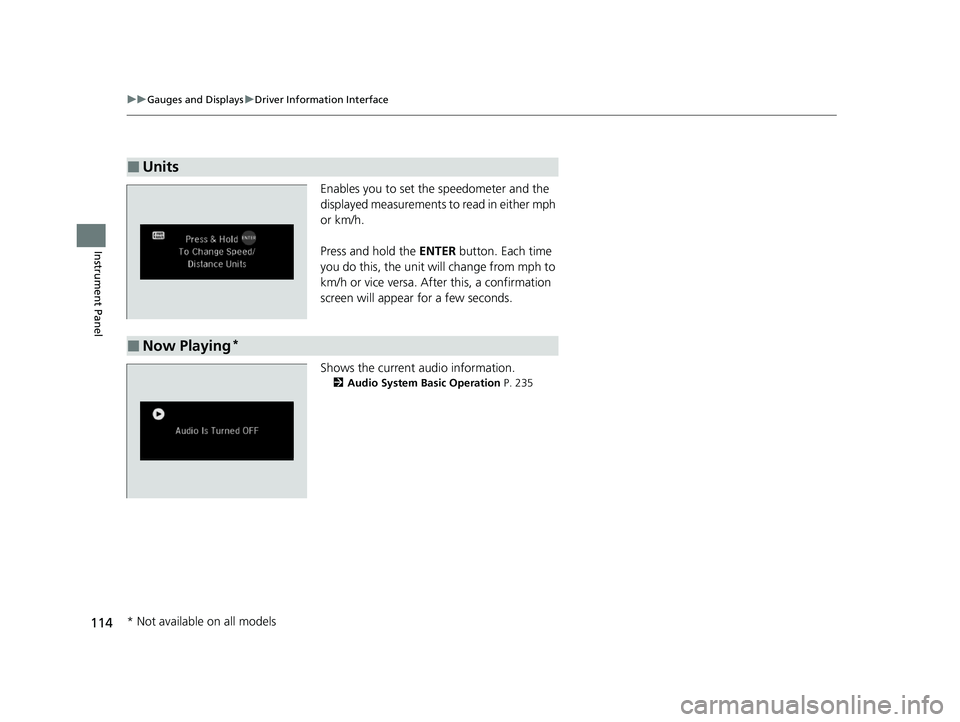

Enables you to set the speedometer and the
displayed measurements to read in either mph
or km/h.
Press and hold the ENTER button. Each time
you do this, the unit will change from mph to
km/h or vice versa. After this, a confirmation
screen will appear for a few seconds.
Shows the current audio information.
2 Audio System Basic Operation P. 235
■Units
■Now Playing*
* Not available on all models
20 PASSPORT-31TGS6100.book 114 ページ ２０１９年８月３０日　金曜日　午後６時２２分

115
uuGauges and Displays uDriver Information Interface
Continued
Instrument Panel

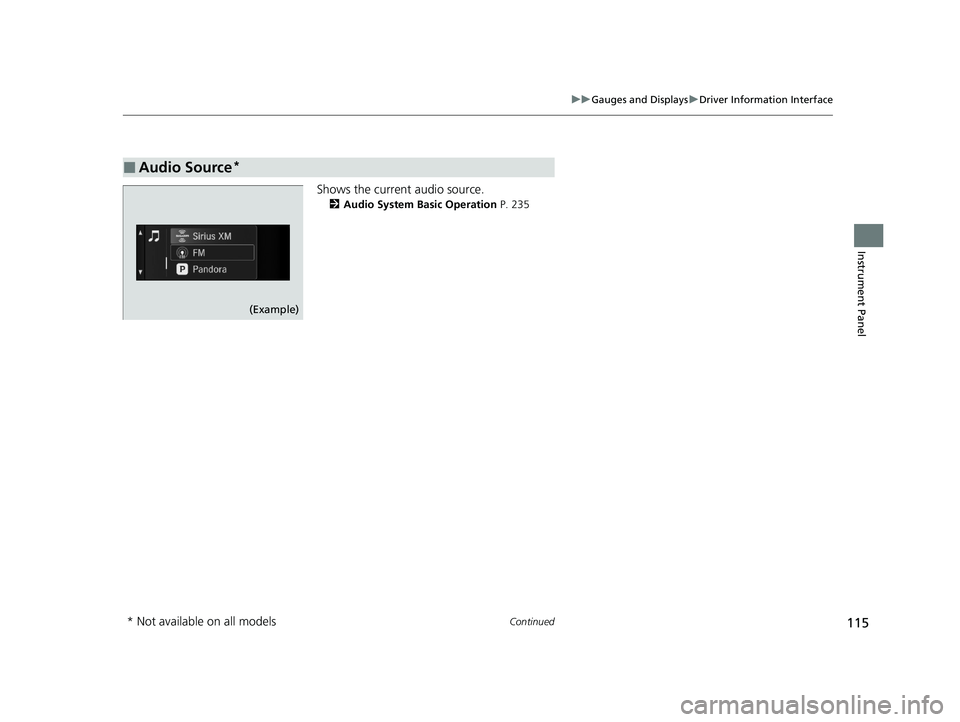

Shows the current audio source.
2 Audio System Basic Operation P. 235
■Audio Source*
(Example)
* Not available on all models
20 PASSPORT-31TGS6100.book 115 ページ ２０１９年８月３０日　金曜日　午後６時２２分

uuGauges and Displays uDriver Information Interface
116
Instrument Panel
You can show or hide the meter contents.
Select the content you wish to show or hide,
then press the ENTER button.
u Repeat it if you want to show or hide
more than one app.
■Show/Hide Apps1Show/Hide Apps
You cannot hide apps with the icon on the right
side.
Selecting Default All in Vehicle Customization
does not restore these settings to their original state.
You can also add the Android Auto, Apple
CarPlay , Sirius XM
*, My Honda Music , USB, AM,
FM , Bluetooth Audio , Social Playlist and AUX
Input apps.
Models with Display Audio
Shown
Press ENTER
Hidden
* Not available on all models
20 PASSPORT-31TGS6100.book 116 ページ ２０１９年８月３０日　金曜日　午後６時２２分

Continued117
uuGauges and Displays uDriver Information Interface
Instrument Panel
Change the settings to your liking.
■Arrange Apps
You can change the order of the apps on the home screen. 1.Press the / button to select Arrange
Apps , then press the ENTER button.
2. Press the / button to select the icon
you want to move, then press the ENTER
button.
3. Press the / button repeatedly to move
the icon to your desired position, then press
the ENTER button.

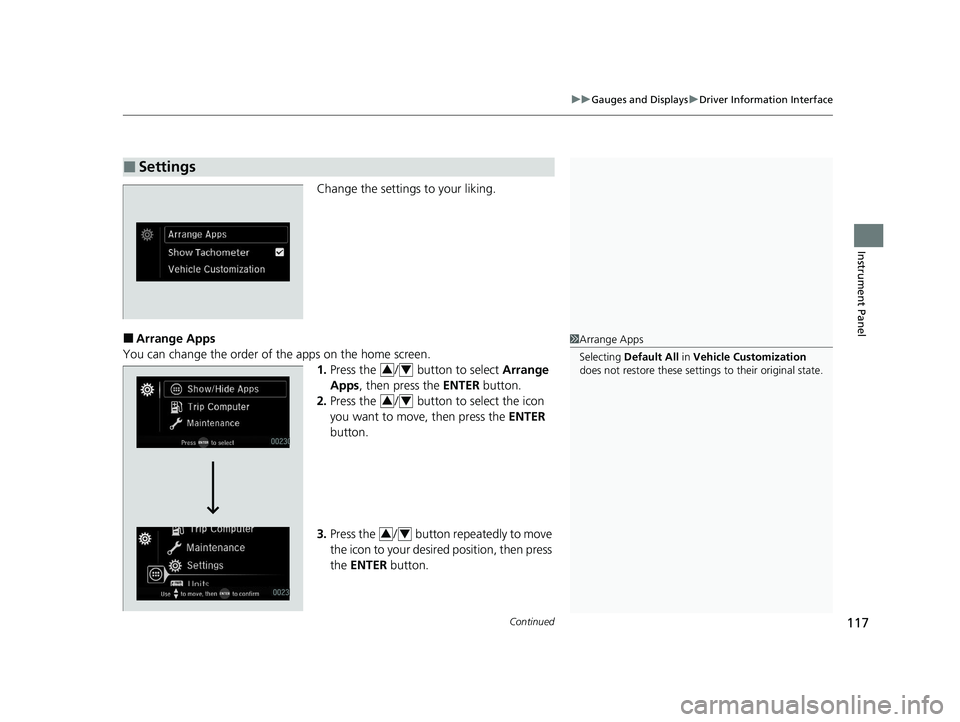

■Settings
1Arrange Apps
Selecting Default All in Vehicle Customization
does not restore these settings to their original state.
34
34
34
20 PASSPORT-31TGS6100.book 117 ページ ２０１９年８月３０日　金曜日　午後６時２２分

uuGauges and Displays uDriver Information Interface
118
Instrument Panel

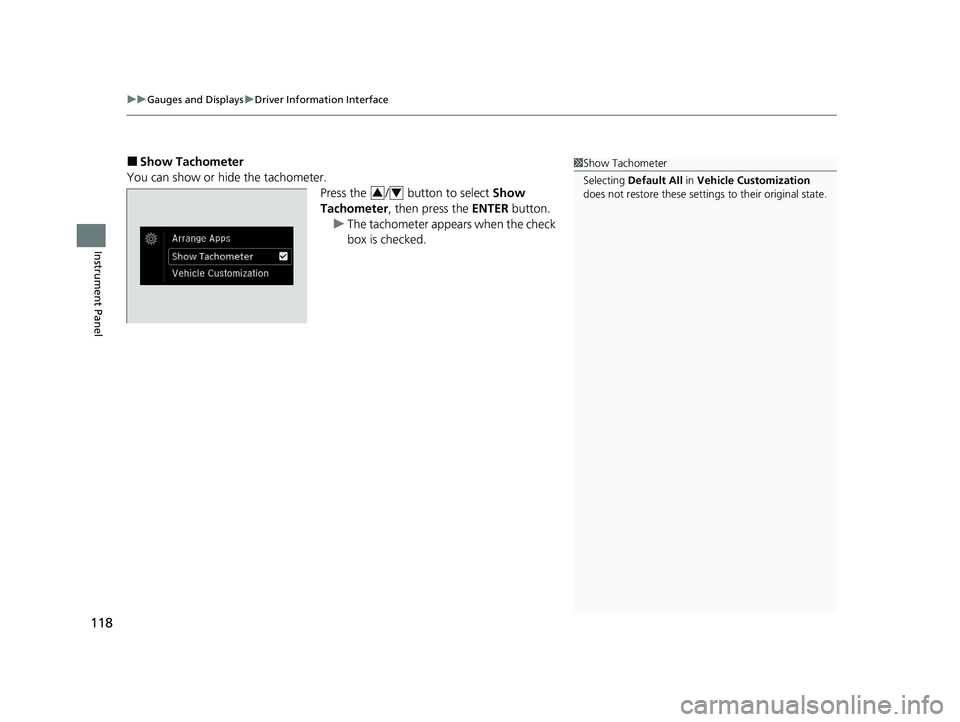

■Show Tachometer
You can show or hide the tachometer. Press the / button to select Show
Tachometer , then press the ENTER button.
u The tachometer appears when the check
box is checked.1Show Tachometer
Selecting Default All in Vehicle Customization
does not restore these settings to their original state.
34
20 PASSPORT-31TGS6100.book 118 ページ ２０１９年８月３０日　金曜日　午後６時２２分

Continued119
uuGauges and Displays uDriver Information Interface
Instrument Panel

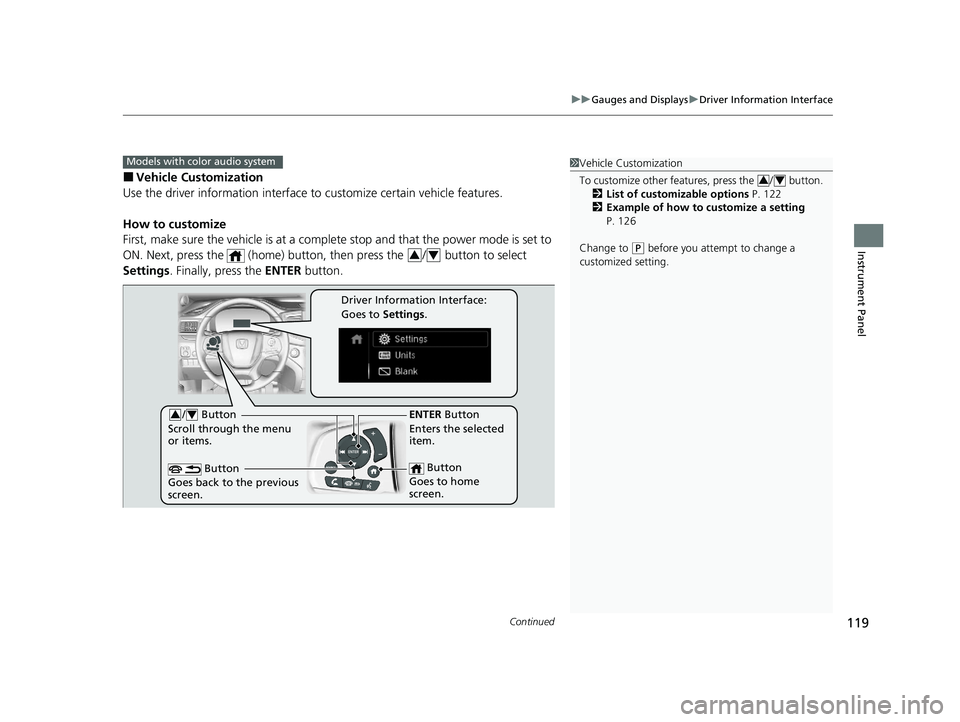

■Vehicle Customization
Use the driver information interface to customize certain vehicle features.
How to customize
First, make sure the vehicle is at a complete stop and that the power mode is set to
ON. Next, press the (home) button, then press the / button to select
Settings . Finally, press the ENTER button.
Models with color audio system1Vehicle Customization
To customize other features, press the / button.
2 List of customizable options P. 122
2 Example of how to customize a setting
P. 126
Change to
( P before you attempt to change a
customized setting.
34
34
/ Button
Scroll through the menu
or items.34
Button
Goes back to the previous
screen.
ENTER Button
Enters the selected
item.
Button
Goes to home
screen.
Driver Information Interface:
Goes to Settings.
20 PASSPORT-31TGS6100.book 119 ページ ２０１９年８月３０日　金曜日　午後６時２２分

120
uuGauges and Displays uDriver Information Interface
Instrument Panel

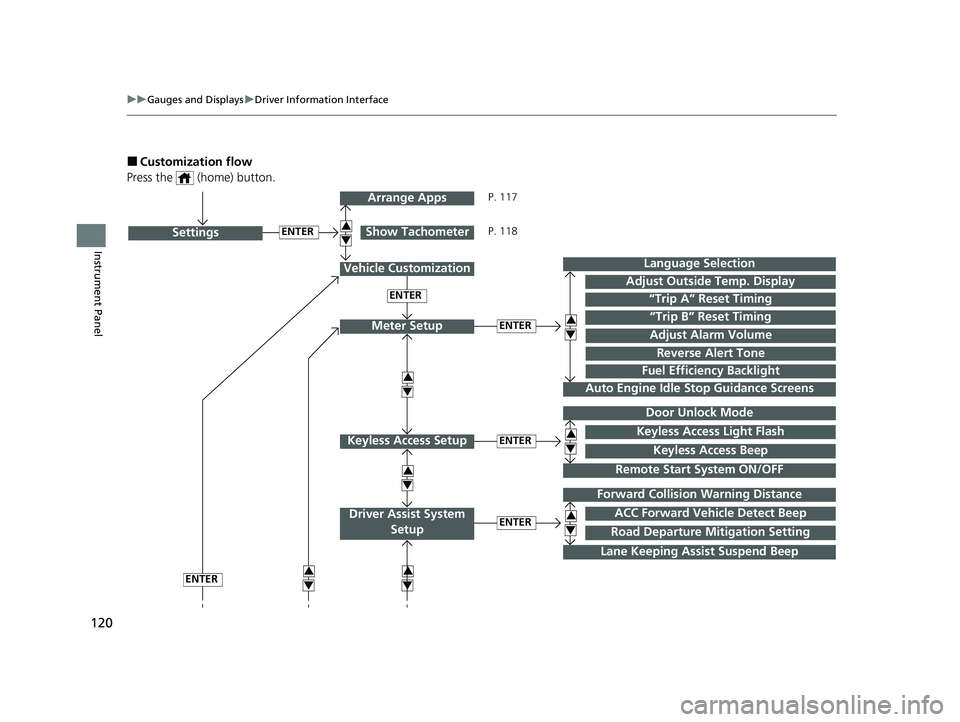

■Customization flow
Press the (home) button.
ENTER“Trip B” Reset Timing
Reverse Alert Tone
Auto Engine Idle Stop Guidance Screens
“Trip A” Reset Timing
Language Selection
Adjust Alarm VolumeMeter Setup
ENTERSettings
Arrange Apps
Show Tachometer3
4
3
4
3
4
3
4
Vehicle Customization
ENTER
P. 117
P. 118
ENTER
ENTERRoad Departure Mitigation Setting
Lane Keeping Assi st Suspend Beep
ACC Forward Vehicle Detect Beep
Forward Collision Warning Distance
Driver Assist System
Setup
3
4
3
4
ENTERKeyless Access Beep
Remote Start System ON/OFF
Keyless Access Light Flash
Door Unlock Mode
Keyless Access Setup3
4
Adjust Outside Temp. Display
Fuel Efficiency Backlight
3
4
20 PASSPORT-31TGS6100.book 120 ページ ２０１９年８月３０日　金曜日　午後６時２２分

121
uuGauges and Displays uDriver Information Interface
Continued
Instrument Panel

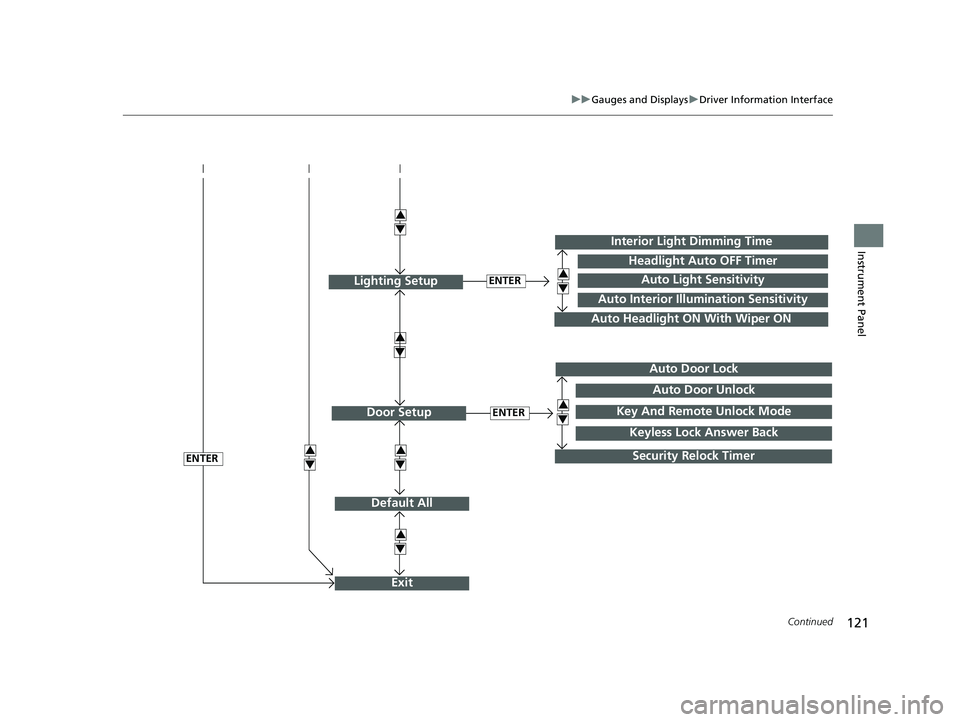

Default All
ENTER
ENTER
Auto Door Lock
Security Relock Timer
Auto Door Unlock
Key And Remote Unlock Mode
Keyless Lock Answer Back
Door Setup
Exit
3
4
3
4
3
4
3
4
3
4
Interior Light Dimming Time
Auto Headlight ON With Wiper ON
ENTERLighting Setup3
4Auto Light Sensitivity
Headlight Auto OFF Timer
Auto Interior Illu mination Sensitivity
3
4
20 PASSPORT-31TGS6100.book 121 ページ ２０１９年８月３０日　金曜日　午後６時２２分

122
uuGauges and Displays uDriver Information Interface
Instrument Panel
■List of customizable options
*1:Default Setting Setup Group Customizable Features Description Selectable settings
Meter Setup
Language SelectionChanges the displayed language.English*1/
Français /Español
Adjust Outside Temp.
DisplayAdjusts the temperature r eading by a few degrees.−5°F ~ ±0°F*1 ~ +5°F (U.S.)
−3°C ~ ±0°C*1 ~ +3°C (Canada)
“Trip A” Reset TimingChanges the setting of how the distance and
average fuel economy of trip computer A is reset.When Fully Refueled /IGN OFF /
Manually Reset*1
“Trip B” Reset TimingChanges the setting of how the distance and
average fuel economy of trip computer B is reset.When Fully Refueled/IGN OFF /
Manually Reset*1
Adjust Alarm VolumeChanges the volume setting for buzzers, warnings,
turn signals, and other alerting systems.High /Mid*1/Low
Reverse Alert ToneCauses the beeper to s ound once when the gear
position is changed to
( R.ON*1/ OFF
Fuel Efficiency
BacklightTurns the ambient meter feature on and off.ON*1/OFF
Auto Engine Idle Stop
Guidance ScreensTurns the engine idle-stop guidance displayed in the
meter display on and off during the auto engine idle-
stop system is in operation.
ON /OFF*1
20 PASSPORT-31TGS6100.book 122 ページ ２０１９年８月３０日　金曜日　午後６時２２分

123
uuGauges and Displays uDriver Information Interface
Continued
Instrument Panel

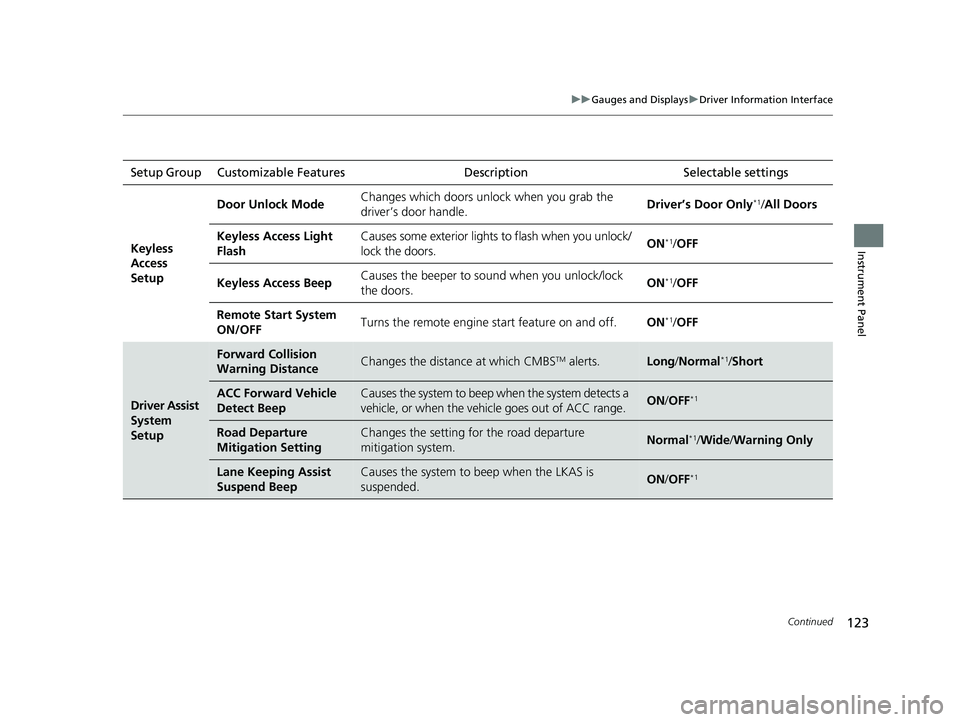

Setup Group Customizable Features Description Selectable settings
Keyless
Access
Setup Door Unlock Mode
Changes which doors unlock when you grab the
driver’s door handle. Driver’s Door Only
*1/
All Doors
Keyless Access Light
Flash Causes some exterior lights to flash when you unlock/
lock the doors.
ON
*1/
OFF
Keyless Access Beep Causes the beeper to so
und when you unlock/lock
the doors. ON
*1/
OFF
Remote Start System
ON/OFF Turns the remote engine start feature on and off.
ON
*1/OFF
Driver Assist
System
Setup
Forward Collision
Warning DistanceChanges the distance at which CMBSTM alerts.Long /Normal*1/ Short
ACC Forward Vehicle
Detect BeepCauses the system to beep when the system detects a
vehicle, or when the vehicle goes out of ACC range.ON /OFF*1
Road Departure
Mitigation SettingChanges the setting for the road departure
mitigation system.Normal*1/Wide /Warning Only
Lane Keeping Assist
Suspend BeepCauses the system to b eep when the LKAS is
suspended.ON /OFF*1
