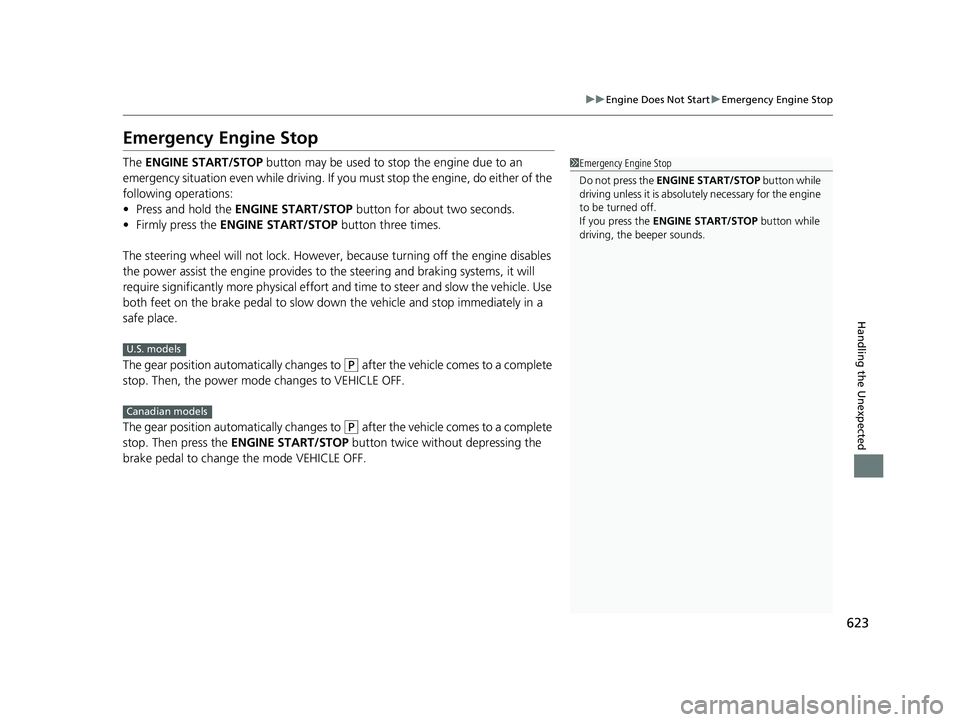

uuEngine Does Not Start uEmergency Engine Stop
Handling the Unexpected
Emergency Engine Stop
The ENGINE START/STOP button may be used to stop the engine due to an
emergency situation even while driving. If you must stop the engine, do either of the
following operations:
• Press and hold the ENGINE START/STOP button for about two seconds.
• Firmly press the ENGINE START/STOP button three times.
The steering wheel will not lock. However, because turning off the engine disables
the power assist the engine provides to the steering and braking systems, it will
require significantly more physical effort an d time to steer and slow the vehicle. Use
both feet on the brake pedal to slow down the vehicle and stop immediately in a
safe place.
The gear position automatically changes to
(P after the vehicle comes to a complete
stop. Then, the power mode changes to VEHICLE OFF.
The gear position automatically changes to
(P after the vehicle comes to a complete
stop. Then press the ENGINE START/STOP button twice without depressing the
brake pedal to change the mode VEHICLE OFF.
1 Emergency Engine Stop
Do not press the ENGINE START/STOP button while
driving unless it is absolute ly necessary for the engine
to be turned off.
If you press the ENGINE START/STOP button while
driving, the beeper sounds.
U.S. models
Canadian models
20 PASSPORT-31TGS6100.book 623 ページ ２０１９年８月３０日　金曜日　午後６時２２分

uuOverheating uHow to Handle Overheating
628
Handling the Unexpected
■Next thing to do
1.Check that the cooling fan is operating and
stop the engine once the temperature
gauge needle comes down.
u If the cooling fan is not operating,
immediately stop the engine.
2. Once the engine has cooled down, inspect
the coolant level an d check the cooling
system components for leaks.
u If the coolant level in the reserve tank is
low, remove the engine compartment
cover then add coolant until it reaches
the MAX mark.
2Engine Compartment Cover P. 571
uIf there is no coolan t in the reserve tank,
check that the radiator is cool. Cover the
radiator cap with a heavy cloth and open
the cap. If necessary, add coolant up to
the base of the filler neck, and put the
cap back on.
■Last thing to do
Once the engine has cooled sufficiently, re start it and check the temperature gauge.
If the temperature gauge needle has gone do wn, resume driving. If it has not gone
down, contact a dealer for repairs.
1 How to Handle Overheating
If the coolant is leaking, contact a dealer for repairs.
Use water as an emergency/temporary measure only.
Have a dealer flush the system with proper antifreeze
as soon as possible.
3WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.
Reserve Tank
MAXMIN
20 PASSPORT-31TGS6100.book 628 ページ ２０１９年８月３０日　金曜日　午後６時２２分

629
Handling the Unexpected
Indicator, Coming On/Blinking
If the Low Oil Pressure Warning Appears
■Reasons for the warning to appear
Appears when the engine oil pressure is low.
■What to do as soon as the warning appears
1. Immediately park the vehicle on level ground in a safe place.
2. If necessary, turn the hazard warning lights on.
■What to do after parking the vehicle
1. Stop the engine and let it sit for approximately three minutes.
2. Open the hood and check the oil level.
u Add oil as necessary.
2 Oil Check P. 573
3.Start the engine and check the low oil pressure warning.
u The warning disappears: Start driving again.
u The warning does not disappear within 10 seconds: Immediately
stop the engine and contact a dealer for repairs.
If the Charging System Indicator Comes On
■Reasons for the indicator to come on
Comes on when the battery is not being charged.
■What to do when th e indicator comes on
Turn off the climate control system, rear defogger, and other electrical
systems, and immediately co ntact a dealer for repairs.
1If the Low Oil Pressure Warning Appears
NOTICE
Running the engine with low oil pressure can cause
serious mechanical damage almost immediately.
1If the Charging System Indicator Comes On
If you need to stop temporarily, do not turn off the
engine. Restarting the engi ne may rapidly discharge
the battery.
20 PASSPORT-31TGS6100.book 629 ページ ２０１９年８月３０日　金曜日　午後６時２２分

630

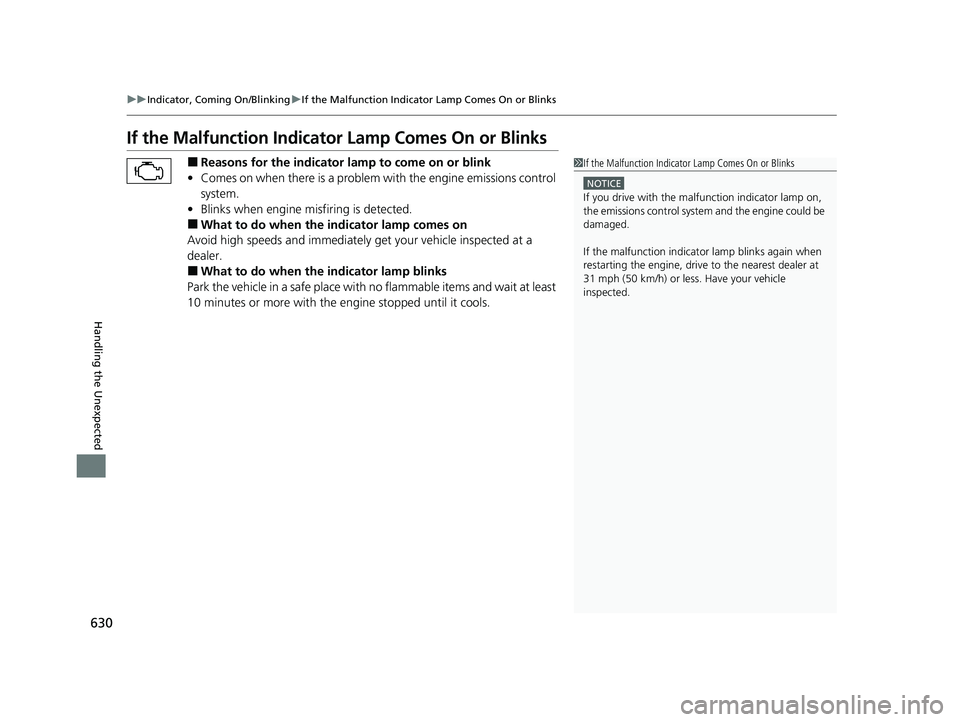

uuIndicator, Coming On/Blinking uIf the Malfunction Indicato r Lamp Comes On or Blinks
Handling the Unexpected
If the Malfunction Indicator Lamp Comes On or Blinks
■Reasons for the indicator la mp to come on or blink
• Comes on when there is a problem with the engine emissions control
system.
• Blinks when engine misfiring is detected.
■What to do when the indicator lamp comes on
Avoid high speeds and immediately get your vehicle inspected at a
dealer.
■What to do when the indicator lamp blinks
Park the vehicle in a safe place with no flammable items and wait at least
10 minutes or more with the engine stopped until it cools.
1 If the Malfunction Indicato r Lamp Comes On or Blinks
NOTICE
If you drive with the malf unction indicator lamp on,
the emissions control system and the engine could be
damaged.
If the malfunction indicator lamp blinks again when
restarting the engine, drive to the nearest dealer at
31 mph (50 km/h) or less. Have your vehicle
inspected.
20 PASSPORT-31TGS6100.book 630 ページ ２０１９年８月３０日　金曜日　午後６時２２分

631
uuIndicator, Comin g On/BlinkinguIf the Brake System Indicator (Red) Comes On
Handling the Unexpected
If the Brake System Indicator (Red) Comes On
■Reasons for the indicator to come on
• The brake fluid is low.
• There is a malfunction in the brake system.
■What to do when the indicator comes on while driving
Depress the brake pedal lightly to check pedal pressure.
• If normal, check the brake fluid level the next time you stop.
• If abnormal, take immediate acti on. If necessary, downshift the
transmission to slow the vehicle using engine braking.
If the Electric Power Steering (EPS) System Indicator Comes On
■Reasons for the indicator to come on
• Comes on when there is a problem with the EPS system.
• If you depress the accelerator pedal repeatedly to increase the engine
speed while the engine is idling, the indicator comes on, and
sometimes the steering wheel becomes harder to operate.
■What to do when th e indicator comes on
Stop the vehicle in a safe place and restart the engine.
If the indicator comes on and stays on, immediately have your vehicle
inspected by a dealer.
1 If the Brake System Indicator (Red) Comes On
Have your vehicle re paired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe plac e. If necessary downshift
the gears.
If the brake system indicator and ABS indicator come
on simultaneously, the elec tronic brake distribution
system is not working. Th is can result in vehicle
instability under sudden braking.
Have your vehicle inspecte d by a dealer immediately.U.S.
Canada
20 PASSPORT-31TGS6100.book 631 ページ ２０１９年８月３０日　金曜日　午後６時２２分

632
uuIndicator, Coming On/Blinking uIf the Low Tire Pressure/Tire Pressure Monitoring System (TPMS) Indicator Comes On or Blinks
Handling the Unexpected
If the Low Tire Pressure/Tire Pressure Monitoring
System (TPMS) Indicato r Comes On or Blinks
■Reasons for the indicator to come on or blink
A tire pressure is significantly low. If there is a problem with the TPMS
with Tire Fill Assist or the compact spare tire is installed, the indicator
blinks for about one mi nute, and then stays on.
■What to do when the indicator comes on
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The sp ecified tire pressure is on a label on
the driver side doorjamb.
■What to do when the indica tor blinks, then remains on
Have the tire inspected by a dealer as soon as possible. If the compact
spare tire causes the indicator to blink, change the tire to a full-size tire.
The indicator goes off after driving for a few miles (kilometers).
If the Transmission Indicator Blinks along with the Warning Message
■Reasons for the in dicator to blink
The transmission is malfunctioning.
■What to do when the indicator blinks
• Immediately have your vehi cle inspected by a dealer.
• Change the gear position to
(N after starting the engine.
u Check if the
(N position in the instrume nt panel and the indicator
on the
(N button light/blink.
u The engine cannot be turned on unless the parking brake is set.
2 Starting the Engine P. 454
1If the Low Tire Pressure/Tire Pressure Monitoring System (TPMS)
Indicator Comes On or Blinks
NOTICE
Driving on an extremely underinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.
TPMS with Tire Fill Assist provides visual and audible
assistance during tire pre ssure adjustment. With the
power mode in ON, while y ou adjust tire pressure up
or down, the system alerts you as follows:
Below recommended pressure: The beeper
sounds and exterior lights flash once every five
seconds.
At recommended pressure: The beeper sounds
and exterior lights flash ra pidly for ~ five seconds.
Above recommended pressure: The beeper
sounds and lights flash twice every three seconds.
1If the Transmission Indicator Blin ks along with the Warning Message
You may not be able to start the engine.
Make sure to set the pa rking brake when parking
your vehicle.
Call a professional towing service if you need to tow
your vehicle. 2 Emergency Towing P. 638
20 PASSPORT-31TGS6100.book 632 ページ ２０１９年８月３０日　金曜日　午後６時２２分

656
Index
Wi-Fi Connection ..................................... 318
Audio/Information Screen ................ 236, 254
Authorized Manuals ................................. 653
Auto Door Locking/Unlocking ................. 147
Customize ....................................... 125, 375
Auto High-Beam ....................................... 174
Indicator .................................................... 80
Auto Idle Stop ........................................... 470
OFF Button .............................................. 471
Auto Idle Stop Indicator (Amber) .............. 85
Auto Idle Stop Indicator (Green) ............... 85
Automatic Intermittent Wipers ............... 178
Automatic Lighting .................................. 170
Automatic Transmission ........................... 461
Creeping ................................................. 461
Fluid ........................................................ 579
Kickdown ................................................ 461
Operating the Shift Button....................... 464
Shifting.................................................... 462
Auxiliary Input Jack .................................. 230
Average Fuel Economy ............................. 110
B
Back-Up Light............................................ 585
Battery ....................................................... 599
Charging System Indicator ................. 77, 629
Jump Starting .......................................... 624
Maintenance (Checking the Battery) ........ 599
Belts (Seat) .................................................. 37
Beverage Holders ...................................... 203 Blind Spot Information System
................ 482
Bluetooth® Audio............................. 250, 309
Bluetooth® HandsFreeLink ®........... 383, 408
Booster Seats (For Children) ...................... 72
Brake System ............................................ 537
Anti-lock Brake System (ABS)................... 539
Brake Assist System ................................. 540
Fluid ........................................................ 580
Foot Brake............................................... 538
Indicator............................................ 76, 631
Parking Brake .......................................... 537
Brake System (Red) Indicator.................................................. 631
Brightness Control (Instrument Panel) .... 182
Bulb Replacement .................................... 581
Back-Up Lights ........................................ 585
Brake lights ............................................. 584
Daytime Running Lights........................... 582
Fog Lights ............................................... 583
Front Side Marker Lights.......................... 582
Front Turn Signal Lights ........................... 583
Headlights ............................................... 581
High-Mount Brake Light .......................... 585
Parking Lights.......................................... 582
Rear License Plate Lights .......................... 585
Rear Side Marker Lights ........................... 584
Rear Turn Signal Lights ............................ 584
Side Turn Signal/Emergency Indicator
Lights .................................................... 584
Taillights.................................................. 584
Bulb Specifications ................................... 644
C
Car Wash Mode........................................ 466
Carbon Monoxide Gas ............................... 73
Carrying Cargo ................................. 437, 439
Certification Label ................................... 646
Changing Bulbs ........................................ 581
Charging System Indicator ................ 77, 629
Child Safety ................................................ 58
Childproof Door Locks ............................ 146
Child Seat ................................................... 58
Booster Seats ............................................ 72
Child Seat for Infants ................................ 60
Child Seat for Small Children .................... 61
Installing a Child Seat with a Lap/
Shoulder Seat Belt ................................... 66
Larger Children ......................................... 71
Rear-facing Child Seat............................... 60
Selecting a Child Seat ............................... 62
Childproof Door Locks ............................. 146
Cleaning the Exterior ............................... 606
Cleaning the Interior ............................... 604
Climate Control System ........................... 219
Changing the Mode................................ 219
Defrosting the Windshield and Windows .............................................. 220
Dust and Pollen Filter .............................. 603
Recirculation and Fresh Air Mode ............ 220
Sensors ................................................... 225
Synchronization Mode ............................ 222
Using Automatic Climate Control............ 219
Clock ......................................................... 130
20 PASSPORT-31TGS6100.book 656 ページ ２０１９年８月３０日　金曜日　午後６時２２分

657
Index
Coat Hook................................................ 210
Collision Mitigation Braking SystemTM
(CMBSTM) ................................................. 495
Collision Mitigation Braking SystemTM
(CMBSTM) Indicator ............................. 88, 89
Compact Spare Tire .......................... 613, 645
Console Compartment ............................. 201
Controls .................................................... 129
Coolant (Engine) ...................................... 577
Adding to the Radiator ........................... 578
Adding to the Reserve Tank .................... 577
Overheating ............................................ 627
Temperature Gauge ................................ 104
Creeping (Automatic Transmission) ........ 461
Cross Traffic Monitor ............................... 548
Cup Holders .............................................. 203
Customer Service Information ................ 654
Customized Features ............... 119, 354, 361
D
Daytime Running Lights .......................... 173
Dead Battery ............................................ 624
Defaulting All the Settings ...................... 379
Defrosting the Windshield and Windows ................................................. 220
Detachable Anchor .................................... 42
Devices that Emit Radio Waves ............... 647
Dimming Headlights .............................................. 169
Rearview Mirror ...................................... 186 Dipstick (Engine Oil)
................................. 573
Directional Signals (Turn Signal) ............. 168
Door Mirrors ............................................. 187
Doors ......................................................... 133
Auto Door Locking .................................. 147
Auto Door Unlocking ............................... 147
Door Open Message .................................. 36
Keys ........................................................ 133
Locking/Unlocking the Doors from the Inside..................................................... 144
Locking/Unlocking the Doors from the
Outside.................................................. 136
Lockout Prevention System ...................... 143
DOT Tire Quality Grading ........................ 593
Driver Information Interface ................... 105
Accessing Content ................................... 107
Warning and Information Messages .......... 91
Driving ....................................................... 435
Adaptive Cruise Control (ACC) ................ 507
Automatic Transmission ........................... 461
Braking .................................................... 537
Off-Highway Driving Guidelines ............... 452
Shifting Gear ........................................... 462
Starting the Engine .................................. 454
Driving Position Memory System ............. 183
Dust and Pollen Filter ............................... 603
E
Eco Assist® System ...................................... 10
ECON Button ............................................. 476 Econ Mode
Indicator.................................................... 84
Electric Power Steering (EPS) System Indicator............................................ 81, 631
Electronic Stability Control (ESC) ............. 479
Emergency ................................................ 638
Emissions Testing (Readiness Codes) ....... 649
Engine
Coolant ................................................... 577
Jump Starting .......................................... 624
Number................................................... 646
Oil ........................................................... 572
Remote Engine Start................................ 456
Starting ................................................... 454
Engine Compartment Cover .................... 571
Engine Coolant ......................................... 577
Adding to the Radiator ............................ 578
Adding to the Reserve Tank..................... 577
Overheating ............................................ 627
Temperature Gauge ................................ 104
Engine Oil ................................................. 572
Adding .................................................... 574
Checking................................................. 573
Displaying Maintenance Minder Information ........................................... 564
Low Oil Pressure Symbol.......................... 629
Recommended Engine Oil ....................... 572
ENGINE START/STOP Button .................... 165
EPS (Electric Power Steering) System ...... 631
Exhaust Gas Hazard (Carbon Monoxide) .. 73
Exterior Care (Cleaning) ........................... 606
20 PASSPORT-31TGS6100.book 657 ページ ２０１９年８月３０日　金曜日　午後６時２２分

659
Index
Operating ............................................... 169
Heated Steering Wheel ........................... 216
Heated Windshield Button ...................... 181
Heater (Steering Wheel) .......................... 216
Heaters (Seat) ........................... 213, 214, 215
HFL (HandsFreeLink ®) ...................... 383, 408
High Beam Indicator .................................. 82
Hill Start Assist System ............................. 459
HomeLink ® Universal Transceiver ........... 380
Honda App License Agreement .............. 334
Honda Sensing ®........................................ 24
HondaLink ®............................................ 313
I
Identification Numbers ............................ 646
Engine and Transmission ......................... 646
Vehicle Identification............................... 646
Illumination Control ................................ 182
Button .................................................... 182
Immobilizer System .................................. 158
Indicator ................................................... 83
Indicators .................................................... 76
Adaptive Cruise Control (ACC) (Amber) .... 88
Adaptive Cruise Control (ACC) (Green) ..... 88
All-wheel drive (AWD)............................... 85
Anti-lock Brake System (ABS) .................... 79
Auto High-Beam ....................................... 80
Auto Idle Stop (Amber) ............................. 85
Auto Idle Stop (Green) .............................. 85
Blind spot information ...................... 90, 483 Brake System (Red) .................................. 631
Charging System ............................... 77, 629
Collision Mitigation Braking System
TM
(CMBSTM) ........................................... 88, 89
Econ Mode ................................................ 84
Electric Power Steering (EPS) System .. 81, 631
Fog Light ................................................... 83
Gear Position ............................................. 77
Hazard Warning ........................................ 82
High Beam ................................................ 82
Immobilizer System .................................... 83
Lane Keeping Assist System (LKAS) .......... 522
Lane Keeping Assist System (LKAS) (Amber) ................................................... 86
Lane Keeping Assist System (LKAS) (Green) .................................................... 86
Lights On ................................................... 82
Low Fuel .................................................... 79
Low Oil Pressure Symbol .......................... 629
Low Tire Pressure/TPMS ..................... 82, 632
Malfunction Indicator Lamp ............... 77, 630
Parking Brake and Brake System .............. 631
Parking Brake and Brake System (Amber) ... 76
Parking Brake and Brake System (Red) ....... 76
Road Departure Mitigation (RDM) .............. 87
Seat Belt Reminder .............................. 38, 79
Security System Alarm ............................... 83
Supplemental Restraint System ............ 55, 80
System Message ........................................ 84
Turn Signal ................................................ 82
Vehicle Stability Assist
TM (VSA ®) OFF ... 81, 480 Vehicle Stability Assist
TM (VSA
®)
System ............................................ 80, 479
Information .............................................. 643
Instant Fuel Economy ............................... 110
Instrument Panel ........................................ 75
Brightness Control................................... 182
Integrated Sunshades .............................. 212
Intelligent Traction Management
System ..................................................... 477
Intelligent VTM4 (i-VTM4
TM) .................... 487
Interior Lights ........................................... 198
Interior Rearview Mirror .......................... 186
iPad ........................................................... 332
iPhone ....................................................... 332
iPod ........................................... 244, 299, 332
J
Jack (Wheel Nut Wrench) ........................ 617
Jump Starting ........................................... 624
K
Key Number Tag ....................................... 134
Keyless Lockout Prevention ..................... 143
Keys ........................................................... 133
Lockout Prevention.................................. 143
Number Tag ............................................ 134
Rear Door Won’t Open............................ 146
Remote Transmitter ................................. 141
Types and Functions ................................ 133
20 PASSPORT-31TGS6100.book 659 ページ ２０１９年８月３０日　金曜日　午後６時２２分

662
Index
Warning Indicator ................................ 38, 79
Seat Heaters .............................. 213, 214, 215
Seat Ventilation ........................................ 214
Seats .......................................................... 188
Adjusting ................................................. 188
Driver’s Seat Lumbar Support................... 189
Folding Down the Rear Seat..................... 193
Front Seats .............................................. 188
Rear Seats................................................ 192
Seat Heaters ............................ 213, 214, 215
Seat Ventilation ....................................... 214
Security System ......................................... 158
Immobilizer System Indicator ..................... 83
Security System Alarm Indicator ................. 83
Select Button ....................................... 21, 462
Operation .......................................... 21, 464
Selecting a Child Seat ................................. 62
Selector Knob (Audio) .............................. 235
Sequential Mode ...................................... 468
Sequential Mode Operation .................... 469
Setting the Clock ...................................... 130
Settings
Arrange Apps .......................................... 117
Show Tachometer.................................... 118
Shift Button......................................... 21, 462
Shifting (Transmission) ....................... 21, 462
Shoulder Anchor ......................................... 41
Show Tachometer ..................................... 118
Show/Hide Apps ........................................ 116
Side Airbags ................................................ 52
Side Curtain Airbags ................................... 54 Siri Eyes Free
............................................. 320
SiriusXM ® Radio ........................................ 289
Snow Tires ................................................. 598
Social Playlist ............................................ 311
Spare Tire .......................................... 613, 645
Spark Plugs ............................................... 644
Specifications ............................................ 644
Specified Fuel ................................... 554, 644
Speedometer ............................................ 105
SRS Airbags (Airbags) ................................. 48
Starting Assist Brake Function ................. 475
Starting the Engine .................................. 454
Does Not Start......................................... 621
Jump Starting .......................................... 624
Remote Engine Start................................ 456
Steering Wheel ......................................... 185
Adjusting ................................................ 185
Heater ..................................................... 216
Stopping ................................................... 541
Summer Tires ............................................ 598
Sunglasses Holder ..................................... 211
Sunshades ................................................. 212
Supplemental Restraint System (SRS) ........ 48
Switches (Around the Steering Wheel) ............................................. 4, 5, 165
SYNC Mode ............................................... 222
System Message Indicator .......................... 84
System Updates ........................................ 267T
Tachometer.............................................. 105
Tailgate ..................................................... 148
Unable to Open ...................................... 641
Temperature
Gauge .................................................... 104
Outside Temperature Display .................. 106
Temperature Gauge ................................ 104
Temperature Sensor ........................ 106, 225
Tie-down Anchors .................................... 217
Time (Setting) ........................................... 130
Tire Fill Assist ............................................ 632
Tire Pressure ............................................. 112
Tire Pressure Monitoring System (TPMS)
Indicator ................................................... 82
Tires .......................................................... 590
Air Pressure..................................... 591, 645
Checking and Maintaining ...................... 590
Inspection ............................................... 590
Labeling .................................................. 591
Puncture (Flat Tire) .................................. 613
Regulations ............................................. 593
Rotation.................................................. 597
Spare Tire ....................................... 613, 645
Summer .................................................. 598
Tire Chains.............................................. 598
Wear Indicators....................................... 595
Winter .................................................... 598
Tools ......................................................... 612
Towing a Trailer ....................................... 442
Equipment and Accessories ..................... 445
20 PASSPORT-31TGS6100.book 662 ページ ２０１９年８月３０日　金曜日　午後６時２２分
