Continued109
uuGauges and Displays uDriver Information Interface
Instrument Panel
Press the (home) button, then press the / button to scroll to the content
you want to see. Press the ENTER button to see detailed information.
■Accessing Content1Accessing Content
To go back to the previous screen, press the
(back) button.
You can edit, add, or delete the meter contents using
the driver information interface.
2 Arrange Apps P. 119
2 Show/Hide Apps P. 118
34
21 PASSPORT-31TGS6200.book 109 ページ ２０２０年９月４日　金曜日　午後２時３５分

110

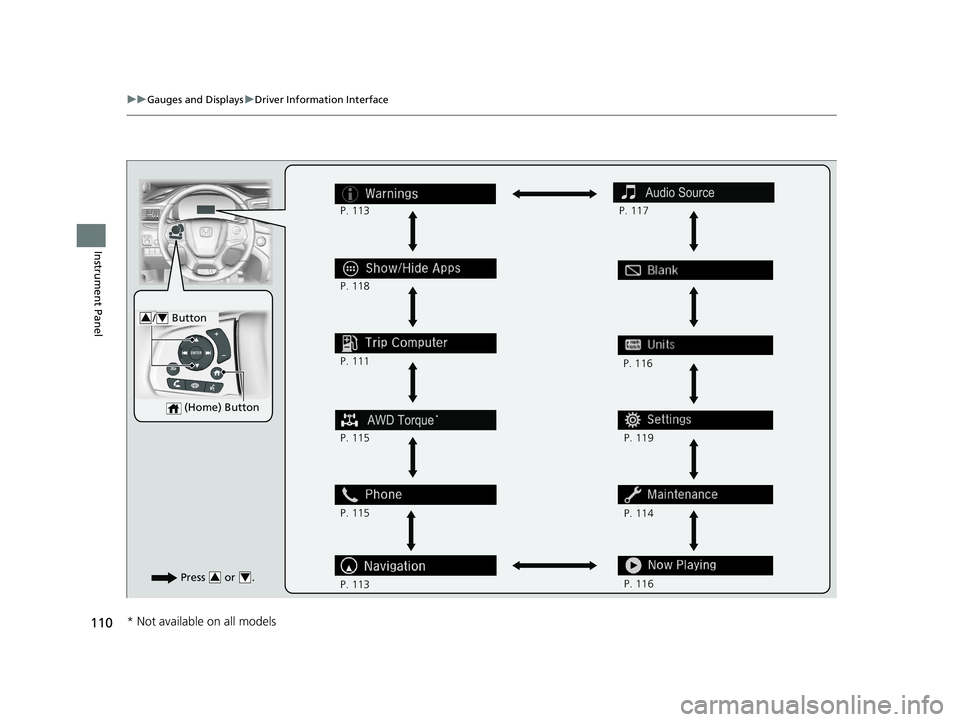

uuGauges and Displays uDriver Information Interface
Instrument Panel
(Home) Button
/ Button34
*
Press or .34
P. 113
P. 118
P. 111
P. 115
P. 113 P. 116
P. 119
P. 114
P. 116 P. 117
P. 115
* Not available on all models
21 PASSPORT-31TGS6200.book 110 ページ ２０２０年９月４日　金曜日　午後２時３５分

111
uuGauges and Displays uDriver Information Interface
Continued
Instrument Panel

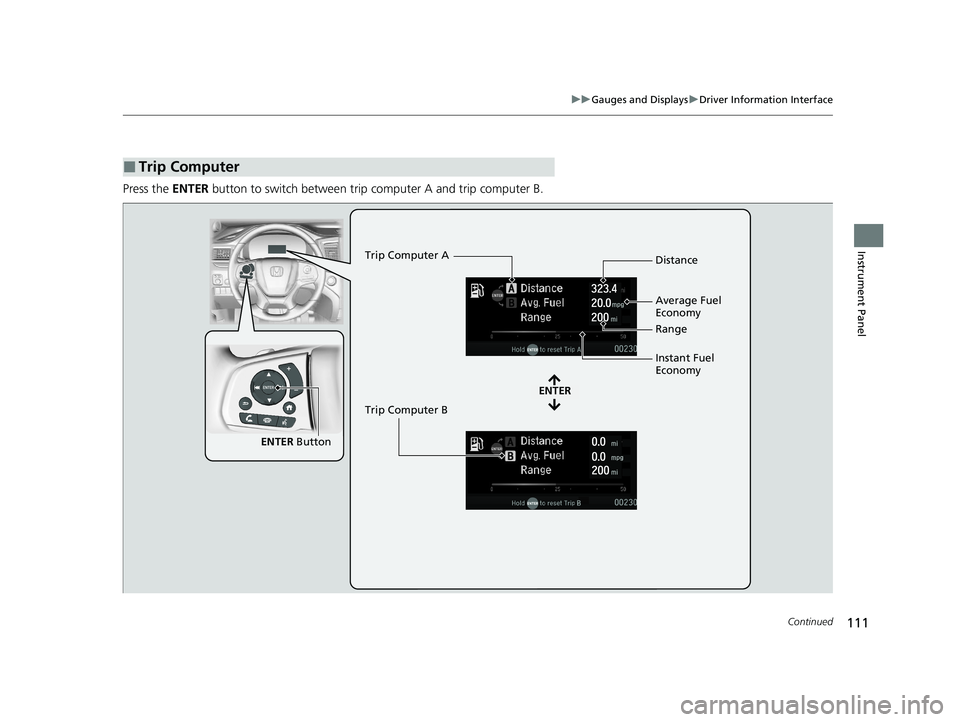

Press the ENTER button to switch between trip computer A and trip computer B.
■Trip Computer
ENTER Button
ENTER
Trip Computer A
Trip Computer B Distance
Range
Average Fuel
Economy
Instant Fuel
Economy
21 PASSPORT-31TGS6200.book 111 ページ ２０２０年９月４日　金曜日　午後２時３５分

uuGauges and Displays uDriver Information Interface
112
Instrument Panel

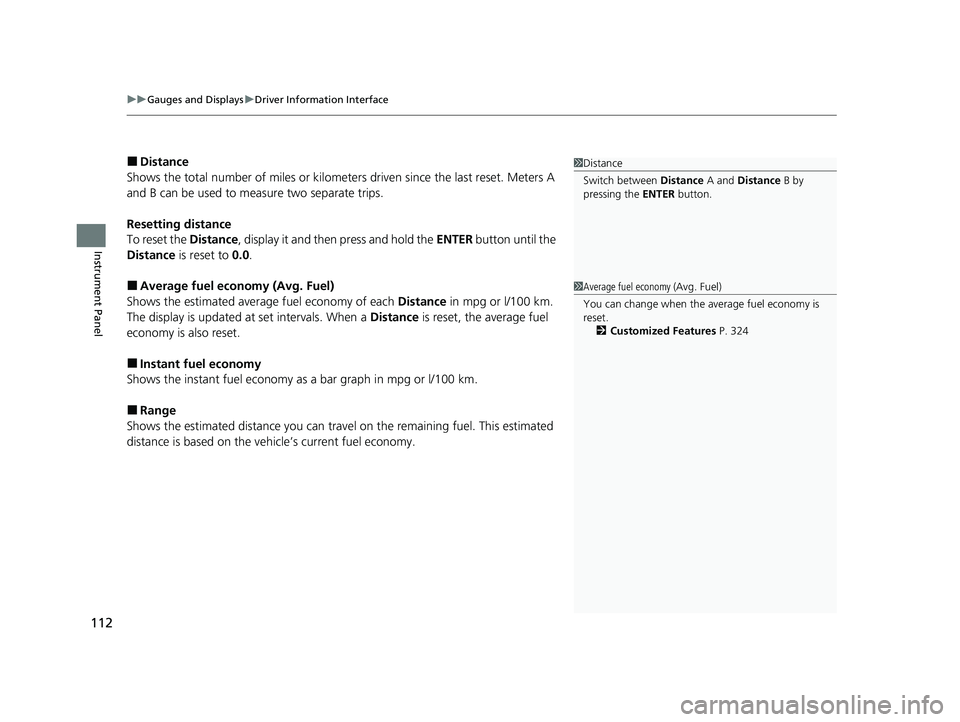

■Distance
Shows the total number of miles or kilomete rs driven since the last reset. Meters A
and B can be used to measure two separate trips.
Resetting distance
To reset the Distance, display it and then press and hold the ENTER button until the
Distance is reset to 0.0.
■Average fuel economy (Avg. Fuel)
Shows the estimated average fuel economy of each Distance in mpg or l/100 km.
The display is updated at set intervals. When a Distance is reset, the average fuel
economy is also reset.
■Instant fuel economy
Shows the instant fuel economy as a bar graph in mpg or l/100 km.
■Range
Shows the estimated distance you can trave l on the remaining fuel. This estimated
distance is based on the vehicle’s current fuel economy.
1 Distance
Switch between Distance A and Distance B by
pressing the ENTER button.
1Average fuel economy ( Avg. Fuel)
You can change when the average fuel economy is
reset. 2 Customized Features P. 324
21 PASSPORT-31TGS6200.book 112 ページ ２０２０年９月４日　金曜日　午後２時３５分

Continued113
uuGauges and Displays uDriver Information Interface
Instrument Panel
Display Audio shows you turn-by-turn
directions to your destination.
When the navigation system is not providing
driving guidance, an image of a compass
appears in the driver information interface.
2 Refer to the navigation system
2 Driver Information Interface Warning and
Information Messages P. 93
■Navigation1Navigation
Turn-by-turn directions wi ll be shown on the driver
information interface only when your android phone
is connected to Android Auto
TM.
You can select whether to have the turn-by-turn
display come on or not dur ing the route guidance.
2 Customized Features P. 324
Compass
Turn-By-Turn Driving Directions
Models with navigation system
■Warnings1Warnings
The Warnings app is dynamic a nd will only appear
when there are active warnings. If there are no
Warnings, this app will not be shown.
(Example)
21 PASSPORT-31TGS6200.book 113 ページ ２０２０年９月４日　金曜日　午後２時３５分

114
uuGauges and Displays uDriver Information Interface
Instrument Panel
Shows the current condition of the tire
pressure and the remaining oil life.
■Tire Pressure
Shows the tire pressure of each tire.
2 Tire Pressure Monitoring System (TPMS)
with Tire Fill Assist P. 427
■Oil Life
Shows the remaining oil life and Maintenance
Minder
TM.
2 Maintenance MinderTM P. 501
■Maintenance
21 PASSPORT-31TGS6200.book 114 ページ ２０２０年９月４日　金曜日　午後２時３５分

115
uuGauges and Displays uDriver Information Interface
Continued
Instrument Panel
The indicators on the display show the
amount of torque being transferred to the
right front, left front, right rear, and left rear
wheels.
2 Intelligent Variable Torque Management
(i-VTM4TM) AWD System* P. 426
Shows the current phone information.
2Bluetooth® HandsFreeLink® P. 346
■AWD Torque*
■Phone
* Not available on all models
21 PASSPORT-31TGS6200.book 115 ページ ２０２０年９月４日　金曜日　午後２時３５分

116
uuGauges and Displays uDriver Information Interface
Instrument Panel

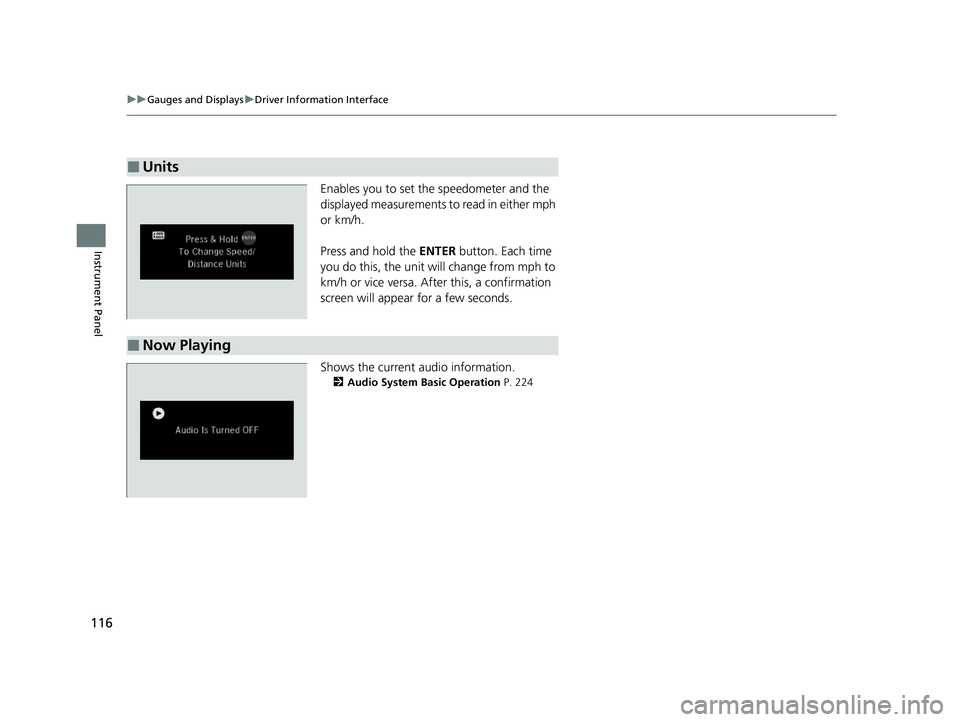

Enables you to set the speedometer and the
displayed measurements to read in either mph
or km/h.
Press and hold the ENTER button. Each time
you do this, the unit will change from mph to
km/h or vice versa. After this, a confirmation
screen will appear for a few seconds.
Shows the current audio information.
2 Audio System Basic Operation P. 224
■Units
■Now Playing
21 PASSPORT-31TGS6200.book 116 ページ ２０２０年９月４日　金曜日　午後２時３５分

117
uuGauges and Displays uDriver Information Interface
Continued
Instrument Panel

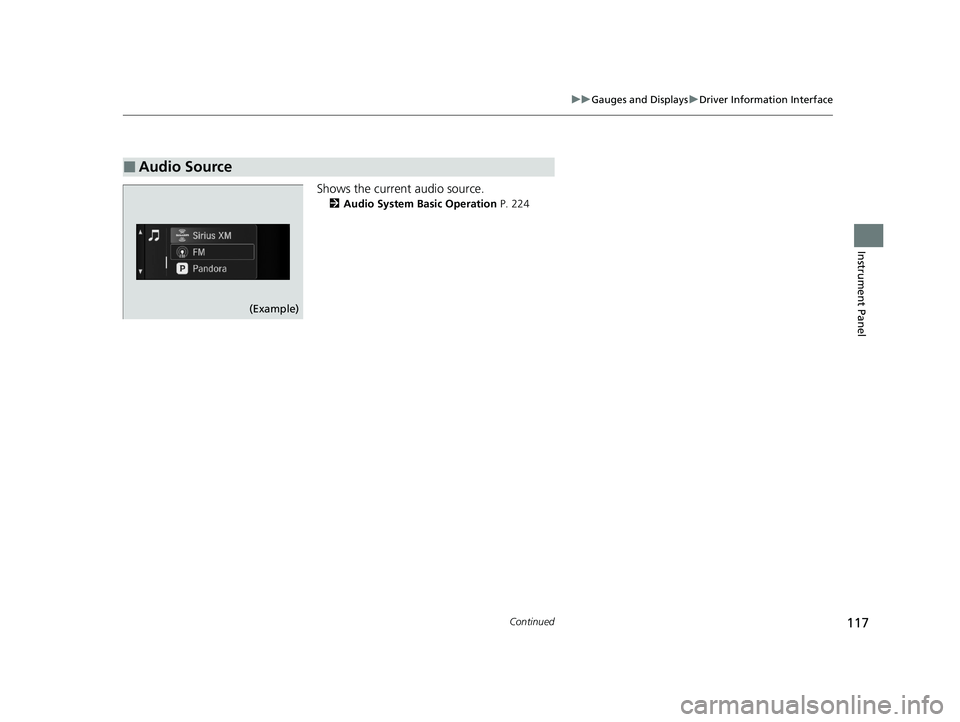

Shows the current audio source.
2 Audio System Basic Operation P. 224
■Audio Source
(Example)
21 PASSPORT-31TGS6200.book 117 ページ ２０２０年９月４日　金曜日　午後２時３５分

uuGauges and Displays uDriver Information Interface
118
Instrument Panel
You can show or hide the meter contents.
Select the content you wish to show or hide,
then press the ENTER button.
u Repeat it if you want to show or hide
more than one app.
■Show/Hide Apps1Show/Hide Apps
You cannot hide apps with the icon on the right
side.
You can also add the Android Auto, Apple
CarPlay , Sirius XM
*, My Honda Music , USB, AM,
FM , Bluetooth Audio , Social Playlist and AUX
Input apps.
Shown
Press ENTER
Hidden
* Not available on all models
