Continued67
uuChild Safety uSafety of Infants and Small Children
Safe Driving
3. Slide the seat forward.
4. Put the outer head restraint to its
uppermost position, then route the tether
strap between the head restraint legs, and
secure the tether strap hook onto the
anchor.
Make sure the strap is not twisted.
3. Slide the seat forward.
4. Put the center head restraint to its lowest
position, then route the tether strap over
the top of the head restraint and secure the
tether strap hook onto the anchor.
Make sure the strap is not twisted.
5. Tighten the tether strap as instructed by the
child seat manufacturer.
6. Slide the seat backward.
7. Make sure the child seat is firmly secured by
rocking it forward and back and side to
side; little movement should be felt.
8. Make sure any unused seat belt that a child
can reach is buckled, the lockable retractor
is activated, and the be lt is fully retracted
and locked.
2 Protecting Child Passengers P. 60
1Installing a LATCH-Compatible Child Seat
For your child’s safety, when using a child seat
installed using the LATCH system, make sure that the
child seat is properly secured to the vehicle. A child
seat that is not properly secured will not adequately
protect a child in a crash and may cause injury to the
child or other vehicle occupants.
3WARNING
Never attach two child seats to the same
anchor. In a collision, one anchor may not
be strong enough to hold two child seat
attachments and may break, causing
serious injury or death.
Tether Strap Hook
Anchor
Outer positions
Center position
All positions
21 PASSPORT-31TGS6200.book 67 ページ ２０２０年９月４日　金曜日　午後２時３５分

uuChild Safety uSafety of Infants and Small Children
68

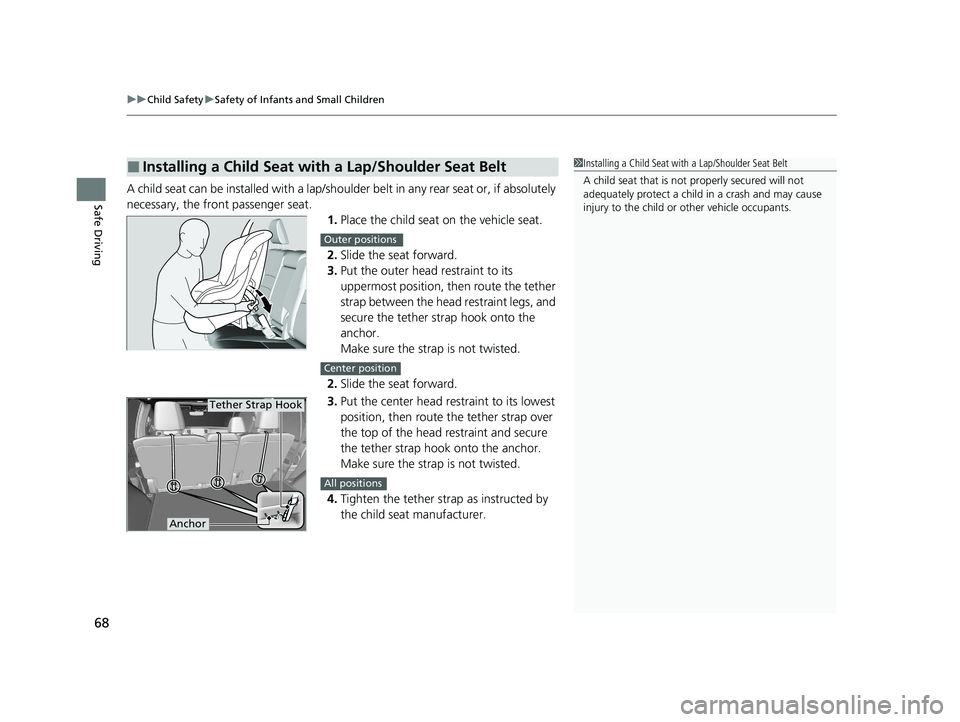

Safe DrivingA child seat can be installed with a lap/should er belt in any rear seat or, if absolutely
necessary, the front passenger seat. 1.Place the child seat on the vehicle seat.
2. Slide the seat forward.
3. Put the outer head restraint to its
uppermost position, then route the tether
strap between the head restraint legs, and
secure the tether strap hook onto the
anchor.
Make sure the strap is not twisted.
2. Slide the seat forward.
3. Put the center head restraint to its lowest
position, then route the tether strap over
the top of the head restraint and secure
the tether strap hook onto the anchor.
Make sure the strap is not twisted.
4. Tighten the tether strap as instructed by
the child seat manufacturer.
■Installing a Child Seat with a Lap/Shoulder Seat Belt1Installing a Child Seat with a Lap/Shoulder Seat Belt
A child seat that is not properly secured will not
adequately protect a child in a crash and may cause
injury to the child or other vehicle occupants.
Outer positions
Center position
Tether Strap Hook
Anchor
All positions
21 PASSPORT-31TGS6200.book 68 ページ ２０２０年９月４日　金曜日　午後２時３５分

uuChild Safety uSafety of Infants and Small Children
70
Safe Driving
9. Grab the shoulder part of the seat belt
near the buckle, and pull up to remove
any slack from the lap part of the belt.
u When doing this, place your weight on
the child seat and push it into the
vehicle seat.
10. Make sure the child seat is firmly secured
by rocking it forward and back and side to
side; less than one inch of movement
should occur near the seat belt.
11. Make sure any unused seat belt that a
child can reach is buckled, the lockable
retractor is activated, and the belt is fully
retracted and locked.
2Protecting Child Passengers P. 60
1Installing a Child Seat with a Lap/Shoulder Seat Belt
To deactivate a lockable retractor, release the buckle
and allow the seat belt to wind up all the way.
21 PASSPORT-31TGS6200.book 70 ページ ２０２０年９月４日　金曜日　午後２時３５分

Continued71
uuChild Safety uSafety of Infants and Small Children
Safe DrivingA tether anchor point is provided behind each
rear seating position.
If you have a child s eat that comes with a
tether but can be installed with a seat belt, the
tether may be used for additional security.
■Adding Security with a Tether
Tether Anchor Points
1 Adding Security with a Tether
Always use a tether for forward facing child seats
whether using the seat belt or lower anchors.
21 PASSPORT-31TGS6200.book 71 ページ ２０２０年９月４日　金曜日　午後２時３５分

72
uuChild Safety uSafety of Infants and Small Children
Safe Driving
■Using an outer anchor
1. Slide the seat forward.
2. Put the head restraint to it's upper-most
position, then rout e the tether strap
through the head restraint legs. Make sure
the strap is not twisted.
3. Secure the tether strap hook to the anchor.
4. Tighten the tether strap as instructed by the
child seat manufacturer.
5. Slide the seat backward, then confirm that
the tether strap is not loose.
■Using the center anchor
1. Slide the seat forward.
2. Lower the head restra int to its lowest
position.
3. Route the tether strap over the head
restraint. Make sure the strap is not twisted.
4. Secure the tether strap hook to the anchor.
5. Tighten the tether strap as instructed by the
child seat manufacturer.
6. Slide the seat backward, then confirm that
the tether strap is not loose.
Anchor
Tether Strap Hook
21 PASSPORT-31TGS6200.book 72 ページ ２０２０年９月４日　金曜日　午後２時３５分

73
uuChild Safety uSafety of Larger Children
Continued
Safe Driving
Safety of Larger Children
The following pages give instructions on how to check proper seat belt fit, what kind
of booster seat to use if one is needed, and important precautions for a child who
must sit in front.
When a child is too big for a child seat, secure the child in a rear seat using the lap/
shoulder seat belt. Have the child sit upri ght and all the way back, then answer the
following questions.
■Checklist
• Do the child’s knees bend comfortably over
the edge of the seat?
• Does the shoulder belt cross between the
child’s neck and arm?
• Is the lap part of the seat belt as low as
possible, touching the child’s thighs?
• Will the child be able to stay seated like this
for the whole trip?
If you answer yes to all these questions, th e child is ready to wear the lap/shoulder
seat belt correctly. If you answer no to any question, the child needs to ride on a
booster seat until the seat belt fits properly without a booster seat.
■Protecting Larger Children
■Checking Seat Belt Fit
1 Safety of Larger Children
3WARNING
Allowing a child age 12 or under to sit in
front can result in injury or death if the
passenger’s front airbag inflates.
If a larger child must ride in front, move the
vehicle seat as far to the rear as possible,
have the child sit up properly and wear the
seat belt properly, using a booster seat if
needed.
21 PASSPORT-31TGS6200.book 73 ページ ２０２０年９月４日　金曜日　午後２時３５分

uuChild Safety uSafety of Larger Children
74
Safe DrivingIf a lap/shoulder seat belt cannot be used
properly, position the child in a booster seat in
the rear seat. For the ch ild’s safety, check that
the child meets the booster seat
manufacturer’s recommendations.
Your vehicle has a rear seat where children can be properly restrained. If you ever
have to carry a group of children, and a child must ride in front:
• Make sure you read and full y understand the instructions and safety information
in this manual.
• Move the front passenger seat as far back as possible.
• Have the child sit upright and well back in the seat.
• Check that the seat belt is properly positi oned so that the child is secure in the
seat.
■Monitoring child passengers
We strongly recommend that you keep an eye on child passengers. Even older, more
mature children sometimes need to be remind ed to fasten their seat belts and sit up
properly.
■Booster Seats1 Booster Seats
When installing a booster seat , make sure to read the
instructions that came with it, and install the seat
accordingly.
There are high- and low-type booster seats. Choose a
booster seat that allows the child to wear the seat
belt correctly.
Some U.S. states and Canadian provinces and
territories require children to use a booster seat until
they reach a given age or weight (e.g. 6 years or 60
lbs). Be sure to check current laws in the state or
province, or territory where you intend to drive.
■Protecting Larger Children - Final Checks
21 PASSPORT-31TGS6200.book 74 ページ ２０２０年９月４日　金曜日　午後２時３５分

85
uuIndicators u
Continued
Instrument Panel
*1:Canadian models only: Apply and hold the brake pedal before selecting the ON mode.
IndicatorNameOn/BlinkingExplanationMessage
Fog Light
Indicator•Comes on when the fog lights are
on.——
Immobilizer
System Indicator
•Comes on briefly when you set the
power mode to ON, then goes off.
• Blinks if the immobilizer system
cannot recognize the key
information.•Blinks - You cannot start the engine. Set
the power mode to VEHICLE OFF*1, then
select the ON mode again.
• Repeatedly blinks - The system may be
malfunctioning. Have your vehicle
checked by a dealer.
• Do not attempt to alter this system or
add other devices to it. Electrical
problems can occur.
—
Security System
Alarm Indicator
•Comes on briefly when you set the
power mode to ON, then goes off.
• Blinks when the security system
alarm has been set.
2 Security System Alarm P. 149—
Indicator
Indicator
21 PASSPORT-31TGS6200.book 85 ページ ２０２０年９月４日　金曜日　午後２時３５分

121
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 122
Locking and Unlocking the Doors Key Types and Functions .................. 124
Low Smart Entry Remote Signal Strength ..... 126Locking/Unlocking the Doors from the Outside .......................................... 127
Locking/Unlocking the Doors from the Inside ............................................. 135
Childproof Door Locks ..................... 137
Auto Door Locking/Unlocking .......... 138
Opening and Closing the Tailgate ... 139
Security System ................................ 149
Opening and Closing the Windows ..... 152
Moonroof*........................................ 155
Operating the Switches Around the Steering Wheel ENGINE START/STOP Button............. 156
Turn Signals ..................................... 159
Light Switches.................................. 160
Fog Lights ........................................ 163
Daytime Running Lights ................... 164
Auto High-Beam .............................. 165
Wipers and Washers ........................ 168
Rear Defogger/Heat ed Door Mirror
*
Button ........................................... 171
Brightness Control ........................... 173
Driving Position Memory System
*.... 174 Adjusting the Steering Wheel .......... 176
Adjusting the Mirrors Interior Rearview Mirror ................... 177
Power Door Mirrors ......................... 178
Adjusting the Seats
Front Seats ...................................... 179
Rear Seats........................................ 183
Armrest ........................................... 188
Interior Lights/Interior Convenience
ItemsInterior Lights .................................. 189
Interior Convenience Items .............. 192
Climate Control System ................... 210
* Not available on all models
21 PASSPORT-31TGS6200.book 121 ページ ２０２０年９月４日　金曜日　午後２時３５分

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
128
Controls
■Locking the doors and tailgate
Press the door lock button on a front door or
the tailgate.u Some exterior lights flash; the beeper
sounds; all the doors and tailgate lock;
and the security system sets.1Using the Smart Entry with Push Button Start System
•Do not leave the smart entry remote in the vehicle
when you get out. Carry it with you.
•Even if you are not carrying the smart entry remote,
you can lock/unlock the doors and tailgate while
someone else with the remote is within range.
•The door may be unlocked if the door handle is
covered with water in heavy rain or in a car wash if
the smart entry remote is within range.
•If you grip a door handle wearing gloves, the door
sensor may be slow to respond or may not respond
by unlocking the doors.
•After locking the door, you have up to 2 seconds
during which you can pull the door handle to
confirm whether the door is locked. If you need to
unlock the door immediately after locking it, wait
at least 2 seconds befo re gripping the handle,
otherwise the door will not unlock.
•The door might not open if you pull it immediately
after gripping the door handle. Grip the handle
again and confirm that th e door is unlocked before
pulling the handle.
•Even within the 32 inches (80 cm) radius, you may
not be able to lock/unlock the doors with the smart
entry remote if it is a bove or below the outside
handle.
•The smart entry remote may not operate if it is too
close to the door and door glass.
Door Lock Button
Door
Lock
Button
21 PASSPORT-31TGS6200.book 128 ページ ２０２０年９月４日　金曜日　午後２時３５分
