Screen HONDA PASSPORT 2021 Navigation Manual (in English)

Continued233
uuAudio System Basic Operation uAudio/Information Screen
Features

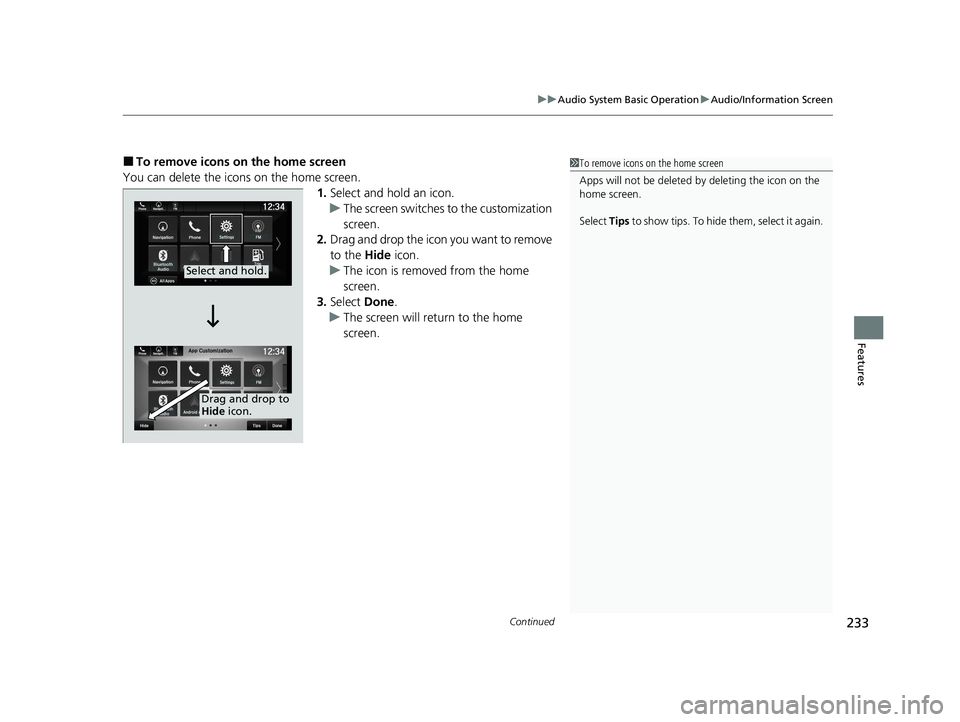

■To remove icons on the home screen
You can delete the icons on the home screen. 1.Select and hold an icon.
u The screen switches to the customization
screen.
2. Drag and drop the icon you want to remove
to the Hide icon.
u The icon is removed from the home
screen.
3. Select Done.
u The screen will return to the home
screen.1To remove icons on the home screen
Apps will not be deleted by deleting the icon on the
home screen.
Select Tips to show tips. To hide them, select it again.
Select and hold.
Drag and drop to
Hide icon.
21 PASSPORT-31TGS6200.book 233 ページ ２０２０年９月４日　金曜日　午後２時３５分

uuAudio System Basic Operation uAudio/Information Screen
234
Features
■To create shortcuts for apps displayed on the home screen
Three shortcut icons for accessing apps displayed on the home screen are displayed
in the upper left area of the screen. You can replace any of these shortcut icons with
an icon of your preference. 1.From the home screen, select and hold the
icon that you want to store in the upper left
of the screen.
u The screen will switch to the
customization screen.
2. Drag the icon over to the upper left of the
screen and drop it over the icon that you
want to replace.
u The new icon will appear in place of the
old icon.
3. Select Done.
u The screen will return to the home
screen.1To create shortcuts for apps displayed on the home screen
Select Tips to show tips. To hide them, select it again.
Select and hold.
Drag and
drop to preset
icon.Preset
Icons
21 PASSPORT-31TGS6200.book 234 ページ ２０２０年９月４日　金曜日　午後２時３５分

235
uuAudio System Basic Operation uAudio/Information Screen
Continued
Features

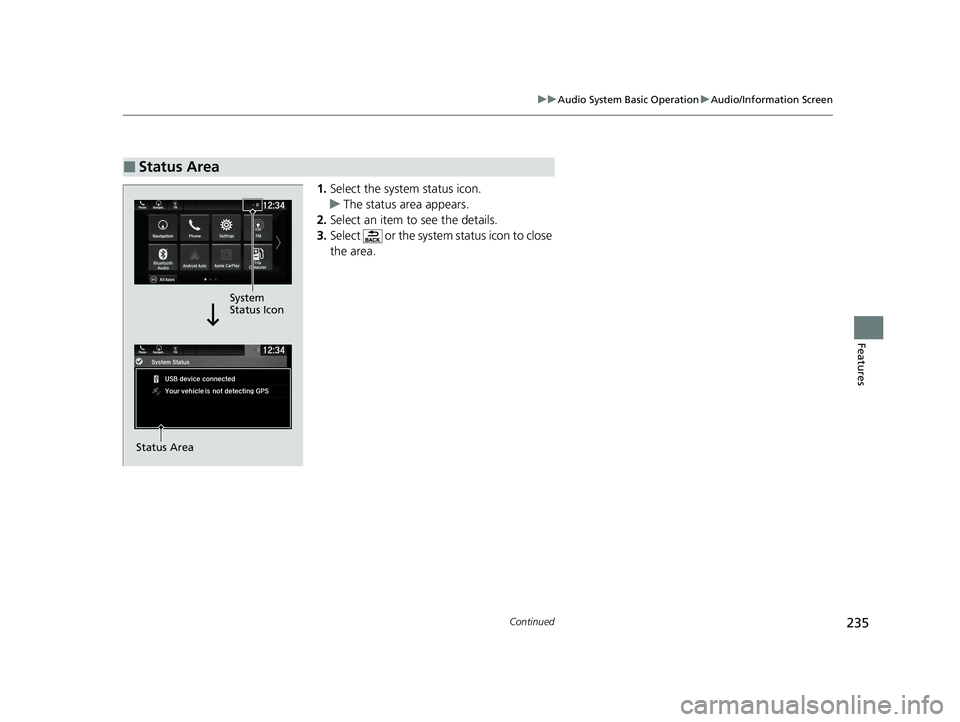

1. Select the system status icon.
u The status area appears.
2. Select an item to see the details.
3. Select or the system status icon to close
the area.
■Status Area
System
Status Icon
Status Area
21 PASSPORT-31TGS6200.book 235 ページ ２０２０年９月４日　金曜日　午後２時３５分

uuAudio System Basic Operation uAudio/Information Screen
236
Features
Some of the audio system’s apps can be updated wirelessly when connected via Wi-
Fi, or Bluetooth ® in conjunction with the HondaLink ® app installed on a compatible
iOS or Android device. If an update is available, a notification is displayed at the top
of the screen with the resp ective app’s update icon.
■To update an app:
1.A notification appears and notifies you of a
update message on the header area.
2. Select the system stat us icon, and then
select the software update notification
from the list.
■Updating Apps1 Updating Apps
The wireless updates are for the apps on the audio
system only.
To update compatible a pps on your iPhone or
Android phone, please visit the App Store or Google
Play Store, respectively.
21 PASSPORT-31TGS6200.book 236 ページ ２０２０年９月４日　金曜日　午後２時３５分

237
uuAudio System Basic Operation uAudio/Information Screen
Features

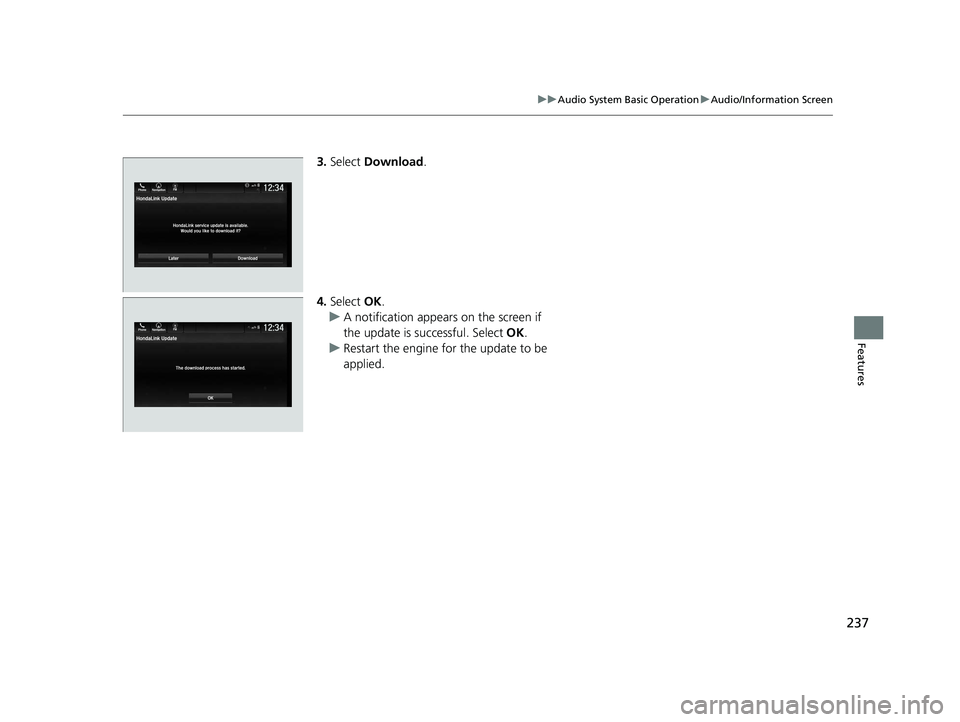

3. Select Download .
4. Select OK.
u A notification appears on the screen if
the update is su ccessful. Select OK.
u Restart the engine for the update to be
applied.
21 PASSPORT-31TGS6200.book 237 ページ ２０２０年９月４日　金曜日　午後２時３５分

239
uuAudio System Basic Operation uSystem Updates
Continued
Features
■How to update
When the audio system update is available, the notification is shown on the audio/
information screen. Use the following procedure to update the system.
1.Select .
2. Select System Updates .
3. Select via Wireless .
4. Select Download Now .
u A notification appears on the screen.
Notification
21 PASSPORT-31TGS6200.book 239 ページ ２０２０年９月４日　金曜日　午後２時３５分

uuAudio System Basic Operation uSystem Updates
240
Features
5. Select Install Now or Install while
Vehicle OFF .
u A notification appears on the screen if
the update is successful.1How to update
If Install while Vehicle OFF is selected and the user
turns the vehicle back on after the update has been
completed, for 3 to 5 minutes the system will rebuild
the applications, during wh ich time the Honda logo
will be displayed.
21 PASSPORT-31TGS6200.book 240 ページ ２０２０年９月４日　金曜日　午後２時３５分

uuAudio System Basic Operation uSystem Updates
242
Features
■Download the update files from the server
1.Select .
2. Select System Updates .
3. Select via USB .
u A notification appears on the screen.
4. Connect a USB device into the front USB
port.
u The inventory data is copied into the USB
device.
2 USB Ports P. 219
5.Remove the USB device from the USB port.
6. Connect the USB device into your
computer, and then download the update
files.
u Follow the link to download the required
software update files. Refer to
https://usb.honda.com for instructions.
■How to Update with a USB Device1How to Update with a USB Device
A USB device with a minimum of 8 GB of free space
or more is recommended.
Be sure to delete any pr evious inventory or update
files from the USB before starting the USB update
process.
21 PASSPORT-31TGS6200.book 242 ページ ２０２０年９月４日　金曜日　午後２時３５分

243
uuAudio System Basic Operation uSystem Updates
Features
■Update the audio system
1.Select .
2. Select System Updates .
3. Select via USB .
u A notification appears on the screen.
4. Connect the USB device with the update
files into the USB port.
u A notification appears on the screen.
2 USB Ports P. 219
5.Select Install Now or Install while
Vehicle OFF .
u A notification appears on the screen if
the update is successful.1Update the audio system
If Install while Vehicle OFF is selected and the user
turns the vehicle back on after the update has been
completed, for 3 to 5 minutes the system will rebuild
the applications, during wh ich time the Honda logo
will be displayed.
21 PASSPORT-31TGS6200.book 243 ページ ２０２０年９月４日　金曜日　午後２時３５分

Continued245
uuAudio System Basic Operation uFile Manager
Features
6. Select the file or folder you want to
transfer.
7. Select OK.
8. Select Transfer .
u A confirmation message appears on the
screen. Select Continue.
u A notification appears on the screen if
the transfer is successful. Then, the
display will return to the File Manager
screen.1 How to Transfer a File
To switch the view method, select List or Thumbnail
on the upper right of the screen.
21 PASSPORT-31TGS6200.book 245 ページ ２０２０年９月４日　金曜日　午後２時３５分
