HONDA PASSPORT 2022 Owners Manual

Continued119
uuGauges and Displays uDriver Information Interface
Instrument Panel
You can show or hide the meter contents.
Select the content you wish to show or hide,
then press the ENTER button.
u Repeat it if you want to show or hide
more than one app.
■Show/Hide Apps1Show/Hide Apps
You cannot hide apps with the icon on the right
side.
You can also add the Android Auto, Apple
CarPlay , Sirius XM
*, My Honda Music , USB , AM ,
FM , Bluetooth Audio , Social Playlist and AUX
Input apps.
Shown
Press ENTER
Hidden
* Not available on all models
22 PASSPORT-31TGS6300.book 119 ページ ２０２１年１０月６日　水曜日　午前１０時２分

120
uuGauges and Displays uDriver Information Interface
Instrument Panel
Change the settings to your liking.
■Arrange Apps
You can change the order of the apps on the home screen. 1.Press the / button to select Arrange
Apps , then press the ENTER button.
2. Press the / button to select the icon
you want to move, then press the ENTER
button.
3. Press the / button repeatedly to move
the icon to your desired position, then press
the ENTER button.
■Settings
34
34
34
22 PASSPORT-31TGS6300.book 120 ページ ２０２１年１０月６日　水曜日　午前１０時２分

121
uuGauges and Displays uDriver Information Interface
Instrument Panel
■Show Tachometer
You can show or hide the tachometer. Press the / button to select Show
Tachometer, then press the ENTER button.
u The tachometer appears when the check
box is checked.
34
22 PASSPORT-31TGS6300.book 121 ページ ２０２１年１０月６日　水曜日　午前１０時２分

122
22 PASSPORT-31TGS6300.book 122 ページ ２０２１年１０月６日　水曜日　午前１０時２分This page intentionally left blank.

123
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 124
Locking and Unlocking the Doors Key Types and Functions .................. 126
Low Keyless Remote Signal Strength .... 128Locking/Unlocking the Doors from the Outside .......................................... 129
Locking/Unlocking the Doors from the Inside ............................................. 137
Childproof Door Locks ..................... 139
Auto Door Locking/Unlocking .......... 140
Opening and Closing the Tailgate ... 141
Security System ................................ 151
Opening and Closing the Windows ..... 154
Moonroof*........................................ 157
Operating the Switches Around the Steering Wheel ENGINE START/STOP Button............. 158
Turn Signals ..................................... 161
Light Switches.................................. 162
Fog Lights
*...................................... 165
Daytime Running Lights ................... 166
Auto High-Beam .............................. 167
Wipers and Washers ........................ 170
Rear Defogger/Heat ed Door Mirror
*
Button ........................................... 173
Brightness Control ........................... 175
Driving Position Memory System
*.... 176 Adjusting the Steering Wheel .......... 178
Adjusting the Mirrors Interior Rearview Mirror ................... 179
Power Door Mirrors ......................... 180
Adjusting the Seats
Front Seats ...................................... 181
Rear Seats........................................ 185
Armrest ........................................... 191
Interior Lights/Interior Convenience
ItemsInterior Lights .................................. 192
Interior Convenience Items .............. 195
Climate Control System ................... 213
* Not available on all models
22 PASSPORT-31TGS6300.book 123 ページ ２０２１年１０月６日　水曜日　午前１０時２分

124
Controls
Clock
Adjusting the Clock
You can adjust the time manually in the audio/information screen, with the power
mode in ON.
■Using the Settings menu on the audio/
information screen
1. Select , then select Settings.
2. Select System .
3. Select Date & Time .
4. Select Set Date & Time .
5. Select Automatic Date & Time , then
select OFF.
To adjust time:
6. Select Set Time.
7. Selecting / .
u AM/PM icon can be switched to each
other either by selecting / , or by
directly touching the icon.
u When you customize the clock display to
24 hour clock, AM/PM icon is not
displayed.
2 Customized Features P. 327
8.Select Save to set the time.
■Adjusting the Time
1Clock
The clock is automatica lly updated through the
navigation system, so the ti me does not need to be
adjusted.
Models with navigation system
Models without navigation system
1 Using the Settings menu on the audio/information screen
You can also adjust the clock by touching the clock
displayed on the upper right corner of the display or
the Clock icon on the home screen.
1. Touch the clock on the display. The clock screen of the select face-type appears.
2. Select Settings .
3. Select Date & Time Settings .
4. Select Set Date & Time .
5. Select Automatic Date & Time , then select OFF.
6. Select Set Date or Set Time.
7. Adjusting the dates, hours and minutes by
selecting / .
8. Select Save to set the time.
You can customize the clock display to show the 12
hour clock or 24 hour clock. 2 Customized Features P. 327
3434
34
22 PASSPORT-31TGS6300.book 124 ページ ２０２１年１０月６日　水曜日　午前１０時２分

125
uuClock uAdjusting the Clock
Controls
To adjust date:
6. Select Set Date.
7. Selecting / .
8. Select Save to set the date.
34
22 PASSPORT-31TGS6300.book 125 ページ ２０２１年１０月６日　水曜日　午前１０時２分

126
Controls
Locking and Unlocking the Doors
Key Types and Functions
This vehicle comes with the following keys:Use the keys to start and stop the engine, and
to lock and unlock all the doors and tailgate.
The built-in key can be used to lock/unlock the
doors when the keyless remote battery
becomes weak and the power door lock/
unlock operation is disabled.
To remove the built-in key, slide the release
knob and then pull out the key. To reinstall
the built-in key, push th e built-in key into the
keyless remote until it clicks.1 Key Types and Functions
All the keys have an immobilizer system. The
immobilizer system helps to protect against vehicle
theft. 2 Immobilizer System P. 151
Follow the advice below to prevent damage to the
keys:
•Do not leave the keys in direct sunlight, or in
locations with high temperature or high humidity.
•Do not drop the keys or set heavy objects on them.•Keep the keys away from liquids, dust and sand.
•Do not take the keys apart except for replacing the
battery.
If the circuits in the keys are damaged, the engine
may not start, and the remote transmitter may not
work.
If the keys do not work properly, have them
inspected by a dealer.
You can remotely start th e engine using the keyless
remote. 2 Remote Engine Start
* P. 396
Models with remote engine start
Keyless Remote
■Built-in Key
Release Knob Built-in Key
* Not available on all models
22 PASSPORT-31TGS6300.book 126 ページ ２０２１年１０月６日　水曜日　午前１０時２分

127
uuLocking and Unlocking the Doors uKey Types and Functions
Controls

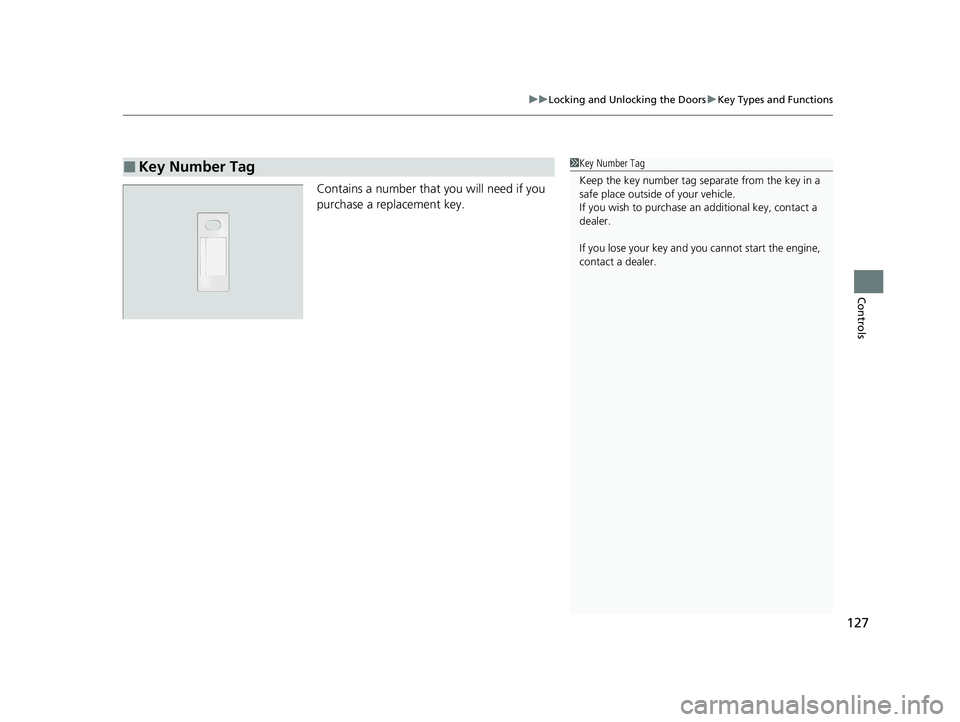

Contains a number that you will need if you
purchase a replacement key.
■Key Number Tag1 Key Number Tag
Keep the key number tag separate from the key in a
safe place outside of your vehicle.
If you wish to purchase an additional key, contact a
dealer.
If you lose your key and you cannot start the engine,
contact a dealer.
22 PASSPORT-31TGS6300.book 127 ページ ２０２１年１０月６日　水曜日　午前１０時２分

128
uuLocking and Unlocking the Doors uLow Keyless Remote Signal Strength
Controls
Low Keyless Remote Signal Strength
The vehicle transmits radio waves to lo cate the keyless remote when locking/
unlocking the doors and tailgate, or to start the engine.
In the following cases, locking/unlocking the doors and tailgate, or starting the
engine may be inhibited or operation may be unstable:
• Strong radio waves are being tra nsmitted by nearby equipment.
• You are carrying the keyless remote together with telecommunications
equipment, laptop computers, ce ll phones, or wireless devices.
• A metallic object is touching or covering the keyless remote.1Low Keyless Remote Signal Strength
Communication between the keyless remote and the
vehicle consumes the ke yless remote’s battery.
Battery life is about two years, but this varies
depending on regularity of use.
The battery is consumed whenever the keyless
remote is receivi ng strong radio wave s. Avoid placing
it near electrical appliances such as televisions and
personal computers.
22 PASSPORT-31TGS6300.book 128 ページ ２０２１年１０月６日　水曜日　午前１０時２分
