HONDA PASSPORT 2023 Owners Manual

110
uuGauges and Displays uDriver Information Interface
Instrument Panel
Driver Information Interface
The driver information interface displays the speedometer, tachometer, odometer,
trip computer, outside temperature, and ot her gauges. It also displays important
messages such as warnings and other helpful information.
Displays your driving speed in mph or km/h.
Shows the number of engine revolutions per minute.
■Speedometer
■Tachometer
1 Speedometer
You can set the speedometer and the displayed
measurements to read in either mph or km/h.
2 Units P. 119
1Tachometer
You can turn on or off the tachometer display.
2 Show Tachometer P. 123
23 PASSPORT-31TGS6400.book 110 ページ ２０２２年８月５日　金曜日　午後９時２分

Continued111
uuGauges and Displays uDriver Information Interface
Instrument Panel
Shows the total number of miles or kilometers
that your vehicle has accumulated.
Shows the outside temperature in Fahrenheit
(U.S.) or Celsius (Canada).
■Adjusting the outside temperature
display
Adjust the temperature reading by up to ±5°F
or ±3°C if the temperature reading seems
incorrect.
Use the audio/informatio n screen to correct
the temperature.
2 Customized Features P. 329
■Odometer
Odometer
■Outside Temperature1Outside Temperature
The temperature sensor is in the front bumper.
Road heat and exhaust fr om another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
Outside Temperature
23 PASSPORT-31TGS6400.book 111 ページ ２０２２年８月５日　金曜日　午後９時２分

uuGauges and Displays uDriver Information Interface
112
Instrument Panel
Press the (home) button, then press the / button to scroll to the content
you want to see. Press the ENTER button to see detailed information.
■Accessing Content1Accessing Content
To go back to the previous screen, press the
(back) button.
You can edit, add, or delete the meter contents using
the driver information interface.
2 Arrange Apps P. 122
2 Show/Hide Apps P. 121
34
23 PASSPORT-31TGS6400.book 112 ページ ２０２２年８月５日　金曜日　午後９時２分

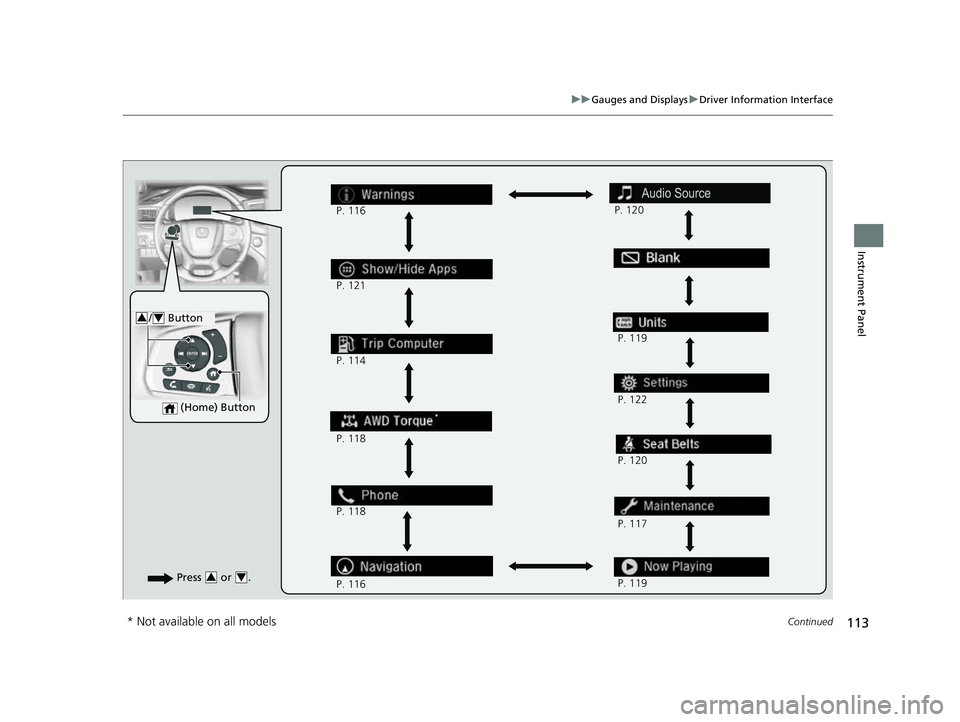

113
uuGauges and Displays uDriver Information Interface
Continued
Instrument Panel
(Home) Button
/ Button34
Press or .34
P. 116
P. 121
P. 114
P. 118
P. 116 P. 119
P. 122
P. 117
P. 119 P. 120
P. 118
*
P. 120
* Not available on all models
23 PASSPORT-31TGS6400.book 113 ページ ２０２２年８月５日　金曜日　午後９時２分

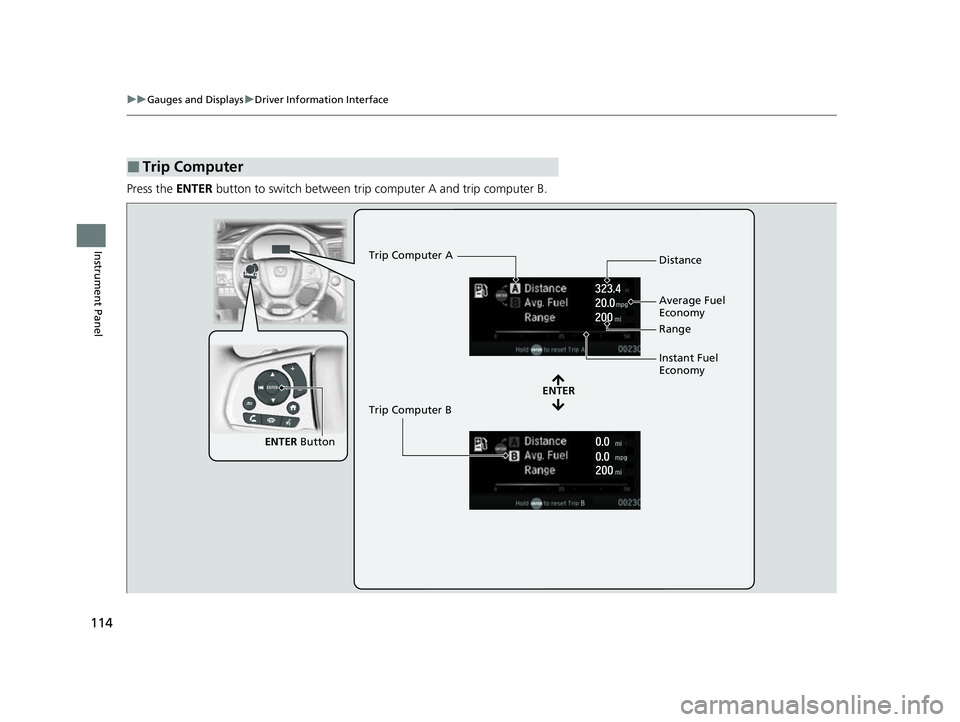

114
uuGauges and Displays uDriver Information Interface
Instrument Panel
Press the ENTER button to switch between trip computer A and trip computer B.
■Trip Computer
ENTER Button
ENTER
Trip Computer A
Trip Computer B Distance
Range
Average Fuel
Economy
Instant Fuel
Economy
23 PASSPORT-31TGS6400.book 114 ページ ２０２２年８月５日　金曜日　午後９時２分

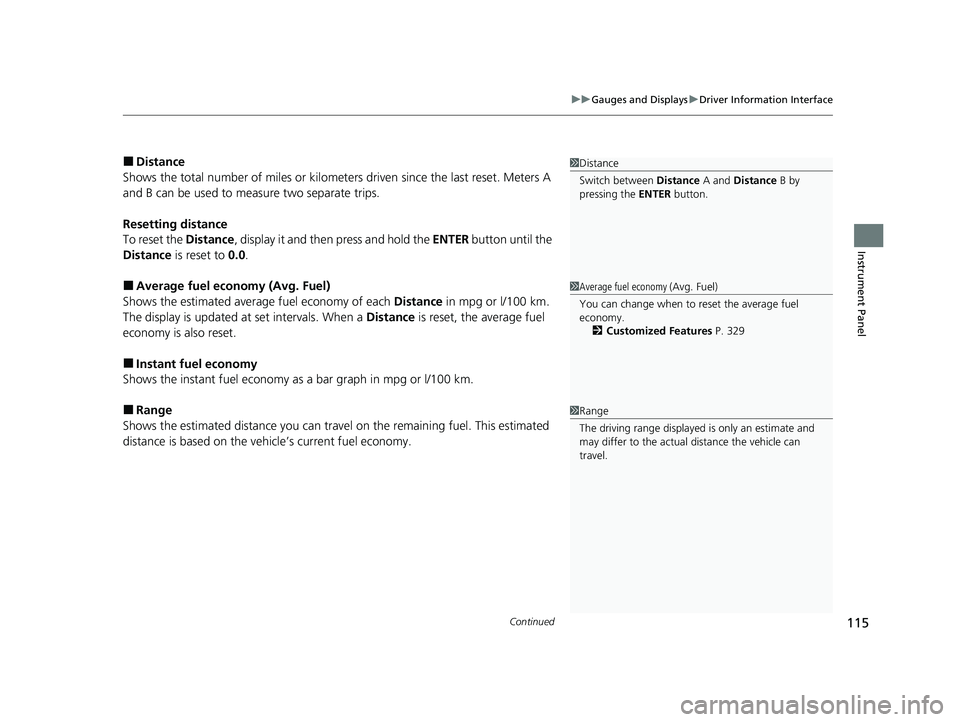

Continued115
uuGauges and Displays uDriver Information Interface
Instrument Panel
■Distance
Shows the total number of miles or kilomete rs driven since the last reset. Meters A
and B can be used to measure two separate trips.
Resetting distance
To reset the Distance, display it and then press and hold the ENTER button until the
Distance is reset to 0.0.
■Average fuel economy (Avg. Fuel)
Shows the estimated average fuel economy of each Distance in mpg or l/100 km.
The display is updated at set intervals. When a Distance is reset, the average fuel
economy is also reset.
■Instant fuel economy
Shows the instant fuel economy as a bar graph in mpg or l/100 km.
■Range
Shows the estimated distance you can trave l on the remaining fuel. This estimated
distance is based on the vehicle’s current fuel economy.
1 Distance
Switch between Distance A and Distance B by
pressing the ENTER button.
1Average fuel economy ( Avg. Fuel)
You can change when to reset the average fuel
economy. 2 Customized Features P. 329
1Range
The driving range displayed is only an estimate and
may differ to the actual distance the vehicle can
travel.
23 PASSPORT-31TGS6400.book 115 ページ ２０２２年８月５日　金曜日　午後９時２分

uuGauges and Displays uDriver Information Interface
116
Instrument Panel
Display Audio shows you turn-by-turn
directions to your destination.
When the navigation system is not providing
driving guidance, an image of a compass
appears in the driver information interface.
2Refer to the navigation system
2 Driver Information Interface Warning and
Information Messages P. 98
■Navigation1Navigation
Turn-by-turn directions will be shown on the driver
information interface only when your android phone
is connected to Android Auto
TM.
You can select whether to have the turn-by-turn
display come on or not dur ing the route guidance.
2 Customized Features P. 329
Compass
Turn-By-Turn Driving Directions
Models with navigation system
■Warnings1Warnings
The Warnings app is dynamic a nd will only appear
when there are active warnings. If there are no
Warnings, this app will not be shown.
(Example)
23 PASSPORT-31TGS6400.book 116 ページ ２０２２年８月５日　金曜日　午後９時２分

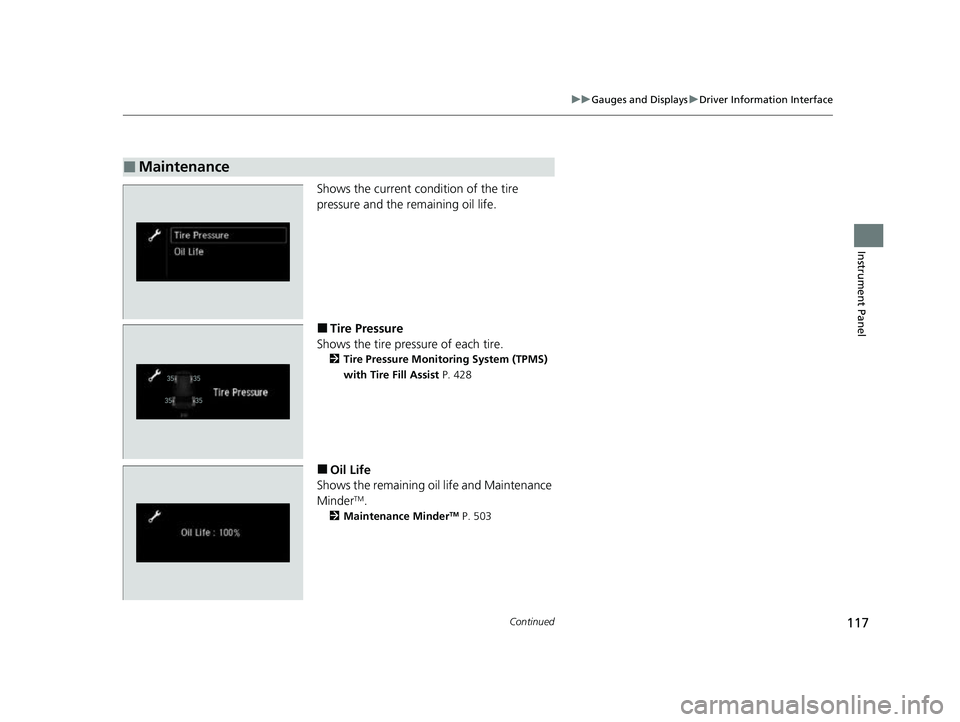

117
uuGauges and Displays uDriver Information Interface
Continued
Instrument Panel
Shows the current condition of the tire
pressure and the remaining oil life.
■Tire Pressure
Shows the tire pressure of each tire.
2 Tire Pressure Monito ring System (TPMS)
with Tire Fill Assist P. 428
■Oil Life
Shows the remaining oil life and Maintenance
Minder
TM.
2 Maintenance MinderTM P. 503
■Maintenance
23 PASSPORT-31TGS6400.book 117 ページ ２０２２年８月５日　金曜日　午後９時２分

118
uuGauges and Displays uDriver Information Interface
Instrument Panel
The indicators on th e display show the
amount of torque being transferred to the
right front, left front, right rear, and left rear
wheels.
2 Intelligent Variable Torque Management
(i-VTM4TM) AWD System* P. 427
Shows the current phone information.
2Bluetooth ® HandsFreeLink ® P. 351
■AWD Torque*
■Phone
* Not available on all models
23 PASSPORT-31TGS6400.book 118 ページ ２０２２年８月５日　金曜日　午後９時２分

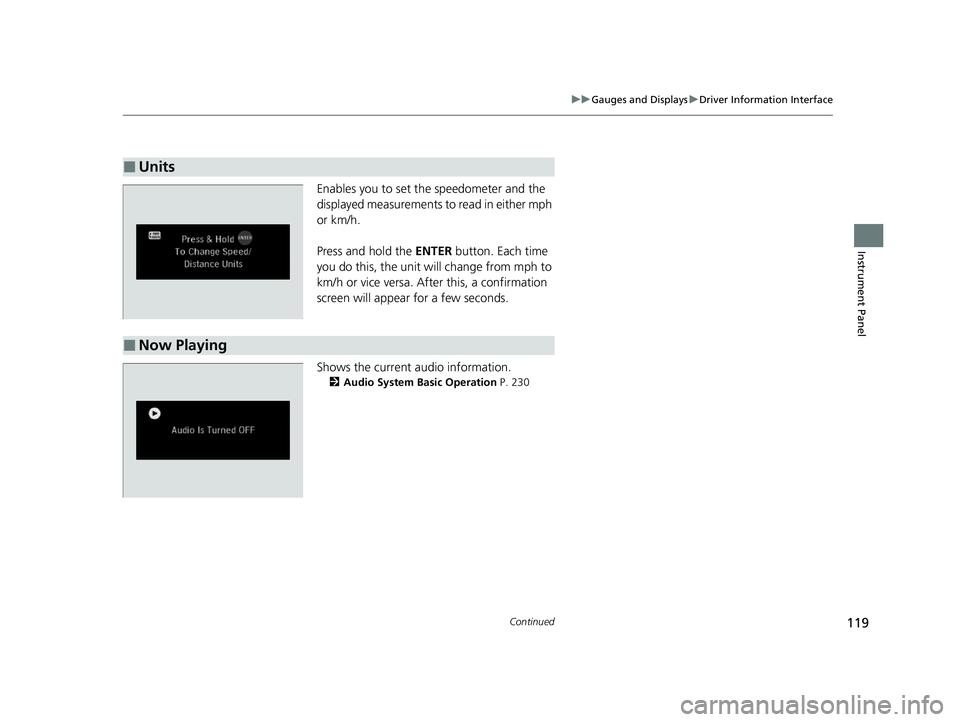

119
uuGauges and Displays uDriver Information Interface
Continued
Instrument Panel
Enables you to set the speedometer and the
displayed measurements to read in either mph
or km/h.
Press and hold the ENTER button. Each time
you do this, the unit will change from mph to
km/h or vice versa. After this, a confirmation
screen will appear for a few seconds.
Shows the current audio information.
2 Audio System Basic Operation P. 230
■Units
■Now Playing
23 PASSPORT-31TGS6400.book 119 ページ ２０２２年８月５日　金曜日　午後９時２分
