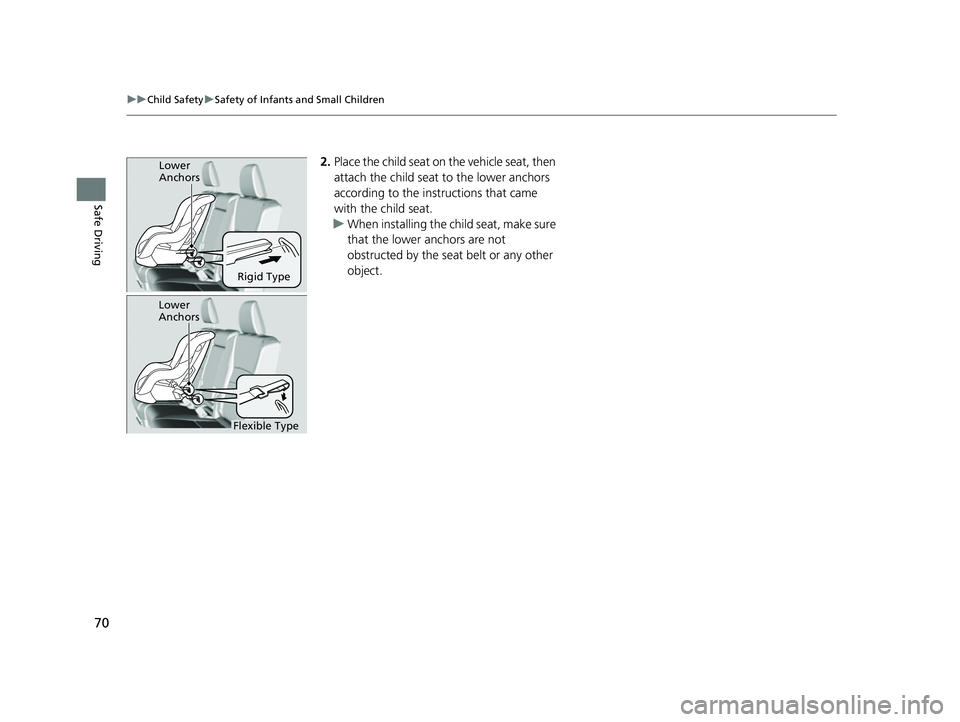

uuChild Safety uSafety of Infants and Small Children
Safe Driving
2. Place the child seat on the vehicle seat, then
attach the child seat to the lower anchors
according to the instructions that came
with the child seat.
u When installing the ch ild seat, make sure
that the lower anchors are not
obstructed by the seat belt or any other
object.
Rigid Type
Lower
Anchors
Flexible Type
Lower
Anchors
23 PASSPORT-31TGS6400.book 70 ページ ２０２２年８月５日　金曜日　午後９時２分

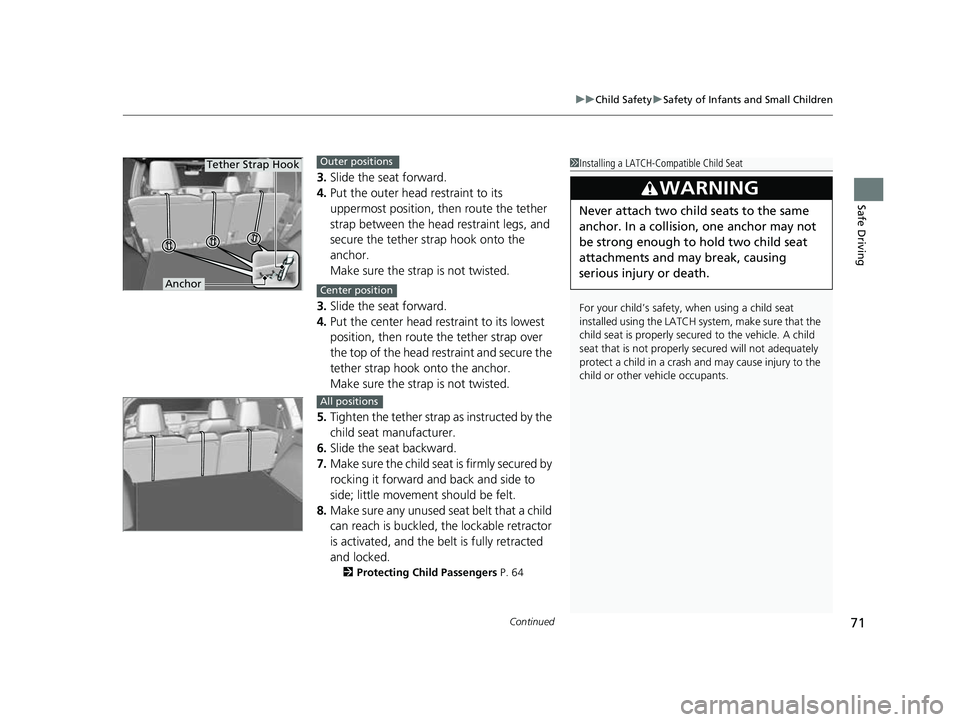

Continued71
uuChild Safety uSafety of Infants and Small Children
Safe Driving
3. Slide the seat forward.
4. Put the outer head restraint to its
uppermost position, then route the tether
strap between the head restraint legs, and
secure the tether strap hook onto the
anchor.
Make sure the strap is not twisted.
3. Slide the seat forward.
4. Put the center head restraint to its lowest
position, then route the tether strap over
the top of the head restraint and secure the
tether strap hook onto the anchor.
Make sure the strap is not twisted.
5. Tighten the tether strap as instructed by the
child seat manufacturer.
6. Slide the seat backward.
7. Make sure the child seat is firmly secured by
rocking it forward and back and side to
side; little movement should be felt.
8. Make sure any unused seat belt that a child
can reach is buckled, the lockable retractor
is activated, and the be lt is fully retracted
and locked.
2 Protecting Child Passengers P. 64
1Installing a LATCH-Compatible Child Seat
For your child’s safety, when using a child seat
installed using the LATCH system, make sure that the
child seat is properly secured to the vehicle. A child
seat that is not properly secured will not adequately
protect a child in a crash and may cause injury to the
child or other vehicle occupants.
3WARNING
Never attach two child seats to the same
anchor. In a collision, one anchor may not
be strong enough to hold two child seat
attachments and may break, causing
serious injury or death.
Tether Strap Hook
Anchor
Outer positions
Center position
All positions
23 PASSPORT-31TGS6400.book 71 ページ ２０２２年８月５日　金曜日　午後９時２分

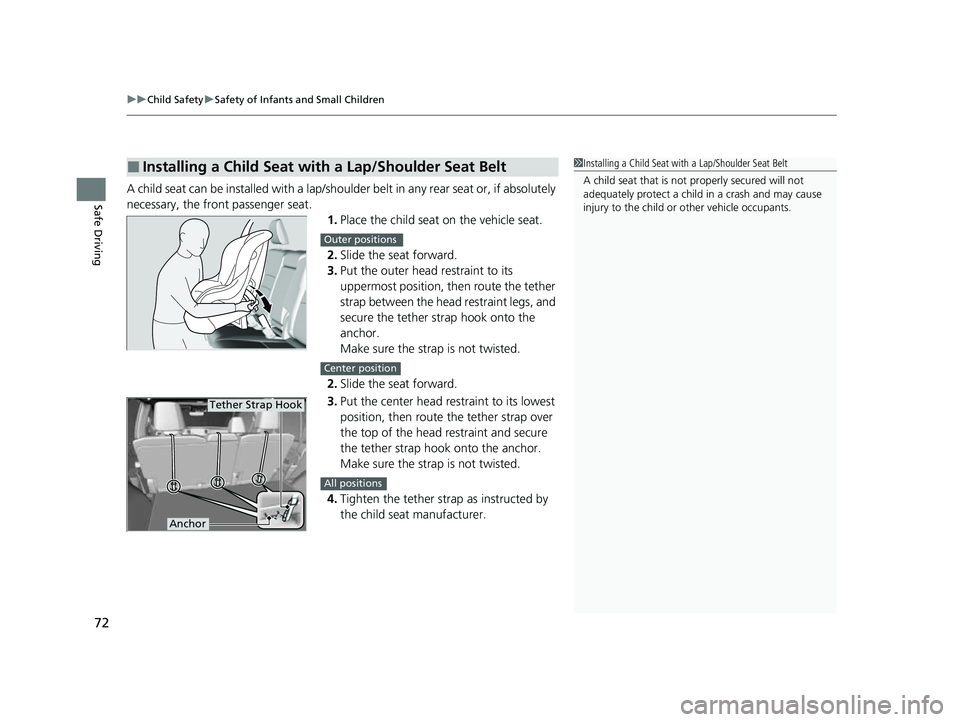

uuChild Safety uSafety of Infants and Small Children
72
Safe DrivingA child seat can be installed with a lap/should er belt in any rear seat or, if absolutely
necessary, the front passenger seat. 1.Place the child seat on the vehicle seat.
2. Slide the seat forward.
3. Put the outer head restraint to its
uppermost position, then route the tether
strap between the head restraint legs, and
secure the tether strap hook onto the
anchor.
Make sure the strap is not twisted.
2. Slide the seat forward.
3. Put the center head restraint to its lowest
position, then route the tether strap over
the top of the head restraint and secure
the tether strap hook onto the anchor.
Make sure the strap is not twisted.
4. Tighten the tether strap as instructed by
the child seat manufacturer.
■Installing a Child Seat with a Lap/Shoulder Seat Belt1Installing a Child Seat with a Lap/Shoulder Seat Belt
A child seat that is not properly secured will not
adequately protect a child in a crash and may cause
injury to the child or other vehicle occupants.
Outer positions
Center position
Tether Strap Hook
Anchor
All positions
23 PASSPORT-31TGS6400.book 72 ページ ２０２２年８月５日　金曜日　午後９時２分

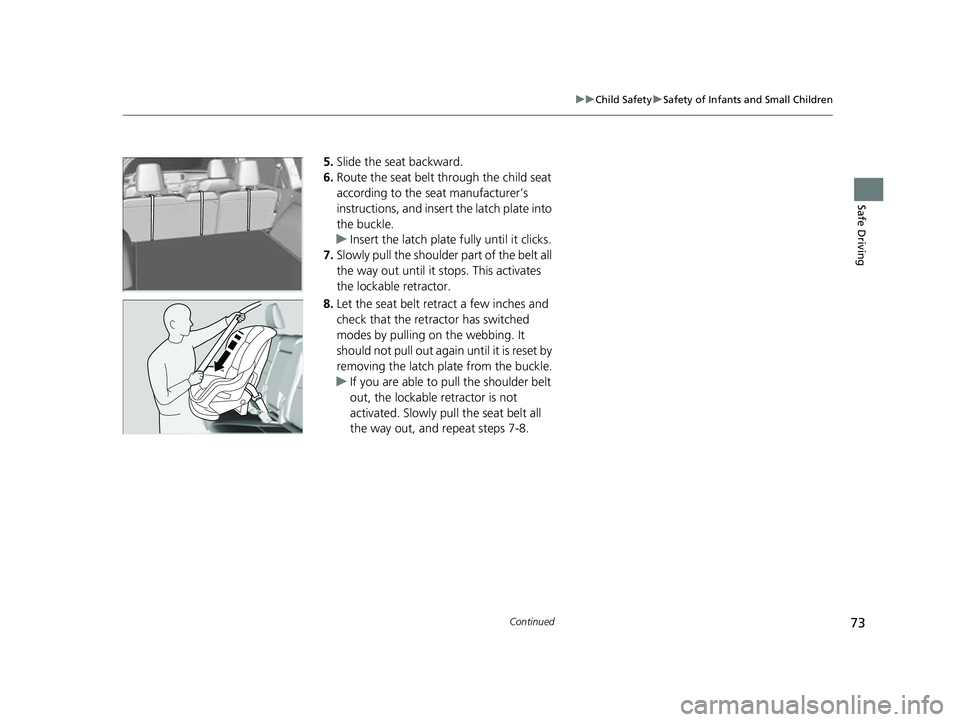

73
uuChild Safety uSafety of Infants and Small Children
Continued
Safe Driving
5. Slide the seat backward.
6. Route the seat belt through the child seat
according to the seat manufacturer’s
instructions, and insert the latch plate into
the buckle.
u Insert the latch plate fu lly until it clicks.
7. Slowly pull the shoulder part of the belt all
the way out until it st ops. This activates
the lockable retractor.
8. Let the seat belt retract a few inches and
check that the retractor has switched
modes by pulling on the webbing. It
should not pull out again until it is reset by
removing the latch pl ate from the buckle.
u If you are able to pull the shoulder belt
out, the lockable retractor is not
activated. Slowly pull the seat belt all
the way out, and repeat steps 7-8.
23 PASSPORT-31TGS6400.book 73 ページ ２０２２年８月５日　金曜日　午後９時２分

uuChild Safety uSafety of Infants and Small Children
74
Safe Driving

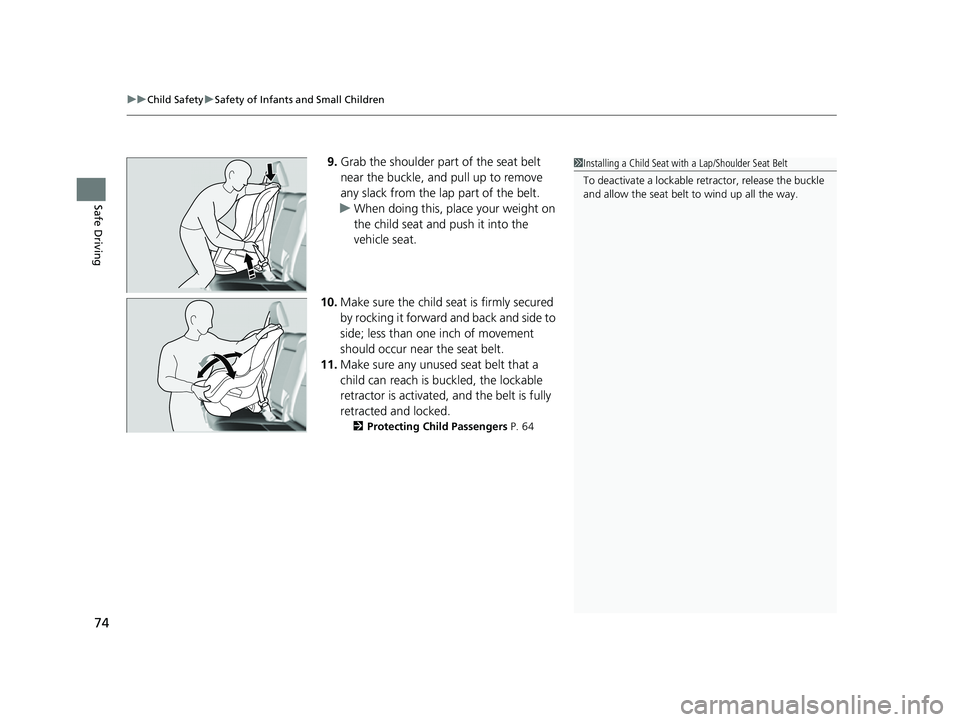

9. Grab the shoulder part of the seat belt
near the buckle, and pull up to remove
any slack from the lap part of the belt.
u When doing this, place your weight on
the child seat and push it into the
vehicle seat.
10. Make sure the child seat is firmly secured
by rocking it forward and back and side to
side; less than one inch of movement
should occur near the seat belt.
11. Make sure any unused seat belt that a
child can reach is buckled, the lockable
retractor is activated, and the belt is fully
retracted and locked.
2Protecting Child Passengers P. 64
1Installing a Child Seat with a Lap/Shoulder Seat Belt
To deactivate a lockable retractor, release the buckle
and allow the seat belt to wind up all the way.
23 PASSPORT-31TGS6400.book 74 ページ ２０２２年８月５日　金曜日　午後９時２分

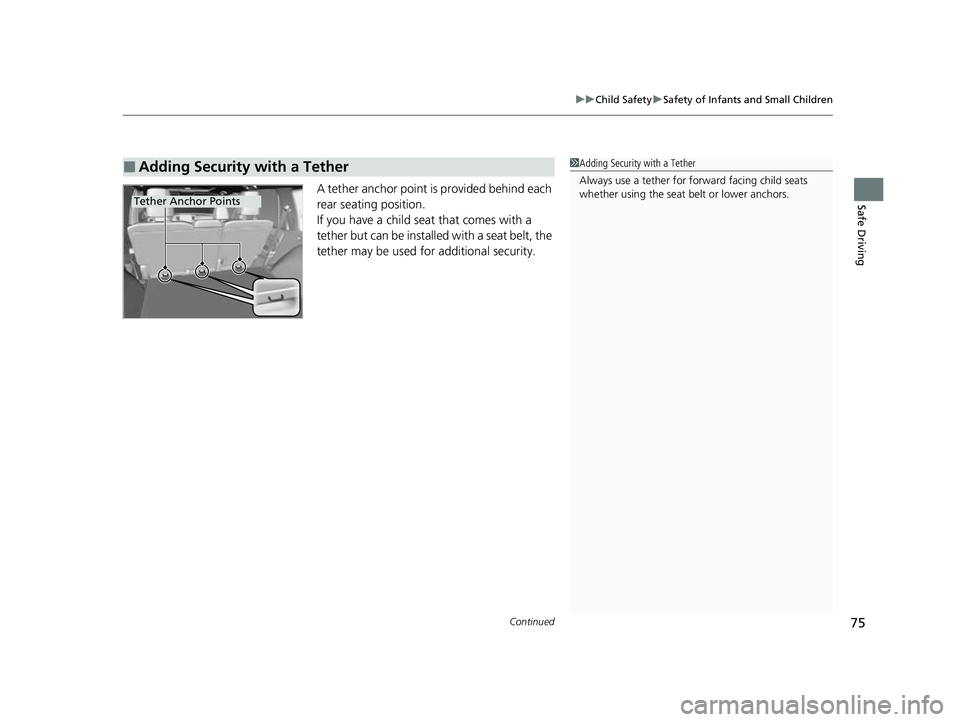

Continued75
uuChild Safety uSafety of Infants and Small Children
Safe DrivingA tether anchor point is provided behind each
rear seating position.
If you have a child s eat that comes with a
tether but can be installed with a seat belt, the
tether may be used for additional security.
■Adding Security with a Tether
Tether Anchor Points
1 Adding Security with a Tether
Always use a tether for forward facing child seats
whether using the seat belt or lower anchors.
23 PASSPORT-31TGS6400.book 75 ページ ２０２２年８月５日　金曜日　午後９時２分

76
uuChild Safety uSafety of Infants and Small Children
Safe Driving

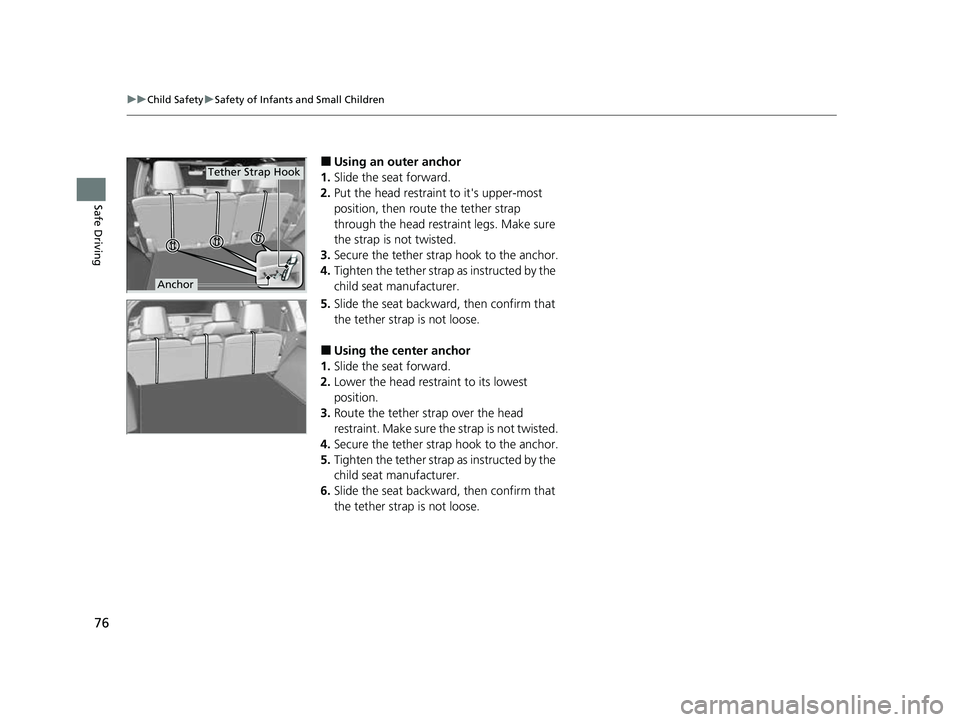

■Using an outer anchor
1. Slide the seat forward.
2. Put the head restraint to it's upper-most
position, then rout e the tether strap
through the head restraint legs. Make sure
the strap is not twisted.
3. Secure the tether strap hook to the anchor.
4. Tighten the tether strap as instructed by the
child seat manufacturer.
5. Slide the seat backward, then confirm that
the tether strap is not loose.
■Using the center anchor
1. Slide the seat forward.
2. Lower the head restra int to its lowest
position.
3. Route the tether strap over the head
restraint. Make sure the strap is not twisted.
4. Secure the tether strap hook to the anchor.
5. Tighten the tether strap as instructed by the
child seat manufacturer.
6. Slide the seat backward, then confirm that
the tether strap is not loose.
Anchor
Tether Strap Hook
23 PASSPORT-31TGS6400.book 76 ページ ２０２２年８月５日　金曜日　午後９時２分

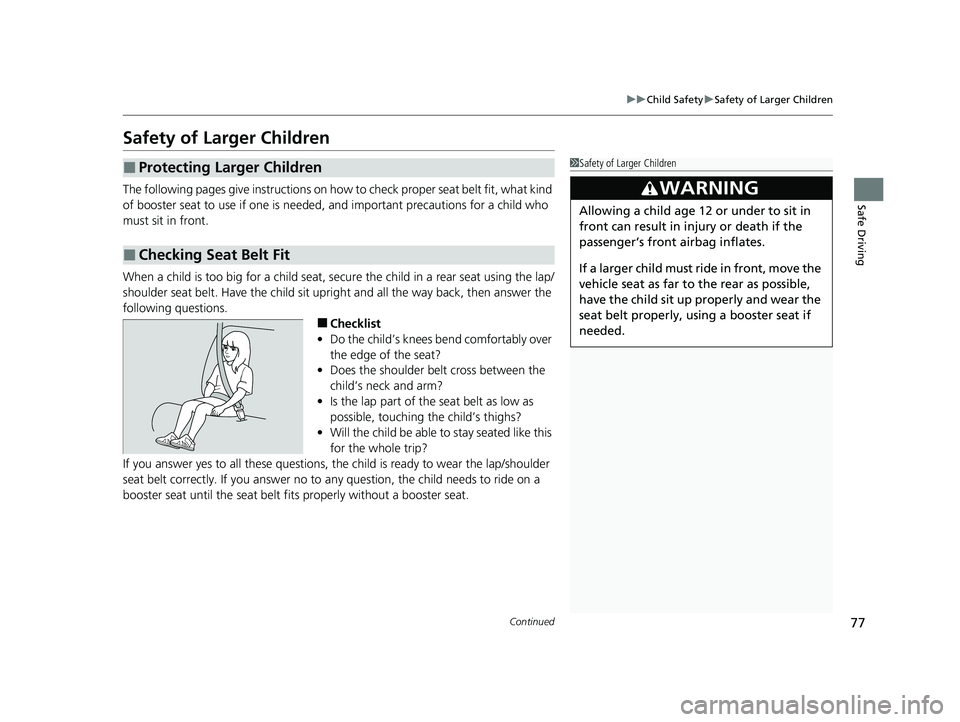

77
uuChild Safety uSafety of Larger Children
Continued
Safe Driving
Safety of Larger Children
The following pages give instructions on how to check proper seat belt fit, what kind
of booster seat to use if one is needed, and important precautions for a child who
must sit in front.
When a child is too big for a child seat, secure the child in a rear seat using the lap/
shoulder seat belt. Have the child sit upri ght and all the way back, then answer the
following questions.
■Checklist
• Do the child’s knees bend comfortably over
the edge of the seat?
• Does the shoulder belt cross between the
child’s neck and arm?
• Is the lap part of the seat belt as low as
possible, touching the child’s thighs?
• Will the child be able to stay seated like this
for the whole trip?
If you answer yes to all these questions, th e child is ready to wear the lap/shoulder
seat belt correctly. If you answer no to any question, the child needs to ride on a
booster seat until the seat belt fits properly without a booster seat.
■Protecting Larger Children
■Checking Seat Belt Fit
1 Safety of Larger Children
3WARNING
Allowing a child age 12 or under to sit in
front can result in injury or death if the
passenger’s front airbag inflates.
If a larger child must ride in front, move the
vehicle seat as far to the rear as possible,
have the child sit up properly and wear the
seat belt properly, us ing a booster seat if
needed.
23 PASSPORT-31TGS6400.book 77 ページ ２０２２年８月５日　金曜日　午後９時２分

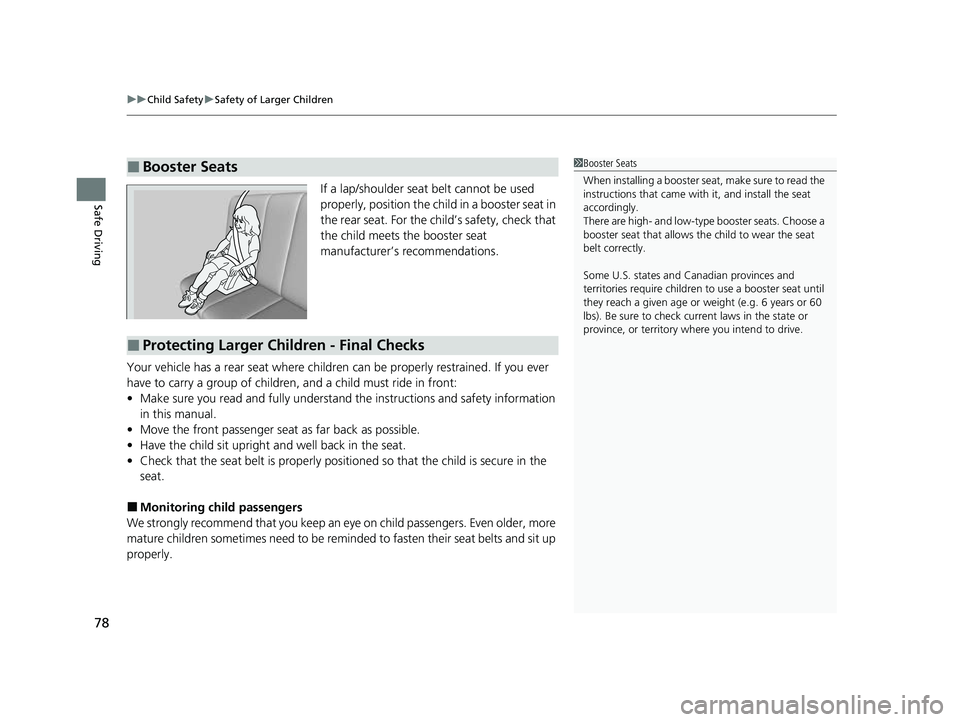

uuChild Safety uSafety of Larger Children
78
Safe DrivingIf a lap/shoulder seat belt cannot be used
properly, position the child in a booster seat in
the rear seat. For the ch ild’s safety, check that
the child meets the booster seat
manufacturer’s recommendations.
Your vehicle has a rear seat where children can be properly restrained. If you ever
have to carry a group of children, and a child must ride in front:
• Make sure you read and fully understand the instructions and safety information
in this manual.
• Move the front passenger seat as far back as possible.
• Have the child sit upright and well back in the seat.
• Check that the seat belt is properly positi oned so that the child is secure in the
seat.
■Monitoring child passengers
We strongly recommend that you keep an eye on child passengers. Even older, more
mature children sometimes need to be remind ed to fasten their seat belts and sit up
properly.
■Booster Seats1 Booster Seats
When installing a booster seat , make sure to read the
instructions that came with it, and install the seat
accordingly.
There are high- and low-type booster seats. Choose a
booster seat that allows the child to wear the seat
belt correctly.
Some U.S. states and Canadian provinces and
territories require children to use a booster seat until
they reach a given age or weight (e.g. 6 years or 60
lbs). Be sure to check current laws in the state or
province, or territory where you intend to drive.
■Protecting Larger Children - Final Checks
23 PASSPORT-31TGS6400.book 78 ページ ２０２２年８月５日　金曜日　午後９時２分

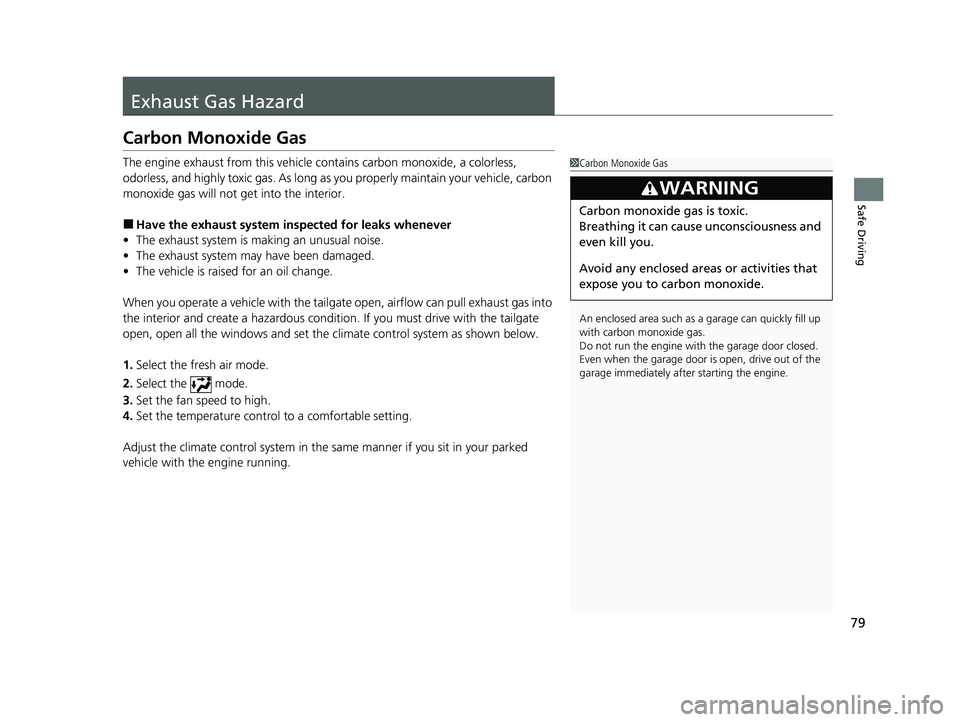

79
Safe Driving
Exhaust Gas Hazard
Carbon Monoxide Gas
The engine exhaust from this vehicle contains carbon monoxide, a colorless,
odorless, and highly toxic gas. As long as you properly maintain your vehicle, carbon
monoxide gas will not get into the interior.
■Have the exhaust system in spected for leaks whenever
• The exhaust system is ma king an unusual noise.
• The exhaust system may have been damaged.
• The vehicle is raised for an oil change.
When you operate a vehicle with the tailga te open, airflow can pull exhaust gas into
the interior and create a hazardous conditio n. If you must drive with the tailgate
open, open all the windows and set the climate control system as shown below.
1. Select the fresh air mode.
2. Select the mode.
3. Set the fan speed to high.
4. Set the temperature control to a comfortable setting.
Adjust the climate control system in the same manner if you sit in your parked
vehicle with the engine running.
1 Carbon Monoxide Gas
An enclosed area such as a garage can quickly fill up
with carbon monoxide gas.
Do not run the engine with the garage door closed.
Even when the garage door is open, drive out of the
garage immediately afte r starting the engine.
3WARNING
Carbon monoxide gas is toxic.
Breathing it can cause unconsciousness and
even kill you.
Avoid any enclosed areas or activities that
expose you to carbon monoxide.
