If the indicator comes on
while driving, it means one
of the engine’s emission control
systems may have a problem. Even
though you may f eel no dif f erence in
your vehicle’s perf ormance,
continued operation may cause
serious damage.
If you have recently ref ueled your
vehicle, the cause of this indicator
coming on could be a loose or
missing f uel f ill cap. Check the cap
or replace it. Tightening the cap will
not make the indicator turn of f
immediately; it takes at least three
days of normal driving.
If the indicator remains on or the
f uel cap was not loose or missing,
have the vehicle checked by the
dealer as soon as possible. If the malf unction indicator lamp
comes on along with the ‘‘D’’
indicator, there is a problem in the
automatic transmission control
system.
Your vehicle has certain ‘‘readiness
codes’’ that are part of the on-board
diagnostics f or the emissions
systems. In some states, part of the
emissions testing is to make sure
these codes are set. If they are not
set, the test cannot be completed.If your vehicle battery has been
disconnected or gone dead, these
codes are erased. It takes at least
three days of driving under various
conditions to set the codes again.
To check if they are set, turn the
ignition to ON (II), without starting
the engine. The Malf unction
Indicator Lamp will come on f or 20
seconds. If it then goes of f , the
readiness codes are set. If it blinks 5
times, the readiness codes are not
set. If possible, do not take your
vehicle f or a state emissions test
until the readiness codes are set.
Refer to State Emissions Testing for
more information (see page ).
226
Malf unction Indicator L amp
Readiness Code
Malf unction Indicator
T aking Care of t he Unexpect ed207
NOTICE:If you keep driving with the
Malf unction Indicator Lamp on, you
can damage your vehicle’s emission
controls and the engine. Those repairs
may not be covered by your vehicle’s
warranties.

However, if the brake pedal does not
f eel normal, you should take
immediate action. A problem in one
part of the system’s dual circuit
design will still give you braking at
two wheels. You will f eel the brake
pedal go down much f arther bef ore
the vehicle begins to slow down and
you will have to press harder on the
pedal.
Slow down by shif ting to a lower
gear, and pull to the side of the road
when it is saf e. Because of the long
distance needed to stop, it is
hazardous to drive the vehicle. You
should have it towed and repaired as
soon as possible (seeon page ).
If you must drive the vehicle a short
distance in this condition, drive
slowly and caref ully. If your vehicle needs to be towed,
call a professional towing service or
organization. Never tow your vehicle
with just a rope or chain. It is very
dangerous.
The operator will load
your vehicle on the back of a truck.
Any other method of towing will
damage the drive system. When you
contact the towing agency, inf orm
them a f lat-bed is required.
Refer to on page
for non-emergency towing
inf ormation.
If the brake system
indicator comes on while
driving, the brake f luid level is
probably low in the reservoir. Press
lightly on the brake pedal to see if it
f eels normal. If it does, check the
brake f luid level the next time you
stop at a service station (see page ). If the f luid level is low, take
the vehicle to your dealer and have
the brake system inspected f or leaks
or worn brake pads.
208208
178
Brake System Indicator
Emergency
Towing The only way you can saf ely tow
your vehicle is with f lat-bed
equipment.
Towing Your Vehicle
Behind a Motorhome Emergency T owing
T aking Care of t he Unexpect ed
Brake System Indicator, Emergency Towing
208
NOTICE: Towing a Pilot with only two
tires on the ground will damage parts
of the 4WD system. It should be
transported on a f lat-bed truck or
trailer.

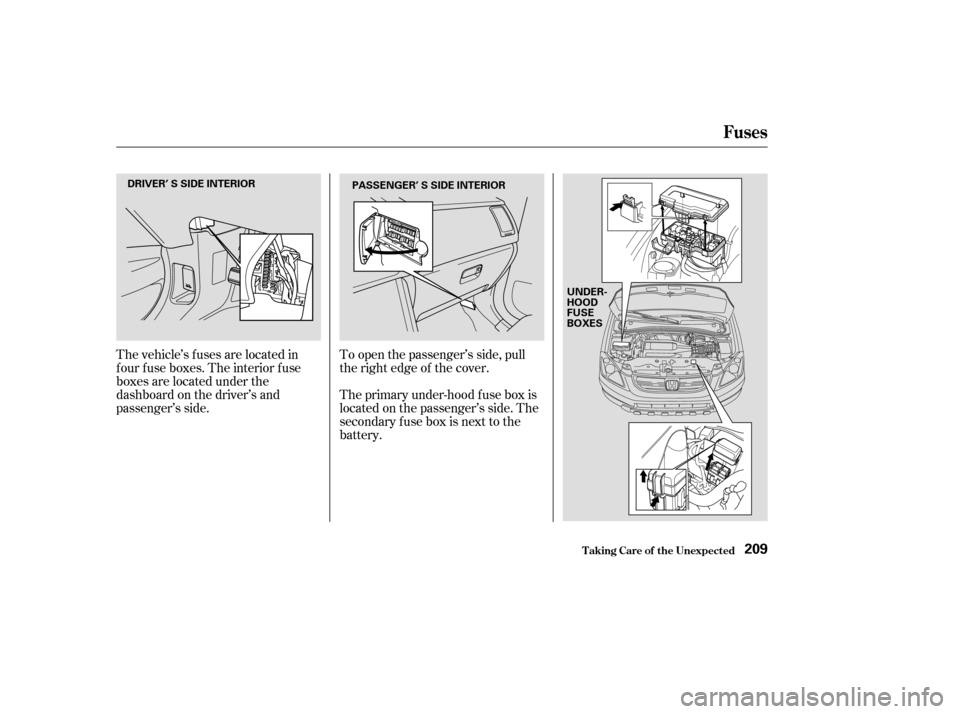

The vehicle’s f uses are located in
f our f use boxes. The interior f use
boxes are located under the
dashboard on the driver’s and
passenger’s side.To open the passenger’s side, pull
the right edge of the cover.
The primary under-hood f use box is
locatedonthepassenger’sside.The
secondary f use box is next to the
battery.
Fuses
T aking Care of t he Unexpect ed209
UNDER-
HOOD
FUSE
BOXES
PASSENGER’ S SIDE INTERIOR
DRIVER’ S SIDE INTERIOR

If something electrical in your
vehicle stops working, the first thing
youshouldcheckforisablownfuse.
Determine f rom the chart on pagesand , or the diagram on the
fuse box lid, which fuse or fuses
control that device. The diagram f or
theinteriordriver’ssidefuseboxis
on the kick panel below the f use box.
Check those f uses f irst, but check all
the f uses bef ore deciding that a
blown f use is the cause. Replace any
blown f uses, and check if the device
works.
Turn the ignition switch to LOCK
(0). Make sure the headlights and
all other accessories are off.
Remove the cover f rom the f use
box. Check each of the large f uses in
the primary under-hood f use box
by looking through the top at the
wise inside. Remove the screws
with a Phillips-head screwdriver.
Check the smaller f uses in the
under-hood f use box and all the
fuses in the interior fuse boxes by
pulling out each f use with the f use
puller provided in the primary
under-hood f use box.
Look f or a burned wire inside the
f use. If it is burned, replace it with
one of the spare f uses of the same
rating or lower.
1.
2. 3.
4.
5.
212 213
Checking and Replacing Fuses
T aking Care of t he Unexpect ed
Fuses
210
BLOWN BLOWN

If you cannot drive the vehicle
without f ixing the problem, and you
do not have a spare fuse, take a fuse
of the same rating or a lower rating
f rom one of the other circuits. Make
sureyoucandowithoutthatcircuit
temporarily (such as the accessory
power socket or radio).
If you replace the blown f use with a
spare f use that has a lower rating, it
might blow out again. This does not
indicate anything wrong. Replace the
f use with one of the correct rating as
soon as you can.If the replacement fuse of the
same rating blows in a short time,
there is probably a serious
electrical problem in your vehicle.
Leave the blown fuse in that
circuit, and have your vehicle
checked by a qualif ied mechanic.
If the radio f use is removed, the
audio system will disable itself . The
nexttimeyouturnontheradioyou
will see ‘‘COdE’’ in the f requency
display. Use the Preset buttons to
enter the f ive-digit code (see page ). If a trailer light is burned out, check
if these f uses are blown when you
replace the light bulbs:
If those f uses are OK, but the trailer
lights still do not work, there are two
blown 7.5 amp f uses in the trailer
hatch wiring. To access the 7.5 amp
f uses:
Open the tailgate and remove the
cargo f loor lid.
Pull out the bottom of the tailgate
rubber seal.
Remove rear trim panel by pulling
up on the inside edge of the rear
trim panel, and unhooking the f our
clips and tabs.
Af ter replacing f uses, and reinstall
the rear trim panel in the reverse
order of removal. Primary under-hood f use box
fuses5,7,and24
Interior driver’s side f use box: 10
Interior passenger’s side f use box:
10
6.
102 1.
2.
3.
4.
On EX model
T aking Care of t he Unexpect ed
Fuses
Trailer Fuses
211
NOTICE:
Replacing a f use with one
that has a higher rating greatly
increases the chances of damaging the
electrical system. If you do not have a
replacement f use with the proper rating
f or the circuit, install one with a lower
rating.

µ
No. Amps. Circuits Protected
No. Amps. Circuits ProtectedNo. Amps. Circuits Protected
1
2
3
4
5
6
7
8
9
10
11
12
13 20 A
30 A
20 A
15 A
15 A
20 A
20 A
20 A
40 A
40 A
30 A
40 A Spare Fuse
Spare Fuse
Right Headlight
ACG S
Hazard
Not used
Stop
Lef t Headlight
Radio
Power Window Motor
Power Seat
Rear Defroster
Back Up, ACC
1
2
3
4 40 A
20 A
20 A
20 A ABS Motor
ABS F/S
Rear ACC Socket
4WD 14
15
16
17
18
19
20
21
22
23
24
30 A
40 A
30 A
7.5 A 10 A
15 A
120 A 30 A
7.5 A 50 A
20 A Rear A/C
Heater Motor
Cooling Fan
Spare Fuse
Spare Fuse
Spare Fuse
Battery
Condenser Fan
MG Clutch
IGI Main
Trailer (accessory)

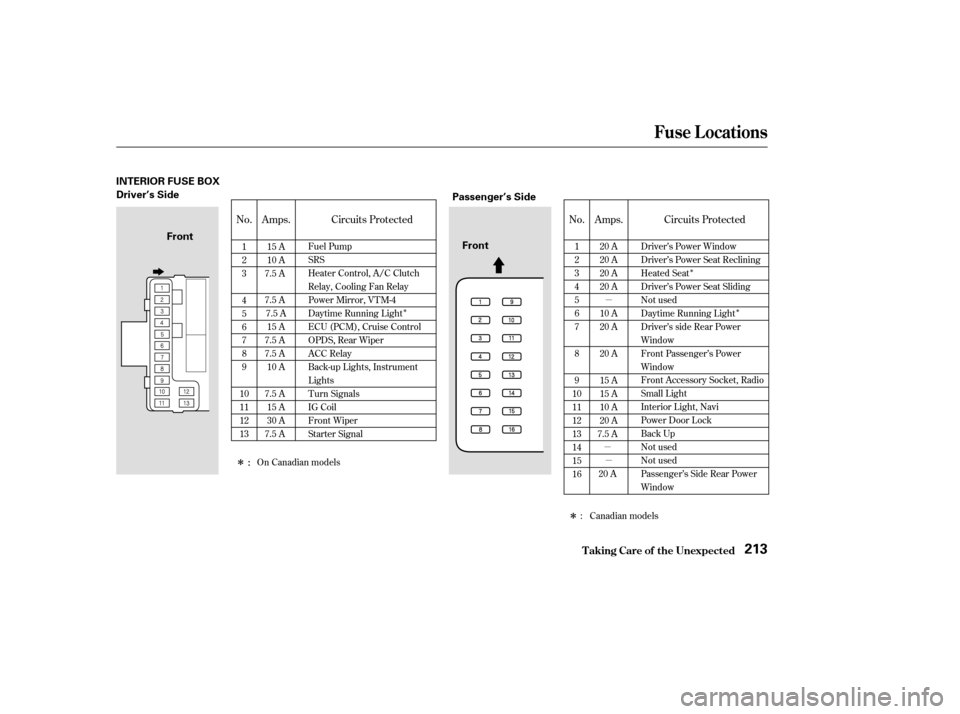

Fuse Locations
T aking Care of t he Unexpect ed212

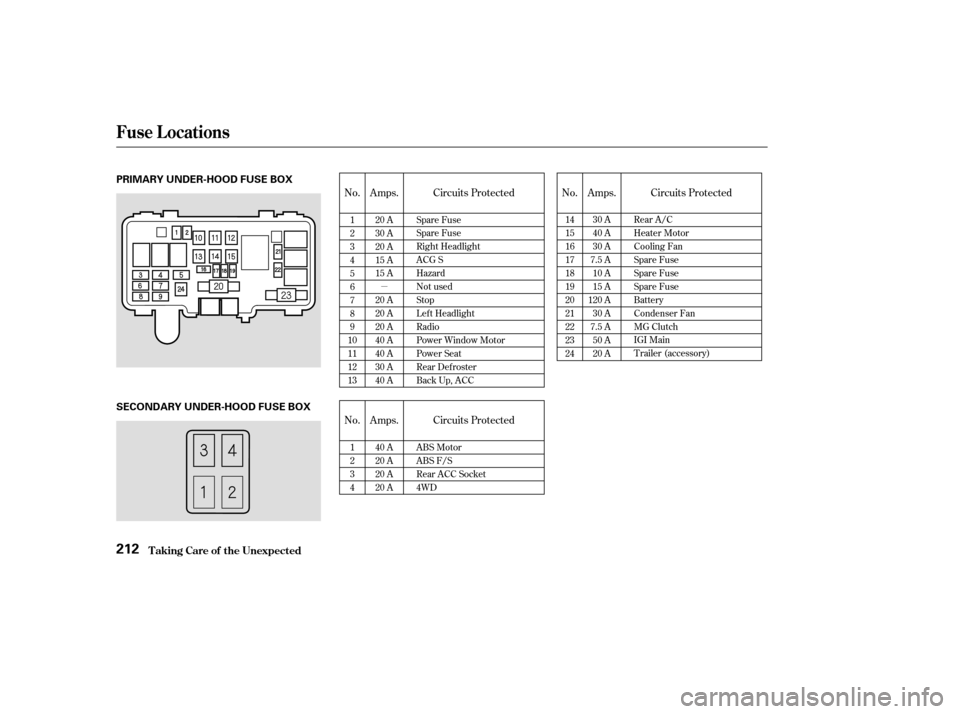

PRIMARY UNDER-HOOD FUSE BOX
SECONDARY UNDER-HOOD FUSE BOX

ÎÎ
ε
µ µ
Î
Î
No. Amps. Circuits ProtectedNo. Amps. Circuits Protected
1
2
3
4
5
6
7
8
9
10
11
12
13 15 A
10 A
7.5 A
7.5 A 7.5 A15 A
7.5 A
7.5 A 10 A
7.5 A 15 A
30 A
7.5 A Fuel Pump
SRS
Heater Control, A/C Clutch
Relay, Cooling Fan Relay
Power Mirror, VTM-4
Daytime Running Light
ECU(PCM),CruiseControl
OPDS, Rear Wiper
ACC Relay
Back-up Lights, Instrument
Lights
Turn Signals
IG Coil
Front Wiper
Starter Signal 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16 20 A
20 A
20 A
20 A
10 A
20 A
20 A
15 A
15 A
10 A
20 A
7.5 A
20 A Driver’s Power Window
Driver’s Power Seat Reclining
Heated Seat
Driver’s Power Seat Sliding
Not used
Daytime Running Light
Driver’s side Rear Power
Window
Front Passenger’s Power
Window
Front Accessory Socket, Radio
Small Light
Interior Light, Navi
Power Door Lock
Back Up
Not used
Not used
Passenger’s Side Rear Power
Window
Canadian models
:
On Canadian models
Fuse Locations
T aking Care of t he Unexpect ed213
Driver’s Side INTERIOR FUSE BOX
Passenger’s Side
Front Front
:

214

Thediagramsinthissectiongive
you the dimensions and capacities of
your Honda, and the locations of the
identif ication numbers. It also
includes inf ormation you should
know about your vehicle’s tires and
emissions control systems.................
Identif ication Numbers . 216
................................
Specif ications .218
..........
DOT Tire Quality Grading . 220
Unif orm Tire Quality ..................................
Grading .220
.................................
Treadwear .220
......................................
Traction .220
.............................
Temperature .221 .......................
Emissions Controls .223
.....................
The Clean Air Act .223
Crankcase Emissions Control ....................................
System .223
Evaporative Emissions Control ....................................
System .223
Onboard Ref ueling Vapor ................................
Recovery .223
...
Exhaust Emissions Controls . 224
....................
PGM-FI System .224
Ignition Timing Control ................................
System .224
Exhaust Gas Recirculation ...................
(EGR) System . 224
Three Way Catalytic ...........................
Converter .224
....................
Replacement Parts . 224
..
Three Way Catalytic Converter . 225
..............
State Emissions Testing . 226
....
Testing of Readiness Codes . 226
T echnical Inf ormat ion
T echnical Inf ormation215

Your vehicle has several identif ying
numbers in various places.
The Vehicle Identif ication Number
(VIN) is the17-digit number your
Honda dealer uses to register your
vehicle f or warranty purposes. It is
also necessary f or licensing and
insuring your vehicle. The easiest
placetofindtheVINisonaplate
fastened to the top of the dashboard.
Youcanseeitbylookingthrough
the windshield on the driver’s side. It
is also on the Certification label at-
tached to the driver’s doorjamb, and
is stamped on the engine com-
partment bulkhead. The VIN is also
provided in bar code on the
Certif ication label.
Identif ication Numbers
T echnical Inf ormation216

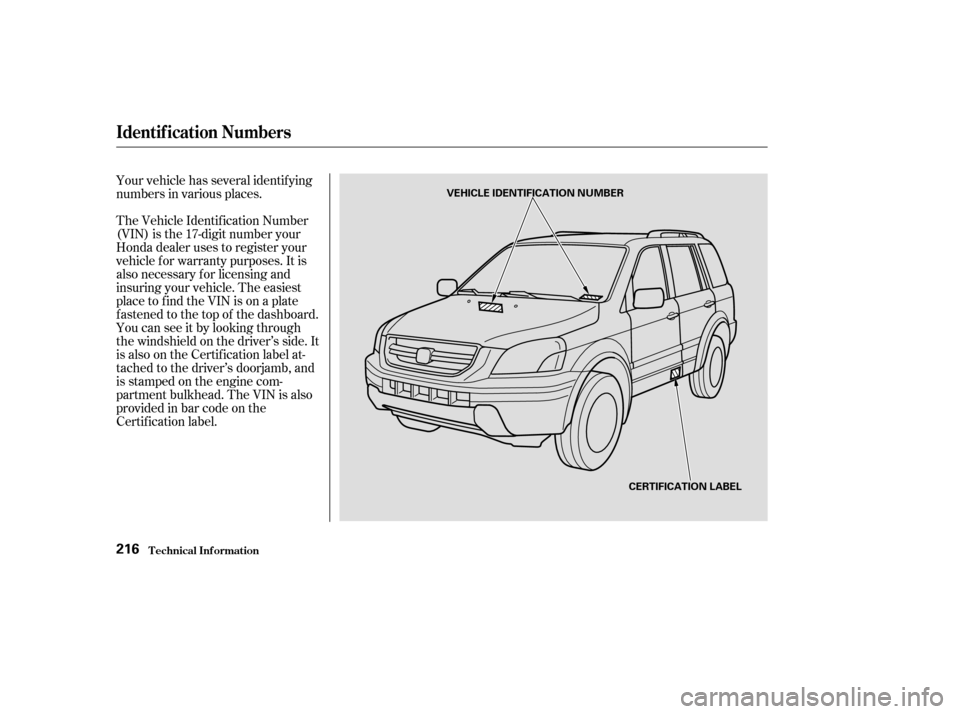

VEHICLE IDENTIFICATION NUMBER
CERTIFICATION LABEL
