In HI, the heater turns of f when the
seat gets warm, and turns back on
after the seat’s temperature drops.
In LO, the heater runs continuously.
It does not cycle with temperature
changes.
Follow these precautions whenever
you use the seat heaters:Use the HI setting only to heat the
seats quickly, because it draws
large amounts of current f rom the
battery.
If the engine is lef t idling f or an
extended period, do not use the
seat heaters even on the LO
setting. It can weaken the battery,
causing hard starting.
Both f ront seats are equipped with
seat heaters. The passenger seat
only has heaters in the seat bottom
because of side airbag system. The
ignition switch must be in the ON
(II) position to use them. Push the
top of the switch, HI, to rapidly heat
up the seat. After the seat reaches a
comf ortable temperature, select LO
by pushing the bottom of the switch.
This will keep the seat warm.As required by the FCC:
This device complies with Part 15 of theFCC rules. Operation is subject to thef ollowing two conditions: (1) This devicemay not cause harmf ul interf erence, and(2) this device must accept anyinterf erence received, includinginterf erence that may cause undesiredoperation.
This device complies with IndustryCanada Standard RSS-210.Operation is subject to the f ollowing twoconditions: (1) this device may not causeinterf erence, and (2) this device mustaccept any interf erence that may causeundesired operation of the device.
Changes or modif ications not expressly
approved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
Inst rument s and Cont rols
Remote Transmitter, Seat Heaters
Seat Heaters
(If equipped)
67
SEAT HEATERS

µ
To change the lumbar support, move
the lever on the right side of the
seat-back forward or backward.
Keep moving the lever f orward or
backward until you f ind a suitable
position.
The controls f or the power
adjustable driver’s seat are on the
outside edge of the seat bottom. You
can adjust the power seat with the
ignition switch in any position. Make
all seat adjustments bef ore you start
driving.
Moving the long horizontal switch
adjusts the seat bottom in several
directions. The seat bottom adjusts
in the direction you move the switch.
The short vertical switch adjusts the
seat back angle.
Adjusts the seat-back
angle f orward or
backward. Raises or lowers the
seat. Moves the f ront of the
seat up or down and
the rear of the seat up
or down. Moves the seat
f orward and backward.
See pages f or important saf etyinf ormation and warnings about how toproperly position seats and seat-backs. On EX model
On EX model
1110
Seats
Inst rument s and Cont rols
Driver’s L umbar Support
Power Seat A djustment
68

To adjust the seat forward and
backward, pull up on the lever under
the f ront seat cushion. Then try to
movetheseattomakesureitis
locked into position.To change the seat-back angle of the
f ront seat, pull up on the lever on the
outside of the seat bottom.
The height of your driver’s seat is
adjustable. Turn the front dial on the
outside of the seat cushion to raise
the front of the seat bottom, and turn
the rear dial to raise the rear.
On LX model
Seats
Inst rument s and Cont rols
Manual Seat A djustments
Driver’s Seat Height A djustment
69

To change the angle of the seats in
the second row seat-backs, pull up
the handle on the seat-back. Moving
the short vertical switch f orward or
backward adjusts the seat back in
those directions.The left and right halves can be
f olded separately.
Push the whole seat backwards until
f ully latches. Make sure the seat is
locked and secured bef ore driving.
If you are f olding the lef t half of
the seat, use the ignition key to
release the center seat belt from
thedetachableanchor(seepage
).
Lower the head restraint f ully.
Pull up the handle on the outside
of the seat-back.
Fold the seat-back forward.
Reverse this procedure to return the
seat to its upright position. Make
sure the seat is locked and secured
bef ore driving. To get into the third row seats, pull
up the lever on the outside of the
passenger’s side second row seat-
back. The seat-back will tilt f orward,
and the seat will slide f orward.
To adjust the seats forward and
backward, pull up on the lever under
the seat cushion. Af ter moving the
seat, make sure it is locked into
position. 2.
3. 1.
4.
72
Seats
Inst rument s and Cont rols
A djusting the Second Row Seats Folding the Second Row Seats T hird Seat A ccess
70
SECOND
ROW SEAT
RELEASE LEVER

Remove the head restraints by
pushing the release buttons and
pulling the restraints out.
Store the head restraints under
the cargo area floor. Insert the
shafts into the holes in the sides of
the storage compartment.Use the ignition key to release the
seat belt from the detachable
anchor. See page .
Unlock the seat-back by pulling
the handle. Push the seat-back
forward.
Make sure you clip the small latch
plate of each outer shoulder belt to
the seat belt webbing whenever the
third seat is f olded.
Pull the handle on the back of the
seat, move the seat-back to the
desired position and release the
handle. Let the seat-back latch into
the new position. Make sure all items in the cargo area
are secured. Loose items can f ly
f orward and cause injury if you have
to brake hard. See
on page . Reinstall the head restraints,
reconnect the seat belts, and make
sure the seats are secured bef ore
driving. Reverse this procedure to return the
seat to its upright position.
1.
2. 3.
4.
80
131
Seats
Inst rument s and Cont rols
A djusting the T hird Row Seat Folding the T hird Row Seat
Carrying Cargo
71
THIRD ROW
SEATHANDLE

See page f or important saf etyinf ormation and a warning about how toproperly position the head restraints. 12
Your vehicle is equipped with head
restraints in all seating positions to
help protect you and your
passengers whiplash and other
injuries. They are most ef f ective when you
adjust them so the back of the
occupant’s head rests against the
center of the restraint.
The head restraints in the second
and third row seats adjust f or height.
You need both hands to adjust the
restraint. To raise it, pull upward. To
lower it, push the release button
sideways, and push the restraint
down.
To unlatch the detachable anchor,
insert a key into the slot on the side
of the small buckle. Line up the
triangle marks on the plate and
buckle when reattaching the belt and
buckle.
Seats
Inst rument s and Cont rols
Detachable Seat Belt Anchors
Head Restraints
72
RELEASE BUTTON TRIANGULAR MARKSMALL LATCH PLATEUsing a seat belt with the
detachable anchor unlatched
increases the chance of serious
injury or death in a crash.
Before using the seat belt,
make sure the detachable
anchor is correctly latched.

µ
µ If the driver’s
window runs into any obstacle while
it is closing automatically, it will
reverse direction and then stop. To
close the window, remove the
obstacle, then use the window switch
again.
If the power windows do not operate
properly af ter resetting, have your
vehicle checked by a Honda dealer. If your vehicle’s battery is
disconnected or goes dead, or the
driver’s window f use is removed, the
AUTO f unction will be disabled. The
power window system needs to be
reset af ter reconnecting the battery
or installing the f use.
Start the engine. Push down and
hold the driver’s window switch
until the window is f ully open.
Pull and hold the driver’s window
switch to close the window
completely, then hold the switch
f or a second or two more.
Turn the ignition switch to ON (II)
toraiseorloweranywindow.To
open the window, push the switch
downandholdit.Releasetheswitch
when you want the window to stop.
Pull back on the switch and hold it to
close the window. To open/close the driver’s
window, push the window switch
f irmly down or up to the second
detent, and release it. The window
will automatically go up or down all
the way. To stop the window, pull/
push on the window switch brief ly.
If the MAIN switch is OFF, the
passenger windows cannot be raised
or lowered. Keep the MAIN switch
off whenyouhavechildreninthe
vehicle so they do not injure
themselves by operating the
windows unintentionally. 1.
2. AUTO REVERSE
AUTO
Power Windows
Inst rument s and Cont rols73
DRIVER’S WINDOW
SWITCH MAIN SWITCH
Closing a power window on
someone’s hands or fingers can
cause serious injury.
Make sure your passengers are
away from the windows before
closing them.

The outside mirrors are heated to
remove fog and frost. With the
ignition switch in the ON (II)
position, turn on the heaters by
pressing the button. The indicator in
the button comes on as a reminder.
Press the button again to turn the
heaters of f .
When you f inish, move the
selector switch to the center (off)
position. This turns of f the
adjustment switch so you can’t
move a mirror out of position by
accidentally bumping the switch. Push the appropriate edge of the
adjustment switch to move the
mirrorright,left,up,ordown. Move the selector switch to L
(driver’s side) or R (passenger’s
side).
Keeptheinsideandoutsidemirrors
clean and adjusted f or best visibility.
Be sure to adjust the mirrors bef ore
you start driving.
The inside mirror has day and night
positions. The night position reduces
glare f rom headlights behind you.
Flip the tab on the bottom edge of
the mirror to select the day or night
position.
3. 1.
2.PowerMirrorHeaters
Adjusting the Power Mirrors
(If equipped)
Mirrors
Inst rument s and Cont rols74
TABSELECTOR SWITCH
HEATED MIRROR BUTTON
ADJUSTMENT SWITCH

To apply the parking brake, push the
parking brake pedal down with your
f oot. To release the parking brake,
push on the pedal again. The parking
brake light on the instrument panel
should go out when the parking
brake is f ully released with the
engine running. (see page .)49
Parking Brake
Inst rument s and Cont rols75
NOTICE:
PARKING BRAKE PEDAL
Driving the vehicle with the
parking brake applied can damage the
rear brakes and axles.

Inst rument s and Cont rols

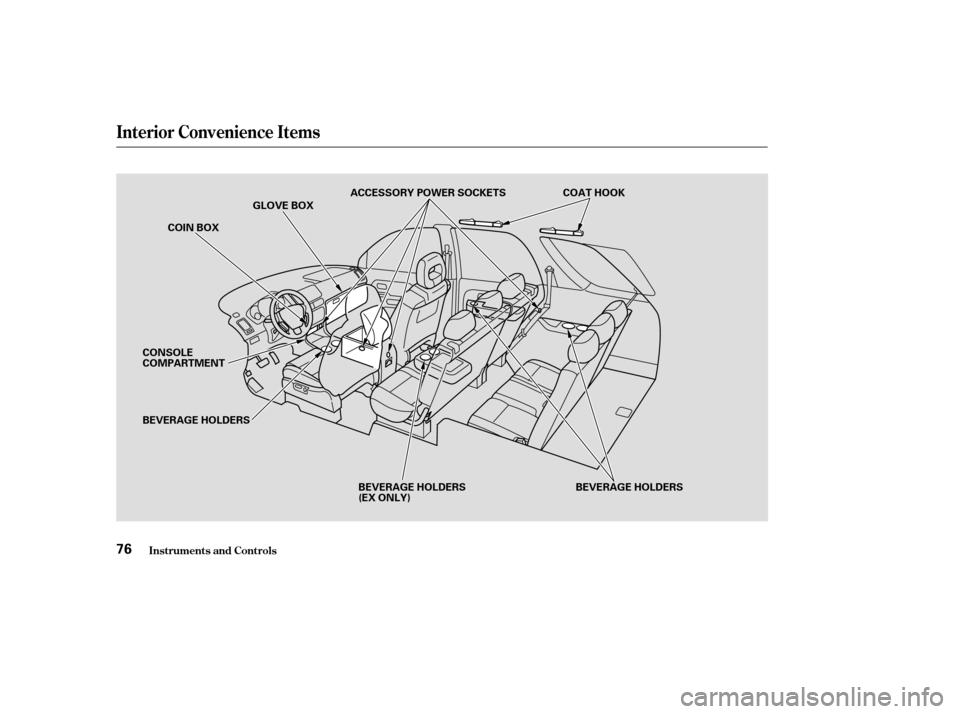

Interior Convenience Items
76
BEVERAGE HOLDERS
BEVERAGE HOLDERS COIN BOX
GLOVE BOX
COAT HOOK
ACCESSORY POWER SOCKETS
BEVERAGE HOLDERS
(EX ONLY)
CONSOLE
COMPARTMENT
