HONDA PILOT 2004 1.G Repair Manual

µ
µ
µ
µ µ
µ
µ µ
µ
MIST
OFF
INT Intermittent
LO Low
HI High
Windshield Washers
Push the right lever up or down to
select a position.
The wipers are not activated. The wipers run at low speed.
The wipers run at high speed.
The wipers run at high
speed until you release the lever. The length of the wiper
interval is varied automatically
according to the vehicle’s speed.
Vary the delay by turning the INT
TIME ring. If you turn it to the
shortest delay, the wipers will
change to low speed operation
when the vehicle speed exceeds 12
mph (20 km/h).
Pull the
wiper control lever toward you and
hold it. The washers spray until
you release the lever. The wipers
run at low speed, then complete
one more sweep af ter you release
the lever. Rotate the switch clockwise to
turn the rear window wiper ON.
Hold past ON to turn the window
wiper on and the window washer
to spray.
OFF
Rotate the switch
counterclockwise to turn the
window wiper on and the window
washer to spray.
1.
2.
3.
4.
5.
6.
1.
2.
3.
4. Rear Window Wiper and Washer
OFF LO
HI
MIST INT
Windshield Washer
Windshield Wipers and Washers
Inst rument s and Cont rols57

µµ
µ
Turn Signal
Headlights On
High Beams
Push down on the
lef t lever to signal a lef t turn and up
to signal a right turn. To signal a lane
change, push lightly on the lever and
hold it. The lever will return to
center when you release it or
complete a turn. This f eature turns of f the headlights,
f og lights, parking lights, taillights,
side marker lights, license plate
lights, and instrument panel lights
within 15 seconds of removing the
key f rom the ignition switch and
closing the driver’s door.
This feature activates if you leave
the headlight switch in the ‘‘ ’’
or ‘‘ ’’ position, remove the key,
then open and close the driver’s door.
If you remove the key f rom the
ignition switch with the headlight
switch on, but do not open the door
and get out, the lights will turn of f
af ter 10 minutes.
Rotating switch
on the lef t lever to the ‘‘ ’’
position turns on the parking lights,
taillights, instrument panel lights,
side-marker lights, and rear license
plate lights. Turning the switch to
the ‘‘ ’’ position turns on the
headlights. If you leave the lights on
with the ignition switch in the
ACCESSORY (I) or LOCK (0)
position, you will hear a reminder
chime when you open the driver’s
door.
To turn on, push
the lever f orward until you hear a
click. The blue high beam indicator
will light (see page ). Pull it back
to return to low beams. To flash the
high beams, pull the lever back
lightly, then release it. The high
beams will stay on as long as you
hold the lever back.
1.
2.
3.
51
On EX model
Turn Signal Automatic Lighting Of f Feature
Headlights On
High Beams
Inst rument s and Cont rols
Turn Signal and Headlights
58

The lights will turn on again when
you unlock or open the driver’s door.
If you unlock the door, but do not
open it within 15 seconds, the lights
will go off. With the driver’s door
open, you will hear a lights-on
reminder chime.
With the headlight switch off, the
high beam headlights come on with
reduced brightness when you turn
the ignition switch ON (II) and
release the parking brake. They
remain on until you turn the ignition
of f , even if you set the parking brake.Pushtheredbuttontoturnonthe
hazard warning lights (f our-way
flashers). This causes all four
outside turn signals and both
indicators in the instrument panel to
f lash. Use the hazard warning lights
if you need to park in a dangerous
area near heavy traffic, or if your
vehicle is disabled.
The knob on the instrument panel
controls the brightness of the instru-
ment panel lights. Turn the knob to
adjust the brightness.
The headlights revert to normal
operation when you turn the switch
to the ‘‘ ’’ position.
Inst rument s and Cont rols
(Canadian Models) Daytime Running L ights Instrument Panel Brightness Hazard Warning Button
Headlights, Instrument Panel Brightness, Hazard Warning Button
59
INSTRUMENT PANEL BRIGHTNESS
CONTROL KNOB
HAZARD WARNING BUTTON

Make sure the rear window is clear
and you have good visibility bef ore
starting to drive.
The rear window def ogger will clear
fog,frost,andthinicefromthe
window. Push the def ogger button to
turn it on and off. The indicator
above the button lights to show the
def ogger is on. If you do not turn it
of f , the def ogger will shut itself of f
af ter about 15 minutes. It also shuts
of f when you turn of f the ignition.
You have to turn it on again when
you restart the vehicle. Thedefoggerwiresontheinsideof
the rear window can be accidentally
damaged. When cleaning the glass,
always wipe side-to-side.
Rear Window Def ogger
Inst rument s and Cont rols60
EX model
LX model

Push the lever under the steering
column all the way down.
Make any steering wheel adjustment
bef ore you start driving.
Move the steering wheel so it
points to your chest, not toward
your f ace. Make sure you can see
the instrument panel gauges and
indicators.Push the lever up to lock the
steering wheel in that position.
Make sure you have securely
locked the steering wheel in place
by trying to move it up and down.
1.
2. 3.
4.
See page f or important saf ety
inf ormation about how to properlyposition the steering wheel. 14
Inst rument s and Cont rols
Steering Wheel A djustment
61
Adjusting the steering wheel
position while driving may
cause you to lose control of the
vehicle and be seriously injured
inacrash.
Adjust the steering wheel only
when the vehicle is stopped.

The master key fits all the locks on
your vehicle. The valet key works
only in the ignition and the door
locks. You can keep the glove box
locked when you leave your vehicle
and the valet key at a parking f acility.Youshouldhavereceivedakey
number tag with your set of keys.
You will need this key number if you
ever have to get a key replaced. Use
only Honda-approved key blanks.
These keys contain electronic
circuits that are activated by the
Immobilizer System. They will not
work to start the engine if the
circuits are damaged.
Protect the keys f rom direct
sunlight, high temperature, and
high humidity.
Donotdropthekeysorsetheavy
objects on them.
Keep the keys away f rom liquids.
If they get wet, dry them
immediately with a sof t cloth.
The keys do not contain batteries.
Do not try to take them apart.
Keys and Locks, Immobilizer System
Inst rument s and Cont rols
Immobilizer System
62
VALET KEY
(GRAY)
MASTER
KEY
(BLACK)
KEY
NUMBER
TAG

As required by the FCC:This device complies with Part 15 of theFCC rules. Operation is subject to thef ollowing two conditions: (1) This devicemay not cause harmf ul interf erence, and(2) this device must accept anyinterf erence received, includinginterf erence that may cause undesiredoperation.
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
This device complies with IndustryCanada Standard RSS-210.Operation is subject to the f ollowing twoconditions: (1) this device may not causeinterf erence, and (2) this device mustaccept any interf erence that may causeundesired operation of the device.The Immobilizer System protects
your vehicle f rom thef t. If an
improperly-coded key (or other
device) is used, the engine’s f uel
system is disabled.
When you turn the ignition switch to
ON (II), the Immobilizer System
indicator should come on f or a f ew
seconds, then go out. If the indicator
starts to blink, it means the system
does not recognize the coding of the
key. Turn the ignition switch to
LOCK (0), remove the key, reinsert
it, and turn the switch to ON (II)
again. The system may not recognize your
key’s coding if another immobilizer
key or other metal object (i.e. key
f ob) is near the ignition switch when
you insert the key.
If the system repeatedly does not
recognize the coding of your key,
contact your Honda dealer.
Do not attempt to alter this system
or add other devices to it. Electrical
problems could result that may make
your vehicle undriveable.
If you have lost your key and cannot
start your engine, contact a Honda
dealer.
Inst rument s and Cont rols
Immobilizer Syst em
63

µµ
µ
µ
The ignition switch has f our
positions: LOCK (0), ACCESSORY
(I), ON (II), and START (III). You can insert or
remove the key only in this position.
To turn the key, the shift lever must
be in Park, and you must push the
key in slightly. You will hear a reminder beeper if
you leave the key in the ignition
switch in the LOCK (0) or
ACCESSORY (I) position and open
the driver’s door. Remove the key to
turn of f the beeper.
TheshiftlevermustbeinPark
bef ore you can remove the key f rom
the ignition switch.
Use this position
only to start the engine. The switch
returns to ON (II) when you let go of
the key. This is the normal key
position when driving. Several of the
lights on the instrument panel come
on as a test when you turn the
ignition switch f rom ACCESSORY
(I) to ON (II). You can
operate the audio system and the
accessory power sockets in this
position. If the f ront wheels are turned, the
anti-thef t lock may make it dif f icult
to turn the key. Firmly turn the
steering wheel to the lef t or right as
you turn the key.
Ignition Switch
Inst rument s and Cont rols
LOCK (0) ST A RT (III) ON (II) A CCESSORY (I)
64

Each door has a lock tab on the top.
Whenyoupushdownthetabonthe
driver’s door or use the key, all the
doors and the tailgate lock. To lock
the f ront passenger’s door, push the
lock tab down and close the door.
To unlock only the driver’s door
f rom the outside, turn the key and
releaseit.If youturnthekeyand
hold it, all doors and the tailgate
unlock. All f our doors and thetailgate unlock when you use the key
in the passenger’s door.
With the driver’s door open and the
key in the ignition, both master door
lock switches are disabled. They are
not disabled if the driver’s door is
closed. Pushing the switch down on
the open passenger’s door will lock
all doors.
To open the tailgate, pull the handle,
then lif t up. To close the tailgate, use
the inner handle to pull it down, then
press down on the back edge.
Keep the tailgate closed at all times
while driving to avoid damaging it
and to prevent exhaust gas from
getting into the interior. See
,page . The childproof door locks are
designed to prevent children seated
in the rear f rom accidentally opening
the rear doors. Each rear door has a
lock lever near the edge. With the
lever in the LOCK position, the door
cannot be opened f rom the inside
regardless of the position of the lock
tab. To open the door, pull the lock
tab up and use the outside door
handle.
42
Door L ocks
Inst rument s and Cont rols
Power Door L ocks
Lockout Prevention
Tailgate
Carbon
Monoxide Hazard Childproof Door L ocks
65
MASTER DOOR LOCK SWITCH
LOCK COVER

´
µ
µ µ
ÜÕ

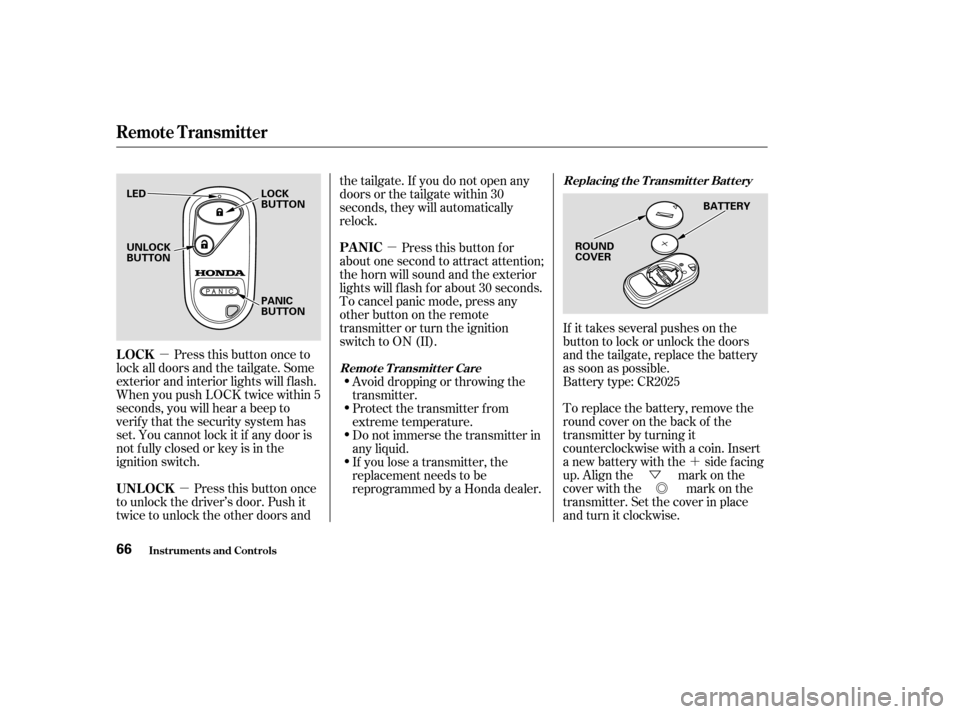

To replace the battery, remove the
round cover on the back of the
transmitter by turning it
counterclockwise with a coin. Insert
a new battery with the side facing
up. Align the mark on the
cover with the mark on the
transmitter. Set the cover in place
andturnitclockwise.
Press this button once to
lock all doors and the tailgate. Some
exterior and interior lights will f lash.
When you push LOCK twice within 5
seconds, you will hear a beep to
verify that the security system has
set. You cannot lock it if any door is
not f ully closed or key is in the
ignition switch.
Press this button once
to unlock the driver’s door. Push it
twice to unlock the other doors and the tailgate. If you do not open any
doors or the tailgate within 30
seconds, they will automatically
relock.
Pressthisbuttonfor
about one second to attract attention;
thehornwillsoundandtheexterior
lights will f lash f or about 30 seconds.
To cancel panic mode, press any
other button on the remote
transmitter or turn the ignition
switch to ON (II).
Avoid dropping or throwing the
transmitter.
Protect the transmitter from
extreme temperature.
Do not immerse the transmitter in
any liquid.
If you lose a transmitter, the
replacement needs to be
reprogrammed by a Honda dealer. If it takes several pushes on the
button to lock or unlock the doors
and the tailgate, replace the battery
as soon as possible.
Battery type: CR2025
Remote Transmitter
Inst rument s and Cont rols
LOCK
UNL OCK PA NIC
Remote Transmitter Care
Replacing the Transmitter Battery
66
UNLOCK
BUTTON LED
LOCK
BUTTON
PANIC
BUTTON BATTERY
ROUND
COVER
