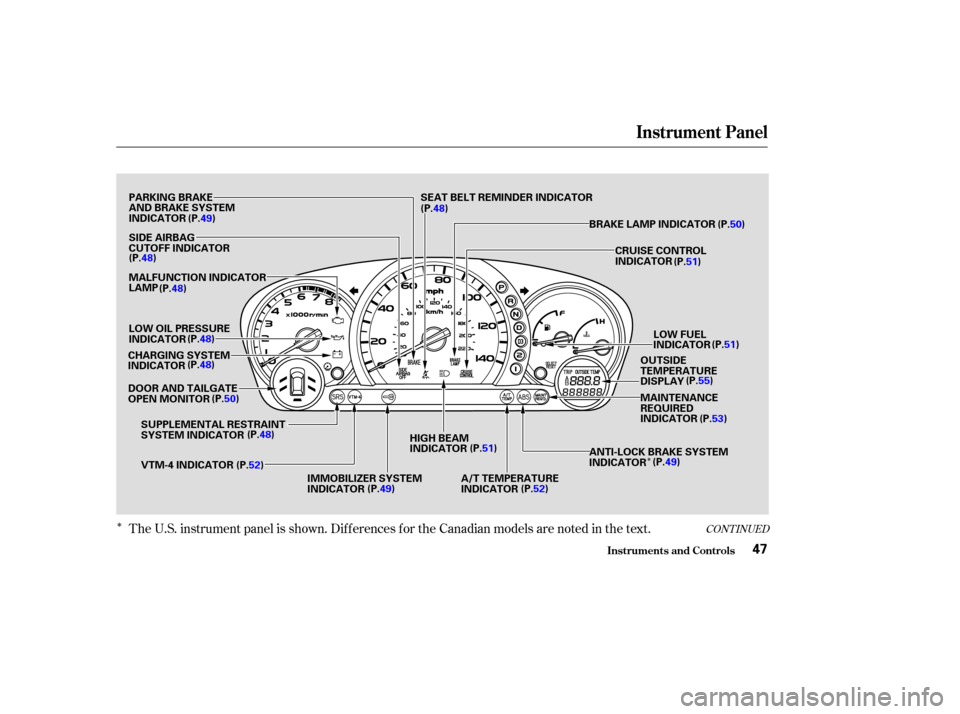

ÎCONT INUEDThe U.S. instrument panel is shown. Dif f erences f or the Canadian models are noted in the text.
Instrument Panel
Inst rument s and Cont rols47
SIDE AIRBAG
CUTOFF INDICATOR
MALFUNCTION INDICATOR
LAMP
LOW OIL PRESSURE
INDICATOR
CHARGING SYSTEM
INDICATOR
DOOR AND TAILGATE
OPEN MONITOR
SUPPLEMENTAL RESTRAINT
SYSTEM INDICATOR
VTM- 4INDICATOR
IMMOBILIZER SYSTEM
INDICATORHIGH BEAM
INDICATOR
A/T TEMPERATURE
INDICATOR MAINTENANCE
REQUIRED
INDICATOR
CRUISE CONTROL
INDICATOR
BRAKE LAMP INDICATOR
ANTI-LOCK BRAKE SYSTEM
INDICATOR LOW FUEL
INDICATOR
OUTSIDE
TEMPERATURE
DISPLAY
PARKING BRAKE
AND BRAKE SYSTEM
INDICATOR
SEAT BELT REMINDER INDICATOR
(P.49)
(P.48) (P.48)
(P.48)
(P.48)(P.50)
(P.48)
(P.52) (P.
48)
(P.50)
(P. 51)
(P.51)
(P. 55)
(P. 53)
(P.49)
(P.52)
(P.51)
(P.49)

This indicator comes on when you
turn the ignition switch to ON (II). If
it comes on at any other time, it
indicates that the passenger’s side
airbag has automatically shut off.
For complete inf ormation, see page.
See page .
If this indicator comes on when the
engine is running, the battery is not
being charged. For more inf ormation,
see page . The engine can be severely damaged
if this indicator f lashes or stays on
when the engine is running. For
more inf ormation, see page .
This indicator comes on when you
turn the ignition switch to ON (II). If
it comes on at any other time, it
indicates a potential problem with
your f ront airbags. This indicator will
also alert you to a potential problem
with your side airbags, passenger’s
side airbag automatic cutoff system
or automatic seat belt tensioners.
For complete inf ormation, see page
.
The instrument panel has many
indicators to give you important
inf ormation about your vehicle.
This indicator comes on when you
turn the ignition switch to ON (II). It
reminds you and your passengers to
f asten your seat belts. A beeper also
sounds if you have not f astened your
seat belt.
If you continue driving without
f astening your seat belt, the beeper
sounds and the indicator f lashes
again at regular intervals. If you turn the ignition switch to ON
(II) bef ore f astening your seat belt,
the beeper sounds and the indicator
f lashes. If you do not f asten your
seat belt bef ore the beeper stops, the
indicator stops f lashing but remains
on. 207
206
206 2323
Inst rument s and Cont rols
Malf unction Indicator
Lamp
L ow Oil Pressure
Indicator
Charging System
Indicator Supplemental Restraint
System Indicator
Side Airbag Of f Indicator
Seat Belt Reminder
Indicator
Instrument Panel
48

This indicator has two f unctions: This indicator normally comes on f ora f ew seconds when you turn the
ignition switch to ON (II), and when
the ignition switch is turned to
START (III). If it comes on at any
other time, there is a problem in the
ABS. If this happens, have your
vehicle checked at a dealer. With
this indicator on, your vehicle still
has normal braking ability but not
anti-lock. For complete inf ormation,
see page .
Itcomesonwhenyouturnthe
ignition switch to ON (II). It is a
reminder to check the parking
brake. Driving with the parking
brake not f ully released can
damage the brakes and tires.
A chime also sounds if you try to
drive with the parking brake on.
If it remains lit af ter you have f ully
released the parking brake while
the engine is running, or if it
comes on while driving, there
could be a problem with the brake
system. For complete inf ormation,
see page . This indicator also blinks several
times when you turn the ignition
switch f rom ON (II) to ACCESSORY
(I) or LOCK (0). This indicator comes on f or a f ew
seconds when you turn the ignition
switch to ON (II). It will go of f if you
have inserted a properly-coded
ignition key. If it is not a properly-
coded key, the indicator will blink
and the engine will not start (see
page ).
1.
2.
145
208 62
Inst rument s and Cont rols
Parking Brake and Brake System
Indicator
Anti-lock Brake System (ABS)
Indicator Immobilizer System
Indicator
Instrument Panel
49
U.S. Canada
U.S. Canada

The lef t or right turn signal indicator
blinks when you signal a lane change
or turn. If the indicators do not blink
or blink rapidly, it usually means one
of the turn signal bulbs is burned out
(see page ). Replace the bulb as
soon as possible, since other drivers
cannot see that you are signaling.If a brake light does not work, the
indicator comes on
when you push the brake pedal with
the ignition switch in the ON (II)
position.
A burned out brake light is a hazard
when drivers behind you cannot tell
you are braking. Have your brake
lights repaired right away. The appropriate indicator comes on
in this display if the tailgate or any
door is not closed tightly.
All the indicators in the monitor
display come on f or a f ew seconds
when you turn the ignition switch to
ON (II).
When you push the Hazard Warning
button, both turn signal indicators
blink. All turn signals on the outside
of the vehicle should f lash. 181
Inst rument s and Cont rols
Turn Signal and
Hazard Warning
Indicators
Brake L amp Indicator Door and Tailgate Open Monitor
Instrument Panel
50
BRAKE LAMP

This indicator comes on with the
high beam headlights. See pagef or inf ormation on the headlight
controls.
On Canadian models, this indicator
comes on with reduced brightness
when the Daytime Running Lights
(DRL) are on (see page ).
This indicator comes on when you
turn the ignition switch to ON (II)
with the headlight switch off and the
parking brake set. It should go of f if
youturnontheheadlightsorrelease
the parking brake. If it comes on at
any other time, it means there is a
problem with the DRL. There may
also be a problem with the high
beam headlights.
This indicator comes on when you
set the cruise control. See page
f or inf ormation on operating the
cruise control. This indicator comes on as a
reminder that you must ref uel soon.This indicator comes on when the
washer f luid level is low. Add washer
fluidwhenyouseethisindicator
come on (see page ).
116 58
59 175Canadian models only
Canadian models only
High Beam Indicator
‘‘Daytime Running
Lights’’ Indicator
Cruise Control Indicator Low Fuel Indicator Washer Level Indicator
Inst rument s and Cont rols
Instrument Panel
51

This indicator monitors the
temperature of the automatic
transmission f luid. It comes on f or a
f ew seconds when you turn the
ignition switch to ON (II). If it comes
on while driving, it indicates the
transmission fluid temperature is too
high. Pull to the side of the road
when it is saf e, shif t to Park, and let
the engine idle until the light goes
out.This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to ON (II). If this
indicator comes on at any other time,
there is a problem in the 4WD
system. Have your vehicle checked
by a dealer.
If the indicator blinks while driving,
pull to the side of the road when it is
saf e, shif t to Park, and let the engine
idle until the indicator goes out.
Inst rument s and Cont rols
A/T Temperature
Indicator
VTM-4 Indicator
Instrument Panel
52
Continuing to drive with the VTM-4
indicator blinking may cause serious
damage to the 4WD system.
Continuing to drive with the A/T
Temperature indicator on may cause
serious damage to the transmission.

For the f irst 6,000 miles (9,600 km)
af ter the Maintenance Required
Indicator is reset, it will come on f or
two seconds when you turn the
ignition switch to ON (II).
Ref er to the Maintenance Schedules
f or Normal and Severe Driving
Conditions on pages and . This indicator reminds you that it is
time to take your vehicle in for
scheduled maintenance. If you exceed 7,500 miles (12,000
km) without having the scheduled
maintenance perf ormed, this
indicator will remain on as a constant
reminder.Your dealer will reset this indicator
af ter completing the scheduled
maintenance. If this maintenance is
done by someone other than your
Honda dealer, reset the indicator as
f ollows.
Turn of f the engine.
Press and hold the Select/Reset
button on the instrument panel,
then turn the ignition switch ON
(II).
Between 6,000 miles (9,600 km) and
7,500 miles (12,000 km) this
indicator will light f or two seconds
when you first turn the ignition
switch to ON (II), and then flash for
ten seconds.
Hold the button f or approximately
ten seconds until the indicator
resets.
165
164 1.
2.
3.
Instrument Panel
Inst rument s and Cont rols
Maintenance Required Indicator
53
MAINTENANCE REQUIRED INDICATORSELECT/RESET BUTTON

Each trip meter works independently,
so you can keep track of two
dif f erent distances.The odometer shows the total dis-
tance your vehicle has been driven.
It measures miles in U.S. models and
kilometers in Canadian models.
It is illegal under U.S. f ederal law and
Canadian provincial regulations to
disconnect, reset, or alter the
odometer with the intent to change
the number of miles or kilometers
indicated.
To reset a trip meter, display it, and
then press and hold the Select/Reset
button until the number resets to
‘‘0.0’’. Both trip meters will reset if
the vehicle’s battery goes dead or is
disconnected.
There are two trip meters: Trip A
and Trip B. Switch between these
displays and the outside temperature
display (EX model only) by pressing
the Select/Reset button repeatedly. This meter shows the number of
miles (U.S.) or kilometers (Canada)
driven since you last reset it. This shows how much f uel you have.
It may show slightly more or less
than the actual amount. The needle
returns to the bottom after you turn
of f the ignition.
Trip Meter Odometer
Fuel Gauge
Gauges
Inst rument s and Cont rols54
TACHOMETER
SPEEDOMETER FUEL GAUGE TEMPERATURE
GAUGE
TRIP METER
SELECT/RESET
BUTTON
TRIP METER
ODOMETER
Avoid driving with an extremely low
f uel level. Running out of f uel could
cause the engine to misf ire, damaging
the catalytic converter.

This shows the temperature of the
engine’s coolant. During normal
operation, the pointer should rise
from the bottom white mark to about
the middle white mark. In severe
driving conditions, such as very hot
weather or a long period of uphill
driving, the pointer may rise to the
upper white mark. If it reaches the
red (Hot) mark, pull saf ely to the
side of the road. Turn to page f or
instructions and precautions on
checking the engine’s cooling
system.The temperature sensor is in the
f ront bumper. Theref ore, the temper-
ature reading can be af f ected by heat
ref lection f rom the road surf ace, en-
gine heat, and the exhaust f rom
surrounding traf f ic. This can cause
an incorrect temperature reading
when your speed is under
19 mph (30 km/h). This indicator displays the outside
temperature in Fahrenheit (U.S.
models) or Centigrade (Canadian
models). To see the outside
temperature, press and release the
Select/Reset button until the
temperature is displayed.
The sensor delays the display update
until it reaches the correct out side
temperature, this may take several
minutes.In certain weather conditions,
temperature readings near f reezing
(32°F, 0°C) could mean that ice is
f orming on the road surf ace.
204On EX model
Temperature Gauge Outside Temperature Indicator
Gauges
Inst rument s and Cont rols55

Î
ÎTo use the horn, press the pad around the ‘‘H’’ logo.

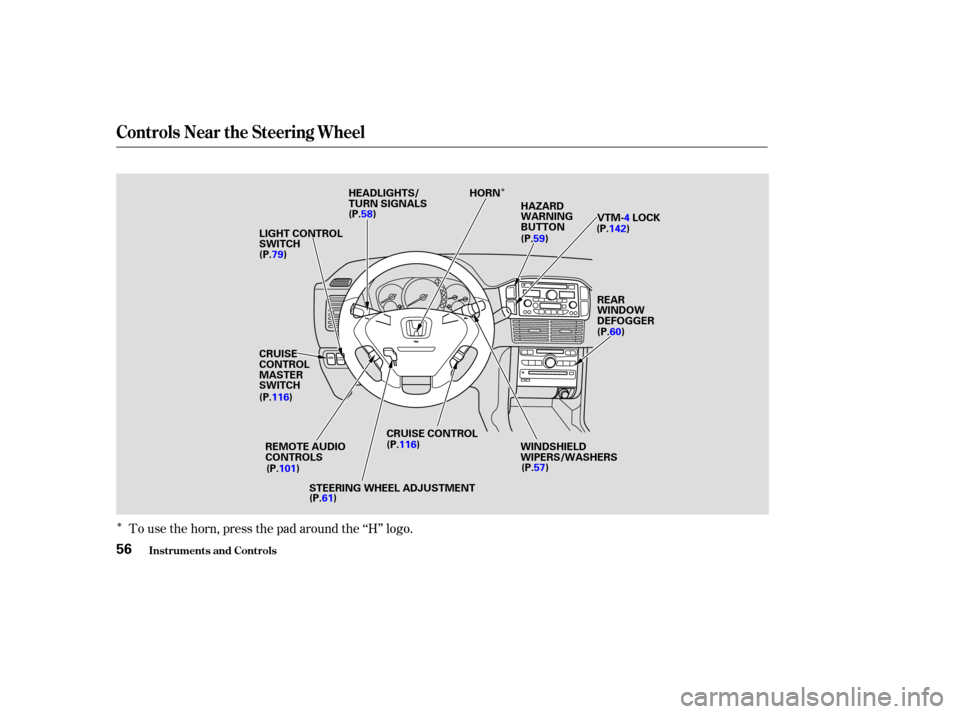

Controls Near the Steering Wheel
Inst rument s and Cont rols56
HEADLIGHTS/
TURN SIGNALSVTM-4LOCK
REMOTE AUDIO
CONTROLS HORN
LIGHT CONTROL
SWITCH
CRUISE CONTROL REAR
WINDOW
DEFOGGER
STEERING WHEEL ADJUSTMENT WINDSHIELD
WIPERS/WASHERS
(P.58)
(P.79)
(P.116)
(P.101) (P.61) (P.116)
(P.57)(P.60)
(P.59)
(P.142)
CRUISE
CONTROL
MASTER
SWITCH HAZARD
WARNING
BUTTON
