Page 11 of 319
µ
You’ll find many safety
recommendations throughout this
section, and throughout this manual.
Therecommendationsonthispage
are the ones we consider to be the
most important. Excessive
speed is a maj or factor in
crash injuries and deaths. Generally,
the higher the speed, the greater the
risk, but serious injuries can also
occur at lower speeds. Never drive
faster than is safe for current
conditions, regardless of the
maximum speed posted.
Having a tire blowout or a
mech anical failure can be extremely
hazardous. To reduce the possibility
of such problems, check your tire
pressures and condition frequently,
and perform all regularly scheduled
maintenance (see page ).
Children age 12 and under should
ride properly restrained in a back
seat, not the front seat. Infants and
smallchildrenshouldberestrained
in a child seat. Larger children
should use a booster seat and a lap/
shoulder belt until they can use the
belt properly without a booster seat (see
pages ).
Al cohol and driving don’t mix. Even
one drink can reduce your ability to
respond to changing conditions, and
your reaction time gets worse with
every additional drink. So don’t drink
and drive, and don’t let your friends
drink and drive, either.
While
airbags can save lives, they
can cause serious or fatal injuries to
occupants who sit too close to them,
or are not properly restrained.
Infants, young children, and short
adults are at the greatest risk. Be
su re to follow all instru ctions and
warnings in this manual.
A
seat belt is your best protection in
all typ es of collisions. Airbags are
designed to supplement seat belts,
not replace them. So even though
your vehicle is equipped with airbags,
make sure you and your passengers
always wear your seat belts, and
wear them properly (see page ). 155638
229
Important Saf ety Precautions
Always Wear Your Seat Belt Control Your Speed
K eep Your Vehicle in Saf e
Condition
Restrain All Children Don’t Drink and Drive Be Aware of Airbag Hazards
8
Page 12 of 319
Your vehicle is equipped with many
features that work together to
protect you and your passengers
during a crash.
Some f eatures do not require any
action on your part. These include a
strong steel f ramework that f orms a
saf ety cage around the passenger
compartment, front and rear crush
zones, a collapsible steering column,
and tensioners that tighten the f ront
seat belts in a crash.
However, you and your passengers
can’t take f ull advantage of these
f eatures unless you remain sitting in
a proper position and. In fact, some safety
f eatures can contribute to injuries if
they are not used properly.
The f ollowing pages explain how you
cantakeanactiveroleinprotecting
yourself and your passenger.
Your Vehicle’s Saf ety Features
always wear
your seat belts
Driver and Passenger Saf ety
9

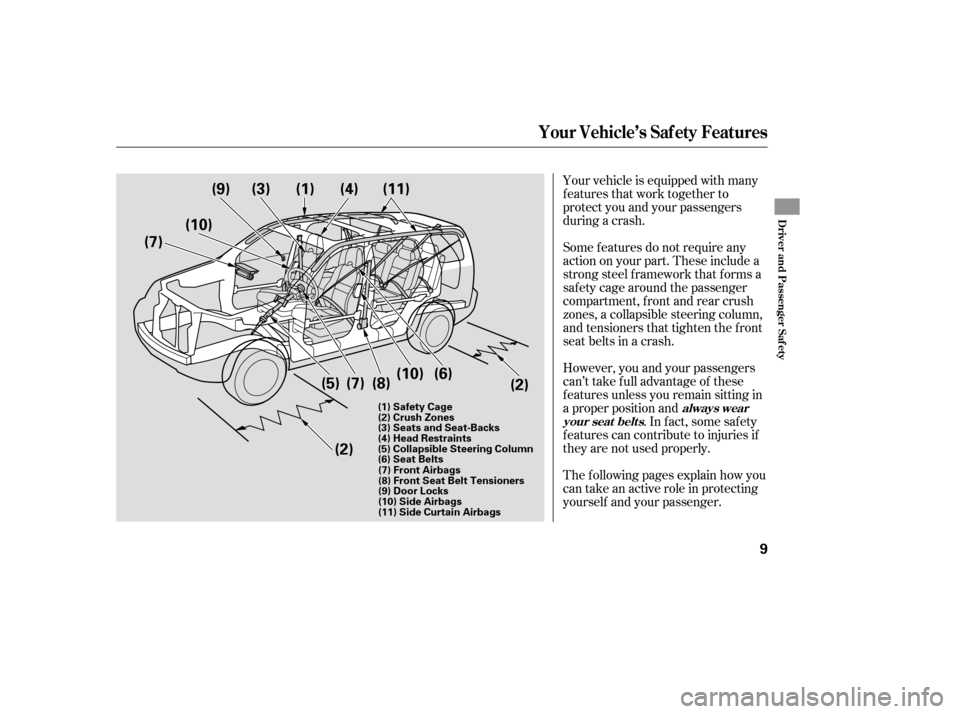

(7) (10)(9) (3) (1) (4)
(2)
(6)
(10)
(7) (8)
(5)
(2) (11)
(1) Safety Cage
(2) Crush Zones
(3) Seats and Seat-Backs
(4) Head Restraints
(5) Collapsible Steering Column
(6) Seat Belts
(7) Front Airbags
(8) Front Seat Belt Tensioners
(9) Door Locks
(10) Side Airbags
(11) Side Curtain Airbags
Page 13 of 319
Your vehicle is equipped with seat
belts in all seating positions.Keep you connected to the vehicle
so you can take advantage of the
vehicle’s built-in saf ety f eatures.
When properly worn, seat belts: Help keep you f rom being thrown
against the inside of the vehicle
and against other occupants.
Keep you f rom being thrown out
of the vehicle.
Help keep you in a good position
should the airbags ever deploy. A
good position reduces the risk of
injury f rom an inf lating airbag and
allows you to get the best
advantage f rom the airbag.
Of course, seat belts cannot
completely protect you in every
crash.Butinmostcases,seatbelts
can reduce your risk of serious
injury.
Your seat belt system also includes
an indicator on the instrument panel
and a beeper to remind you and your
passengers to f asten your seat belts.
Seat belts are the single most
effectivesafetydeviceforadultsand
larger children. (Inf ants and smaller
children must be properly restrained
in child seats.)
Not wearing a seat belt properly
increases the chance of serious
injury or death in a crash, even
though your vehicle has airbags.
In addition, most states and all
Canadian provinces require you to
wear seat belts.
Always wear
your seat belt, and make sure you
wear it properly.
Help protect you in almost every
type of crash, including f rontal,
side, and rear impacts and
rollovers.
Seat Belts
Your Vehicle’s Saf ety Features
Why Wear Seat Belt s
What you should do:
10
Not wearing a seat belt properly
increases the chance of serious
injury or death in a crash, even
though your vehicle has airbags.
Be sure you and your
passengers always wear seat
belts and wear them properly.
Page 14 of 319
Your vehicle also has side airbags to
help protect the upper torso of the
driver or a front seat passenger
during a moderate to severe side
impact (see page for more
information on how your side airbags
work).
Your
vehicle has a supplemental
restraint system (SRS) with front
airbags to help protect the heads and
chests of the driver and a front seat
passenger during a moderate to
severe frontal collision (see page
for more information on how
your front airbags work). In
addition, your vehicle has side
curtain airbags to help protect the
heads of the driver, front passenger,
and passengers in the outer rear
seating positions during a moderate
to severe side impact or rollover (see
page f or more inf ormation on how
your side curtain airbags work).
28 31
33
CONT INUED
Your Vehicle’s Saf ety Features
Airbags
Driver and Passenger Saf ety
11
Page 15 of 319
µ
See pages for important
guidelines on how to properly
protect infants, small children, and
larger children who ride in your
vehicle.
The
most important things you need
to know about your airbags are:
They are designed to supplement
the seat belts.
Remember however, that no safety
system can prevent all injures or
deaths that can occur in a severe
crash, even when seat belts are
properly worn and the airbags deploy.
The
rest of this section gives more
detailed information about how you
can maximize your safety.Always
wear
your seat belt properly, and sit
upright and as far back from the
steering wheel as possible while
allowing full control of the vehicl e. A
front passenger should move their
seat as far back from the dashboard
as possible.
To do their job, airbags must
inflate with tremendous force. So
while airbags help save lives, they
can cause minor injuries or more
serious or even fatal injuries if
occupants are not properly
restrained or sitting properly. The f ollowing pages provide
instructions on how to properly
protect the driver, adult passengers,
and teenage children who are large
enough and mature enough to drive
or ride in the f ront seat.
38 56
Your Vehicle’s Saf ety Features, Protecting A dults and Teens
Protecting A dults and T eens
Introduction
Airbags do not replace seat belts. What you should do:
Airbags can pose serious hazards.
A irbags of f er no prot ect ion in rear
impact s, or minor f ront al or sidecollisions.
12
Page 16 of 319
If you cannot get far enough away
from the steering wheel and still
reach the controls, we recommend
that you investigate whether some
type of adaptive equipment may help.
Your
vehicle has a door and
tailgate monitor indicator
on the instrument panel to indicate
when a specific door or the tailgate is
not tightly closed. The
National Highway Traffic Safety
Administration and Transport
Canada recommend that drivers
allow at least 10 inches (25 cm)
between the center of the steering
wheel and the chest. In addition to
adjusting the seat, you can adjust the
steering wheel up and down (see
page ).
After
everyone has entered the
vehicl e, be sure the doors and the
ta ilgate are closed and locked.
Locking the doors reduces the
chance of someone being thro wn out
of the vehicle during a crash, and it
helps prevent passengers from
accidentally opening a door and
falling out.
Locking the doors also helps prevent
an outsider from unexp ectedly
opening a door when you come to a
stop.
See page f or how to lock the
doors, and page f or how the door
and tailgate open monitor works. Adjust the driver’s seat as far to the
rear as possible while allowing you to
maintain f ull control of the vehicle.
Have a f ront passenger adjust their
seat as far to the rear as possible.
If you sit too close to the steering
wheel or dashboard, you can be
seriously injured by an inf lating f ront
airbag, or by striking the steering
wheel or dashboard. 78
66
82
CONT INUED
Protecting A dults and Teens
Adjust the Front Seats
Close and L ock the Doors 2.
1.
Driver and Passenger Saf ety
13
Page 17 of 319
Reclining a seat-back so that the
shoulder part of the belt no longer
rests against the occupant’s chest
reduces the pro tective capability of
the belt. It also increases the chance
of sliding under the belt in a crash
and being seriously injured. The
farther a seat-back is reclined, the
greater the risk of injury.
See page for how to adjust the
seat-backs.
Passengers
with adjustable seat-
backs should also adjust their seat-
back to a comfo rtable, upright
position. Adjust the driver’s seat-back to a
comfortable, upright position,
leaving ample space between your
chest and the airbag cover in the
center of the steering wheel.
Once
your seat is adjusted correctly,
rock it back and forth to make sure it
is locked in position.
See page f or how to adjust the
seats.
87
87
Protecting A dults and Teens
Adjust the Seat-Backs
3.
14
Reclining the seat-back too far
can result in serious injury or
death in a crash.
Adjust the seat-back to an
upright position, and sit well
back in the seat.
Sitting too close to a front
airbag can result in serious
injury or death if the front
airbags inflate.
Always sit as far back from the
front airbags as possible.
Page 18 of 319
Properly adjusted head restraints
will help protect occupants from
whiplash and other crash injuries.
See page for how to adjust the
head restraints. Insert
the latch plate into the buckle,
then tug on the belt to make sure the
belt is securely latched. Check that
the belt is not twisted, because a
twisted belt can cause serious
inju ries in a crash.
Adjust the driver’s head restraint so
the back of your head rests against
the center of the restraint.
Have passengers with adjustable
head restraints adjust their restraints
properly as well. Taller persons
should adjust their restraint as high
as possible. The
center seating position in the
second row and all third row seats
have a detachable seat belt that can
be unlatched and retracted into the
ceiling to allow the seats to be folded
down. See page for how to
unlatch and relatch a belt.
Detachable seat belts should
norm ally be latched whenever the
seat-backs are in an upright position.
See page for how to unlatch a belt,
and page for how to relatch a belt.
91
17 1817
Adjust the Head Restraints
Fasten and Position the Seat
Belts
4.
5.
Protecting A dults and Teens
Driver and Passenger Saf ety
15
Improperly positioning head
restraints reduces their
effectiveness, and you can be
seriously injured in a crash.
Make sure head restraints are
in place and positioned properly
before driving.
Page 19 of 319
Position the lap part of the belt as
low as possible across your hips,
then pull up on the shoulder part of
the belt so the lap part f its snugly.
This lets your strong pelvic bones
take the force of a crash and reduces
the chance of internal injuries.This spreads the f orces of a crash
over the strongest bones in your
upper body.
If the seat belt touches or crosses
your neck, or if it crosses your arm
instead of your shoulder, you need to
adjust the seat belt anchor height.
The front seats have adjustable seat
belt anchors. To adjust the height of
an anchor, press and hold the release
buttons, and slide the anchor up or
down as needed (it has f our
positions).
If necessary, pull up on the belt again
to remove any slack, then check that
the belt rests across the center of
your chest and over your shoulder.
Protecting A dults and Teens
16
RELEASE
BUTTON
Improperly positioning the seat
belts can cause serious injury
or death in a crash.
Make sure all seat belts are
properly positioned before
driving.
Page 20 of 319
CONTINUED
For the third row outer positions,
slide out the outer shoulder belt
from the clip and pull the belt out to
extend it.
Pull
out the anchor latch and the
latch plate from each holding slot in
the ceiling, and pull out the seat belt
to extend it.
Insert the hook at the end of the
anchor latch into the anchor buckle
by lining up the triangle marks on
the anchor latch and buckle. Make sure
the belt is not twisted. Push the
an chor latch until it locks. Then
f ollow the procedure f or f astening
and positioning an ordinary seat belt
(see page ). 15
Protecting A dults and Teens
Using t he L ap/Shoulder Belt
Driver and Passenger Saf ety
17
LATCH PLATE
ANCHOR LATCH
ANCHOR BUCKLEANCHOR LATCH
TRIANGLE
MARKS
THIRD ROW OUTER POSITION SECOND AND THIRD ROW CENTER
POSITION
CLIPLATCH PLATE
ANCHOR LATCH
Using a seat belt with the
detachable seat belt anchor
unlatched increases the chance
of serious injury or death in a
crash.
Before using the seat belt,
make sure the detachable seat
belt anchor is correctly latched.
