Page 51 of 578
CONT INUED
To install a LATCH-compatible child
seat in either outer second row seat:Move the seat belt buckle or
tongue away f rom the lower
anchors.
Make sure there are no objects
near the anchors that could
prevent a secure connection
between the child seat and the
anchors.

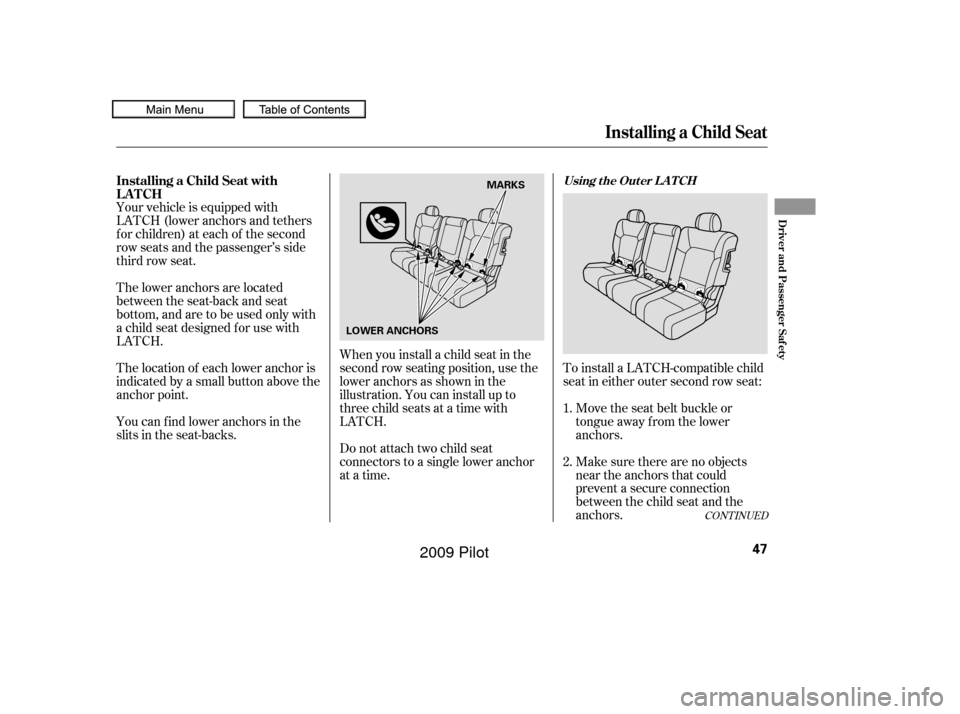

Your vehicle is equipped with
LATCH (lower anchors and tethers
f or children) at each of the second
row seats and the passenger’s side
third row seat.
When you install a child seat in the
second row seating position, use the
loweranchorsasshowninthe
illustration. You can install up to
three child seats at a time with
LATCH.
Do not attach two child seat
connectors to a single lower anchor
at a time.
You can f ind lower anchors in the
slits in the seat-backs. The lower anchors are located
between the seat-back and seat
bottom, and are to be used only with
a child seat designed f or use with
LATCH.

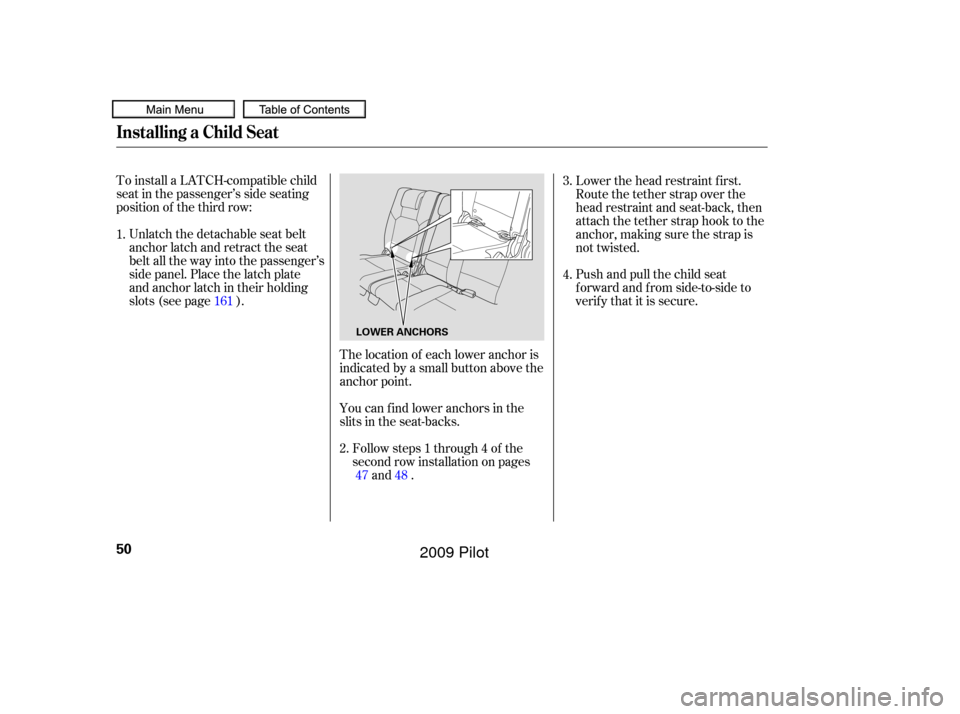

The location of each lower anchor is
indicated by a small button above the
anchor point.
1.
2.
Installing a Child Seat with
LATCH
Installing a Child Seat
Using t he Out er L A T CH
Driver and Passenger Saf ety
47
LOWER ANCHORS
MARKS
— —

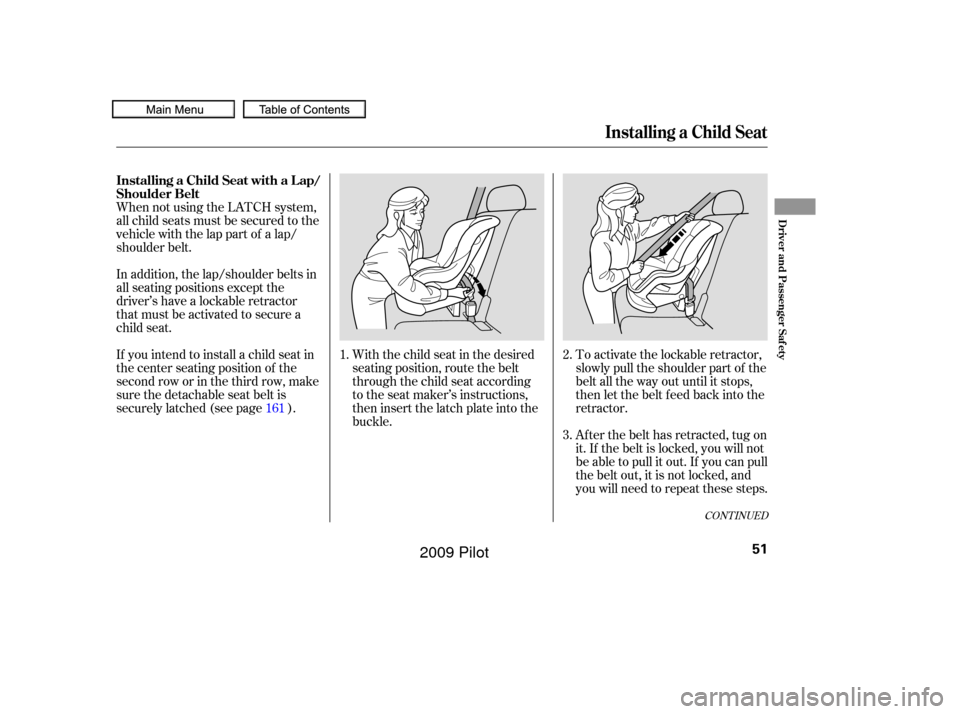

y
y
(/ y y
2009 Pilot
Page 52 of 578

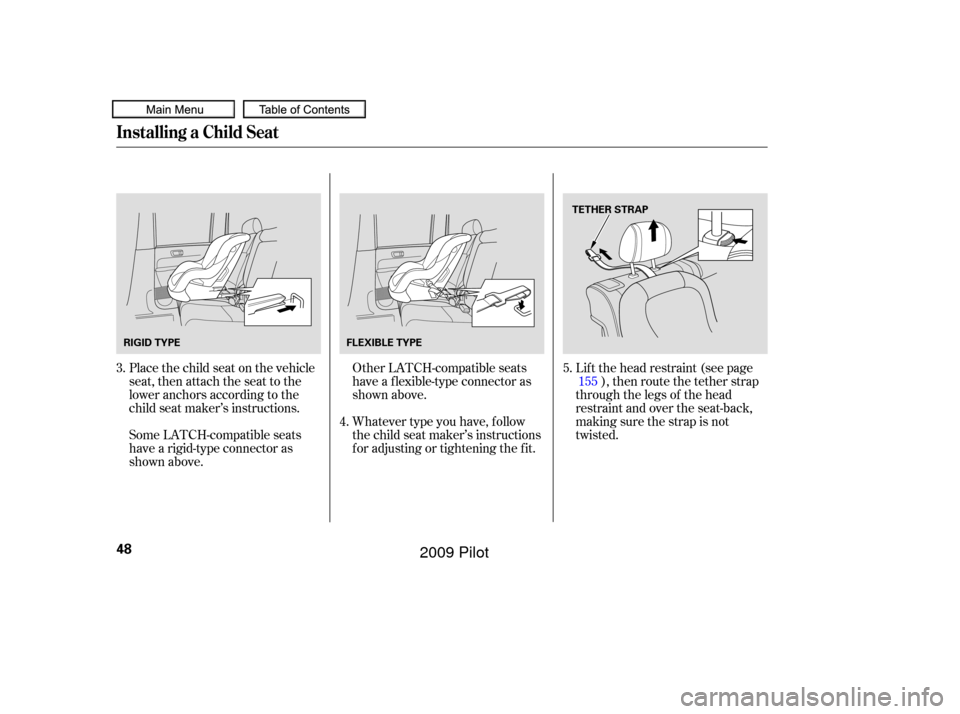

Place the child seat on the vehicle
seat, then attach the seat to the
lower anchors according to the
child seat maker’s instructions.
Some LATCH-compatible seats
have a rigid-type connector as
shown above.Whatever type you have, f ollow
the child seat maker’s instructions
f or adjusting or tightening the f it.Lif t the head restraint (see page
), then route the tether strap
through the legs of the head
restraint and over the seat-back,
making sure the strap is not
twisted.
Other LATCH-compatible seats
have a f lexible-type connector as
shown above.
3.
4.5.
155
Installing a Child Seat
48
RIGID TYPE FLEXIBLE TYPE TETHER STRAP
— —
y
y
(/ y y
2009 Pilot
Page 53 of 578
Attach the tether strap hook to the
tether anchor, then tighten the
strap as instructed by the child

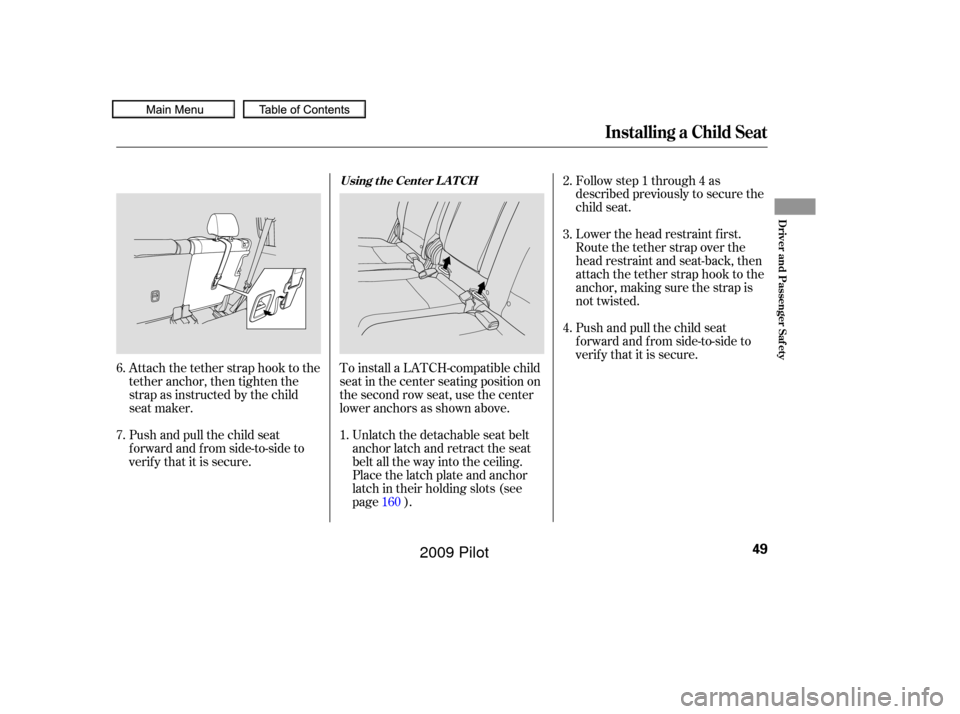

seat maker.To install a LATCH-compatible child
seat in the center seating position on
the second row seat, use the center
lower anchors as shown above. Follow step 1 through 4 as
described previously to secure the
child seat.
Lower the head restraint f irst.
Route the tether strap over the
head restraint and seat-back, then
attach the tether strap hook to the
anchor, making sure the strap is
not twisted.

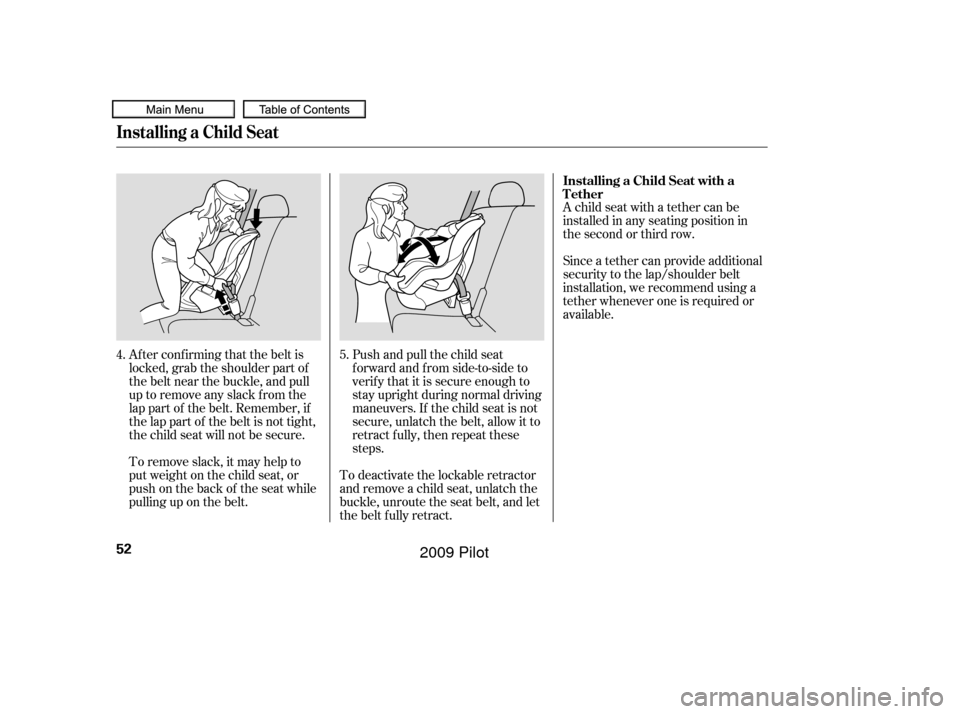

Push and pull the child seat
f orward and f rom side-to-side to
verify that it is secure.
Push and pull the child seat
f orward and f rom side-to-side to
verify that it is secure. Unlatch the detachable seat belt
anchor latch and retract the seat
belt all the way into the ceiling.
Place the latch plate and anchor
latch in their holding slots (see
page ).
6.
7. 2.
3.
4.
1. 160
Using t he Cent er L A T CH
Installing a Child Seat
Driver and Passenger Saf ety
49
— —
y
y
(/ y y
2009 Pilot
Page 54 of 578
The location of each lower anchor is
indicated by a small button above the
anchor point.
To install a LATCH-compatible child
seat in the passenger’s side seating
position of the third row:
Unlatch the detachable seat belt
anchor latch and retract the seat
belt all the way into the passenger’s
side panel. Place the latch plate
and anchor latch in their holding
slots (see page ).
Followsteps1through4of the
second row installation on pagesand .
You can f ind lower anchors in the
slits in the seat-backs. Lower the head restraint f irst.
Route the tether strap over the
head restraint and seat-back, then
attach the tether strap hook to the
anchor, making sure the strap is
not twisted.
Push and pull the child seat
f orward and f rom side-to-side to
verify that it is secure.
1.
2.3.
4.
47 48
161
Installing a Child Seat
50
LOWER ANCHORS
— —
y
y
(/ y y
2009 Pilot
Page 55 of 578
When not using the LATCH system,
all child seats must be secured to the
vehicle with the lap part of a lap/
shoulder belt.With the child seat in the desired
seating position, route the belt
through the child seat according
to the seat maker’s instructions,
then insert the latch plate into the
buckle.To activate the lockable retractor,
slowly pull the shoulder part of the
belt all the way out until it stops,
then let the belt f eed back into the
retractor.
Af ter the belt has retracted, tug on
it. If the belt is locked, you will not
be able to pull it out. If you can pull
thebeltout,itisnotlocked,and
you will need to repeat these steps.
In addition, the lap/shoulder belts in
all seating positions except the
driver’s have a lockable retractor
that must be activated to secure a
child seat.
If you intend to install a child seat in
the center seating position of the
secondroworinthethirdrow,make
sure the detachable seat belt is
securely latched (see page ).
1.
2.
3.
161
CONT INUED
Installing a Child Seat with a L ap/
Shoulder Belt
Installing a Child Seat
Driver and Passenger Saf ety
51
— —
y
y
(/ y y
2009 Pilot
Page 56 of 578
Push and pull the child seat
f orward and f rom side-to-side to
verify that it is secure enough to
stay upright during normal driving
maneuvers. If the child seat is not
secure, unlatch the belt, allow it to
retract f ully, then repeat these
steps.A child seat with a tether can be
installed in any seating position in
the second or third row.
To deactivate the lockable retractor
and remove a child seat, unlatch the
buckle, unroute the seat belt, and let
the belt fully retract. Since a tether can provide additional
security to the lap/shoulder belt
installation, we recommend using a
tether whenever one is required or
available.
Af ter conf irming that the belt is
locked, grab the shoulder part of
the belt near the buckle, and pull
up to remove any slack from the
lap part of the belt. Remember, if
the lap part of the belt is not tight,
the child seat will not be secure.
To remove slack, it may help to
putweightonthechildseat,or
push on the back of the seat while
pulling up on the belt.
4.
5. Installing a Child Seat with a
Tether
Installing a Child Seat
52
— —
y
y
(/ y y
2009 Pilot
Page 57 of 578

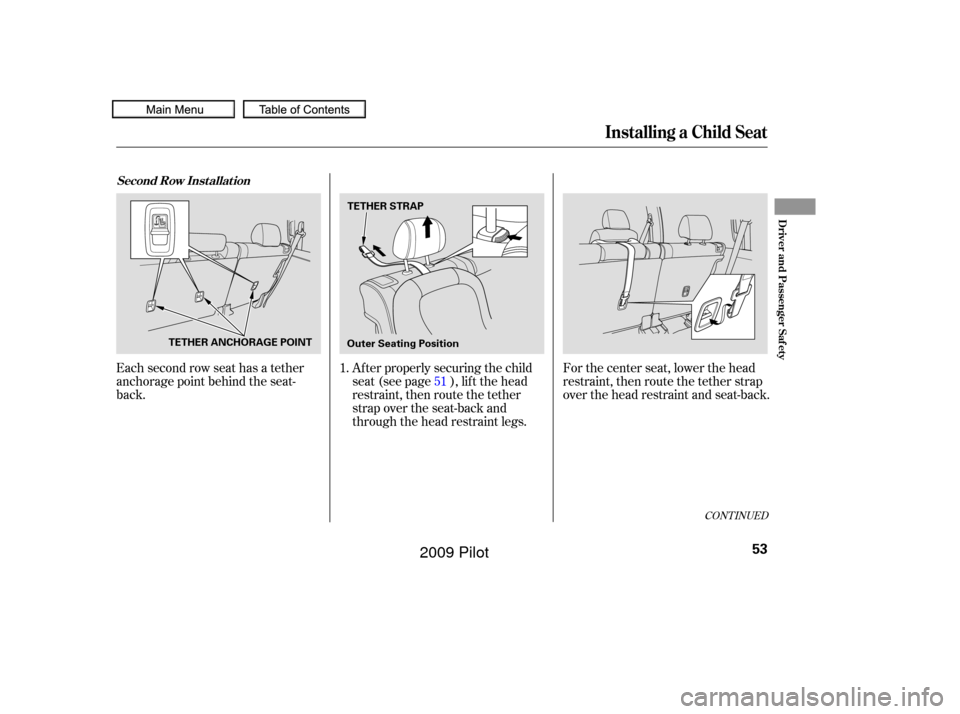

Each second row seat has a tether
anchorage point behind the seat-
back.For the center seat, lower the head
restraint, then route the tether strap
over the head restraint and seat-back.
Af ter properly securing the child
seat (see page ), lif t the head
restraint, then route the tether
strap over the seat-back and
through the head restraint legs.
1.
51
CONT INUED
Second Row Inst allat ion
Installing a Child Seat
Driver and Passenger Saf ety
53
TETHER ANCHORAGE POINT TETHER STRAP
Outer Seating Position
— —
y
y
(/ y y
2009 Pilot
Page 58 of 578
Route the tether strap over the
head restraint, then attach the
tether strap hook to the anchor,
making sure the strap is not
twisted.
Tighten the strap according to the
seat maker’s instructions. Attach the tether strap hook to the
anchor, making sure the tether
strap is not twisted.
Tighten the strap according to the
seat maker’s instructions.
Each third row seat has a tether
anchorage point behind the seat-
back.
Af ter properly securing the child
seat (see page ), lower the head
restraint.
1.
2.
3. 2.
3.
51
T hird Row Inst allat ion
Installing a Child Seat
54
— —
y
y
(/ y y
2009 Pilot
Page 59 of 578

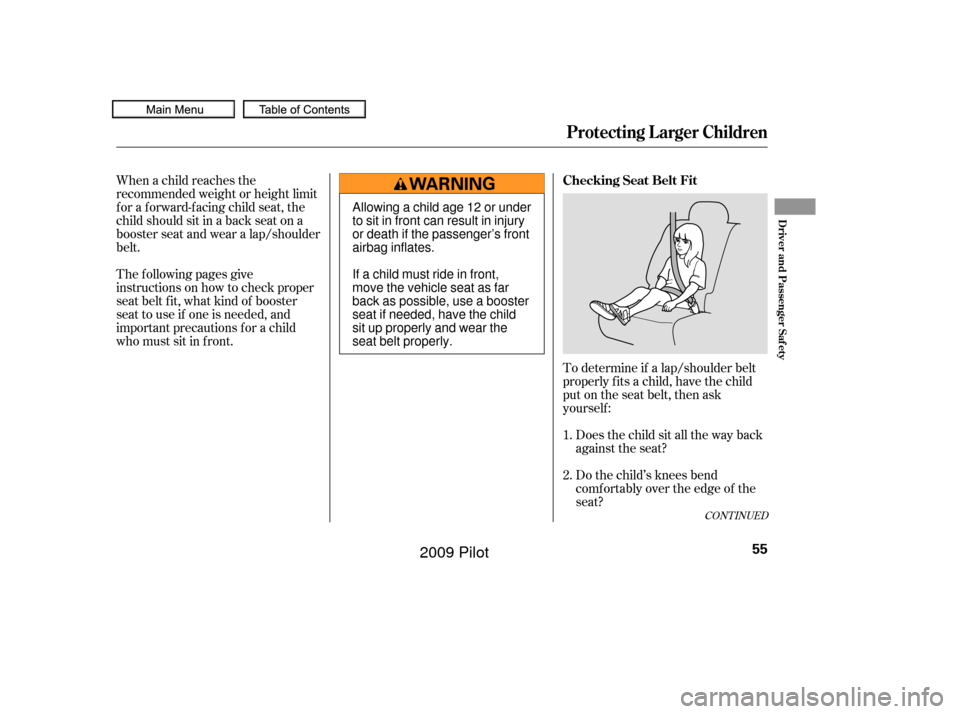

When a child reaches the
recommended weight or height limit
for a forward-facing child seat, the
child should sit in a back seat on a
booster seat and wear a lap/shoulder
belt.
The f ollowing pages give
instructions on how to check proper
seat belt f it, what kind of booster
seat to use if one is needed, and
important precautions f or a child
who must sit in f ront.To determine if a lap/shoulder belt
properly f its a child, have the child
put on the seat belt, then ask
yourself :Does the child sit all the way back
against the seat?
Do the child’s knees bend
comf ortably over the edge of the
seat?
1.
2.
CONT INUED
Checking Seat Belt Fit
Protecting L arger Children
Driver and Passenger Saf ety
55
Allowing a child age 12 or under
to sit in front can result in injury
or death if the passenger’s front
airbag inflates.
If a child must ride in front,
move the vehicle seat as far
back as possible, use a booster
seat if needed, have the child
sit up properly and wear the
seat belt properly.
— —
y
y
(/ y y
2009 Pilot
Page 60 of 578
Does the shoulder belt cross
between the child’s neck and arm?
Is the lap part of the belt as low as
possible, touching the child’s
thighs?
Will the child be able to stay
seated like this f or the whole trip?
If you answer yes to all these
questions, the child is ready to wear
the lap/shoulder belt correctly. If
you answer no to any question, the

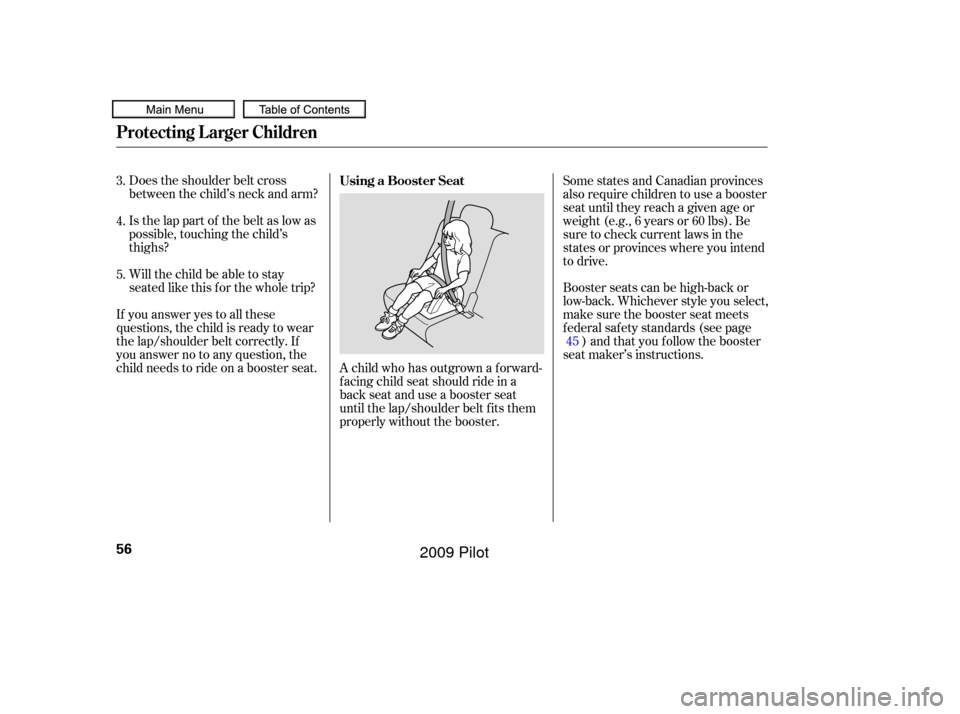

child needs to ride on a booster seat. A child who has outgrown a f orward- f acing child seat should ride in a
back seat and use a booster seat
until the lap/shoulder belt f its them
properly without the booster.Some states and Canadian provinces
also require children to use a booster
seat until they reach a given age or
weight (e.g., 6 years or 60 lbs). Be
sure to check current laws in the
states or provinces where you intend
to drive.
Booster seats can be high-back or
low-back. Whichever style you select,
make sure the booster seat meets
f ederal saf ety standards (see page
) and that you f ollow the booster
seat maker’s instructions.
3.
4.
5.
45
Using a Booster Seat
Protecting L arger Children
56
— —
y
y
(/ y
y
2009 Pilot
