HONDA PILOT 2010 2.G Owners Manual

µ
To listen to XM Radio, turn the
ignition switch to the ACCESSORY
(I) or ON (II) position, and press the
button. The last channel you
listened to will show in the display.
Adjust the volume by turning the
power/volume knob.
Your vehicle is capable of receiving
XMRadio anywhere in the United
States, and Canada, except Hawaii
and Alaska. XM is a registered
trademark of Sirius XM Radio,Inc.
Each time you press and release the
TITLE button, the display changes in
the f ollowing sequence: name, title,
and category.
You may experience periods when
XM Radio does not transmit the
artist’s name and song title
inf ormation. If this happens, there is
nothing wrong with your system.
XM Radio receives signals f rom two
satellites to produce clear, high-
quality digital reception. It of f ers
many channels in several categories.
Along with a large selection of
dif f erent types of music, XM Radio
allows you to view channel and
category selections in the display.
To switch between
channel mode and category mode,
either press and hold the TITLE
button until the mode changes, or
press and release the selector knob.
In the channel mode, you can select
all of the available channels. In the
category mode, such as Jazz, Rock,
Classical, etc., you can select all of
the channels within that category.
CONT INUED
Playing the XMRadio (EX-L and U.S. EX models)
Operating the XM Radio
MODE
Features
237
——
y
y
(/
yy
2010 Pilot

µµ´µµTurn the selector knob to
change channel selections. Turn the
knob right f or higher numbered
channels and lef t f or lower
numbered channels. In the category
mode, you can only select channels
within that category.
You can also select a channel or
category from the list by using the
selector knob. Push the selector
knob (ENTER) to switch the display
to the list displayed with three
segments, then turn the knob to
select a channel or category. Press
the selector knob (ENTER) to set
your selection.
Press
either side of the CATEGORY bar to
select another category.
The SCAN f unction gives
you a sampling of all channels while
in the channel mode. In the category
mode, only the stations within that
category are scanned. To activate
scan, press the SCAN button. The
system plays each channel in
numerical order f or a f ew seconds,
then selects the next channel. When
you hear a channel you want to
continue listening to, press the
button again.
Playing the XMRadio (EX-L and U.S. EX models)
TUNECATEGORY ( or )SCAN
238
——
y
y
(/
yy
2010 Pilot

µ
µ
µ
µ
CONT INUED
Youcanstoreupto12
preset channels using the six preset
buttons. Each button stores one
channel f rom the XM1 band and one
channel f rom the XM2 band.
To store a channel:
Press the XM button. Either XM1
or XM2 will show in the display.
Use the selector knob,
CATEGORY bar, or SCAN button
to tune to a desired channel.
Pick the preset button you want
f or that channel. Press and hold
the button until you hear a beep.
In category mode, only channels
within that category can be
selected. In channel mode, all
channels can be selected.
Repeat steps 2 and 3 to store the
f irst six channels.
Press the XM button again. The
other XM band will show. Store
the next six channels using steps 2
and 3.
Once a channel is stored, simply
press and release the proper preset
button to tune to it.
Thepresetsmaybelostif your
vehicle’s battery goes dead, is
disconnected, or the radio f use is
removed.
XM is loading the
audio or program inf ormation.
The channel
currently selected is no longer
broadcasting.
The encryption
code is being updated. Wait until the
encryption code is f ully updated.
Channels 0 and 1 should still work
normally.
3.
4.
5.
2.
1.
Playing the XMRadio (EX-L and U.S. EX models)
PresetXM Radio Display Messages
‘‘L OA DING’’
‘‘OFF A IR’’
‘‘UPDA T ING’’
Features
239
——
y
y
(/
yy
2010 Pilot

µ
µ
µ
The signal is
currently too weak. Move the vehicle
to an area away from tall buildings,
and with an unobstructed view of the
southern horizon.
The selected channel
number does not exist, or is not part
of your subscription, or this channel
has no artist or title inf ormation at
this time.
There is a problem
with the XM antenna. Please consult
your dealer.

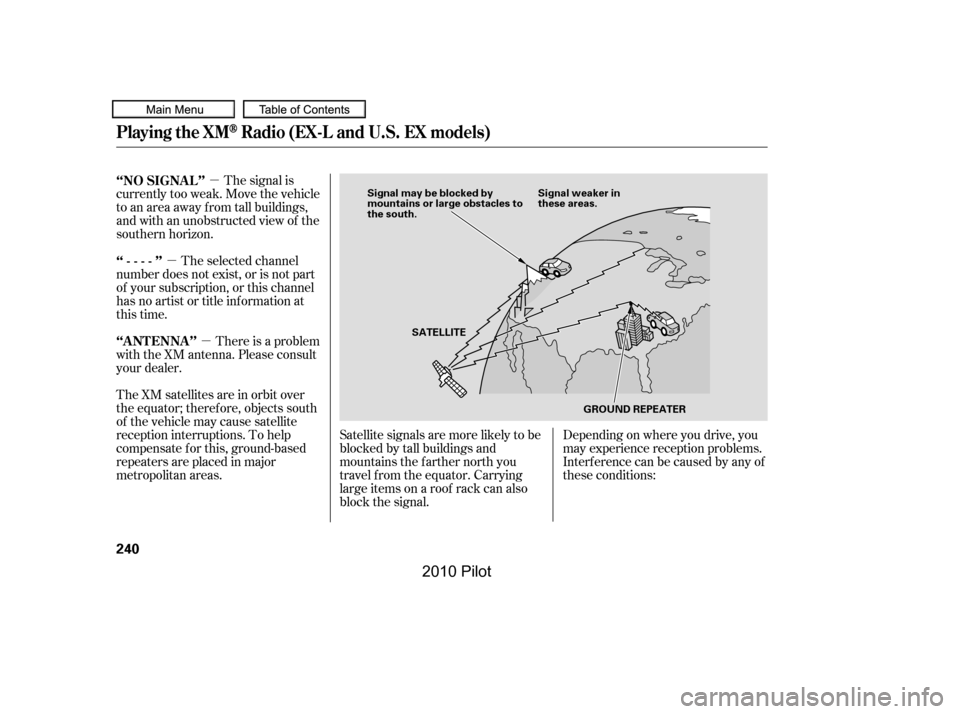

The XM satellites are in orbit over
the equator; therefore, objects south
of the vehicle may cause satellite
reception interruptions. To help
compensate f or this, ground-based
repeaters are placed in major
metropolitan areas.
Satellite signals are more likely to be
blocked by tall buildings and
mountains the f arther north you
travel f rom the equator. Carrying
large items on a roof rack can also
block the signal.
Depending on where you drive, you
may experience reception problems.
Interf erence can be caused by any of
these conditions:
‘‘NO SIGNA L ’’
‘‘----’’
‘‘A NT ENNA ’’
Playing the XMRadio (EX-L and U.S. EX models)
240
Signal may be blocked by mountains or large obstacles tothe south.
Signal weaker inthese areas.
SATELLITE
GROUND REPEATER
——
y

y
(/
yy
2010 Pilot

Driving on the north side of an
east/west mountain road.
Driving on the north side of a
large commercial truck on an
east/west road.
Driving in tunnels.
Driving on a road beside a vertical
wall, steep clif f , or hill to the south
of you.
Driving on the lower level of a
multi-tiered road.
Driving on a single lane road
alongside dense trees taller than
50 ft. (15 m) to the south of you.
Large items carried on a roof rack.
There may be other geographic
situations that could af f ect XM Radio
reception.
If your XM Radio service has expired
or you purchased your vehicle f rom
a previous owner, you can listen to a
sampling of the broadcasts available
on XM Radio. With the ignition
switch in the ACCESSORY (I) or the
ON (II) position, push the power/
volume knob to turn on the audio
system, and press the button.
A variety of music types and styles
will play.
If you decide to purchase XM radio
service, contact XM Radio at
,orat
1-800-852-9696. In Canada, contact
XM Canada at, or at
1-877-209-0079. You will need to give
them your radio I.D. number and
your credit card number. To get your
radio I.D. number, press the
button, then turn the
selector knob until ‘‘CH 000’’ appears
in the display. Your I.D. will appear
in the display.
After you’ve registered with XM
Radio, keep your audio system in the
XM Radio mode while you wait f or
activation. This should take about 30
minutes.
While waiting f or activation, make
sure your vehicle remains in an open
area with good reception. Once your
audio system is activated,
‘‘CATEGORY’’ or ‘‘CH’’ will appear in
the display, and you’ll be able to
listen to XM Radio broadcasts. XM
Radio will continue to send an
activation signal to your vehicle f or
at least 12 hours from the activation
request. If the service has not been
activated after 36 hours, contact XM
Radio.
As required by the FCC:
Changes or modif ications not expressly
approved by the party responsible f or
compliance could void the user’s
authority to operate the equipment.
www.xmradio.com
www.xmradio.ca
Receiving XM Radio Service
Playing the XMRadio (EX-L and U.S. EX models)
Features
241
——
y
y
(/
yy
2010 Pilot

Playing Discs (EX and EX-L models)
242
DISC SLOT
DISC LOAD BUTTON
SCAN BUTTON
EX and EX-L models without rear entertainment system
MP3/WMA INDICATOR
DISC SLOT
DISC LOAD BUTTON
SKIP BAR
CATEGORYBAR
U.S. model is shown.
MP3/WMA INDICATOR
CATEGORYBAR
SKIP BAR
EJECTBUTTON
POWER/ VOLUMEKNOB
POWER/VOLUMEKNOB
EJECT BUTTON
SCAN BUTTON
EX-L models with rear entertainment system
SELECTOR KNOBSELECTOR KNOB
——
y
y
(/
yy
2010 Pilot

µ
µ
µ
µ
This audio system can also play
CD-Rs and CD-RWs compressed in
MP3 or WMA f ormat. When playing
a disc in MP3, you will see ‘‘MP3’’ in
the display. In WMA f ormat, ‘‘WMA’’
will appear in the display. The disc,
f older and track numbers are
displayed. You can select up to 255
folders or tracks.
To load or play discs, the ignition
switch must be in the ACCESSORY
(I) or ON (II) position.
You operate the disc changer with
the same controls used f or the radio.
To select the disc changer, press the
CD/AUX or CD button. You will see
‘‘CD’’ in the display. The disc and
track numbers, and the elapsed time
areshowninthedisplay.Youcan
also select the displayed inf ormation
with the TITLE button (see page
). The system will continuously
play a disc until you change modes.
The specif ications f or
compatible MP3 f iles are:
Sampling f requency:
32/44.1/48 kHz (MPEG1), 16/
22.05/24 kHz (MPEG2)
Bitrate:
32/40/48/56/64/80/96/112/128/
160/192/224/256/320 kbps
(MPEG1), 8/16/24/32/40/48/56/
64/80/96/112/128/160 kbps
(MPEG2)
Compatible with variable bitrate
and multi-session.
Maximum layers
(including ROOT): 8 layers
If you have a disc that is a
combination of CD-DA tracks and
MP3/WMA f iles, you can choose the
f ormat to listen by pressing and
holding CD/AUX or CD button until
you hear a beep.
Video CDs and DVDs do not work in
this unit.
245
CONT INUED
To Play a Disc
Playing Discs (EX and EX-L models)
Features
243
Do not use discs with adhesive labels.
The label can curl up and cause the
disc to jam in the unit.
——
y
y
(/
yy
2010 Pilot

µ
µ
µ
µ
Your vehicle’s in-dash disc changer
holdsuptosixdiscs.
You cannot load and play 3-inch
(8-cm) discs in this unit.
When the disc load indicator turns
green and ‘‘LOAD’’ appears in the
display again, insert the next disc
in the slot. Do not try to insert a
disc until ‘‘LOAD’’ appears. You
could damage the audio unit.
Repeat this until all six positions
are loaded. If you are not loading
all six positions, the system begins
playing the last disc loaded.
You can also load a disc into an
empty position while a disc is playing
by pressing the appropriate preset
button. The system stops playing the
current disc and starts the loading
sequence. It then plays the disc just
loaded.
The specif ications f or compatible
WMA f iles are:
Compatible with variable bitrate
and multi-session
Maximum layers
(including ROOT): 8 layers
If a f ile on an MP3 or WMA disc is
protected by digital rights
management (DRM), the audio unit
displays UNSUPPORTED, and then
skips to the next f ile.
Sampling f requency:
22.05/32/44.1/48 kHz
Bitrate:
48/64/80/96/128/160/192 kbps
To load more than one disc, press
the LOAD button until you hear a
beep and see ‘‘LOAD’’ in the
display. To load only one disc,
press and release the LOAD
button.
The disc number f or an empty
position begins blinking.
Insert the disc into the disc slot
when the green disc load indicator
comes on. Insert it only about
half way; the drive will pull it in the
rest of the way. You will see
‘‘BUSY’’ in the display while the
disc load indicator turns red and
blinks as the disc is loaded.
1.
2.
3.
4.
5.
L oading Discs
Playing Discs (EX and EX-L models)
244
NOTE:
——
y
y
(/
yy
2010 Pilot

CONT INUED
You can see the album, artist, and
track name in the display. If a disc is
recorded in MP3 or WMA, you can
see the f older and f ile name, and the
album, artist, and track tag.
With the f older name, you will see
the FOLDER indicator in the display.
The TRACK indicator is shown with
the file or track name.
The display shows up to 16
characters of selected text data (the
f older name, f ile name, etc.).
Each time you press the TITLE
button, the display shows you the
text, if the disc was recorded with
text data.
When you press and release the
TITLE button while a disc without
text data is playing, you will see ‘‘NO
INFO’’ on the display.
If the text data has more than 16
characters, you will see the first 16
characters and the indicator in
the display. Press and hold the
TITLE button until the next 16
characters are shown. You can see
up to 32 characters of the text data.
When you turn on the audio system
next time, the system keeps your
selection with the TITLE button.
When playing a CD-DA with text
data, the album and track name are
showninthedisplay.Withadiscin
MP3 or WMA, the display shows the
f older and f ile name.
When you insert a disc, and the
system begins to play.
When you change the audio mode
to play a disc with text data or in
MP3 or WMA.
If youpressandholdtheTITLE
button again, the display shows the
f irst 16 characters again.
If any letter is not available, it is
replaced with ‘‘ . ’’ (dot) in the display.
When the disc has no text data, you
will see ‘‘NO INFO’’ on the display.
You will also see some text data
under these conditions:
When a new f older, f ile, or track is
selected.
T ext Data Display Function
Playing Discs (EX and EX-L models)
Features
245
——
y
y
(/
yy
2010 Pilot

µ
To select a dif f erent disc, use the
appropriate preset buttons (1
through 6). If you select an empty
position, the system will go into the
loading sequence (see page ).
Use the SKIP bar while a disc is
playing to select passages and
change tracks (f iles in MP3 or WMA
mode).
In MP3 or WMA mode, use the
CATEGORY bar to select f olders on
the disc and use either side of the
SKIP bar to change f iles.
Each time you press and
releasethe sideof theSKIPbar,
the player skips forward to the
beginning of the next track (f ile in
MP3 or WMA mode). Press and
releasethe sideof thebarto
skip backward to the beginning of
the current track. Press it again to
skip to the beginning of the previous
track.
To move rapidly within a track or f ile,
press and hold either side ( or
) of the SKIP bar.
In MP3 or WMA mode, you can also
select a f older or track/f ile f rom the
list by using the selector knob. Push
the selector knob (ENTER) to
switch the display to the list
displayed with three segments, then
turn the knob to select a f older.
Press the selector knob (ENTER) to
change the display to the track/file
list, then turn the same knob to
select a track/f ile. Press the selector
knob (ENTER) to set your selection.
244
T o Change or Select T racks/Files
Playing Discs (EX and EX-L models)
SK IP
246
——
y
y
(/
y
y
2010 Pilot
