HONDA PILOT 2011 2.G Owners Manual

ÝÛ

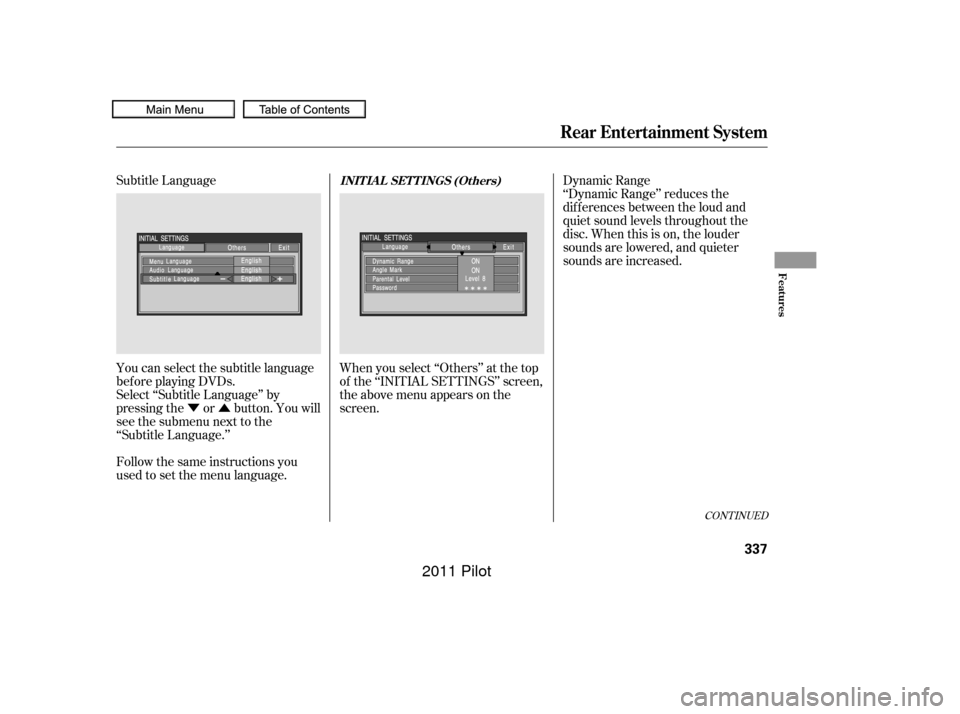

Subtitle Language
You can select the subtitle language
bef ore playing DVDs.
Select ‘‘Subtitle Language’’ by
pressing the or button. You will
see the submenu next to the
‘‘Subtitle Language.’’ Dynamic Range
‘‘Dynamic Range’’ reduces the
dif f erences between the loud and
quiet sound levels throughout the
disc. When this is on, the louder
sounds are lowered, and quieter
sounds are increased.
When you select ‘‘Others’’ at the top
of the ‘‘INITIAL SETTINGS’’ screen,
the above menu appears on the
screen.
Follow the same instructions you
used to set the menu language.
CONT INUED
INIT IA L SET T INGS (Ot hers)
Rear Entertainment System
Features
337
10/01/26 19:20:40 31SZA620_342
2011 Pilot

ÝÛÝÛ

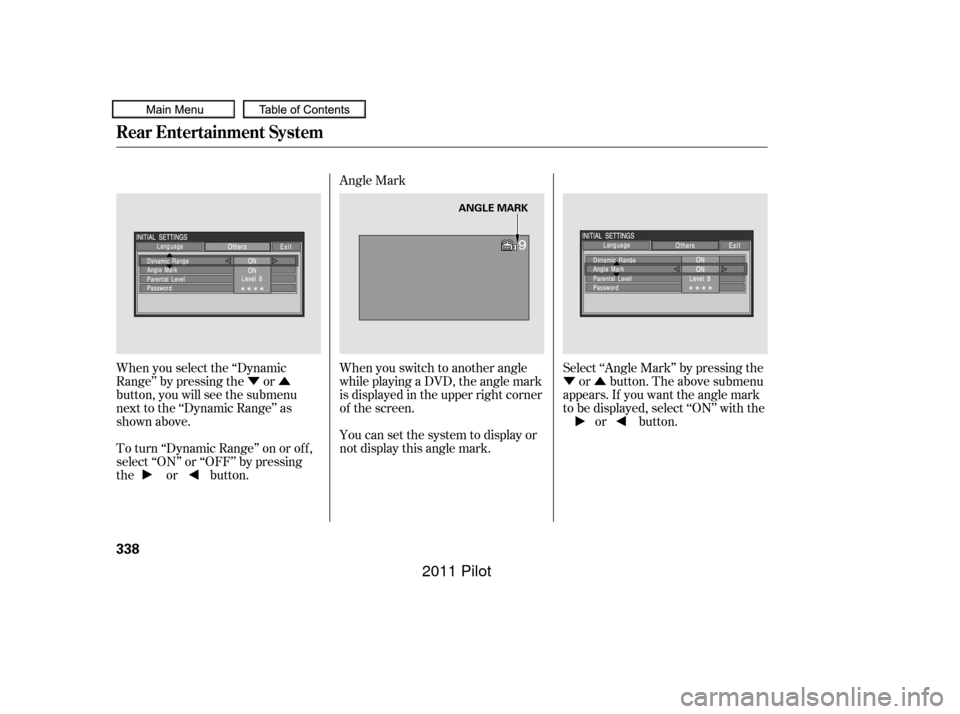

When you select the ‘‘Dynamic
Range’’ by pressing the or
button, you will see the submenu
next to the ‘‘Dynamic Range’’ as
shown above. Angle Mark
When you switch to another angle
while playing a DVD, the angle mark
is displayed in the upper right corner
of the screen.
You can set the system to display or
not display this angle mark.
To turn ‘‘Dynamic Range’’ on or of f ,
select ‘‘ON’’ or ‘‘OFF’’ by pressing
the or button. Select ‘‘Angle Mark’’ by pressing the
or button. The above submenu
appears. If you want the angle mark
to be displayed, select ‘‘ON’’ with the or button.
Rear Entertainment System
338
ANGLE MARK
10/01/26 19:20:49 31SZA620_343
2011 Pilot

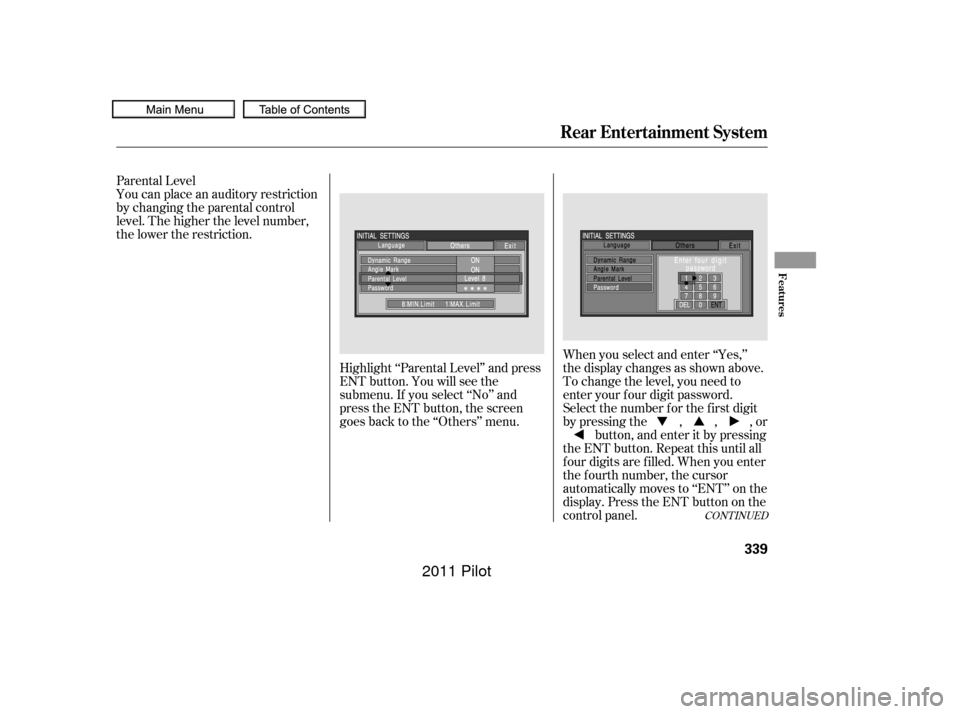

When you select and enter ‘‘Yes,’’
the display changes as shown above.
To change the level, you need to
enter your f our digit password.
Select the number f or the f irst digit
by pressing the , , , orbutton, and enter it by pressing
the ENT button. Repeat this until all
f our digits are f illed. When you enter
the f ourth number, the cursor
automatically moves to ‘‘ENT’’ on the
display. Press the ENT button on the
control panel.
You can place an auditory restriction
by changing the parental control
level. The higher the level number,
the lower the restriction.
Highlight ‘‘Parental Level’’ and press
ENT button. You will see the
submenu. If you select ‘‘No’’ and
press the ENT button, the screen
goes back to the ‘‘Others’’ menu.
Parental Level
CONT INUED
Rear Entertainment System
Features
339
10/01/26 19:20:57 31SZA620_344
2011 Pilot

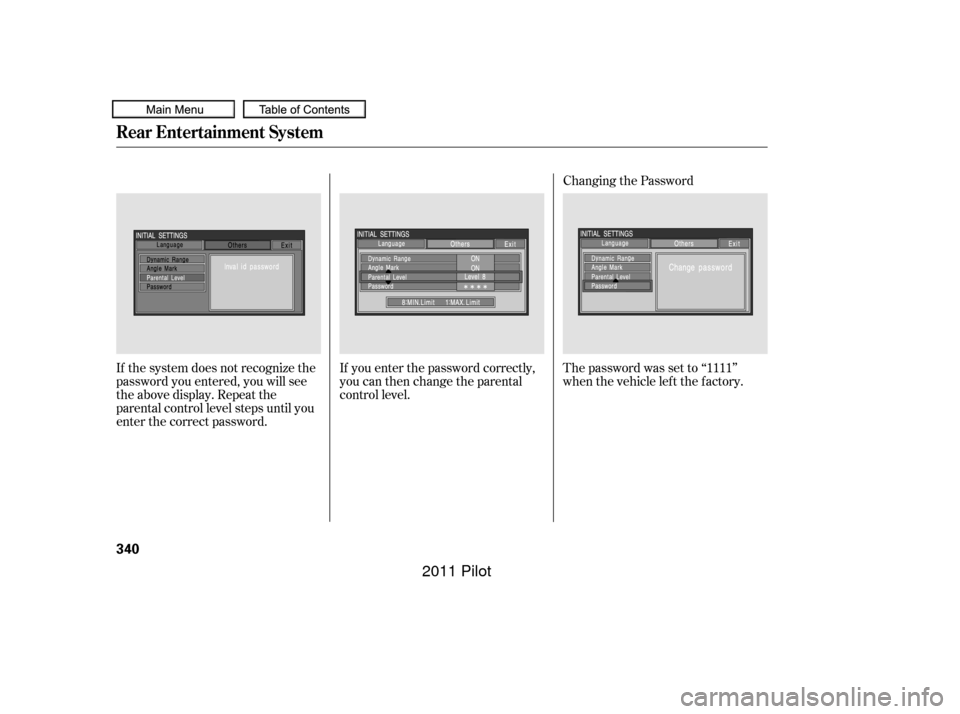

If the system does not recognize the
password you entered, you will see
the above display. Repeat the
parental control level steps until you
enter the correct password.If you enter the password correctly,
you can then change the parental
control level.
The password was set to ‘‘1111’’
when the vehicle lef t the f actory. Changing the Password
Rear Entertainment System
340
10/01/26 19:21:06 31SZA620_345
2011 Pilot

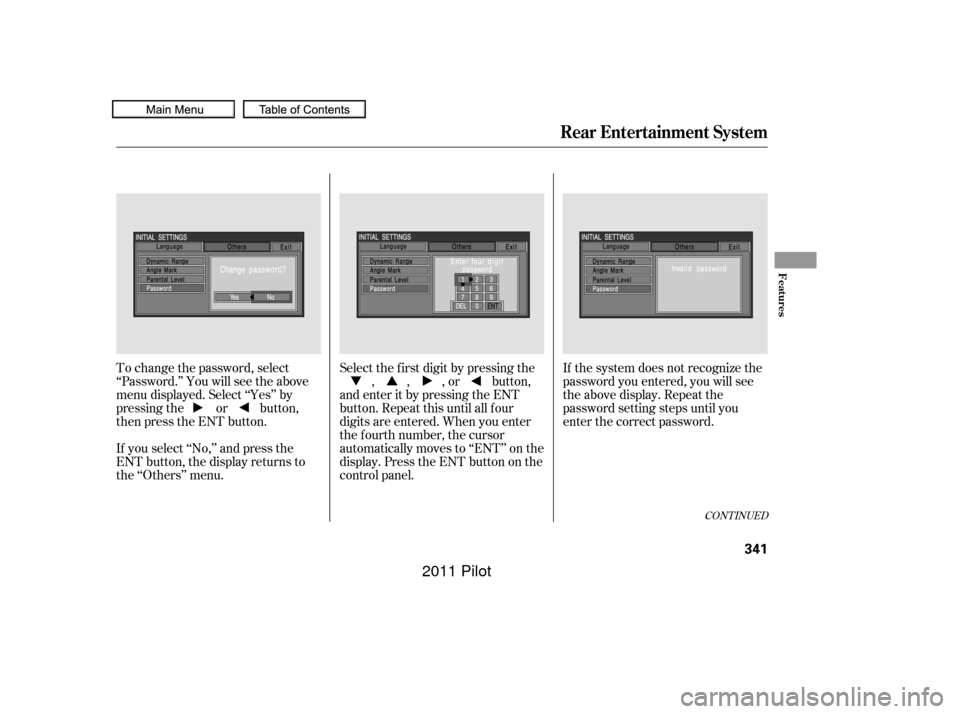

To change the password, select
‘‘Password.’’ You will see the above
menu displayed. Select ‘‘Yes’’ by
pressing the or button,
then press the ENT button.
If you select ‘‘No,’’ and press the
ENT button, the display returns to
the ‘‘Others’’ menu.Select the f irst digit by pressing the
, , , or button,
and enter it by pressing the ENT
button. Repeat this until all f our
digits are entered. When you enter
the f ourth number, the cursor
automatically moves to ‘‘ENT’’ on the
display. Press the ENT button on the
control panel. If the system does not recognize the
password you entered, you will see
the above display. Repeat the
password setting steps until you
enter the correct password.
CONT INUED
Rear Entertainment System
Features
341
10/01/26 19:21:16 31SZA620_346
2011 Pilot

Û

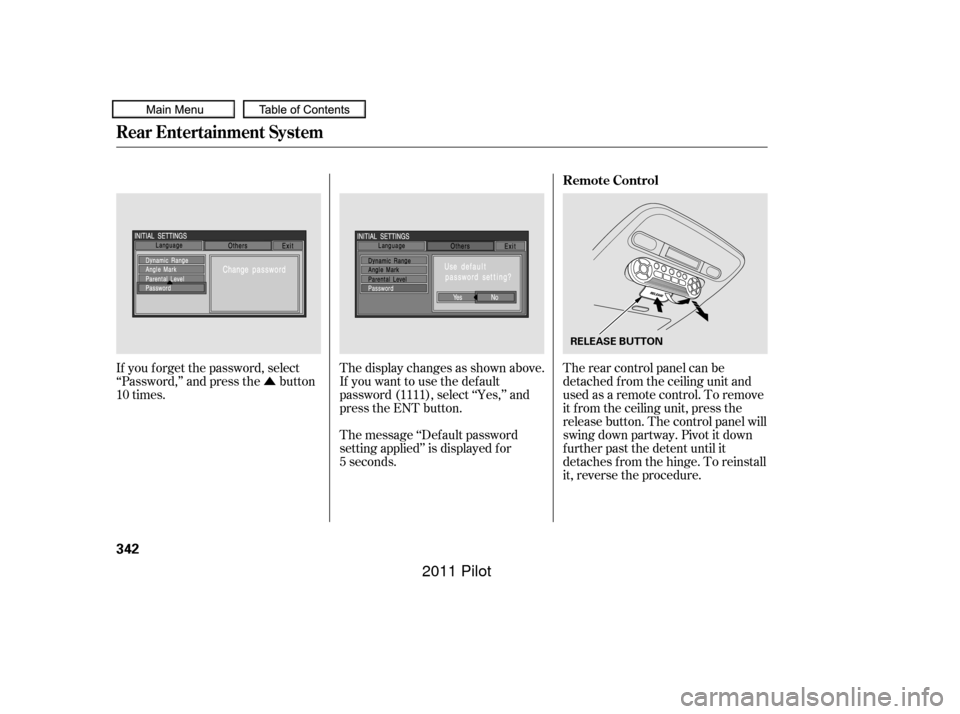

If you f orget the password, select
‘‘Password,’’ and press the button
10 times. The display changes as shown above.
If you want to use the def ault
password (1111), select ‘‘Yes,’’ and
press the ENT button.
The message ‘‘Def ault password
setting applied’’ is displayed f or
5 seconds.The rear control panel can be
detached f rom the ceiling unit and
used as a remote control. To remove
it f rom the ceiling unit, press the
release button. The control panel will
swing down partway. Pivot it down
f urther past the detent until it
detaches from the hinge. To reinstall
it, reverse the procedure.
Rear Entertainment System
Remote Control
342
RELEASE BUTTON
10/01/26 19:21:25 31SZA620_347
2011 Pilot

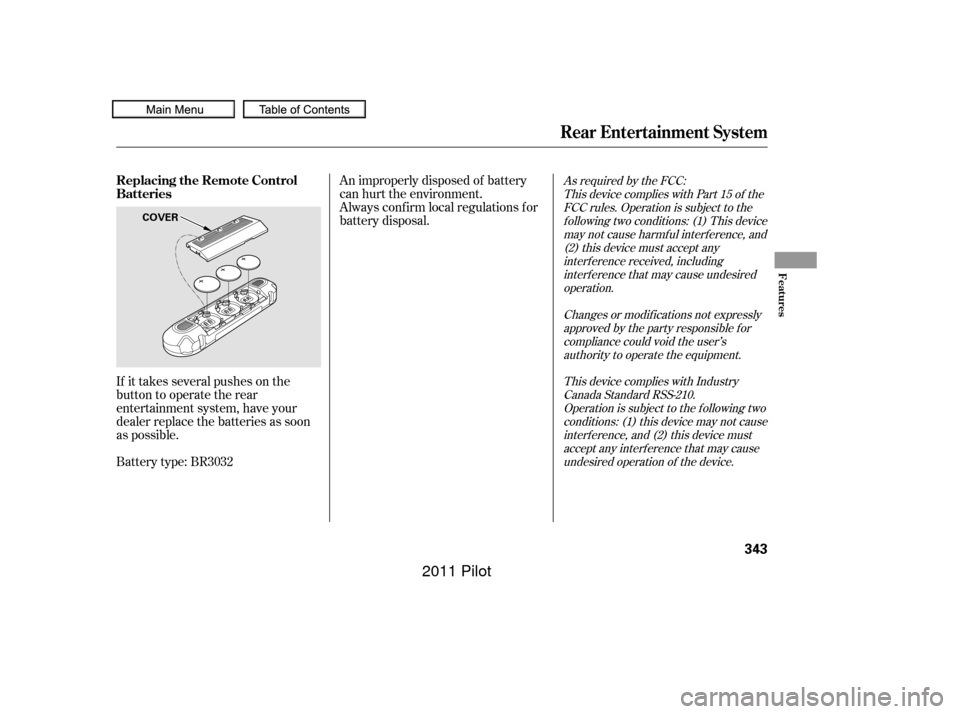

If it takes several pushes on the
button to operate the rear
entertainment system, have your
dealer replace the batteries as soon
as possible.
Battery type: BR3032An improperly disposed of battery
can hurt the environment.
Always conf irm local regulations f or
battery disposal.
As required by the FCC:
This device complies with Part 15 of theFCC rules. Operation is subject to thef ollowing two conditions: (1) This devicemay not cause harmf ul interf erence, and(2) this device must accept anyinterf erence received, includinginterf erence that may cause undesiredoperation.
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
This device complies with IndustryCanada Standard RSS-210.Operation is subject to the f ollowing twoconditions: (1) this device may not causeinterf erence, and (2) this device mustaccept any interf erence that may causeundesired operation of the device.
Rear Entertainment System
Replacing the Remote Control
Batteries
Features
343
COVER
10/01/26 19:21:33 31SZA620_348
2011 Pilot

Ì
There are various types of DVDs
available. Some of them are not
compatible with your system.
The DVD player in your rear
entertainment system can play
DVDs and CDs bearing the above
marks on their packages or jackets.Those packages or jackets should
also bear the designation of ‘‘1’’ or
‘‘ALL’’ region. DVD-ROMs cannot be
played in this system. The DVD player can also play discs
recorded in MP3/WMA f ormats and
DTS CDs.
This product incorporates copyright
protection technology that is
protected by U.S. patents and other
intellectual property rights.
Use of this copyright protection
technology must be authorized by
Macrovision, and is intended f or
home and other limited viewing uses
only unless otherwise authorized by
Macrovision.Manuf actured under license under
U.S. Patent ’s: 5,451,942; 5,956,674;
5,974,380; 5,978,762; 6,487,535 &
other U.S. and worldwide patents
issued & pending. DTS and DTS
Digital Surround are registered
trademarks and the DTS logos and
Symbol are trademarks of DTS, Inc.
1996-2008 DTS, Inc. All Rights
Reserved.
Reverse engineering or disassembly
is prohibited.
The tips on how to handle and
protect DVDs are basically the same
as those f or compact discs. Ref er to
‘‘Protecting Your CDs’’ on page . 285
Playable DVDs
Protecting DVDs
Rear Entertainment System
344
10/01/26 19:21:45 31SZA620_349
2011 Pilot

Thechartontherightexplainsthe
error messages you may see in the
display while playing a disc.
If you see an error message in the
display while playing a disc, press
the eject button. After ejecting the
disc, check it for damage or
deformation. If there is no damage,
insert the disc again.
Theaudiosystemwilltrytoplaythe
disc. If there is still a problem, the
error message will reappear. Press
the eject button, and pull out the disc.
Insert a dif f erent disc. If the new
disc plays, there is a problem with
the f irst disc. If the error message
cycle repeats and you cannot clear it,
take your vehicle to a dealer.Cause
Error Message Solution
FOCUS Error
Mechanical Error
High Temperature
Invalid region code
Invalid parental
control levelPress the disc eject button, and remove the disc.
Check for an error indication. Insert the disc
again. If the code does not disappear or the disc
cannot be removed, consult your dealer.
Press the disc eject button, and remove the disc.
Check for an error indication. Insert the disc
again. If the code does not disappear or the disc
cannot be removed, consult your dealer.
Will disappear when the temperature returns to
normal.
The disc is not playable in this unit. Eject the
disc, and insert a disc compatible with this
system.
Reinsert the disc, and increase the parental
control level (see page
339).
Rear Entertainment System
DVD Player Error Messages
Features
345
CHECK DISC
MECH ERROR HEAT ERRORREGION ERR
PARENTAL CHECK
10/01/26 19:21:54 31SZA620_350
2011 Pilot

Some state and local government
agencies prohibit the use of
headphones by the driver of a motor
vehicle. Always obey applicable laws
and regulations.The audio f or the rear entertainment
system is sent to the wireless
headphones that come with the
system. When using the headphones,
make sure you wear them correctly:
L (lef t) and R (right) are marked on
the sides of the frame. Wearing the
headphones backwards may affect
audio reception, limiting the sound

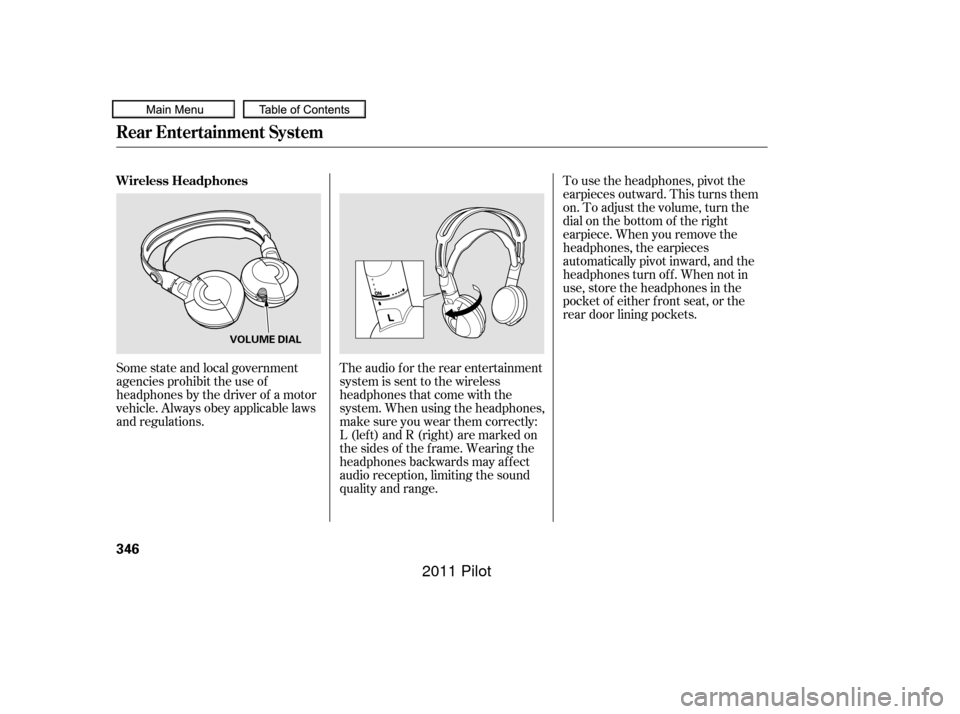

quality and range.To use the headphones, pivot the
earpieces outward. This turns them
on. To adjust the volume, turn the
dial on the bottom of the right
earpiece. When you remove the
headphones, the earpieces
automatically pivot inward, and the
headphones turn of f . When not in
use, store the headphones in the
pocketof eitherfrontseat,orthe
rear door lining pockets.
Wireless Headphones
Rear Entertainment System
346
VOLUME DIAL
10/01/26 19:22:01 31SZA620_351
