HONDA PILOT 2014 2.G Owners Manual

180
uu Audio System Basic Operation u Audio/Information Screen *
Features

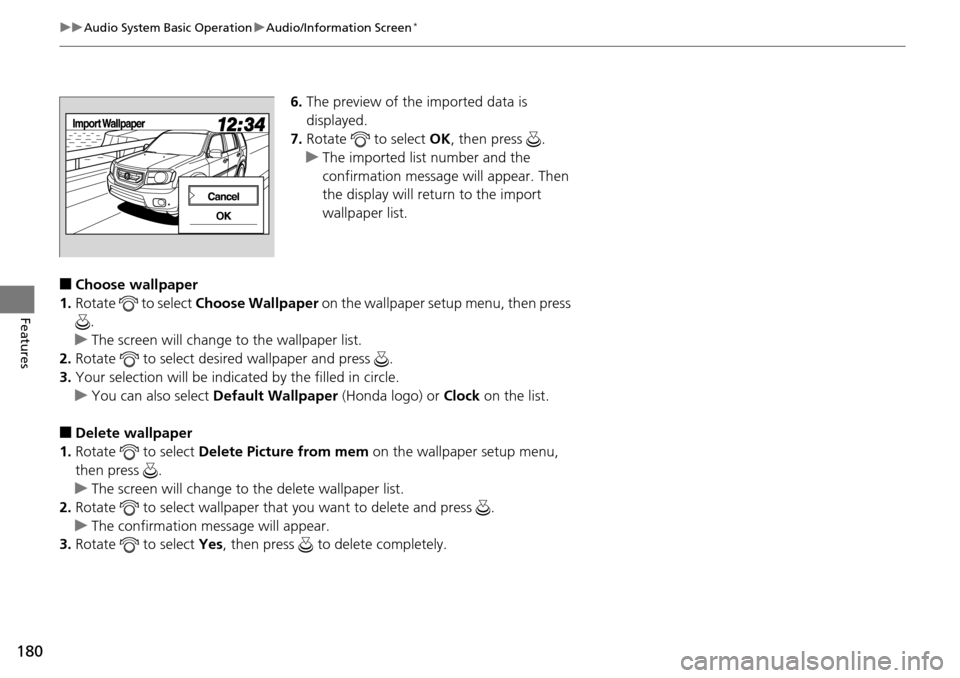

6. The preview of the imported data is
displayed.
7.Rotate to select OK, then press .
u Th
e imported list number and the
confirmation message will appear. Then
the display will return to the import
wallpaper list.
■Choose wallpaper
1. Rotate
to select Ch oose Wallpaper on the wallpaper setup menu, then press
.
u The
screen will change to the wallpaper list.
2. Rotate
to select desired wallpaper and press .
3. Your selection will be ind
icated by the filled in circle.
u You
can also select Default Wallpaper (Honda logo) or Clock on the list.
■Delete wallpaper
1. Rotate
to select De lete Picture from mem on the wallpaper setup menu,
then press .
u The
screen will change to the delete wallpaper list.
2. Rotate
to select wallpaper that you want to delete and press .
u The confir
mation message will appear.
3. Rotate
to select Yes, then pr ess to delete completely.

181
uu Audio System Basic Operation u Audio/Information Screen *
Continued
Features

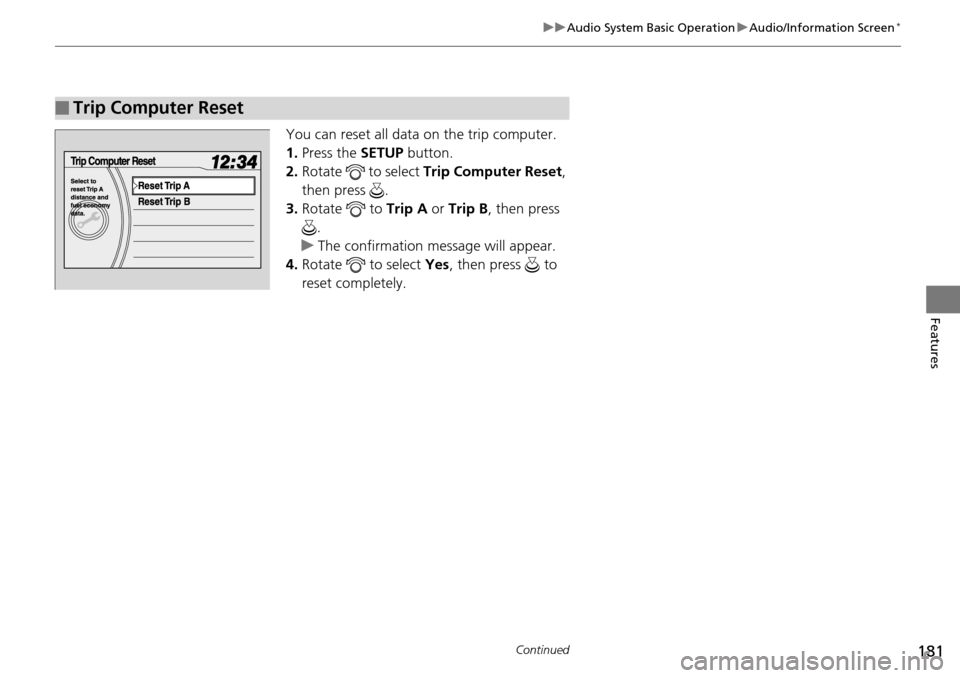

You can reset all data on the trip computer.
1. Press the SETUP button.
2. Ro
tate to select Trip Computer Reset ,
then press .
3. Ro
tate to Trip A or Trip B , then press
.
u Th
e confirmation message will appear.
4. Ro
tate to select Yes, then press to
reset completely.
■Trip Computer Reset

182
uu Audio System Basic Operation u Audio/Information Screen *
Features

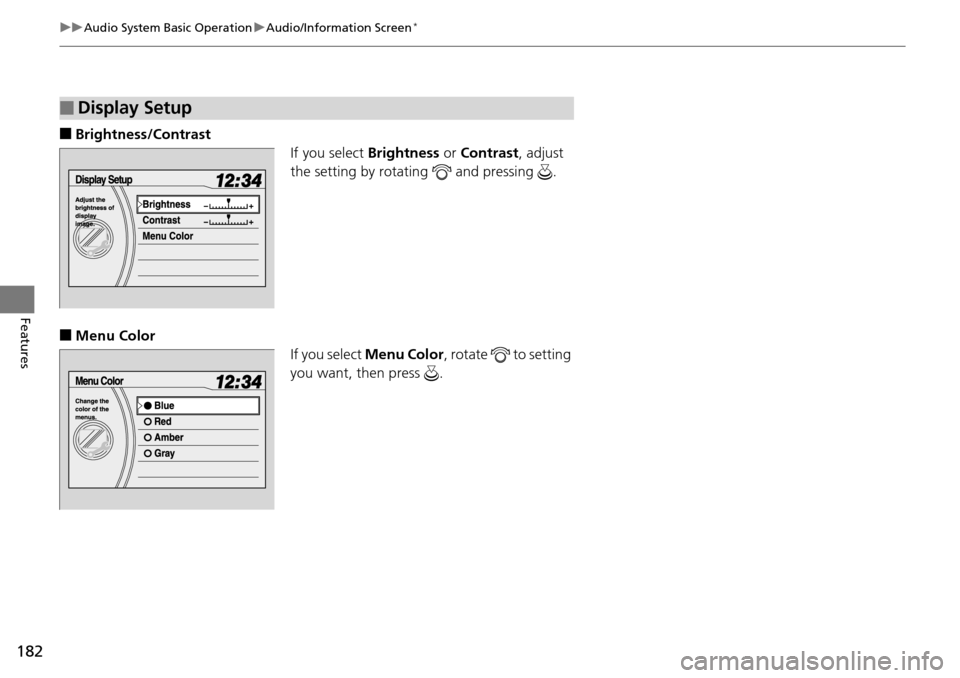

■Brightness/Contrast
If you select Br
ightness or Contrast , adjust
the setting by rotating and pressing .
■Menu Color
If you select Men
u Color, rotate to setting
you want, then press .
■Display Setup

183
uu Audio System Basic Operation u Audio/Information Screen *
Features
1. Rotate to select Language Selection ,
then press .
2. Ro
tate to select the language, then
press .
■Language Selection

184
uu Audio System Basic Operation u Audio Remote Controls
Features
Audio Remote Controls
Allows you to operate the audio system while driving.
MODE Button
Cycles through the audio modes as follows:
FM1FM2 AM XM1
*XM2 *CD CD-L
 AU
X
VOL Button
Press : Increases the volume.
Press : Decreases the volume.
CH Button
• When list
ening to the radio
Press
(+
: Selects the next preset radio station.
Press
(-
: Selects the previous pr eset radio station.
Press and hold
(+
: Selects the next strong station.
Press and hold
(-
: Selects the previous strong station.
• When list
ening to a CD, CD Library, iPod ® or USB flash drive.
Press
(+
: Skips to the next song.
Press
(-
: Goes back to the beginning of the current or previous song.
• W
hen listening to a CD or CD Library.
Press and hold
(+
: Skips to the next folder/album.
Press and hold
(-
: Goes back to the previous folder/album.
1 Audio Remote Controls
The CD mode appears only when a CD is loaded.
When in AUX mode, the following are operable from
the remote controls:
•iPod ®/USB flash drive connected to the USB
adapter cable
•Bluetooth ® Audio (with some phones only)
MODE
Button
CH
(Channel)
ButtonVOL
(Volume)
Button
3
4
* Not available on all models

185
uu Audio System Basic Operation u Adjusting the Sound
Features
Adjusting the Sound
Press the SETUP button, and rotate to
select Sound Set
tings, then press . Rotate
to scroll through the following choices:
1 Adjusting the Sound
The SVC has four modes: OFF, LOW, MID, and
HIGH .
SVC adjusts the volume level based on the vehicle
speed. As you go faster, audio volume increases. As
you slow down, audi o volume decreases.
Selector Knob
RETURN Button SETUP Button
Speed-sensitive
Volume
Compensation

186
uu Audio System Basic Operation u Playing the AM/FM Radio
Features
Playing the AM/FM Radio
Selector Knob
Press and turn to tune the radio
frequency.
SCAN Button
Press to sample each of the strongest
stations on the selected band for 10
seconds. To turn off scan, press the
button again. VOL/ (Volume/Power) Knob
Press to turn the
audio system on
and off.
Turn to adjust the volume.
Preset Buttons (1-6)
To store a station:
1. Tune to the selected station.
2. Pick a preset button and hold it
until you hear a beep.
To listen to a stored station, select a
band, then press the preset button.
SKIP Bar
Press and hold to search up and down the
selected band for a station with a strong
signal.
CATEGORY Bar (FOLDER Bar)
Press either side to display and
select an RDS category.
TITLE Button
Press to switch the RDS name on and
off. AM/FM Button
Press to select a band.
RETURN Button
Press to go back to the previous display.
SETUP Button
Press to display menu items.
Models without rear entertainment system

187
uu Audio System Basic Operation u Playing the AM/FM Radio
Continued
Features
Selector Knob
Press and turn to tune the radio
frequency.
SCAN Button
Press to sample each of the strongest
stations on the selected band for 10
seconds. To turn off scan, press the
button again. VOL/ (Volume/Power) Knob
Press to turn the audio system on
and off.
Turn to adjust the volume.
Preset Buttons (1-6)
To store a station:
1. Tune to the selected station.
2. Pick a preset button and hold it
until you hear a beep.
To listen to a stored station, select a
band, then press the preset button.
SKIP Bar
Press and hold to search up and down the
selected band for a station with a strong
signal.
CATEGORY Bar
Press either side to display and
select an RDS category.
TITLE Button
Press to switch the RDS name on and off. AM/FM Button
Press to select a band.
RETURN Button
Press to go back to the previous display.
SETUP Button
Press to display menu items.
Models with rear entertainment system

uu Audio System Basic Operation u Playing the AM/FM Radio
188
Features
Use the auto select feature to scan both bands and store the strongest station in
each preset.
1. Press the SETUP button.
2. Ro
tate to select Auto Se lect, then press
.
3. Select ON, then press .
To turn off auto select, select OFF, t
hen press
. This restores the presets you originally set.
■Auto Select1 Playing the AM/FM Radio
The ST indicator appears on the display indicating
stereo FM broadcasts.
Stereo reproduction in AM is not available.
Switching the Audio Mode
Press the MODE button on the steering wheel.
2 Audio Remote Controls P. 184
You can store six AM stations and twelve FM stations
into the preset button me mory. FM1 and FM2 let you
store six stations each.
Auto Select function scans and stores up to six AM
stations and twelve FM stat ions with a strong signal
into the preset button memory.
If you do not like the stati ons auto select has stored,
you can manually store your preferred frequencies.

189
uu Audio System Basic Operation u Playing the AM/FM Radio
Features

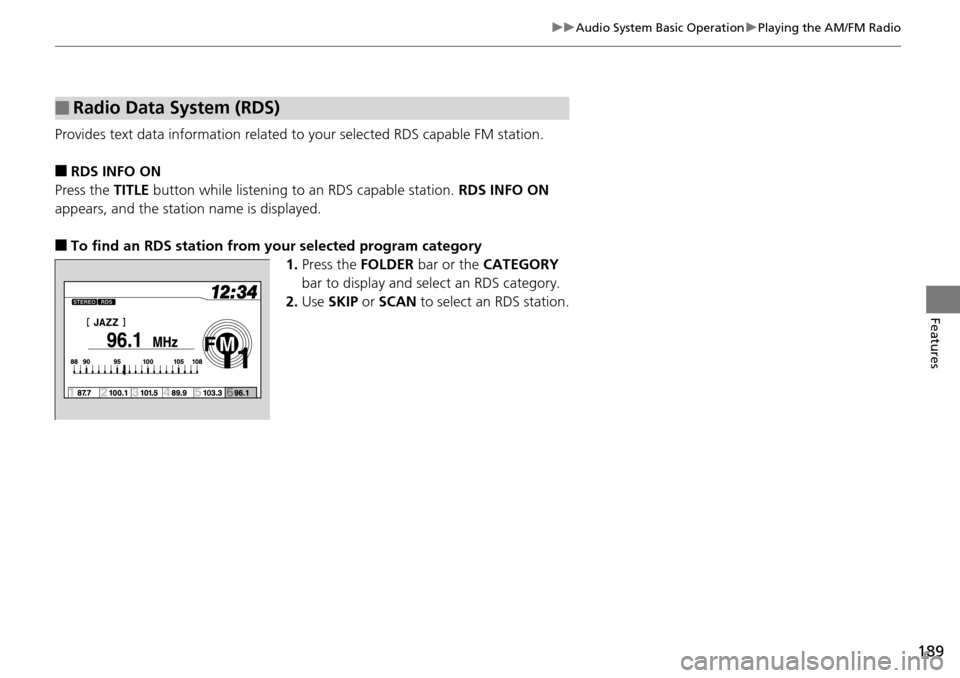

Provides text data information related to your selected RDS capable FM station.
■RDS INFO ON
Press the TI
TLE button while listening to an RDS capable station. RDS INFO ON
appears, and the statio n name is displayed.
■To find an RDS station from your selected program category
1.Press the FO
LDER bar or the CATEGORY
bar to display and select an RDS category.
2. Use SKIP or SCAN to select an RDS
station.
■Radio Data System (RDS)
