HONDA PILOT 2014 2.G Owners Manual

uu Audio System Basic Operation u Playing a USB Flash Drive
210
Features

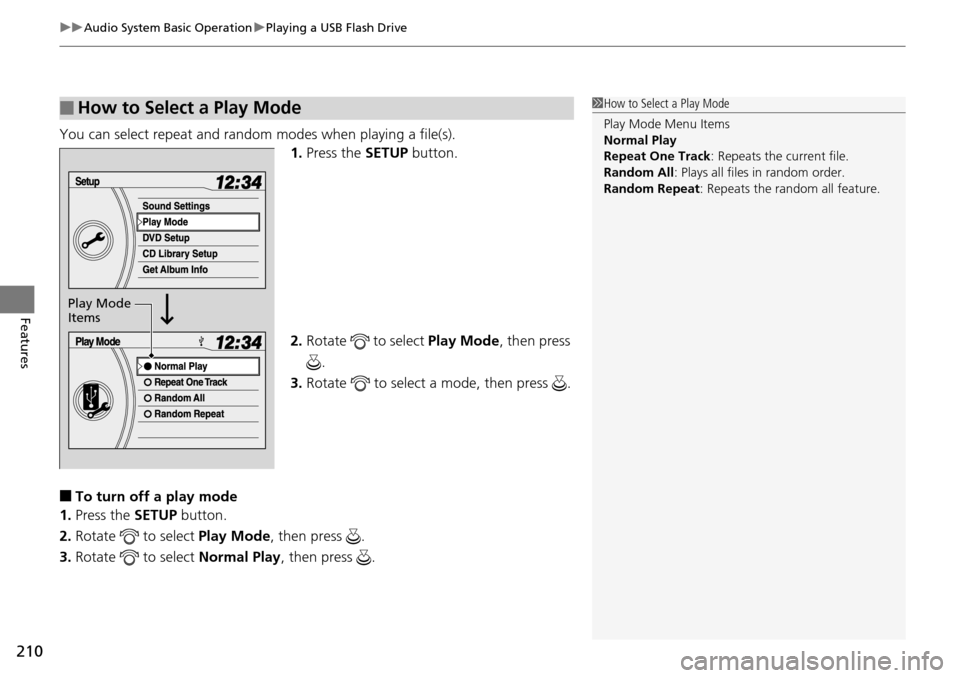

You can select repeat and random modes when playing a file(s).
1. Press the SETUP button.








2. Ro
tate to select Play Mode , then press
.
3. Ro
tate to select a mode, then press .
■To turn off a play mode
1. Press the SET
UP button.
2. Rotate
to select Play Mode , then press .
3. Rotate
to select Norma l Play, then press .
■How to Select a Play Mode1How to Select a Play Mode
Play Mode Menu Items
Normal Play
Repeat One Track : Repeats the current file.
Random All : Plays all files in random order.
Random Repeat : Repeats the random all feature.
Play Mode
Items

211
uu Audio System Basic Operation u Playing Bluetooth ® Audio
Continued
Features
Playing Bluetooth ® Audio
Your audio system allows you to listen to music from your Bluetooth®-compatible
phone.
This function is available when the pho
ne is paired and linked to the vehicle's
Bluetooth ® HandsFreeLink ® (HFL) system.
2Phone Setup P. 305
VOL/ (Volume/Power) Knob
Press to turn the audio system on
and off.
Turn to adjust the volume.
RETURN Button
Press to go back to the previous display. Selector Knob
Turn to change files. Turn to select an
item, then press to set your selection.
SETUP Button
Press to display menu items. USB/AUX Button
Press to select
Bluetooth® Audio.
SKIP Bar
Press or to change files.
Models without rear entertainment system
Bluetooth Indicator
Appears when your phone is
connected to HFL.

212
uu Audio System Basic Operation u Playing Bluetooth ® Audio
Features
VOL/ (Volume/Power) Knob
Press to turn the audio system on
and off.
Turn to adjust the volume.
RETURN Button
Press to go back to the previous display. Selector Knob
Turn to change files. Turn to select an
item, then press to set your selection.
SETUP Button
Press to display menu items. USB/AUX Button
Press to select
Bluetooth® Audio.
SKIP Bar
Press or to change files.
Models with rear entertainment system
Bluetooth Indicator
Appears when your phone
is connected to HFL.

Continued213
uu Audio System Basic Operation u Playing Bluetooth ® Audio
Features

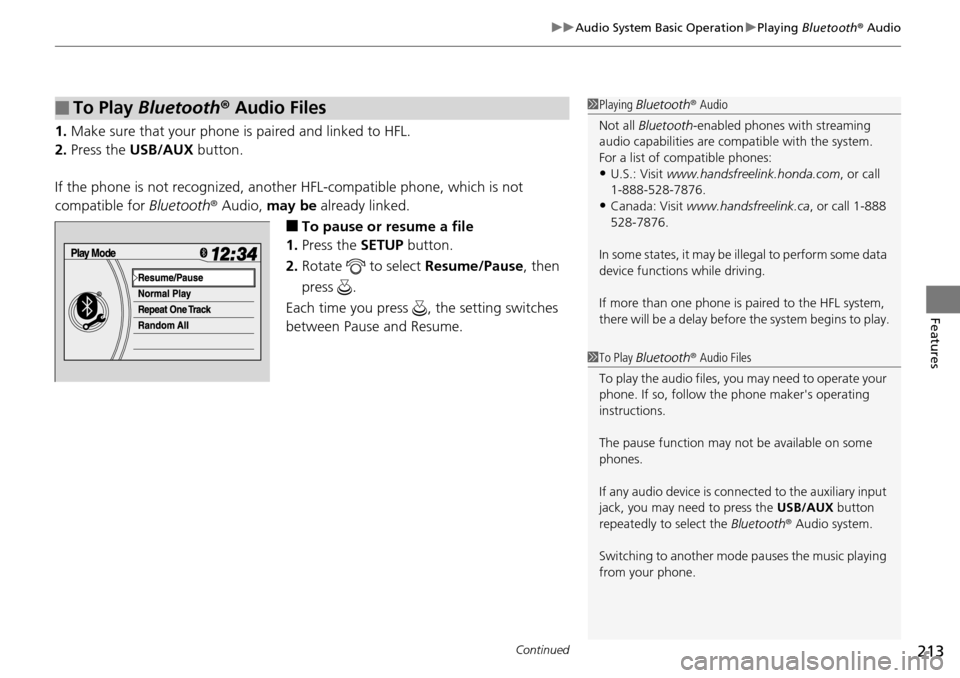

1. Make sure that your phone is paired and linked to HFL.
2.Press the USB/AUX button.
If the phone is not recognized, another
HFL-compatible phone, which is not
compatible for Bluetooth® Audio, may be already linked.
■To pause or resume a file
1. Press the SETU
P button.
2. Ro
tate to select Re sume/Pause , then
press .
Each time you press , the setting switches
between Pause and Resume.
■To Play Bluetooth ® Audio Files1 Playing Bluetooth ® Audio
Not all Bluetooth -enabled phones with streaming
audio capabilities are comp atible with the system.
For a list of compatible phones:
•U.S.: Visit www.handsfreelink.honda.com , or call
1-888-528-7876.
•Canada: Visit www.handsfreelink.ca , or call 1-888
528-7876.
In some states, it may be il legal to perform some data
device functions while driving.
If more than one phone is paired to the HFL system,
there will be a delay before the system begins to play.
1To Play Bluetooth ® Audio Files
To play the audio files, y ou may need to operate your
phone. If so, follow the phone maker's operating
instructions.
The pause function may no t be available on some
phones.
If any audio device is conne cted to the auxiliary input
jack, you may need to press the USB/AUX button
repeatedly to select the Bluetooth® Audio system.
Switching to another mode pauses the music playing
from your phone.

uu Audio System Basic Operation u Playing Bluetooth ® Audio
214
Features

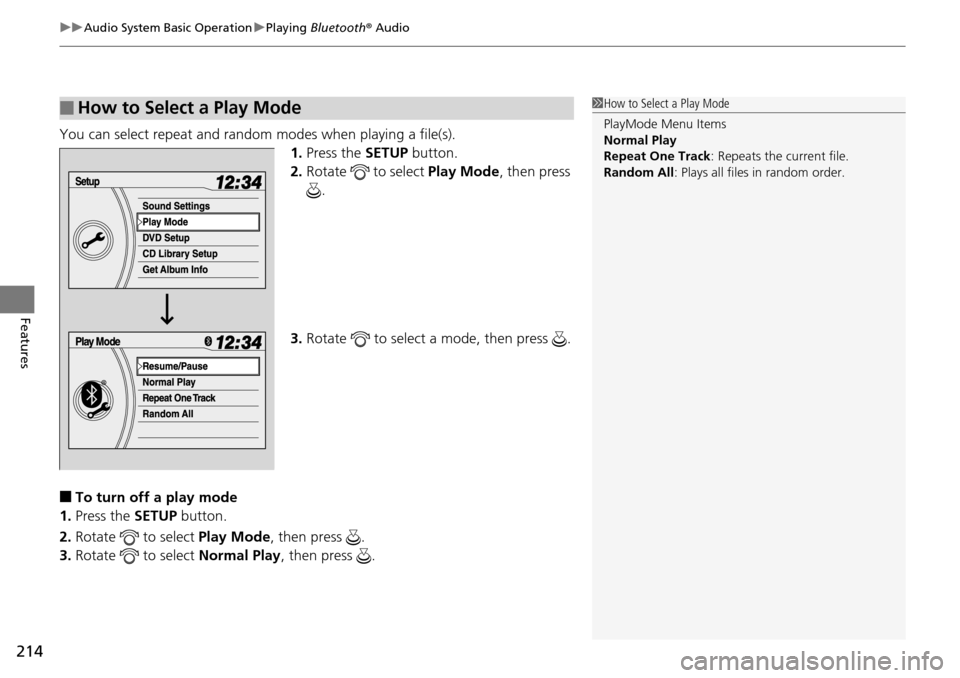

You can select repeat and random modes when playing a file(s).
1. Press the SETUP button.
2. Ro
tate to select Play Mode , then press
.






3. Ro
tate to select a mode, then press .
■To turn off a play mode
1. Press the SET
UP button.
2. Rotate
to select Play Mode , then press .
3. Rotate
to select Norma l Play, then press .
■How to Select a Play Mode1How to Select a Play Mode
PlayMode Menu Items
Normal Play
Repeat One Track : Repeats the current file.
Random All : Plays all files in random order.

215
uu Audio System Basic Operation u Playing Bluetooth ® Audio
Features
Press the (pick-up) button on the steering
wheel to receive a call when Bl
uetooth® Audio
is playing.
2 Playing Blu etooth® Audio P. 211
Press the (hang-up) button to end the call
and return to Bl
uetooth® Audio.
■Switching to HFL1Switching to HFL
If you receive a call while Bluetooth® Audio is in the
pause mode, it will resume play after ending the call.
Button
Button

216
Features
Audio System Basic Operation
To use the audio system function, the ignition switch must be in ACCESSORY (q
or
ON
(w
.
Use the interface dial or A
UDIO button to
access some audio functions.
Press to switch between the normal and
extended display fo r some
functions.
Interface dial: Rotate left or right to scroll
throug

h the available choices. Move the
interface dial and press to set your
selection.
AUDIO button: Press to display the audio
sy

stem on the navigation screen.
Models with navigation system1 Audio System Basic Operation
These indications are used to show how to operate
the interface dial.
Rotate to select.
Press to enter.
Move up to select.
Move down to select.
Move left to select.
Move right to select.
Press the MODE,
(
+
, (
-
, or button on the
steering wheel to cha nge any audio setting.
2 Audio Remote Controls P. 21734Interface DialAUDIO Button

217
uu Audio System Basic Operation u Audio Remote Controls
Features

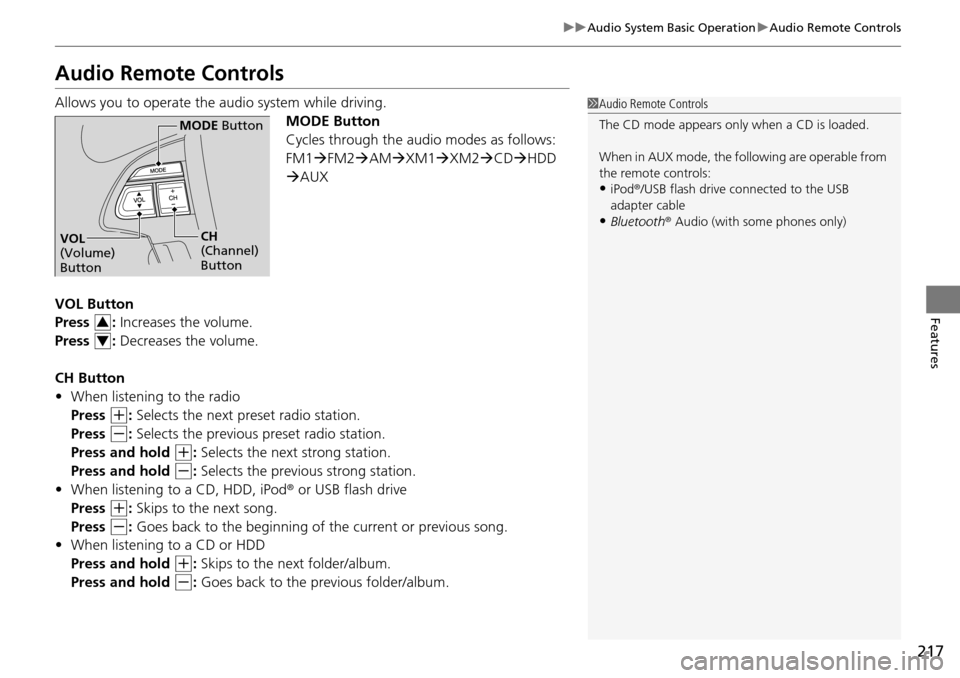

Audio Remote Controls
Allows you to operate the audio system while driving.
MODE Button
Cycles through the audio modes as follows:
FM1FM2 AM XM1 XM2 CD HDD
 AUX
VOL Button
Press : Increases the volume.
Press : Decreases the volume.
CH Button
• When listening to the
radio
Press
(+
: Selects the next preset radio station.
Press
(-
: Selects the previous preset radio station.
Press and hold
(+
: Selects the next strong station.
Press and hold
(-
: Selects the previous strong station.
• When listening to a
CD, HDD, iPod® or USB flash drive
Press
(+
: Skips to the next song.
Press
(-
: Goes back to the beginning of the current or previous song.
• Wh
en listening to a CD or HDD
Press and hold
(+
: Skips to the next folder/album.
Press and hold
(-
: Goes back to the previous folder/album.
1 Audio Remote Controls
The CD mode appears only when a CD is loaded.
When in AUX mode, the following are operable from
the remote controls:
•iPod ®/USB flash drive connected to the USB
adapter cable
•Bluetooth ® Audio (with some phones only)
MODE Button
CH
(Channel)
ButtonVOL
(Volume)
Button
3
4

218
uu Audio System Basic Operation u Adjusting the Sound
Features

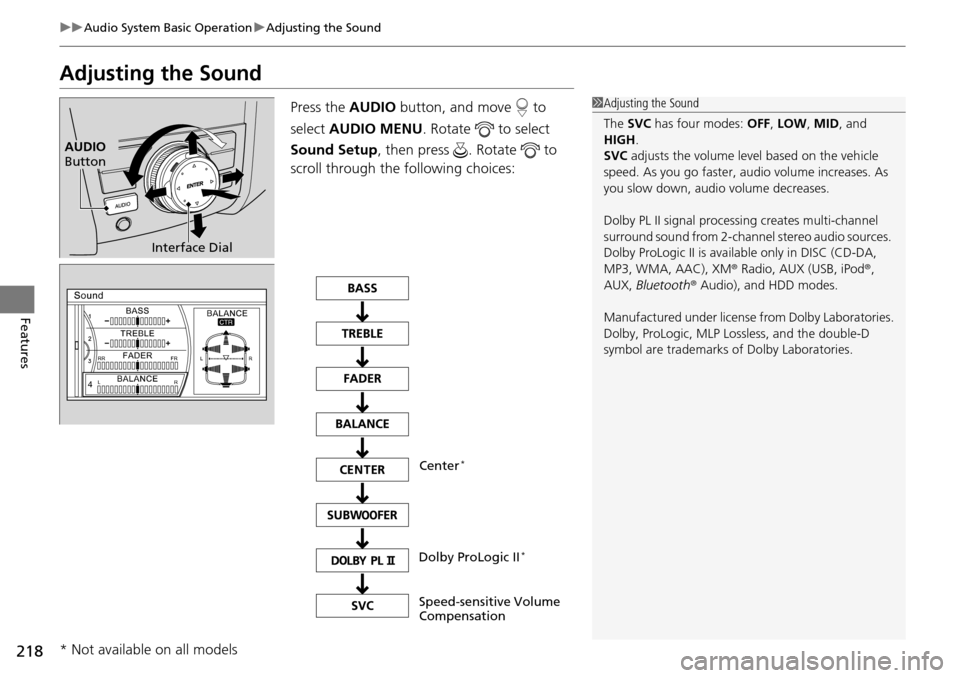

Adjusting the Sound
Press the AUDIO button, and move to
select AU
DIO MENU . Rotate to select
Sound Setup , then press . Rotate to
scroll through the following choices:
1 Adjusting the Sound
The SVC has four modes: OFF, LOW, MID, and
HIGH .
SVC adjusts the volume level based on the vehicle
speed. As you go faster, audio volume increases. As
you slow down, audi o volume decreases.
Dolby PL II signal processing creates multi-channel
surround sound from 2-channe l stereo audio sources.
Dolby ProLogic II is availa ble only in DISC (CD-DA,
MP3, WMA, AAC), XM r Radio, AUX (USB, iPod r,
AUX, Bluetooth r Audio), and HDD modes.
Manufactured under license from Dolby Laboratories.
Dolby, ProLogic, MLP Lossless, and the double-D
symbol are trademarks of Dolby Laboratories.
Interface Dial
AUDIO
Button
Speed-sensitive Volume
Compensation Center
*
Dolby ProLogic II *
* Not available on all models

219
uu Audio System Basic Operation u Playing the AM/FM Radio
Continued
Features

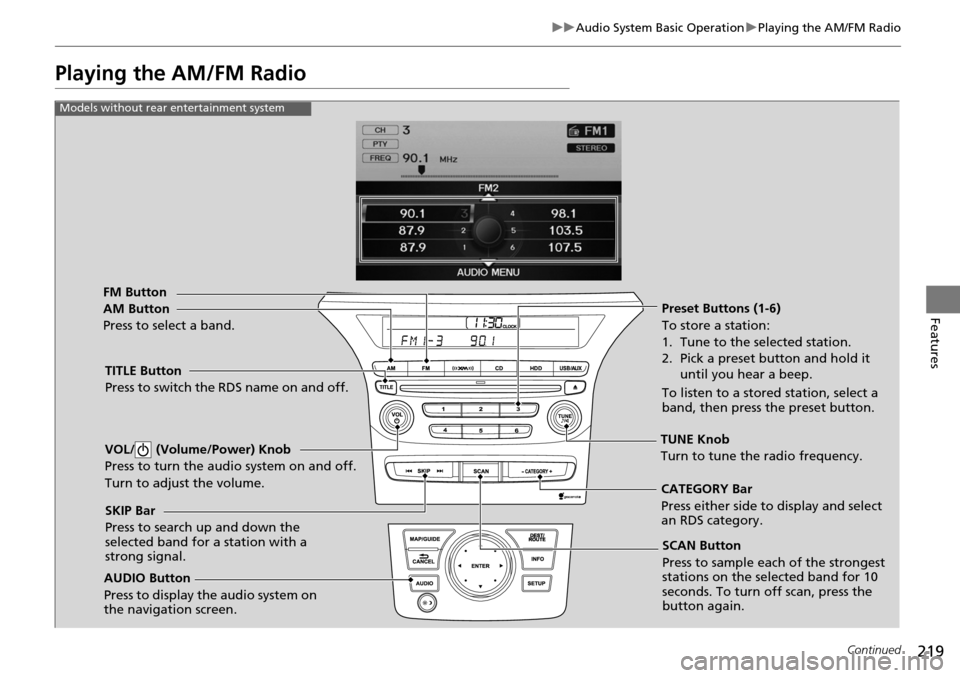

Playing the AM/FM Radio
FM Button
TITLE Button
Press to switch the RDS name on and off.
SCAN Button
Press to sample each of the strongest
stations on the selected band for 10
seconds. To turn off scan, press the
button again.
VOL/ (Volume/Power) Knob
Press to turn the a
udio system on and off.
Turn to adjust the volume.
Preset Buttons (1-6)
To store a station:
1. Tune to the selected station.
2. Pick a preset button and hold it until you hear a beep.
To listen to a stored station, select a
band, then press the preset button.
SKIP Bar
Press to search up and down the
selected band for a station with a
strong signal.
AUDIO Button
Press to display the audio system on
the navigation screen.
AM Button
Press to select a band.
CATEGORY Bar
Press either side to display and select
an RDS category.
Models without rear entertainment system
TUNE Knob
Turn to tune the radio frequency.
