HONDA PILOT 2014 2.G Owners Manual

230
uu Audio System Basic Operation u Playing Hard Disc Drive (HDD) Audio
Features

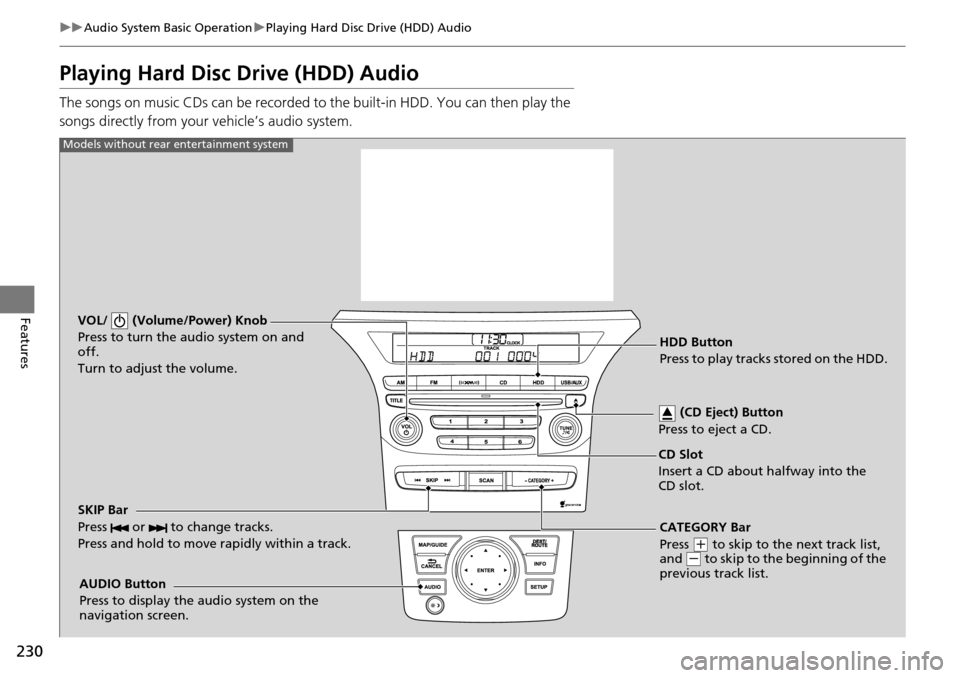

Playing Hard Disc Drive (HDD) Audio
The songs on music CDs can be recorded to the built-in HDD. You can then play the
songs directly from your vehicle’s audio system.
VOL/ (Volume/Power) Knob
Press to turn the audio system on and
off.
Turn to adjust the volume.
HDD Button
Press to play tracks stored on the HDD.
AUDIO Button
Press to display the audio system on the
navigation screen.
Models without rear entertainment system
CD Slot
Insert a CD about halfway into the
CD slot. (CD Eject) Button
Press to eject a CD.
SKIP Bar
Press or to change tracks.
Press and hold to move rapidly within a track.
CATEGORY Bar
Press
(
+
to skip to the next track list,
and (
-
to skip to the beginning of the
previous track list.

231
uu Audio System Basic Operation u Playing Hard Disc Drive (HDD) Audio
Continued
Features
VOL/ (Volume/Power) Knob
Press to turn the audio system on and off.
Turn to adjust the volume.
SKIP Bar
Press or to change tracks.
Press and hold to move rapidly within a track.
AUDIO Button
Press to display the audio system on the
navigation screen.

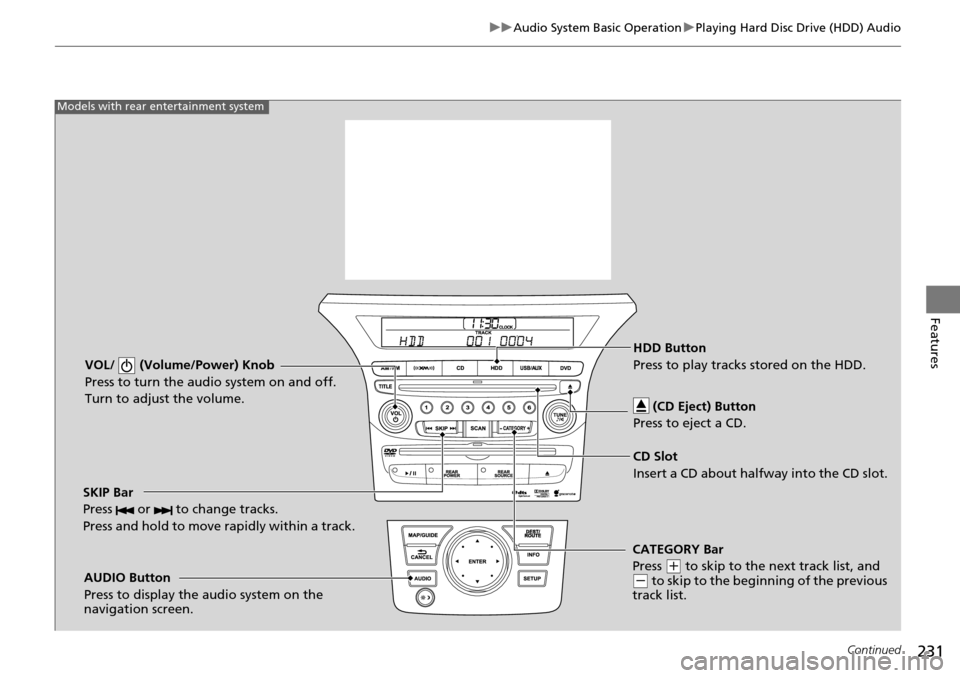

Models with rear entertainment system
HDD Button
Press to play tracks stored on the HDD.
CD Slot
Insert a CD about halfway into the CD slot. (CD Eject) Button
Press to eject a CD.
CATEGORY Bar
Press
(
+
to skip to the next track list, and (
-
to skip to the begi nning of the previous
track list.

uu Audio System Basic Operation u Playing Hard Disc Drive (HDD) Audio
232
Features

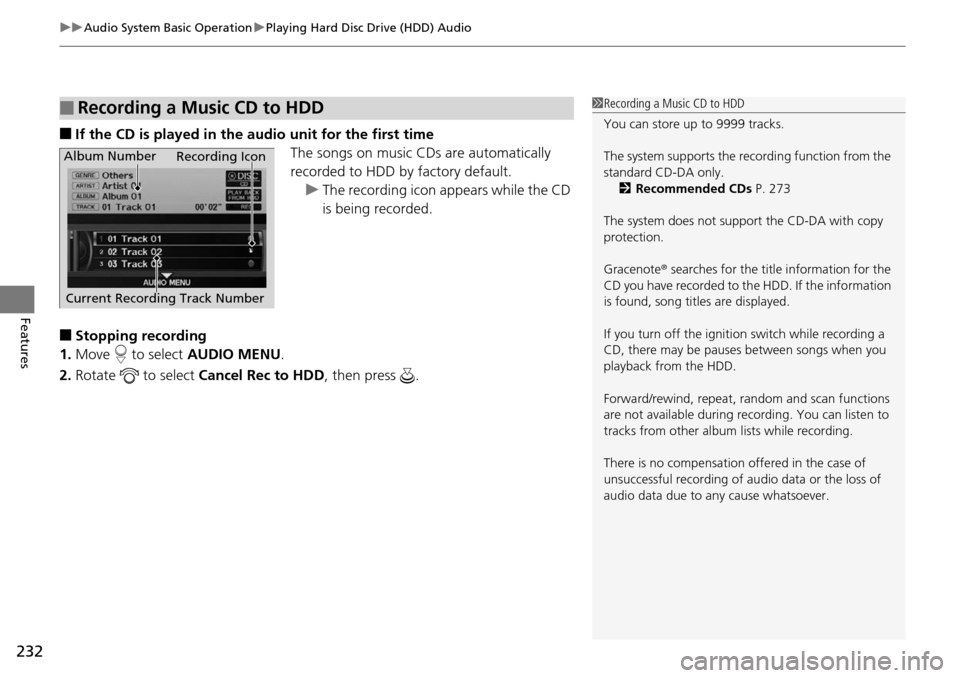

■If the CD is played in the audio unit for the first time
The songs on music CDs are automatically
recorded
to HDD by factory default.
u T
he recording icon appears while the CD
is being recorded.
■Stopping recording
1. Mo
ve to select AUDIO ME NU.
2. Rotate
to select Canc el Rec to HDD , then press .
■Recording a Music CD to HDD1Recording a Music CD to HDD
You can store up to 9999 tracks.
The system supports the re cording function from the
standard CD-DA only. 2 Recommended CDs P. 273
The system does not support the CD-DA with copy
protection.
Gracenote ® searches for the title information for the
CD you have recorded to the HDD. If the information
is found, song titles are displayed.
If you turn off the igniti on switch while recording a
CD, there may be pauses between songs when you
playback from the HDD.
Forward/rewind, repeat, ra ndom and scan functions
are not available during recording. You can listen to
tracks from other album lists while recording.
There is no compensation offered in the case of
unsuccessful recording of au dio data or the loss of
audio data due to any cause whatsoever.
Album Number
Current Recording Track Number Recording Icon

Continued233
uu Audio System Basic Operation u Playing Hard Disc Drive (HDD) Audio
Features
You can select repeat, random, and scan modes when playing HDD.
1. Press the AUDIO button, move to select
AUDIO MENU .
2. Ro
tate to select Re peat, Random , or
Scan , then press .
3. Ro
tate to select a mode, then press .
■To turn off a play mode
1. Press the AUDIO button, move to select AUD
IO MENU.
2. Rota
te to select Rep eat, Random , or Scan, then press .
3. Rota
te to select OF F, then press .
■How to Select a Play Mode for HDD1How to Select a Play Mode for HDD
Play Mode Menu Items
OFF
TRACK REPEAT : Repeats the current track.
TRACK SCAN : Samples all tracks on the HDD.
TRACK RANDOM : Plays all tracks on the HDD in
random order.

uu Audio System Basic Operation u Playing Hard Disc Drive (HDD) Audio
234
Features

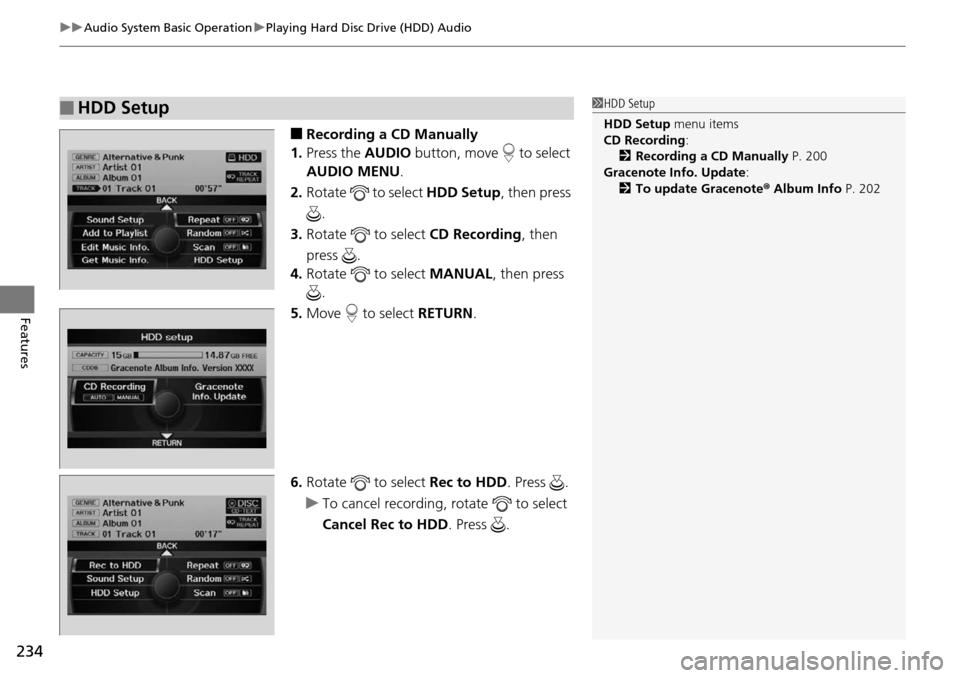

■Recording a CD Manually
1. Press the AU
DIO button, move to select
AUDIO MENU .
2. Ro
tate to select HDD Set up, then press
.
3. Ro
tate to select CD R ecording, then
press .
4. Ro
tate to select MANUAL , then press
.
5. Mo
ve to select RET URN.
6. Ro
tate to select Rec to HDD. Press .
u T
o cancel recording, rotate to select
Cancel Rec to HDD . Press .
■HDD Setup1HDD Setup
HDD Setup menu items
CD Recording :
2 Recording a CD Manually P. 200
Gracenote Info. Update :
2 To update Gracenote ® Album Info P. 202

Continued235
uu Audio System Basic Operation u Playing Hard Disc Drive (HDD) Audio
Features
■To update Gracenote® Album Info
1. Insert
the update disc in to the disc slot that includes the update.
2. Press the AUDIO button, move to select AUD
IO MENU.
3. Rota
te to select HDD Se tup.
4. Rota
te to select Gracenote Info. Update , then press .
5. Rota
te to select USB or DISC update source media, then press .
6. Rota
te to select Yes. Press to start updating.
7. Rota
te to select OK, on the confirma tion screen. Press .
1To update Gracenote ® Album Info
To acquire updated files:
Consult a dealer
US: Visit www.honda.com .
Canada: Visit www.honda.ca .
Once you perform an update, any information you
edited before will be overwritten or erased.
2 Gracenote ® End User License Agreement
P. 476

uu Audio System Basic Operation u Playing Hard Disc Drive (HDD) Audio
236
Features

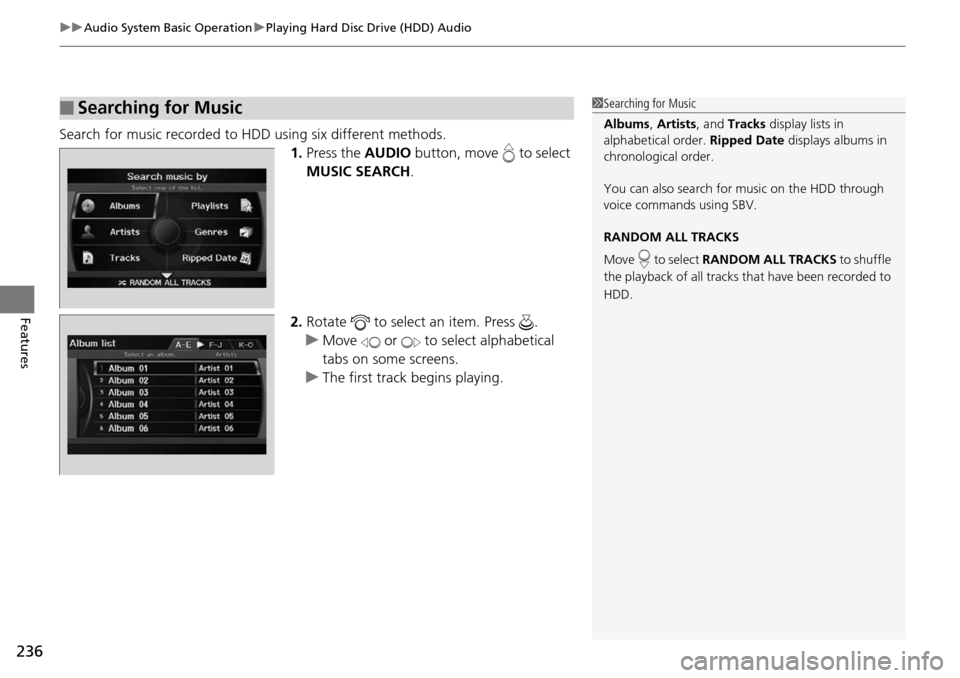

Search for music recorded to HDD using six different methods.
1.Press the AUDIO button, move to select
MUSIC SEARCH .
2. Ro
tate to select an item. Press .
u Move or to select alphabetical
tabs on some screens.
u Th
e first track begins playing.
■Searching for Music1Searching for Music
Albums , Artists , and Tracks display lists in
alphabetical order. Ripped Date displays albums in
chronological order.
You can also search for music on the HDD through
voice commands using SBV.
RANDOM ALL TRACKS
Move to select RANDOM ALL TRACKS to shuffle
the playback of all tracks that have been recorded to
HDD.

Continued237
uu Audio System Basic Operation u Playing Hard Disc Drive (HDD) Audio
Features

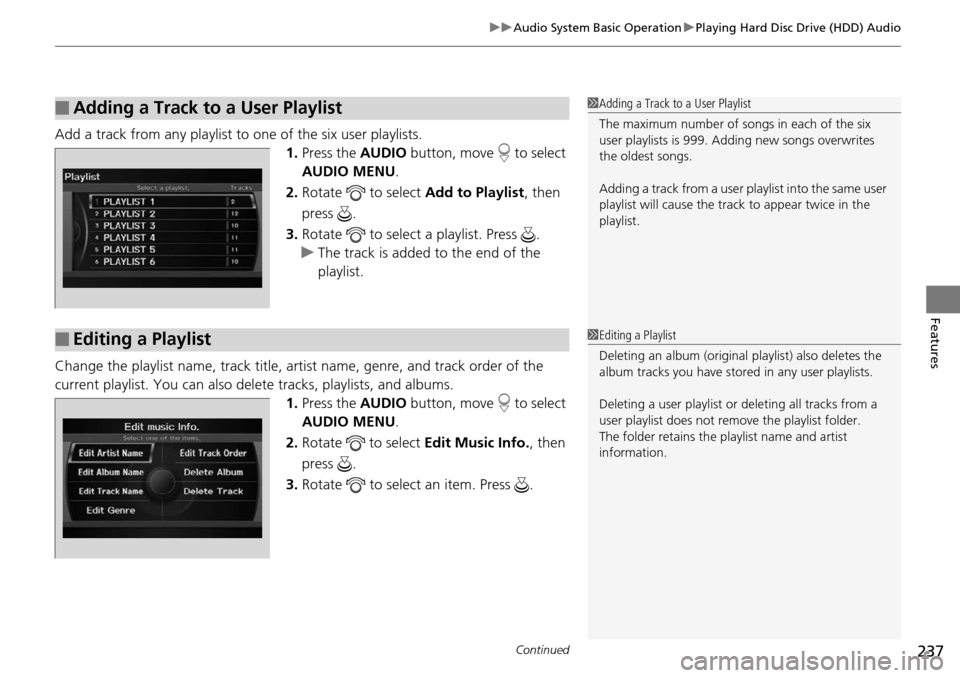

Add a track from any playlist to one of the six user playlists.
1. Press the AUDIO button, move to select
AUDIO MENU .
2. Ro
tate to select Ad d to Playlist , then
press .
3. Ro
tate to select a playlist. Press .
u The
track is added to the end of the
playlist.
Change the playlist name, track title, artist name, genre, and track order of the
current pl
aylist. You can also delete tracks, playlists, and albums.
1.Press the AUDIO button, mov
e to select
AUDIO MENU .
2. Ro
tate to select Edit Music Info. , then
press .
3. Ro
tate to select an item. Press .
■Adding a Track to a User Playlist1Adding a Track to a User Playlist
The maximum number of s ongs in each of the six
user playlists is 999. Adding new songs overwrites
the oldest songs.
Adding a track from a user pl aylist into the same user
playlist will cause the track to appear twice in the
playlist.
■Editing a Playlist1 Editing a Playlist
Deleting an album (original playlist) also deletes the
album tracks you have stor ed in any user playlists.
Deleting a user playlist or deleting all tracks from a
user playlist does not remove the playlist folder.
The folder retains the playlist name and artist
information.

238
uu Audio System Basic Operation u Playing Hard Disc Drive (HDD) Audio
Features
The following items are available, depending on the type of playlist:
•Edit Artist Name: Enter a new artist name. Move to select OK when finished.
Then, select whether to apply the new arti st
name to the album (playlist) and all
tracks, the current track only, all tra cks, or the album (playlist) only.
• E
dit Playlist Name (user playlists): Enter a new playlist name. Move to select
OK when
finished.
• E
dit Album Name (original playlists): Enter a new album name. Move to select
OK when
finished.
• Ed
it Track Name : Enter a new track name. Move to select OK when finished.
• Ed
it Genre : Select a new genre. Then select th e original playlist to apply the
genre.
• Ed
it Track Order (user playlists): Select the trac k to move, and then select the
new location. Repeat to move more than one track. Move to select OK when
finished.
• De
lete Playlist : Deletes the user playlist. Rotate to select Yes at the
confirmation prompt to delete the playlist.
• De
lete Album : Deletes the original playlist. Rotate to select Yes at the
confirmation prompt to delete the album.
• De
lete Track : Deletes the current track. Rotate to select Yes at t he
confirmation prompt to delete the current track.

239
uu Audio System Basic Operation u Playing Hard Disc Drive (HDD) Audio
Features

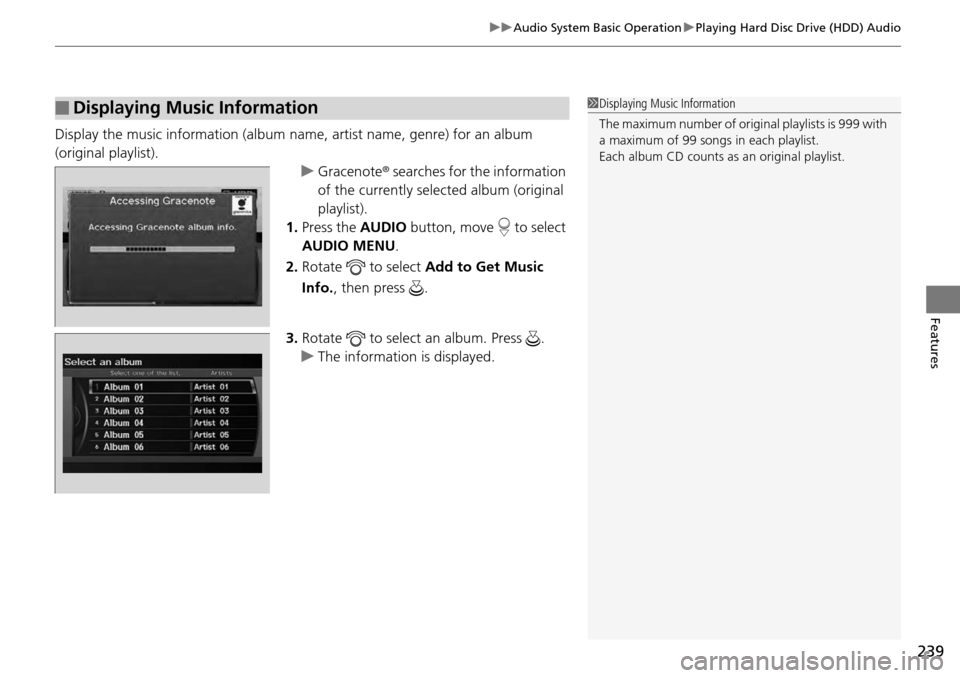

Display the music informati on (album name, artist name, genre) for an album
(original playlist).
u Gracenoter searches for the information
of the currently sele cted album (original
playlist).
1. Press the AUDIO button, mov
e to select
AUDIO MENU .
2. Ro
tate to select Ad d to Get Music
Info., then press .
3. Ro
tate to select an album. Press .
u Th
e information is displayed.
■Displaying Music Information1Displaying Music Information
The maximum number of origin al playlists is 999 with
a maximum of 99 songs in each playlist.
Each album CD counts as an original playlist.
