HONDA PILOT 2014 2.G Owners Manual

440
uu If a Tire Goes Flat u Changing a Flat Tire
Handling the Unexpected

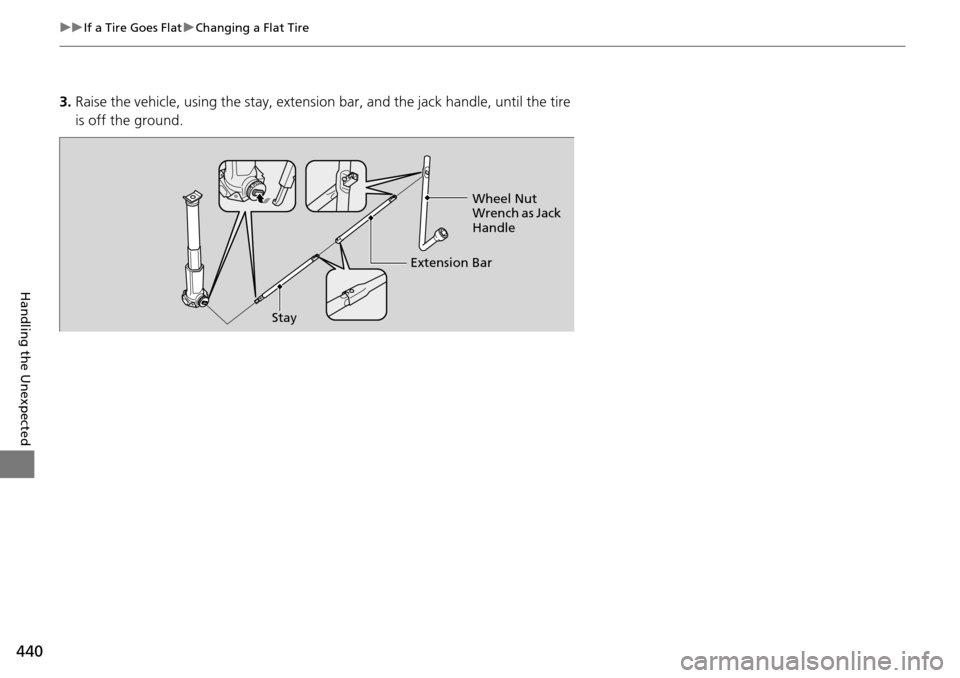

3. Raise the vehicle, using the stay, extension bar, and the jack handle, until the tire
is off the ground.
Stay Extension BarWheel Nut
Wrench as Jack
Handle

Continued441
uu If a Tire Goes Flat u Changing a Flat Tire
Handling the Unexpected
1. Remove the wheel nuts and flat tire.
2.Wipe the mounting surfaces of the wheel
with a clean cloth.
3. Mount t
he compact spare tire.
4.Screw
the wheel nuts until they touch the
lips around the mounting holes, and stop
rotating.
5. Lower the
vehicle and remove the jack.
Tighten the wheel nuts in the order
indicated in the image. Go around,
tightening the nuts, two to three times in
this order.
Wheel nut torque:
94 lbf∙ft (127 N∙m, 13 kgf∙m)
■Replacing the Flat Tire1 Replacing the Flat Tire
Do not over tighten the wheel nuts by applying extra
torque using your foot or a pipe.

uu If a Tire Goes Flat u Changing a Flat Tire
442
Handling the Unexpected
If you store a full size tire on the hoist, remove the spacer to loosen the two bolts.
1.Remove the center cap.
2. Place
the flat tire fa ce up under the hoist.
3. Insert the
hoist bracket into the center hole
of the flat tire.
4. Turn the
extension ba r with the wheel nut
wrench to the right until the flat tire rests
against the underbody of the vehicle and
you hear the hoist click.
5. Sec
urely put the jack, stay, extension bar,
and wheel nut wrench back in the tool
case.
■Storing the Flat Tire1Storing the Flat Tire
Always raise the spare tire hoist, even if you are not
stowing a tire. If the hoist is left down, it will be
damaged during driving and need to be replaced.
3 WARNING
Loose items can fly around the interior in a
crash and can seriously injure the
occupants.
Store the wheel, jack, and tools securely
before driving.
Bolts

443
uu If a Tire Goes Flat u Changing a Flat Tire
Handling the Unexpected

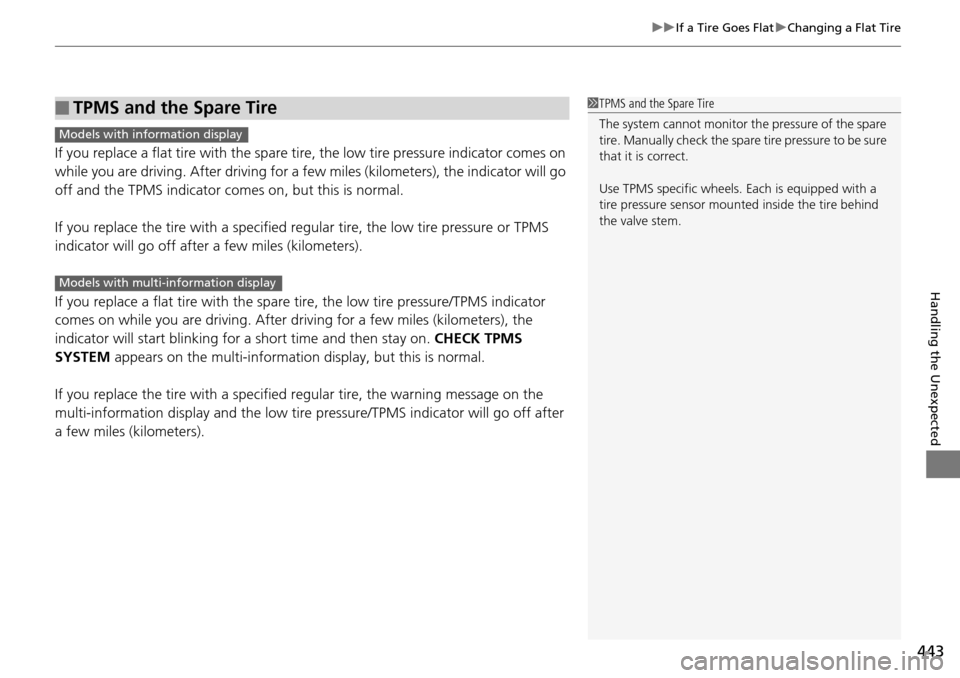

If you replace a flat tire with the spare ti re, the low tire pressure indicator comes on
while you are driving. After driving for a fe w miles (kilometers), the indicator will go
off and the TPMS indicator co mes on, but this is normal.
If you replace the tire with a specified re gular tire, the low tire pressure or TPMS
indicator will go off after a few miles (kilometers).
If you replace a flat tire with the spare tire, t
he low tire pressure/TPMS indicator
comes on while you are driving. After dr iving for a few miles (kilometers), the
indicator will start blinking for a short time and then stay on. CHECK TPMS
SYSTEM appears on the multi-information display, but this is normal.
If you replace the tire with a specified regular
tire, the warning message on the
multi-information display and the low tire pressure/TPMS indicator will go off after
a few miles (kilometers).
■TPMS and the Spare Tire1 TPMS and the Spare Tire
The system cannot monitor th e pressure of the spare
tire. Manually check the spare tire pressure to be sure
that it is correct.
Use TPMS specific wheels. Each is equipped with a
tire pressure sensor mounted inside the tire behind
the valve stem.
Models with info rmation display
Models with multi- information display

444
Handling the Unexpected
Engine Does Not Start
Checking the Engine
If the engine does not start, check the starter.
Starter conditionChecklist
Starter doesn’t turn or turns
over slowly.
The battery may be dead. Check
each of the items on the right and
respond accordingly.
Check brightness of the interior light.
Turn on interior lights and check brightness.
●If the interior lights are dim or do not come on at all
2 Battery P. 423●If the interior lights come on normally 2 Inspecting and Changing Fuses P. 458
The starter turns over normally
but the engine doesn’t start.
There may be a problem with the
fuse. Check each of the items on
the right and respond accordingly.
Review the engine start procedure.
Follow its instructions, and try to start the engine again.
2 Starting the Engine P. 342
Check the immobilizer system indicator.
When the immobilizer system indicator is bl
inking, the engine cannot be started.
2Immobilizer System P. 118
Check the fuel level.
There should be enough fuel in the tank.
2 Fuel Gauge P. 80
Check the fuse.
Check all fuses, or have the vehicle
checked by a dealer.
2Inspecting and Changing Fuses P. 458
If the problem continues:
2 Emergency Towing P. 459
1Checking the Engine
If you must start the vehi cle immediately, use an
assisting vehicle to jump start it.
2 Jump Starting P. 445

445Continued

Handling the Unexpected

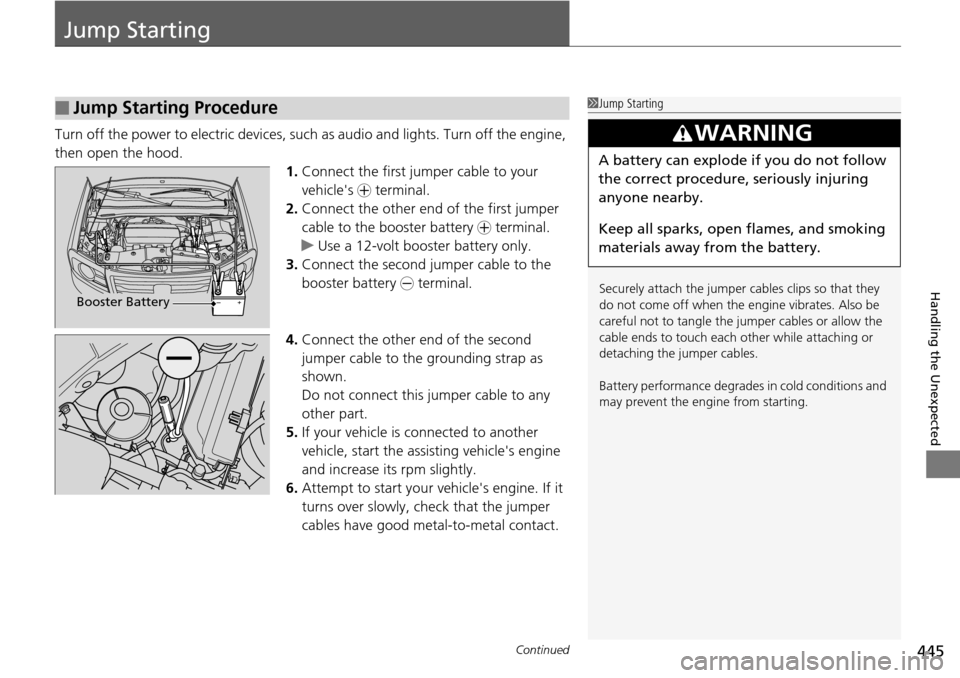

Jump Starting
Turn off the power to electric devices, such as audio and lights. Turn off the engine,
then open the hood. 1.Connect
the first jumper cable to your
vehicle's + terminal.
2. Connect
the other end of the first jumper
cable to the booster battery + terminal.
u Us
e a 12-volt booster battery only.
3. Connect the
second jumper cable to the
booster battery - terminal.
4. Conn
ect the other end of the second
jumper cable to the grounding strap as
shown.
Do not connect this jumper cable to any
other part.
5. If yo
ur vehicle is connected to another
vehicle, start the assisting vehicle's engine
and increase its rpm slightly.
6. Attem
pt to start your ve hicle's engine. If it
turns over slowly, check that the jumper
cables have good metal-to-metal contact.
■Jump Starting Procedure1 Jump Starting
Securely attach the jumper cables clips so that they
do not come off when the e ngine vibrates. Also be
careful not to tangle the ju mper cables or allow the
cable ends to touch each other while attaching or
detaching the jumper cables.
Battery performance degrades in cold conditions and
may prevent the engi ne from starting.
3 WARNING
A battery can explode if you do not follow
the correct procedure, seriously injuring
anyone nearby.
Keep all sparks, open flames, and smoking
materials away from the battery.
Booster Battery

446
uu Jump Starting u
Handling the Unexpected

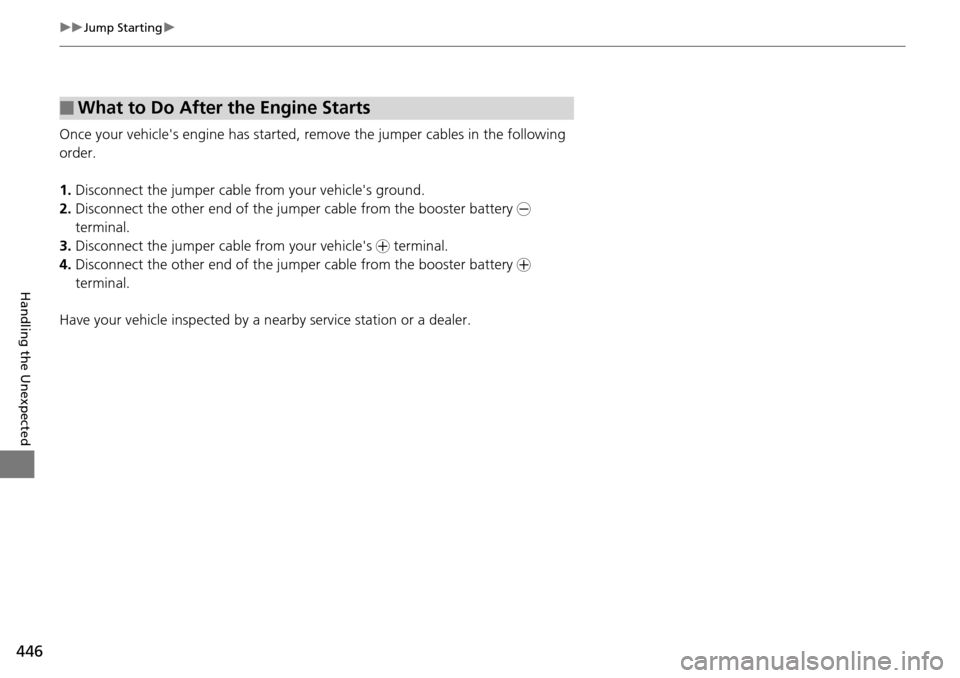

Once your vehicle's engine has started, re move the jumper cables in the following
order.
1. Disconnect the jumper cable from your vehicle's ground.
2. Dis
connect the other end of the jumper cable from the booster battery -
terminal.
3. Disconnect
the jumper cable from your vehicle's + terminal.
4. Dis
connect the other end of the jumper cable from the booster battery +
terminal.
Have your vehicle inspected by a n earby se
rvice station or a dealer.
■What to Do After the Engine Starts

447

Handling the Unexpected

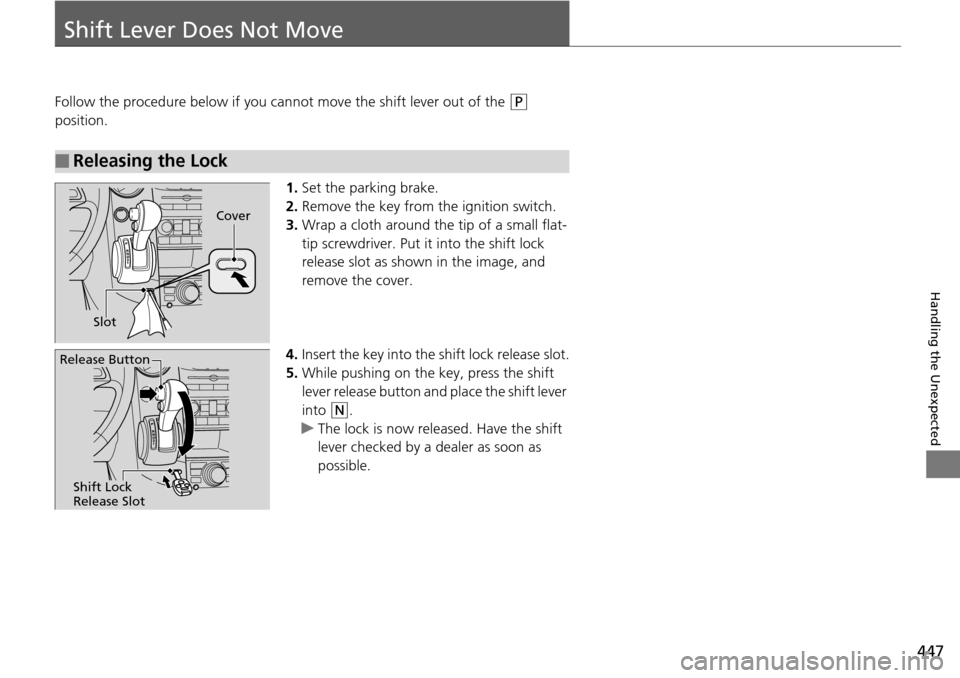

Shift Lever Does Not Move
Follow the procedure below if you cannot move the shift lever out of the (P

position.
1.Set the
parking brake.
2.Remove
the key from th e ignition switch.
3. Wrap a clo
th around the tip of a small flat-
tip screwdriver. Put it into the shift lock
release slot as shown in the image, and
remove the cover.
4. Insert
the key into the shift lock release slot.
5. Wh
ile pushing on the key, press the shift
lever release button and place the shift lever
into
(N
.
u The
lock is now released. Have the shift
lever checked by a de aler as soon as
possible.
■Releasing the Lock
Slot Cover
Release Button
Shift Lock
Release Slot

448
Handling the Unexpected
Overheating
How to Handle Overheating
Overheating symptoms are as follows:
•The temperat
ure gauge needle is at the mark or the engine suddenly loses
power.
• Steam
or spray comes out of the engine compartment.
■First thing to do
1. Im
mediately park the vehicle in a safe place.
2.Turn
off all accessories and turn on the hazard warning lights.
u No s
team or spray present: Keep the engine running and open the hood.
u Ste
am or spray is present: Turn off the engine and wait until it subsides.
Then, open the hood.
1 How to Handle Overheating
NOTICE
Continuing to drive with the temperature gauge
needle at the mark may damage the engine.
3 WARNING
Steam and spray from an overheated
engine can seriously scald you.
Do not open the hood if steam is coming
out.
H
H

449
uu Overheating u How to Handle Overheating
Handling the Unexpected
■Next thing to do
1.Chec
k that the cooling fan is operating and
stop the engine once the temperature
gauge needle comes down.
u I
f the cooling fan is not operating,
immediately stop the engine.
2. Onc
e the engine has cooled down, inspect
the coolant level and check the cooling
system components for leaks.
u If
the coolant level in the reserve tank is
low, add coolant until it reaches the
MAX mark.
u If
there is no coolant in the reserve tank,
check that the radiator is cool. Cover the
radiator cap with a heavy cloth and open
the cap. If necessary, add coolant up to
the base of the filler neck, and put the
cap back on.
■Last thing to do
Once the engine has cooled sufficiently, re sta
rt it and check the temperature gauge.
If the temperature needle has gone down, resume driving. If it has not gone down,
contact a dealer for repairs.
1 How to Handle Overheating
If the coolant is leaking, contact a dealer for repairs.
Use water as an emergency/temporary measure only.
Have a dealer flush the system with proper antifreeze
as soon as possible.
3 WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.
Reserve
Tank
MAX
MIN
