HONDA PILOT 2014 2.G Owners Manual

400
uu Maintenance Under the Hood u Brake Fluid
Maintenance
Brake Fluid
The fluid level should be between the MIN
and MAX marks on the side of the reservoir.
Power Steering Fluid
We recommend that you check the power st eering fluid level every time you refuel.
Check when the engi ne is not running.
1.Look at
the side of the reservoir. The fluid
should be between the UPPER LEVEL and
LOWER LEVEL .
2. Add power ste
ering fluid if necessary to the
UPPER LEVEL mark.
u Inspect the
system for a leak. If the fluid
level goes below the LOWER LEVEL
frequently, have the system inspected as
soon as possible.
Specified fluid: Honda Heavy Duty Brake Fluid DOT 3
■Checking the Brake Fluid
1Brake Fluid
NOTICE
Brake fluid marked DOT 5 is not compatible with your
vehicle's braking system and can cause extensive
damage.
If the specified brake fluid is not available, you should
use only DOT 3 or DOT 4 fluid from a sealed
container as a temporary replacement.
Using any non-Honda brake fluid can cause corrosion
and decrease the longevity of the system. Have the
brake system flushed and re filled with Honda Heavy
Duty Brake Fluid DOT 3 as soon as possible.
If the brake fluid level is at or below the MIN mark,
have a dealer inspect for l eaks or worn brake pads as
soon as possible.
Brake Reservoir
MINMAX
Specified fluid: Honda Power Steering Fluid
1Power Steering Fluid
NOTICE
Turning the steering wheel to full left or right lock
and holding it there can da mage the power steering
pump.
NOTICE
Pour the fluid slowly and ca refully so you do not spill
any. Clean up any spills imme diately; it could damage
components in the e ngine compartment.
UPPER LEVEL
LOWER LEVEL

401
uu Maintenance Under the Hood u Refilling Window Washer Fluid
Maintenance

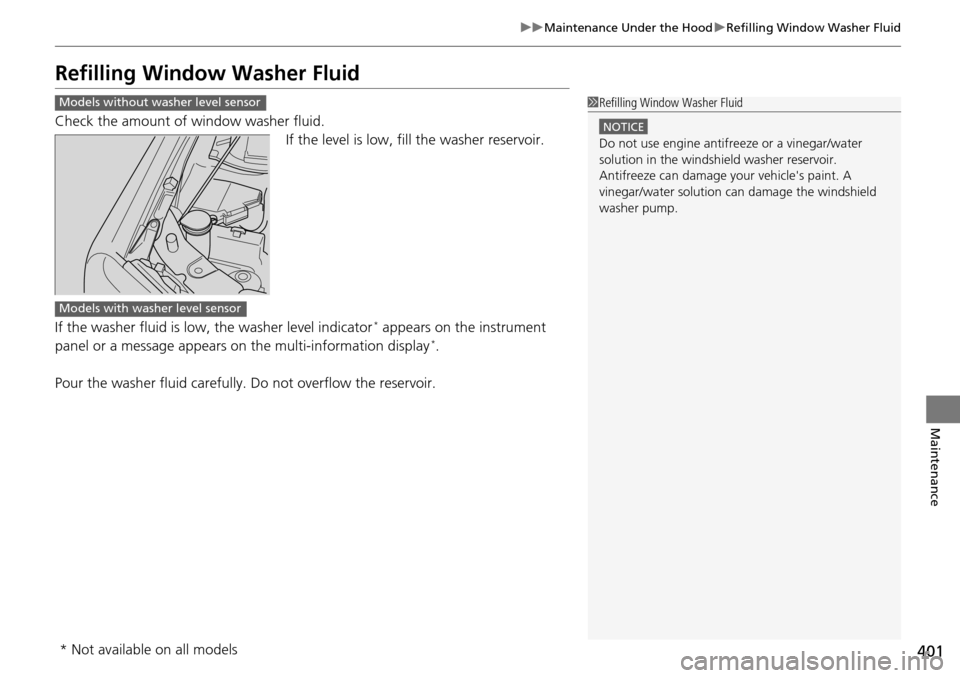

Refilling Window Washer Fluid
Check the amount of window washer fluid.
If the level is low, fill the washer reservoir.
If the washer fluid is low, the washer level indicator
* appears on the instrument
panel or a message appears on the multi-information display *.
Pour the washer fluid carefully. Do not
overflow the reservoir.
Models without washer level sensor1Refilling Window Washer Fluid
NOTICE
Do not use engine antifreeze or a vinegar/water
solution in the windshield washer reservoir.
Antifreeze can damage y our vehicle's paint. A
vinegar/water solution ca n damage the windshield
washer pump.
Models with washer level sensor
* Not available on all models

402
Maintenance
Replacing Light Bulbs
Headlight Bulbs
When replacing, use the following bulbs.1.Re
move the clips using a flat-tip
screwdriver, then remove the upper part of
the air intake duct.
2 Engine Compartment Covers P. 391
2.Push the tab to remove the coupler.
3. Rotat
e the old bulb to the left to remove.
4.In
sert a new bulb into the headlight
assembly and turn it to the right.
5. Insert
the coupler into the connector of the
bulb.
High beam headlight:60W (HB3)
Low beam headlight:55 W (H11)
■High Beam Headlight
1Headlight Bulbs
NOTICE
Halogen bulbs get very hot when lit.
Oil, perspiration, or a scratch on the glass can cause
the bulb to overhe at and shatter.
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the cargo area or tow a trailer, have
the aiming readjusted at a dealer or by a qualified
technician.
The HB3 and H11 types are halogen bulbs.
When replacing a bulb, ha ndle it by its base, and
protect the glass from contact with your skin or hard
objects. If you touch the glass, clean it with
denatured alcohol and a clean cloth.
The exterior lights' inside lenses (headlights, brake
lights, etc.) may fog temporarily after a car wash or
while driving in the rain. This does not impact the
exterior light function.
However, if you see a larg e amount of water or ice
accumulated inside the le nses, have your vehicle
inspected by a dealer.
Tab
Coupler
Bulb
Driver's side
Driver and passenger side

Continued403
uu Replacing Light Bulbs u Fog Light Bulbs *
Maintenance
1. Remove the clips using a flat-tip
screwdriver, then remo ve the upper part of
the air intake duct.
2 Engine Compartment Covers P. 391
2. Push the tab to remove the coupler.
3. Rot
ate the old bulb to the left to remove.
4.In
sert a new bulb into the headlight
assembly and turn it to the right.
5. Insert
the coupler into the connector of the
bulb.
Fog Light Bulbs *
When replacing, use the following bulbs.
1.Remove the
clips using a flat-tip
screwdriver, and pu ll down the under
cover.
■Low Beam Headlights
Bulb
TabCoupler
Driver's side
Driver and passenger side
Fog Light: 55 W (H11)
1 Fog Light Bulbs *
NOTICE
Halogen bulbs get very hot wh en lit. Oil, perspiration,
or a scratch on the glass can cause the bulb to
overheat and shatter.
The fog lights ar e halogen bulbs.
When replacing a bulb, handl e it by its plastic case,
and protect the glass from c ontact with your skin or
hard objects. If you touch the glass, clean it with
denatured alcohol and a clean cloth.
Clip
* Not available on all models

uu Replacing Light Bulbs u Side Turn Signal/Emergency Indicator Light Bulbs *
404
Maintenance
2. Push the tab to remove the coupler.
3.Rotate the old bulb to the left to remove.
4. In
sert new bulb.
Side Turn Signal/Emergency Indicator Light Bulbs *
Door mirrors have the side turn lights. Ha ve an authorized Honda dealer inspect and
replace the light bulbs.
Bulb
CouplerTab
1 Fog Light Bulbs *
Insert a flat-tip screwdriver, lift and remove the center
pin to remove the clip.
Insert the clip with the center pin raised, and push
until it is flat.
Center pin
Push until the
pin is flat.
* Not available on all models

405
uu Replacing Light Bulbs u Front Turn Signal/Parking Light and Front Side Marker Light Bulbs
Maintenance
Front Turn Signal/Parking Light and Front Side
Marker Light Bulbs
When replacing, use the following bulbs.
1.Turn the socket
to the left and remove it.
2. Remov
e the old bulb and insert a new bulb.
Front Turn Signal/Parking Light: 28/8 W (Amber)
Front Side Marker Light: 3CP
Bulb
Socket

406
uu Replacing Light Bulbs u Brake Light, Taillight, Back-Up Light, Rear Turn Signal Light and Rear Side Marker Light Bulbs
Maintenance
Brake Light, Taillight, Back-Up Light, Rear Turn
Signal Light and Rear Side Marker Light Bulbs
When replacing, use the following bulbs.
1.Use
a Phillips-head screwdriver to remove
the bolts.
2. L
oosen the assembly by carefully prying on
the top and side edges.
u Wrap the
flat-tip screwdriver with a cloth
to prevent scratches.
Brake/Taillight: 21/5 W
Back-Up Light: 18 W
Rear Turn Signal/Taillight: 21/5 W
Rear Side Marker Light: 5 W
Bolts

407
uu Replacing Light Bulbs u Brake Light, Taillight, Back-Up Light, Rear Turn Signal Light and Rear Side Marker Light Bulbs
Maintenance
3.Turn the socket to th e left and remove it.
Remove the old bulb.
4. Insert a new bulb.
5. Rein
stall the light assembly by sliding it into
the hole on the body.
Bulb
Socket

408
uu Replacing Light Bulbs u Rear License Plate Light Bulb
Maintenance

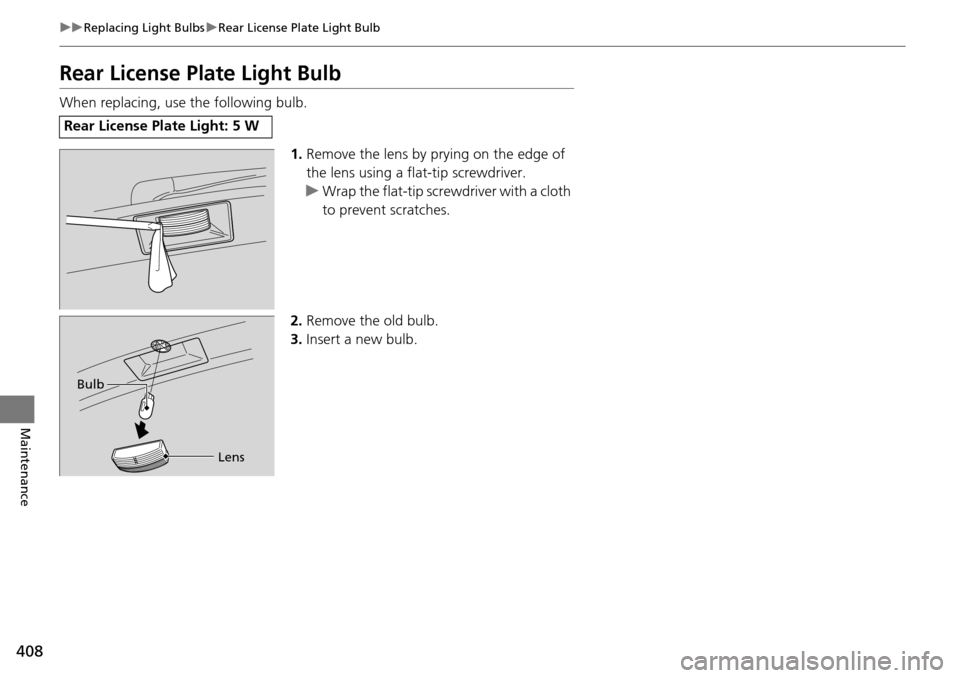

Rear License Plate Light Bulb
When replacing, use the following bulb.
1.R
emove the lens by prying on the edge of
the lens using a flat-tip screwdriver.
u Wrap the
flat-tip screwdriver with a cloth
to prevent scratches.
2. R
emove the old bulb.
3.In
sert a new bulb.
Rear License Plate Light: 5 W
Bulb
Lens

409
uu Replacing Light Bulbs u High-Mount Brake Light Bulb
Maintenance
High-Mount Bra ke Light Bulb
When replacing, use the following bulb.
1.Remov
e the lens segment by prying on the
edge using a flat-tip screwdriver.
u Wrap the fla
t-tip screwdriver with a cloth
to prevent scratches.
2. Remove
the screw under each lens.
3.Pull the
high-mount brake light assembly
out of the vehicle.
4. Remove the
two mounting screws from the
light assembly.
5. Remove
the lens from the light assembly.
6.Remov
e the old bulb and insert a new bulb.
High-Mount Brake Light: 5 W
Screw
Lens Segment
Bulb
