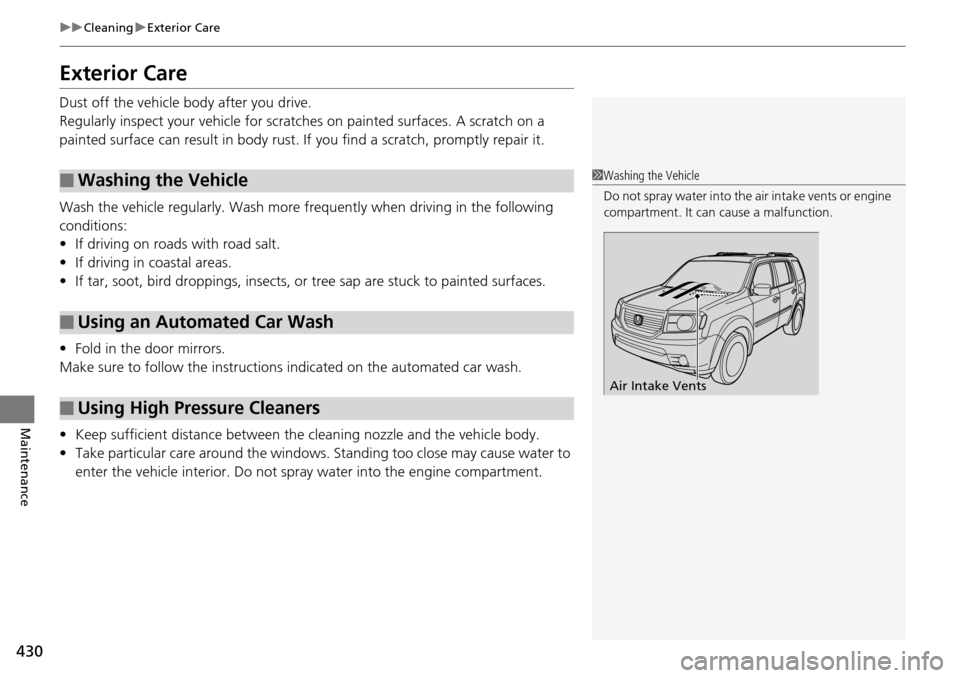

HONDA PILOT 2014 2.G Owners Manual

430
uu Cleaning u Exterior Care
Maintenance
Exterior Care
Dust off the vehicle body after you drive.
Regularly inspect your vehi cl
e for scratches on painted surfaces. A scratch on a
painted surface can result in body rust. If you find a scratch, promptly repair it.
Wash the vehicle regularly. Wash more frequently when
driving in the following
conditions:
• If
driving on roads with road salt.
•If
driving in coastal areas.
•I
f tar, soot, bird droppings, insects, or tree sap are stuck to painted surfaces.
• F
old in the door mirrors.
Make sure to follow the instructions indicat
ed on the automated car wash.
• Keep sufficient distance between the cleaning nozzl e and the
vehicle body.
• Take particular care around the windows. St anding too close may ca
use water to
enter the vehicle interior. Do not spra y water into the engine compartment.
■Washing the Vehicle
■Using an Automated Car Wash
■Using High Pressure Cleaners
1Washing the Vehicle
Do not spray water into the air intake vents or engine
compartment. It can cause a malfunction.
Air Intake Vents

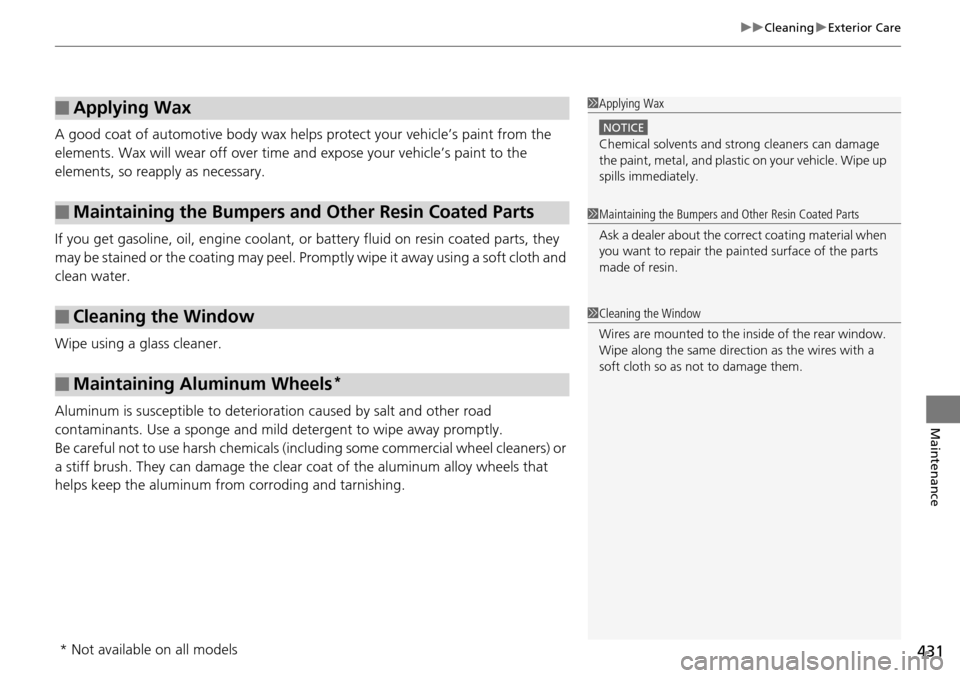

431
uu Cleaning u Exterior Care
Maintenance
A good coat of automotive body wax helps protect your vehicle’s paint from the
elements. Wax will wear off over time and expose your vehicle’s paint to the
elements, so reapply as necessary.
If you get gasoline, oil, engine coolant, or battery fluid on resi n coated parts, they
may be stained or the coating may peel. Prom ptly wipe it away using a soft cloth and
clean water.
Wipe using a glass cleaner.
Aluminum is susceptible to deterioration caused by salt and other road
con
taminants. Use a sponge and mild detergent to wipe away promptly.
Be careful not to use harsh chemicals (including some commercial wheel cleaners) or
a
stiff brush. They can damage the clear coat of the aluminum alloy wheels that
helps keep the aluminum from corroding and tarnishing.
■Applying Wax
■Maintaining the Bumpers and Other Resin Coated Parts
■Cleaning the Window
■Maintaining Aluminum Wheels *
1Applying Wax
NOTICE
Chemical solvents and st rong cleaners can damage
the paint, metal, and plasti c on your vehicle. Wipe up
spills immediately.
1 Maintaining the Bumpers an d Other Resin Coated Parts
Ask a dealer about the corr ect coating material when
you want to repair the painted surface of the parts
made of resin.
1 Cleaning the Window
Wires are mounted to the in side of the rear window.
Wipe along the same direct ion as the wires with a
soft cloth so as not to damage them.
* Not available on all models

432

433
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 434
If a Tire Goes Flat Changing a Flat Tire ......................... 435
Engine Does Not Start Checking the Engine ........................ 444
Jump Starting ..........
.......................... 445
Shift Lever Does Not Move .........
..... 447
Overheating How to Handle Overheating ............. 448 Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes
On ............................................. 450
If the Charging System Indicator Comes
On ................................................. 450
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 451
If the Brake System Indicator (Red) Comes On ................................................. 452
If the Low Tire Pressure Indicator Comes On ................................................. 452
If the TPMS Indicator Comes On ...... 453 If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks ....................... 453
Fuses Fuse Locations ................................. 454
Inspecting and Changing Fuses ........ 458
Emergency Towing ..............
............. 459
When You Cannot Open the Tailgate..... 461

434
Handling the Unexpected
Tools
Types of Tools
1Types of Tools
The tools and jack are unde r the cargo area on the
passenger’s side.
Wheel Nut Wrench/ Jack Handle
Jack
Towing Hook Stay
Extension Bar

435Continued

Handling the Unexpected
If a Tire Goes Flat
Changing a Flat Tire
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then, stop in a safe plac e. Replace the flat tire with a compact
spare tire. Go to a dealer as soon as possib le to have the full-size tire repaired or
replaced.
1. Park
the vehicle on firm, level, and non-slippery surface an d apply the parking
brake.
2. Move t
he shift lever to (P
.
3. Turn
on the hazard warning lights an d turn the ignition switch to LOCK (0
.
1Changing a Flat Tire
Periodically check the tire pressure of the compact
spare. It should be set to the specified pressure.
Specified Pressure: 60 psi (420 kPa, 4.2 kgf/cm
2)
When driving with the compact spare tire, keep the
vehicle speed under 50 mph (80 km/h). Replace with
a full-size tire as soon as possible.
The compact spare tire and wheel in your vehicle are
specifically for this model.
Do not use them with another vehicle.
Do not use another type of compact spare tire or
wheel with your vehicle.
Do not mount tire chains on a compact spare tire.
If a chain-mounted front tire goes flat, remove one of
the full-size rear tires and replace it with the compact
spare tire. Remove the flat front tire and replace it
with the full-size tire that was removed from the rear.
Mount the tire chains on the front tire.
Do not use a puncture-repairi ng agent on a flat tire,
as it can damage the tire pressure sensor.

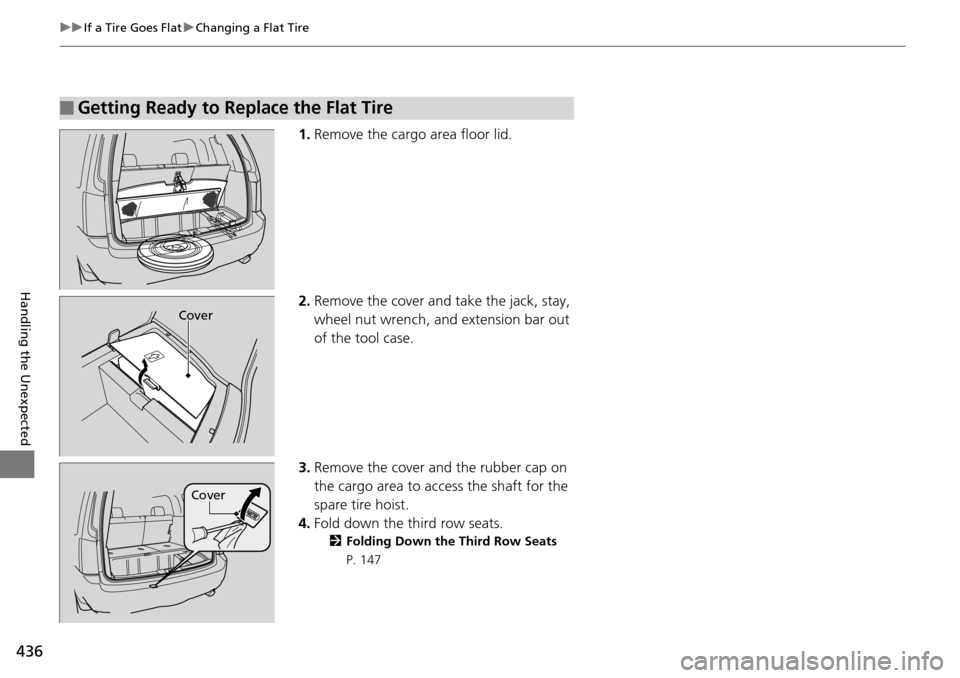

436
uu If a Tire Goes Flat u Changing a Flat Tire
Handling the Unexpected
1. Remove the cargo area floor lid.
2.Remove the cover and take the jack, stay,
wheel nut wrench, and extension bar out
of the tool case.
3. Remove the cover
and the rubber cap on
the cargo area to access the shaft for the
spare tire hoist.
4. Fol
d down the third row seats.
2 Folding Down the Third Row Seats
P. 147
■Getting Ready to Replace the Flat Tire
Cover
Cover

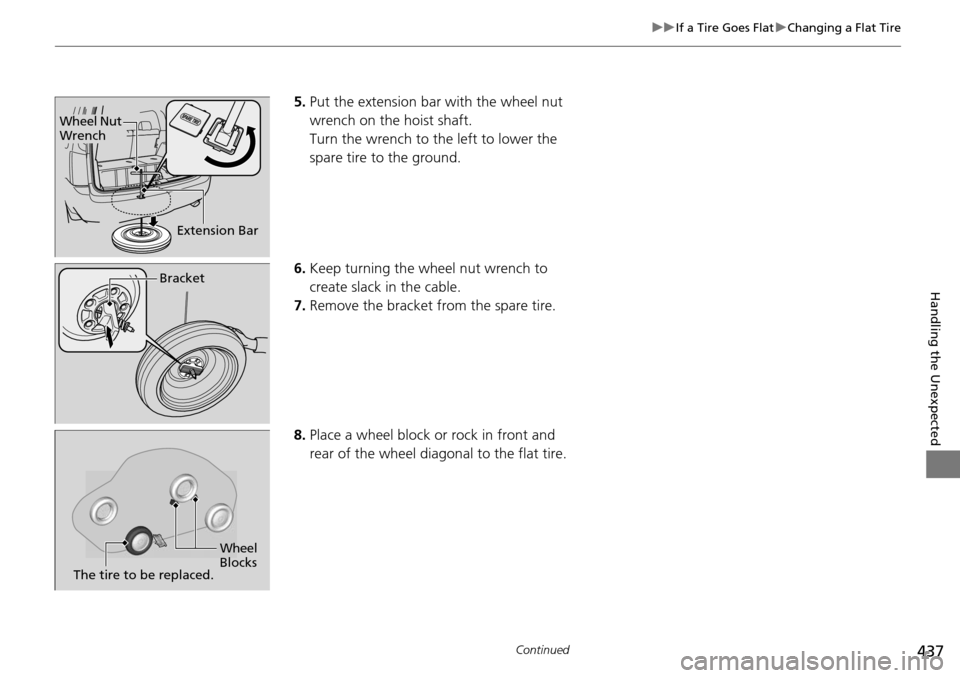

437
uu If a Tire Goes Flat u Changing a Flat Tire
Continued

Handling the Unexpected
5. Put the extension bar with the wheel nut
wrench on the hoist shaft.
Turn the wrench to the left to lower the
spare tire to the ground.
6. Keep t
urning the wh eel nut wrench to
create slack in the cable.
7. Re
move the bracket from the spare tire.
8.Place a
wheel block or rock in front and
rear of the wheel diagonal to the flat tire.
Wheel Nut
Wrench
Extension Bar
Bracket
Wheel
Blocks
The tire to be replaced.

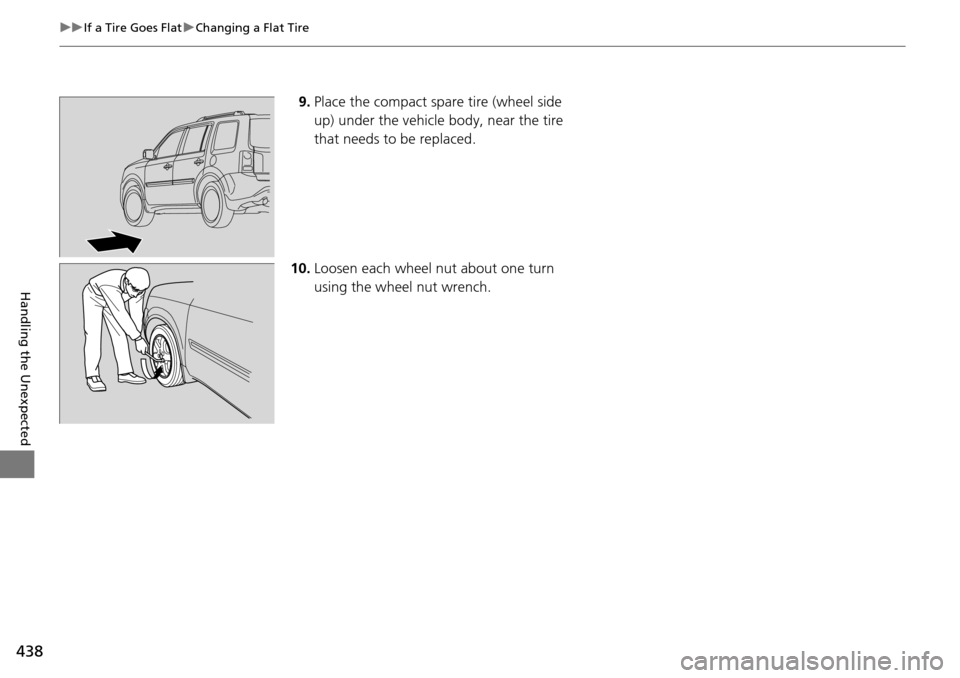

438
uu If a Tire Goes Flat u Changing a Flat Tire
Handling the Unexpected
9. Place the compact spare tire (wheel side
up) under the vehicle body, near the tire
that needs to be replaced.
10. Loosen each wheel nut about one turn
using the wheel nut wrench.

Continued439
uu If a Tire Goes Flat u Changing a Flat Tire
Handling the Unexpected
1. Place the jack under the jacking point
closest to the tire to be changed.
2.Turn the dial at the bottom of the jack to
the right until the top of the jack contacts
the jacking point.
u Ma
ke sure that the jacking point tab is
resting in the jack notch.
■How to Set Up the Jack1How to Set Up the Jack
Do not use the jack with people or luggage in the
vehicle.
Use the jack provided in your vehicle.
Other jacks may not support the weight (“load”) or
their shape may not match.
The following instructions must be followed to use
the jack safely.
•Do not use while the engine is running.
•Use only where the ground is firm and level.
•Use only at the jacking points.•Do not get in the vehicl e while using the jack.
•Do not put anything on top of or underneath the
jack.
3 WARNING
The vehicle can easily roll off the jack,
seriously injuring anyone underneath.
Follow the directions for changing a tire
exactly, and never get under the vehicle
when it is supported only by the jack.
