radiator HONDA PILOT 2014 2.G Owners Manual

66
Safe Driving
Safety Labels
Label Locations
These labels are in the locations shown. They warn you of potential hazards that can cause serious injury or death. Read these labels
carefully.
If a label comes off or becomes hard to read (except for the U. S. d
ashboard label which may be removed by the owner), contact a dealer
for a replacement.
Sun Visor
U.S. models Canadian models
Radiator Cap U.S. models
U.S. models only Dashboard
Canadian models
Doorjambs
U.S. models only
Sun Visor

389
Maintenance
Maintenance Under the Hood
Maintenance Items Under the Hood
Brake Fluid
(Black Cap)
Engine Coolant
Reservoir Radiator Cap
Washer Fluid (Blue Cap)
Engine Oil Dipstick
(Orange Loop)
Engine Oil Fill Cap
Automatic Transmission Fluid
Dipstick (Yellow Loop)Battery
Power Steering
Fluid (Red Cap)

397
uu Maintenance Under the Hood u Engine Coolant
Continued
Maintenance

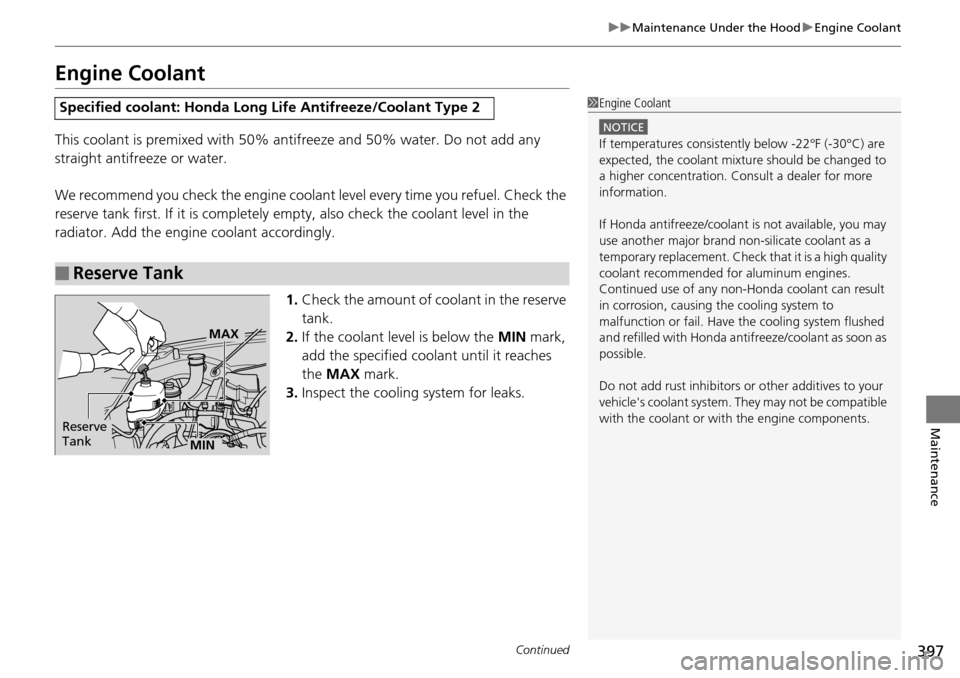

Engine Coolant
This coolant is premixed with 50% an tifreeze and 50% water. Do not add any
straight antifreeze or water.
We recommend you check the engine coolant level every time you
refuel. Check the
reserve tank first. If it is completely empty, also check the coolant level in the
radiator. Add the engine coolant accordingly.
1.Check
the amount of coolant in the reserve
tank.
2. If the co
olant level is below the MIN mark,
add the specified coolant until it reaches
the MAX mark.
3. Inspect the cooling syst
em for leaks.
Specified coolant: Honda Long Life An t ifreeze/Coolant Type 2
■Reserve Tank
1Engine Coolant
NOTICE
If temperatures consistent ly below -22°F (-30°C) are
expected, the coolant mixture should be changed to
a higher concentration. Cons ult a dealer for more
information.
If Honda antifreeze /coolant is not available, you may
use another major brand non- silicate coolant as a
temporary replacement. Check that it is a high quality
coolant recommended for aluminum engines.
Continued use of any non-Honda coolant can result
in corrosion, causing the cooling system to
malfunction or fail. Have the cooling system flushed
and refilled with Honda antifreeze/coolant as soon as
possible.
Do not add rust inhibitors or other additives to your
vehicle's coolant system. They may not be compatible
with the coolant or with the engine components.
Reserve
Tank
MAX
MIN

uu Maintenance Under the Hood u Engine Coolant
398
Maintenance
1. Make sure the engine and radiator are
cool.
2.Turn the radiator cap counterclockwise and
relieve any pressure in the coolant system.
Do not push the cap down when turning.
3. Pus
h down and turn the radiator cap
counterclockwise to remove it.
4. The co
olant level should be up to the base
of the filler neck. Add coolant if it is low.
5. Put the
radiator cap back on, and tighten it
fully.
6. Pour coola
nt into the reserve tank until it
reaches the MAX mark. Put the cap back
on the reserve tank.
■Radiator1 Radiator
NOTICE
Pour the fluid slowly and ca refully so you do not spill
any. Clean up any spills immediately; they can
damage components in the engine compartment.
3 WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.Radiator Cap

399
uu Maintenance Under the Hood u Transmission Fluid
Maintenance

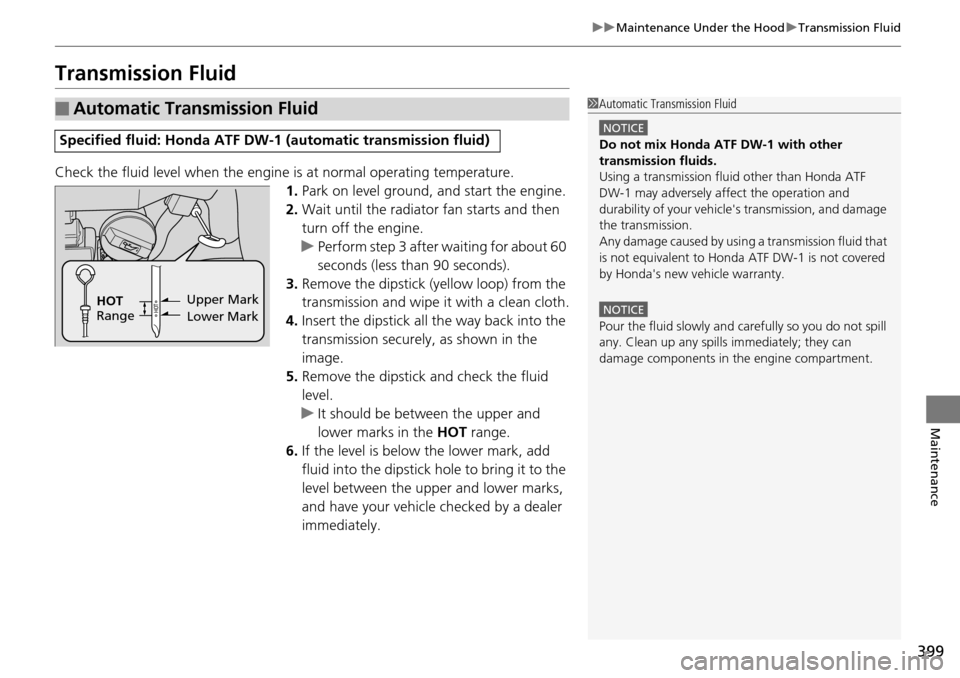

Transmission Fluid
Check the fluid level when the engine is at normal operating temperature.
1. Park
on level ground, and start the engine.
2.Wait
until the radiator fan starts and then
turn off the engine.
u Perform
step 3 after waiting for about 60
seconds (less than 90 seconds).
3. Remove the dipst
ick (yellow loop) from the
transmission and wipe it with a clean cloth.
4. Insert
the dipstick all the way back into the
transmission securely , as shown in the
image.
5. Remove the
dipstick and check the fluid
level.
u I
t should be between the upper and
lower marks in the HOT range.
6. If the
level is below the lower mark, add
fluid into the dipstick hole to bring it to the
level between the upper and lower marks,
and have your vehicle checked by a dealer
immediately.
■Automatic Transmission Fluid
Specified fluid: Honda ATF DW-1 (automatic transmission fluid)
1Automatic Transmission Fluid
NOTICE
Do not mix Honda ATF DW-1 with other
transmission fluids.
Using a transmission flui d other than Honda ATF
DW-1 may adversely af fect the operation and
durability of your vehicle' s transmission, and damage
the transmission.
Any damage caused by usi ng a transmission fluid that
is not equivalent to Honda ATF DW-1 is not covered
by Honda's new vehicle warranty.
NOTICE
Pour the fluid slowly and ca refully so you do not spill
any. Clean up any spills immediately; they can
damage components in the engine compartment.
Upper Mark
Lower Mark
HOT

Range

449
uu Overheating u How to Handle Overheating
Handling the Unexpected
■Next thing to do
1.Chec
k that the cooling fan is operating and
stop the engine once the temperature
gauge needle comes down.
u I
f the cooling fan is not operating,
immediately stop the engine.
2. Onc
e the engine has cooled down, inspect
the coolant level and check the cooling
system components for leaks.
u If
the coolant level in the reserve tank is
low, add coolant until it reaches the
MAX mark.
u If
there is no coolant in the reserve tank,
check that the radiator is cool. Cover the
radiator cap with a heavy cloth and open
the cap. If necessary, add coolant up to
the base of the filler neck, and put the
cap back on.
■Last thing to do
Once the engine has cooled sufficiently, re sta
rt it and check the temperature gauge.
If the temperature needle has gone down, resume driving. If it has not gone down,
contact a dealer for repairs.
1 How to Handle Overheating
If the coolant is leaking, contact a dealer for repairs.
Use water as an emergency/temporary measure only.
Have a dealer flush the system with proper antifreeze
as soon as possible.
3 WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.
Reserve
Tank
MAX
MIN

479
Index
Brake System............................................ 360
Anti-lock Brake System (ABS) .................. 362
Brake Assist System................................. 363
Fluid ....................................................... 400
Foot Brake .............................................. 361
Indicator ........................................... 68, 452
Parking Brake.......................................... 360
Brightness Control (Instrument Panel) ...
130
Bulb Replacement ............
........................ 402
Brake Light, Tailligh t, Back-Up Light, 
Rear Turn Signal Light and 
Rear Side Marker Light .......................... 406
Fog Lights ............................................... 403
Front Turn Signal/ Parking Light and 
Front Side Marker Light ......................... 405
Headlights .............................................. 402
High-Mount Brake Light.......................... 409
Rear License Plate Light ........................... 408
Side Turn Signal/
Emergency Indicator Light ..................... 404
Bulb Specifications ...........
........................ 464
C
Carbon Monoxide Gas............................... 65
Cargo Hook .
............................................. 160
Cargo Net ....
............................................. 159
Carrying Cargo .................
................ 325, 327
CD Library ....
............................................. 197
CD Player .....
..................................... 193, 226
Certification Label ...........
........................ 466Changing Bulbs
....................
..................... 402
Charging System Indicator ..
............... 69, 450
Child Safety .....
............................................ 52
Childproof Door Locks ............................. 104
Child Seat ........
............................................ 52
Booster Seats ............................................. 64
Child Seat for Infants ................................. 54
Child Seat for Small Children ..................... 55
Installing a Child Seat with a Lap/ 
Shoulder Seat Belt ................................... 60
Larger Children .......................................... 63
Rear-facing Child Seat ............................... 54
Selecting a Child Seat ................................ 56
Childproof Door Locks ........
..................... 104
Cleaning the Exterior ..........
..................... 430
Cleaning the Interior ...........
..................... 428
Climate Control System .......
..................... 165
Changing the Mode ................................ 165
Defrosting the Windshield and 
Windows ............................................... 166
Dust and Pollen Filter ............................... 427
Recirculation/Fresh Air Mode ................... 165
Sensors .................................................... 170
Synchronized Mode ................................. 167
Using Automatic Climate Control ............ 165
Clock ................
............................................ 98
Coat Hook .......
.......................................... 159
Compact Spare Tire .............
............. 435, 465
Console Compartment ........
..................... 152
Controls ...........
............................................ 97 Coolant (Engine)
....................
.................. 397
Adding to the Radiator ............................ 398
Adding to the Reserve Tank..................... 397
Overheating ............................................ 448
Creeping (Automatic Transmission) ........
345
Cruise Control ....
....................................... 348
Indicator.................................................... 77
Cup Holders .......
....................................... 154
Customer Service Information .................
475
Customized Features ..............
.................... 90
D
Daytime Running Lights.......................... 127
Dead Battery ......
....................................... 445
Defrosting the Windshield and 
Windows ..........
....................................... 166
Detachable Anchor ................
.................... 34
Devices that Emit Radio Waves ...............
467
Dimming Headlights ............................................... 125
Rearview Mirror....................................... 135
Dipstick (Engine Oil) ...............
.................. 393
Directional Signals (Turn Signal) .............
125
Display/Information Button ...
.................... 85
Door Mirrors ......
....................................... 136
Doors ..................
......................................... 99
Auto Door Locking .................................. 105
Auto Door Unlocking .............................. 105
Door Open Indicator............................ 28, 72
Keys .......................................................... 99

480
Index
Locking/Unlocking the Doors 
from the Inside ...................................... 103
Locking/Unlocking the Doors 
from the Outside ................................... 101
Lockout Prevention System ...................... 102
DOT Tire Quality Grading ...................
..... 417
Driver’s Seat Lumbar Support .............
..... 137
Driving ........
............................................... 323
Automatic Transmission ........................... 345
Braking .................................................... 360
Cruise Control ......................................... 348
Off-Highway Driving Guidelines ............... 340
Shifting Gear ........................................... 346
Starting the Engine .................................. 342
Driving Position Memory System ........
..... 132
Dust and Pollen Filter .....
.......................... 427
E
Elapsed Time....................................... 88, 177
Electronic Stability Control (ESC) ........
..... 352
Emergency ..
............................................... 459
Emissions Testing (R
eadiness Codes)....... 470
Engine ........
............................................... 466
Coolant ................................................... 397
Jump Starting .......................................... 445
Oil ........................................................... 392
Starting ................................................... 342
Switch Buzzer .......................................... 124
Engine Coolant ...............
.......................... 397
Adding to the Radiator ............................ 398Adding to the Reserve Tank.....................
397
Overheating ............................................ 448
Temperature Gauge .................................. 80
Engine Oil ......
........................................... 392
Adding .................................................... 394
Checking................................................. 393
Displaying Oil Life ............................ 381, 385
Low Oil Pressure Indicator ................. 68, 450
Recommended Engine Oil ....................... 392
Exhaust Gas Hazard 
(Carbon Monoxide) ..........
........................ 65
Exterior Care (Cleaning) .....
...................... 430
Exterior Mirrors ..................
...................... 136
F
Features.................................................... 171
Filters
Dust and Pollen ....................................... 427
Oil ........................................................... 395
Flat Tire ..........
........................................... 435
Floor Mats ......
........................................... 429
Fluids Automatic Transmission .......................... 399
Brake ...................................................... 400
Engine Coolant ....................................... 397
Power Steering ........................................ 400
Windshield Washer ................................. 401
Fog Light Indicator .............
........................ 75
Folding Down the Rear Seats ..
146, 147, 148
Foot Brake .....
........................................... 361 Front Airbags (SRS)
...............
..................... 40
Front Seats ........
........................................ 137
Adjusting ................................................ 137
Fuel ...................
.................................. 15, 371
Economy................................................. 374
Gauge ...................................................... 80
Instant Fuel Economy .......................... 82, 88
Low Fuel Indicator ..................................... 70
Range ................................................. 82, 88
Recommendation.................................... 371
Refueling ................................................ 371
Fuel Economy ...
........................................ 374
Fuel Fill Cap ......
.................................. 15, 373
Message ................................................. 451
Fuel Fill Door ....
.................................. 15, 372
Fuses .................
........................................ 454
Inspecting and Changing ........................ 458
Locations ........................ 454, 455, 456, 457
G
Gasoline (Fuel)
Economy................................................. 374
Gauge ...................................................... 80
Information............................................. 371
Instant Fuel Economy .......................... 82, 88
Low Fuel Indicator ..................................... 70
Refueling ................................................ 371
Gauges ..............
.......................................... 80
Gear Shift Lever Positions
Automatic Transmission .......................... 346

482
Index
J
Jack (Wheel Nut Wrench)......................... 439
Jump Starting ..................
.......................... 445
K
Key Number Tag....................................... 100
Keyless Lockout Prevention ................
..... 102
Keys ............
................................................. 99
Lockout Prevention .................................. 102
Master Keys ............................................... 99
Number Tag ............................................ 100
Rear Door Won’t Open ............................ 104
Remote Transmitter ................................. 101
Types and Functions .................................. 99
Valet Key ................................................. 100
Won’t Turn ................................................ 18
Kickdown (Automatic Transmission) ..
..... 345
L
Language (HFL)................................. 279, 302
LATCH (Child Seats) ........
...................... 57, 61
Lights ..........
....................................... 125, 402
Automatic ............................................... 126
Bulb Replacement .................................... 402
Daytime Running Lights ........................... 127
Fog Lights ................................................ 127
High Beam Indicator .................................. 75
Interior .................................................... 150
Light Switches ......................................... 125Lights On Indicator .................................... 75
Turn Signals ............................................
125
Load Limits .....
........................................... 327
Locking/Unlocking ..............
........................ 99
Auto Door Locking/Unlocking.................. 105
Childproof Door Locks............................. 104
From Inside ............................................. 103
From Outside .......................................... 101
Keys .......................................................... 99
Using a Key ............................................. 102
Lockout Prevention System ....................
. 102
Low Battery Charge ...........
...................... 450
Low Fuel Indicator ..............
........................ 70
Low Oil Pressure Indicator .
................ 68, 450
Lower Anchors ....................
.................. 57, 61
Luggage (Maximum Load Limit) ............
. 327
M
Maintenance............................................. 377
Battery .................................................... 423
Brake Fluid .............................................. 400
Cleaning ................................................. 428
Climate Control System ........................... 427
Coolant ................................................... 397
Maintenance Minder™ ........................... 381
Oil ........................................................... 393
Power Steering Fluid................................ 400
Precautions ............................................. 378
Radiator .................................................. 398
Remote Control....................................... 425Remote Transmitter ................................
424
Replacing Light Bulbs .............................. 402
Safety ..................................................... 379
Service Items ................................... 383, 387
Tires........................................................ 414
Transmission Fluid ................................... 399
Under the Hood ...................................... 389
Wireless Headphone ...............................
426
Malfunction Indicator Lamp .............
69, 451
Map Lights ........
........................................ 151
Maximum Load Limit ............
................... 327
Meters, Gauges .....................
..................... 80
Mirrors ..............
........................................ 135
Adjusting ................................................ 135
Door ....................................................... 136
Exterior ................................................... 136
Interior Rearview ..................................... 135
Modifications (and Accessories) ..............
375
Moonroof .........
........................................ 123
MP3 ...................
................ 193, 207, 226, 244
Multi-Information Display ....
..................... 85
Multi-View Rear Camera ......
................... 370
N
Numbers (Identification)......................... 466

483
Index
O
Odometer............................................. 81, 86
Off-Highway Driving Guidelines ..........
... 340
Oil (Engine) .
............................................. 392
Adding ................................................... 394
Checking ................................................ 393
Displaying Oil Life ........................... 381, 385
Low Oil Pressure Indicator ................. 68, 450
Recommended Engine Oil ....................... 392
Viscosity.................................................. 392
Opening/Closing
Hood ...................................................... 390
Moonroof ............................................... 123
Power Windows...................................... 120
Tailgate................................................... 110
Outside Temperature Display .............
84, 87
Overheating .....................
........................ 448
P
Panic Mode............................................... 119
Parking ........
............................................. 364
Parking Brake ...................
........................ 360
Parking Brake and 
Brake System Indicator ..
.................. 68, 452
Parking Sensor System .....
........................ 365
Passenger Airbag Off Indicator ............
..... 49
Passing Indicators .............
........................ 125
Power Tailgate .................
........................ 112
Power Windows ...............
........................ 120
Precautions While Driving ....................
... 344Driving Guidelines

for Your Utility Vehicle ........................... 344
Rain ......................................................... 344
Pregnant Women ................
....................... 35
Puncture (Tire) .....................
..................... 435
R
Radiator.................................................... 398
Radio (AM/FM) .....................
............. 186, 219
Radio (XM ®) ....
.......................................... 223
Radio Data System (RDS) .....
............. 189, 222
Range ..............
...................................... 82, 88
RDS (Radio Data System) .....
............. 189, 222
Readiness Codes (Emissions Testing) .......
470
Rear Defogger/
Heated Door Mirror Button ...................
131
Rear Entertainment System .....................
251
Rear Seats (Folding Down) ..
..... 146, 147, 148
Rearview Camera .................
............. 369, 370
Rearview Mirror ...................
..................... 135
Refueling .........
.......................................... 371
Fuel Gauge ................................................ 80
Gasoline .......................................... 371, 464
Low Fuel Indicator ..................................... 70
Regulations .....
.......................... 357, 417 , 467
Remote Transmitter ............
..................... 101
Replacement
Battery .................................................... 424
Bulbs ....................................................... 402
Fuses ............................... 454, 455, 456 , 457Tires ........................................................
420
Wiper Blade Rubber ................................ 410
Reporting Safety Defects .......
.................. 469
Resetting a Trip Meter ...........
.............. 82, 87
S
Safe Driving................................................ 23
Safety Check ......
......................................... 28
Safety Labels ......
......................................... 66
Safety Message ..
......................................... 21
Seat Belts ...........
......................................... 29
Adjusting the Shoulder Anchor.................. 33
Automatic Seat Belt Tensioners ................. 31
Checking................................................... 36
Detachable Anchor.................................... 34
Fastening .................................................. 32
Installing a Child Seat with a Lap/
Shoulder Seat Belt ................................... 60
Pregnant Women ...................................... 35
Reminder .................................................. 30
Warning Indicator ............................... 30, 70
Seat Heaters.......
....................................... 162
Seats ...................
....................................... 137
Adjusting ................................................ 137
Driver’s Seat Lumbar Support .................. 137
Front Seats .............................................. 137
Rear Seats ............................................... 146
Seat Heaters ............................................ 162
Security System ..
....................................... 118
Immobilizer System Indicator ..................... 76
