reset HONDA PILOT 2015 2.G Owners Manual

5

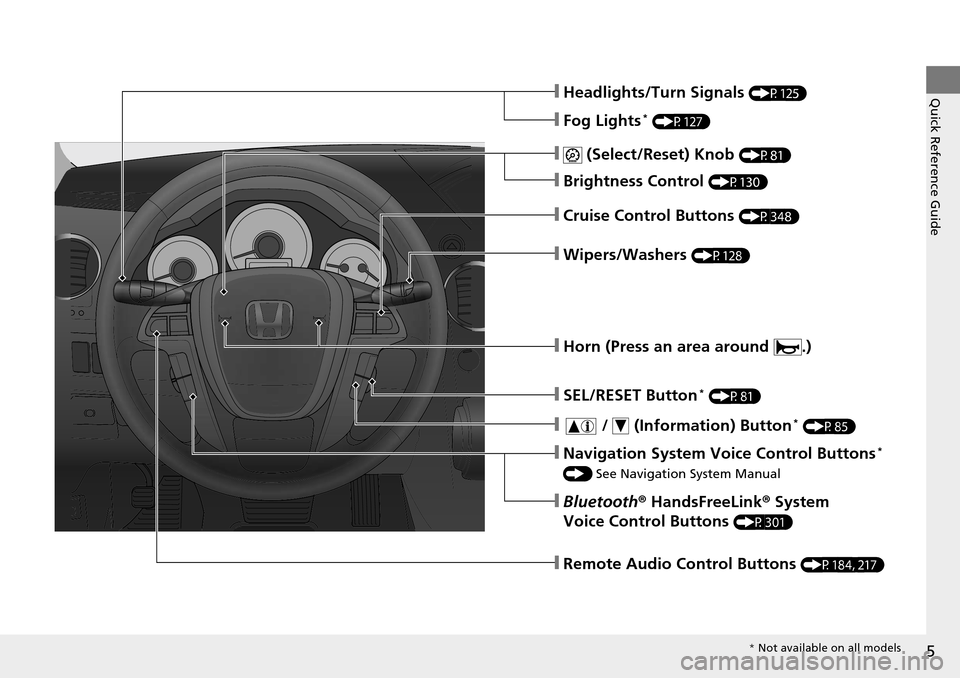

Quick Reference Guide
❙ (Select/Reset) Knob (P81)
❙Headlights/Turn Signals (P125)
❙Fog Lights* (P127)
❙Brightness Control (P130)
❙Cruise Control Buttons (P348)
❙Wipers/Washers (P128)
❙Horn (Press an area around .)
❙SEL/RESET Button* (P81)
❙ / (Information) Button* (P85)
❙Navigation System Voice Control Buttons*
() See Navigation System Manual
❙Bluetooth ® HandsFreeLink ® System
Voice Control Buttons
(P301)
❙Remote Audio Control Buttons (P184, 217)
* Not available on all models

15
Quick Reference Guide

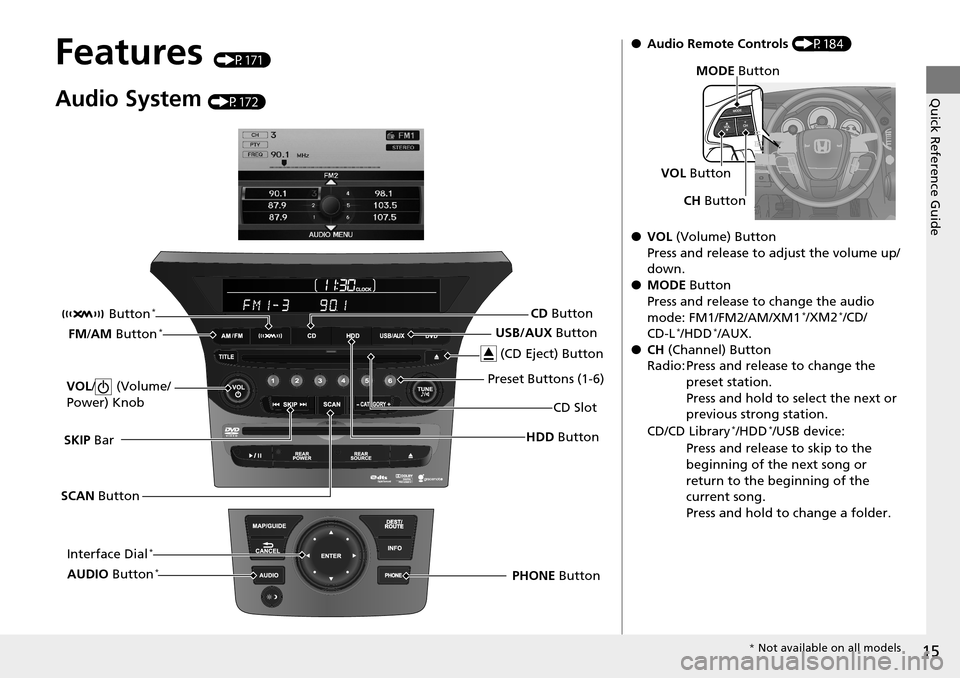

Features (P171)
Audio System (P172)
SCAN Button
SKIP Bar
Interface Dial
*
HDD Button
VOL
/ (Volume/
Power) Knob
USB/AUX Button
CD Slot
(CD Eject) Button
Preset Buttons (1-6)
PHONE Button
Button
*
FM
/AM Button*
AUDIO Button*
CD Button
●Audio Remote Controls (P184)
● VOL (Volume) Button
Press and release to adjust the volume up/
down.
● MODE Button
Press and release to change the audio
mode: FM1/FM2/AM/XM1
*/XM2*/CD/
CD-L*/HDD*/AUX.
● CH (Channel) Button
Radio: Press and release to change the
preset station.
Press and hold to select the next or
previous strong station.
CD/CD Library
*/HDD*/USB device:
Press and release to skip to the
beginning of the next song or
return to the beginning of the
current song.
Press and hold to change a folder.
VOL ButtonMODE Button
CH Button
* Not available on all models

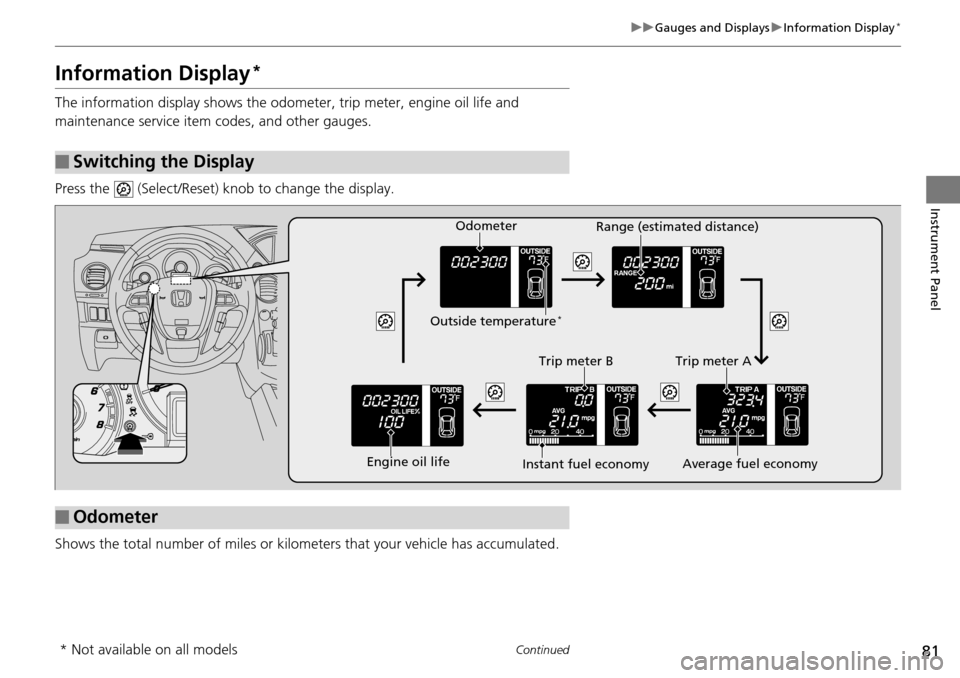

81
uuGauges and Displays uInformation Display*
Continued
Instrument Panel
Information Display*
The information display shows the odom eter, trip meter, engine oil life and
maintenance service item codes, and other gauges.
Press the (Select/Reset) knob to change the display.
Shows the total number of miles or kilome ters that your vehicle has accumulated.
■Switching the Display
■Odometer
Engine oil lifeTrip meter B
Average fuel economy
Trip meter A
Instant fuel economy Range (estimated distance)
Outside temperature
*
Odometer
* Not available on all models

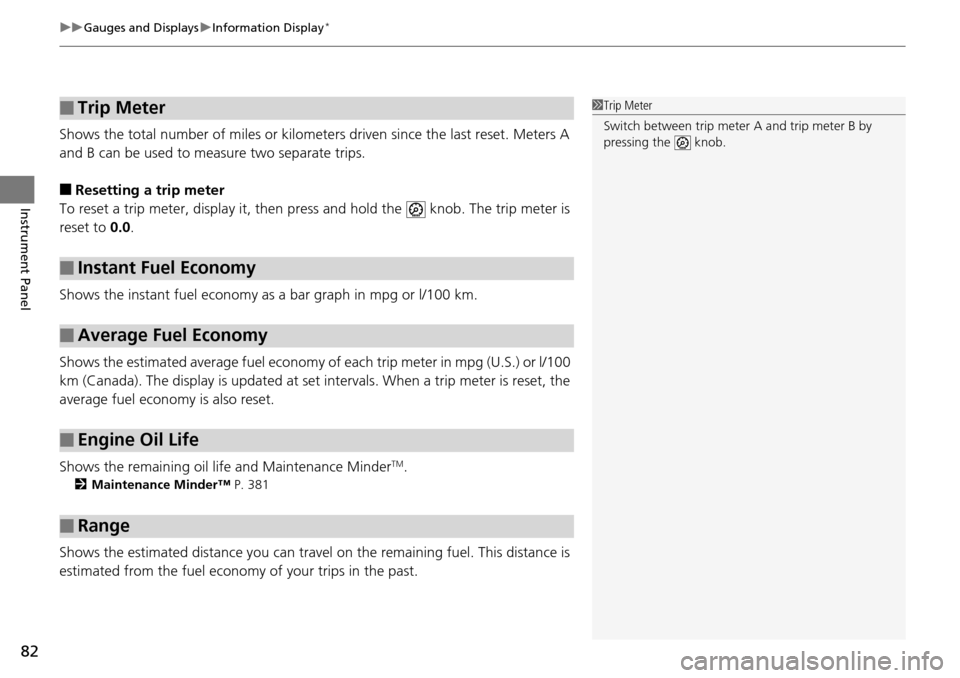

uuGauges and Displays uInformation Display*
82
Instrument Panel
Shows the total number of miles or kilomete rs driven since the last reset. Meters A
and B can be used to measure two separate trips.
■Resetting a trip meter
To reset a trip meter, display it, then pr ess and hold the knob. The trip meter is
reset to 0.0 .
Shows the instant fuel economy as a bar graph in mpg or l/100 km.
Shows the estimated average fuel economy of each trip meter in mpg (U.S.) or l/100
km (Canada). The display is updated at set intervals. When a trip meter is reset, the
average fuel economy is also reset.
Shows the remaining oil life and Maintenance Minder
TM.
2 Maintenance Minder™ P. 381
Shows the estimated distance you can travel on the remaining fuel. This distance is
estimated from the fuel econom y of your trips in the past.
■Trip Meter
■Instant Fuel Economy
■Average Fuel Economy
■Engine Oil Life
■Range
1Trip Meter
Switch between trip meter A and trip meter B by
pressing the knob.

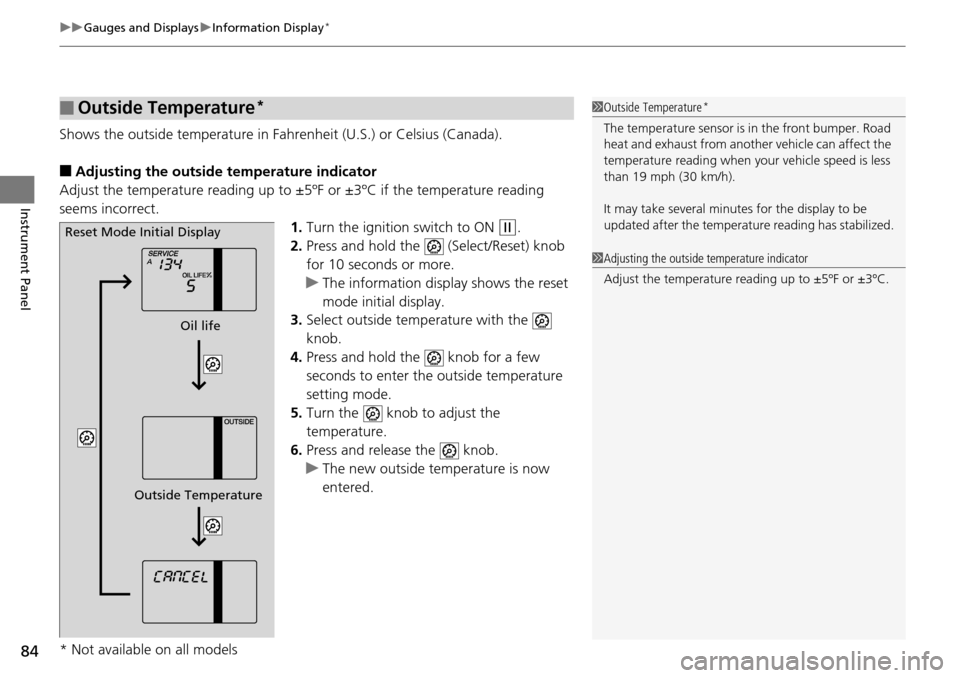

uuGauges and Displays uInformation Display*
84
Instrument Panel
Shows the outside temperature in Fahr enheit (U.S.) or Celsius (Canada).
■Adjusting the outside temperature indicator
Adjust the temperature reading up to ±5ºF or ±3ºC if the temperature reading
seems incorrect.
1.Turn the ignition switch to ON
(w.
2. Press and hold the (Select/Reset) knob
for 10 seconds or more.
u The information display shows the reset
mode initial display.
3. Select outside temperature with the
knob.
4. Press and hold the knob for a few
seconds to enter the outside temperature
setting mode.
5. Turn the knob to adjust the
temperature.
6. Press and release the knob.
u The new outside temperature is now
entered.
■Outside Temperature*1Outside Temperature*
The temperature sensor is in the front bumper. Road
heat and exhaust from anothe r vehicle can affect the
temperature reading when your vehicle speed is less
than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
1 Adjusting the outside temperature indicator
Adjust the temperature reading up to ±5ºF or ±3ºC.
Reset Mode Initial Display
Oil life
Outside Temperature
* Not available on all models

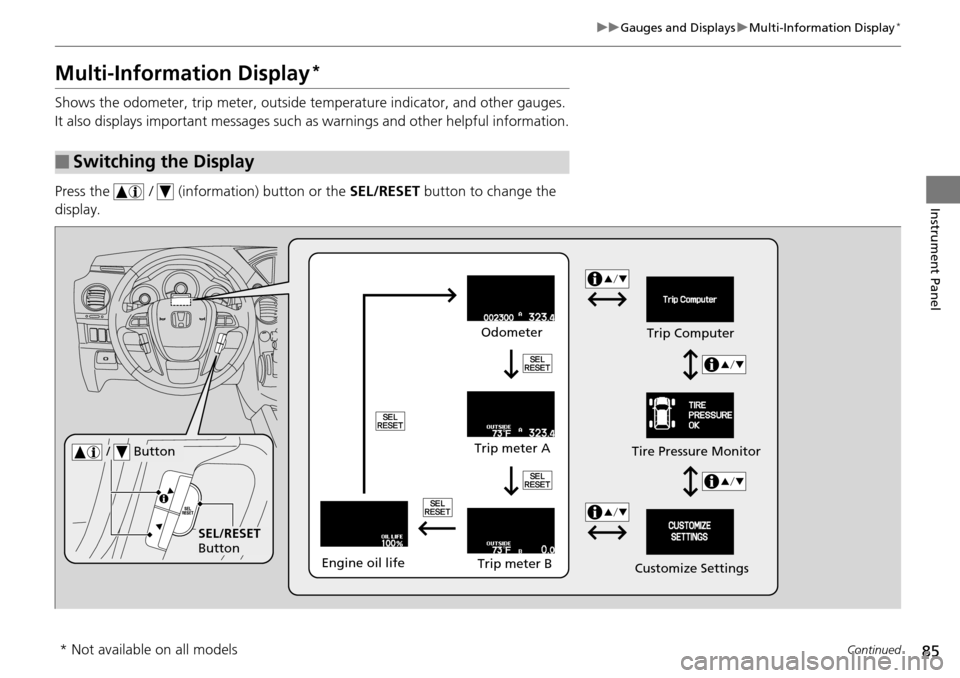

85
uuGauges and Displays uMulti-Information Display*
Continued
Instrument Panel
Multi-Information Display*
Shows the odometer, trip meter, outside te mperature indicator, and other gauges.
It also displays important messages such as warnings and other helpful information.
Press the / (information) button or the SEL/RESET button to change the
display.
■Switching the Display
SEL/RESET
Button Tire Pressure Monitor
/ Button
Engine oil life
Trip meter B
Trip meter A Odometer
Customize SettingsTrip Computer
* Not available on all models

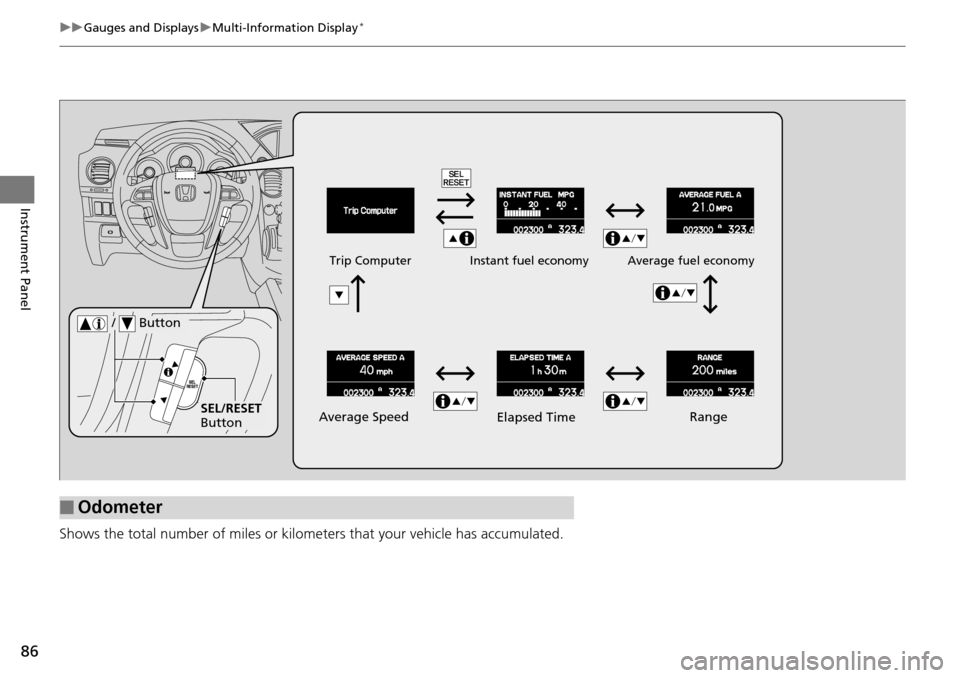

86
uuGauges and Displays uMulti-Information Display*
Instrument Panel
Shows the total number of miles or kilome ters that your vehicle has accumulated.
■Odometer
Average Speed
Average fuel economy
Trip Computer
Instant fuel economy
SEL/RESET
Button
/ Button
Range
Elapsed Time

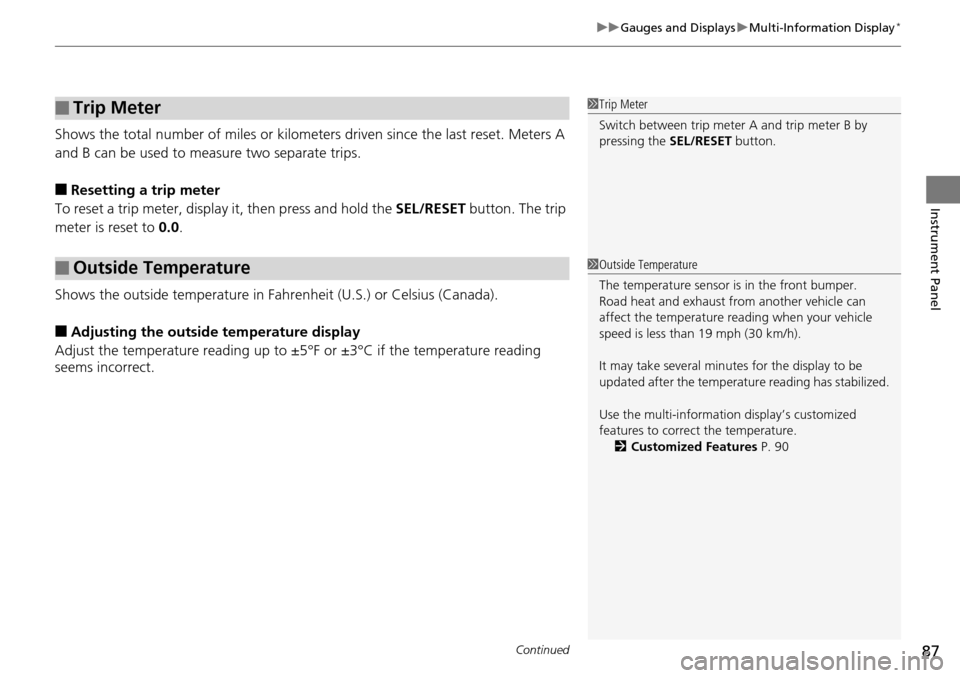

Continued87
uuGauges and Displays uMulti-Information Display*
Instrument Panel
Shows the total number of miles or kilomete rs driven since the last reset. Meters A
and B can be used to measure two separate trips.
■Resetting a trip meter
To reset a trip meter, display it, then press and hold the SEL/RESET button. The trip
meter is reset to 0.0.
Shows the outside temperature in Fahr enheit (U.S.) or Celsius (Canada).
■Adjusting the outside temperature display
Adjust the temperature reading up to ±5°F or ±3°C if the temperature reading
seems incorrect.
■Trip Meter
■Outside Temperature
1 Trip Meter
Switch between trip meter A and trip meter B by
pressing the SEL/RESET button.
1Outside Temperature
The temperature sensor is in the front bumper.
Road heat and exhaust fr om another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
Use the multi-information display’s customized
features to correct the temperature. 2 Customized Features P. 90

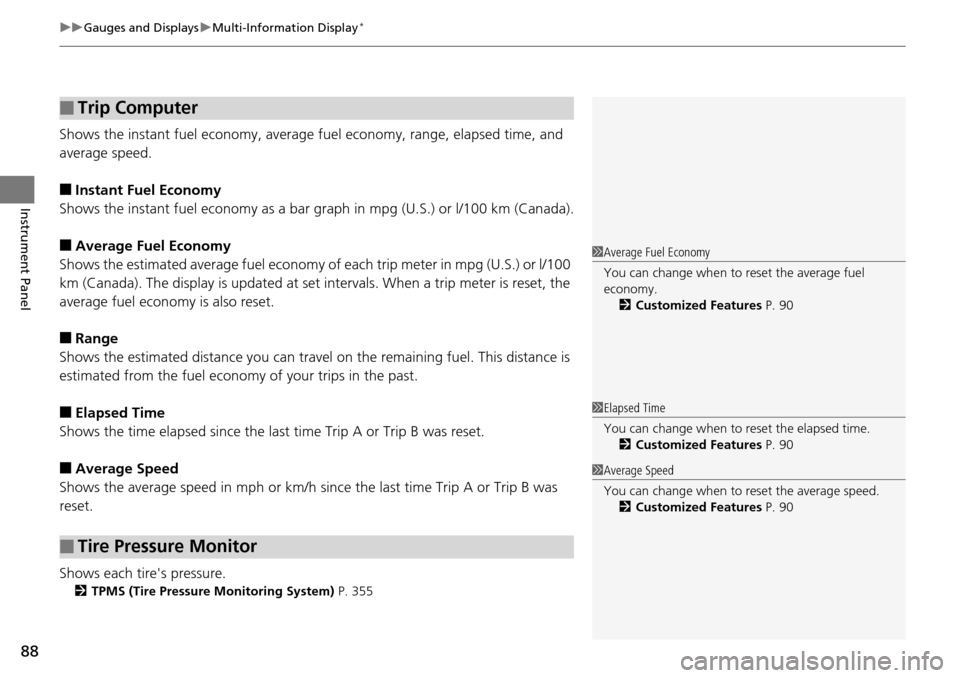

uuGauges and Displays uMulti-Information Display*
88
Instrument Panel
Shows the instant fuel eco nomy, average fuel economy, range, elapsed time, and
average speed.
■Instant Fuel Economy
Shows the instant fuel economy as a bar gr aph in mpg (U.S.) or l/100 km (Canada).
■Average Fuel Economy
Shows the estimated average fuel economy of each trip meter in mpg (U.S.) or l/100
km (Canada). The display is updated at set intervals. When a trip meter is reset, the
average fuel economy is also reset.
■Range
Shows the estimated distance you can travel on the remaining fuel. This distance is
estimated from the fuel econom y of your trips in the past.
■Elapsed Time
Shows the time elapsed since the last time Trip A or Trip B was reset.
■Average Speed
Shows the average speed in mph or km/h si nce the last time Trip A or Trip B was
reset.
Shows each tire's pressure.
2 TPMS (Tire Pressure Monitoring System) P. 355
■Trip Computer
■Tire Pressure Monitor
1Average Fuel Economy
You can change when to reset the average fuel
economy.
2 Customized Features P. 90
1Elapsed Time
You can change when to reset the elapsed time.
2 Customized Features P. 90
1Average Speed
You can change when to reset the average speed.
2 Customized Features P. 90

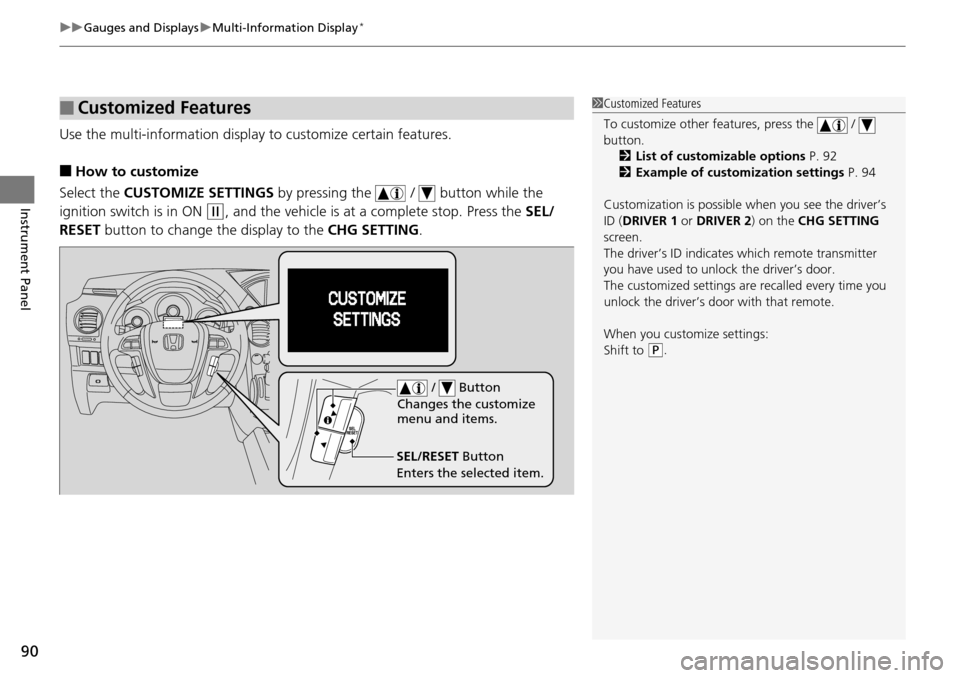

uuGauges and Displays uMulti-Information Display*
90
Instrument Panel
Use the multi-information display to customize certain features.
■How to customize
Select the CUSTOMIZE SETTINGS by pressing the / button while the
ignition switch is in ON
(w, and the vehicle is at a complete stop. Press the SEL/
RESET button to change the display to the CHG SETTING.
■Customized Features1Customized Features
To customize other features, press the /
button.
2 List of customizable options P. 92
2 Example of customization settings P. 94
Customization is possible when you see the driver’s
ID ( DRIVER 1 or DRIVER 2) on the CHG SETTING
screen.
The driver’s ID indicates which remote transmitter
you have used to unlock the driver’s door.
The customized settings are recalled every time you
unlock the driver’s door with that remote.
When you customize settings:
Shift to
( P.
SEL/RESET Button
Enters the selected item. / Button
Changes the customize
menu and items.
