navigation HONDA PILOT 2016 3.G Navigation Manual

71
uuEntering a Destination uCategories
Continued
Navigation

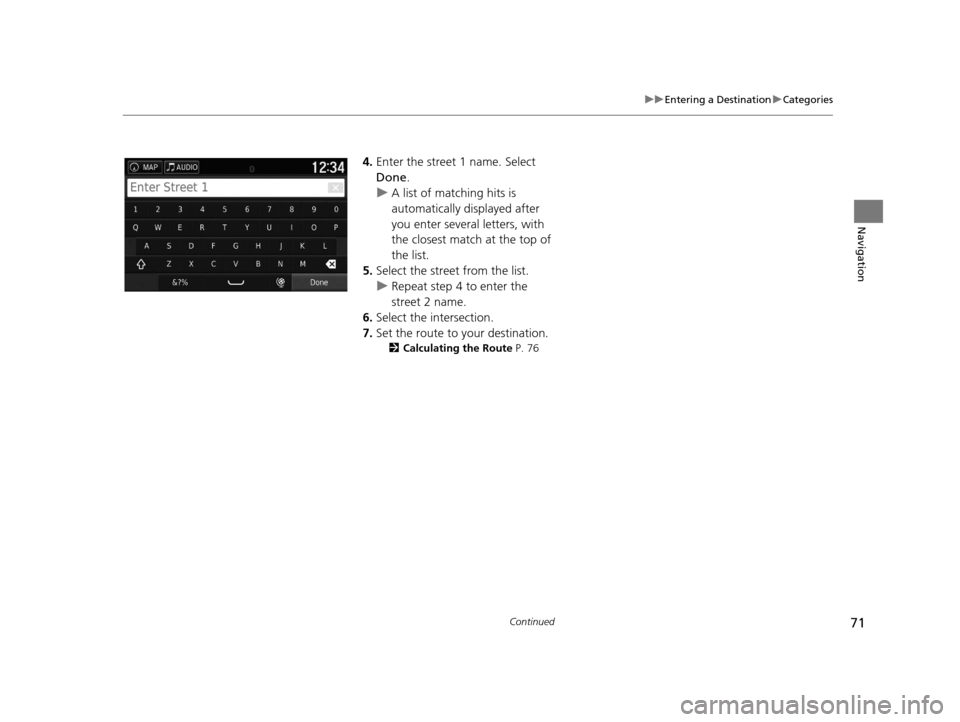

4. Enter the street 1 name. Select
Done .
u A list of matching hits is
automatically displayed after
you enter several letters, with
the closest match at the top of
the list.
5. Select the street from the list.
u Repeat step 4 to enter the
street 2 name.
6. Select the intersection.
7. Set the route to your destination.
2 Calculating the Route P. 76
16 PILOT NAVI-31TG78000.book 71 ページ ２０１５年４月２１日　火曜日　午前８時３０分

uuEntering a Destination uCategories
72
Navigation

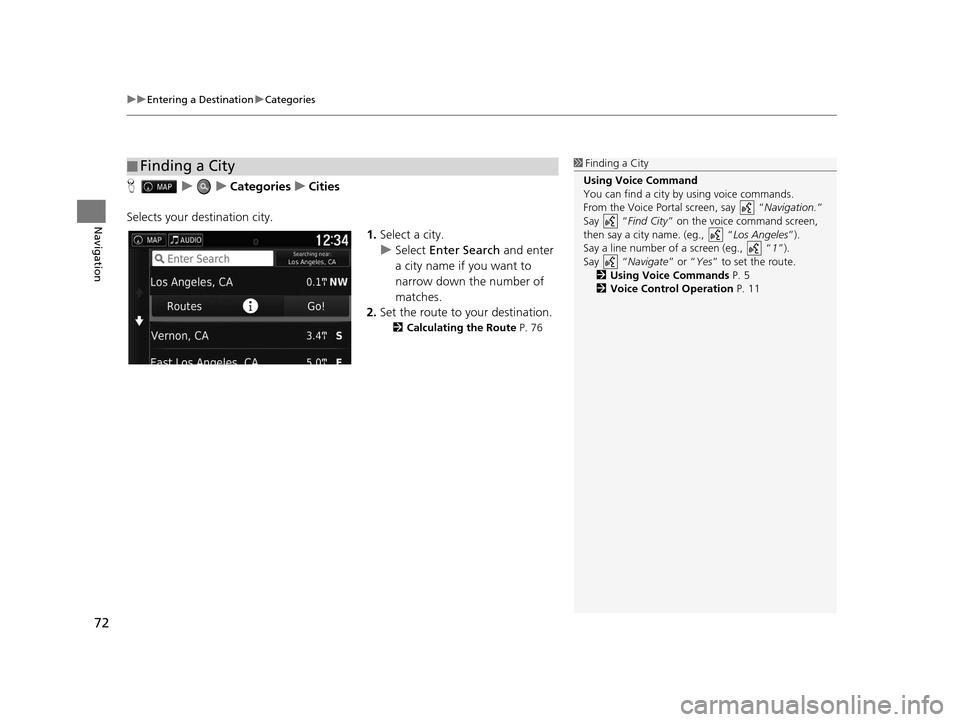

H uuCategories uCities
Selects your destination city. 1.Select a city.
u Select Enter Search and enter
a city name if you want to
narrow down the number of
matches.
2. Set the route to your destination.
2 Calculating the Route P. 76
■Finding a City1
Finding a City
Using Voice Command
You can find a city by using voice commands.
From the Voice Portal screen, say “ Navigation.”
Say “ Find City” on the voice command screen,
then say a city name. (eg., “ Los Angeles”).
Say a line number of a screen (eg., “1”).
Say “ Navigate” or “Yes” to set the route.
2 Using Voice Commands P. 5
2 Voice Control Operation P. 11
16 PILOT NAVI-31TG78000.book 72 ページ ２０１５年４月２１日　火曜日　午前８時３０分

73
uuEntering a Destination uCategories
Navigation

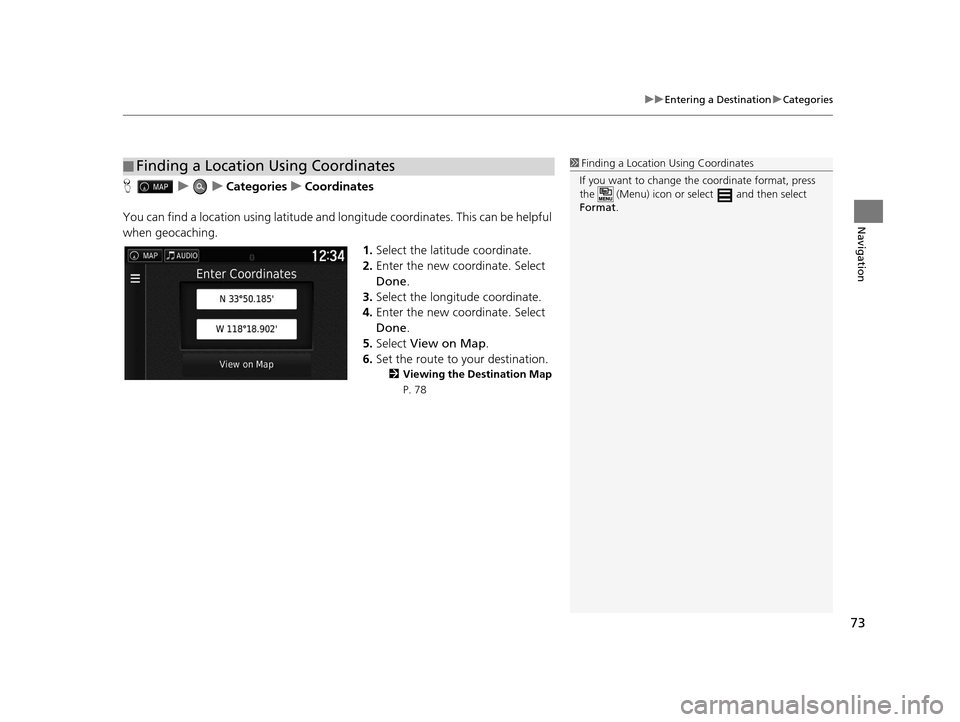

H uuCategories uCoordinates
You can find a location using latitude and longitude coordinates. This can be helpful
when geocaching. 1.Select the latitude coordinate.
2. Enter the new coordinate. Select
Done .
3. Select the longitude coordinate.
4. Enter the new coordinate. Select
Done .
5. Select View on Map .
6. Set the route to your destination.
2 Viewing the Destination Map
P. 78
■ Finding a Location Using Coordinates1
Finding a Location Using Coordinates
If you want to change the coordinate format, press
the (Menu) icon or sele ct and then select
Format .
16 PILOT NAVI-31TG78000.book 73 ページ ２０１５年４月２１日　火曜日　午前８時３０分

74
uuEntering a Destination uSaved
Navigation

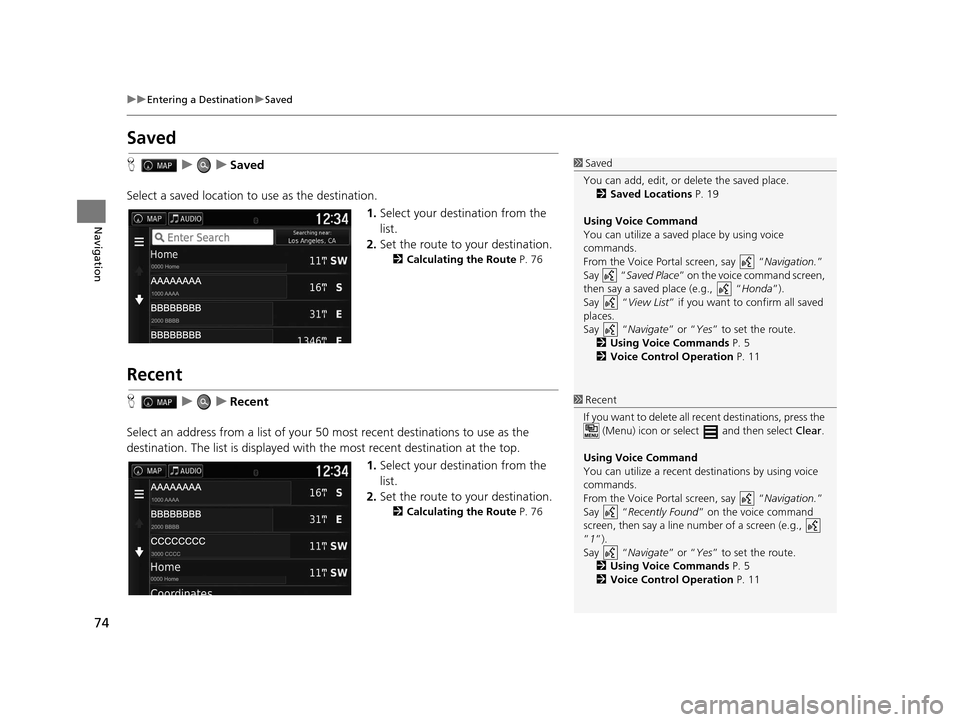

Saved
H uuSaved
Select a saved location to use as the destination.
1.Select your destination from the
list.
2. Set the route to your destination.
2 Calculating the Route P. 76
Recent
HuuRecent
Select an address from a list of your 50 most recent destinations to use as the
destination. The list is displayed with the most recent destination at the top.
1.Select your destination from the
list.
2. Set the route to your destination.
2 Calculating the Route P. 76
1Saved
You can add, edit, or delete the saved place. 2 Saved Locations P. 19
Using Voice Command
You can utilize a saved place by using voice
commands.
From the Voice Portal screen, say “ Navigation.”
Say “ Saved Place ” on the voice command screen,
then say a saved place (e.g., “ Honda”).
Say “ View List” if you want to confirm all saved
places.
Say “ Navigate” or “Yes” to set the route.
2 Using Voice Commands P. 5
2 Voice Control Operation P. 11
1Recent
If you want to delete all re cent destinations, press the
(Menu) icon or select and then select Clear.
Using Voice Command
You can utilize a recent de stinations by using voice
commands.
From the Voice Portal screen, say “ Navigation.”
Say “ Recently Found ” on the voice command
screen, then say a line num ber of a screen (e.g.,
”1”).
Say “ Navigate” or “Yes” to set the route.
2 Using Voice Commands P. 5
2 Voice Control Operation P. 11
16 PILOT NAVI-31TG78000.book 74 ページ ２０１５年４月２１日　火曜日　午前８時３０分

75
uuEntering a Destination uMap Input
Navigation

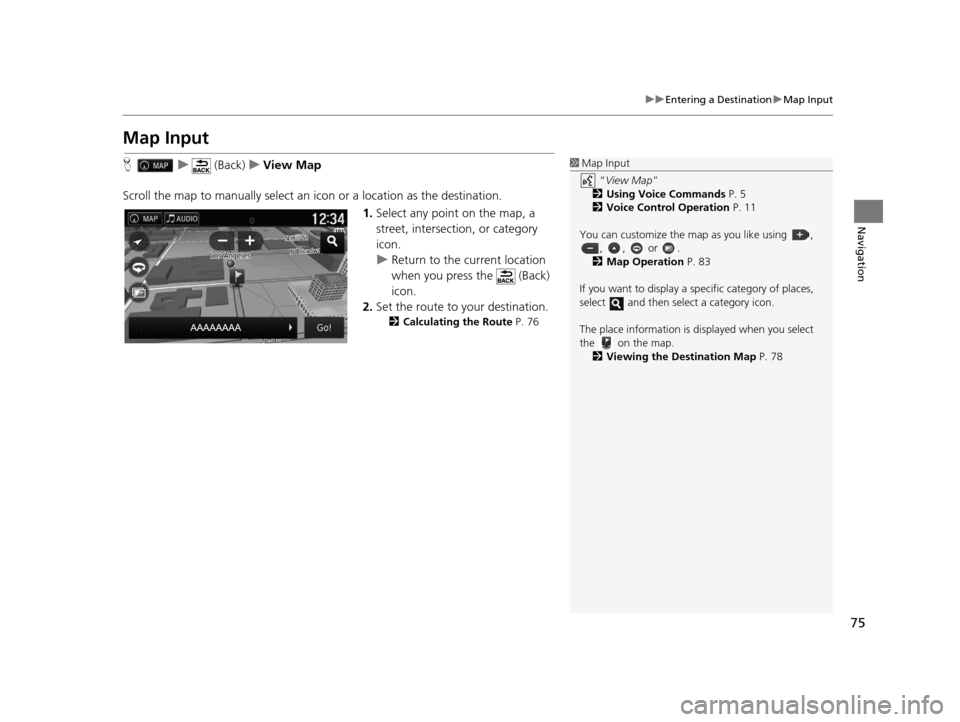

Map Input
H u (Back) uView Map
Scroll the map to manually select an icon or a location as the destination.
1.Select any point on the map, a
street, intersection, or category
icon.
u Return to the current location
when you press the (Back)
icon.
2. Set the route to your destination.
2 Calculating the Route P. 76
1Map Input
“View Map ”
2 Using Voice Commands P. 5
2 Voice Control Operation P. 11
You can customize the map as you like using , , , or .
2 Map Operation P. 83
If you want to display a sp ecific category of places,
select and then select a category icon.
The place information is di splayed when you select
the on the map. 2 Viewing the Destination Map P. 78
16 PILOT NAVI-31TG78000.book 75 ページ ２０１５年４月２１日　火曜日　午前８時３０分

76
Navigation
Calculating the Route
This section describes how to calculate your route.Select Go!.
u The system calculates and displays
the route line on the map screen.
The following options are available:
• Routes : Displays different routes.
2Viewing the Routes P. 77
• : Display your destination map.
2Viewing the Destination Map P. 78
1Calculating the Route
If the system has many guidance points on the route
to the destination, it may stop at 99% calculation.
In this case, the route guidance will start when you
select OK.
16 PILOT NAVI-31TG78000.book 76 ページ ２０１５年４月２１日　火曜日　午前８時３０分

77
uuCalculating the Route uViewing the Routes
Navigation
Viewing the Routes
View different routes to your destination.
1.Select or to change a route.
u The travel distance, estimated
travel time, and traffic
information are displayed for
each route.
2. Select Go!.
u The system calculates and
displays the route line on the
map screen.
16 PILOT NAVI-31TG78000.book 77 ページ ２０１５年４月２１日　火曜日　午前８時３０分

78
uuCalculating the Route uViewing the Destination Map
Navigation
Viewing the Destination Map
1. Select an option.
2. Select Go!.
u The system calculates and
displays the route line on the
map screen.
The following options are available:
• Route Info : Displays different routes.
2Viewing the Routes P. 77
•Set Location : Sets the vehicle position when you are indoors or not receiving
satellite signals.
You can use this feature when GPS Simulator is set to on.
2Navigation P. 36
1Viewing the Destination Map
When you press the (Menu) icon or select ,
you can add to the saved location list. 2 Saved Locations P. 19
16 PILOT NAVI-31TG78000.book 78 ページ ２０１５年４月２１日　火曜日　午前８時３０分

79Continued
Navigation
Driving to Your Destination
Viewing the Route
This section describes how to follow the route guidance to your destination.After calculating the route to your
destination, the route is displayed on
the map screen.
2During Route Guidance P. 7
As you drive, the system tracks your
position on the map in real time and
provides guidance as you approach
each guidance point on the route.
The following options are available:
• Select the text bar on the top of the map to display the turn list screen.
2Turn List P. 80
• Select the Next guidance indicator to display the turn information screen or
intersection view screen.
2 Turn Information P. 81
• Select to cancel the route guidan ce and remove your current route.
2Canceling Your Route P. 10
• Select to display the map menu.
2Map Menu P. 84
• Select to display the parking info rmation screen of nearby parking.
■Map Screen
1
Viewing the Route
When your phone is connected to Bluetooth®
HandsFreeLink ®, the navigation screen will switch to
the incoming call screen when receiving a call.
Speed limit icon
The speed limit shown on th e map may be different
from the actual speed limit.
Select the vehicle icon to view the Where Am I?
screen. 2 Viewing the Current Location Information
P. 86
You can stop your vehicle en route (e.g., to rest, stop
for gas, etc.), and then continue on your route.
If you did not complete y our route, the navigation
restarts when you re start your vehicle.
When LaneWatch
* is activated, the navigation screen
will switch to the LaneWatch* screen.
Next guidance indicator
Speed limit icon Dashboards
* Not available on all models
16 PILOT NAVI-31TG78000.book 79 ページ ２０１５年４月２１日　火曜日　午前８時３０分

uuDriving to Your Destination uViewing the Route
80
Navigation
• Select the map dashboards when you want to change the information that is
displayed. Select the following options:
Distance , Time to Destination , Via Arrival, Distance to Via , Time to Via,
Direction of Travel , Elevation .
The turn list screen displays turn-by-turn instructions and the distance between
turns.
Select the text bar on the top of the
map.
uSelect a turn to display the
detailed information.
2Turn Information P. 81
uPress the (Menu) icon or select
to display the entire route on
the map.
2 Entire Route P. 81
■Turn List
1
Viewing the Route
The next guidance indicator does not appear in the
following cases.
•The vehicle speed is 3 mph (4.8 km/h) or less
•The GPS signal is weak•The vehicle position on the map and current vehicle
position do not match
The system displays a roundabout to the next
guidance indicator in the following cases.
•Its diameter is 82 ft (25 m) or more•There is no road inside it
•There is no stop sign
Turn-by-Turn Directions
The next guidance point appears on the Multi-
Information Display (MID).
