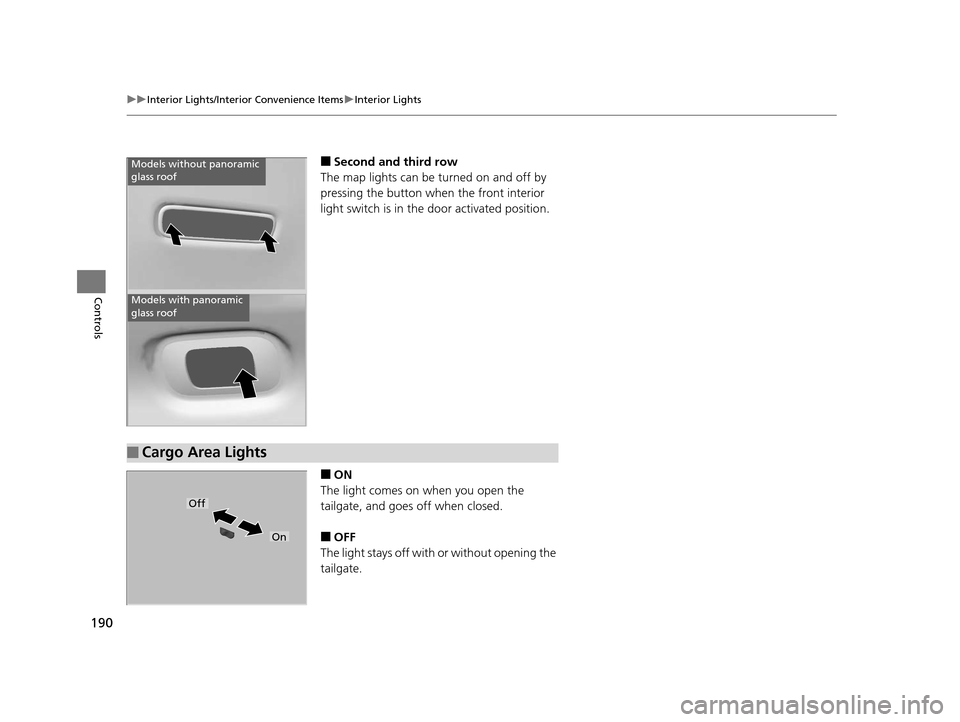

HONDA PILOT 2016 3.G Owners Manual

190
uuInterior Lights/Interior Convenience Items uInterior Lights
Controls
■Second and third row
The map lights can be turned on and off by
pressing the button when the front interior
light switch is in the door activated position.
■ON
The light comes on when you open the
tailgate, and goes off when closed.
■OFF
The light stays off with or without opening the
tailgate.
Models without panoramic
glass roof
Models with panoramic
glass roof
■Cargo Area Lights
Off
On
16 PILOT-31TG76000.book 190 ページ ２０１５年６月１５日　月曜日　午前１１時３０分

191
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Continued
Controls

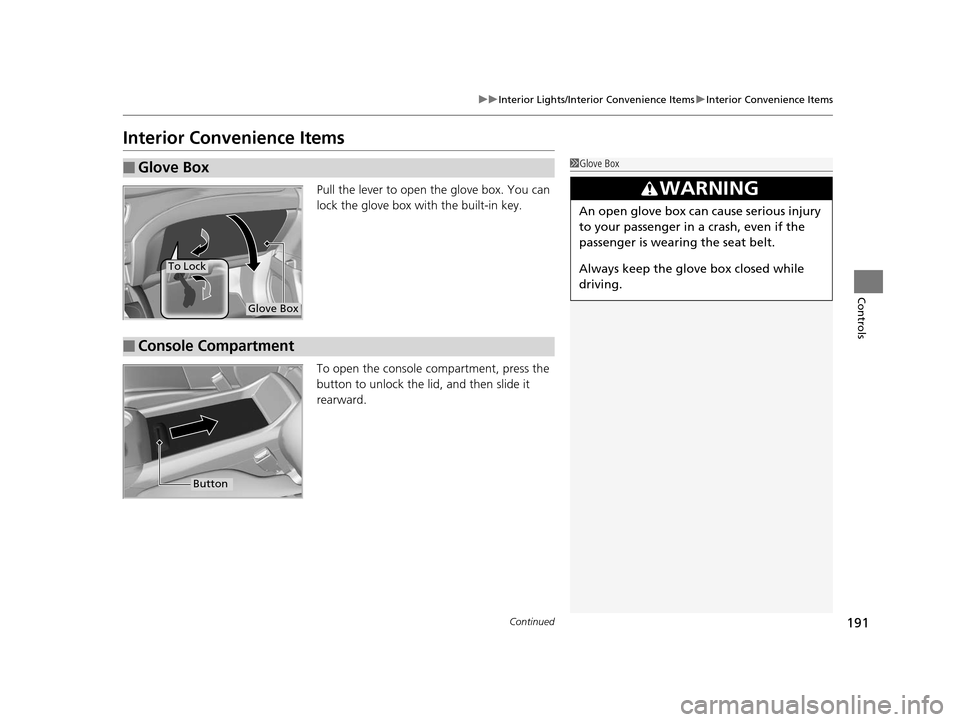

Interior Convenience Items
Pull the lever to open the glove box. You can
lock the glove box with the built-in key.
To open the console co mpartment, press the
button to unlock the lid, and then slide it
rearward.
■Glove Box1 Glove Box
3WARNING
An open glove box can cause serious injury
to your passenger in a crash, even if the
passenger is wearing the seat belt.
Always keep the glove box closed while
driving.
Glove Box
To Lock
■Console Compartment
Button
16 PILOT-31TG76000.book 191 ページ ２０１５年６月１５日　月曜日　午前１１時３０分

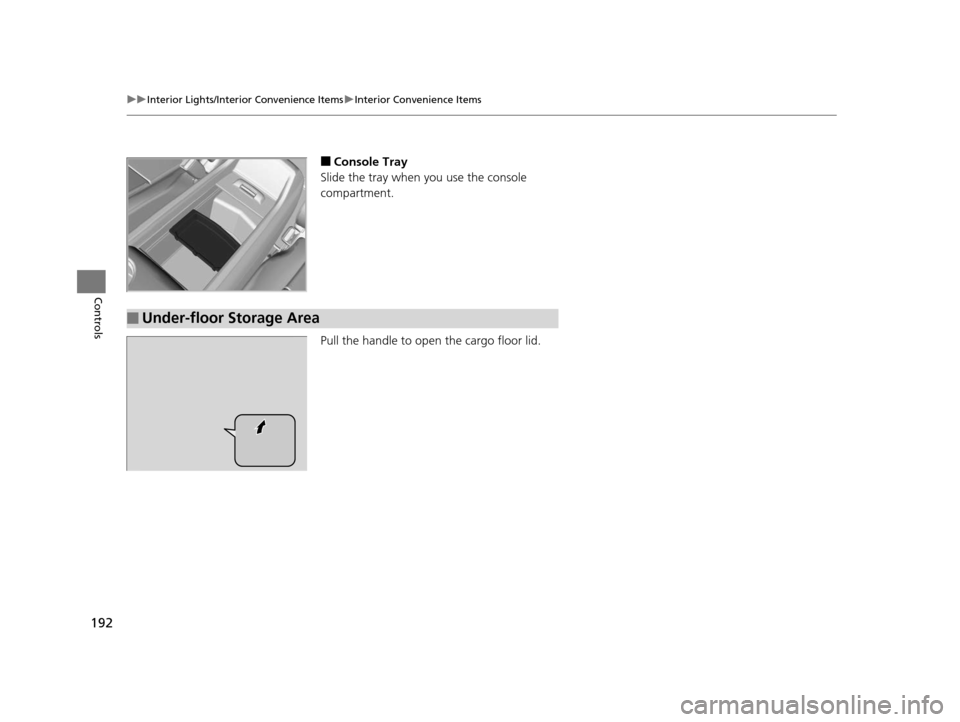

192
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
■Console Tray
Slide the tray when you use the console
compartment.
Pull the handle to op en the cargo floor lid.
■Under-floor Storage Area
16 PILOT-31TG76000.book 192 ページ ２０１５年６月１５日　月曜日　午前１１時３０分

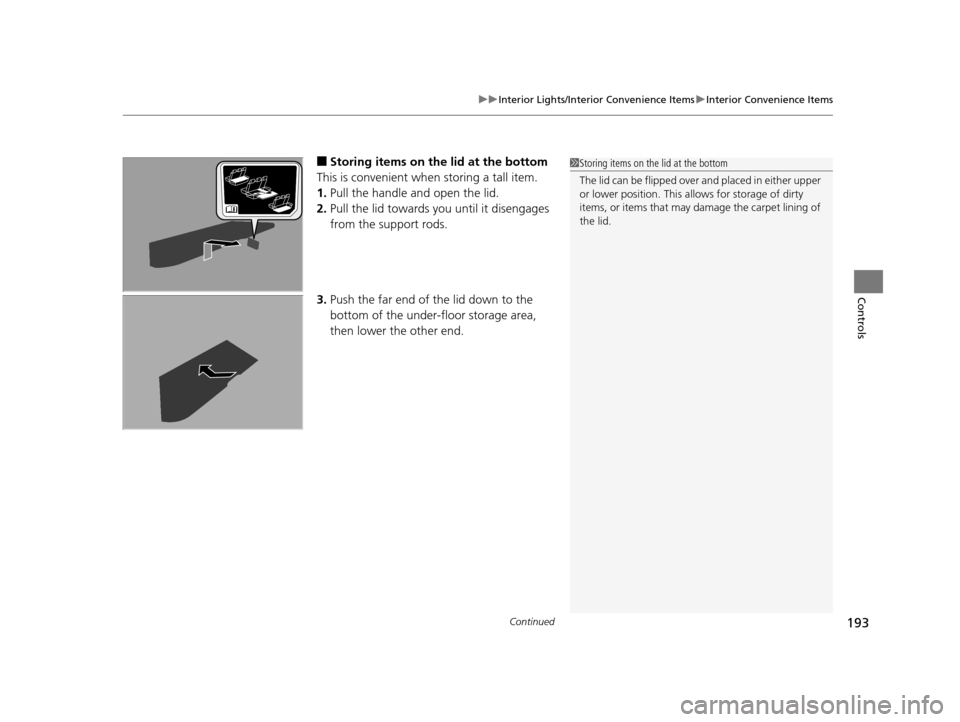

Continued193
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
■Storing items on the lid at the bottom
This is convenient when storing a tall item.
1. Pull the handle and open the lid.
2. Pull the lid towards you until it disengages
from the support rods.
3. Push the far end of the lid down to the
bottom of the under-floor storage area,
then lower the other end.1Storing items on the lid at the bottom
The lid can be fli pped over and placed in either upper
or lower position. This allows for storage of dirty
items, or items that may da mage the carpet lining of
the lid.
16 PILOT-31TG76000.book 193 ページ ２０１５年６月１５日　月曜日　午前１１時３０分

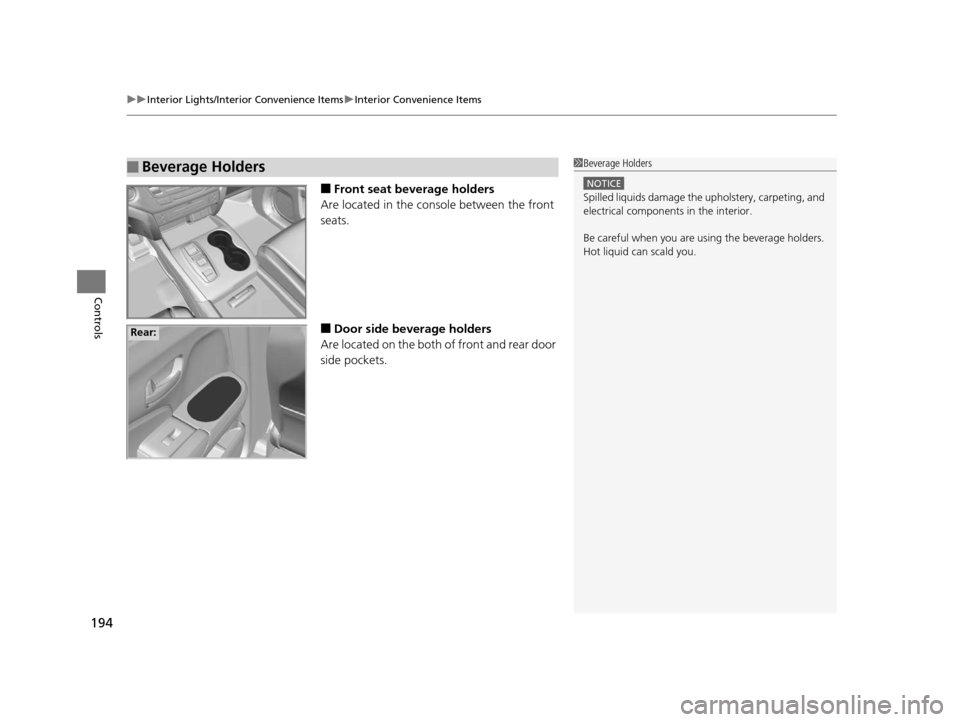

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
194
Controls
■Front seat beverage holders
Are located in the console between the front
seats.
■Door side beverage holders
Are located on the both of front and rear door
side pockets.
■Beverage Holders1 Beverage Holders
NOTICE
Spilled liquids damage the upholstery, carpeting, and
electrical components in the interior.
Be careful when you are us ing the beverage holders.
Hot liquid can scald you.
Rear:
16 PILOT-31TG76000.book 194 ページ ２０１５年６月１５日　月曜日　午前１１時３０分

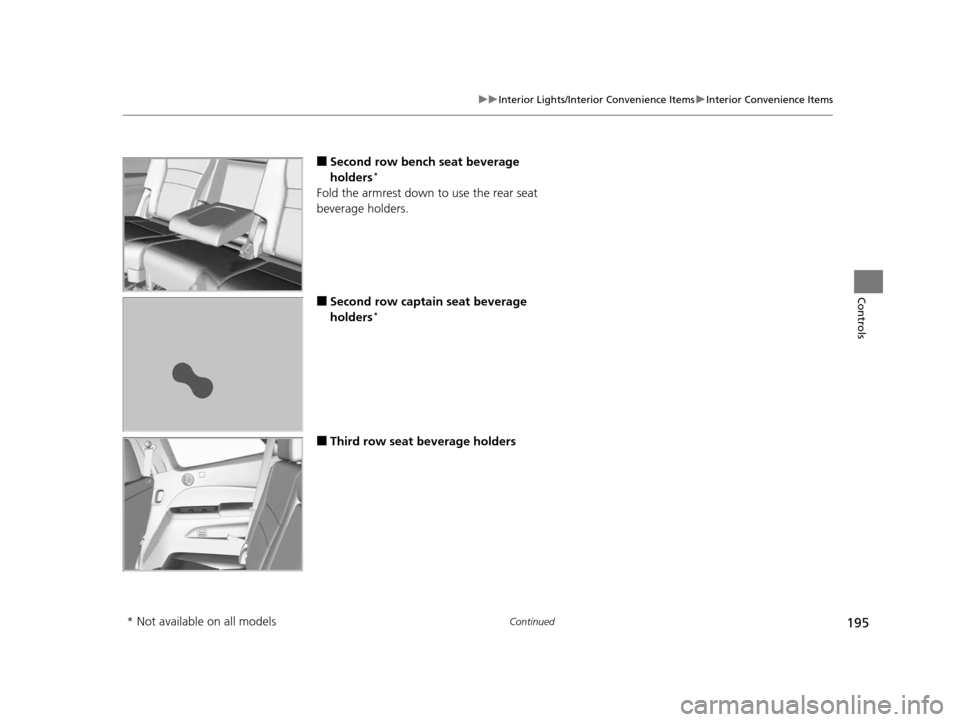

195
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Continued
Controls
■Second row bench seat beverage
holders*
Fold the armrest down to use the rear seat
beverage holders.
■Second row captain seat beverage
holders*
■Third row seat beverage holders
* Not available on all models
16 PILOT-31TG76000.book 195 ページ ２０１５年６月１５日　月曜日　午前１１時３０分

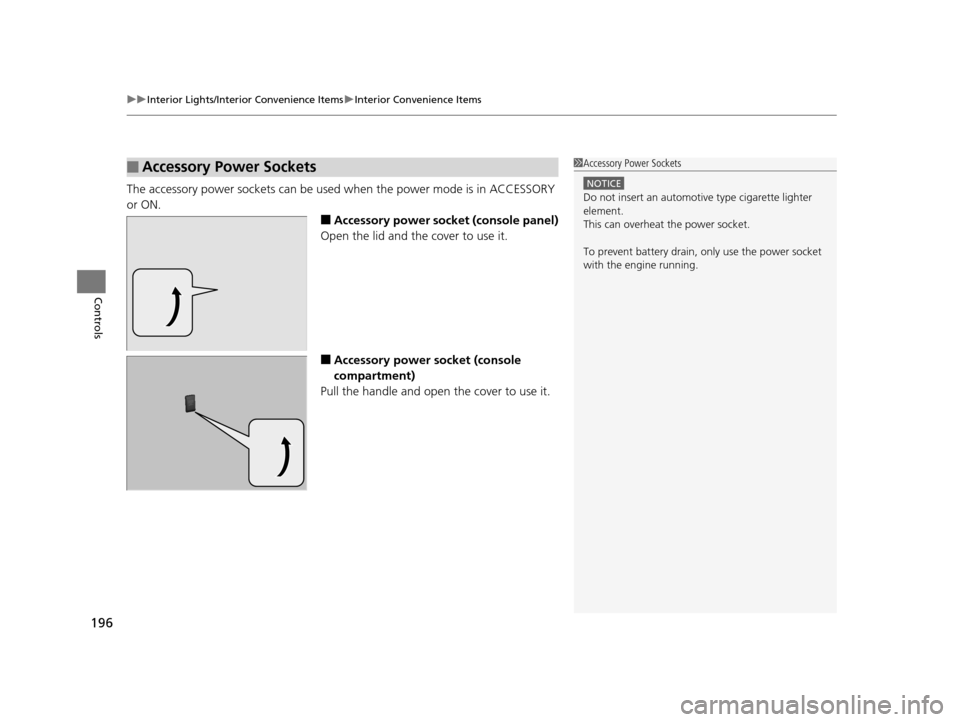

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
196
Controls
The accessory power sockets can be used when the power mode is in ACCESSORY
or ON.
■Accessory power socket (console panel)
Open the lid and the cover to use it.
■Accessory power socket (console
compartment)
Pull the handle and open the cover to use it.
■Accessory Power Sockets1 Accessory Power Sockets
NOTICE
Do not insert an automotive type cigarette lighter
element.
This can overheat the power socket.
To prevent battery drain, only use the power socket
with the engine running.
16 PILOT-31TG76000.book 196 ページ ２０１５年６月１５日　月曜日　午前１１時３０分

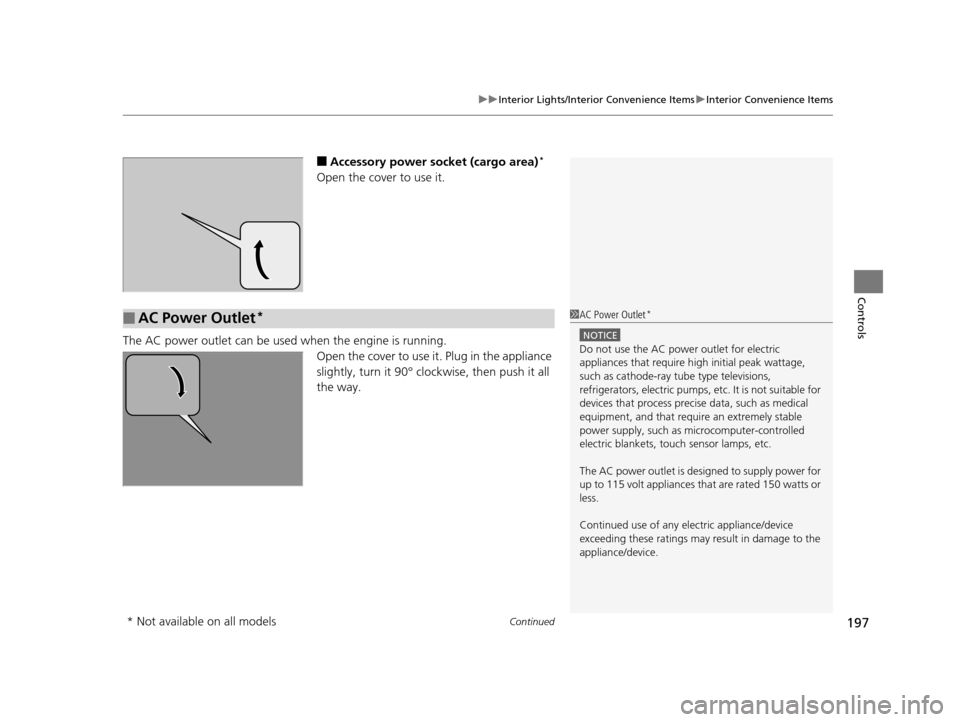

Continued197
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
■Accessory power socket (cargo area)*
Open the cover to use it.
The AC power outlet can be used when the engine is running.
Open the cover to use it. Plug in the appliance
slightly, turn it 90° clockwise, then push it all
the way.
■AC Power Outlet*1AC Power Outlet*
NOTICE
Do not use the AC power outlet for electric
appliances that require hi gh initial peak wattage,
such as cathode-ray tube type televisions,
refrigerators, electric pumps, etc. It is not suitable for
devices that process precis e data, such as medical
equipment, and that require an extremely stable
power supply, such as microcomputer-controlled
electric blankets, touc h sensor lamps, etc.
The AC power outlet is desi gned to supply power for
up to 115 volt appliances that are rated 150 watts or
less.
Continued use of any elec tric appliance/device
exceeding these ratings may result in damage to the
appliance/device.
* Not available on all models
16 PILOT-31TG76000.book 197 ページ ２０１５年６月１５日　月曜日　午前１１時３０分

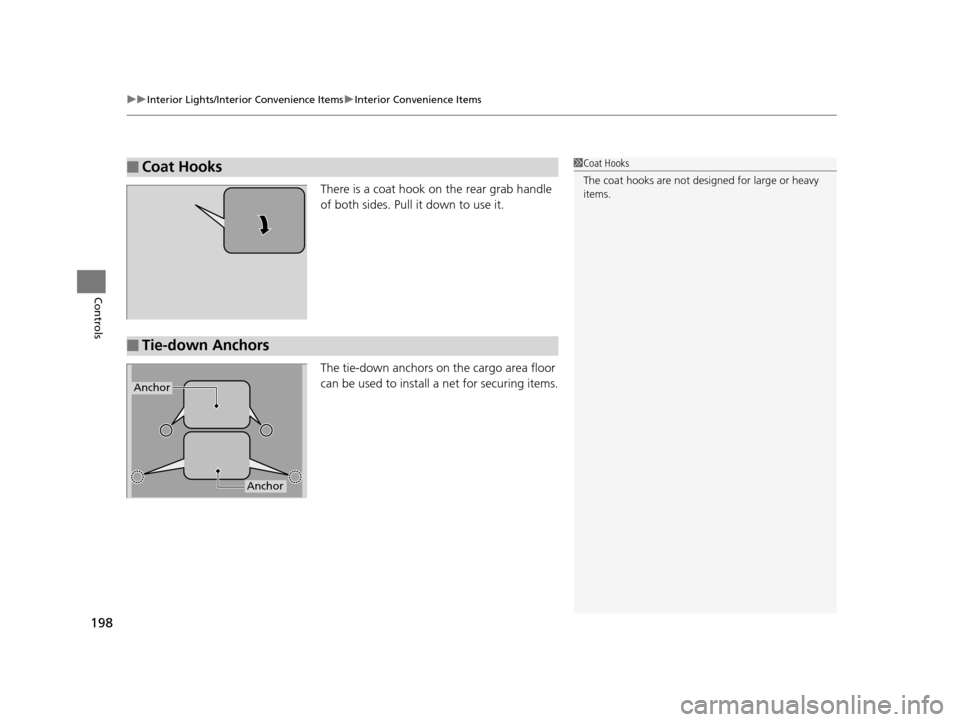

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
198
Controls
There is a coat hook on the rear grab handle
of both sides. Pull it down to use it.
The tie-down anchors on the cargo area floor
can be used to install a net for securing items.
■Coat Hooks1Coat Hooks
The coat hooks are not desi gned for large or heavy
items.
■Tie-down Anchors
Anchor
Anchor
16 PILOT-31TG76000.book 198 ページ ２０１５年６月１５日　月曜日　午前１１時３０分

Continued199
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

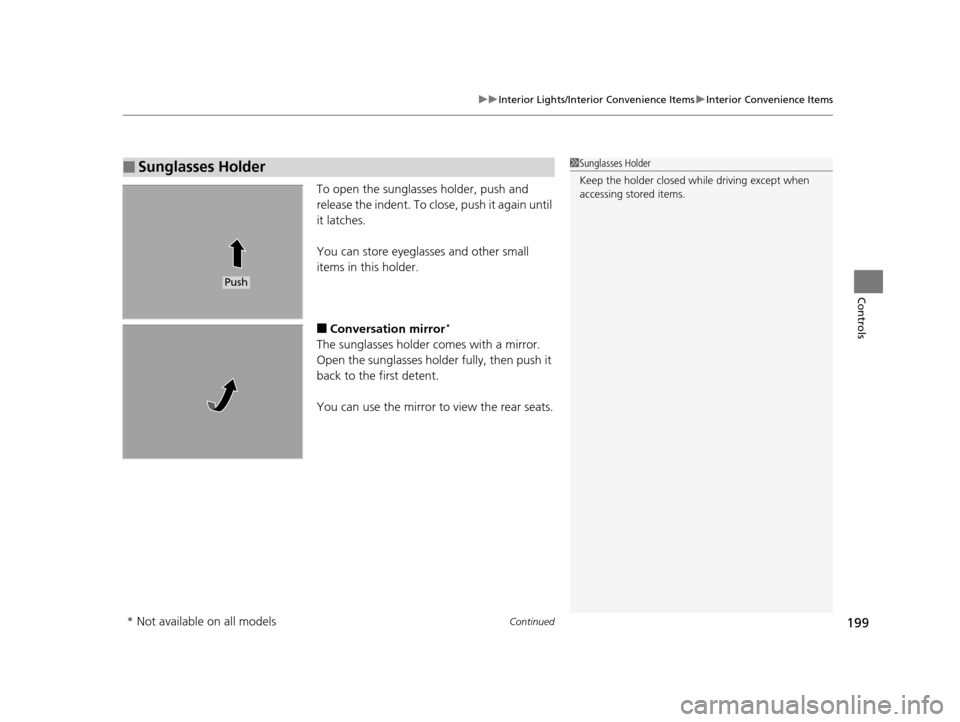

To open the sunglasses holder, push and
release the indent. To clos e, push it again until
it latches.
You can store eyeglasses and other small
items in this holder.
■Conversation mirror*
The sunglasses holder comes with a mirror.
Open the sunglasses holder fully, then push it
back to the first detent.
You can use the mirror to view the rear seats.
■Sunglasses Holder1 Sunglasses Holder
Keep the holder closed wh ile driving except when
accessing stored items.
Push
* Not available on all models
16 PILOT-31TG76000.book 199 ページ ２０１５年６月１５日　月曜日　午前１１時３０分
